Rubber Stamp Drawing Mind onto Matter Whats the
Rubber Stamp Drawing Mind onto Matter
What’s the trick to drawing?
The trick is, simplify to amplify.
Draw a door knob
Draw a door
Draw a bird
Draw a fountain
Draw the Sidney Opera House
Everyone can draw!
In fact you’ve done Rapid Viz
Different kinds of Drawing
Different kinds of Drawing Formal Design Communication
Different kinds of Drawing Rendering (elaborating form) Formal Design Communication
Different kinds of Drawing Rendering (elaborating form) Construction Drawing (design process) Formal Design Communication
Different kinds of Drawing Rendering Rapid Viz (elaborating form) (collaboration) Construction Drawing (design process) Formal Design Communication
Different kinds of Drawing ? Rendering Rapid Viz (elaborating form) (collaboration) Story Boards Construction Drawing (graphic communication) (design process) Formal Design Communication
Different kinds of Drawing Rendering Rapid Viz Classical Drawing (elaborating form) (collaboration) (expressive art) Story Boards Construction Drawing (graphic communication) (design process) Formal Design Communication
Different kinds of Drawing Rendering Rapid Viz Classical Drawing (elaborating form) (collaboration) (expressive art) Story Boards Construction Drawing (graphic communication) (design process) Formal Design Communication
4 1. Welcome area 4. Confirmation 2. What’s good 5. Transition bar 3. Connection 6. Retail Counter 5 3 6 1 2

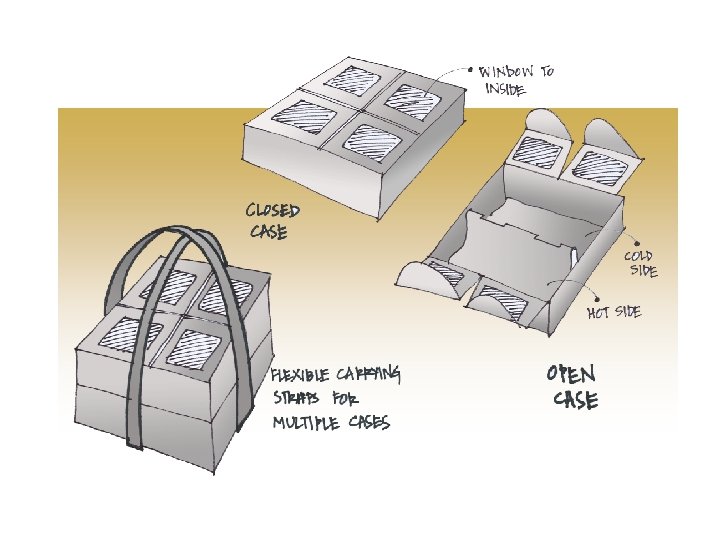

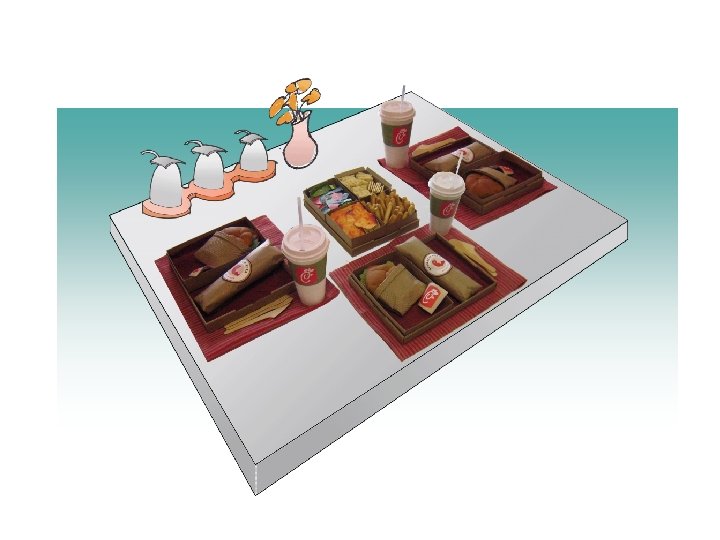

Designing specifically for situations—Dine-in and Take-out + + Dine-in: Bowlsket, Table-top condiments, cup with sleeve graphics + Take-out: Meal case - 1, cup with sleeve graphics
Demo Let’s draw The “Amazing Chair”
Demo Make an outline of your chair really fast. Don’t be an artist just draw it!
Demo Add a few colors.
Demo Add simple highlights and darken the shadow side.
Demo Cast a shadow on the ground and you’re good to go.
Demo The “Amazing Chair” • skdnva; oshaosndvkljsdnlvkjsndflk bnlnnlbnslnblnblsnlbnslbn • bnasdkvbnkldbvskdfbvksdbfvk • kbkvjsdfkljbksdfbnkjf • kjbfdvlksdbfklvbdfkvjbfdkjbvnkfdj bskfbnknfj
Demo The “Amazing Chair”
When is drawing most important?
When it supports collaboration…
…and enables creativity.
Warm up!

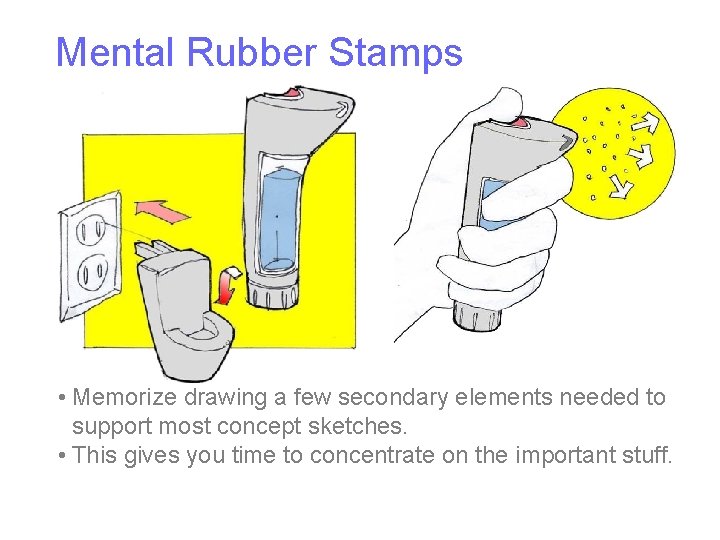

Mental Rubber Stamps • Memorize drawing a few secondary elements needed to support most concept sketches. • This gives you time to concentrate on the important stuff.
Mental Rubber Stamps • Paper and Books • AC plugs • Arrows • Basic Shapes • Trees • People • Faces • Hands • Environments
Paper and Books Folded Corners
Paper and Books Pages
Arrows Basic dimensions and directionality
Arrows Change and Force
Arrows Dimensional pathways
Basic Shapes
AC Plugs
Trees
Trees • The secret is in the squiggle
Drawing People • Real Simple People • Squiggle People
Drawing People • Silhouette People
Drawing People • Suggestive People
Drawing People • Suggestive People
Drawing People • Representative People
Drawing People • Proportion • Size • Attitude • Vignettes
Drawing People • Faces
Drawing People • Hands
Drawing People • Special Effects EMANATA
Drawing People • Special Effects PLEWDS
Drawing People • Special Effects SQUEANS
Drawing People • Special Effects BAD DAY
Drawing People • Special Effects GREAT IDEA
Drawing People • Special Effects BRIFFITS
Story Boards • Storyboards are graphic organizers such as a series of illustrations or images displayed in sequence for the purpose of visualizing a story or experience.
Story Boards • Krazy Kat by George Herriman, ran in US papers from 1913 to 1944.
Story Boards • During that time Krazy Kat did it all!
Story Boards • Single Moment Panel
Story Boards • Uniform Linear Time Panels
Story Boards • Free Form Linear Time Panels
Story Boards • Motion Panels
Story Boards • Multiple Perspective Panels
Let’s put it all together
Let’s put it all together Give me a Subject Give me a Verb Give me an Object
Let’s put it all together Give me a Subject Give me a Verb Give me an Object Now Story Board this sentence
Rubber Stamp Drawing Mind onto Matter
