RTL Systems References 1 Introduction to Digital System

RTL Systems References: 1. Introduction to Digital System by Milos Ercegovac, Tomas Lang, Jaime H. Moreno; wiley publisher 2. Digital Design Principles & Practices by J. F. Wakerly, Pearson Education Press, 2007

Introduction 1. DATA SUBSYSTEM (datapath) AND CONTROL SUBSYSTEM 2. THE STATE OF DATA SUBSYSTEM: – CONTENTS OF A SET OF REGISTERS 3. THE FUNCTION OF THE SYSTEM PERFORMED AS A SEQUENCE OF REGISTER TRANSFERS (in one or more clock cycles) 4. A REGISTER TRANSFER: – A TRANSFORMATION PERFORMED ON A DATA

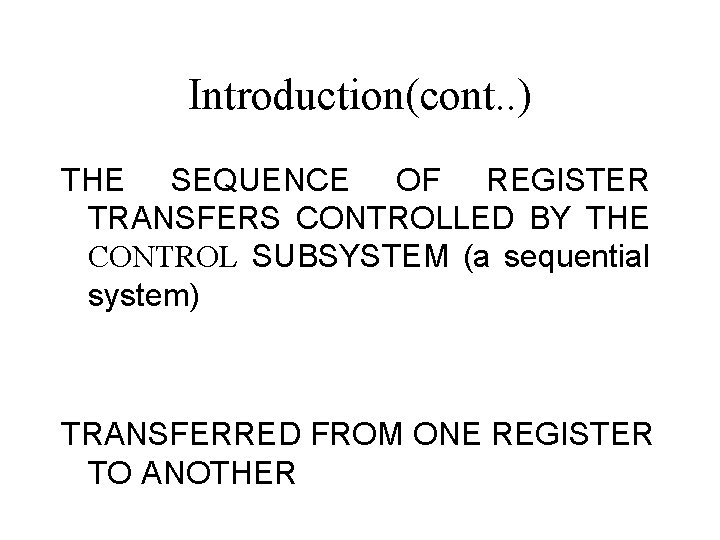

Introduction(cont. . ) THE SEQUENCE OF REGISTER TRANSFERS CONTROLLED BY THE CONTROL SUBSYSTEM (a sequential system) TRANSFERRED FROM ONE REGISTER TO ANOTHER

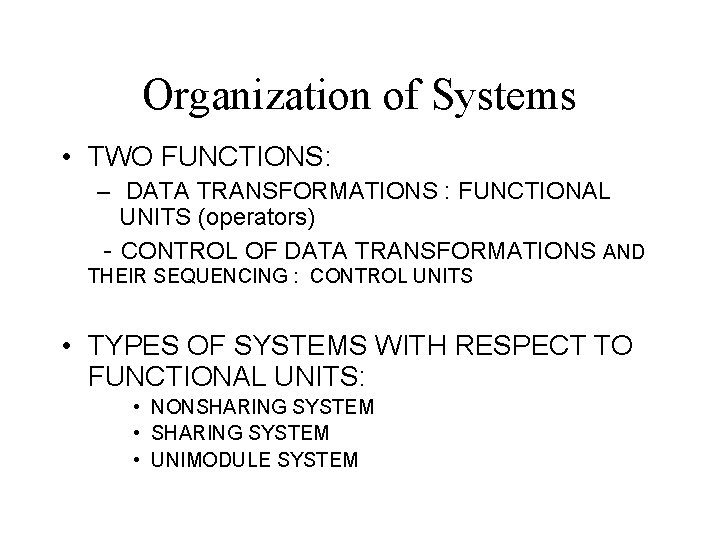

Organization of Systems • TWO FUNCTIONS: – DATA TRANSFORMATIONS : FUNCTIONAL UNITS (operators) - CONTROL OF DATA TRANSFORMATIONS AND THEIR SEQUENCING : CONTROL UNITS • TYPES OF SYSTEMS WITH RESPECT TO FUNCTIONAL UNITS: • NONSHARING SYSTEM • UNIMODULE SYSTEM

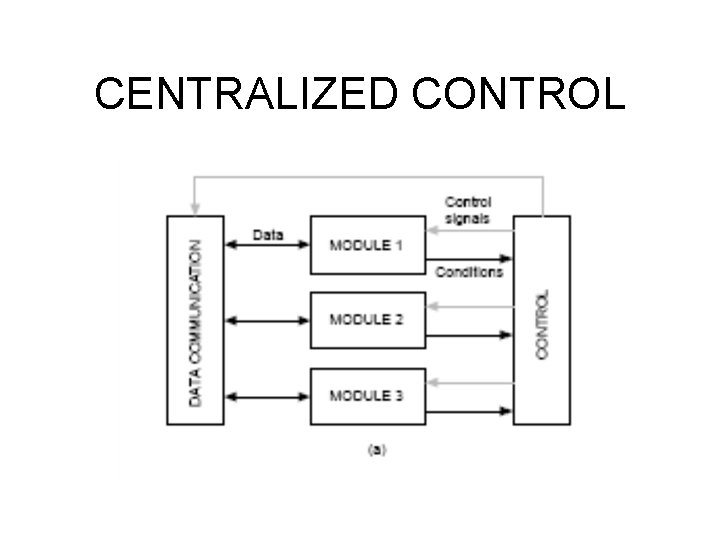

CENTRALIZED CONTROL

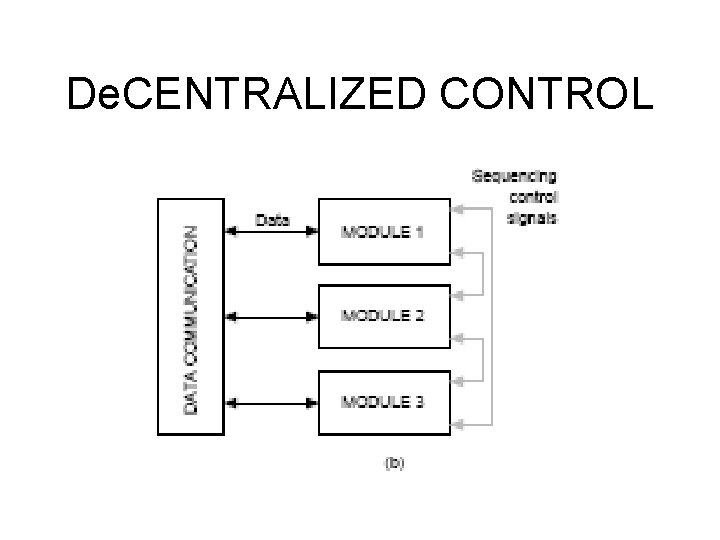

De. CENTRALIZED CONTROL

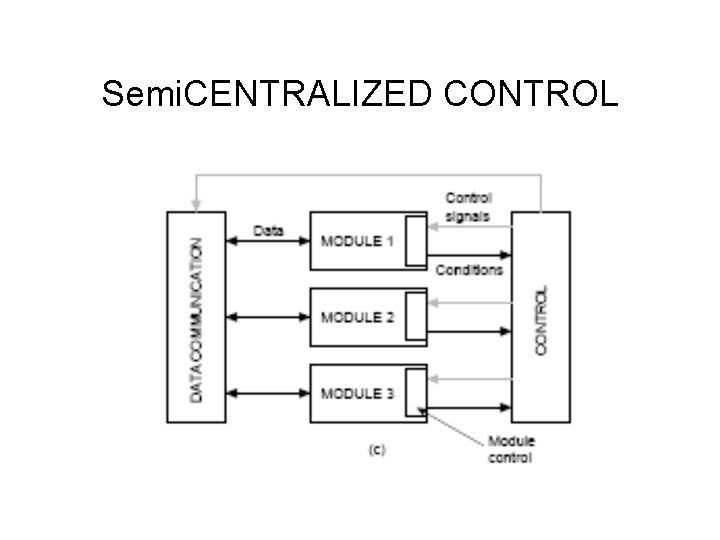

Semi. CENTRALIZED CONTROL

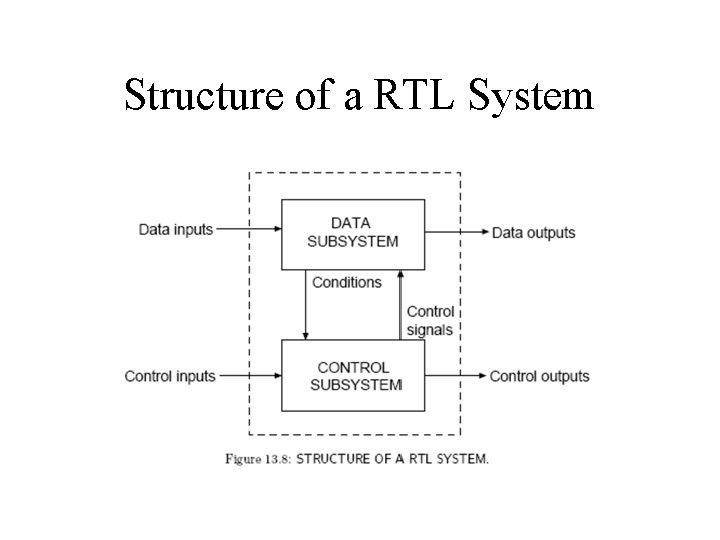

Structure of a RTL System

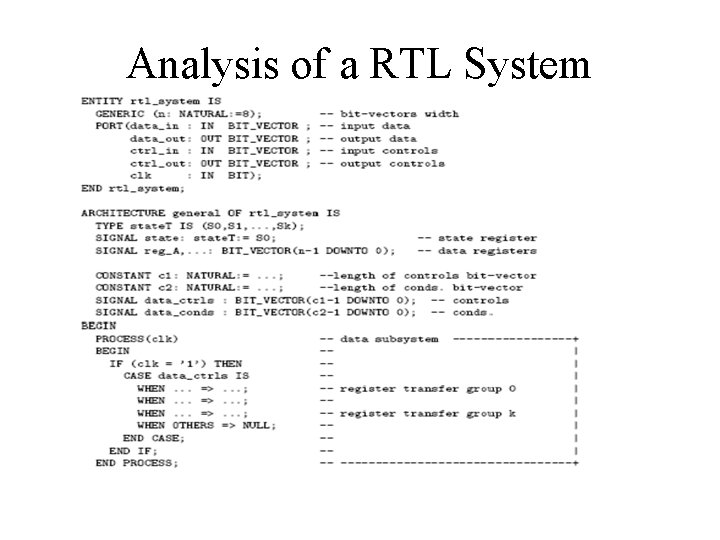

Analysis of a RTL System

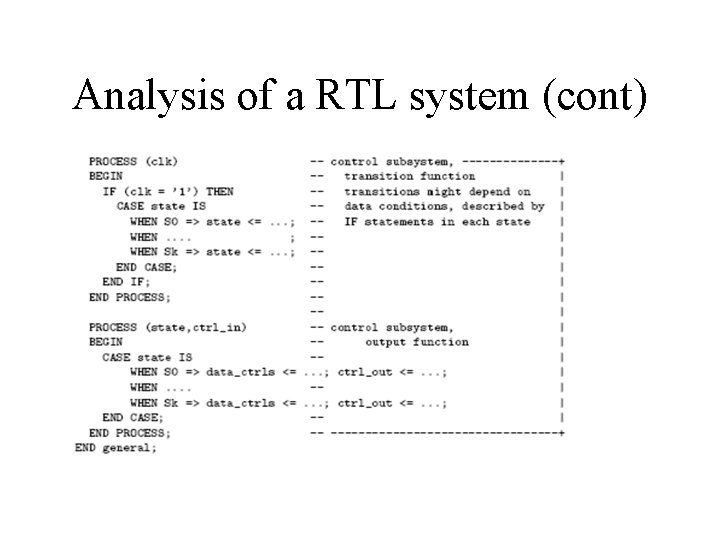

Analysis of a RTL system (cont)

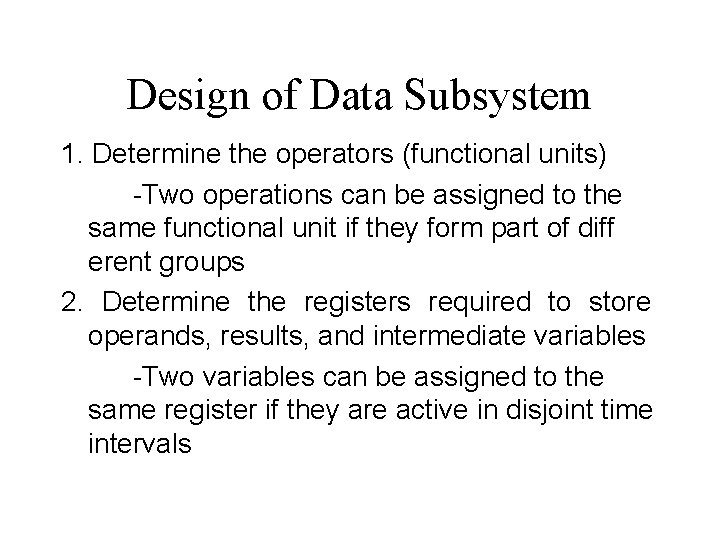

Design of Data Subsystem 1. Determine the operators (functional units) -Two operations can be assigned to the same functional unit if they form part of diff erent groups 2. Determine the registers required to store operands, results, and intermediate variables -Two variables can be assigned to the same register if they are active in disjoint time intervals

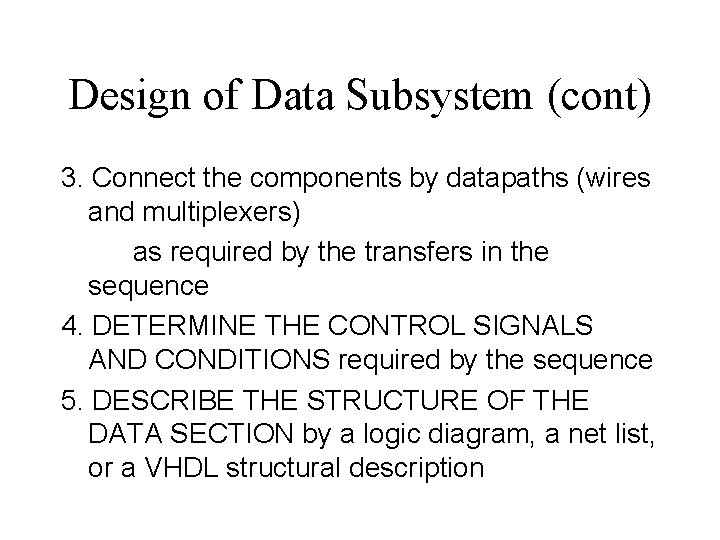

Design of Data Subsystem (cont) 3. Connect the components by datapaths (wires and multiplexers) as required by the transfers in the sequence 4. DETERMINE THE CONTROL SIGNALS AND CONDITIONS required by the sequence 5. DESCRIBE THE STRUCTURE OF THE DATA SECTION by a logic diagram, a net list, or a VHDL structural description

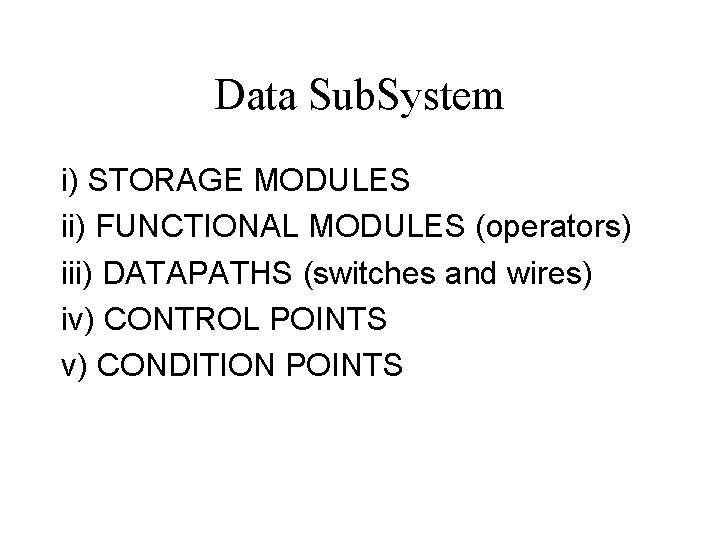

Data Sub. System i) STORAGE MODULES ii) FUNCTIONAL MODULES (operators) iii) DATAPATHS (switches and wires) iv) CONTROL POINTS v) CONDITION POINTS

Storage Modules • INDIVIDUAL REGISTERS, with separate connections and controls; • ARRAYS OF REGISTERS, sharing connections and controls; • REGISTER FILE • RANDOM-ACCESS MEMORY (RAM) • COMBINATION OF INDIVIDUAL REGISTERS AND ARRAYS OF REGISTERS.

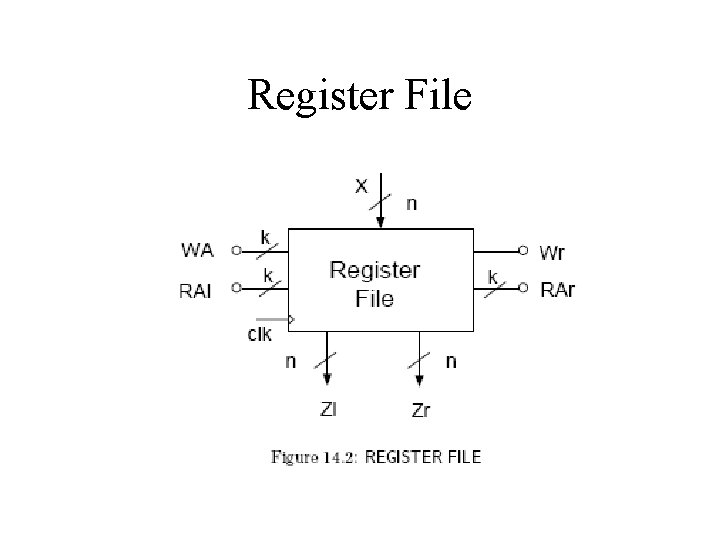

Register File

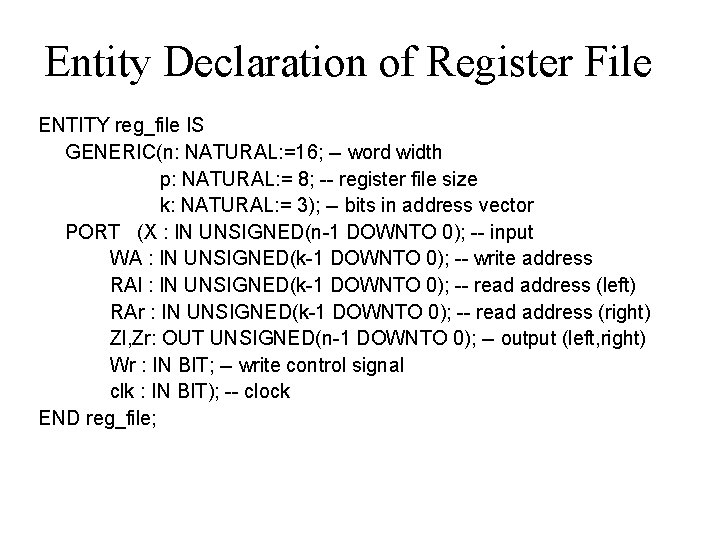

Entity Declaration of Register File ENTITY reg_file IS GENERIC(n: NATURAL: =16; -- word width p: NATURAL: = 8; -- register file size k: NATURAL: = 3); -- bits in address vector PORT (X : IN UNSIGNED(n-1 DOWNTO 0); -- input WA : IN UNSIGNED(k-1 DOWNTO 0); -- write address RAl : IN UNSIGNED(k-1 DOWNTO 0); -- read address (left) RAr : IN UNSIGNED(k-1 DOWNTO 0); -- read address (right) Zl, Zr: OUT UNSIGNED(n-1 DOWNTO 0); -- output (left, right) Wr : IN BIT; -- write control signal clk : IN BIT); -- clock END reg_file;

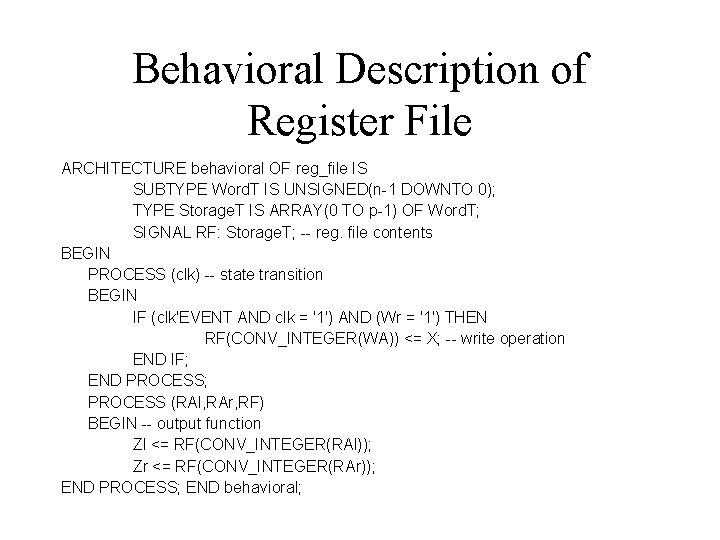

Behavioral Description of Register File ARCHITECTURE behavioral OF reg_file IS SUBTYPE Word. T IS UNSIGNED(n-1 DOWNTO 0); TYPE Storage. T IS ARRAY(0 TO p-1) OF Word. T; SIGNAL RF: Storage. T; -- reg. file contents BEGIN PROCESS (clk) -- state transition BEGIN IF (clk'EVENT AND clk = '1') AND (Wr = '1') THEN RF(CONV_INTEGER(WA)) <= X; -- write operation END IF; END PROCESS; PROCESS (RAl, RAr, RF) BEGIN -- output function Zl <= RF(CONV_INTEGER(RAl)); Zr <= RF(CONV_INTEGER(RAr)); END PROCESS; END behavioral;

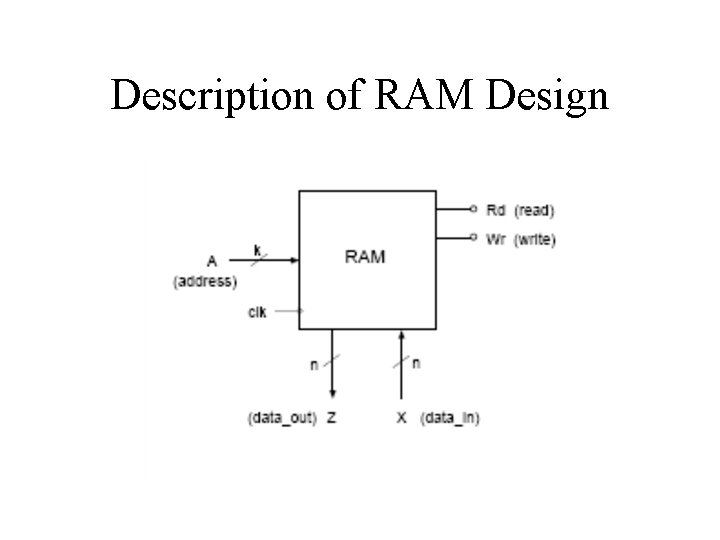

Description of RAM Design

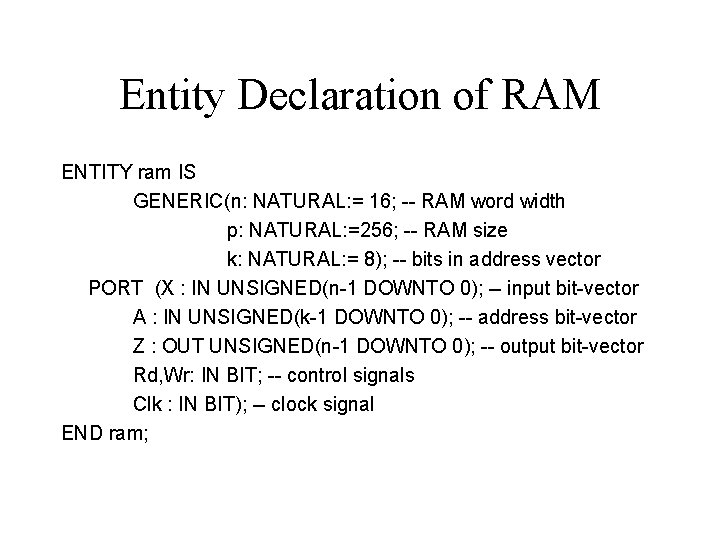

Entity Declaration of RAM ENTITY ram IS GENERIC(n: NATURAL: = 16; -- RAM word width p: NATURAL: =256; -- RAM size k: NATURAL: = 8); -- bits in address vector PORT (X : IN UNSIGNED(n-1 DOWNTO 0); -- input bit-vector A : IN UNSIGNED(k-1 DOWNTO 0); -- address bit-vector Z : OUT UNSIGNED(n-1 DOWNTO 0); -- output bit-vector Rd, Wr: IN BIT; -- control signals Clk : IN BIT); -- clock signal END ram;

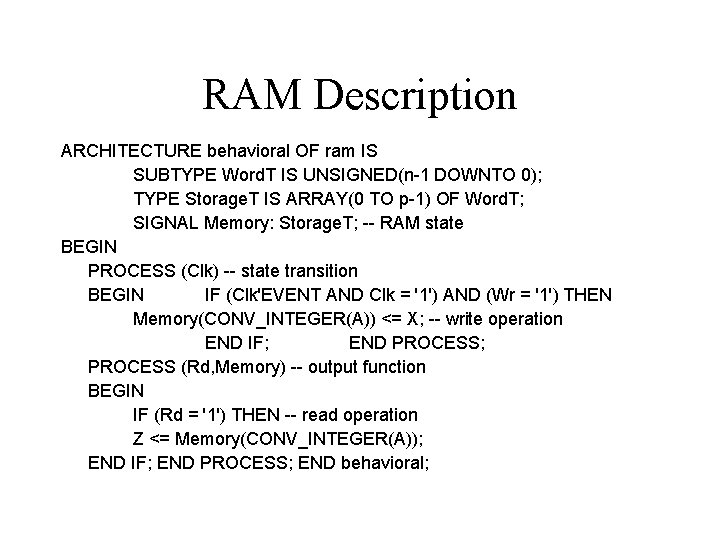

RAM Description ARCHITECTURE behavioral OF ram IS SUBTYPE Word. T IS UNSIGNED(n-1 DOWNTO 0); TYPE Storage. T IS ARRAY(0 TO p-1) OF Word. T; SIGNAL Memory: Storage. T; -- RAM state BEGIN PROCESS (Clk) -- state transition BEGIN IF (Clk'EVENT AND Clk = '1') AND (Wr = '1') THEN Memory(CONV_INTEGER(A)) <= X; -- write operation END IF; END PROCESS; PROCESS (Rd, Memory) -- output function BEGIN IF (Rd = '1') THEN -- read operation Z <= Memory(CONV_INTEGER(A)); END IF; END PROCESS; END behavioral;

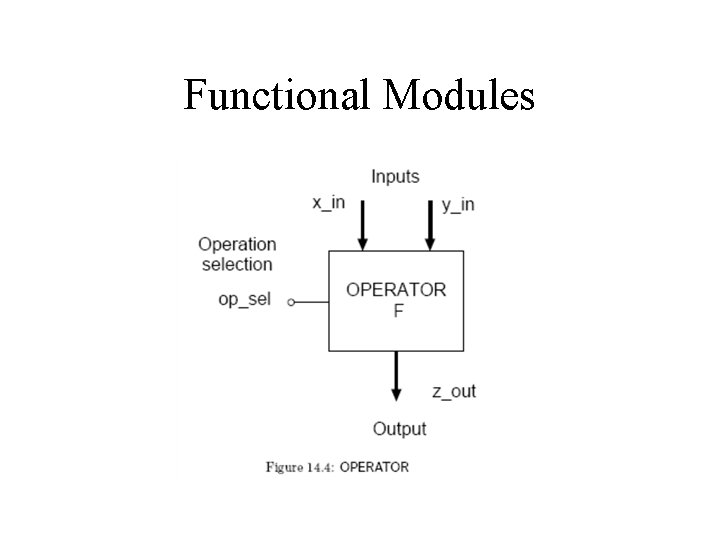

Functional Modules

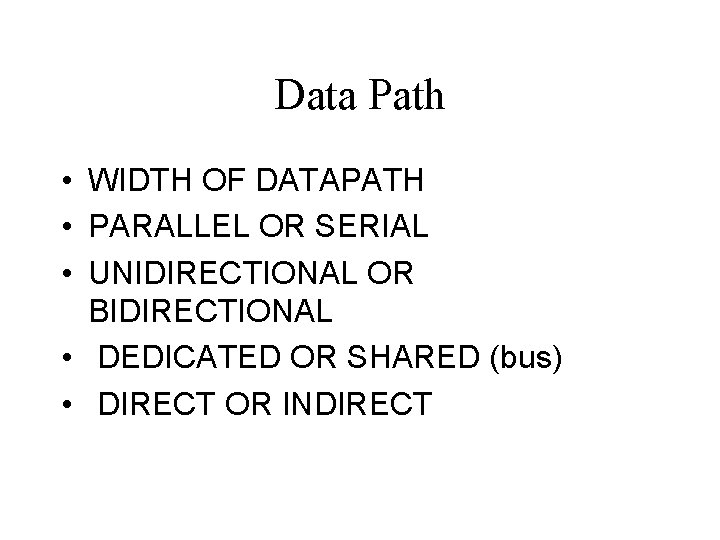

Data Path • WIDTH OF DATAPATH • PARALLEL OR SERIAL • UNIDIRECTIONAL OR BIDIRECTIONAL • DEDICATED OR SHARED (bus) • DIRECT OR INDIRECT

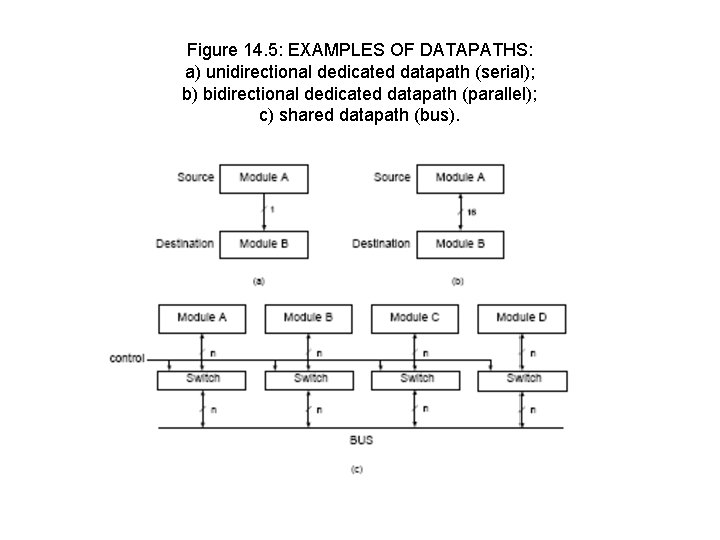

Figure 14. 5: EXAMPLES OF DATAPATHS: a) unidirectional dedicated datapath (serial); b) bidirectional dedicated datapath (parallel); c) shared datapath (bus).

Generalized behavioral Description

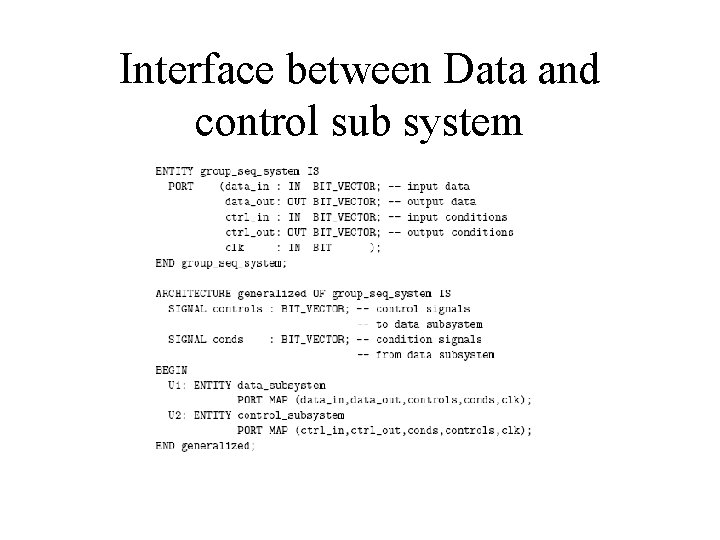

Interface between Data and control sub system

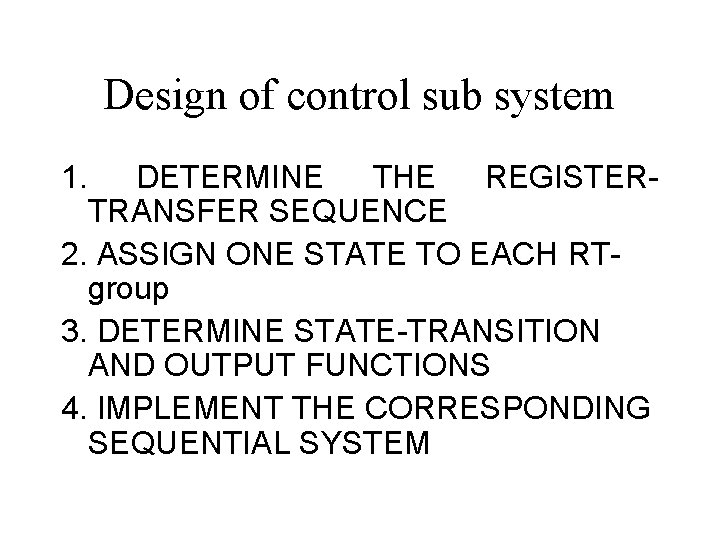

Design of control sub system 1. DETERMINE THE REGISTERTRANSFER SEQUENCE 2. ASSIGN ONE STATE TO EACH RTgroup 3. DETERMINE STATE-TRANSITION AND OUTPUT FUNCTIONS 4. IMPLEMENT THE CORRESPONDING SEQUENTIAL SYSTEM

CONTROL SUBSYSTEM • INPUTS: control inputs to the system and conditions from the data subsystem • OUTPUTS: control signals • ONE STATE PER STATEMENT IN REGISTER-TRANSFER SEQUENCE • TRANSITION FUNCTION CORRESPONDS TO SEQUENCING • OUTPUT FOR EACH STATE CORRESPONDS TO • CONTROL SIGNALS

State Assignment • UNCONDITIONAL: only one successor to a state • CONDITIONAL: several possible successors , depending on the value of a condition

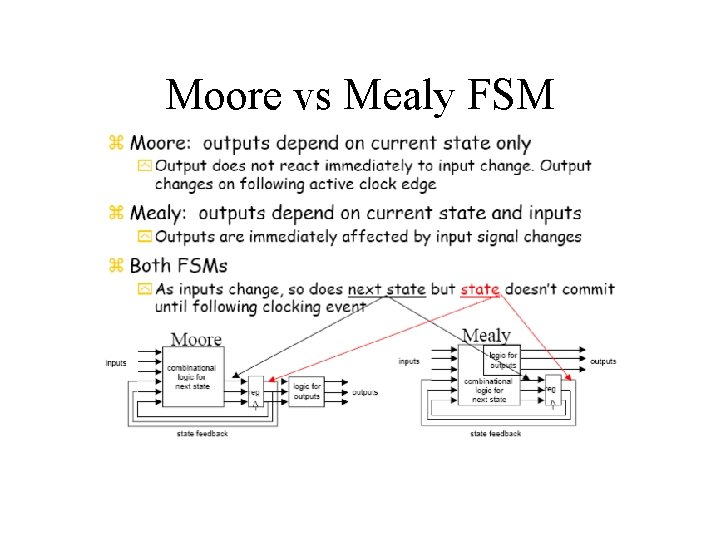

Moore vs Mealy FSM

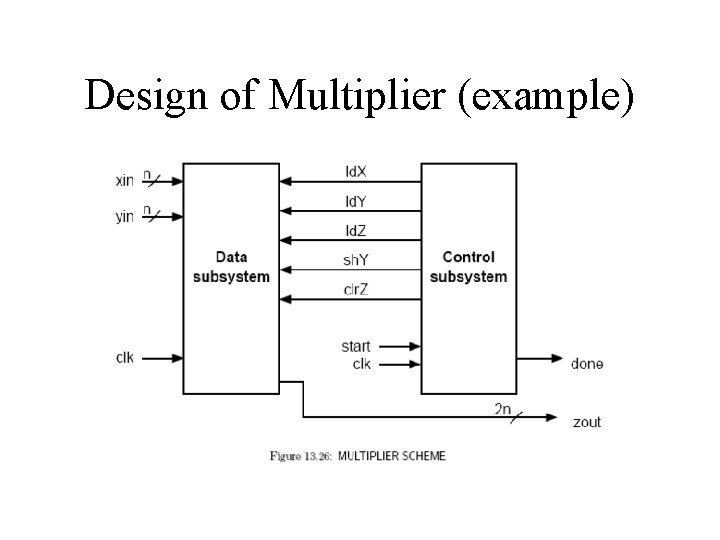

Design of Multiplier (example)

Entity Declaration of Multiplier

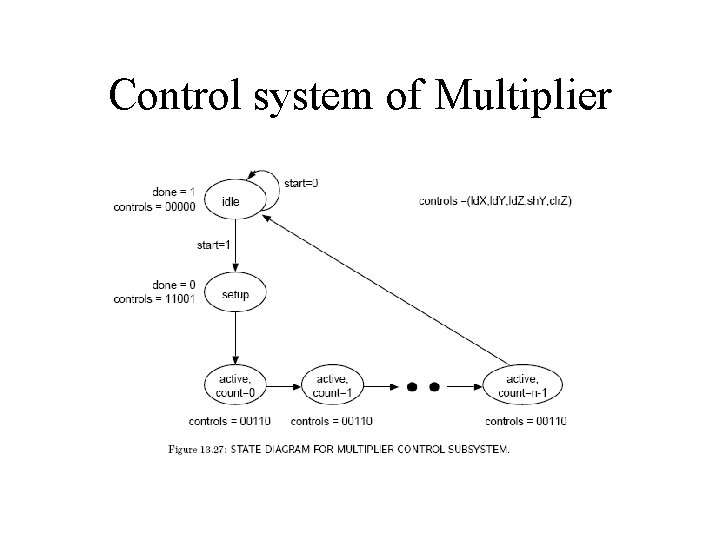

Control system of Multiplier

Control Sub-system (description) ENTITY multctrl IS GENERIC(n: NATURAL : = 16); -- number of bits PORT (start : IN BIT; -- control input ld. X, ld. Y, ld. Z: OUT BIT; -- control signals sh. Y, clr. Z : OUT BIT; -- control signals done : OUT BIT; -- control output clk : IN BIT); END multctrl;

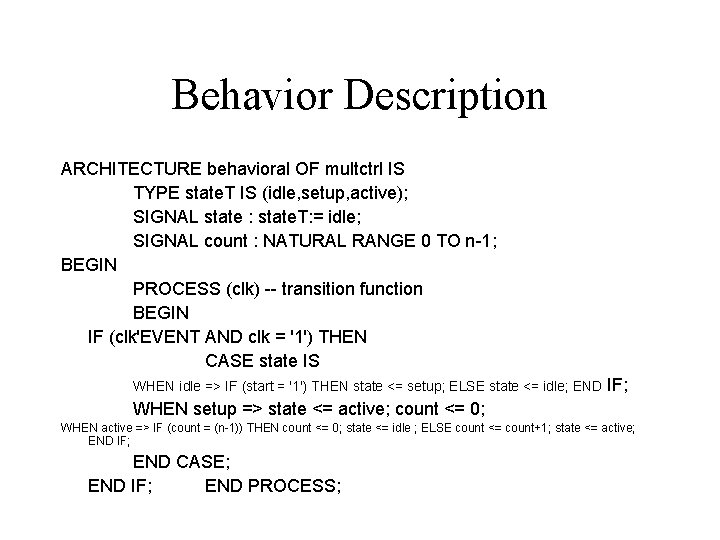

Behavior Description ARCHITECTURE behavioral OF multctrl IS TYPE state. T IS (idle, setup, active); SIGNAL state : state. T: = idle; SIGNAL count : NATURAL RANGE 0 TO n-1; BEGIN PROCESS (clk) -- transition function BEGIN IF (clk'EVENT AND clk = '1') THEN CASE state IS WHEN idle => IF (start = '1') THEN state <= setup; ELSE state <= idle; END IF; WHEN setup => state <= active; count <= 0; WHEN active => IF (count = (n-1)) THEN count <= 0; state <= idle ; ELSE count <= count+1; state <= active; END IF; END CASE; END IF; END PROCESS;

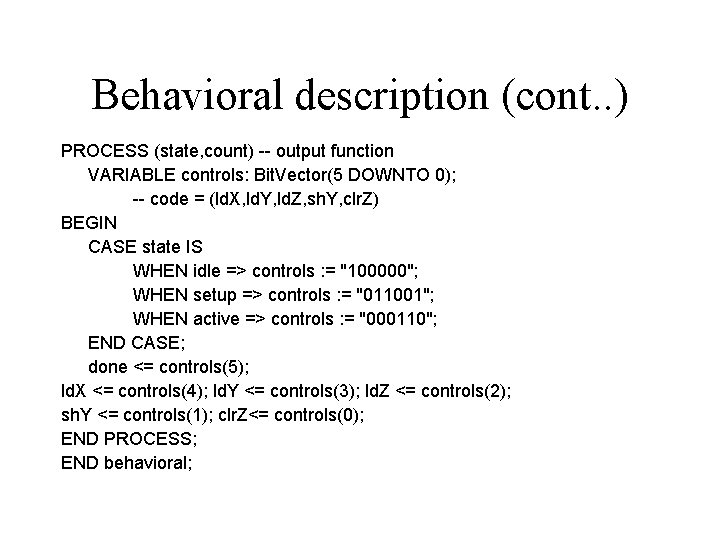

Behavioral description (cont. . ) PROCESS (state, count) -- output function VARIABLE controls: Bit. Vector(5 DOWNTO 0); -- code = (ld. X, ld. Y, ld. Z, sh. Y, clr. Z) BEGIN CASE state IS WHEN idle => controls : = "100000"; WHEN setup => controls : = "011001"; WHEN active => controls : = "000110"; END CASE; done <= controls(5); ld. X <= controls(4); ld. Y <= controls(3); ld. Z <= controls(2); sh. Y <= controls(1); clr. Z<= controls(0); END PROCESS; END behavioral;
