RTL for MIPS instructions Fall 2005 -2006

RTL for MIPS instructions Fall 2005 -2006

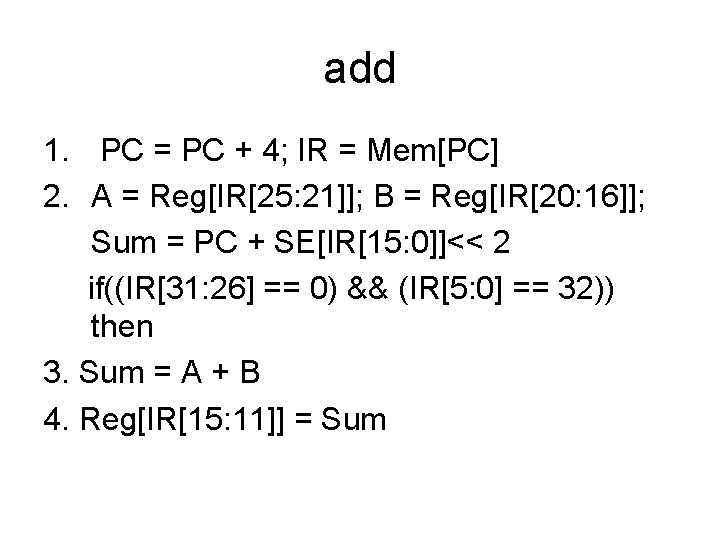

add 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

add 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]]; Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 0) && (IR[5: 0] == 32)) then 3. Sum = A + B 4. Reg[IR[15: 11]] = Sum

lw 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

lw 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]]; Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 35) then 3. Sum = A + SE[IR[15: 0]] 4. MDR = Mem[Sum] 5. Reg[IR[20: 16]] = MDR

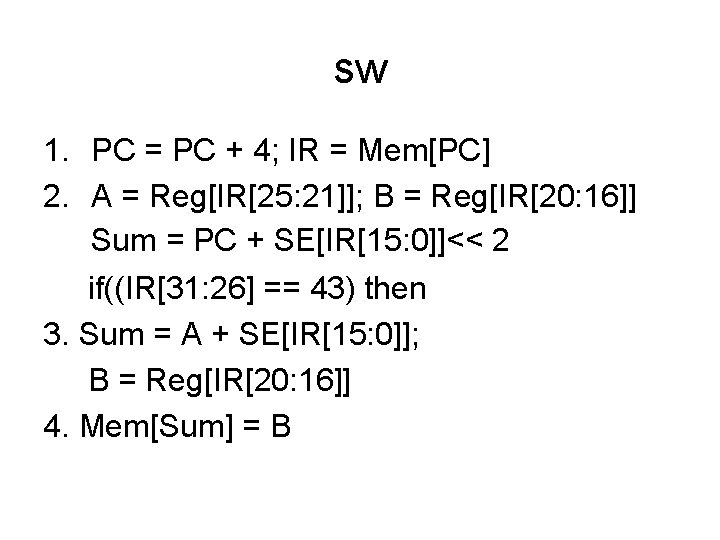

sw 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

sw 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]] Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 43) then 3. Sum = A + SE[IR[15: 0]]; B = Reg[IR[20: 16]] 4. Mem[Sum] = B

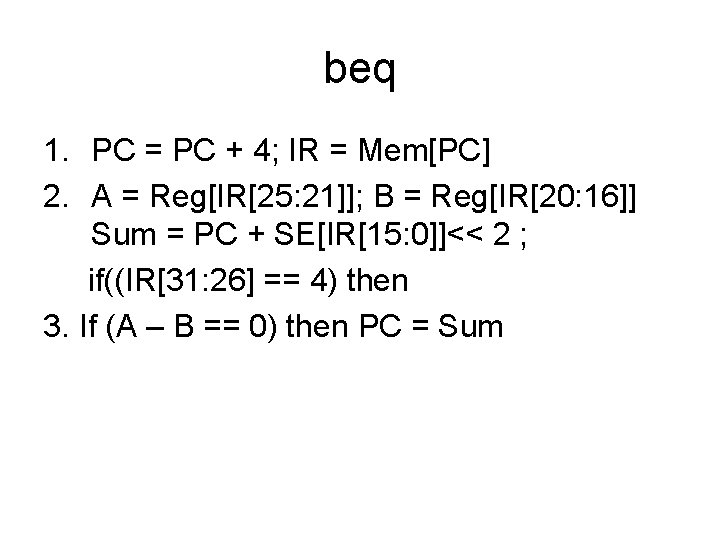

beq 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

beq 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]] Sum = PC + SE[IR[15: 0]]<< 2 ; if((IR[31: 26] == 4) then 3. If (A – B == 0) then PC = Sum

j 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

j 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]]; Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 2) then 3. PC = PC[31: 28] || IR[25: 0] || 00

jal 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

jal 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]]; Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 3) then 3. PC = PC[31: 28] || IR[25: 0] || 00 Reg[31] = PC

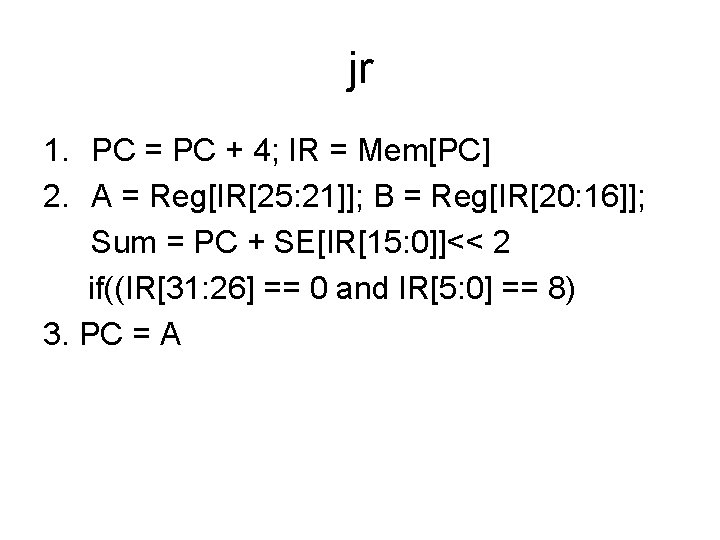

jr 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25:

jr 1. PC = PC + 4; IR = Mem[PC] 2. A = Reg[IR[25: 21]]; B = Reg[IR[20: 16]]; Sum = PC + SE[IR[15: 0]]<< 2 if((IR[31: 26] == 0 and IR[5: 0] == 8) 3. PC = A

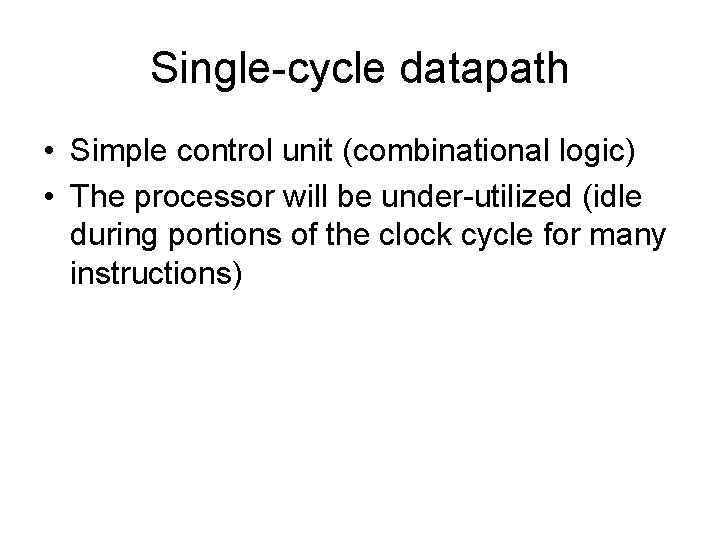

Single-cycle datapath • Simple control unit (combinational logic) • The processor will be under-utilized

Single-cycle datapath • Simple control unit (combinational logic) • The processor will be under-utilized (idle during portions of the clock cycle for many instructions)

add PC = PC + 4 If ( (Mem[PC])[31: 26] == 0 && (Mem[PC])[5:

add PC = PC + 4 If ( (Mem[PC])[31: 26] == 0 && (Mem[PC])[5: 0]) == 32) then Reg[ (Mem[PC])[15: 11]] = Reg[(Mem[PC])[25: 21]] + Reg[(Mem[PC])[20: 16]]

lw PC = PC + 4 If ( (Mem[PC])[31: 26] == 35) then Reg[

lw PC = PC + 4 If ( (Mem[PC])[31: 26] == 35) then Reg[ (Mem[PC])[20: 16]] = Mem [ Reg [ (Mem[PC])[25: 21] + SE[(Mem)[PC][15: 0] ]

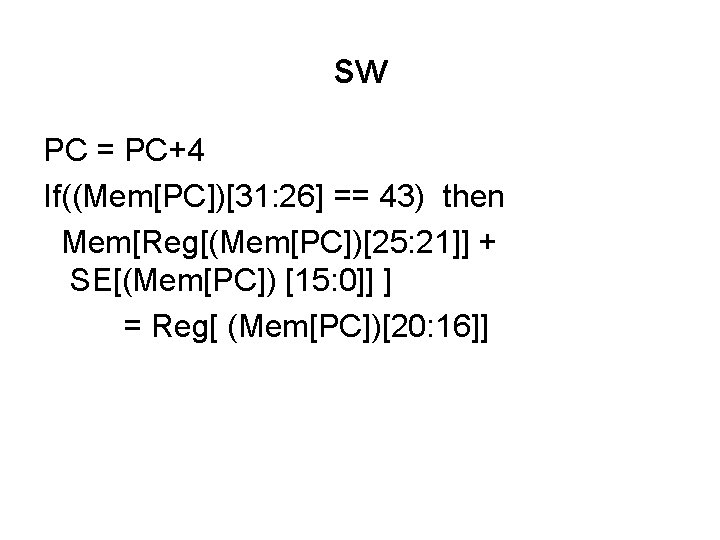

sw PC = PC+4 If((Mem[PC])[31: 26] == 43) then Mem[Reg[(Mem[PC])[25: 21]] + SE[(Mem[PC]) [15:

sw PC = PC+4 If((Mem[PC])[31: 26] == 43) then Mem[Reg[(Mem[PC])[25: 21]] + SE[(Mem[PC]) [15: 0]] ] = Reg[ (Mem[PC])[20: 16]]

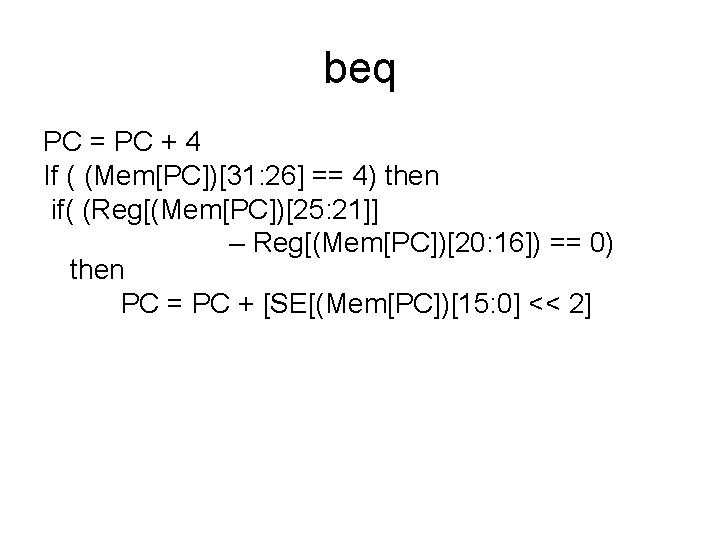

beq PC = PC + 4 If ( (Mem[PC])[31: 26] == 4) then if(

beq PC = PC + 4 If ( (Mem[PC])[31: 26] == 4) then if( (Reg[(Mem[PC])[25: 21]] – Reg[(Mem[PC])[20: 16]) == 0) then PC = PC + [SE[(Mem[PC])[15: 0] << 2]

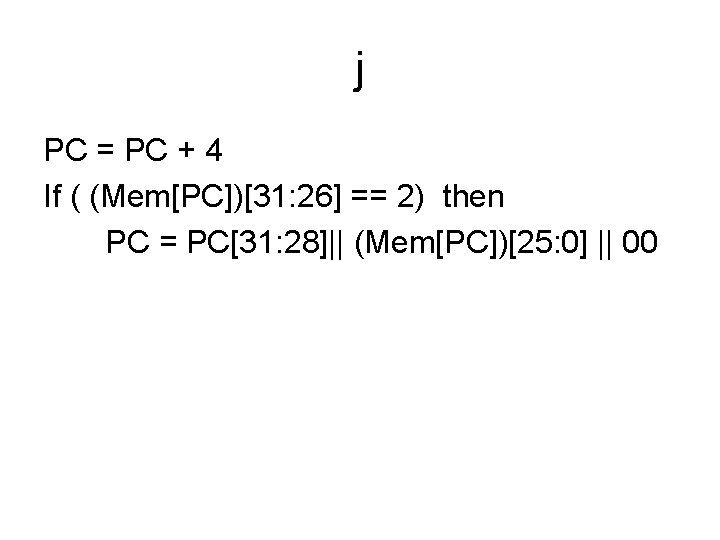

j PC = PC + 4 If ( (Mem[PC])[31: 26] == 2) then PC

j PC = PC + 4 If ( (Mem[PC])[31: 26] == 2) then PC = PC[31: 28]|| (Mem[PC])[25: 0] || 00

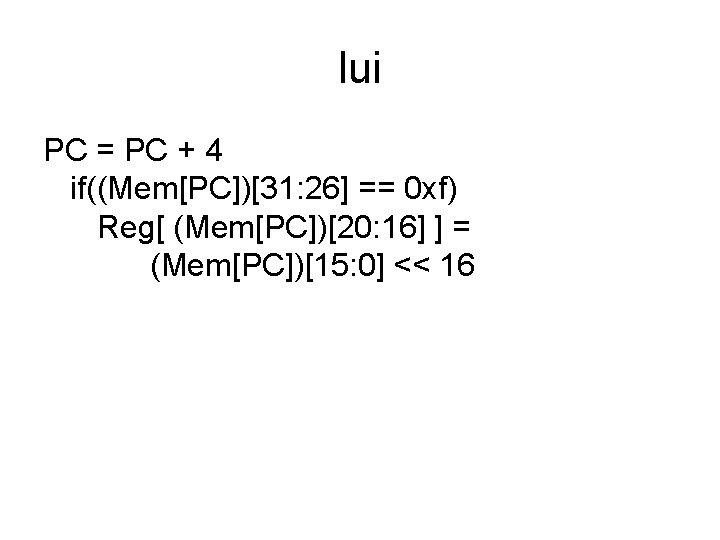

lui PC = PC + 4 if((Mem[PC])[31: 26] == 0 xf) Reg[ (Mem[PC])[20: 16]

lui PC = PC + 4 if((Mem[PC])[31: 26] == 0 xf) Reg[ (Mem[PC])[20: 16] ] = (Mem[PC])[15: 0] << 16

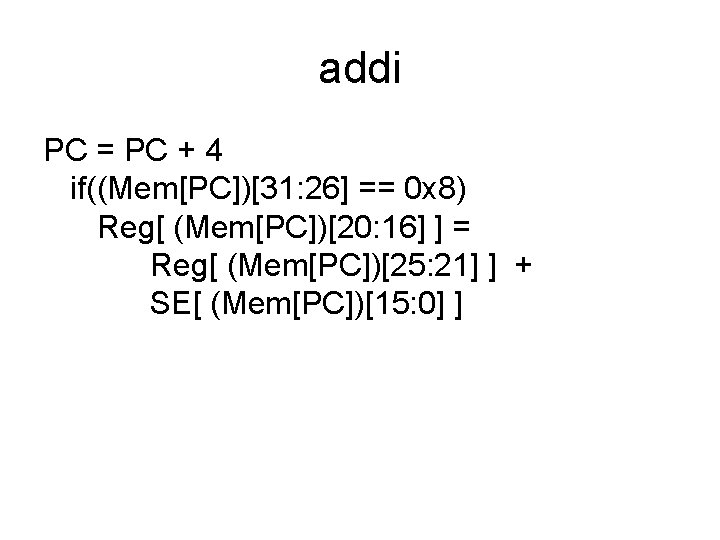

addi PC = PC + 4 if((Mem[PC])[31: 26] == 0 x 8) Reg[ (Mem[PC])[20:

addi PC = PC + 4 if((Mem[PC])[31: 26] == 0 x 8) Reg[ (Mem[PC])[20: 16] ] = Reg[ (Mem[PC])[25: 21] ] + SE[ (Mem[PC])[15: 0] ]
