RTCA DO178 C Software Considerations in Airborne Systems

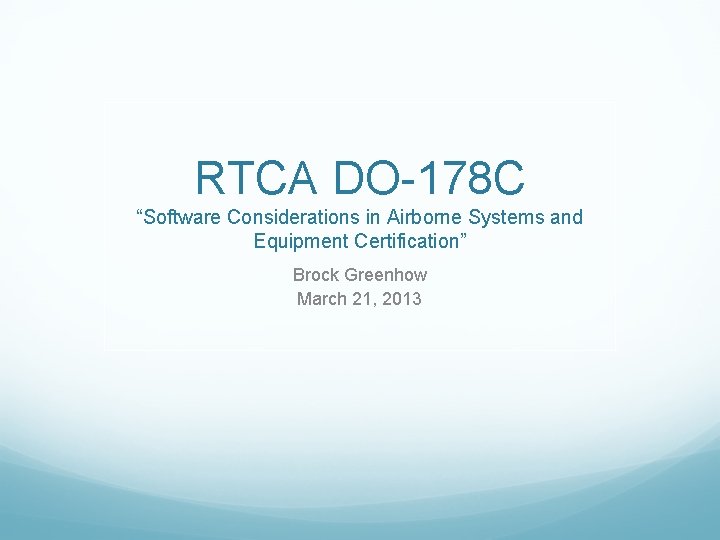

RTCA DO-178 C “Software Considerations in Airborne Systems and Equipment Certification” Brock Greenhow March 21, 2013

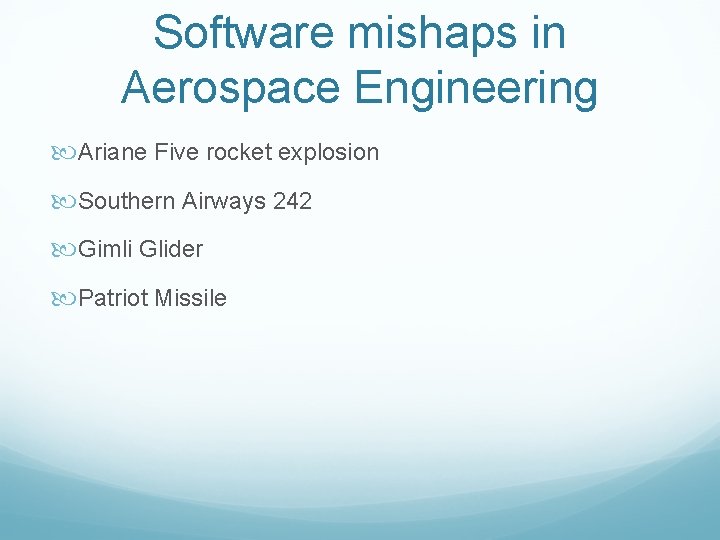

Software mishaps in Aerospace Engineering Ariane Five rocket explosion Southern Airways 242 Gimli Glider Patriot Missile

Future of Safety Critical Software Increased lines of code Increased complexity Increased criticality Technology changes More with less Increased outsourcing and offshoring Attrition of experienced engineers Lack of available training

Background of DO-178 1982 – DO-178 1985 – DO-178 A 1992 – DO-178 B 2001 – DO-248 B 2011 – DO-178 C and supplemental material 2011 – DO-248 C

Differences from DO-178 B to C Added examples and explanations Used clearer language and terminology Added more objectives Bi-directional tracing Parameter Data Item Files Technology Supplements

ARP 4754 A System Development System Requirements Allocate requirements to software Validate requirements Communication Plan for changes to come from software

ARP 4761 Aircraft and System Safety Program Plan FHA and SFHA’s PASA and PSSA’s Software Safety Improves with time Errors are not as obvious Need specific requirements Involve safety and systems in software requirement reviews

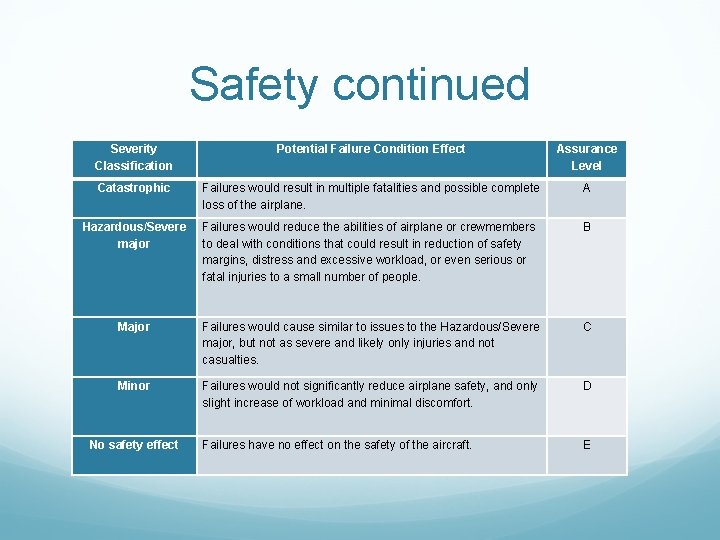

Safety continued Severity Classification Potential Failure Condition Effect Assurance Level Catastrophic Failures would result in multiple fatalities and possible complete loss of the airplane. A Hazardous/Severe major Failures would reduce the abilities of airplane or crewmembers to deal with conditions that could result in reduction of safety margins, distress and excessive workload, or even serious or fatal injuries to a small number of people. B Major Failures would cause similar to issues to the Hazardous/Severe major, but not as severe and likely only injuries and not casualties. C Minor Failures would not significantly reduce airplane safety, and only slight increase of workload and minimal discomfort. D Failures have no effect on the safety of the aircraft. E No safety effect

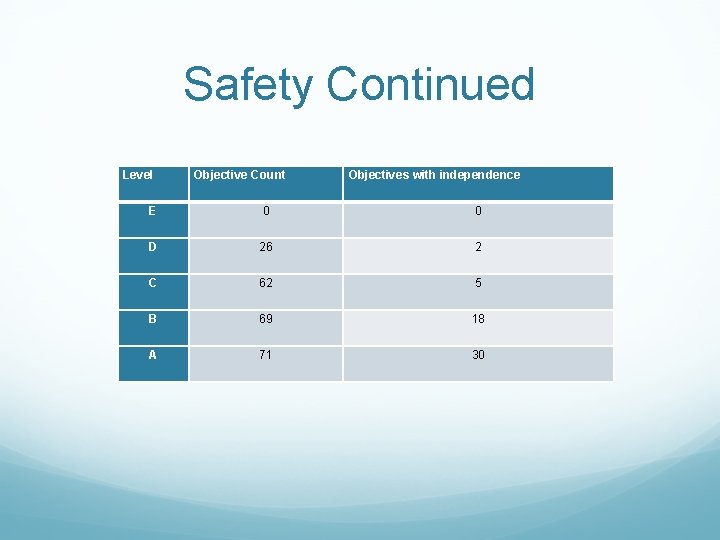

Safety Continued Level Objective Count Objectives with independence E 0 0 D 26 2 C 62 5 B 69 18 A 71 30

Overview of DO-178 C Software Planning Software Requirements Software Design Software Integration Software Verification Software Configuration Management Software Quality Assurance Software Certification

Software Planning Five Plans PSAC SDP SVP SCMP SQAP Three Standards Software Requirement Standards Software Design Standards Software Coding Standards

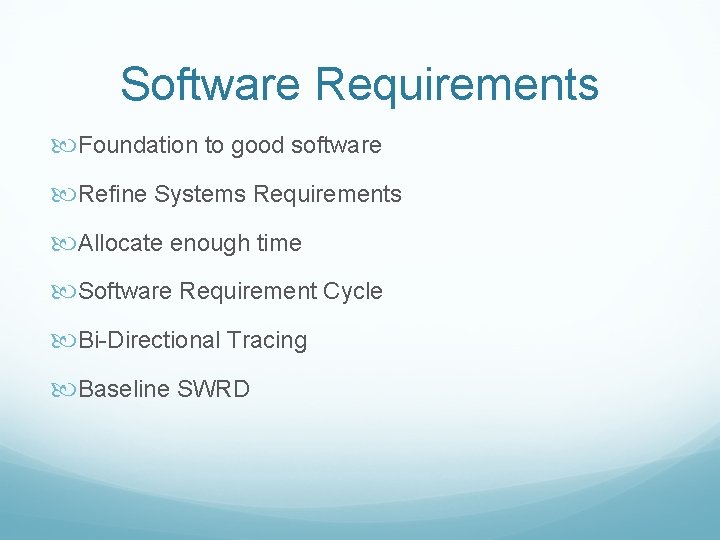

Software Requirements Foundation to good software Refine Systems Requirements Allocate enough time Software Requirement Cycle Bi-Directional Tracing Baseline SWRD

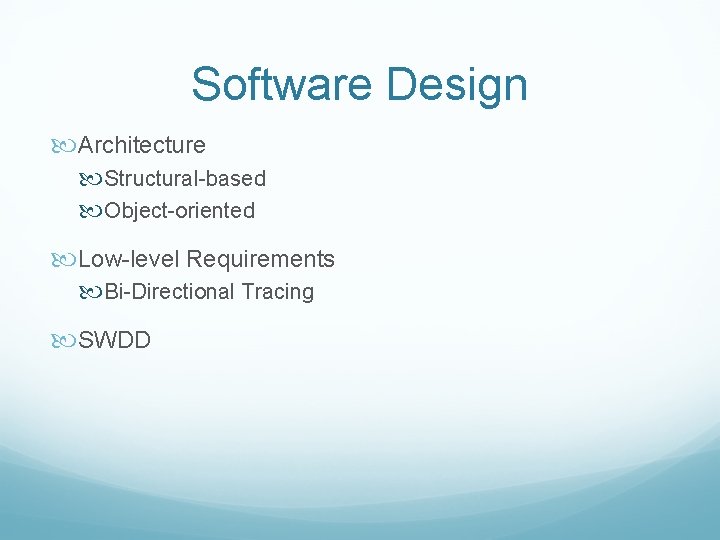

Software Design Architecture Structural-based Object-oriented Low-level Requirements Bi-Directional Tracing SWDD

Software Implementation Coding Languages and compilers Good programming Standards Traceability Integration Build process Load process Analyze memory and addresses

Software Verification Reviews Plans, requirements, design, test data Analyses Code and integration Coverage Other Tests RBTs, integration Cases, procedures, results Tracing

Software Verification Continued Verification of Verification SCA, MC/DC Test data reviews Problem Reporting Failures become PR or CR process CIA SVCP

Software Configuration Management Beginning to End All life cycle data CC 1 or CC 2 SCI Life cycle data and versions SLECI and Problem Reporting

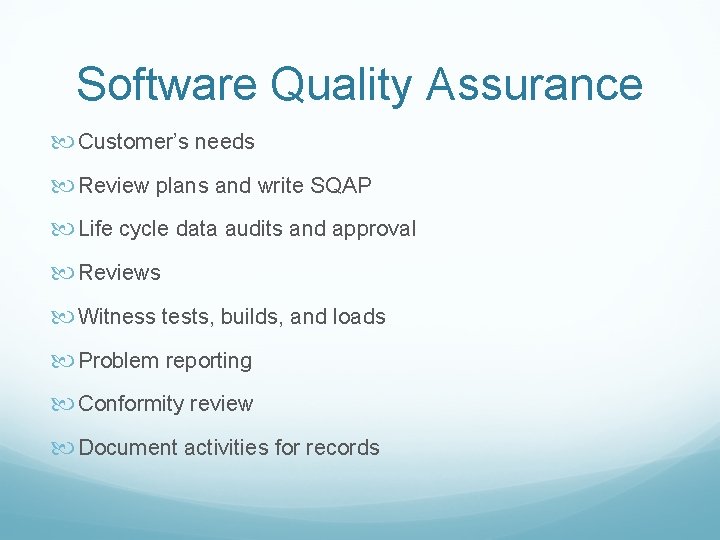

Software Quality Assurance Customer’s needs Review plans and write SQAP Life cycle data audits and approval Reviews Witness tests, builds, and loads Problem reporting Conformity review Document activities for records

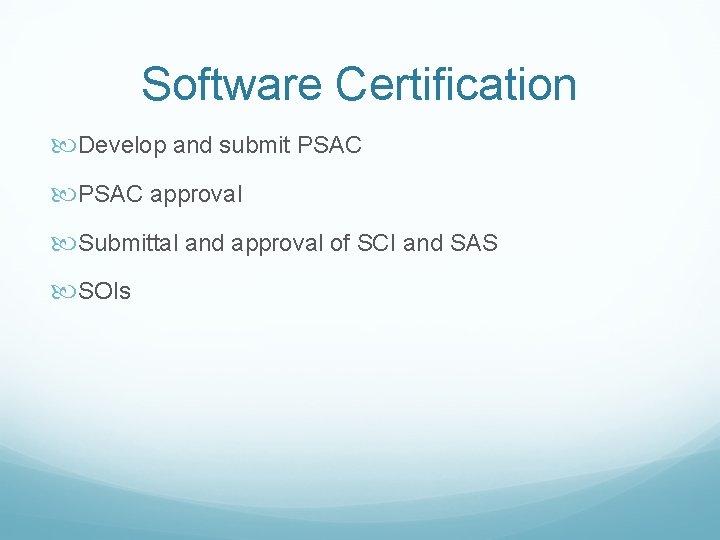

Software Certification Develop and submit PSAC approval Submittal and approval of SCI and SAS SOIs

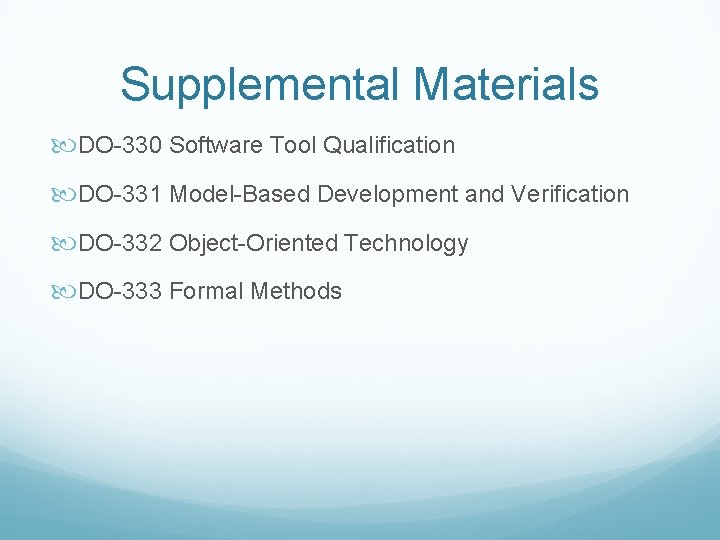

Supplemental Materials DO-330 Software Tool Qualification DO-331 Model-Based Development and Verification DO-332 Object-Oriented Technology DO-333 Formal Methods

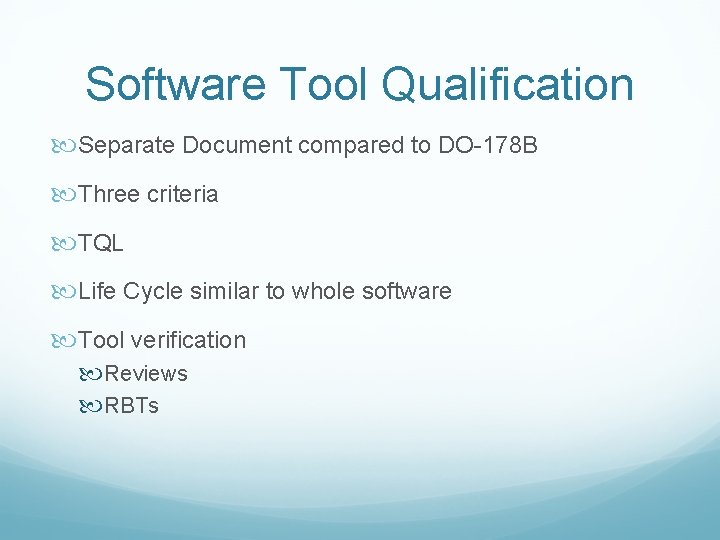

Software Tool Qualification Separate Document compared to DO-178 B Three criteria TQL Life Cycle similar to whole software Tool verification Reviews RBTs

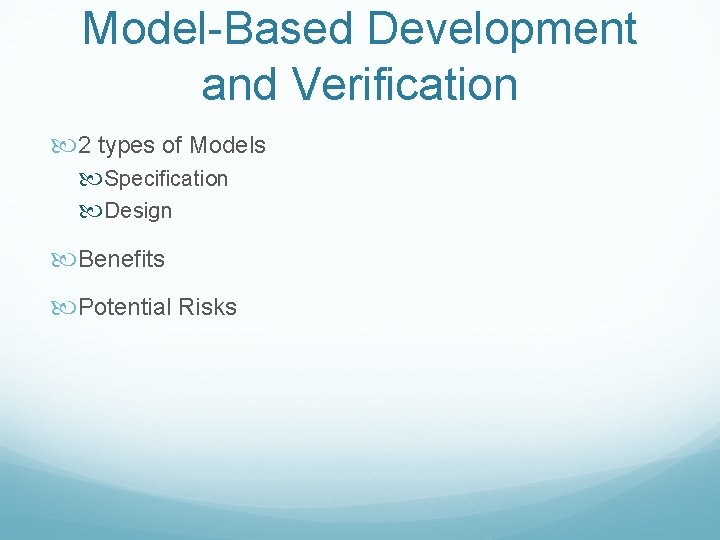

Model-Based Development and Verification 2 types of Models Specification Design Benefits Potential Risks

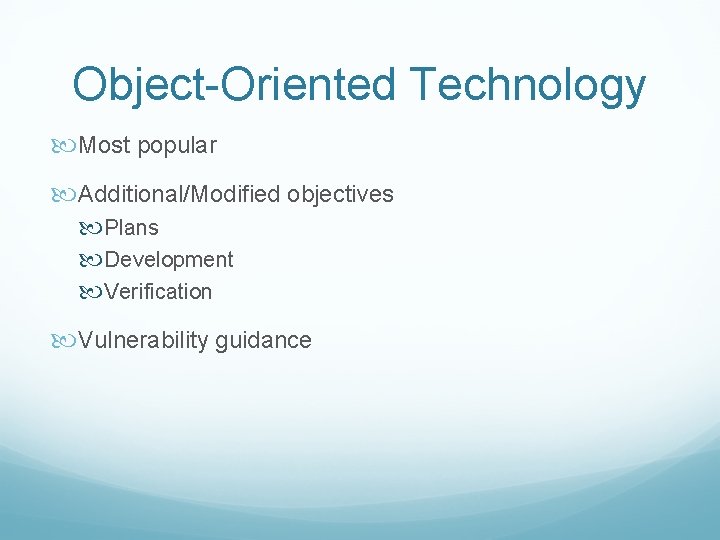

Object-Oriented Technology Most popular Additional/Modified objectives Plans Development Verification Vulnerability guidance

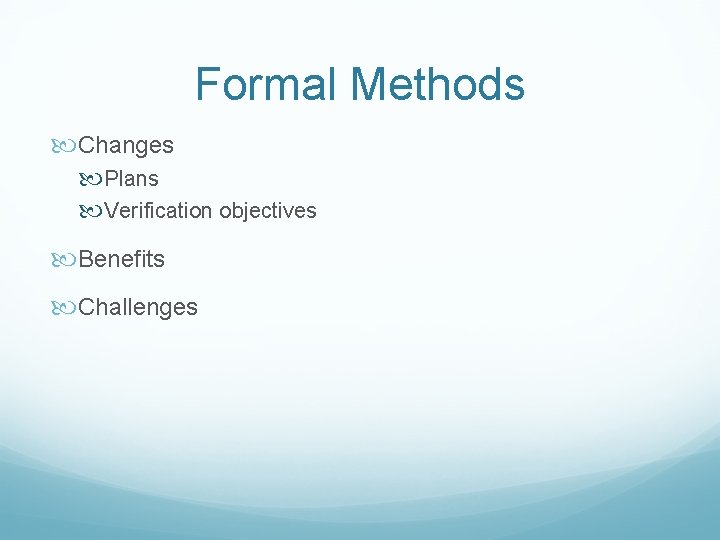

Formal Methods Changes Plans Verification objectives Benefits Challenges

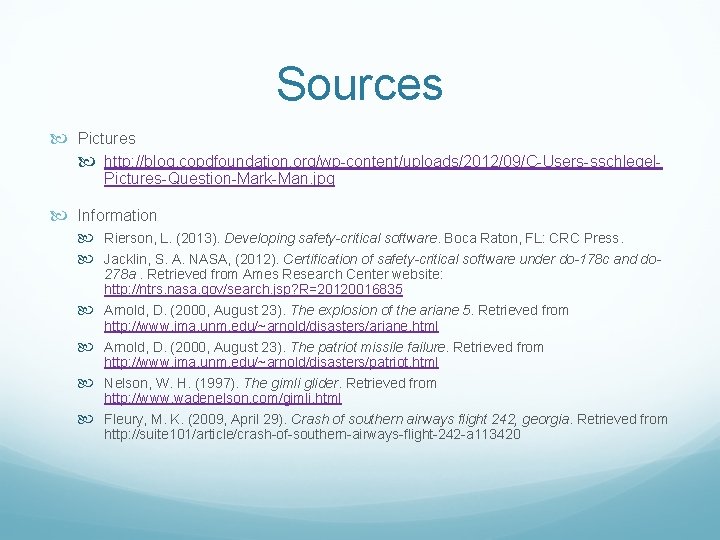

Sources Pictures http: //blog. copdfoundation. org/wp-content/uploads/2012/09/C-Users-sschlegel. Pictures-Question-Mark-Man. jpg Information Rierson, L. (2013). Developing safety-critical software. Boca Raton, FL: CRC Press. Jacklin, S. A. NASA, (2012). Certification of safety-critical software under do-178 c and do 278 a. Retrieved from Ames Research Center website: http: //ntrs. nasa. gov/search. jsp? R=20120016835 Arnold, D. (2000, August 23). The explosion of the ariane 5. Retrieved from http: //www. ima. unm. edu/~arnold/disasters/ariane. html Arnold, D. (2000, August 23). The patriot missile failure. Retrieved from http: //www. ima. unm. edu/~arnold/disasters/patriot. html Nelson, W. H. (1997). The gimli glider. Retrieved from http: //www. wadenelson. com/gimli. html Fleury, M. K. (2009, April 29). Crash of southern airways flight 242, georgia. Retrieved from http: //suite 101/article/crash-of-southern-airways-flight-242 -a 113420
