RRR Values for Cable 1132 Stained Cable Samples
RRR Values for Cable 1132 – Stained Cable Samples from FNAL HT ID Wire LRLK 201022 LRLK 200810 LRLK 200810 PO 08 S 00414 A 01 U PO 08 S 00418 A 02 U PO 08 S 00414 A 01 U PO 08 S 00418 A 01 U Cable Strand ID Fork # P 43 OL 1132 AE 17 E P 43 OL 1132 AE 05 E P 43 OL 1132 AE 13 E P 43 OL 1132 AE 15 E P 43 OL 1132 AE 42 E P 43 OL 1132 AE 43 E 17 5 13 15 42 43 RRR Values Full Length Minor Major 423 317 398 355 246 369 371 268 382 396 277 385 399 282 412 380 274 364 Top 438 367 378 404 415 385 Bottom 458 373 391 425 436 408 Selected due to OOS Ic value of this strand at FNAL after the below RRR results were reported. Results from first stained samples test, reported in August 2020. Cable 1132 – Original Measurement (February 2020) HT ID Wire LRLK 191212 LRLK 191212 PO 08 S 00418 A 02 U PO 08 S 00414 A 01 U PO 08 S 00418 A 01 U Cable Strand ID Fork # P 43 OL 1132 AE 05 E P 43 OL 1132 AE 13 E P 43 OL 1132 AE 15 E P 43 OL 1132 AE 42 E P 43 OL 1132 AE 43 E 5 13 15 42 43 RRR Values Full Length Minor Major 310 252 300 328 224 346 361 236 392 410 305 398 389 299 365 Top 340 342 367 406 418 Bottom 307 347 390 413 399 Finding: Stained sample RRR values are equivalent to original measurement and well exceed the specification of RRR > 100.
RRR Values for Cable 1136 – Stained Cable Samples from FNAL HT ID Wire LRLK 201022 LRLK 201022 PO 08 S 00409 A 02 U PO 08 S 00377 A 01 U PO 08 S 00379 A 01 U Cable Strand ID Fork # P 43 OL 1136 AE 05 E P 43 OL 1136 AE 15 E P 43 OL 1136 AE 33 E P 43 OL 1136 AE 41 E P 43 OL 1136 AE 42 E 5 15 33 41 42 RRR Values Full Length Minor Major 376 302 365 381 291 364 394 310 400 390 310 363 388 316 379 Top 387 388 405 399 407 Bottom 394 395 411 409 396 RRR Values Full Length Minor Major 372 307 328 362 257 373 385 322 356 377 302 337 379 322 328 Top 395 369 403 396 411 Bottom 372 383 412 396 406 Cable 1136 – Original Measurement (July 2020) HT ID Wire LRLK 200206 LRLK 200206 PO 08 S 00409 A 02 U PO 08 S 00377 A 01 U PO 08 S 00379 A 01 U Cable Strand ID Fork # P 43 OL 1136 AE 05 E P 43 OL 1136 AE 15 E P 43 OL 1136 AE 33 E P 43 OL 1136 AE 41 E P 43 OL 1136 AE 42 E 5 15 33 41 42 Finding: Stained sample RRR values are equivalent to original measurement and well exceed the specification of RRR > 100.
Back-Up Slides
HT Parameters: 1132 Original

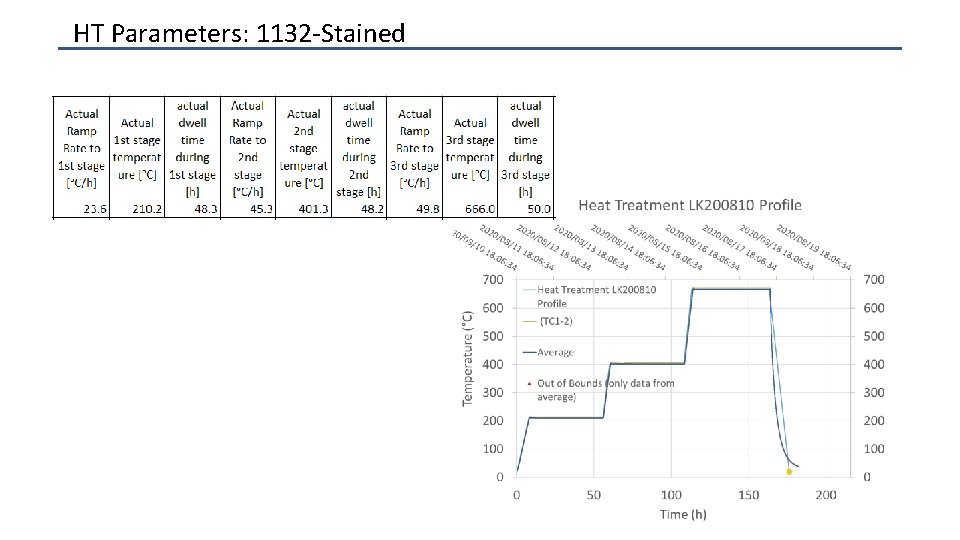

HT Parameters: 1132 -Stained
HT Parameters: 1132 -17 E-Stained
HT Parameters: 1136 Original Some temp data was lost. Dwell times here are not accurate. Dwell times would have been the same as those HTs on either side of this, as only the temperatures were adjusted between HTs
HT Parameters: 1136 -Stained
