Content n n n n n Describe routed protocols List the steps of data encapsulation in an internetwork as data is routed to Layer 3 devices Describe connectionless and connection-oriented delivery Name the IP packet fields Describe how data is routed Compare and contrast different types of routing protocols List and describe several metrics used by routing protocols List several uses for subnetting Determine the subnet mask for a given situation Use a subnet mask to determine the subnet ID

IP Address n A packet of data can be sent to a particular network by ANDing it with the network Mask ¨ For a Class C Address this would be 255. 0 ¨ All of the bits which represent the network ID are set to 1 the rest are set to 0 ¨ When the IP address converted to binary is AND’d with the network mask only the Network ID is displayed ¨ This network address can then be used for routing the packet to the correct interface

IP Address n Example

IP address grouping • All of these addresses can be represented in a routing table by the network address • 192. 168. 10. 0 • Rather than the full 254 addresses which could be added

Routed protocol n A routed protocol ¨ Is one where it is used carry out addressing across the network n The most common example would be IP

Network layer devices in data flow Decapsulate Encapsulate A IP Packet being transferred across a network with three routers

Router protocol stripping n As a packet of information is transported between two points ¨ The level 1 and 2 frame information will be stripped and replaced ¨ This can be done due to a different technology being connected on the next segment of the journey ¨ It may be changing the header with the address of the next point on the route n The IP and above layers (3 to 7) will remain the same throughout the transport of the packet

Router protocol stripping n Example

n Example Continued

Connectionless network services • In connectionless services the packets are just transferred between devices • No communications are agreed before sending data, all of the packets may take different routes to the same destination based on local conditions • Commonly referred to as Packet switched communications

Connection orientated services • In connection orientated services, the route is worked out before communications start • A telephone network is an example of this • Commonly referred to as Circuit Switched networks

Network layer fields • The most common Network layer (Routed) protocol is IPv 4 at the moment • Below is the layout of the protocol with the additional information which needs to be transferred with the data element All of the field lengths are fixed except for IP Options and Padding fields

Routing metrics • The routing metrics are the values which are used to work out the best route between two points when offered more than one route • Metrics can be • Delay • Hop Count • Bandwidth • Load • Cost • Reliability

Data encapsulation Encapsulation ¨ Is n the adding of information to the packet Decapsulation ¨ Is the removal of this information Encapsulation Decapsulation n

The network layer routing • The switch will allow routing in the local LAN • A packet of information will be forwarded out of a particular interface based on the MAC address of the device attached to it • Routers forward based on the IP address (Network layer) information

Layer 2 switching & layer 3 routing

ARP tables & routing tables

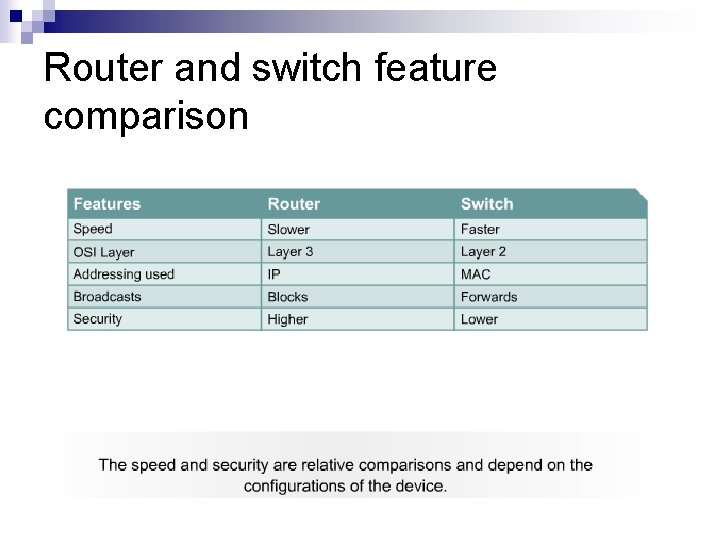

Router and switch feature comparison

Routed protocol

Routing protocol • A routing protocol is used to work out the best route based on metrics between multiple points

Routing process

Routing tables

Routing algorithms and metrics

Interior & exterior gateway protocols

Link-state & distance-vector n Distance Vector protocols ¨ Use the distance, direction and vector to any point in the network n RIP ¨ n IGRP ¨ n Distance Vector EIGRP ¨ n Distance Vector Link State protocols ¨ Send periodic updates to the network regarding the knowledge they have n OSPF ¨ Link State

IP address bit patterns ¨IP Protocols are made up two parts ¨NETWORK ID and Host ID ¨Depending on the class is how many bits are represented by each part

IP Subnets n IP Addresses are made up of ¨ Network ID ¨ Host ID ¨ Depending on the class this dictates the size of each element. ¨ The host ID part though can be split again to extend the length of the Network ID n Example would be a Class C address by default ¨ n Network ID is 24 bits and Host ID is 8 bits By borrowing bits from the host id the network ID is expanded ¨ The disadvantage is that the number of possible hosts are reduced hosts
