Routing Area Yang Architecture Design Team Update Members

Routing Area Yang Architecture Design Team Update Members: Wiki: Repo: Acee Lindem, Anees Shaikh, Christian Hopps, Dean Bogdanovic, Ebban Aries, Lou Berger, Qin Wu, Rob Shakir, Xufeng Liu, Yingzhen Qu http: //trac. tools. ietf. org/area/rtg/trac/wiki/Rtg. Yang. Arch. DT https: //github. com/ietf-rtg-area-yang-arch-dt/

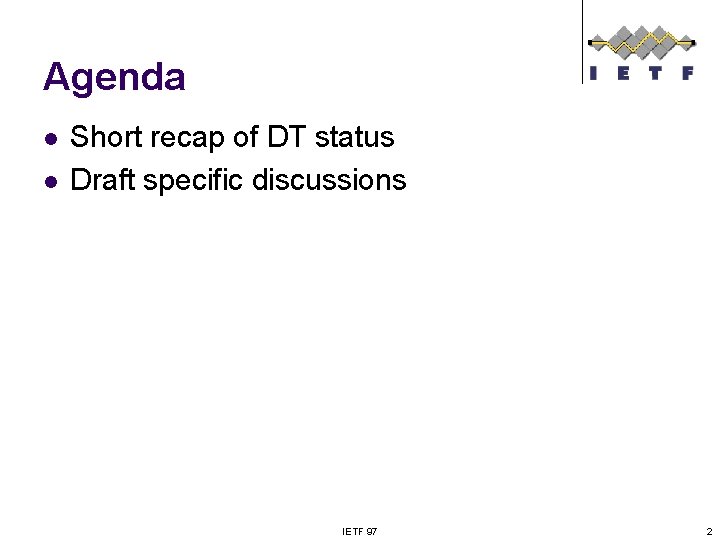

Agenda l l Short recap of DT status Draft specific discussions IETF 97 2

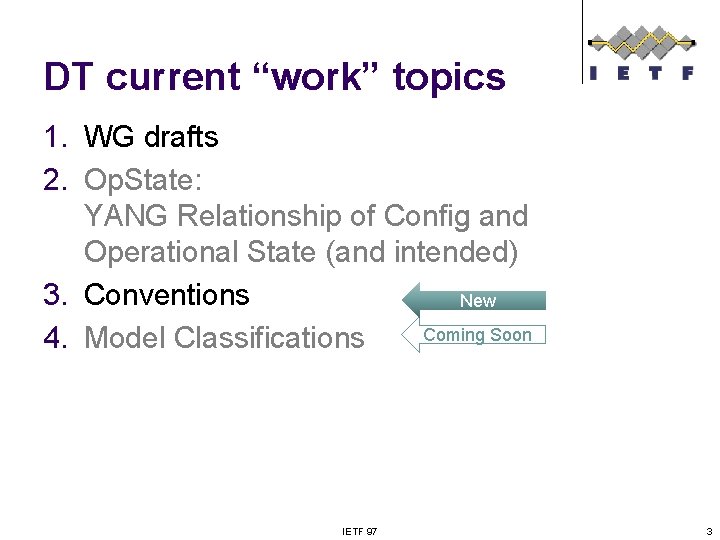

DT current “work” topics 1. WG drafts 2. Op. State: YANG Relationship of Config and Operational State (and intended) 3. Conventions New Coming Soon 4. Model Classifications IETF 97 3

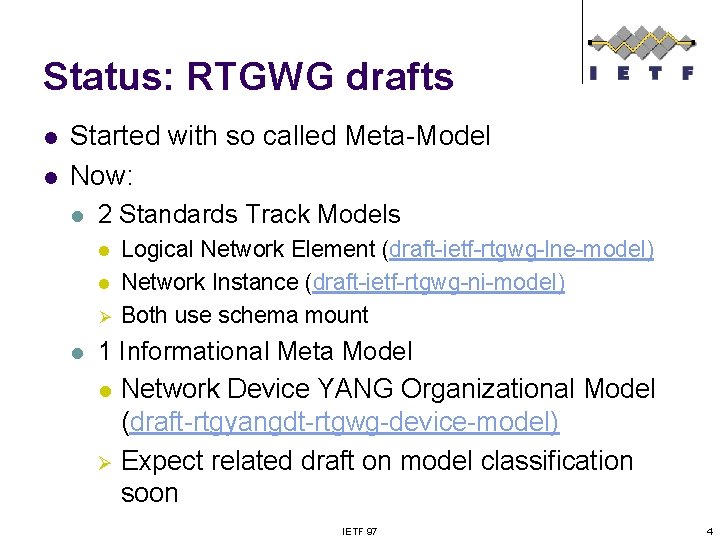

Status: RTGWG drafts l l Started with so called Meta-Model Now: l 2 Standards Track Models l l Ø l Logical Network Element (draft-ietf-rtgwg-lne-model) Network Instance (draft-ietf-rtgwg-ni-model) Both use schema mount 1 Informational Meta Model l Network Device YANG Organizational Model (draft-rtgyangdt-rtgwg-device-model) Ø Expect related draft on model classification soon IETF 97 4

Key Schema Mount Requirements for Routing 1. That any data model can be instantiated within another module l l Instantiated means that information is maintained only within the ‘mounted’ context This use case only requires mounting of top-level models 2. That a server can control which models are mounted 3. That all capabilities that exist with the mounted module are available e. g. RPC operations, notifications, and augmentations 4. That no additional model is needed to support 1 l The schema defines what other modules can be mounted (Note used by LNE or NI modules) IETF 97 5

Schema Mount Xpath Issue l All Xpaths in a mounted model are relative to the mount point. l l Also requirement for absolute Xpath l l l Exactly what you want in many cases. Example is when ietf-routing (RFC 8022) is mounted in a Network Instance (e. g. , VRF) and uses interfaceref (RFC 7223) Absolute path to interface-list is needed (at least this is the intension of NI and LNE) Have some thoughts on how to solve l Plan to work with DT and schema mount authors IETF 97 6

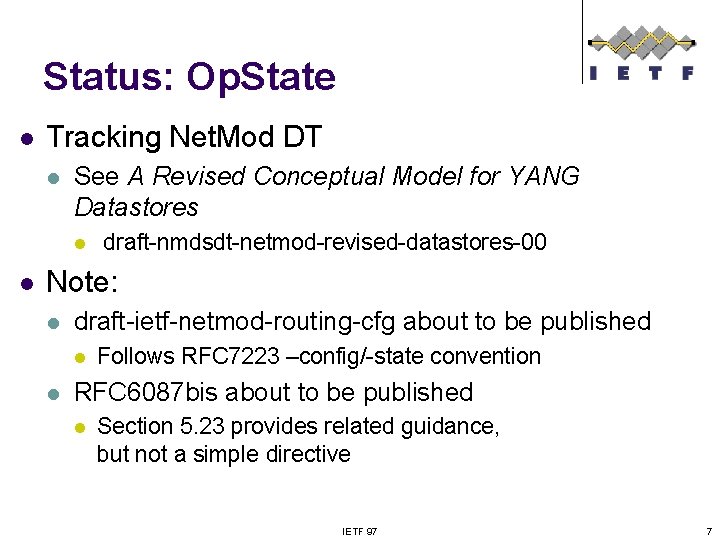

Status: Op. State l Tracking Net. Mod DT l See A Revised Conceptual Model for YANG Datastores l l draft-nmdsdt-netmod-revised-datastores-00 Note: l draft-ietf-netmod-routing-cfg about to be published l l Follows RFC 7223 –config/-state convention RFC 6087 bis about to be published l Section 5. 23 provides related guidance, but not a simple directive IETF 97 7

Status: Conventions l -00 draft l l Routing Area Common YANG Data Types draft-rtgyangdt-rtgwg-routing-types-00 Covers types expected to be generally useful to YANG modules developed in the routing area l l l (Kudos to new DT members!) Initial set defined Please provide feedback and desired additions Repo: l https: //github. com/ietf-rtg-area-yang-archdt/conventions-features IETF 97 8

Status: Model Classifications l Grew out of the original organizational model discussion/draft l l Basic idea is to provide a tag list for identifying module types l l l Over last two meeting Covering both well known and unstructured types Assigned during module definition, by vendor or by user Draft should be available soon l 2 modules expected: l Reusable grouping and an augmentation to library IETF 97 9

Update on draft-ietf-rtgwg-device-model-01 draft-ietf-rtgwg-ni-model-01 draft-ietf-rtgwg-lne-model-01 Authors: Acee Lindem, Christian Hopps, Dean Bogdanovic, Lou Berger Repo: https: //github. com/ietf-rtg-area-yang-arch-dt/meta-model. git

draft-ietf-rtgwg-device-model-01 l l l Draft provides a conceptual model of how modules fit together on a generic network device Recent changes: Really just references Planned changes l l l Editorial: Clarify that this is a logical structure Align text with module classification draft (once published) Change module to be an example l This change is already in the repo IETF 97 11

Recent changes: draft-ietf-rtgwg-lne-model-01 l l Provides a model of logical device control Recent changes l Aligned with latest rev of Schema Mount draft-ietf-netmod-schema-mount l l Clarified instance instantiation Editorial: references, IANA section Open items l l Including requiring YANG 1. 1 Gated by schema mount Next steps l l Track schema mount Add examples IETF 97 12

draft-ietf-rtgwg-ni-model-01 l l Provides a model of VRFs/VSIs control Recent changes: l Aligned with latest rev of Schema Mount draft-ietf-netmod-schema-mount l l Including requiring YANG 1. 1 Clarified instance instantiation Editorial: references, IANA section Open items: l l l Gated by schema mount Security section Examples IETF 97 13

draft-ietf-rtgwg-ni-model-01 Open Items (cont. ) l module: ietf-network-instance Definition of +--rw network-instances +--rw network-instance* [name] network-instance-policy +--rw name l l E. g. , RT and RD Options: l Preferably reuse existing modules l l l +--rw type? +--rw enabled? +--rw description? +--rw network-instance-policy |. . . +--rw root? yang-schema-mount |. . . Which is TBD? Opinions? Next steps l l Address open items Track schema mount IETF 97 14

Details and Examples To be presented in RTG WG Friday Morning Session I

Logical Network Element l Logical Network Element represents a separate administrative domain on the device l l l Provides administrative boundaries between users l l It enables multiple tenants on single device Bare metal server and VM Users decide which services they want to run (authorization pending) Recursive (in theory) l l l LNE in a LNE Top LNE has hardware controls, like CPU, fan, power, chassis etc Child LNE has all system management functions other then the hardware platform specifics IETF 97 16

LNE tree example managed by device admin created by device admin +--rw logical-network-elements +--rw logical-network-element* [name] +--rw name string +--rw managed? boolean +--rw description? string +--rw root? augment /rt: routing/rt: control-plane-protocols/ rt: routing-protocol/rt: static-routes: +--rw static-routes +--rw bind-lne-name? string managed by tenant admin augment /rt: routing/rt: control-plane-protocols/rt: rib: +--rw rib* [name] | +--rw name string | +--rw address-family? identityref +--rw bind-lne-name? string IETF 97 Tenant admin creates static routes and RIB 17

LNE tree example managed by device admin managed by tenant admin created by device admin +--rw logical-network-elements +--rw logical-network-element* [name] +--rw name string +--rw managed? boolean +--rw description? string +--rw root? augment /if: interfaces/if: interface: +--rw bind-lne-name? string Assigning physical interface to tenant augment /if: interfaces/if: interface: +--rw vlan-tagging? Boolean Tenant admin designates the assigned Interface as type VLAN augment /if: interfaces/if: interface: +--rw base-interface? if: interface-ref +--rw vlan-id? uint 16 Tenant admin creates VLAN augment /rt: routing/rt: control-plane-protocols/ rt: routing-protocol/rt: static-routes: +--rw static-routes +--rw bind-lne-name? string augment /rt: routing-instance/rt: ribs/rt: rib: +--rw rib* [name] | +--rw name string | +--rw address-family? identityref +--rw bind-lne-name? string IETF 97 Tenant admin creates static routes and RIB 18

Notable topics l Assinging resources to child LNEs l l l Interface Qo. S Providing correct access to the tree l Managed and unmanaged cases l l Unmanaged – all data inside child LNEs is opaque to the parent LNE Managed – all (some? ) data inside child LNEs is visible to the parent LNE IETF 97 19

LNE cont’d Top LNE Child LNE Interfaces IETF 97 20

LNE cont’d Top LNE Child LNE Interfaces IETF 97 21

Network Instance l l l Network instance provides routing and switching separation It is part of single LNE Tenant admin has full administrative rights to create and destroy NIs within its LNE IETF 97 22

Example: NI Model module: networking-instance +--rw networking-instances +--rw networking-instance* [name] +--rw name string +--rw type? identityref +--rw enabled? boolean +--rw description? string +--rw networking-instance-policy |. . . +--rw root? |. . . augment /if: interfaces/if: interface: +--rw bind-networking-instance-name? string augment /if: interfaces/if: interface/ip: ipv 4: +--rw bind-networking-instance-name? string augment /if: interfaces/if: interface/ip: ipv 6: +--rw bind-networking-instance-name? string IETF 97 23
