ROUGH TERRAIN CONTAINER HANDLER RTCH RTCH LEARNING OBJECTIVES

ROUGH TERRAIN CONTAINER HANDLER “RTCH”

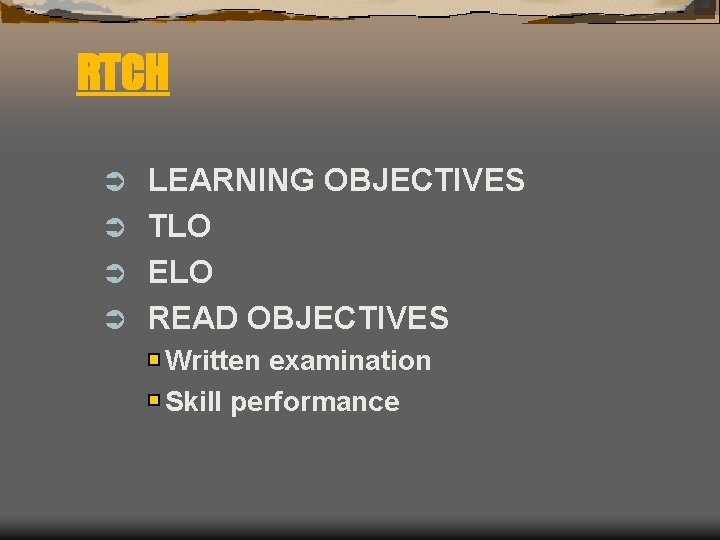

RTCH LEARNING OBJECTIVES Ü TLO Ü ELO Ü READ OBJECTIVES Ü Written examination Skill performance

CHARACTERISTICS Ü 988 B, MANUFACTURED BY CAT Ü 4 WD Ü ARTICULATED STEERING Ü DIESEL ENGINE POWERED Ü HANDLES ISO AND USA (SEALAND) CONTAINERS Ü 20, 35, AND 40 FT. TOP HANDLERS. Ü MAX LIFTING WEIGHT OF 50, 000 LBS.

CHARACTERISTICS Ü FORDS 60 INCHES Ü USED FOR LOADING, UNLOADING, STACKING, AND HANDLING CONTAINERS IN MARSHALING AREAS. Ü MAX SPEED 18. 5 MPH FWRD, 19. 04 REV. Ü TIRE AND RIM – 3000 LBS EACH Ü VEHICLE WEIGHT WITH 20’ TOP HANDLER – 107, 030 LBS

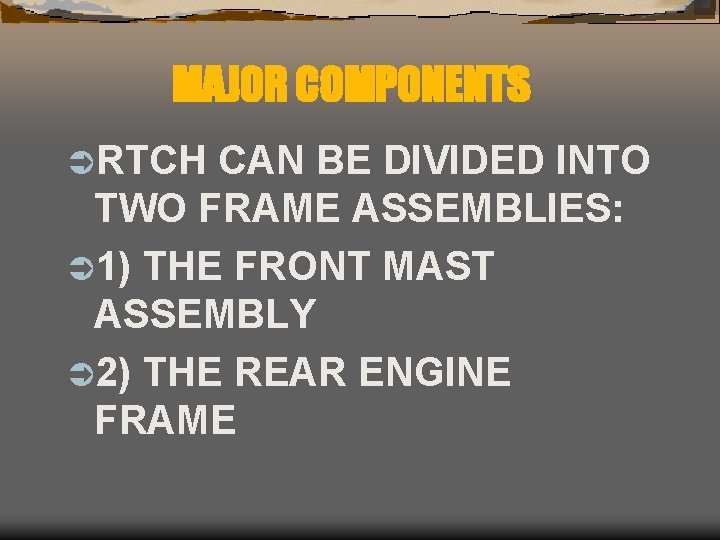

MAJOR COMPONENTS ÜRTCH CAN BE DIVIDED INTO TWO FRAME ASSEMBLIES: Ü 1) THE FRONT MAST ASSEMBLY Ü 2) THE REAR ENGINE FRAME

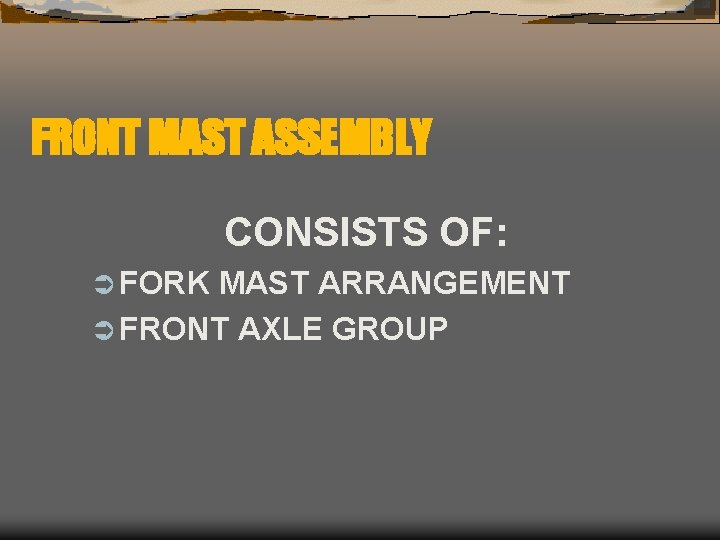

FRONT MAST ASSEMBLY CONSISTS OF: Ü FORK MAST ARRANGEMENT Ü FRONT AXLE GROUP

REAR ENGINE FRAME CONSISTS OF: Ü ENGINE ASSEMBLY Ü TRANSMISSION AND POWERTRAIN Ü FUEL TANK Ü HYDRAULIC RESERVOIR Ü REAR AXLE GROUP Ü REAR BUMPER ASSEMBLY Ü OPERATORS STATION

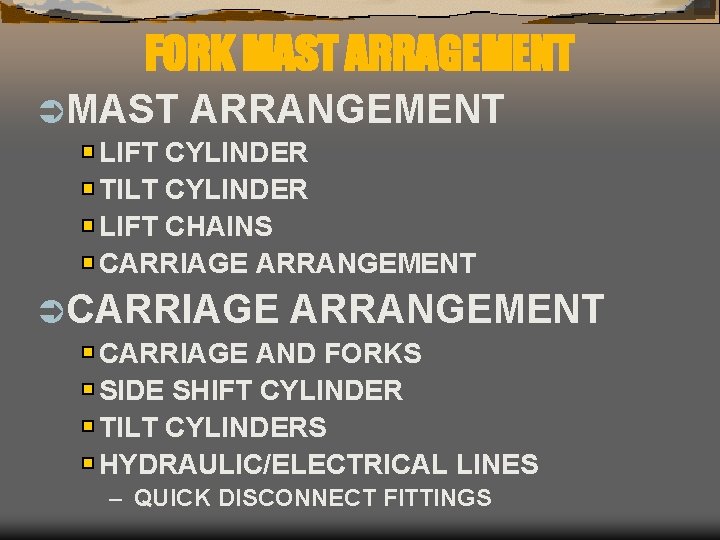

FORK MAST ARRAGEMENT ÜMAST ARRANGEMENT LIFT CYLINDER TILT CYLINDER LIFT CHAINS CARRIAGE ARRANGEMENT ÜCARRIAGE ARRANGEMENT CARRIAGE AND FORKS SIDE SHIFT CYLINDER TILT CYLINDERS HYDRAULIC/ELECTRICAL LINES – QUICK DISCONNECT FITTINGS

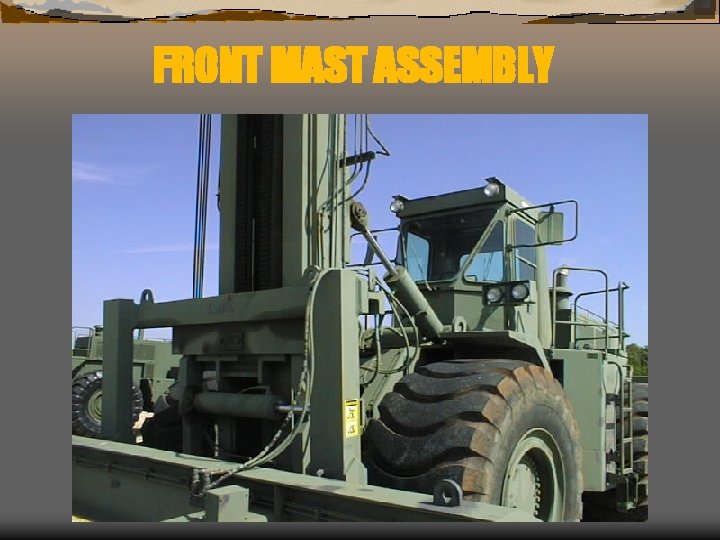

FRONT MAST ASSEMBLY

TOP HANDLERS Ü RTCH CAN BE FITTED WITH THREE TOP HANDLER ATTACHMENTS. 20 FT 35 FT 40 FT

20 FT TOP HANDLER Ü MAX WEIGHT – 3800 LBS.

35 & 40 FT TOP HANDLERS Ü EQUIPPED WITH 2 CONTAINER LOCK CYLINDERS. ? MAX WEIGHT 35’ 9120 LBS. 40’ 9930 LBS.

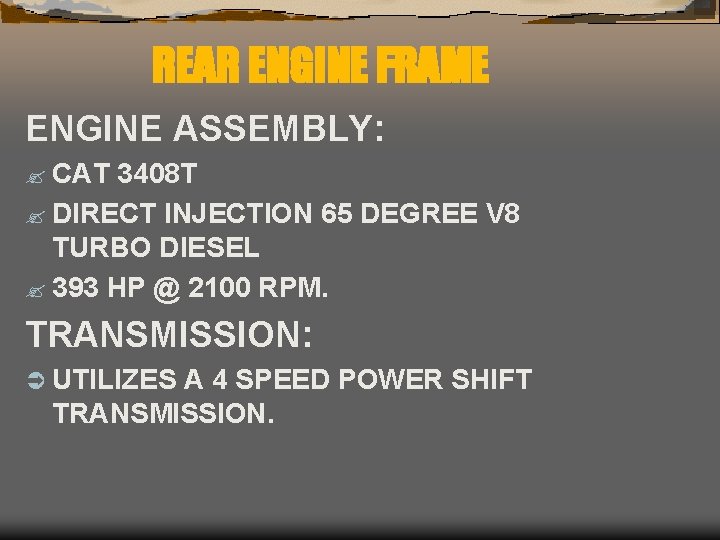

REAR ENGINE FRAME ENGINE ASSEMBLY: ? CAT 3408 T ? DIRECT INJECTION 65 DEGREE V 8 TURBO DIESEL ? 393 HP @ 2100 RPM. TRANSMISSION: Ü UTILIZES A 4 SPEED POWER SHIFT TRANSMISSION.

ENGINE ASSEMBLY

REAR ENGINE FRAME FUEL TANK: Ü CAPACITY – 165 GAL. Ü LOCATED ON LEFT SIDE OF TRACTOR. Ü RTCH EQUIPED WITH PRIMING PUMP.

FUEL TANK

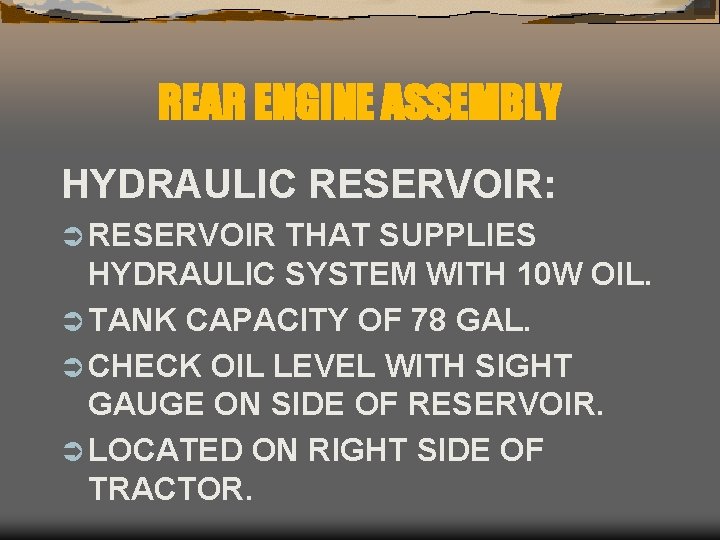

REAR ENGINE ASSEMBLY HYDRAULIC RESERVOIR: Ü RESERVOIR THAT SUPPLIES HYDRAULIC SYSTEM WITH 10 W OIL. Ü TANK CAPACITY OF 78 GAL. Ü CHECK OIL LEVEL WITH SIGHT GAUGE ON SIDE OF RESERVOIR. Ü LOCATED ON RIGHT SIDE OF TRACTOR.

HYDRAULIC TANK

Ü THIS SLIDE SHOWS THE PANEL ON THE RIGHT SIDE OF THE CATWALK COVERING THE HYDRAULIC RESERVOIR. A VALVE ON TOP OF THE RESERVOIR GIVES PROTECTION FROM EXCESSIVE PRESSURE ABOVE 15 PSI.

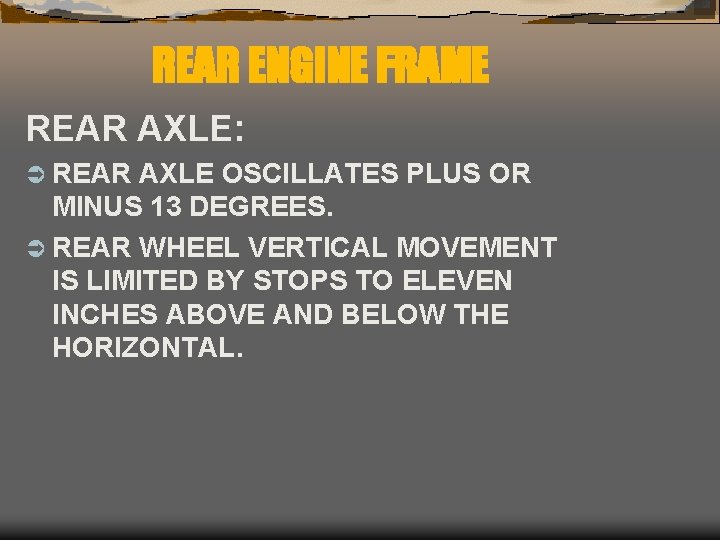

REAR ENGINE FRAME REAR AXLE: Ü REAR AXLE OSCILLATES PLUS OR MINUS 13 DEGREES. Ü REAR WHEEL VERTICAL MOVEMENT IS LIMITED BY STOPS TO ELEVEN INCHES ABOVE AND BELOW THE HORIZONTAL.

REAR ENGINE FRAME REAR BUMPER: Ü 24 VOLT SYSTEM. Ü MACHINE CAPABLE OF STARTING AT TEMPS AS LOW AS – 25 DEGREES. Ü STORAGE AREA LOCATED BELOW EACH BATTERY BOX FOR TOOLS. Ü STEPS AND GRAB IRONS ON BOTH SIDES OF MACHINE FOR ACCESS TO TOP OF BUMPER. Ü TOP OF BUMPER AND BATTERY BOXES ARE USED AS A PLATFORM FOR ENGINE MAINTENANCE.

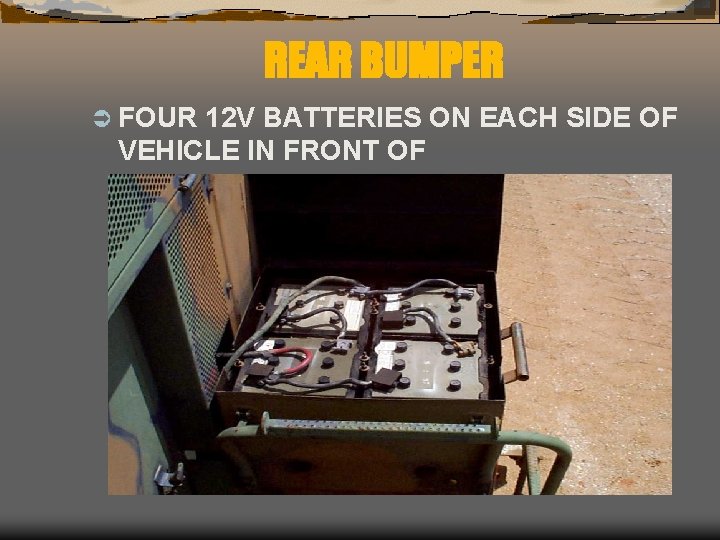

REAR BUMPER Ü FOUR 12 V BATTERIES ON EACH SIDE OF VEHICLE IN FRONT OF COUNTERWEIGHTS.

REAR BUMPER

REAR ENGINE FRAME REAR BUMPER: Ü PINTLE HOOK Ü USED FOR TOWING OTHER VEHICLES. Ü TOWING LUGS ARE USED WHEN THE RTCH ITSELF NEEDS TO BE TOWED.

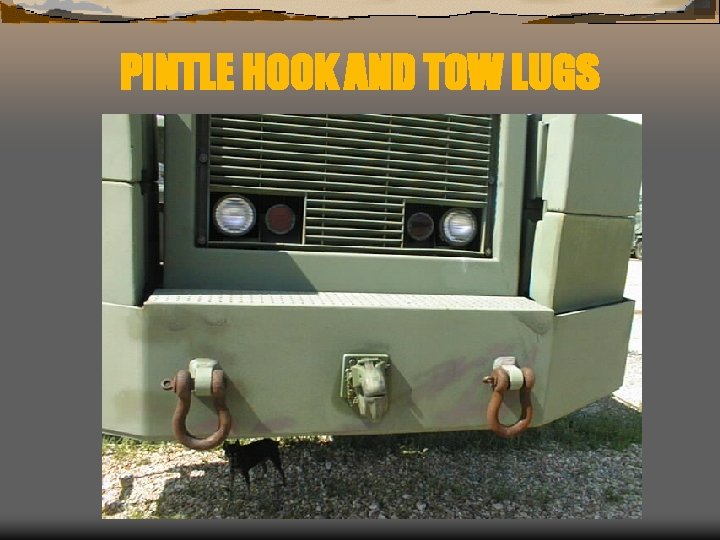

PINTLE HOOK AND TOW LUGS

REAR ENGINE FRAME OPERATOR STATION: Ü Ü Ü CAB, CONTROLS, PLATFORM, AND SEAT ARE A SEPARATE UNIT. CAN BE ASSEMBLED AND TESTED AS A UNIT. CATWALK AROUND THE CAB EXTENDS FROM LEFT SIDE AROUND TO THE RIGHT SIDE. CATWALK EQUIPPED WITH HAND RAILS FOR OPERATOR SAFETY. DIRECTLY BEHIND THE CAB IS THE PRIMARY SERVICE AREA. TWO FLOOR PANELS ALLOW ACCESS TO THE TRANSMISSION DIPSTICK AND FILLER TUBE.

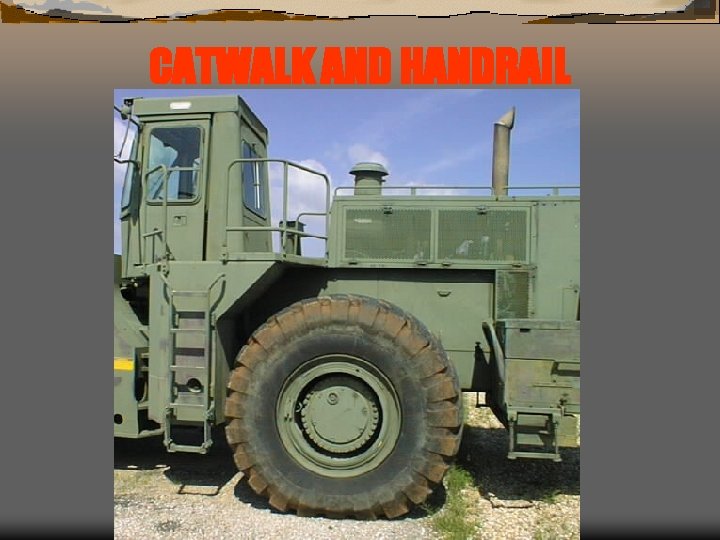

CATWALK AND HANDRAIL

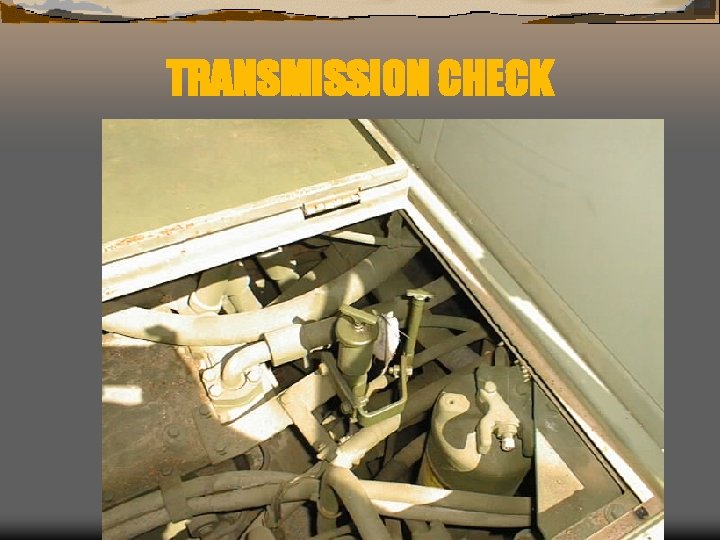

TRANSMISSION CHECK

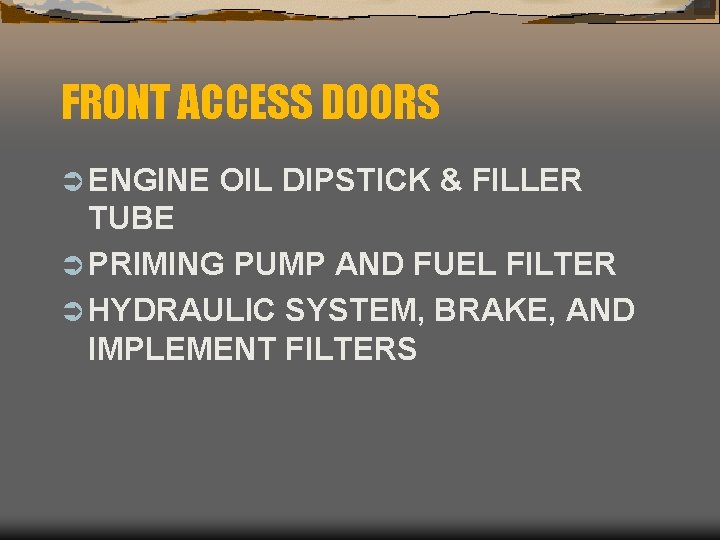

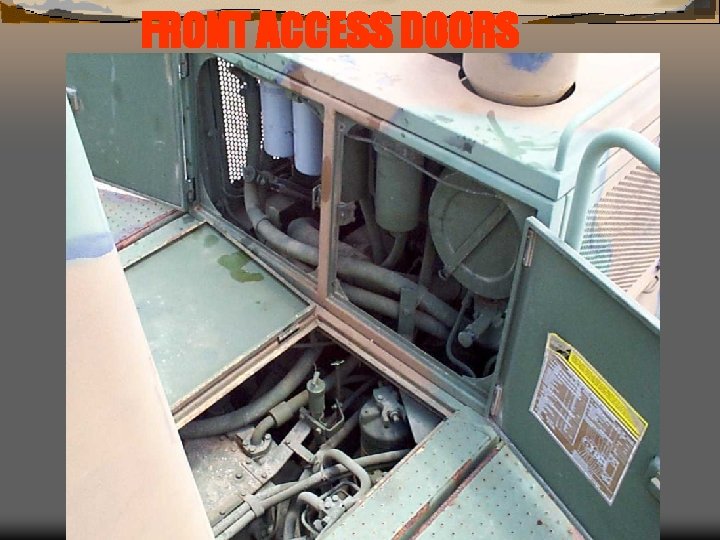

FRONT ACCESS DOORS Ü ENGINE OIL DIPSTICK & FILLER TUBE Ü PRIMING PUMP AND FUEL FILTER Ü HYDRAULIC SYSTEM, BRAKE, AND IMPLEMENT FILTERS

FRONT ACCESS DOORS

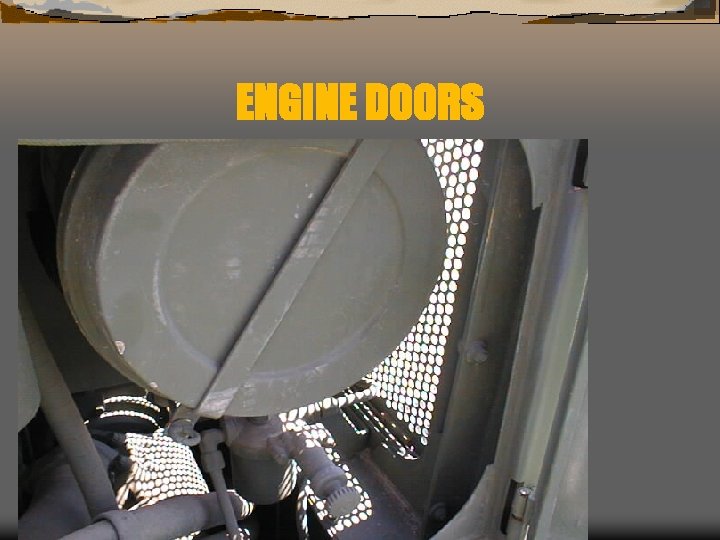

ENGINE DOORS.

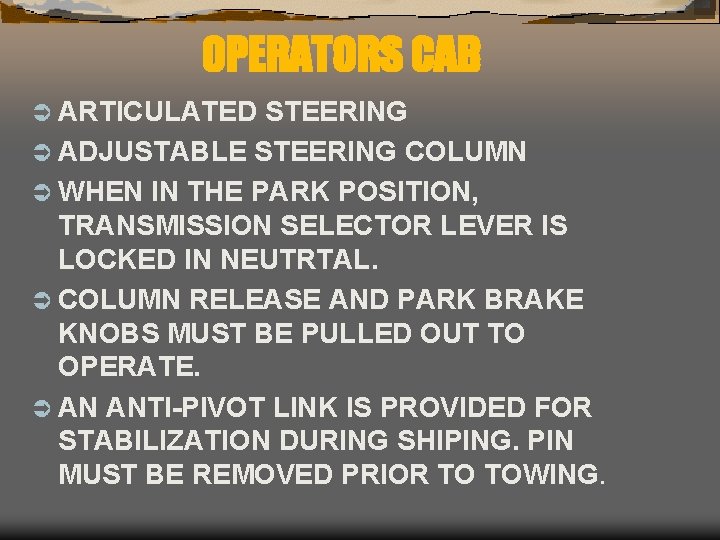

OPERATORS CAB Ü ARTICULATED STEERING Ü ADJUSTABLE STEERING COLUMN Ü WHEN IN THE PARK POSITION, TRANSMISSION SELECTOR LEVER IS LOCKED IN NEUTRTAL. Ü COLUMN RELEASE AND PARK BRAKE KNOBS MUST BE PULLED OUT TO OPERATE. Ü AN ANTI-PIVOT LINK IS PROVIDED FOR STABILIZATION DURING SHIPING. PIN MUST BE REMOVED PRIOR TO TOWING.

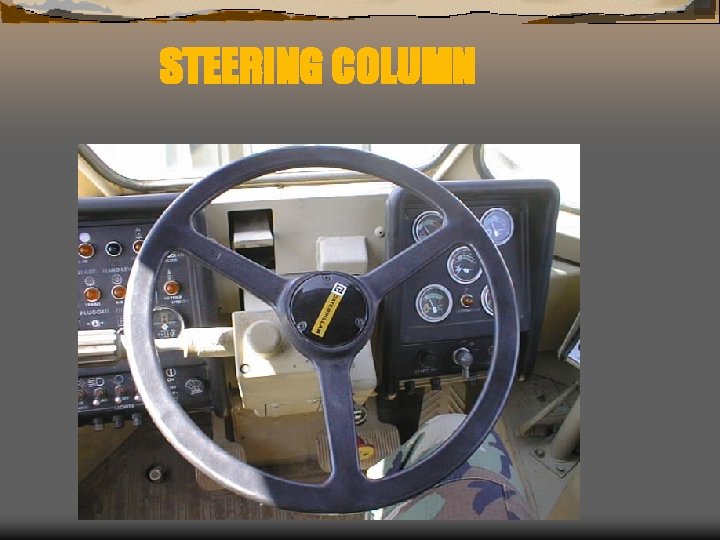

STEERING COLUMN

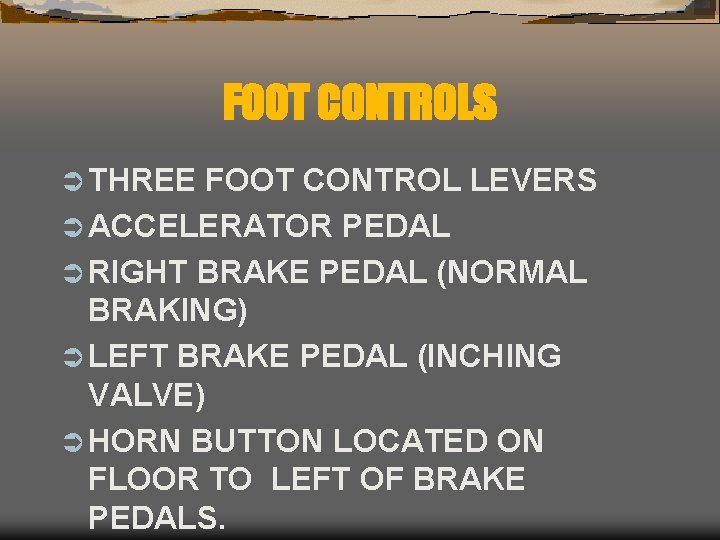

FOOT CONTROLS Ü THREE FOOT CONTROL LEVERS Ü ACCELERATOR PEDAL Ü RIGHT BRAKE PEDAL (NORMAL BRAKING) Ü LEFT BRAKE PEDAL (INCHING VALVE) Ü HORN BUTTON LOCATED ON FLOOR TO LEFT OF BRAKE PEDALS.

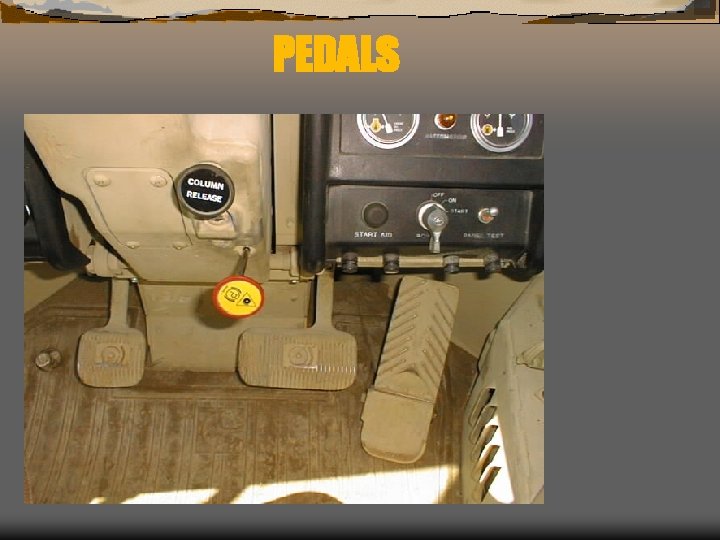

PEDALS

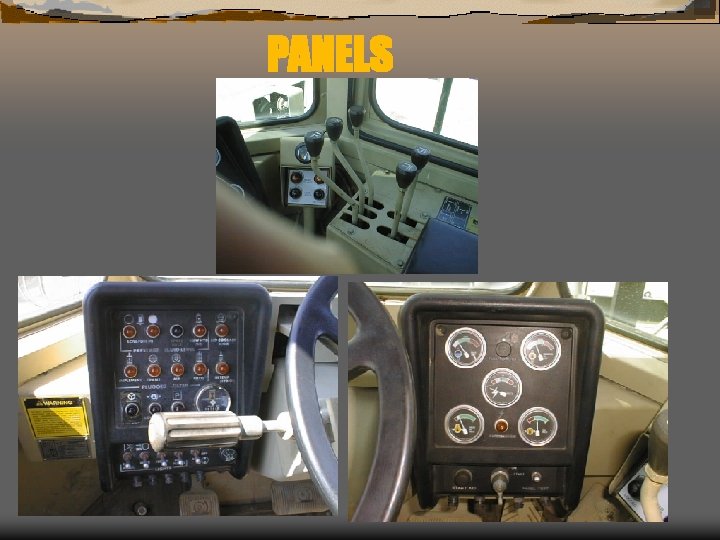

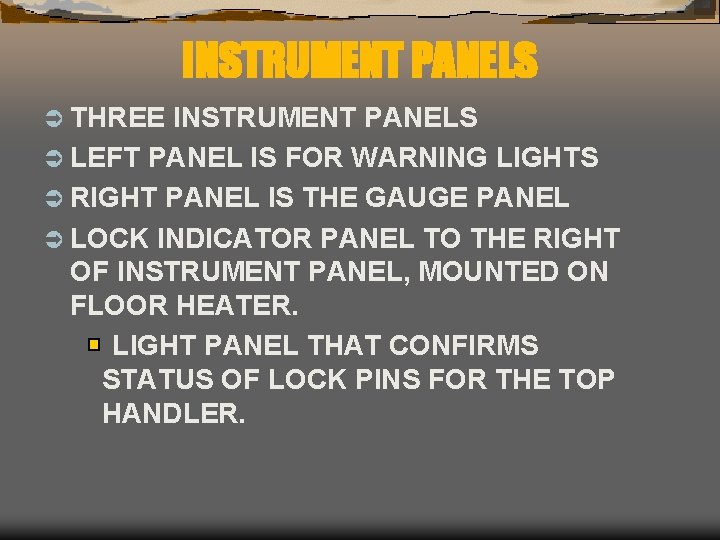

INSTRUMENT PANELS Ü THREE INSTRUMENT PANELS Ü LEFT PANEL IS FOR WARNING LIGHTS Ü RIGHT PANEL IS THE GAUGE PANEL Ü LOCK INDICATOR PANEL TO THE RIGHT OF INSTRUMENT PANEL, MOUNTED ON FLOOR HEATER. LIGHT PANEL THAT CONFIRMS STATUS OF LOCK PINS FOR THE TOP HANDLER.

PANELS

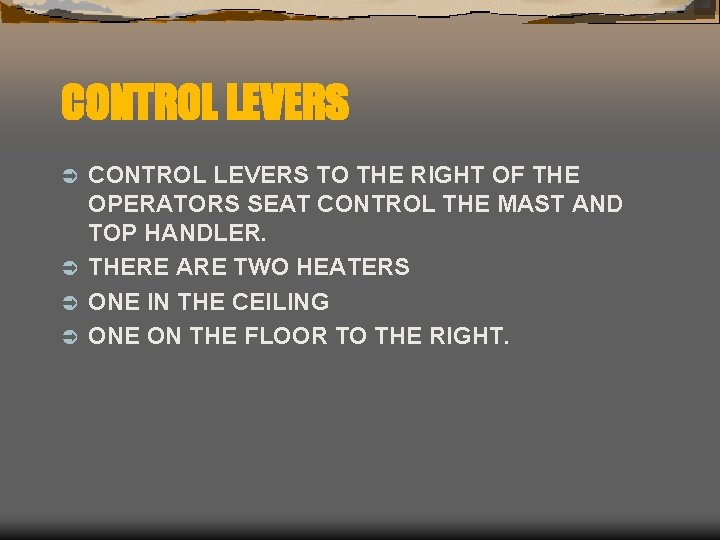

CONTROL LEVERS TO THE RIGHT OF THE OPERATORS SEAT CONTROL THE MAST AND TOP HANDLER. Ü THERE ARE TWO HEATERS Ü ONE IN THE CEILING Ü ONE ON THE FLOOR TO THE RIGHT. Ü

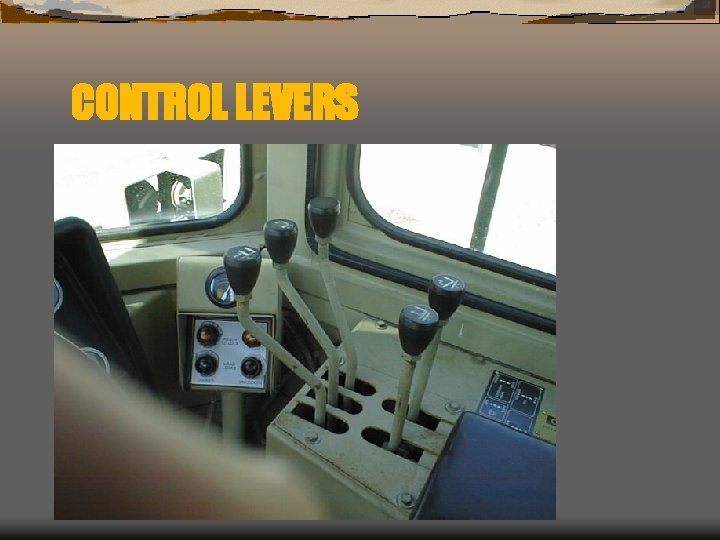

CONTROL LEVERS

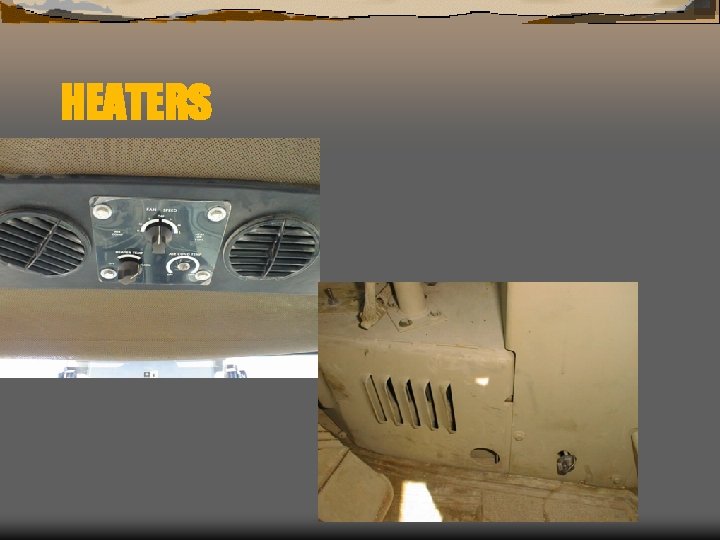

HEATERS

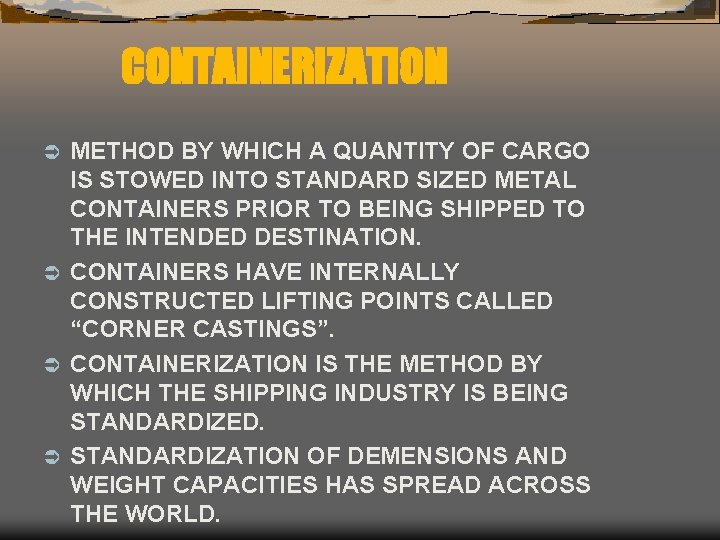

CONTAINERIZATION METHOD BY WHICH A QUANTITY OF CARGO IS STOWED INTO STANDARD SIZED METAL CONTAINERS PRIOR TO BEING SHIPPED TO THE INTENDED DESTINATION. Ü CONTAINERS HAVE INTERNALLY CONSTRUCTED LIFTING POINTS CALLED “CORNER CASTINGS”. Ü CONTAINERIZATION IS THE METHOD BY WHICH THE SHIPPING INDUSTRY IS BEING STANDARDIZED. Ü STANDARDIZATION OF DEMENSIONS AND WEIGHT CAPACITIES HAS SPREAD ACROSS THE WORLD. Ü

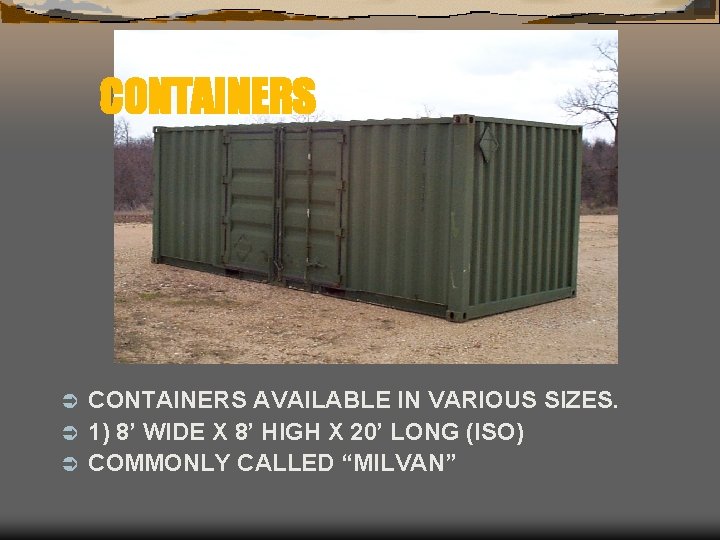

CONTAINERS AVAILABLE IN VARIOUS SIZES. Ü 1) 8’ WIDE X 8’ HIGH X 20’ LONG (ISO) Ü COMMONLY CALLED “MILVAN” Ü

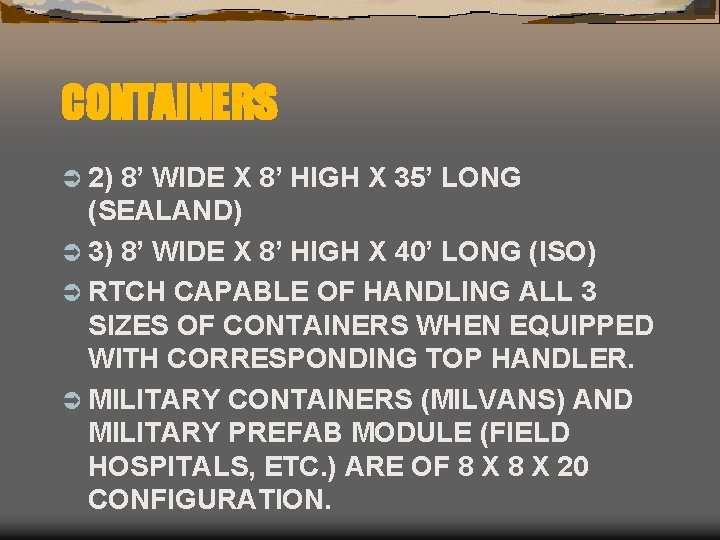

CONTAINERS Ü 2) 8’ WIDE X 8’ HIGH X 35’ LONG (SEALAND) Ü 3) 8’ WIDE X 8’ HIGH X 40’ LONG (ISO) Ü RTCH CAPABLE OF HANDLING ALL 3 SIZES OF CONTAINERS WHEN EQUIPPED WITH CORRESPONDING TOP HANDLER. Ü MILITARY CONTAINERS (MILVANS) AND MILITARY PREFAB MODULE (FIELD HOSPITALS, ETC. ) ARE OF 8 X 20 CONFIGURATION.

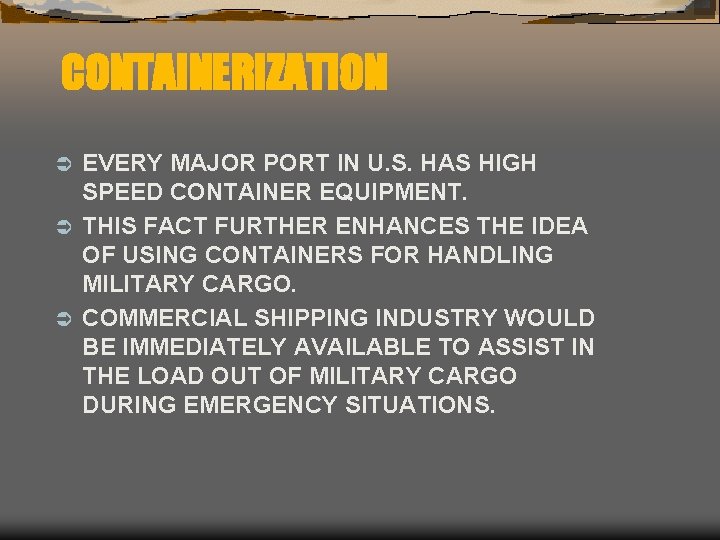

CONTAINERIZATION EVERY MAJOR PORT IN U. S. HAS HIGH SPEED CONTAINER EQUIPMENT. Ü THIS FACT FURTHER ENHANCES THE IDEA OF USING CONTAINERS FOR HANDLING MILITARY CARGO. Ü COMMERCIAL SHIPPING INDUSTRY WOULD BE IMMEDIATELY AVAILABLE TO ASSIST IN THE LOAD OUT OF MILITARY CARGO DURING EMERGENCY SITUATIONS. Ü

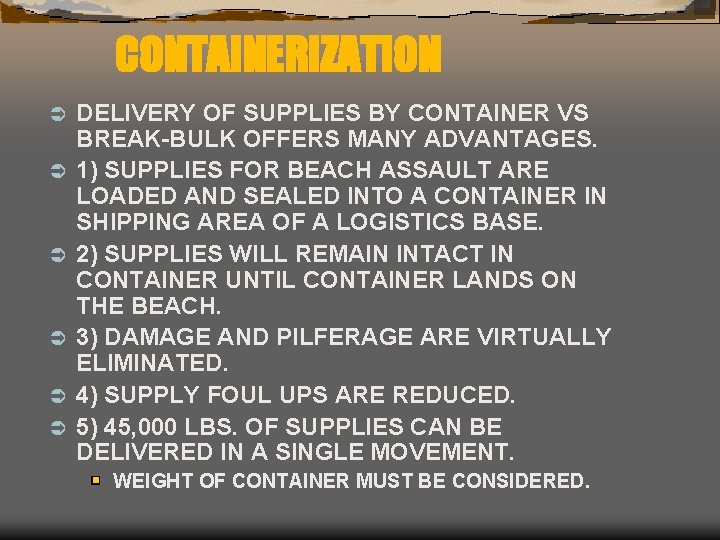

CONTAINERIZATION Ü Ü Ü DELIVERY OF SUPPLIES BY CONTAINER VS BREAK-BULK OFFERS MANY ADVANTAGES. 1) SUPPLIES FOR BEACH ASSAULT ARE LOADED AND SEALED INTO A CONTAINER IN SHIPPING AREA OF A LOGISTICS BASE. 2) SUPPLIES WILL REMAIN INTACT IN CONTAINER UNTIL CONTAINER LANDS ON THE BEACH. 3) DAMAGE AND PILFERAGE ARE VIRTUALLY ELIMINATED. 4) SUPPLY FOUL UPS ARE REDUCED. 5) 45, 000 LBS. OF SUPPLIES CAN BE DELIVERED IN A SINGLE MOVEMENT. WEIGHT OF CONTAINER MUST BE CONSIDERED.

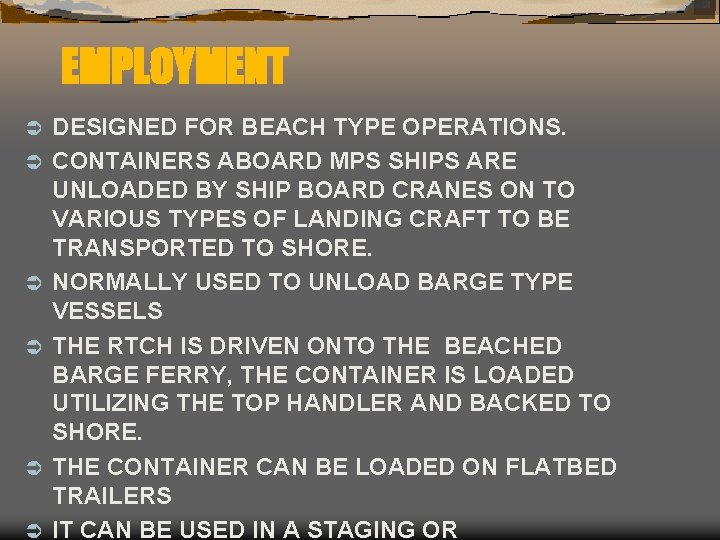

EMPLOYMENT Ü Ü Ü DESIGNED FOR BEACH TYPE OPERATIONS. CONTAINERS ABOARD MPS SHIPS ARE UNLOADED BY SHIP BOARD CRANES ON TO VARIOUS TYPES OF LANDING CRAFT TO BE TRANSPORTED TO SHORE. NORMALLY USED TO UNLOAD BARGE TYPE VESSELS THE RTCH IS DRIVEN ONTO THE BEACHED BARGE FERRY, THE CONTAINER IS LOADED UTILIZING THE TOP HANDLER AND BACKED TO SHORE. THE CONTAINER CAN BE LOADED ON FLATBED TRAILERS IT CAN BE USED IN A STAGING OR

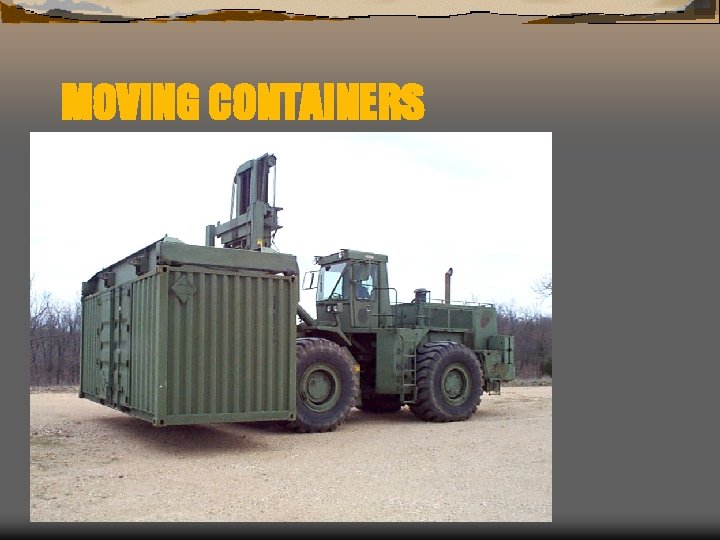

MOVING CONTAINERS

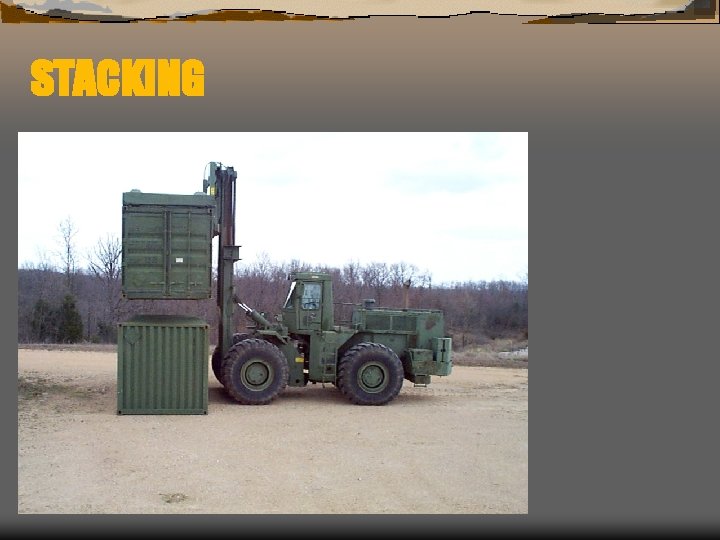

STACKING

QUESTIONS ?

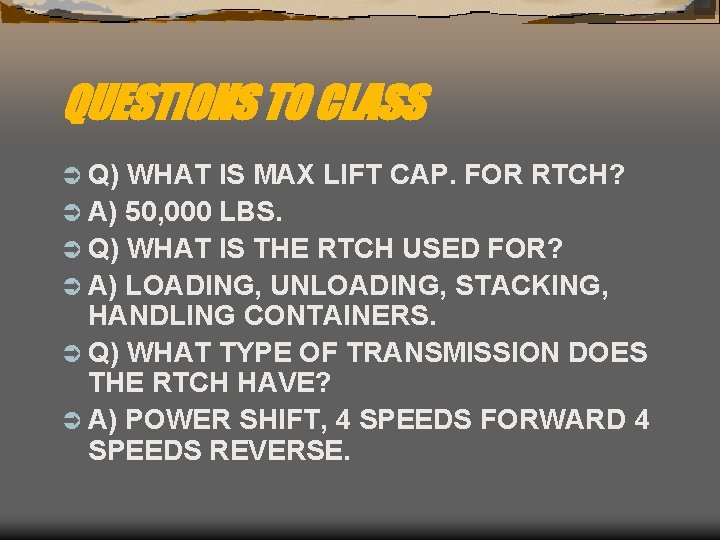

QUESTIONS TO CLASS Ü Q) WHAT IS MAX LIFT CAP. FOR RTCH? Ü A) 50, 000 LBS. Ü Q) WHAT IS THE RTCH USED FOR? Ü A) LOADING, UNLOADING, STACKING, HANDLING CONTAINERS. Ü Q) WHAT TYPE OF TRANSMISSION DOES THE RTCH HAVE? Ü A) POWER SHIFT, 4 SPEEDS FORWARD 4 SPEEDS REVERSE.
