Rotation and Orientation: Affine Combination Jehee Lee Seoul National University

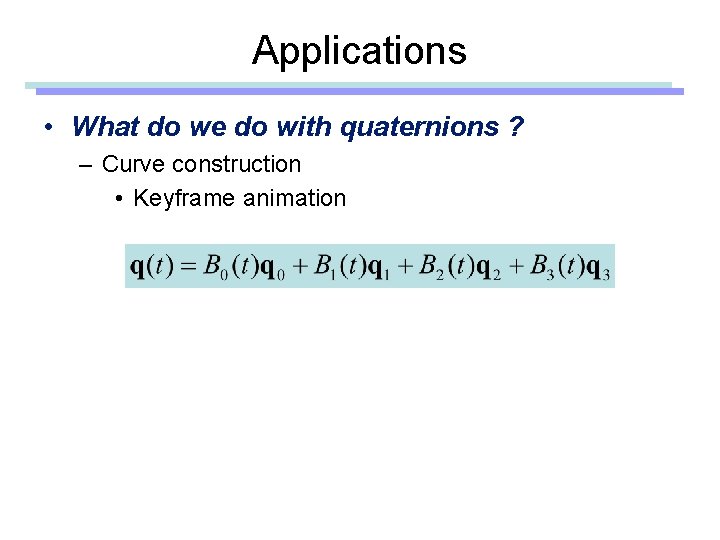

Applications • What do we do with quaternions ? – Curve construction • Keyframe animation
Applications • What do we do with quaternions ? – Filtering • Convolution
Applications • What do we do with quaternions ? – Statistical analysis • Mean

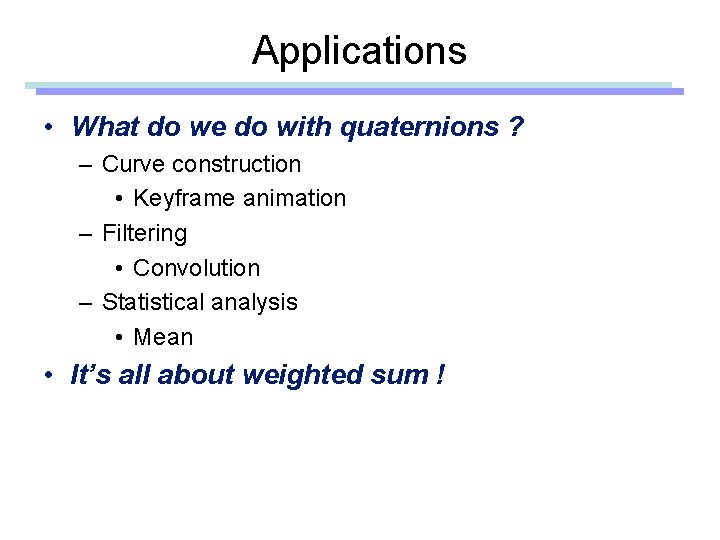

Applications • What do we do with quaternions ? – Curve construction • Keyframe animation – Filtering • Convolution – Statistical analysis • Mean • It’s all about weighted sum !

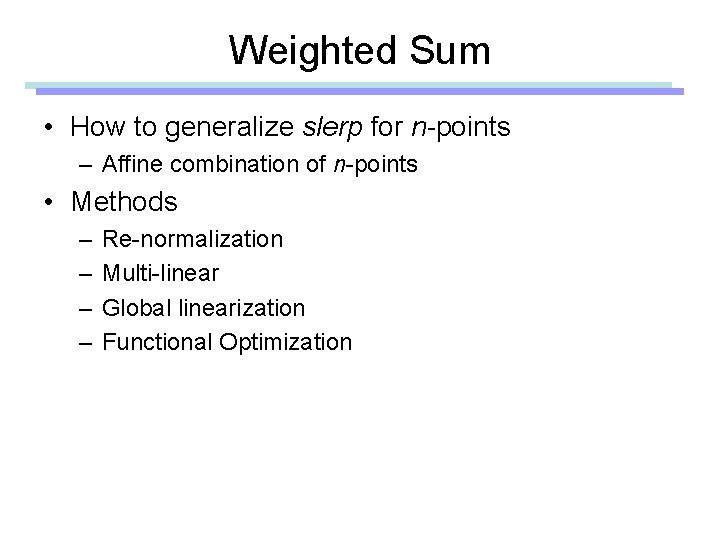

Weighted Sum • How to generalize slerp for n-points – Affine combination of n-points • Methods – – Re-normalization Multi-linear Global linearization Functional Optimization

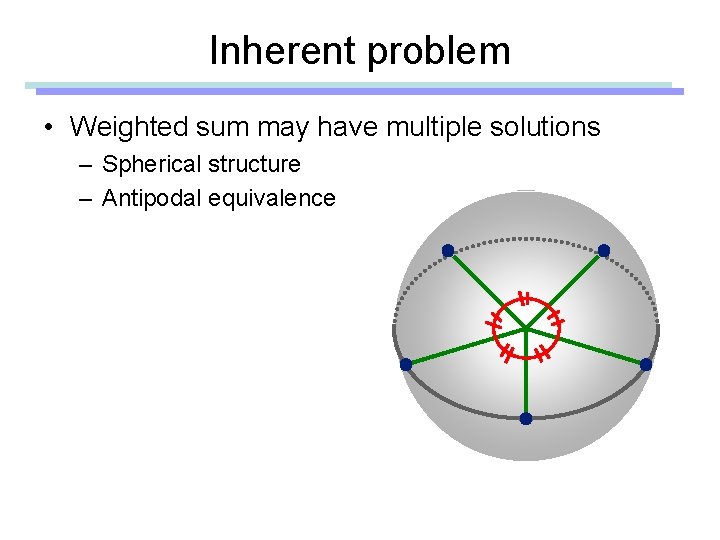

Inherent problem • Weighted sum may have multiple solutions – Spherical structure – Antipodal equivalence

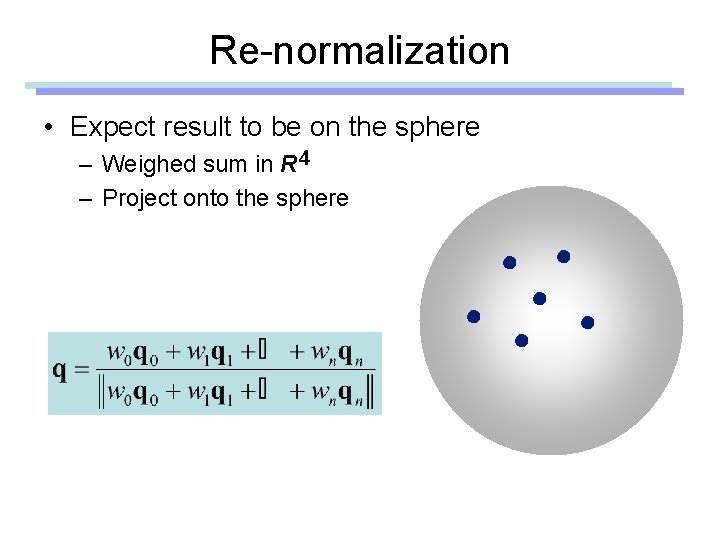

Re-normalization • Expect result to be on the sphere – Weighed sum in R 4 – Project onto the sphere
Re-normalization • Pros – Simple – Efficient • Cons – Linear precision – Singularity: The weighted sum may be zero

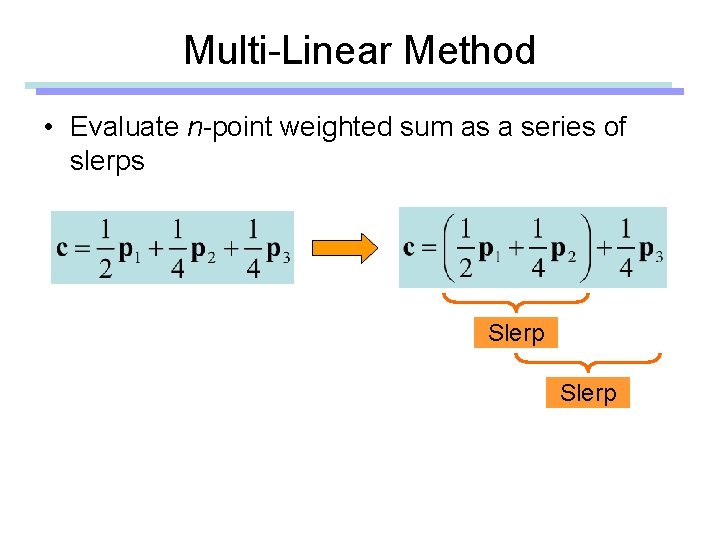

Multi-Linear Method • Evaluate n-point weighted sum as a series of slerps Slerp
Multi-Linear Method • Evaluate n-point weighted sum as a series of slerps Slerp

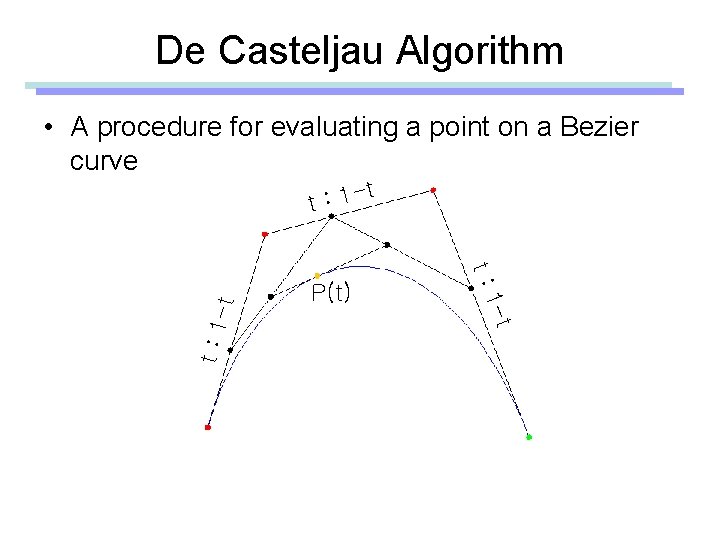

De Casteljau Algorithm • A procedure for evaluating a point on a Bezier curve P(t) -t t: 1 -t t 1 : t

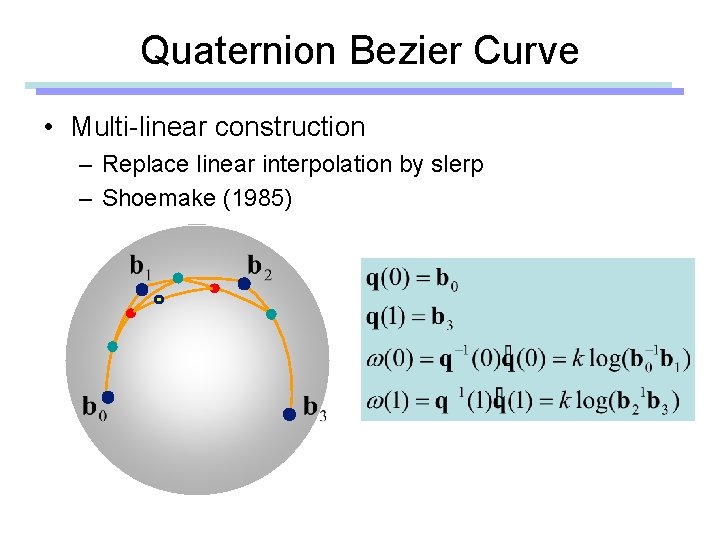

Quaternion Bezier Curve • Multi-linear construction – Replace linear interpolation by slerp – Shoemake (1985)

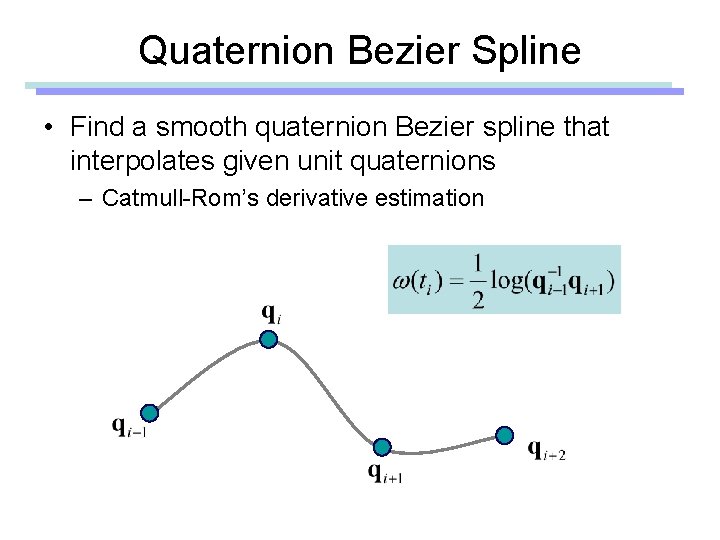

Quaternion Bezier Spline • Find a smooth quaternion Bezier spline that interpolates given unit quaternions – Catmull-Rom’s derivative estimation
Quaternion Bezier Spline • Find a smooth quaternion Bezier spline that interpolates given unit quaternions – Catmull-Rom’s derivative estimation

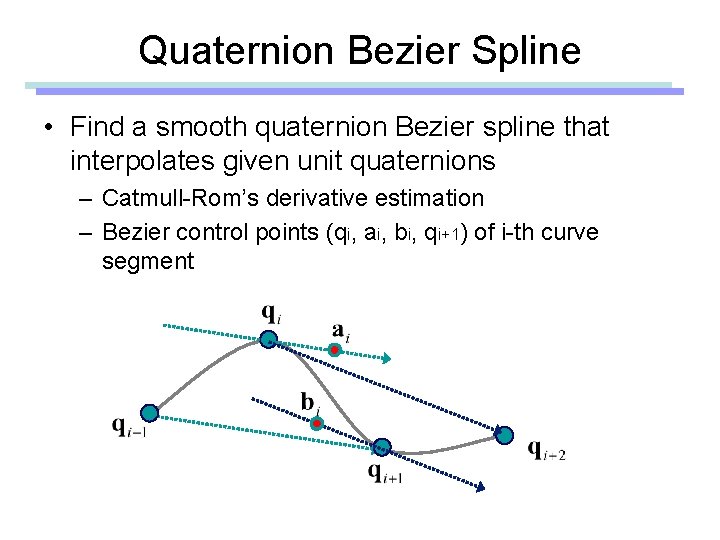

Quaternion Bezier Spline • Find a smooth quaternion Bezier spline that interpolates given unit quaternions – Catmull-Rom’s derivative estimation – Bezier control points (qi, ai, bi, qi+1) of i-th curve segment
Multi-Linear Method Slerp is not associative

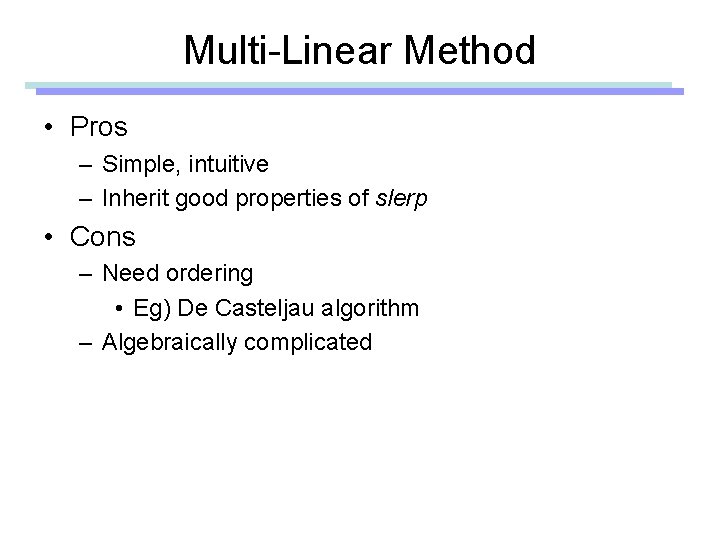

Multi-Linear Method • Pros – Simple, intuitive – Inherit good properties of slerp • Cons – Need ordering • Eg) De Casteljau algorithm – Algebraically complicated
Global Linearization
Global Linearization • Pros – Easy to implement – Versatile • Cons – Depends on the choice of the reference frame – Singularity near the antipole

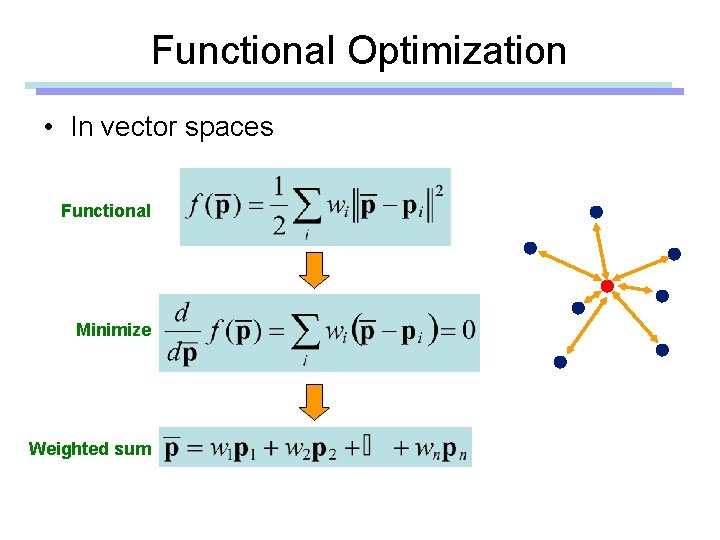

Functional Optimization • In vector spaces – We assume that this weighted sum was derived from a certain energy function
Functional Optimization • In vector spaces Functional Minimize Weighted sum
Functional Optimization • In orientation space – Buss and Fillmore (2001) • Spherical distance • Affine combination satisfies

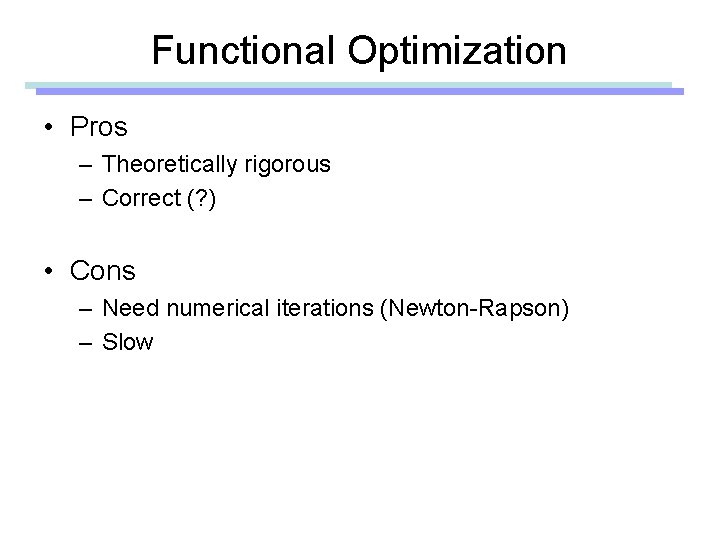

Functional Optimization • Pros – Theoretically rigorous – Correct (? ) • Cons – Need numerical iterations (Newton-Rapson) – Slow

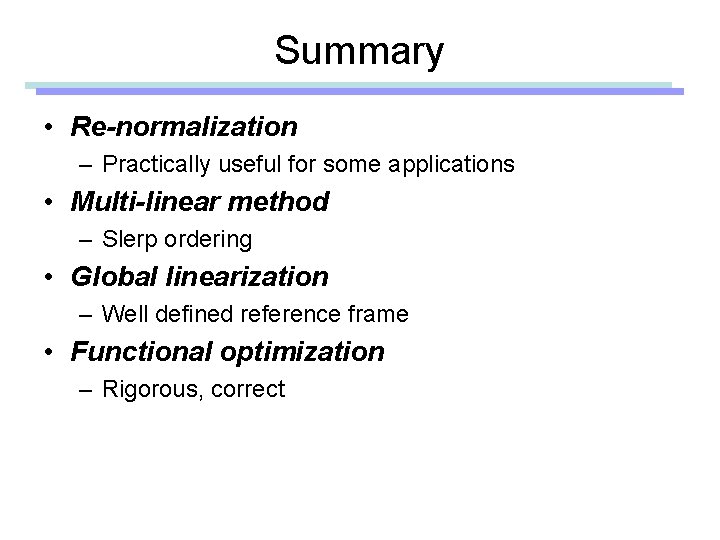

Summary • Re-normalization – Practically useful for some applications • Multi-linear method – Slerp ordering • Global linearization – Well defined reference frame • Functional optimization – Rigorous, correct
Summary • We don’t have an ultimate solution • An appropriate solution may be determined by application • More specific problems may have better solutions – For convolution filters, points have an ordering
