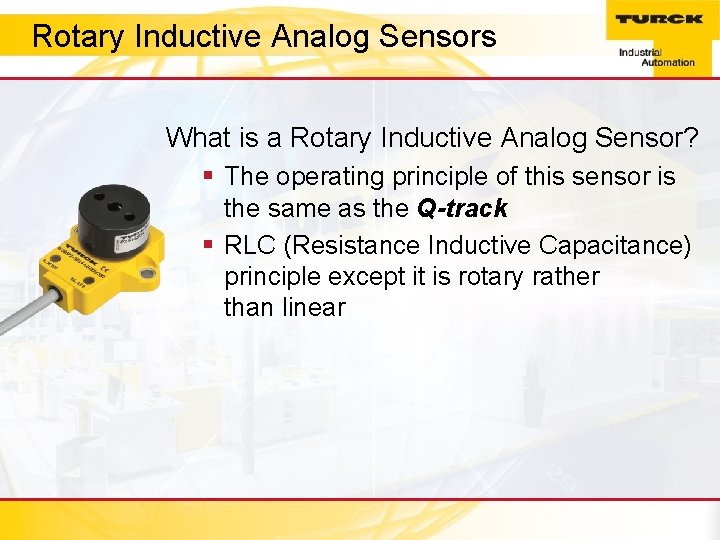

Rotary Inductive Analogtitle Sensors Click to edit Master style What is a Rotary Inductive Analog Sensor? § The operating principle of this sensor is the same as the Q-track § RLC (Resistance Inductive Capacitance) principle except it is rotary rather than linear

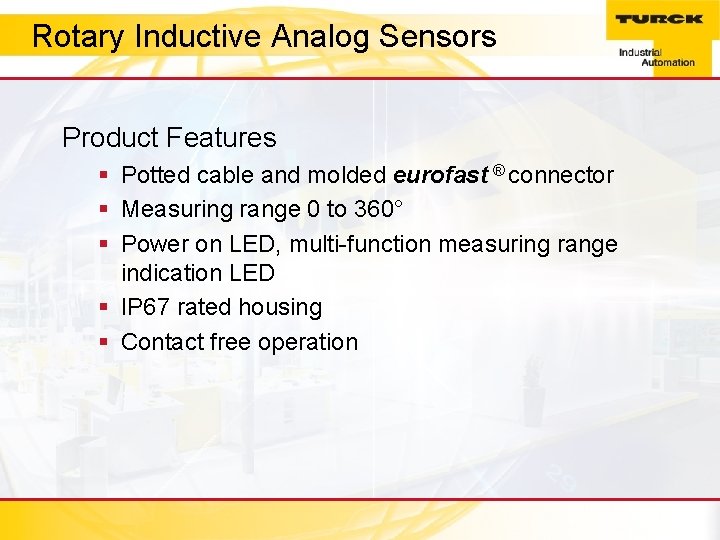

Rotary Inductive Analogtitle Sensors Click to edit Master style Product Features § Potted cable and molded eurofast ® connector § Measuring range 0 to 360° § Power on LED, multi-function measuring range indication LED § IP 67 rated housing § Contact free operation

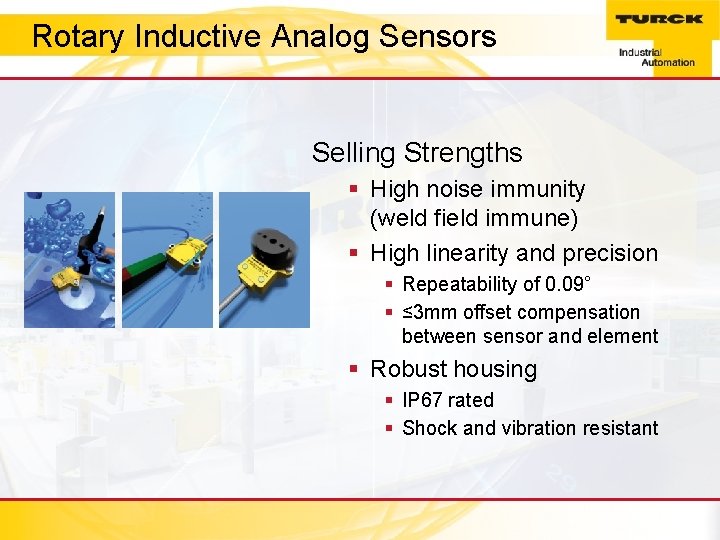

Rotary Inductive Analogtitle Sensors Click to edit Master style Selling Strengths § High noise immunity (weld field immune) § High linearity and precision § Repeatability of 0. 09° § ≤ 3 mm offset compensation between sensor and element § Robust housing § IP 67 rated § Shock and vibration resistant

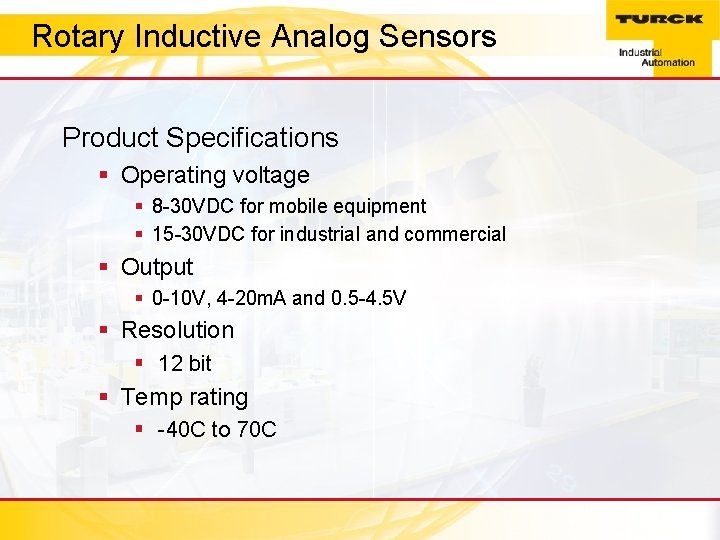

Rotary Inductive Analogtitle Sensors Click to edit Master style Product Specifications § Operating voltage § 8 -30 VDC for mobile equipment § 15 -30 VDC for industrial and commercial § Output § 0 -10 V, 4 -20 m. A and 0. 5 -4. 5 V § Resolution § 12 bit § Temp rating § -40 C to 70 C

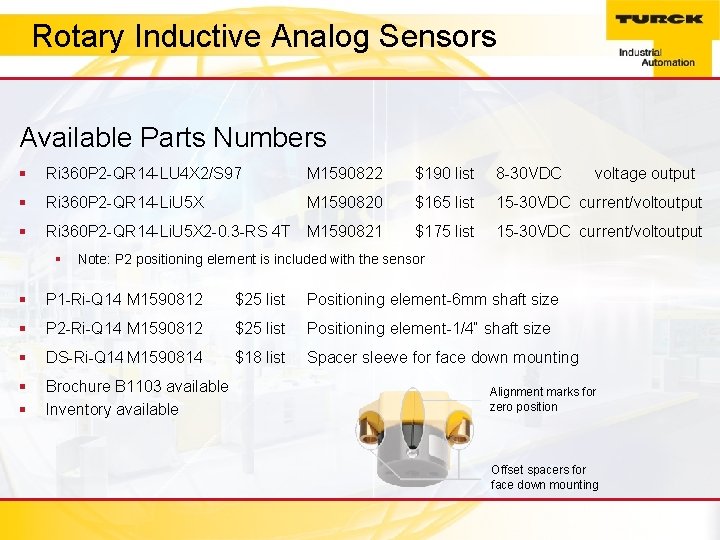

Rotary Inductive Analogtitle Sensors Click to edit Master style Available Parts Numbers § Ri 360 P 2 -QR 14 -LU 4 X 2/S 97 M 1590822 $190 list 8 -30 VDC § Ri 360 P 2 -QR 14 -Li. U 5 X M 1590820 $165 list 15 -30 VDC current/voltoutput § Ri 360 P 2 -QR 14 -Li. U 5 X 2 -0. 3 -RS 4 T M 1590821 $175 list 15 -30 VDC current/voltoutput § voltage output Note: P 2 positioning element is included with the sensor § P 1 -Ri-Q 14 M 1590812 $25 list Positioning element-6 mm shaft size § P 2 -Ri-Q 14 M 1590812 $25 list Positioning element-1/4“ shaft size § DS-Ri-Q 14 M 1590814 $18 list Spacer sleeve for face down mounting § § Brochure B 1103 available Inventory available Alignment marks for zero position Offset spacers for face down mounting

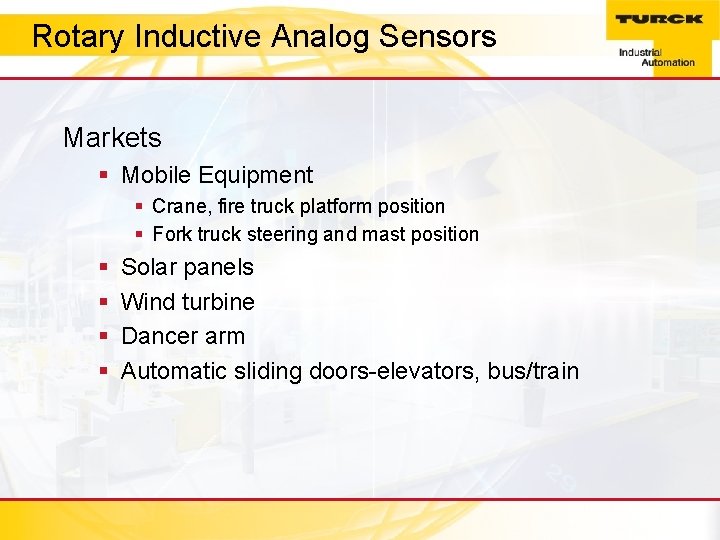

Rotary Inductive Analogtitle Sensors Click to edit Master style Markets § Mobile Equipment § Crane, fire truck platform position § Fork truck steering and mast position § § Solar panels Wind turbine Dancer arm Automatic sliding doors-elevators, bus/train

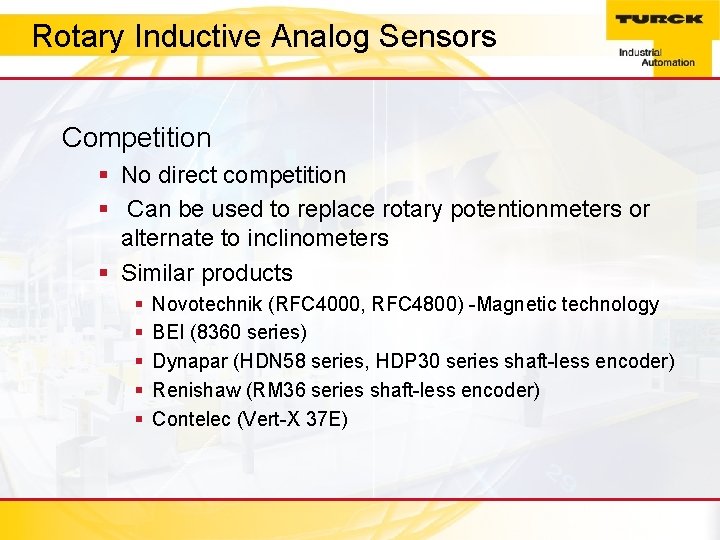

Rotary Inductive Analogtitle Sensors Click to edit Master style Competition § No direct competition § Can be used to replace rotary potentionmeters or alternate to inclinometers § Similar products § § § Novotechnik (RFC 4000, RFC 4800) -Magnetic technology BEI (8360 series) Dynapar (HDN 58 series, HDP 30 series shaft-less encoder) Renishaw (RM 36 series shaft-less encoder) Contelec (Vert-X 37 E)
