ROSENBAUER GROUP ROSENBAUER KONZERN High Pressure FogGun NEPIRO

ROSENBAUER GROUP ROSENBAUER KONZERN High Pressure Fog-Gun NEPIRO Ergo

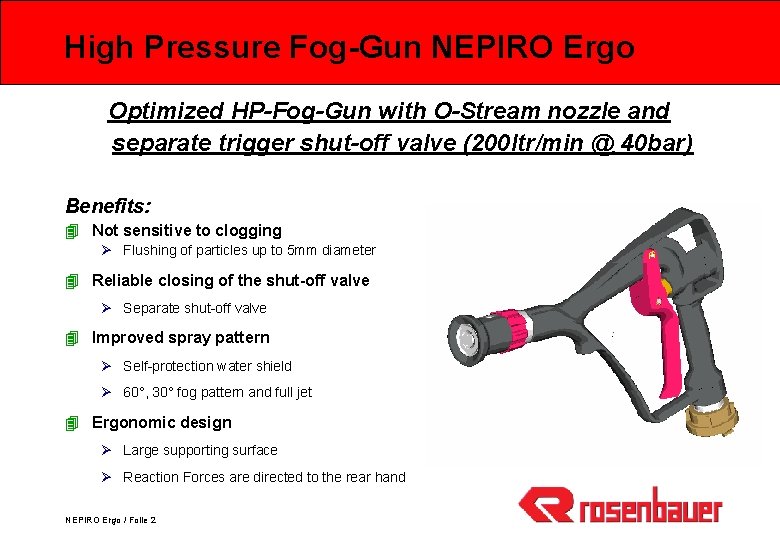

High Pressure Fog-Gun NEPIRO Ergo Optimized HP-Fog-Gun with O-Stream nozzle and separate trigger shut-off valve (200 ltr/min @ 40 bar) Benefits: 4 Not sensitive to clogging Ø Flushing of particles up to 5 mm diameter 4 Reliable closing of the shut-off valve Ø Separate shut-off valve 4 Improved spray pattern Ø Self-protection water shield Ø 60°, 30° fog pattern and full jet 4 Ergonomic design Ø Large supporting surface Ø Reaction Forces are directed to the rear hand NEPIRO Ergo / Folie 2

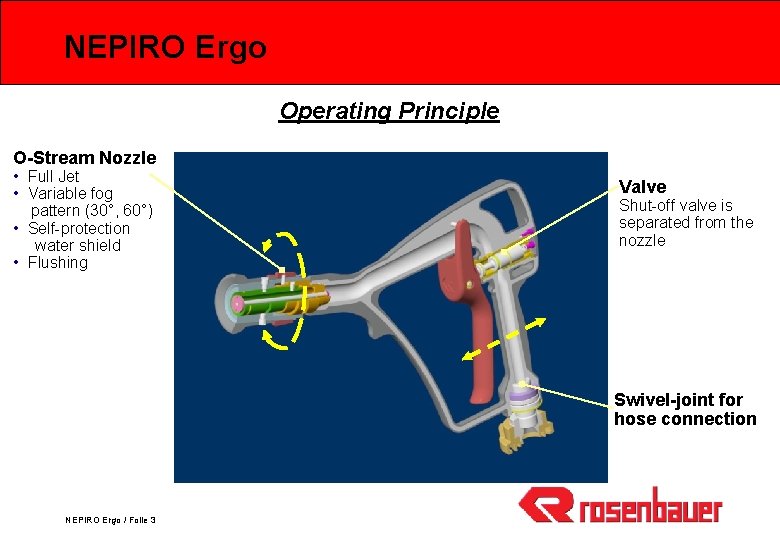

NEPIRO Ergo Operating Principle O-Stream Nozzle • Full Jet • Variable fog pattern (30°, 60°) • Self-protection water shield • Flushing Valve Shut-off valve is separated from the nozzle Swivel-joint for hose connection NEPIRO Ergo / Folie 3

NEPIRO Ergo Spray Pattern NEPIRO Ergo / Folie 4

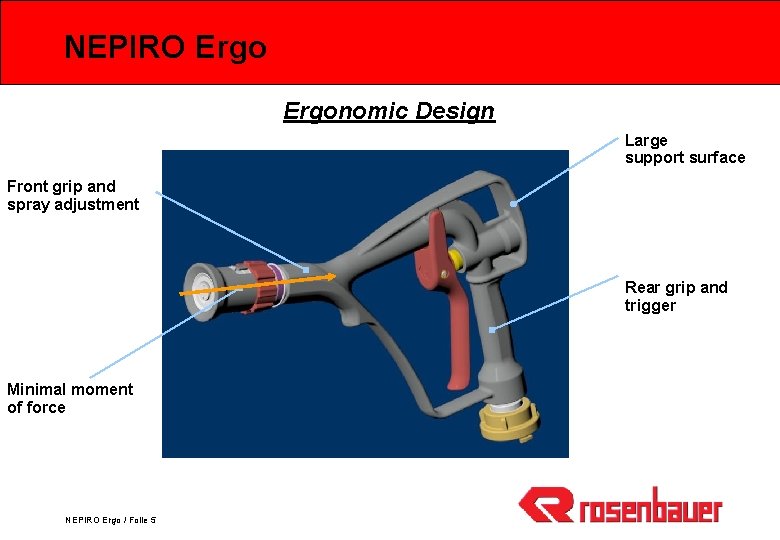

NEPIRO Ergonomic Design Large support surface Front grip and spray adjustment Rear grip and trigger Minimal moment of force NEPIRO Ergo / Folie 5

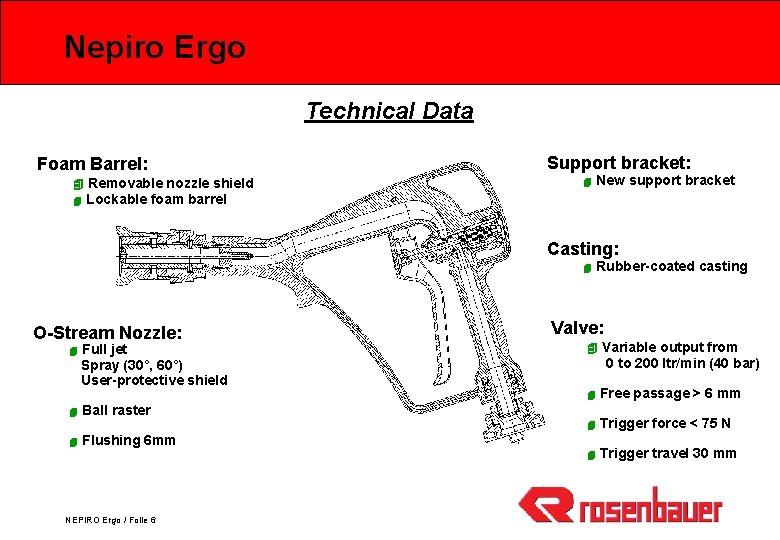

Nepiro Ergo Technical Data Foam Barrel: 4 Removable nozzle shield 4 Support bracket: 4 New support bracket Lockable foam barrel Casting: 4 O-Stream Nozzle: 4 4 4 Full jet Spray (30°, 60°) User-protective shield Valve: 4 Variable output from 0 to 200 ltr/min (40 bar) 4 Free passage > 6 mm 4 Trigger force < 75 N 4 Trigger travel 30 mm Ball raster Flushing 6 mm NEPIRO Ergo / Folie 6 Rubber-coated casting
