![ROOT PAT ROOT TES ROOT WGT ROOT FWT ROOT DBD Use Analyze root ROOT. PAT ROOT. TES (ROOT. WGT) (ROOT. FWT) (ROOT. DBD) • Use Analyze root](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-1.jpg)
ROOT. PAT ROOT. TES (ROOT. WGT) (ROOT. FWT) (ROOT. DBD) • Use Analyze root – 34 for easy way (the file meta let you override defaults) • Use meta root for full mode - e. g meta root - use Meta. UI for input file Meta. Neural ROOT. XXX ROOT. TTT ROOT. TRN (ROOT. DBD) ROOT. WGT ROOT. FWT
![ANALYZE Meta Neural Alternative Code Either run meta root analyze • ANALYZE = Meta. Neural Alternative Code • Either run meta root analyze](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-2.jpg)
• ANALYZE = Meta. Neural Alternative Code • Either run meta root analyze root. pat – 34 (single training and testing) analyze root. pat – 3434 (LOO) analyze root. txt 34 (bootstrap mode) • Results for analyze are in resultss. xxx and resultss. ttt • Results from Meta. Neural are in root. xxx and root. ttt • Meta. Neural input file is generated automatically in analyze • The file name meta overrides the default input file for analyze S S S
![Meta Neural Input File for the ROOT 4 4 layers 2 2 Meta. Neural Input File for the ROOT 4 => 4 layers 2 => 2](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-3.jpg)
Meta. Neural Input File for the ROOT 4 => 4 layers 2 => 2 inputs 16 => # hidden neurons in layer #1 4 => # hidden neurons in layer# 2 1 => # outputs 300 => epoch length (hint: always use 1, for the entire batch) 0. 01 => learning parameters by weight layer (hint: 1/# patterns or 1/# epochs) 0. 01 0. 5 => momentum parameters by weight layer (hint use 0. 5) 0. 5 10000000 => some very large number of training epochs 200 => error display refresh rate 1 =>sigmoid transfer function 1 => Temperature of sigmoid check. pat => name of file with training patterns (test patterns in root. tes) 0 => not used (legacy entry) 100 => not used (legacy entry) 0. 02000 => exit training if error < 0. 02 0 => initial weights from a flat random distribution 0. 2 => initial random weights all fall between – 2 and +2
![EXAMPLE DATA SETS IRIS data Checkerboard data Svante wolds QSAR data EXAMPLE DATA SETS • IRIS data • Checkerboard data • Svante wold’s QSAR data](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-4.jpg)

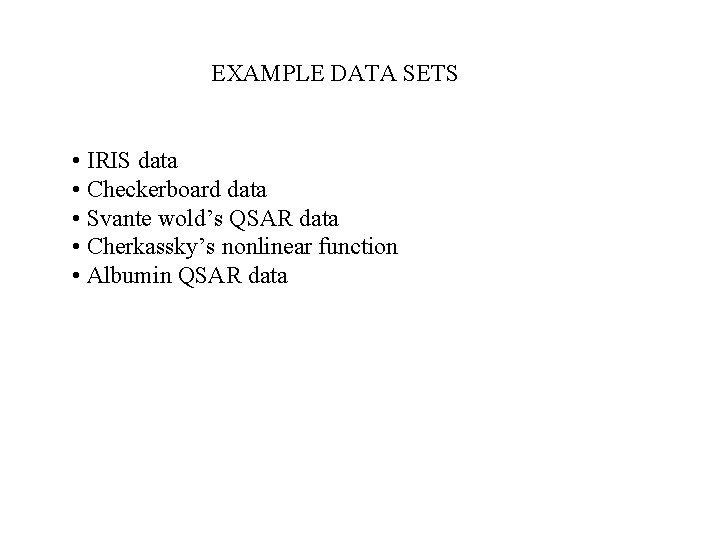

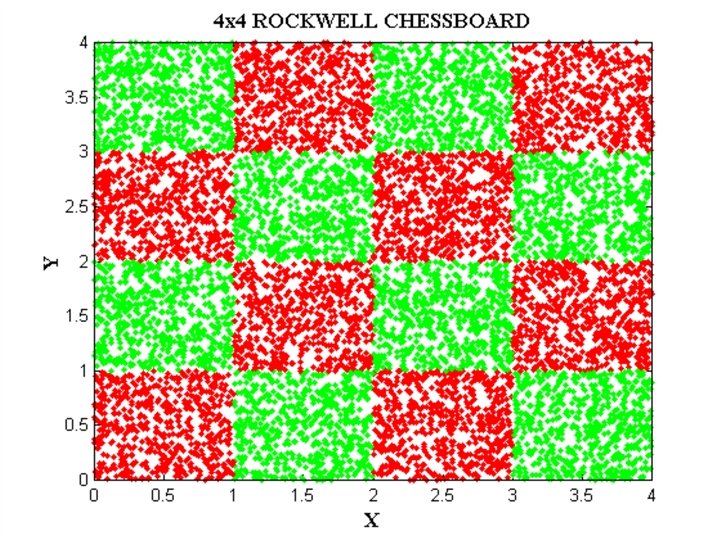

EXAMPLE DATA SETS • IRIS data • Checkerboard data • Svante wold’s QSAR data • Cherkassky’s nonlinear function • Albumin QSAR data
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-5.jpg)
![FILES RELATED TO CHECKERBOARD EXAMPLE CHECKDATA BAT CHECKNET BAT CHECKTEST BAT CHECK PAT FILES RELATED TO CHECKERBOARD EXAMPLE CHECK_DATA. BAT CHECK_NET. BAT CHECK_TEST. BAT CHECK. PAT](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-6.jpg)
FILES RELATED TO CHECKERBOARD EXAMPLE CHECK_DATA. BAT CHECK_NET. BAT CHECK_TEST. BAT CHECK. PAT
![Meta Neural INPUT FILE FOR CHECKERBOARD DATA Meta. Neural INPUT FILE FOR CHECKERBOARD DATA](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-7.jpg)

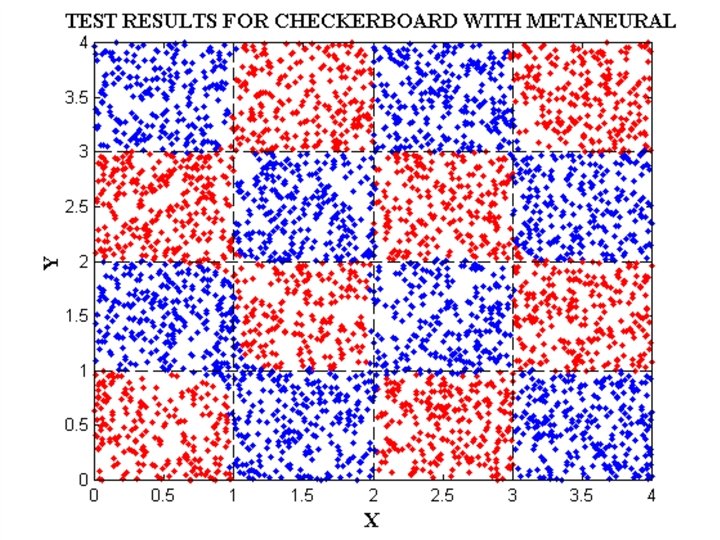

Meta. Neural INPUT FILE FOR CHECKERBOARD DATA
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-8.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-9.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-10.jpg)
![QSAR DATA SET EXAMPLE 19 Amino Acids From Svante Wold Michael Sjölström Lennart Erikson QSAR DATA SET EXAMPLE: 19 Amino Acids From Svante Wold, Michael Sjölström, Lennart Erikson,](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-11.jpg)

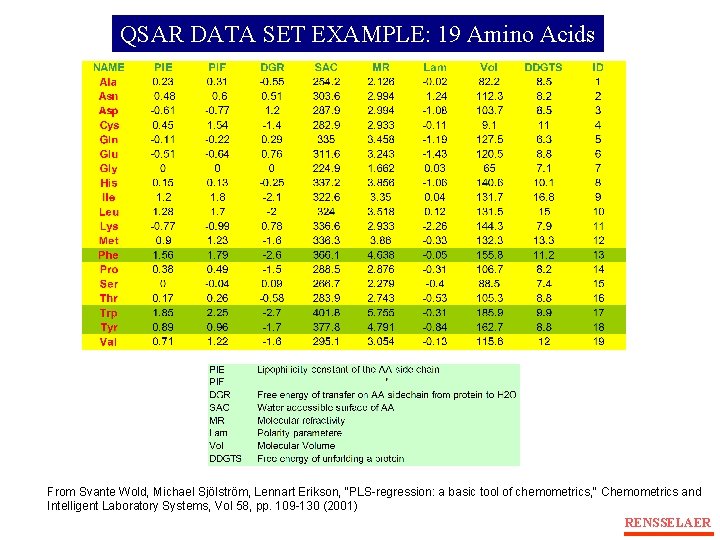

QSAR DATA SET EXAMPLE: 19 Amino Acids From Svante Wold, Michael Sjölström, Lennart Erikson, "PLS-regression: a basic tool of chemometrics, " Chemometrics and Intelligent Laboratory Systems, Vol 58, pp. 109 -130 (2001) RENSSELAER
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-12.jpg)
![PLS 1 latent variable PLS 1 latent variable](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-13.jpg)
PLS 1 latent variable
![PLS 1 latent variable No aromatic AAs PLS 1 latent variable No aromatic AAs](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-14.jpg)

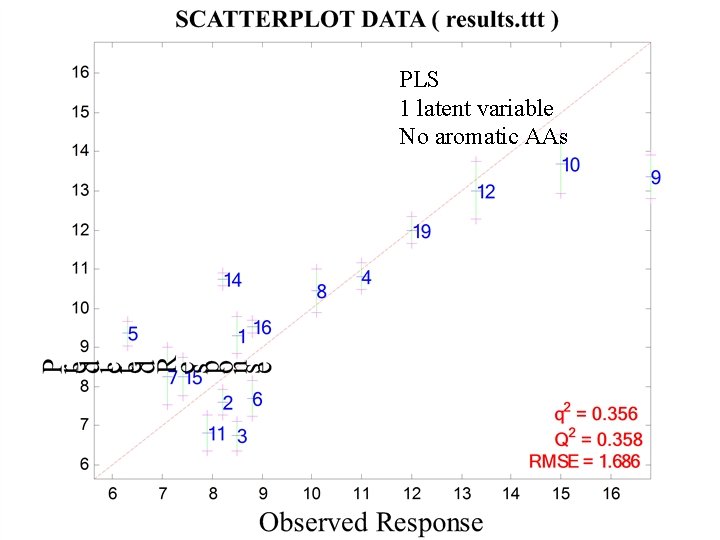

PLS 1 latent variable No aromatic AAs
![1 latent variable Gaussian Kernel PLS sigma 1 3 With aromatic AAs 1 latent variable Gaussian Kernel PLS (sigma = 1. 3) With aromatic AAs](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-15.jpg)
1 latent variable Gaussian Kernel PLS (sigma = 1. 3) With aromatic AAs
![Chemoinformatic Models to Predict Binding Affinities to Human Serum Albumin G Colmenarejo et al Chemoinformatic Models to Predict Binding Affinities to Human Serum Albumin: G. Colmenarejo et. al.](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-16.jpg)
Chemoinformatic Models to Predict Binding Affinities to Human Serum Albumin: G. Colmenarejo et. al. , J. Med. Chem 2001, 44, pp. 4370 -4378
![Binding affinities to human serum albumin HSA log Khsa Gonzalo Colmenarejo • Binding affinities to human serum albumin (HSA): log K’hsa • Gonzalo Colmenarejo,](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-17.jpg)
• Binding affinities to human serum albumin (HSA): log K’hsa • Gonzalo Colmenarejo, Galaxo. Smith. Kline J. Med. Chem. 2001, 44, 4370 -4378 • 95 molecules, 250 -1500+ descriptors • Widely different compounts
![Electron DensityDerived TAEwavelet Descriptors 1 Surface properties are encoded on 0 002 eau Electron Density-Derived TAE-wavelet Descriptors 1 ) Surface properties are encoded on 0. 002 e/au](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-18.jpg)
Electron Density-Derived TAE-wavelet Descriptors 1 ) Surface properties are encoded on 0. 002 e/au 3 surface Breneman, C. M. and Rhem, M. , J. Comp. Chem. , 1997, 18(2), p. 182 -197 2 ) Histograms or wavelet encoded of surface properties give TAE property descriptors Histograms PIP (Local Ionization Potential) Wavelet Coefficients
![PESTShape Descriptors Surface PropertyEncoded Ray Tracing TAE Internal Ray Reflection low resolution PEST-Shape Descriptors: Surface Property-Encoded Ray Tracing • TAE Internal Ray Reflection - low resolution](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-19.jpg)
PEST-Shape Descriptors: Surface Property-Encoded Ray Tracing • TAE Internal Ray Reflection - low resolution scan Isosurface (portion removed) with 750 segments RENSSELAER
![ShapeAware Molecular Descriptors from PropertySegmentLength Distributions Segment length and pointofincidence value form 2 Shape-Aware Molecular Descriptors from Property/Segment-Length Distributions • Segment length and point-of-incidence value form 2](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-20.jpg)
Shape-Aware Molecular Descriptors from Property/Segment-Length Distributions • Segment length and point-of-incidence value form 2 D-histogram • Each bin of 2 D-histogram becomes a hybrid descriptor – 36 descriptors per hybrid length-property PIP vs Segment Length RENSSELAER
![training training](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-21.jpg)
training
![testing testing](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-22.jpg)
testing
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-23.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-24.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-25.jpg)
![CHERKASSKYS NONLINEAR BENCHMARK DATA Generate 500 datapoints 400 training 100 testing for Cherkas CHERKASSKY’S NONLINEAR BENCHMARK DATA • Generate 500 datapoints (400 training; 100 testing) for: Cherkas.](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-26.jpg)
CHERKASSKY’S NONLINEAR BENCHMARK DATA • Generate 500 datapoints (400 training; 100 testing) for: Cherkas. bat
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-27.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-28.jpg)
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-29.jpg)
![Ysinxx Generate 500 datapoints 100 training 500 testing for Y=sin|x|/|x| • Generate 500 datapoints (100 training; 500 testing) for:](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-30.jpg)

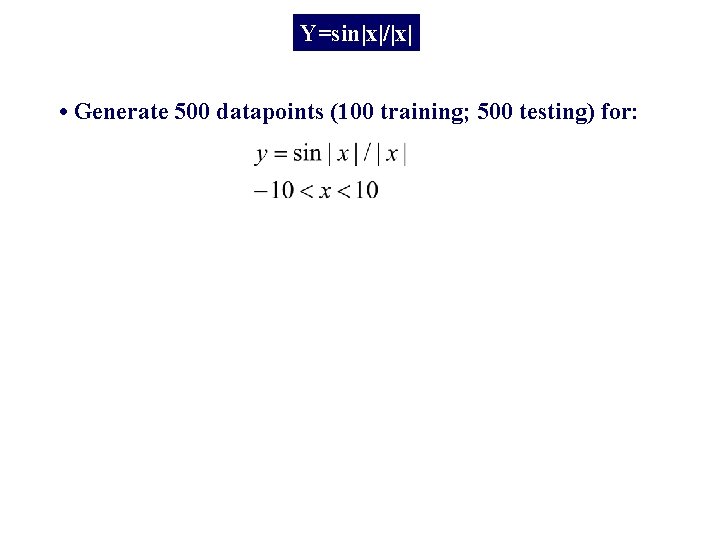

Y=sin|x|/|x| • Generate 500 datapoints (100 training; 500 testing) for:
![Comparison KernelPLS with PLS 4 latent variables sigma 0 08 PLS KernelPLS Comparison Kernel-PLS with PLS 4 latent variables sigma = 0. 08 PLS Kernel-PLS](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-31.jpg)

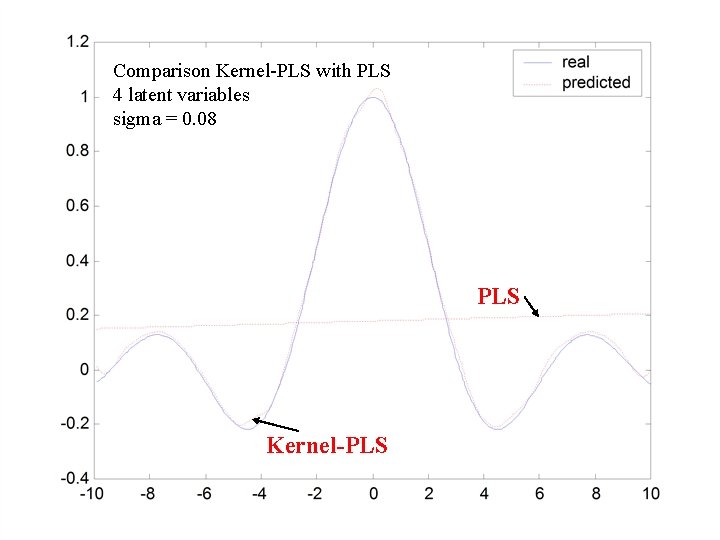

Comparison Kernel-PLS with PLS 4 latent variables sigma = 0. 08 PLS Kernel-PLS
![](https://slidetodoc.com/presentation_image_h2/02842e3a74121abf98e0daba24281ec1/image-32.jpg)
