ROOFTOP SOLAR PHOTOVOLTAIC SYSTEM GROUP OF COMPANIES Total

ROOFTOP SOLAR PHOTOVOLTAIC SYSTEM

GROUP OF COMPANIES Total group turnover – more than 10 Bn INR in different sectors � Magicrete Building Solutions Pvt. Ltd –Construction materials � Mahati Industries Pvt. Ltd – Power sector � Singhania Systems Technologists Pvt. Ltd –Engineering & Technology � Sun Metallics & Alloys Pvt. Ltd. – Steel � Raghukul Dyeing & Printing Pvt. Ltd - Textile � Dropadi Fabrics - Textiles � V. S. Industries - Textiles � Nalanda Residency, Shree Hari - Real Estate � Other - Shailja Tex Prints Pvt. Ltd, R. P. Fashion, Dropadi Apparels, Ambika Textiles, Gangotri Textiles, etc. - Textile firms

SERVICES � Feasibility study � Detailed Project Report � System designing � System Installation � Government Approvals/Clearances � System integration

SOLAR PHOTOVOLTAIC EPC Liasion Services NET Metering , RPO Engineerin g and Design Power Evacuation Site Survey & Energy Mapping Site Analysis EPC Installation & Commissio n-ing with O&M Services Equipment Supply Financial Modelling

TYPES OF ROOF RCC ROOF § GI ROOF OR METAL SHEET ROOF § ASBESTOS ROOF §

DIFFERENT TYPES OF INSTALLATION ON ROOF

RCC ROOF INSTALLATION

GI ROOF INSTALLATION

ASBESTOS ROOF INSTALLATION

FIXED TILT GI ROOF INSTALLATION

ELEVATED STRUCTURE INSTALLATION

BALLAST TYPE INSTALLATION

TYPES OF SOFTWARE

GOOGLE EARTH

PV-SYST

AUTOCAD

GOOGLE SKETCHUP

TYPES OF STRUCTURE

MICRO ALUMINIUM RAIL

GI STRUCTURE

LIST OF SOLAR PV SYSTEM ELECTRICAL COMPONENTS • Modules • MC 4 Connector • DC Cable • DCDB Or AJB (Array Juntion Box) • Inverter • AC Cables • SPD, MCCB • AC Distribution Box • k. Wh Energy Meter • Lightening Arrestor • Datalogger or Monitoring Devices • DC, AC And LA Earth Pit • GI Aluminium Earthing Strip

FACTORS AFFECTING GENERATION

IRONIES AT SITES • Unqualified Contractor • Roof Structure Strength • Proper Access For Material Supply over roof • Working without any design • Unalignment of Panel in each row • Installation Of Inverter • Mounting Area for Lightening Arrestor • Leakages at roof • Local Groups like Mathadi

NET METERING POLICY

NET METERING • Net Metering Arrangement” means an arrangement under which a Roof-top Solar PV System with Net Meter installed at an consumption end in your premises & will deliver surplus energy after adjustment to MSEDCL ( Energy Credit ) • The Final Electricity Bill of the Month = Units Consumed – Units Generated by Solar • At the end of Financial Year the excess energy if any due to credit will be purchased by MSEDCL at Average Pooled Power Price

MODALITIES OF NET METERING • Capacity of Solar Rooftop : Should not exceed sanctioned load or contract demand • Distribution Transformer : The SRT Capacity shall not exceed 40% of distribution transformer rated capacity. • Distribution Licensee may allow Net Metering Exceeding 40% capacity upon detailed load study • HT Consumers may install Rooftop system at LT bus bar system but Net meter to be installed at HT side of transformer

NET METERING – GRAPHICAL PRESENTATION

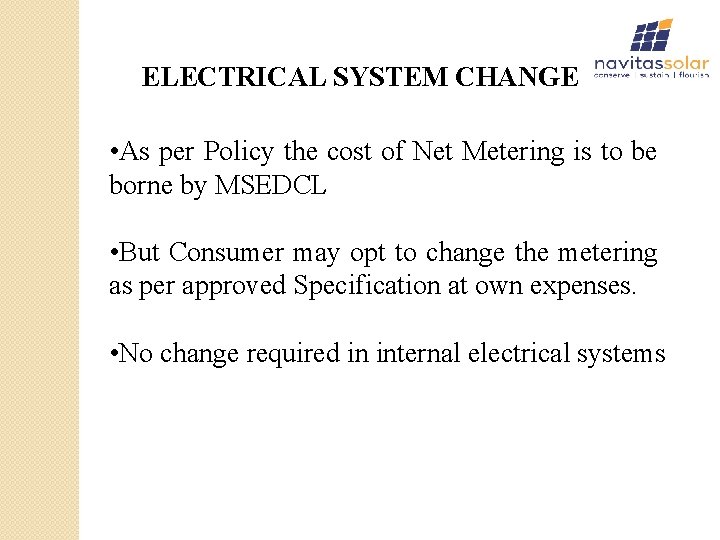

ELECTRICAL SYSTEM CHANGE • As per Policy the cost of Net Metering is to be borne by MSEDCL • But Consumer may opt to change the metering as per approved Specification at own expenses. • No change required in internal electrical systems

NET METERING GUIDELINES • Commercial circular 258 • Application Form • Net Metering Procedure • Net meter connection agreement • Net meter Specifications for 1 phase LT, 3 Phase LT, LTCT operated, HT-CT Operated Etc. • Approved makes for Net meters: Secure, L& T , Genus

NET METERING PROCEDURE • Application form with 1. Technical Specifications 2. SLD 3. Electricity Bill 4. Paid receipt. • Where To submit? Application to be submitted to the office of the respective nodal officer/ authorities authorized for billing

NET METERING PROCEDURE • Processing fees • SLD Verification • Technical feasibility Report • Letter for Testing of Meters. • Test Reports from Testing division • Plant Installation Testing • No Objection Certificate after testing • Agreement between consumer and MSEDCL. • Net Meter Installation • Verification Report

NET METERING INSTALLATIONS

NET METER BILL

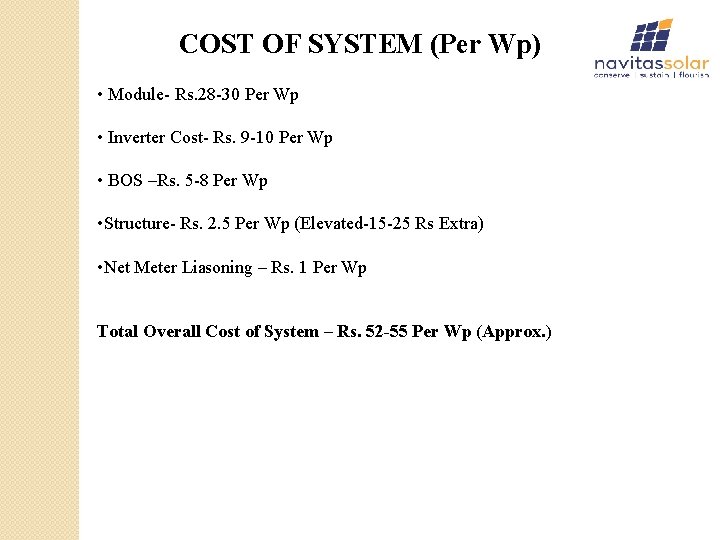

COST OF SYSTEM (Per Wp) • Module- Rs. 28 -30 Per Wp • Inverter Cost- Rs. 9 -10 Per Wp • BOS –Rs. 5 -8 Per Wp • Structure- Rs. 2. 5 Per Wp (Elevated-15 -25 Rs Extra) • Net Meter Liasoning – Rs. 1 Per Wp Total Overall Cost of System – Rs. 52 -55 Per Wp (Approx. )
