Rooftop Packaged Unit 2017 GREE CAC PROMOTION ALWAYS

Rooftop Packaged Unit 2017 GREE CAC PROMOTION ALWAYS BETTER CAC SOLUTION FROM GREE

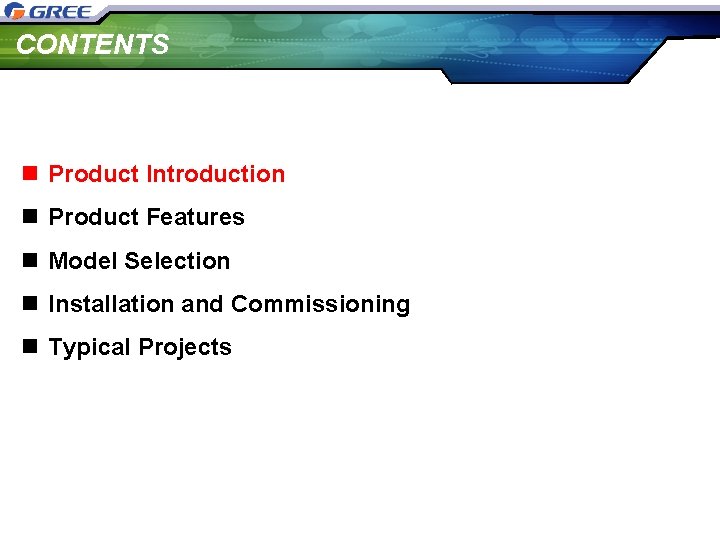

CONTENTS n Product Introduction n Product Features n Model Selection n Installation and Commissioning n Typical Projects

CONTENTS n Product Introduction n Product Features n Model Selection n Installation and Commissioning n Typical Projects

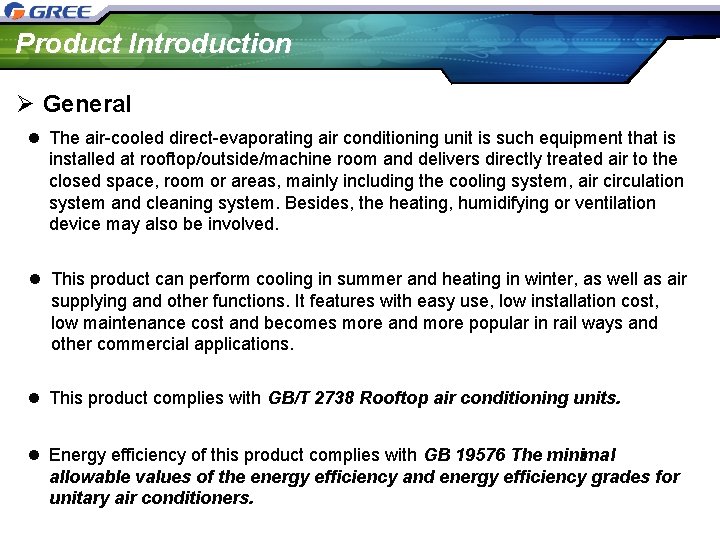

Product Introduction Ø General l The air-cooled direct-evaporating air conditioning unit is such equipment that is installed at rooftop/outside/machine room and delivers directly treated air to the closed space, room or areas, mainly including the cooling system, air circulation system and cleaning system. Besides, the heating, humidifying or ventilation device may also be involved. l This product can perform cooling in summer and heating in winter, as well as air supplying and other functions. It features with easy use, low installation cost, low maintenance cost and becomes more and more popular in rail ways and other commercial applications. l This product complies with GB/T 2738 Rooftop air conditioning units. l Energy efficiency of this product complies with GB 19576 The minimal allowable values of the energy efficiency and energy efficiency grades for unitary air conditioners.

Product Introduction Ø Integrated Rooftop Units WKR 105/Na. A WKR 140/Na. A WKR 180/Na. A WKR 230/Na. A WKR 280/Na. A WKR 370/Na. A

Product Introduction Ø Split Rooftop Units l WKR 105 F/Na. A、WKR 140 F/Na. A、WKR 180 F/Na. A l WKR 230 F/Na. A、WKR 280 F/Na. A、WKR 370 F/Na. A

Product Introduction Ø Technical Data EER Standa rd static pressu re Pa Static pressure Pa 105 2. 53 400 150~600 WKR 140/Na. A 140 2. 67 400 150~600 WKR 180/Na. A 180 2. 50 400 150~600 WKR 230/Na. A 230 2. 8 400 150~600 WKR 280/Na. A 280 2. 8 400 150~600 WKR 370/Na. A 370 3. 04 400 150~600 Integrated type Coolin g capaci ty k. W WKR 105/Na. A Outline dimensions （L×W×H） 4680× 2100× 2 310 5370× 2200× 2 510 7750× 2100× 2 510 8580× 2200× 2 510 Compressor quantity Motor power KW (Standard Static Pressure) 2 11 2 15 4 18. 5 4 22

Product Introduction Ø Technical Data Split type Cooli ng capac ity k. W WKR 105 F/Na. A 105 EER Standar d static pressur e Pa Static pressure Pa 2. 53 400 150~600 WKR 140 F/Na. A 140 2. 67 400 150~600 WKR 180 F/Na. A 180 2. 50 400 150~600 WKR 230 F/Na. A 230 2. 8 400 150~600 WKR 280 F/Na. A 280 2. 8 400 150~600 WKR 370 F/Na. A 370 3. 04 400 150~600 Dimensions of indoor units Dimensions of outdoor units 2450× 2100× 2120 2230*2100*2310 2850× 2200× 2320 2520*2200*2510 3800× 2100× 2310 4250*2100*2310 4050× 2200× 2310 4830*2200*2510

Product Introduction Ø Applications The unit can be widely used for the large spaces, like exhibitions, stadiums, cinemas, malls, supermarkets, waiting rooms, meeting rooms, plants, and libraries etc.

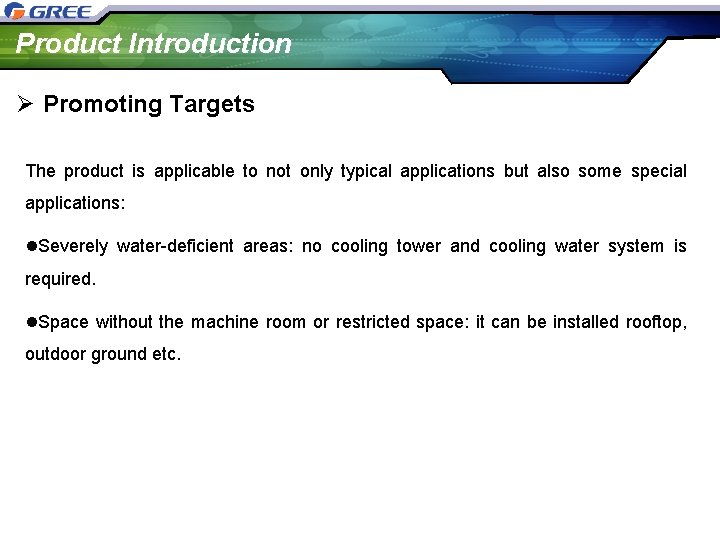

Product Introduction Ø Promoting Targets The product is applicable to not only typical applications but also some special applications: l. Severely water-deficient areas: no cooling tower and cooling water system is required. l. Space without the machine room or restricted space: it can be installed rooftop, outdoor ground etc.

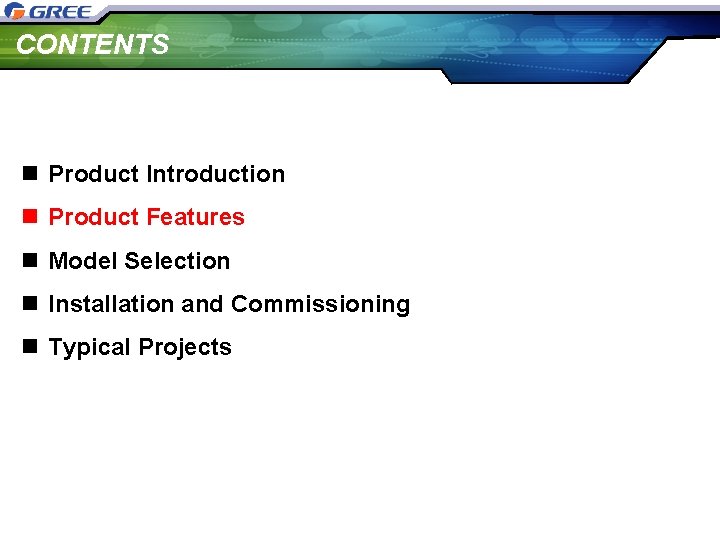

CONTENTS n Product Introduction n Product Features n Model Selection n Installation and Commissioning n Typical Projects

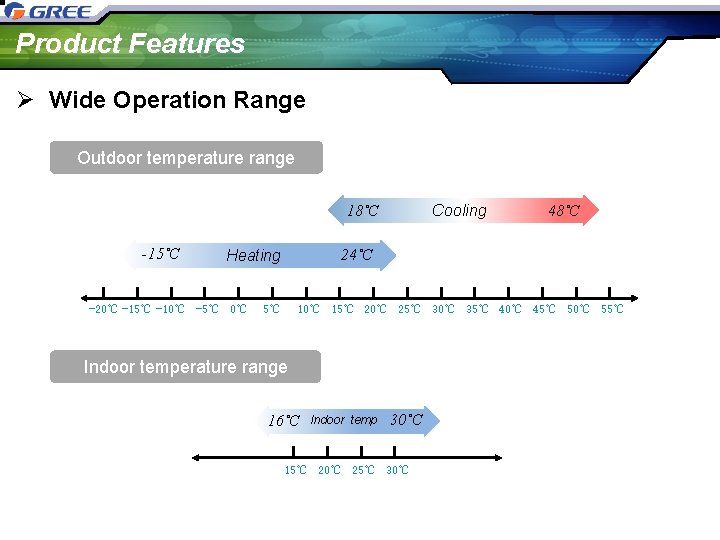

Product Features Ø Wide Operation Range Outdoor temperature range Cooling 18˚C -15˚C 24˚C Heating -20℃ -15℃ -10℃ -5℃ 0℃ 48˚C 5℃ 10℃ 15℃ 20℃ 25℃ 30℃ 35℃ 40℃ 45℃ 50℃ 55℃ Indoor temperature range 16˚C Indoor temp 30˚C 15℃ 20℃ 25℃ 30℃

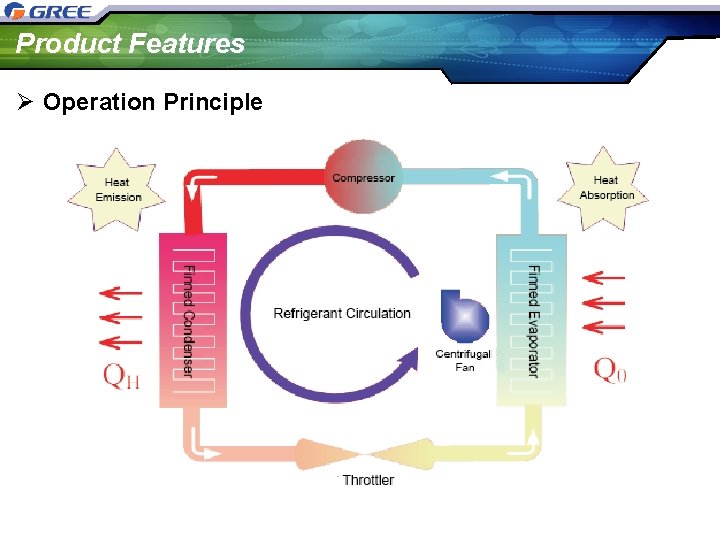

Product Features Ø Operation Principle

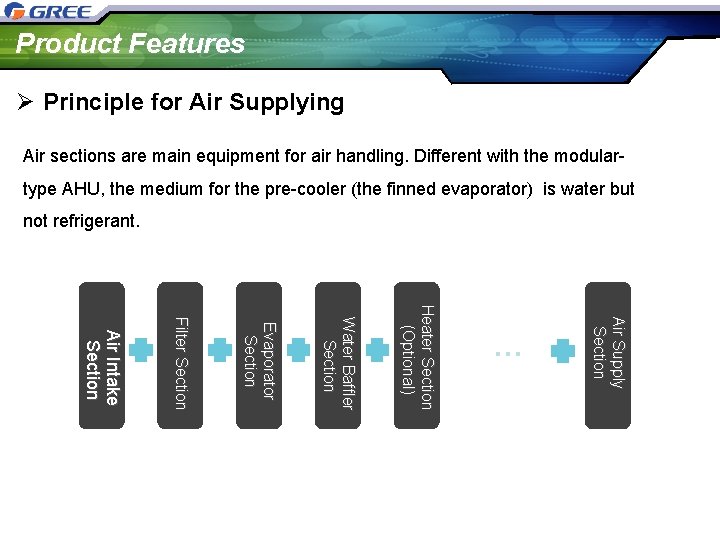

Product Features Ø Principle for Air Supplying Air sections are main equipment for air handling. Different with the modulartype AHU, the medium for the pre-cooler (the finned evaporator) is water but not refrigerant. A ir S upply Section Heater Section (O p t i o n a l ) W at er B af f ler Section Evaporator Section Filter Section Air Intake Section …

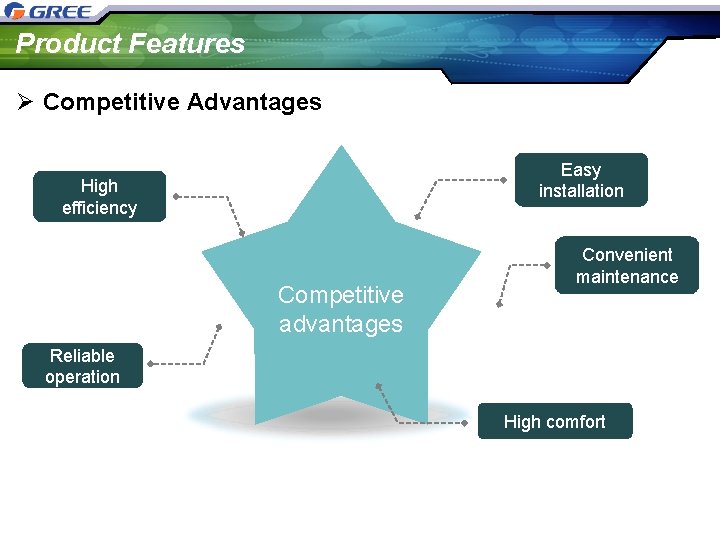

Product Features Ø Competitive Advantages Easy installation High efficiency Competitive advantages Convenient maintenance Reliable operation High comfort

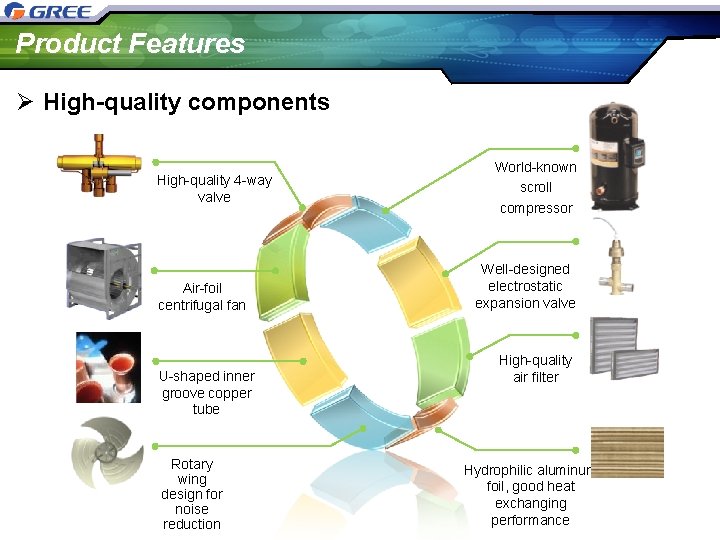

Product Features Ø High-quality components High-quality 4 -way valve Air-foil centrifugal fan U-shaped inner groove copper tube Rotary wing design for noise reduction World-known scroll compressor Well-designed electrostatic expansion valve High-quality air filter Hydrophilic aluminum foil, good heat exchanging performance

Product Features Ø Reliable Operation l Compressor equilibrium control technology Run 3000 h 3022 h Stop Compressor equilibrium control indicates startup priority of each compressor depends on its total runtime and thus it can avoid a single compressor overused.

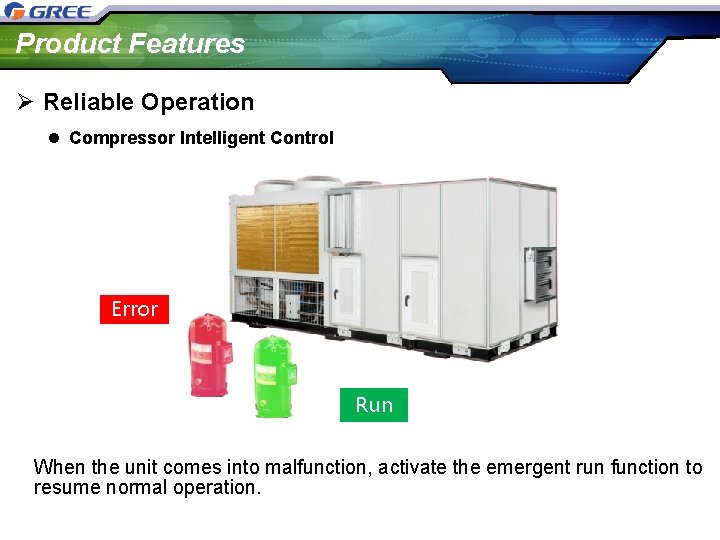

Product Features Ø Reliable Operation l Compressor Intelligent Control Error Run When the unit comes into malfunction, activate the emergent run function to resume normal operation.

Product Features Ø Reliable Operation l Powerful Protection Main board: detect the operation data and diagnose the running states. Unit Feed back s sign ensing als Outp ut ac t ion s igna ls Advanced microcomputer control system, complete protection function, powerful self-diagnoisis.

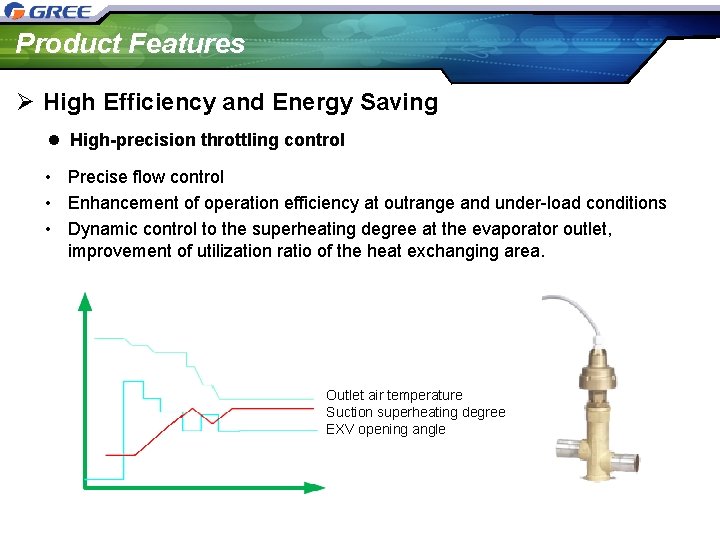

Product Features Ø High Efficiency and Energy Saving l High-precision throttling control • Precise flow control • Enhancement of operation efficiency at outrange and under-load conditions • Dynamic control to the superheating degree at the evaporator outlet, improvement of utilization ratio of the heat exchanging area. Outlet air temperature Suction superheating degree EXV opening angle

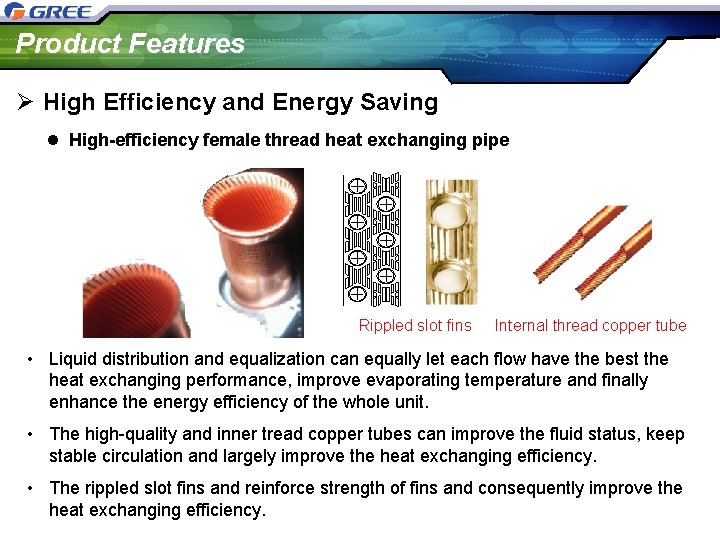

Product Features Ø High Efficiency and Energy Saving l High-efficiency female thread heat exchanging pipe Rippled slot fins Internal thread copper tube • Liquid distribution and equalization can equally let each flow have the best the heat exchanging performance, improve evaporating temperature and finally enhance the energy efficiency of the whole unit. • The high-quality and inner tread copper tubes can improve the fluid status, keep stable circulation and largely improve the heat exchanging efficiency. • The rippled slot fins and reinforce strength of fins and consequently improve the heat exchanging efficiency.

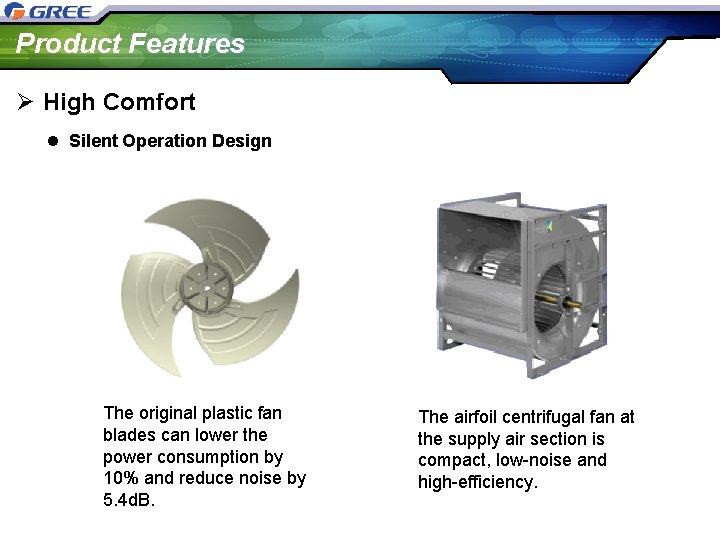

Product Features Ø High Comfort l Silent Operation Design The original plastic fan blades can lower the power consumption by 10% and reduce noise by 5. 4 d. B. The airfoil centrifugal fan at the supply air section is compact, low-noise and high-efficiency.

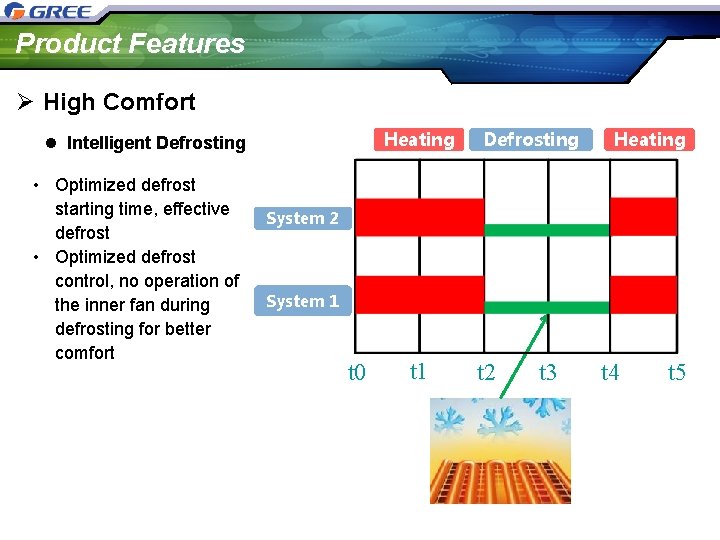

Product Features Ø High Comfort Heating l Intelligent Defrosting • Optimized defrost starting time, effective defrost • Optimized defrost control, no operation of the inner fan during defrosting for better comfort Defrosting Heating System 2 System 1 t 0 t 1 t 2 t 3 t 4 t 5

Product Features Ø High Comfort l Central Air Handling Supply Air Section Water Retaining Section Evaporator Section Filter Section Inlet Air Section • Optimization of the indoor fresh air and return air proportion by adjusting the opening angle of the fresh air inlet and return air inlet through the electric damper. • air handling function for filtering, evaporation, humidifying (optional), electric heating (optional), silencing (optional) etc.

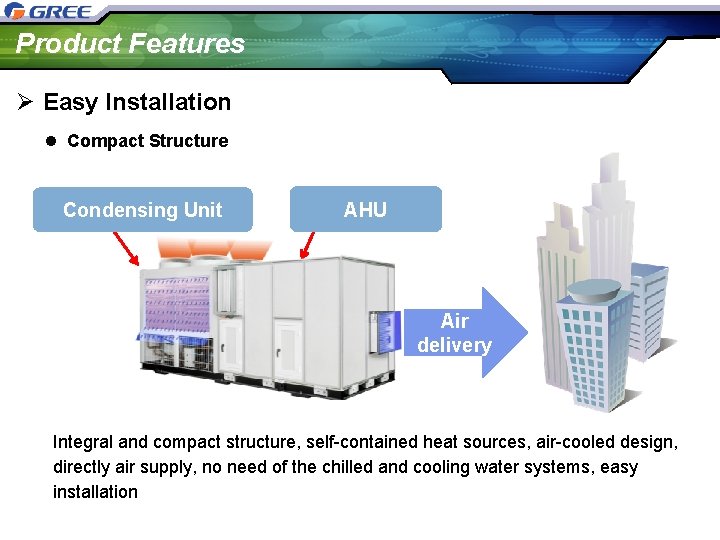

Product Features Ø Easy Installation l Compact Structure Condensing Unit AHU Air delivery Integral and compact structure, self-contained heat sources, air-cooled design, directly air supply, no need of the chilled and cooling water systems, easy installation

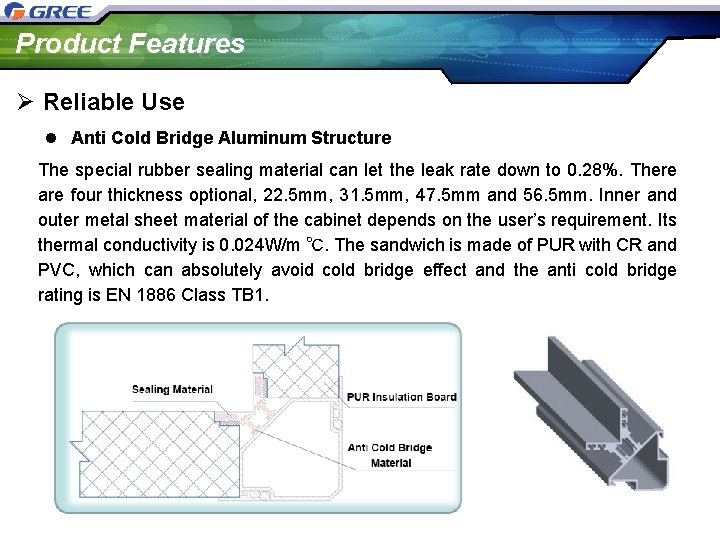

Product Features Ø Reliable Use l Anti Cold Bridge Aluminum Structure The special rubber sealing material can let the leak rate down to 0. 28%. There are four thickness optional, 22. 5 mm, 31. 5 mm, 47. 5 mm and 56. 5 mm. Inner and outer metal sheet material of the cabinet depends on the user’s requirement. Its thermal conductivity is 0. 024 W/m ℃. The sandwich is made of PUR with CR and PVC, which can absolutely avoid cold bridge effect and the anti cold bridge rating is EN 1886 Class TB 1.

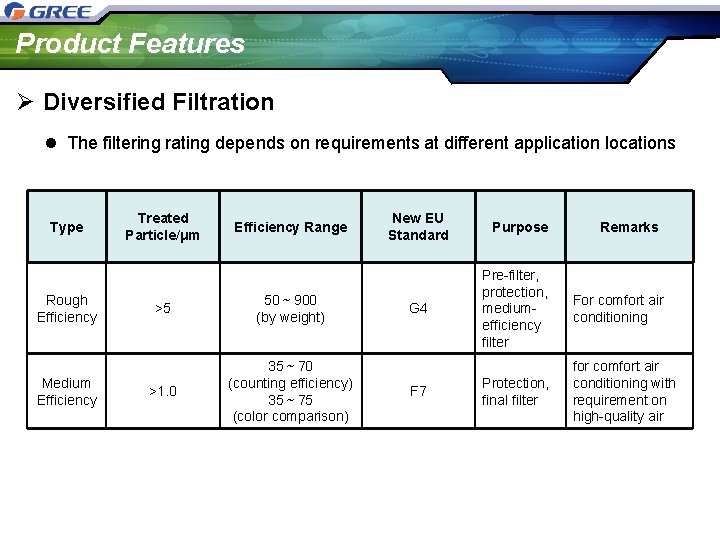

Product Features Ø Diversified Filtration l The filtering rating depends on requirements at different application locations Type Rough Efficiency Medium Efficiency Treated Particle/μm Efficiency Range >5 50～ 900 (by weight) >1. 0 35～ 70 (counting efficiency) 35～ 75 (color comparison) New EU Standard G 4 F 7 Purpose Remarks Pre-filter, protection, mediumefficiency filter For comfort air conditioning Protection, final filter for comfort air conditioning with requirement on high-quality air

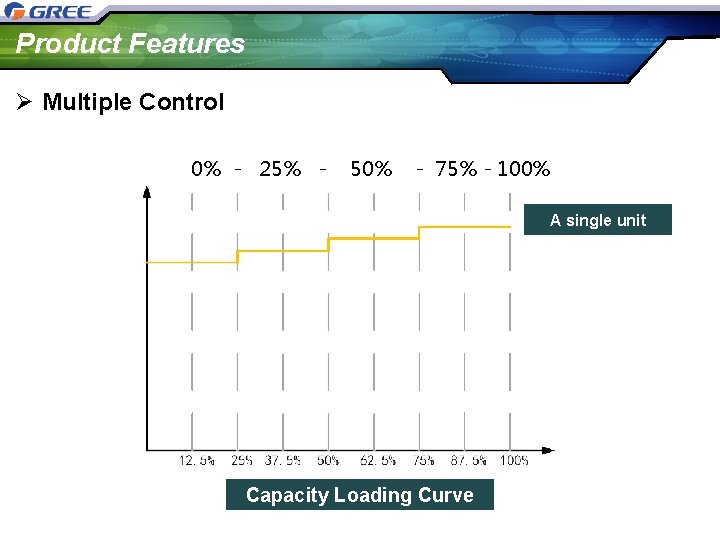

Product Features Ø Multiple Control 0% - 25% - 50% - 75% - 100% A single unit Capacity Loading Curve

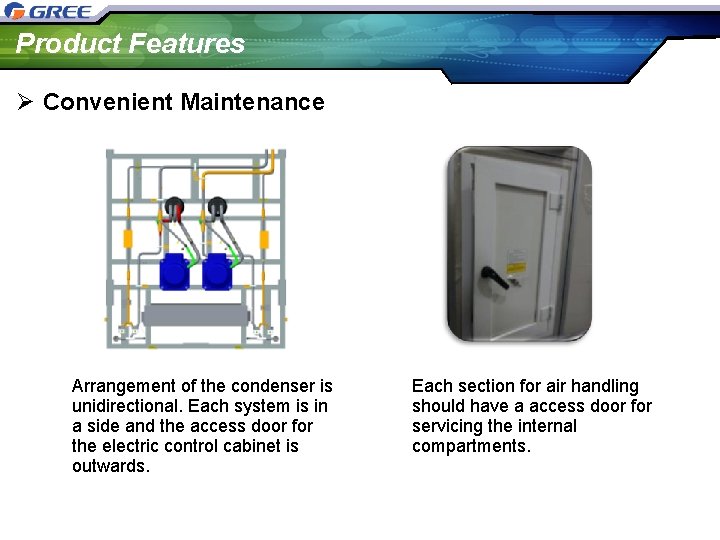

Product Features Ø Convenient Maintenance Arrangement of the condenser is unidirectional. Each system is in a side and the access door for the electric control cabinet is outwards. Each section for air handling should have a access door for servicing the internal compartments.

CONTENTS n Product Introduction n Product Features n Model Selection n Installation and Commissioning n Typical Projects

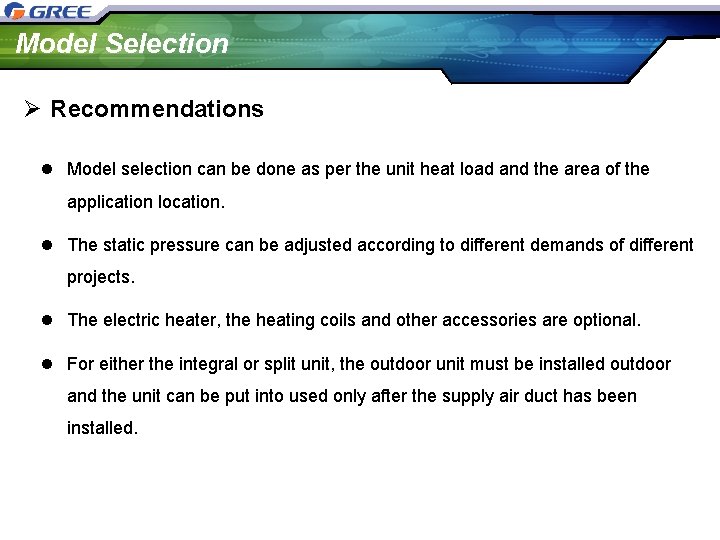

Model Selection Ø Recommendations l Model selection can be done as per the unit heat load and the area of the application location. l The static pressure can be adjusted according to different demands of different projects. l The electric heater, the heating coils and other accessories are optional. l For either the integral or split unit, the outdoor unit must be installed outdoor and the unit can be put into used only after the supply air duct has been installed.

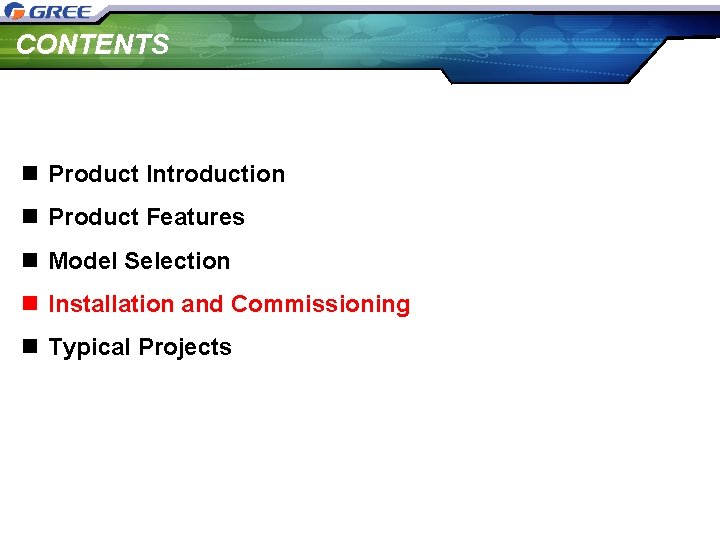

CONTENTS n Product Introduction n Product Features n Model Selection n Installation and Commissioning n Typical Projects

Installation and Commissioning Ø System Installation Diagram l During installation, only the fresh air, supply air and return ducts are required to be installed. l During installation of ducts, flexible joints are required between the duct and the air inlet/outlet. Fresh air Return air Supply air

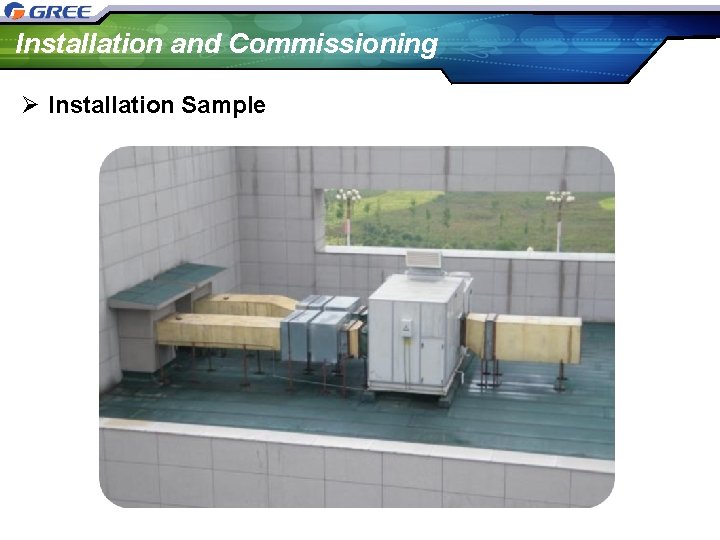

Installation and Commissioning Ø Installation Sample

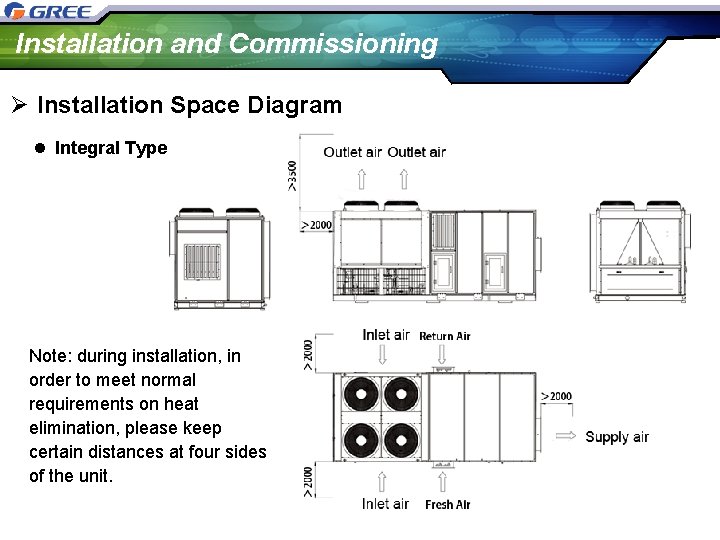

Installation and Commissioning Ø Installation Space Diagram l Integral Type Note: during installation, in order to meet normal requirements on heat elimination, please keep certain distances at four sides of the unit.

Installation and Commissioning Ø Installation Space Diagram l Split Type (Outdoor Unit) Note: during installation, in order to meet normal requirements on heat elimination, please keep certain distances at four sides of the unit. Installation space of the indoor unit is the same as that of the integral type unit.

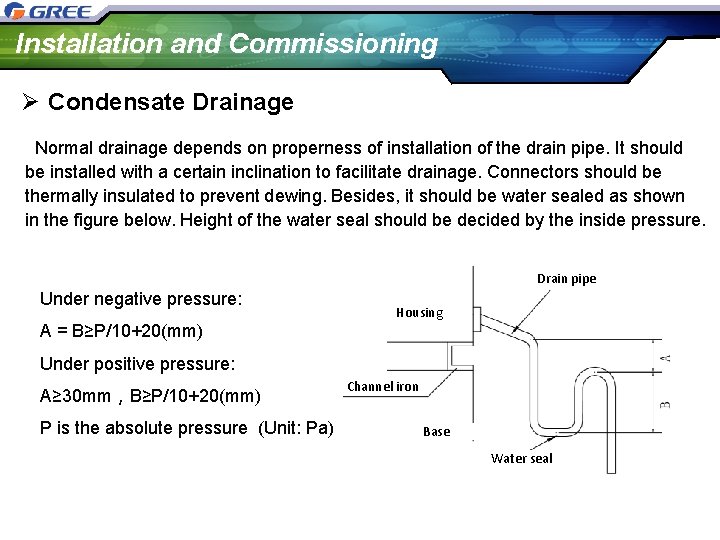

Installation and Commissioning Ø Condensate Drainage Normal drainage depends on properness of installation of the drain pipe. It should be installed with a certain inclination to facilitate drainage. Connectors should be thermally insulated to prevent dewing. Besides, it should be water sealed as shown in the figure below. Height of the water seal should be decided by the inside pressure. Drain pipe Under negative pressure: A = B≥P/10+20(mm) Housing Under positive pressure: A≥ 30 mm，B≥P/10+20(mm) P is the absolute pressure (Unit: Pa) Channel iron Base Water seal

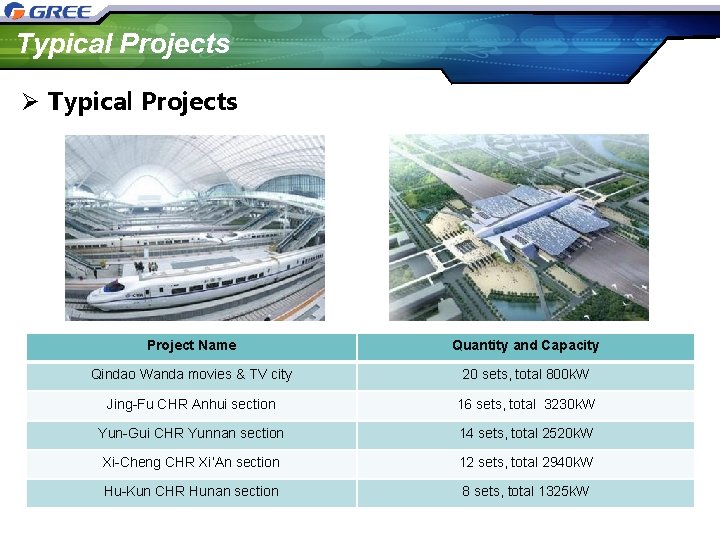

Typical Projects Ø Typical Projects Project Name Quantity and Capacity Qindao Wanda movies & TV city 20 sets, total 800 k. W Jing-Fu CHR Anhui section 16 sets, total 3230 k. W Yun-Gui CHR Yunnan section 14 sets, total 2520 k. W Xi-Cheng CHR Xi’An section 12 sets, total 2940 k. W Hu-Kun CHR Hunan section 8 sets, total 1325 k. W

ALWAYS BETTER CAC SOLUTION FROM GREE
