Rolling and Forging Manufacturing Processes Outline Temperature Rolling
- Slides: 85
Rolling and Forging Manufacturing Processes
Outline Temperature Rolling Flat Rolling Shape Rolling Operations Thread Rolling Seamless Tubing and Pipe Rolling Nonmetallic Materials Forging Open-Die Forging Closed-Die Forging Roll Forging Heading Rotary Swaging Forging Machines Dies Economics
Rolling and Forging Rolling The thickness of a slab or plate is reduced by cylindrical rolls which rotate to pull the material between them and compress it Forging A workpiece is compressed between opposing dies so that the material is forced into the die shape
Temperature in Metal Forming Cold working (room temperature or slightly higher) Warm working (30% - 50% of the melting temperature) Hot working (50% - 75% of the melting temperature) Isothermal forming Tools are preheated to prevent surface cooling during forming
Structure/Property Modification
Cold Working Advantages - No heating required - Better surface finish - Better dimensional accuracy - Parts are interchangeable - Better strength, fatigue and wear properties - Directional properties can be imparted - Minimal contamination problems
Cold Working Disadvantages - Higher forces required - More powerful equipment required - Less ductility is available - Surfaces must be clean - Intermediate anneals may be needed to restore ductility - Directional properties may be detrimental - May produce undesirable residual stresses
Typical Rolled Products
Typical Rolled Products
Rolling Process
Rolling Process
Rolling Process
Rolling Process
Rolling Process
Example of a Hot Rolling Line
Rolling Defects
Shape Rolling Uses a series of specially shaped rolls to form a beam with a specific cross section (such as an I-beam)
Ring Rolling Uses rolls to form a thick, smalldiameter ring into a thin, largerdiameter ring
Ring Rolling
Thread Rolling Uses moving dies with grooves to form threads on cylindrical parts
Thread Rolling
Material Property Changes
Roll Piercing Uses compressive stresses on a cylindrical part to cause tensile forces at the interior, creating a hole to form a thick-walled tube
Example of a Tube Rolling Mill
Rolling Nonmetallic Materials - Paper - Plastic sheets - Rubber products - Reinforced fabric Calendering Passes material through a series of gaps between rolls to form a thin sheet
Calendering

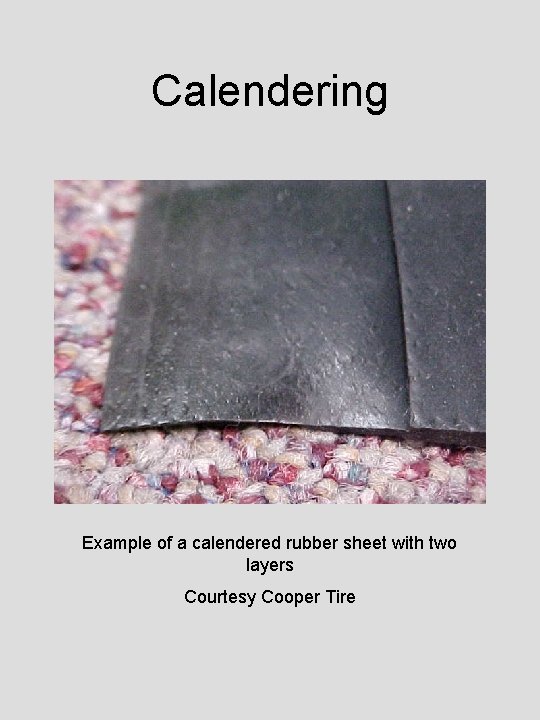

Calendering Example of a calendered rubber sheet with two layers Courtesy Cooper Tire
Calendering of Rubber
Coated Products
Reinforced Materials Coating on both sides of reinforcing material spools comb reinforcing material coating material windup coating material
Reinforced Materials Example of a polyester-reinforced rubber sheet with fibers exposed Courtesy Cooper Tire
Reinforced Materials Example of a steel-belted rubber sheet with the belt exposed Courtesy Cooper Tire
Calender Control Systems
Calendering Thickness Sensors Emitter X rays or beta radiation (electrons) some radiation is blocked, depending on thickness Detector
Milling Squeezes material between rolls to mix or preheat it for further processes
Forging A deformation process in which the material is compressed between dies, using impact or gradual pressure to form the part
Forging

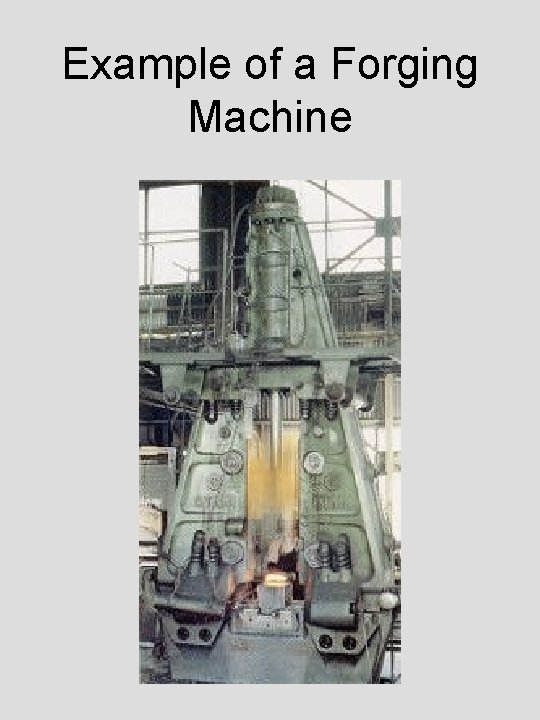

Example of a Forging Machine
Example of a Forging Machine
Working Temperature Hot Forging Material is above its recrystallization temperature Cold Forging Increased strength from strain hardening
Forging Billet A piece of material with a square or circular cross section; usually produced by a deformation process such as rolling or extrusion

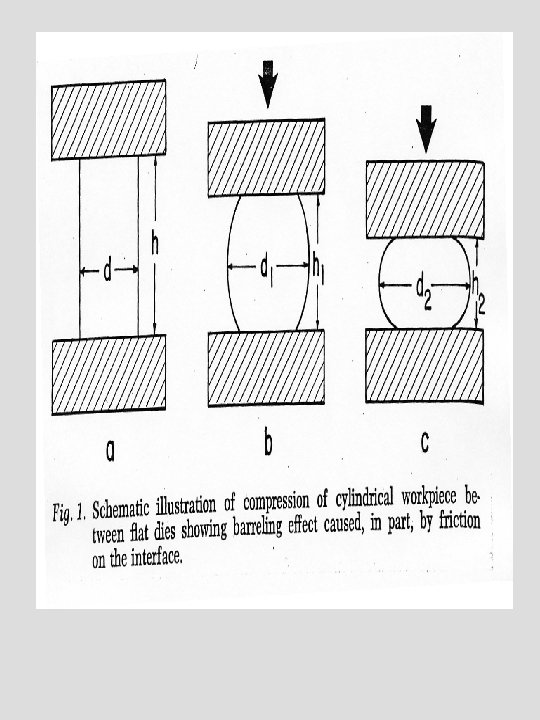

Open Die Forging Compresses the work between flat or nearly flat dies
Open Die Forging
Open Die Forging
Open Die Forging Advantages Simple, inexpensive dies; wide range of sizes; good strength Limitations Simple shapes only; difficult to hold close tolerances; machining necessary; low production rate; poor utilization of material; high skill required

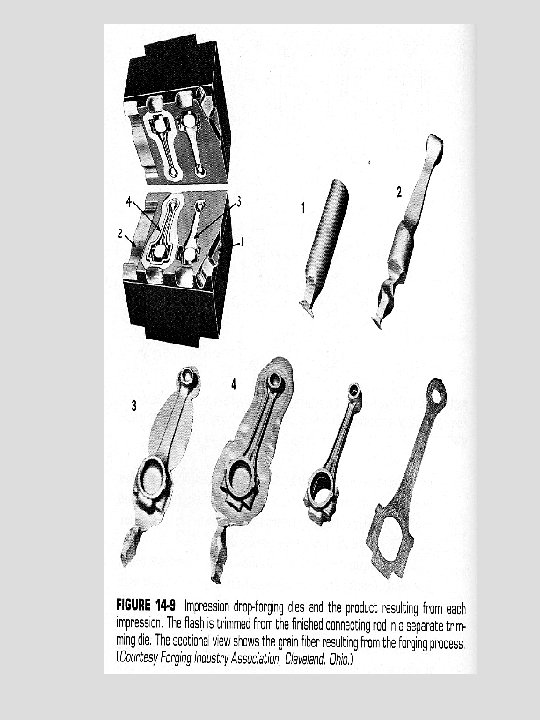

Closed Die Forging Also called impression-die forging; compresses the material into the shape of the die cavity
Closed Die Forging
Closed Die Forging Advantages Good utilization of material; better properties than open die forging; good dimensional accuracy; high production rate; good reproducibility Limitations High die cost for small quantities; machining often necessary
Roll Forging Uses grooved rolls to reduce thickness and increase length of round or flat bars
Roll Forging
Roll Forging
Roll Forging
Coining Uses dies to press fine detail into both sides of the workpiece
Upsetting/Heading Decreases the length and increases the diameter of the workpiece; often used to form heads on nails, bolts, etc.
Orbital Forging Uses a die that moves in various directions to compress the workpiece

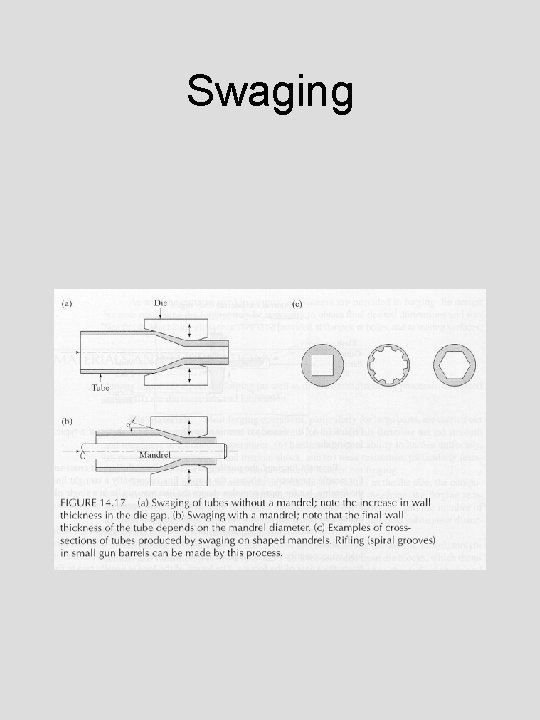

Swaging Uses hammering dies to decrease the diameter of the part
Swaging

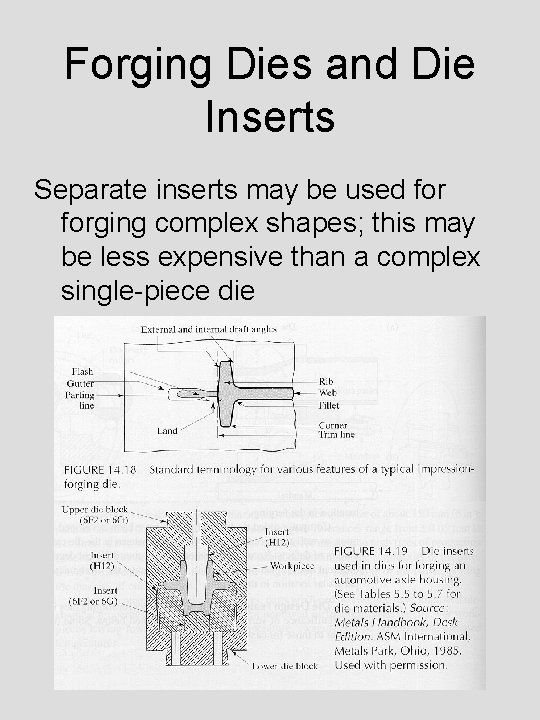

Forging Dies and Die Inserts Separate inserts may be used forging complex shapes; this may be less expensive than a complex single-piece die

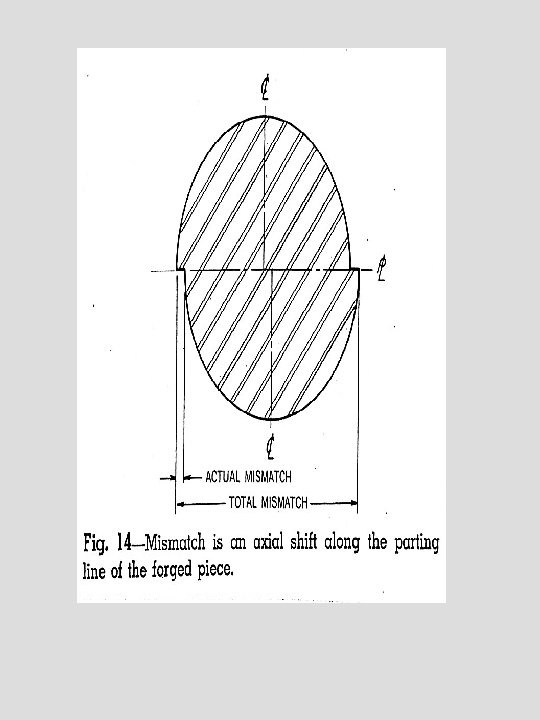

Forging Defects
Forging Machines
Forging Machines
Example of a Forging Machine
Economics
Metal Forging Chapter 3. 13
http: //www. mefos. se/images/forging. jpg
Open die video Both videos are from the Forging Industry Association http: //www. forging. org/facts/f Closed Die videoaq 9. htm http: //www. sciencemuseum. org. uk/on-line/challenge/making
Impression Die Forging Process Operations http: //www. forging. org/facts/idproc. htm
1. Forward extrusion reduces slug diameter and increases its length to produce parts such as stepped shafts and cylinders. 2. In backward extrusion, the steel flows back and around the descending punch to form cup-shaped pieces. 3. Upsetting, or heading, a common technique for making fasteners, gathers steel in the head and other sections along the length of the part.

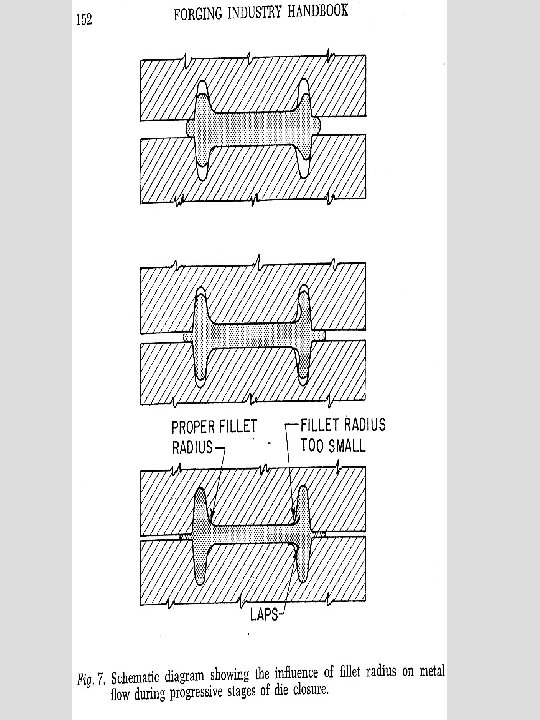

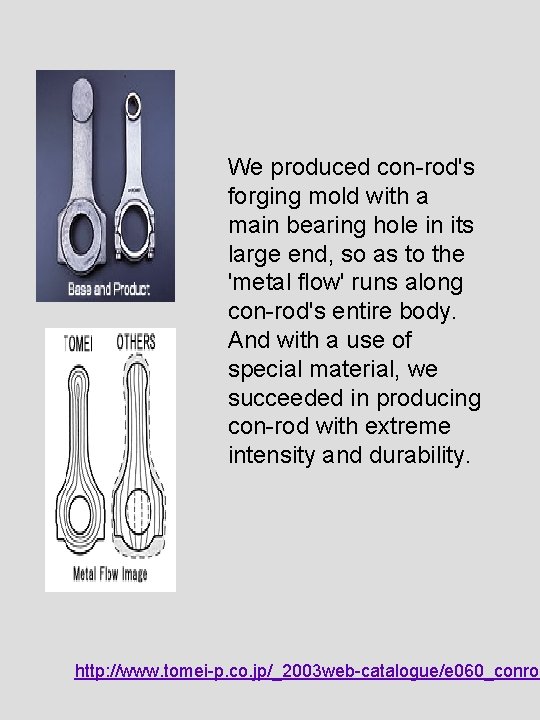

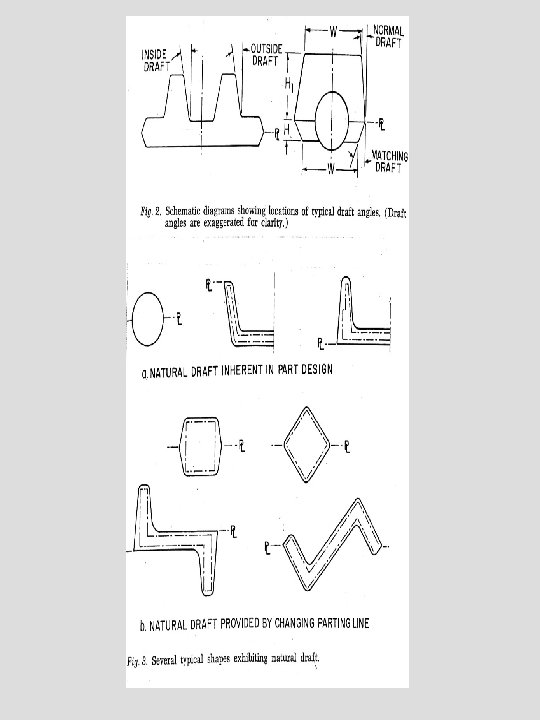

We produced con-rod's forging mold with a main bearing hole in its large end, so as to the 'metal flow' runs along con-rod's entire body. And with a use of special material, we succeeded in producing con-rod with extreme intensity and durability. http: //www. tomei-p. co. jp/_2003 web-catalogue/e 060_conrod
The door hinge assembly, shown in Figure 6 -4, is currently the only instance of a forged aluminum door hinge for a production North American automobile. It is used on a high performance sport car. Since the hinge is critical to occupant safety, it meets all requirements of Federal Motor Vehicle Safety Standard 206, which applies to door locks and door retention components. The hinge assembly additionally meets the vehicle manufacturer's internal standards for life cycle requirements and door sag. Life cycle requirements were verified by 35, 000 cycles of testing over a wide temperature range. The door sag requirements were verified by deflection testing using prototypes machined from forged blocks. The forged aluminum hinge replaced a cast steel design, reducing vehicle weight by 2 kg (4. 5 lb). Purchase price was reduced by 50%. Part of the cost reduction is attributed to the as forged surface quality of the forgings, which receive a powder coat without requiring any surface finishing. http: //www. forging. org/engineer/pdf/Case. Study_64. PDF

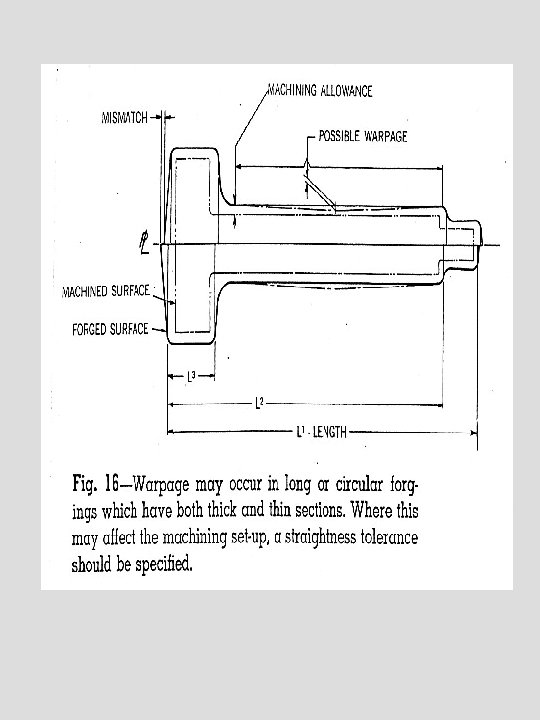

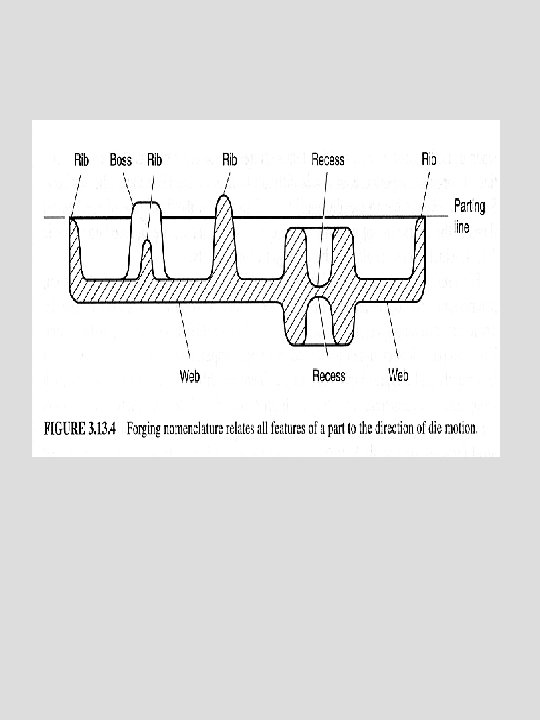

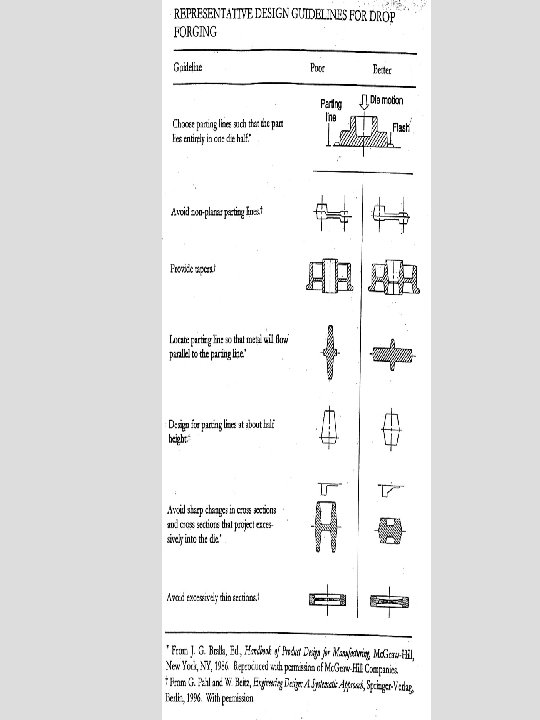

Bralla ASM Metals Handbook Vol. 9 http: //www. heungkuk. co. kr/hk_eng_prod_

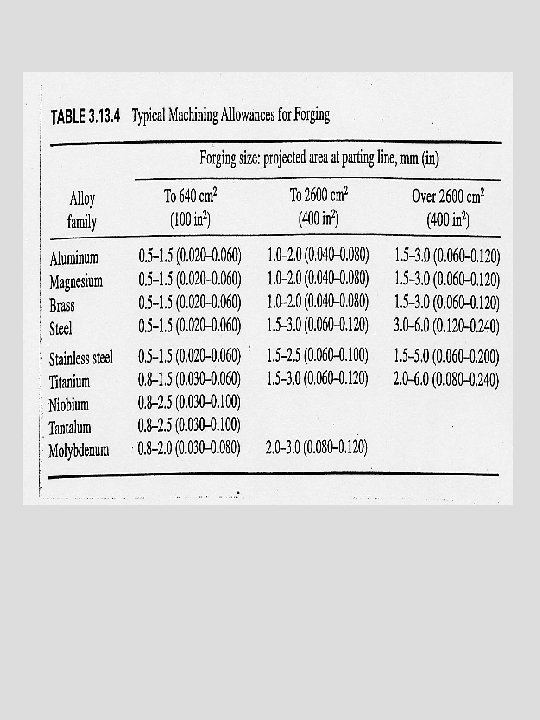

ASM Metals Handbook Desk Edition
ASM Metals Handbook Vol. 20 Materials Selection and Des
Summary Rolling and forging shape parts by deforming the material into the desired shape
