Role of IACS in Arctic shipping Past, present and future role of IACS and individual classification societies in Arctic shipping Morten Mejlænder-Larsen, DNV Maritime Symposium on Coastal State Regulation of Marine Shipping, Tromsø 31 October 2008

Content n DNV focus on Arctic n The Class Concept n IMO Guideline for ships operating in Arctic ice-covered waters n IACS - IACS organisation - Relation between Class Societies and IACS - Implementation of IACS Unified Polar Rules © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 2

DNV-Arctic Focus n 25% of known oil and gas resources located in the cold areas n Russia has become the largest exporter of oil and a major exporter of gas n Increased export of oil and minerals from ice infested waters n Ship operations in Cold Climate will require: © Photo Arnstein Moen - specially designed ships and equipment - crew with experience n Implementation of Polar Class rules, referred to in the IMO Guideline © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 3

R=Px. C North Sea/World wide Arctic R R Ex. Maritime Risk: § Grounding § Collision with other vessel § Collision with installation § Contact § Fire/explosion § Collision during Ship To Ship (STS) approach § Structural failure § Accidental oil spill during loading/unloading © Det Norske Veritas AS. All rights reserved 07 December 2020 Additional risk Slide 4

The ice is melting. . . -but less ice, higher risk Year- round Navigation Suez Canal Distance (Nautical Miles) Hamburg to Yokohama: Northern Sea Route ~ 6, 920 Suez Canal ~ 11, 073 Panama Canal ~ 12, 420 Cape of Good Hope ~ 14, 542 Strait of Malacca INSROP (1999) Slide 5

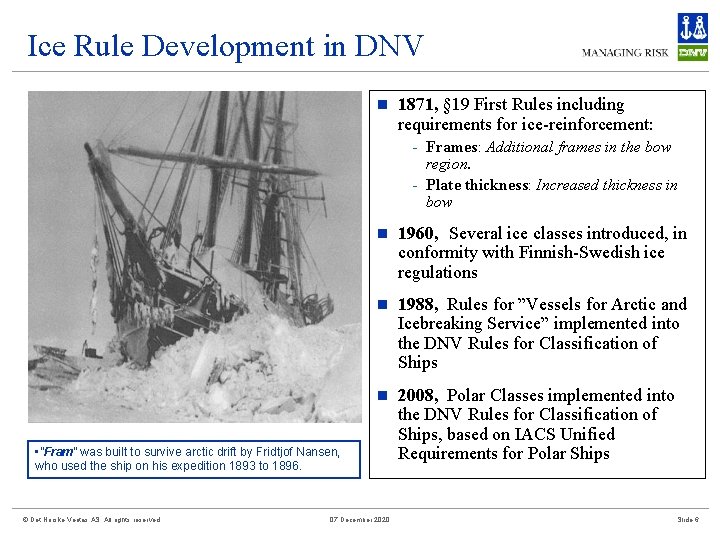

Ice Rule Development in DNV n 1871, § 19 First Rules including requirements for ice-reinforcement: - Frames: Additional frames in the bow region. - Plate thickness: Increased thickness in bow n 1960, Several ice classes introduced, in conformity with Finnish-Swedish ice regulations n 1988, Rules for ”Vessels for Arctic and Icebreaking Service” implemented into the DNV Rules for Classification of Ships n 2008, Polar Classes implemented into the DNV Rules for Classification of Ships, based on IACS Unified Requirements for Polar Ships • ”Fram” was built to survive arctic drift by Fridtjof Nansen, who used the ship on his expedition 1893 to 1896. © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 6

Scope of classification Based on published rules, the classification process consists of: n Approval of design n Attendance at the construction to verify that the vessel is constructed in accordance with the classification rules n Upon satisfactory completion of the above, a certificate of classification will be issued © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 7

Scope of classification n Once in service, periodical class surveys are carried out n Class rules do not cover every piece of structure or item of equipment on board a vessel, nor do they cover operational elements. © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 8

DNV classification services in Cold Climate Mandatory Class/Statutory (basic) n. Hull strength/fatigue n. Corrosion n. Coating n. Machinery n. SOLAS/MARPOL/LL Normally required Ice Class Baltic/Arctic WINTERIZED ARCTIC (material °C, extreme °C) n. Built to ARCTIC or ICEBREAKER class n. Requirements to CP propeller, or diesel/electric n. Two engine rooms for Power, AUX, and heating n. Helicopter landing facilities n. Life saving and navigation equip certified for low Human factors n. Comfort class - Noise - Vibrations - Indoor climate temperatures WINTERIZED COLD (material °C, extreme °C) n. Ice strengthening - Rudder/ stock - Hull - Propeller/ shaft n. ME output n. Sea chest arr. n. Ballast water anti freezing n. Built to BALTIC or ARCTIC ice class n. Requirements to location of safety equipment n. Requirements to steel grades, DAT(-xx) notation WINTERIZED BASIC n. Arrangements for anti-icing and de-icing n. Heating of spaces with important equipment n. Arrangements and location of generator capacity © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 9

Winterisation Hydro n Winterisation for health - Physical effects such as fatigue, frostbite, hypothermia n Winterisation for safety - Safety-critical equipment and systems n Winterisation for operability - Systems to maintain the functionality of desired operations © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 10

IMO Guidelines for Ships Operating in Arctic Ice-Covered Waters n Prompted by the disaster of Exxon Valdez (1989), IMO started working on a unified code for navigation in polar waters n Goal: Harmonize regulations for Arctic Shipping in polar waters n In 2002 the Marine Safety Committee (MSC) and the Marine Environment Committee (MEPC) approved Guidelines for ships operating in Arctic ice-covered waters (MSC/Circ. 1056 –MEPC/Circ. 399). n Still voluntary, however the guideline represent an important step towards improved regulatory framework for shipping in ice-infested waters © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 11

The IMO Arctic Guidelines n PART A: Construction provisions - Structures (reference to IACS Unified Requirements for Polar ships) - Substructures and stability - Accommodation and escape measures - Directional control systems - Anchoring and towing arrangements - Main machinery - Auxiliary machinery systems - Electrical installations n PART B: Equipment - Fire fighting - Life saving appliances - Navigational equipments n PART C: Operational - Operational guidelines - Crewing - Emergency equipment n PART D Environmental protection and damage control - Environmental protection and damage control © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 12

IACS Unified Requirements UR I 1 -I 3 n UR I 1 - Specify application of structural and machinery requirements - Provide descriptions of polar classes to convey differences with respect to operational capability and strength - No requirements included in UR I 1 - Applicable to any ship opeating in ice-infested polar waters, including Icebreakers n UR I 2 - Structural requirements to enable polar class ships to withstand global and local ice loads, as well as temperature, characteristic of their polar class - Plating, framing, plated structures and hull girder - Material requirements, corrosion/abrasion allowances - Hull appendages, stem and stern frames n UR I 3 - Propeller ice interaction loads - Structural requirements for propeller, machinery components and system n Implemented into DNV Rules from March 2008 © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 13

IACS International Association of Classification Societies n Dedicated to safe ships and clean seas, IACS members make a unique contribution to maritime safety and regulation through technical support, compliance verification and research and development. n More than 90% of the world's cargo carrying tonnage is covered by the classification design, construction and through-life compliance rules and standards set by the ten Member Societies and one Associate of IACS. © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 14

IACS Member Societies © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 15

IACS organisation chart IACS Council EG/LAW EG/GBS Permanent Secretariat Quality Committee General Policy Group EG/FSA EG/NCSR Hull Panel EG/Data EG/Coating Machinery Panel Statutory Panel EG/ILO On hold, until further notice Survey Panel EG/ISM ISPS Project team © Det Norske Veritas AS. All rights reserved Project team 07 December 2020 Project team Slide 16

IACS bodies explained n Council n - The Council is the political governing body of the Association and consists of one representative of each Member Society. n General Policy Group [GPG] - The GPG is the technical governing body of the Association and consists of one representative of each Member Society n Permanent Secretary - Is the chief administrative officer of the Association and shall be responsible for the efficient day to day running of the Permanent Secretariat n n - A working group, established by Council to deal with a specific task. n n Panels - A Permanent working group established by Council or GPG related to specific areas of the technical work of classification societies. n Project Team - A temporary working group established under a Panel to deal with specific tasks. n Quality Secretariat - Responsible for the assessment of each member with respect to compliance with QSCS. © Det Norske Veritas AS. All rights reserved Expert Groups [EG] - A working group, established by Council or GPG to advise on a specialised area of work of classification societies. Permanent Secretariat - Provides administrative support to the members and management support to the Chair Small Groups [SG] 07 December 2020 Quality Committee - Is the governing body of the Quality System Certification Scheme. - The Quality Committee shall consist of one representative from each Member. Slide 17

Areas of competence of IACS Panels Hull Panel Machinery Panel Statutory Panel Survey Panel § Strength § Materials/Welding § Wave data/Sea loads § DSA § Drilling units § Polar ships § Hull damage § Containers § Mooring/Anchoring § Ro. Ro Safety §Machinery §Electric systems §Computers §Polar Ship Machinery § Subdivision, stability and load lines § Fire protection and safety § Bulk liquid, gases and marine pollution § Exhaust emission control § ISM Code § ISPS § Life saving appliances § Bridge equipment etc. § ILO §Survey, reporting and certification §Certification of materials and equipment §New construction survey requirements § PR 1 A (To. C) § PR 2 (EWS) Note 1: Note 2: Note 3: Each Panel is composed of one member from each Society Panel Chairmen participate in some GPG meetings Panel Chairmen and their secretariats are financed by IACS members © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 18

GUIDELINES FOR SHIPS OPERATING IN ARCTIC ICE-COVERED WATERS © Det Norske Veritas AS. All rights reserved 07 December 2020 Slide 19

Ice Class Notations Baltic Polar Class PC 1 Year-round operation in all Polar waters PC 2 Year-round operation in moderate multi-year ice conditions PC 3 Year-round operation in second-year ice which may include multi-year inclusions PC 4 Year-round operation in thick first-year ice which may include old ice inclusions PC 5 Year-round operation in medium first-year ice which may include old ice inclusions 1. 0 m first year ice ICE-1 A* PC 6 Summer/autumn operation in medium first-year ice which may include old ice inclusions 0. 8 m first year ice ICE-1 A PC 7 Summer/autumn operation in thin first-year ice which may include old ice inclusions 0. 6 m first year ice ICE-1 B 0. 4 m first year ice ICE-1 C © Det Norske Veritas AS. All rights reserved -PC 1 to PC 6 may be assigned additional notation ICEBREAKER 07 December 2020 Slide 20

Ice Class Notations Baltic Polar Class KV Svalbard PC 1 Year-round operation in all Polar waters PC 2 Year-round operation in moderate multi-year ice conditions PC 3 Year-round operation in second-year ice which may include multi-year inclusions PC 4 Year-round operation in thick first-year ice which may include old ice inclusions PC 5 Year-round operation in medium first-year ice which may include old ice inclusions 1. 0 m first year ice ICE-1 A* PC 6 Summer/autumn operation in medium first-year ice which may include old ice inclusions 0. 8 m first year ice ICE-1 A PC 7 Summer/autumn operation in thin first-year ice which may include old ice inclusions 0. 6 m first year ice ICE-1 B 0. 4 m first year ice ICE-1 C © Det Norske Veritas AS. All rights reserved Photo: FMA Photo: Silja Line MS Nord. Norge -PC 1 to PC 6 may be assigned additional notation ICEBREAKER 07 December 2020 Slide 21

Ice Class Notations Baltic Polar Class PC 1 Year-round operation in all Polar waters PC 2 Year-round operation in moderate multi-year ice conditions PC 3 Year-round operation in second-year ice which may include multi-year inclusions PC 4 Year-round operation in thick first-year ice which may include old ice inclusions PC 5 Year-round operation in medium first-year ice which may include old ice inclusions 1. 0 m first year ice ICE-1 A* PC 6 Summer/autumn operation in medium first-year ice which may include old ice inclusions 0. 8 m first year ice ICE-1 A PC 7 Summer/autumn operation in thin first-year ice which may include old ice inclusions 0. 6 m first year ice ICE-1 B 0. 4 m first year ice ICE-1 C © Det Norske Veritas AS. All rights reserved -PC 1 to PC 6 may be assigned additional notation ICEBREAKER 07 December 2020 Slide 22

Ship-shaped offshore units § Mobile Offshore Units Floating Offshore § Drill and production ships § Floating production § FPSO, FSO Offshore Stena Prirazlomnoye © Det Norske Veritas AS. All rights reserved Ship 07 December 2020 Statoil. Hydro Slide 23
