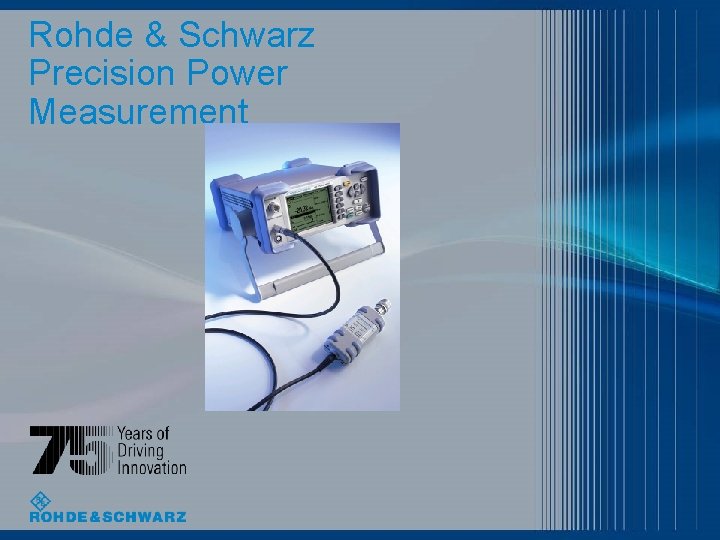

Rohde & Schwarz Precision Power Measurement

R&S NRP-Z USB Power Sensors Fast, Accurate Power Measurements Overview Special Features • Intelligent plug & play sensors • Γ-correction to minimize source • Operation via USB interface mismatch • S-parameter correction to eliminate influence of test setup • Enhanced auto-averaging optimizes accuracy and time • Automatic internal triggering • Two year calibration cycle • Traceability to national calibration standards jps 0806 | Product Portfolio | 2

R&S NRP-Z Measurement Functions Cont Avg 3 -Path Diode Burst Avg Time Slot (Gate) Scope Trace Z 11 Limited Z 22 Limited Z 23 Limited Z 24 Limited Z 91 Z 92 Z 51 Thermoelectric Z 55 Wideband Diode Z 81 Z 28 Limited Level Control Z 98 jps 0806 | Product Portfolio | 3

R&S NRP-Z Frequency Range DC 9 k. Hz 10 MHz Z 11 Z 22 3 -Path Diode Z 23 Z 24 Z 91 Z 92 Z 51 Thermoelectric Z 55 Wideband Diode Z 81 Z 28 Level Control Z 98 jps 0806 | Product Portfolio | 4 50 MHz 6 GHz 8 GHz 18 GHz 40 GHz

R&S NRP-Z Dynamic Range -67 d. Bm -60 d. Bm -57 d. Bm Z 11 Z 22 3 -Path Diode Z 23 Z 24 Z 91 Z 92 TBA Z 51 Thermoelectric Z 55 Wideband Diode Z 81 Z 28 Level Control Z 98 jps 0806 | Product Portfolio | 5 -47 d. Bm -42 d. Bm -30 d. Bm +23 d. Bm +33 d. Bm +42 d. Bm +45 d. Bm

R&S NRP-Z USB Power Sensors NRP-Z 81 USB Wideband (Peak) Power Sensor Key Features • • Wide frequency range, 50 MHz to 18 GHz High dynamic range, -40 to +20 d. Bm for peak, -60 to +20 d. Bm for RMS Dynamic range valid for both CW and modulated signals Wide video bandwidth of 30 MHz allowing time resolution <13 ms Automatic burst detection and acquisition Ultra-fast statistical analysis (e. g. CCDF) Excellent measurement accuracy and repeatability Applications • • Fast radar pulse measurements Response delay measurement for DME ground stations Aerospace and defense (rugged, portable) Amplifier tests requiring fast CCDF measurements jps 0806 | Product Portfolio | 6

R&S NRP-Z USB Power Sensors NRP-Z 21 USB Universal Power Sensor Key Features Wide frequency range, 10 MHz to 18 GHz High dynamic range. -67 to +23 d. Bm Dynamic range valid for both CW and modulated signals Innovative 3 -path diode architecture for fastest, most accurate measurements over the entire level range • Universal sensor supporting continuous average, burst average, timeslot average, time gating and trace modes • Up to 1, 500 measurements/second in buffered mode • • Applications • • ATE system calibration Setup and maintenance of field installations (e. g. ground stations) General purpose lab use (highly portable between benches) Fast production environments jps 0806 | Product Portfolio | 7

NRP-Z Versatility SMU NEW! SMJ SMB RF Source SMATE Power sensor SMA SMF USB adapter NRP-Z 4 jps 0806 | Product Portfolio | 8 FSQ, FSU, FSG, FSP, FSL, FMU, FSUP, FSMR with option FS K 9 ZVL with option FS-K 9

NRP-Z Versatility Source Power sensor USB adapter NRP-Z 4 Or FSQ/FSU/FSP with option FS-K 9 USB adapter NRP-Z 3 Trigger signal jps 0806 | Product Portfolio | 9 AC power supply

R&S NRP-Z USB Power Sensors Power Viewer+ Software Features • Free software to control NRP-Z USB sensors from a PC • Data log captures up to 24 hours of measurement data • Up to 4 sensors simultaneously • Resolution down to 5 ns/div for repeating signals • Place markers for automated measurements and set trigger levels with the click of a mouse • Display statistics such as CCDF • Easy timeslot measurements jps 0806 | Product Portfolio | 10

R&S NRP-Z USB Power Sensors Application with multiple sensors Many measurement tasks require the use of multiple sensors. Power Viewer+ allows the simultaneous measurement of four channels and computes parameters such as the reflection coefficient or gain. jps 0806 | Product Portfolio | 11

R&S NRP-Z USB Power Sensors Remote power measurments R&S NRP-Z sensors may be operated up to 100 m away from the controlling computer system by using the icron USB ranger combination LEX and REX or Anywhere. USB from Digi International. jps 0806 | Product Portfolio | 12

R&S NRP-Z USB Power Sensors Remote power measurments R&S NRP-Z 11 sensors are ideal for monitoring forward and reverse power distributed in DVB-T broadcasting systems. jps 0806 | Product Portfolio | 13

Rohde & Schwarz Competence in Signal Generation Thank you!
