RODI Systems Corporate Overview and Capabilities RODI Systems

RODI Systems Corporate Overview and Capabilities RODI Systems Corp. 936 Hwy 516 Aztec, NM 87410 505 -334 -5865

RODI Systems Overview n n Privately Owned New Mexico Corporation Founded in 1995 Located in NW New Mexico Specializes in High Performance Water Treatment

RODI Systems History n n Founded in January 1995 as Reverse Osmosis (RO) Consulting Firm Began Design and Construction of RO Systems in Mid-1995 Now Offers Vapor Compression Evaporation and Ultrafiltration in Addition to RO Also Offers Complete Line of Monitoring and Control Products RO Systems RO Consulting Portable Systems UF and MF Systems Instruments and Controls

Water Treatment Applications n n n Domestic and Industrial Wastewater Oil and Gas Produced Water Desalination Drinking Water Process Water

Clients and Locations n n n n Partial Client List Sea. World of Florida U. S. Navy Siemens GE Nalco Sandia National Laboratory Intel Anheuser-Busch n n n n Project Locations United States Canada Egypt Libya Turkey Grand Cayman U. S. Virgin Islands Mexico

Water Treatment Technologies n n n Reverse Osmosis Ultrafiltration Microfiltration Membrane Bioreactors Evaporation Conventional

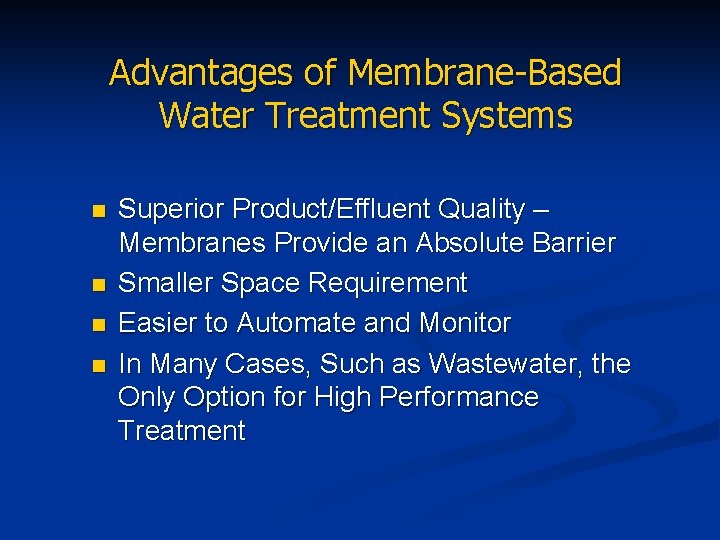

Advantages of Membrane-Based Water Treatment Systems n n Superior Product/Effluent Quality – Membranes Provide an Absolute Barrier Smaller Space Requirement Easier to Automate and Monitor In Many Cases, Such as Wastewater, the Only Option for High Performance Treatment

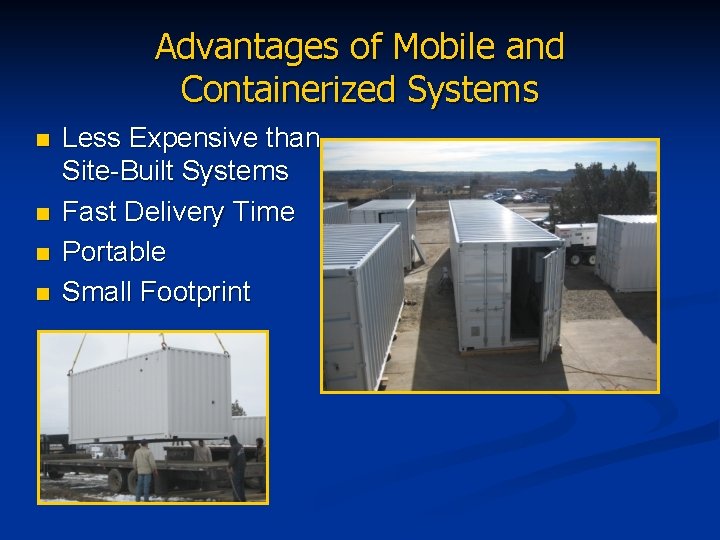

Advantages of Mobile and Containerized Systems n n Less Expensive than Site-Built Systems Fast Delivery Time Portable Small Footprint

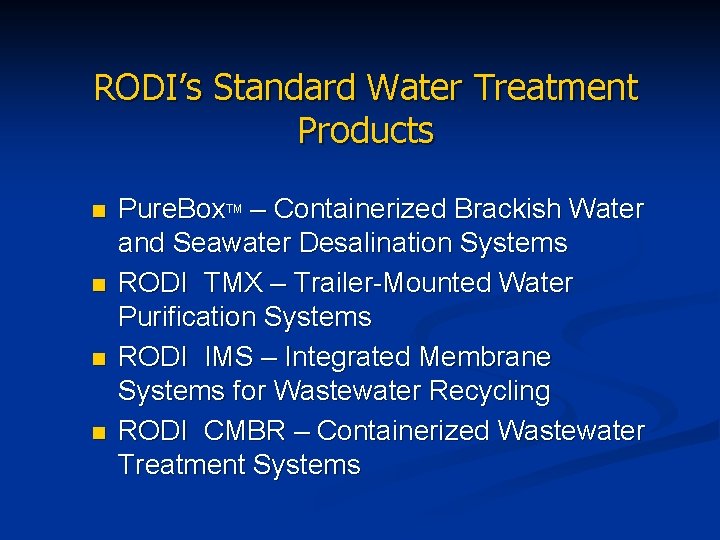

RODI’s Standard Water Treatment Products n n Pure. Box. TM – Containerized Brackish Water and Seawater Desalination Systems RODI TMX – Trailer-Mounted Water Purification Systems RODI IMS – Integrated Membrane Systems for Wastewater Recycling RODI CMBR – Containerized Wastewater Treatment Systems

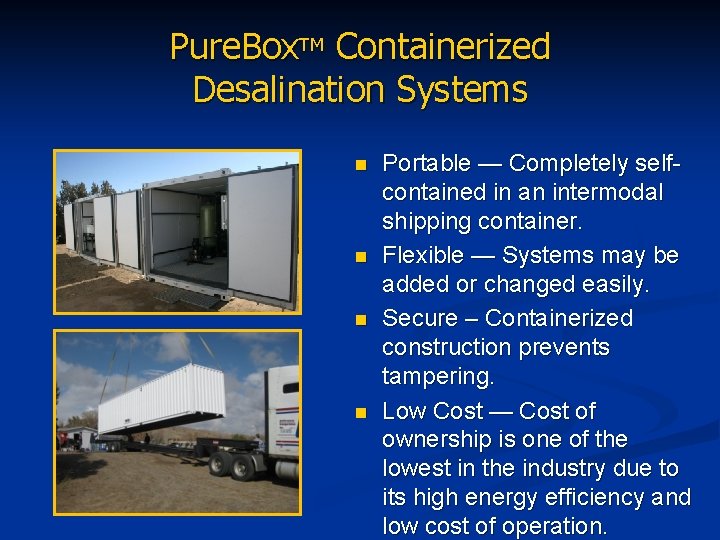

Pure. Box. TM Containerized Desalination Systems n n Portable — Completely selfcontained in an intermodal shipping container. Flexible — Systems may be added or changed easily. Secure – Containerized construction prevents tampering. Low Cost — Cost of ownership is one of the lowest in the industry due to its high energy efficiency and low cost of operation.

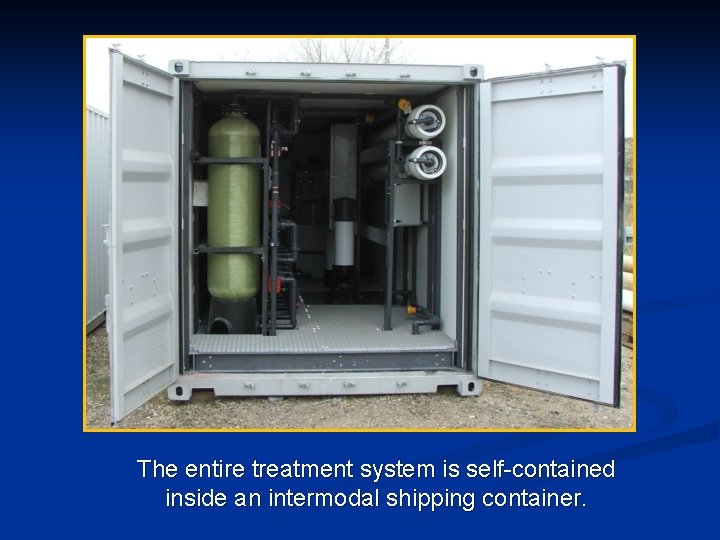

The entire treatment system is self-contained inside an intermodal shipping container.

The Pure. Box. TM systems are constructed with industrial quality components.

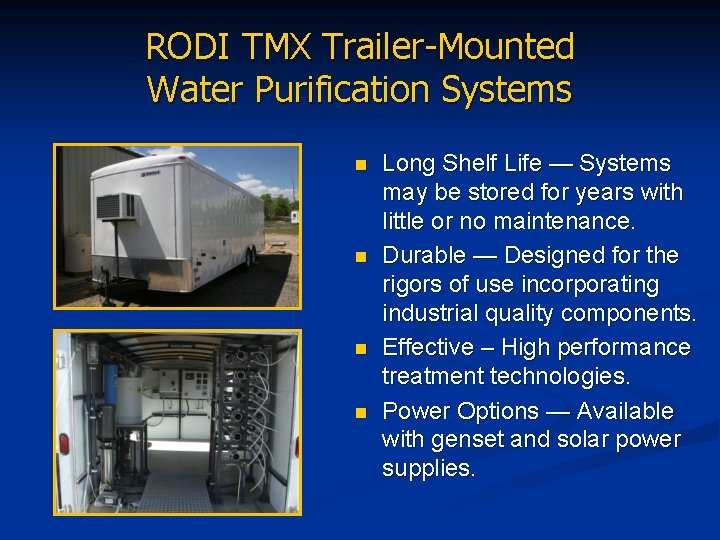

RODI TMX Trailer-Mounted Water Purification Systems n n Long Shelf Life — Systems may be stored for years with little or no maintenance. Durable — Designed for the rigors of use incorporating industrial quality components. Effective – High performance treatment technologies. Power Options — Available with genset and solar power supplies.

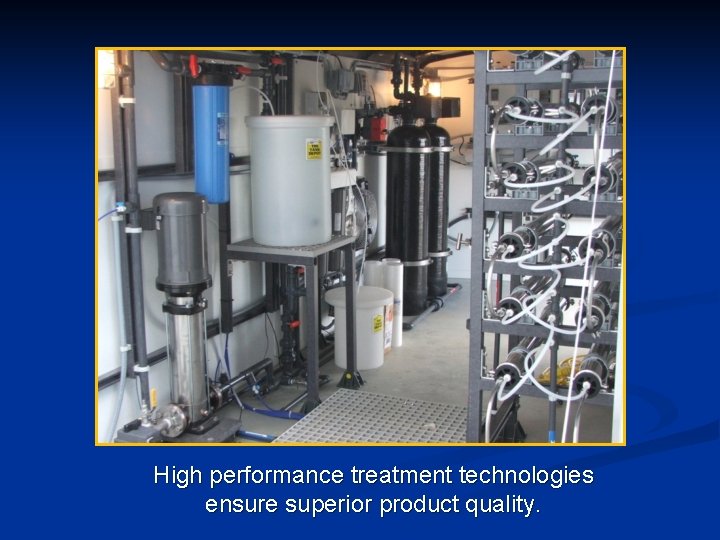

High performance treatment technologies ensure superior product quality.

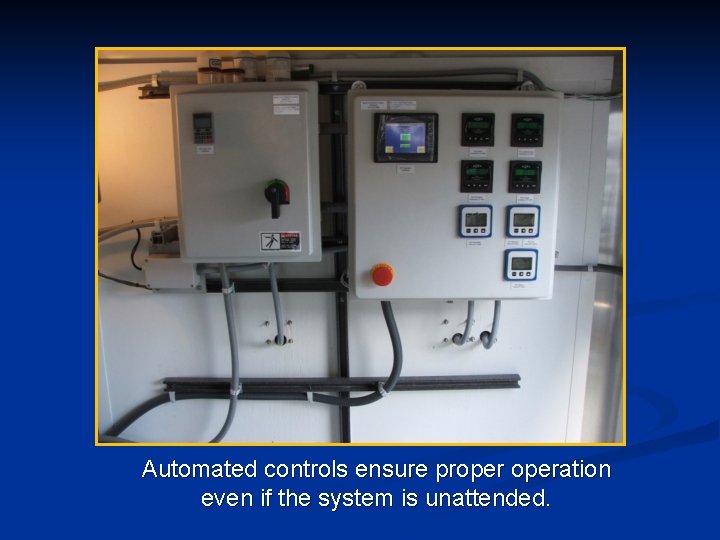

Automated controls ensure properation even if the system is unattended.

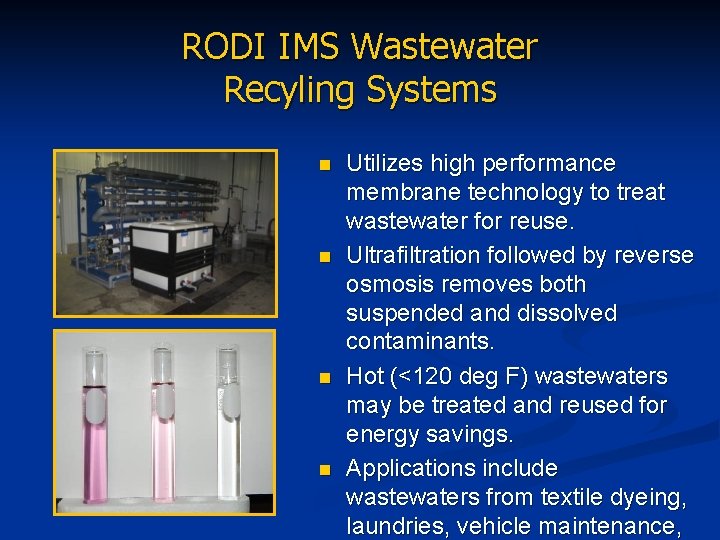

RODI IMS Wastewater Recyling Systems n n Utilizes high performance membrane technology to treat wastewater for reuse. Ultrafiltration followed by reverse osmosis removes both suspended and dissolved contaminants. Hot (<120 deg F) wastewaters may be treated and reused for energy savings. Applications include wastewaters from textile dyeing, laundries, vehicle maintenance,

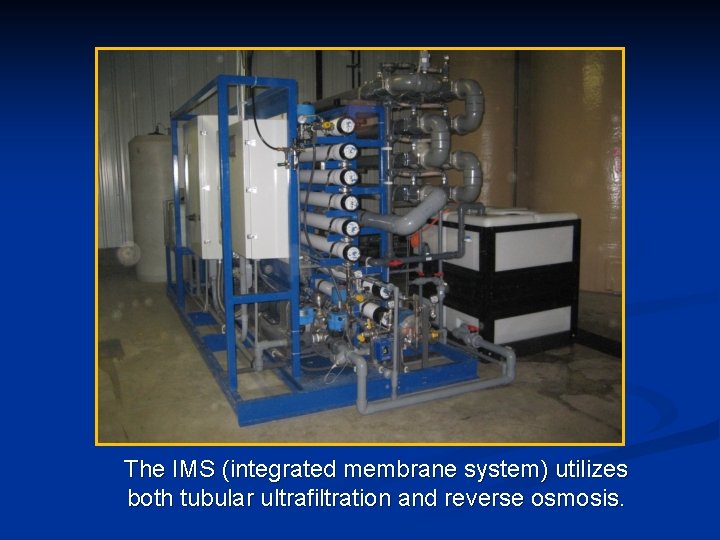

The IMS (integrated membrane system) utilizes both tubular ultrafiltration and reverse osmosis.

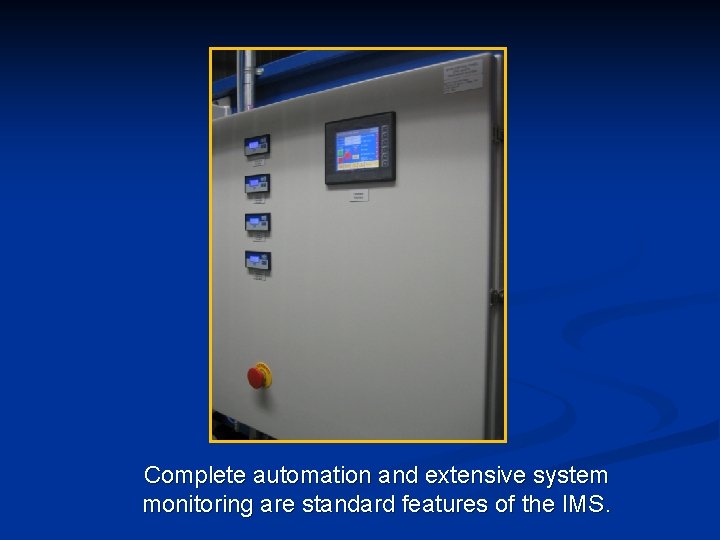

Complete automation and extensive system monitoring are standard features of the IMS.

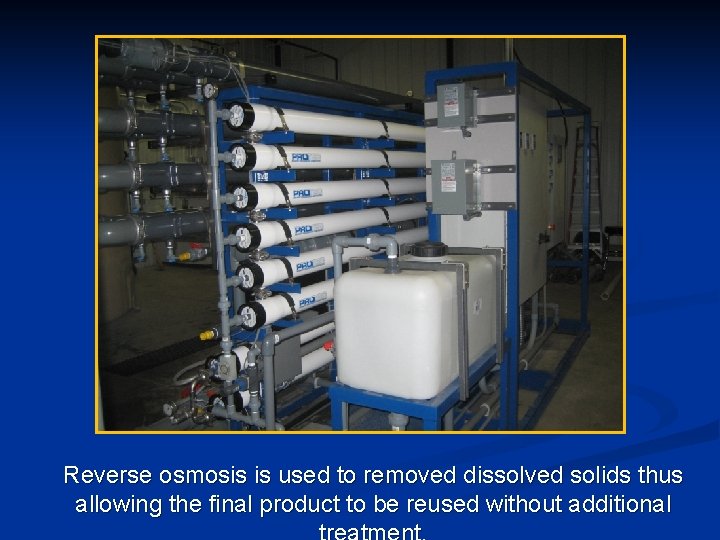

Reverse osmosis is used to removed dissolved solids thus allowing the final product to be reused without additional

RODI CMBR Containerized Wastewater Treatment Systems n n Utilizes aerobic digestion followed by high performance membrane technology. Small footprint and completely portable. High quality effluent (< 5 ppm BOD and <1 ppm TSS) is suitable for reuse without additional treatment. Applications include work camps, resorts, temporary housing, and pretreatment of industrial waste.

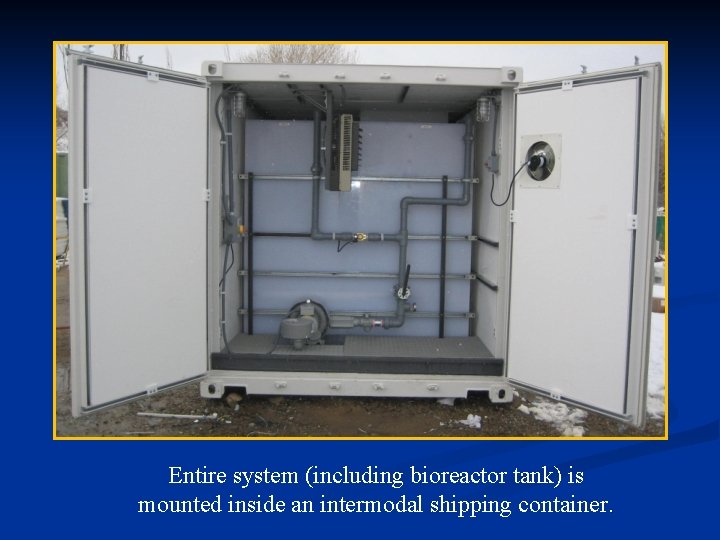

Entire system (including bioreactor tank) is mounted inside an intermodal shipping container.

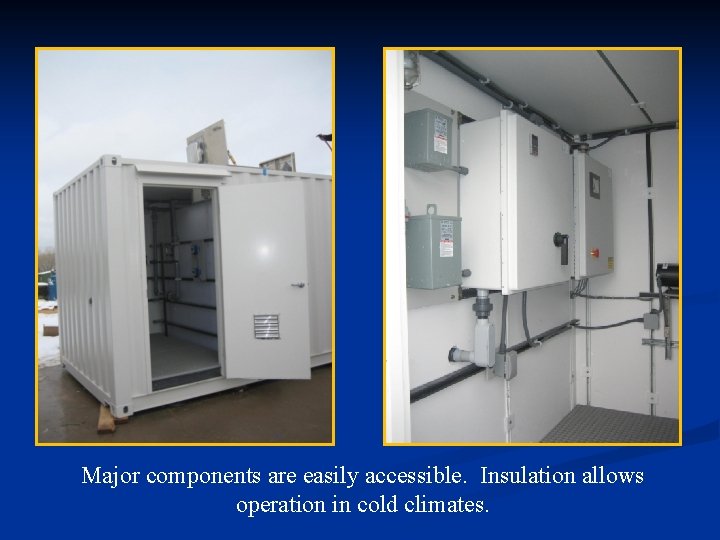

Major components are easily accessible. Insulation allows operation in cold climates.

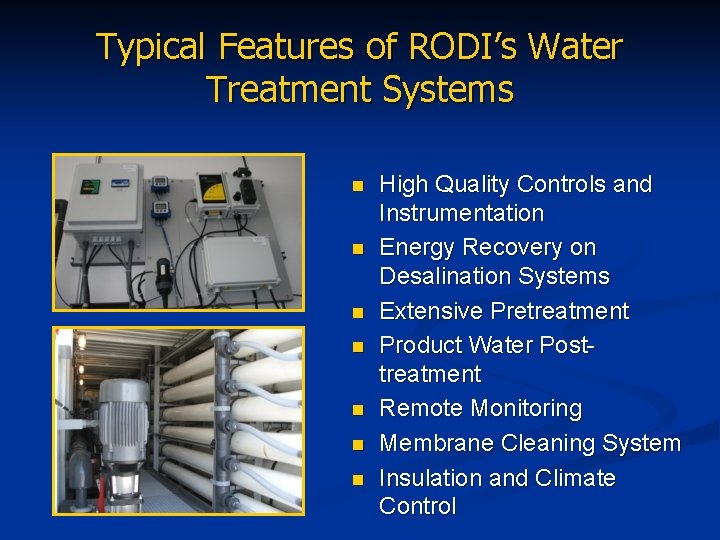

Typical Features of RODI’s Water Treatment Systems n n n n High Quality Controls and Instrumentation Energy Recovery on Desalination Systems Extensive Pretreatment Product Water Posttreatment Remote Monitoring Membrane Cleaning System Insulation and Climate Control

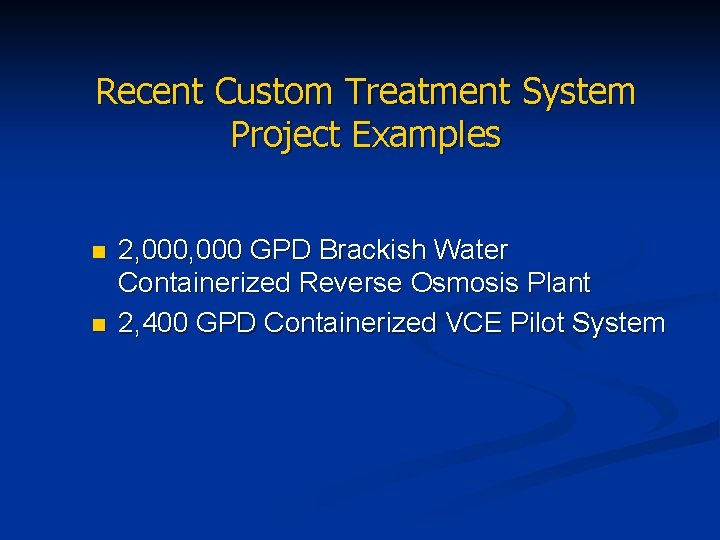

Recent Custom Treatment System Project Examples n n 2, 000 GPD Brackish Water Containerized Reverse Osmosis Plant 2, 400 GPD Containerized VCE Pilot System

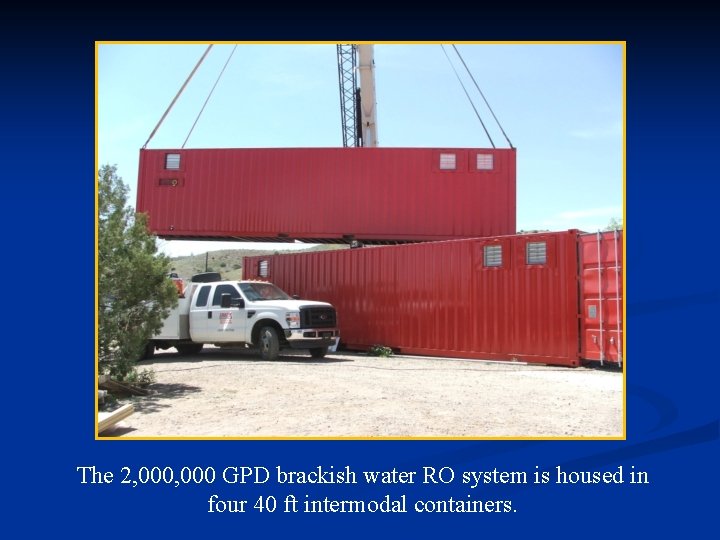

The 2, 000 GPD brackish water RO system is housed in four 40 ft intermodal containers.

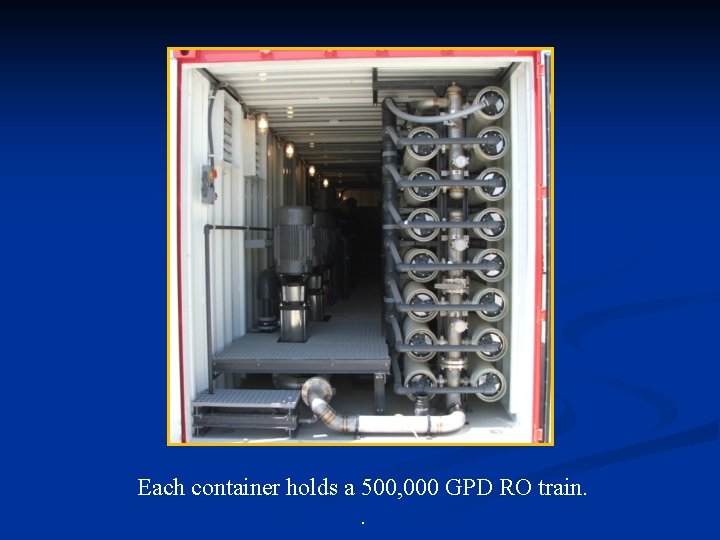

Each container holds a 500, 000 GPD RO train. .

Each train is equipped with 150% of pump capacity.

Each train is equipped with an extensive instrumentation package for system monitoring.

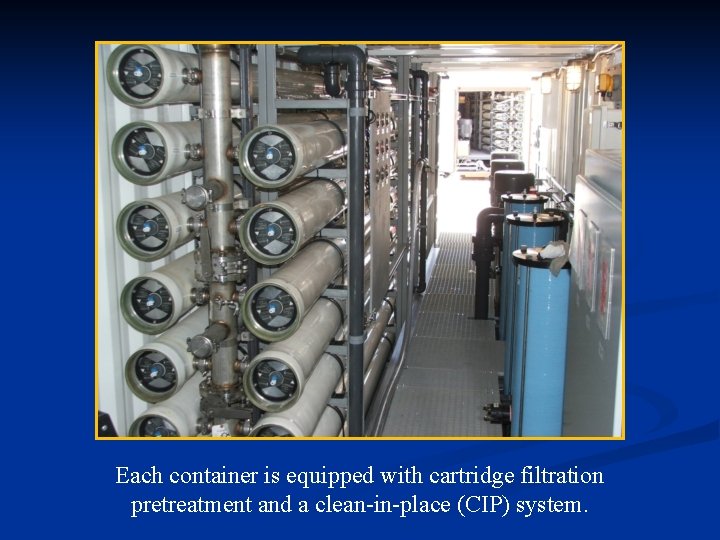

Each container is equipped with cartridge filtration pretreatment and a clean-in-place (CIP) system.

This project involved installation of a 100 GPD VCE unit inside a 40 ft intermodal container. The container was highly modified to facilitate operation and maintenance of the VCE unit.

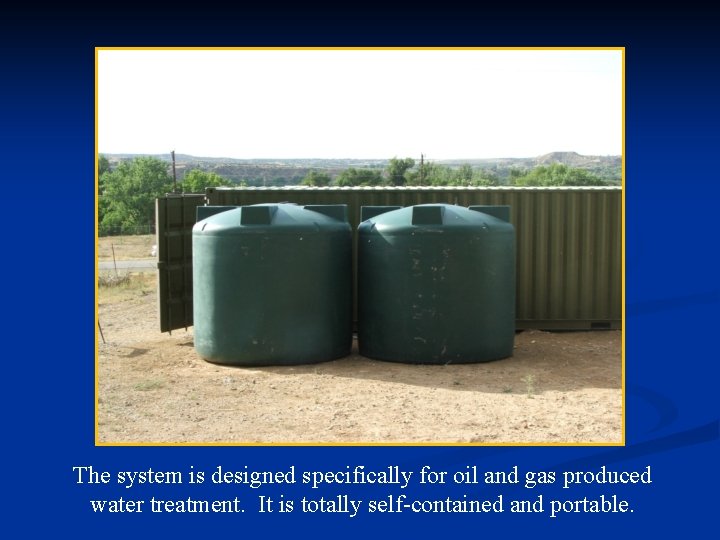

The system is designed specifically for oil and gas produced water treatment. It is totally self-contained and portable.

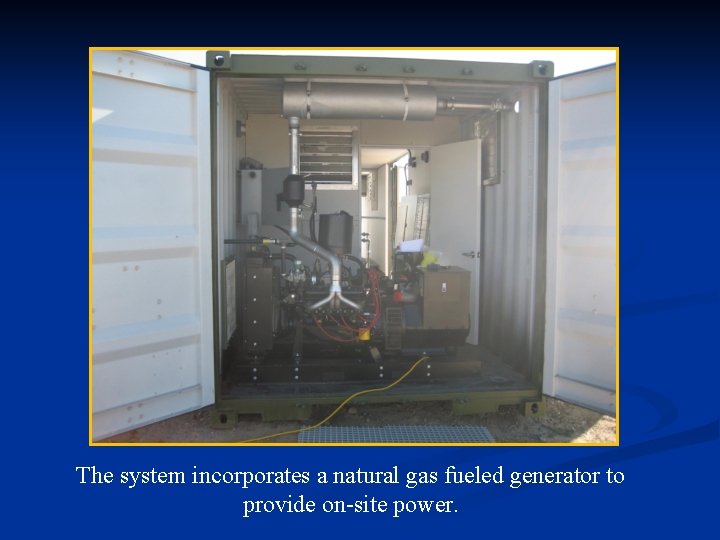

The system incorporates a natural gas fueled generator to provide on-site power.

The container is insulated and climate controlled with heating and cooling. The treatment system is fully automated and capable of being remotely operated and controlled via the internet by means of a cellular gateway.

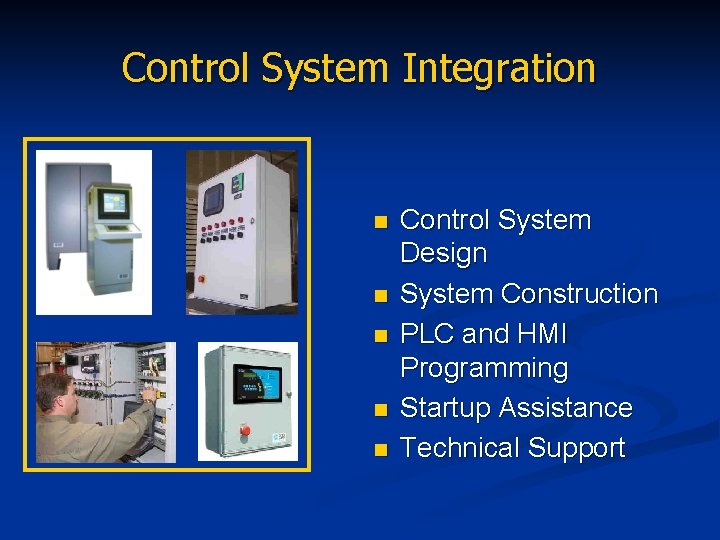

Control System Integration n n Control System Design System Construction PLC and HMI Programming Startup Assistance Technical Support

RODI Systems RO Monitoring and Control Products Aqua. Lynx® RO Controllers n RO Performance Monitor. TM n EZ SDITM Silt Density Index Monitors n Data. Flex Remote. TM n

Technical Capabilities n n n n Feasibility Studies Audits and Troubleshooting of Existing Systems Pilot Testing Treatment System Design Mechanical Design Including 3 D CAD Control System and Electrical Design Including Embedded Microprocessor, PLC, and PC Programming System Startup Operator Training

Manufacturing Capabilities n n Electrical – From Circuit Boards to Complete Control Systems Treatment System Assembly Including Skid-Mounted and Containerized Systems 100% QA Testing UL 508 Certified

Why Choose RODI Systems? n n n Systems Designed from the Operator’s Standpoint – All RODI Designers Have Hands-On Experience in System Operation In-House Capabilities for All Aspects of System Design Including Electrical, Controls, and Instrumentation Knowledgeable Technical Support Including Startup and Operator Training Specializes in High Performance Treatment Applications – Extensive Field Experience Proven Track Record with Some of the World’s Largest Client Companies Including Anheuser-Busch, Siemens, Intel, And GE
