Rodent Control With Sigfox Technology What is Io
- Slides: 8
Rodent Control With Sigfox Technology
What is Io. T (Internet of Things)? Sigfox Technology is an excellent fit-for-purpose network technology for city-wise Io. T applications. It also provides standard interface for easy integration to different platforms. Provides End-to-End Solutions via our local ecosystem of partners

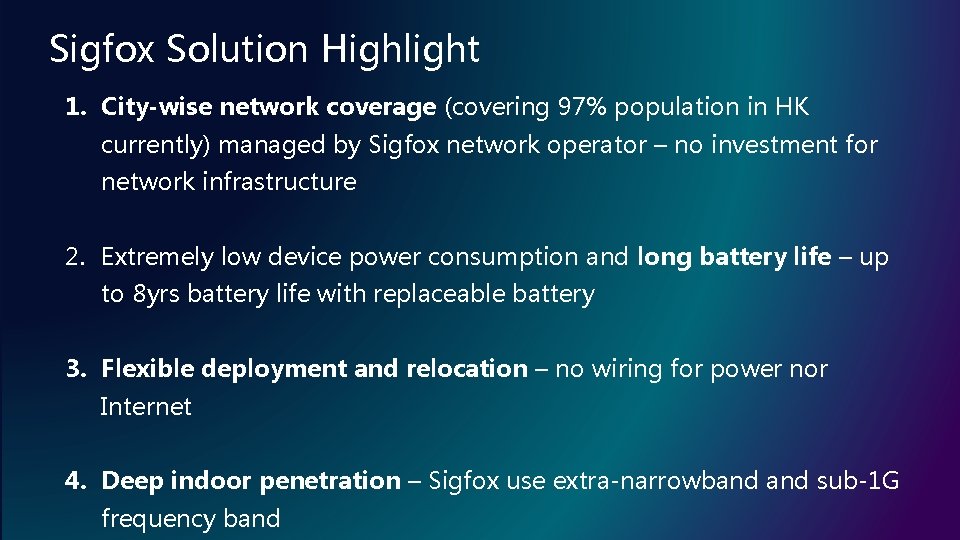

Sigfox Solution Highlight 1. City-wise network coverage (covering 97% population in HK currently) managed by Sigfox network operator – no investment for network infrastructure 2. Extremely low device power consumption and long battery life – up to 8 yrs battery life with replaceable battery 3. Flexible deployment and relocation – no wiring for power nor Internet 4. Deep indoor penetration – Sigfox use extra-narrowband sub-1 G frequency band
Rodent Control Steps 1. Locate • How to effectively put the bait station? 2. Catch • Which kind of trap to use` 3. Collect • How to effectively collect the rodent at only needed basis

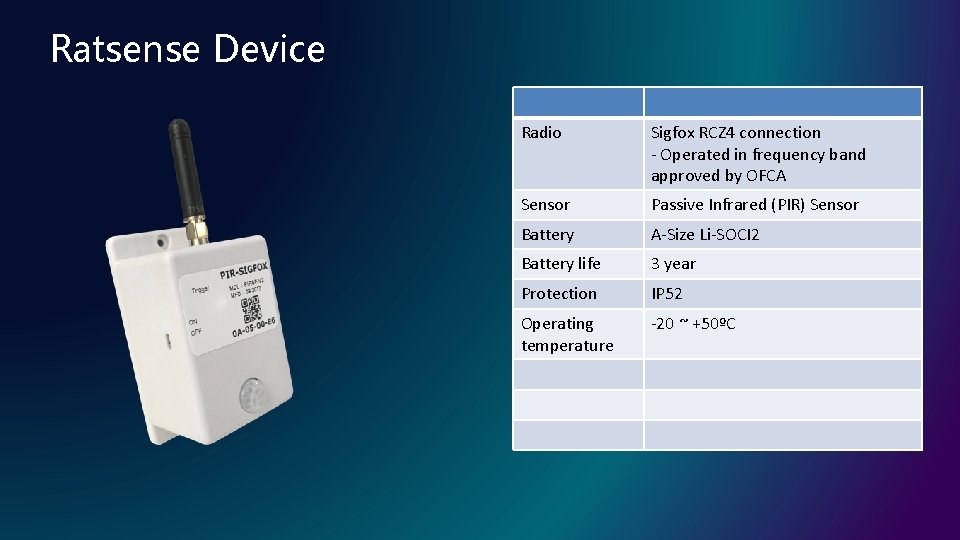

Ratsense Device Radio Sigfox RCZ 4 connection - Operated in frequency band approved by OFCA Sensor Passive Infrared (PIR) Sensor Battery A-Size Li-SOCI 2 Battery life 3 year Protection IP 52 Operating temperature -20 ~ +50ºC

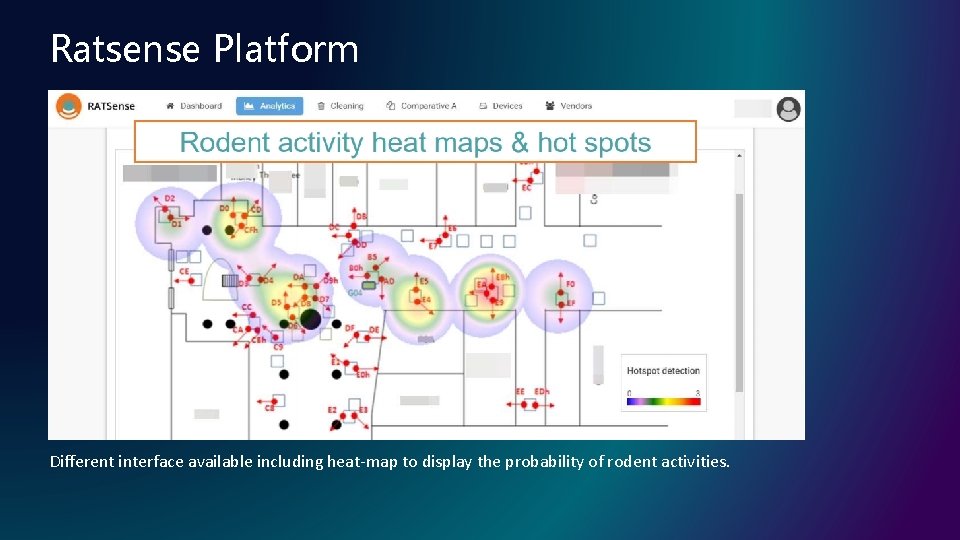

Ratsense Platform Different interface available including heat-map to display the probability of rodent activities.

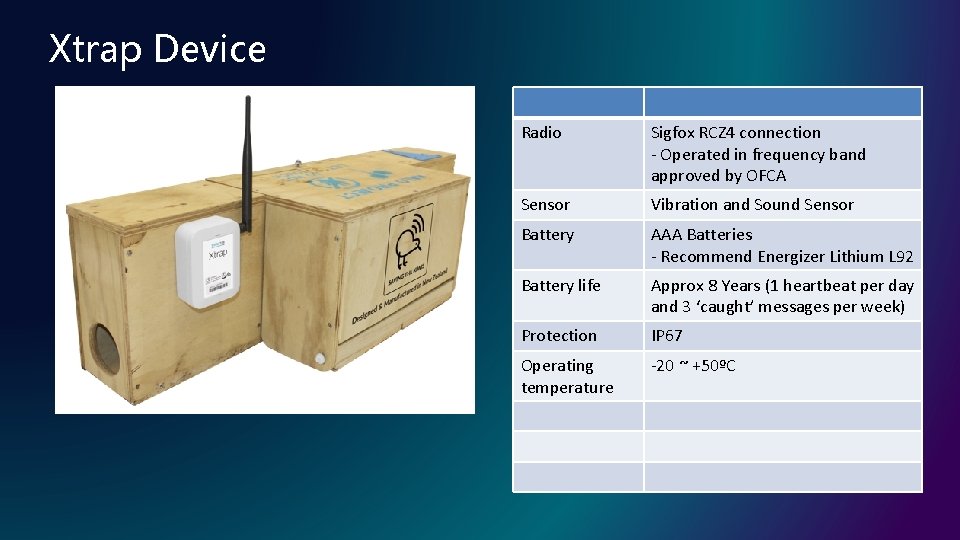

Xtrap Device Radio Sigfox RCZ 4 connection - Operated in frequency band approved by OFCA Sensor Vibration and Sound Sensor Battery AAA Batteries - Recommend Energizer Lithium L 92 Battery life Approx 8 Years (1 heartbeat per day and 3 ‘caught’ messages per week) Protection IP 67 Operating temperature -20 ~ +50ºC

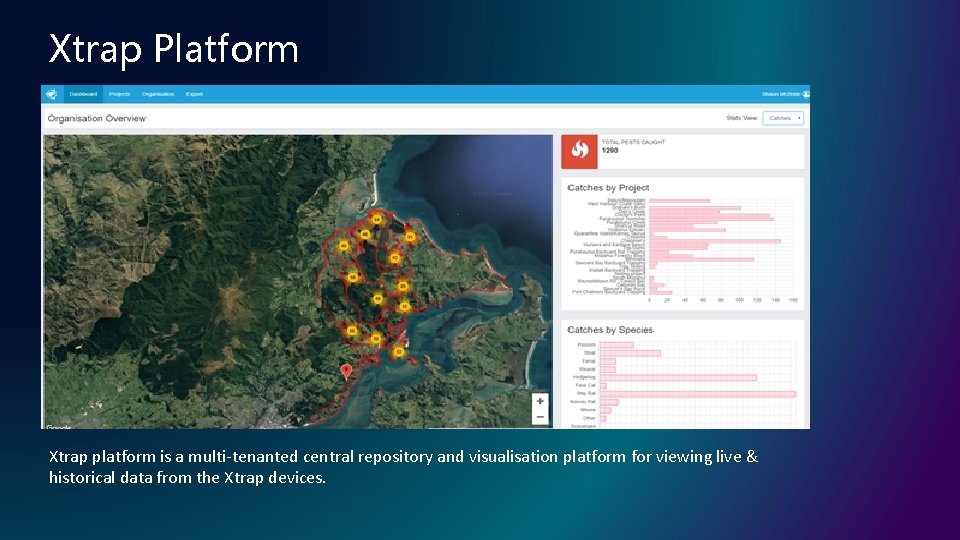

Xtrap Platform Xtrap platform is a multi-tenanted central repository and visualisation platform for viewing live & historical data from the Xtrap devices.
