Rock Cycle Igneous Rocks The Rock Cycle Differences
- Slides: 52
Rock Cycle & Igneous Rocks
The Rock Cycle

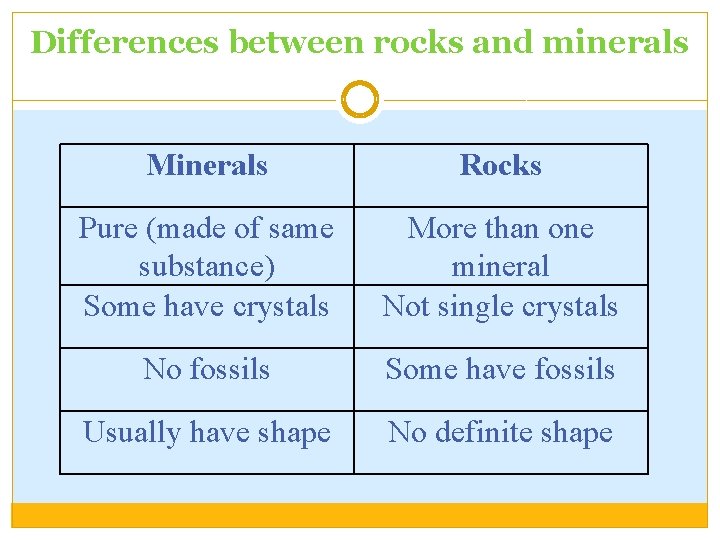

Differences between rocks and minerals Minerals Rocks Pure (made of same substance) Some have crystals More than one mineral Not single crystals No fossils Some have fossils Usually have shape No definite shape
The Rock Cycle-Types of Rocks • Rocks are any solid mass of mineral or mineral-like matter occurring naturally as part of our planet. • Types of Rocks 1. Igneous rock is formed by the crystallization of molten magma.
Rock Cycle-Types of Rocks 2. Sedimentary rock is formed from the weathered products of preexisting rocks that have been transported, deposited, compacted, and cemented. 3. Metamorphic rock is formed by the alteration of pre-existing rock deep within Earth (but still in the solid state) by heat, pressure, and/or chemically active fluids.
The Rock Cycle • Rock Cycle: shows the interrelationships among the three rock types (igneous, sedimentary, and metamorphic) • Magma is molten material that forms deep beneath the Earth’s surface. • Lava is magma that reaches the surface. • Weathering is a process in which rocks are broken down by water, air, and living things. • Sediment is weathered pieces of Earth elements.
The Rock Cycle
Energy that drives the Rock Cycle Earth’s Interior (Internal Processes): Igneous & Metamorphic Rocks Sun (External processes): Sedimentary rocks. Weathering and the movement of weathered materials are external processes powered by energy from the sun.
Igneous Rocks & Magma
Igneous Rocks �Named for the Latin ‘Ignis’=Fire �Occurrence Found globally Found in discrete geologic locations �Convergent plate boundaries �Divergent plate boundaries �Mantle plumes �Formed by the crystallization of magma or lava
The Nature of Igneous Rocks �Form from Magma [Greek=“paste”] Hot, partially molten mixture of solid, liquid, and gas Gases: H 2 O, CO 2, etc. less dense than solid rock solidifies upon cooling
Magma Vs. Lava (again) �Magma vs. Lava Magma: molten rock beneath the surface Lava: molten rock that has reached the surface Magma: form intrusive igneous rocks Lava: form extrusive igneous rocks
Igneous Rocks in NM- Cornudas Peak
Magma Composition �Composition varies widely Oxygen plus major elements Generally a silica (Si. O 2) melt Silica and water content control viscosity Silica content used in classification
Mafic Magmas �Silica content ~ 50% �High Fe, Mg and Ca (Iron, Magnesium, and Calcium) �High temperature molten magma 1000 o to 1200 o. C (1800 -2200 o. F) �Major minerals: Olivine Pyroxene - Ca Plagioclase
Rocks formed from Mafic Magmas
Felsic Magma �Silica content: 65 -77% �High Al, Na and K (Aluminum, Sodium, Potassium) �Lower temperature magmas Less than 850 o. C (1575 o. F) �Major minerals: Feldspars - Micas Quartz
Magma Viscosity �Viscosity: resistance to flow �High Viscosity= HIGH resistance, SLOWER flow �Low Viscosity=LOW resistance=FASTER flow
Magma Viscosity • Controlled by silica and water content, and temperature • As magma cools-silica tetrahedron form links • Linkages control viscosity
Magma Viscosity �High Silica=high viscosity (slow) �Low Silica=low viscosity (fast) �Cooler Temperatures=higher viscosity �Higher Temperatures=lower viscosity �More Links=higher viscosity �Fewer Links=lower viscosity �Water=lower viscosity
Plate Tectonic Setting of Igneous Rocks �Divergent Plate Boundaries Partial melting of mantle produces basaltic magma (MAFIC) �Convergent Plate Boundaries Subduction produces partial melting of basalt, sediments, parts of mantle Andesitic and rhyolitic magma (INTERMEDIATE & FELSIC) Ascending magma assimilates lower crustal material
Plate Tectonic Setting of Igneous Rocks �Mantle Plumes Partial melting of plumes of mantle material Basaltic magma is produced (MAFIC) Rising magma produce �Intraplate island chains �Flood basalt [Columbia River Basalts]
Igneous Rocks-Classification �Igneous Rocks are classified by 3 main factors: 1. Formation (by magma or lava) 2. Texture 3. Composition
Igneous Rocks: Classification �Formation Intrusive Igneous Rocks: �formed when magma hardens beneath Earth’s surface. �See these after erosion occurs �Ex: Granite Extrusive Igneous Rocks: �Formed when lava hardens above Earth’s surface �Ex: Rhyolite
Granite
Rhyolite
Igneous Rocks: Classification �Texture the size, shape and relationship of minerals in the rock Cooling history of the magma or lava Crystal size increases as rate of cooling slows There are 5 main textures: coarse, fine, glassy, porphyritic, pyroclastic
Igneous Rocks: Classification �Coarse (Phaneritic)Texture Slow cooling rate Large Crystals Equigranular, interlocking crystals Ex. Granite
Igneous Rocks: Classification �Fine (Aphanitic)Texture Fast cooling rate Smaller, interconnected crystals Few crystals visible in hand specimen Ex. Rhyolite
Igneous Rocks: Classification �Glassy Texture Very fast cooling rate No visible crystals Volcanic Glass Ex. Obsidian
Igneous Rocks: Classification �Porphyritic Texture Complex cooling history Different cooling rates throughout the rock Different sized crystals Ex. Andesite
Igneous Rocks: Classification �Pyroclastic Texture forms as an explosive volcanic eruption mixes fragments of the volcano with hot ash in the atmosphere As this hot combination of tiny ash particles and larger, angular fragments settles to the ground, they blanket the Earth's surface and weld together Appear porphyritic with visible crystals A generic term for all these rocks is “tuff”

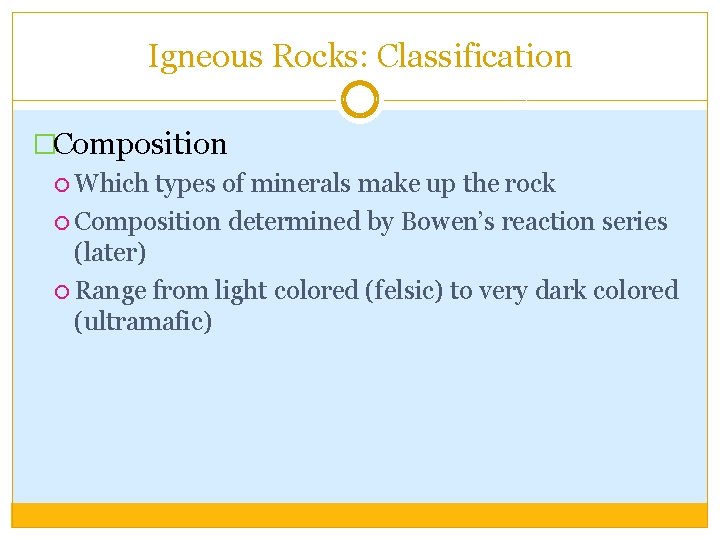

Igneous Rocks: Classification �Composition Which types of minerals make up the rock Composition determined by Bowen’s reaction series (later) Range from light colored (felsic) to very dark colored (ultramafic)
Igneous Rocks: Classification �Felsic Composition Also called silicic or granitic composition Light colored rocks White to pink in color Mostly composed of quartz and potassium feldspar Very High amounts of: Si, Na, K Very Low amounts of: Fe, Mg, Ca Examples: Granite (I) Rhyolite (E)
Felsic Rocks
Igneous Rocks: Classification �Intermediate Composition Also called andesitic composition Combination of light and dark colored minerals Salt and Pepper OR gray coloration Mostly composed of amphibole, plagioclase feldspar, quartz, pyroxene High amounts of: Si, Na, K Low amounts of: Fe, Mg, Ca Examples: Diorite (I) Andesite (E)
Intermediate Rocks
Igneous Rocks: Classification �Mafic Composition Also called basaltic composition Dark colored minerals Mostly composed of pyroxene, plagioclase feldspar, olivine Low amounts of: Si, Na, K High amounts of: Fe, Mg, Ca Examples: Gabbro (I) Basalt (E)
Mafic Rocks
Igneous Rocks: Classification �Ultramafic Composition Very Dark colored minerals (usually has dark greens) Mostly composed of pyroxene and olivine Very Low amounts of: Si, Na, K Very High amounts of: Fe, Mg, Ca Examples: Peridotite (I) Komatiite (E)
Ultramafic Rocks
Classification of Igneous Rocks
Classification of Igneous Rocks
Bowen’s Reaction Series �Chemical Evolution of Igneous Rocks proposed by Norman Bowen in the early 1900 s. �Proposed mafic magmas may evolve by cooling and crystallization to produce more silica-rich magmas �Found the following through experiment: 1. There is a regular sequence of silicate mineral crystallization �Minerals common to mafic rocks crystallize at the highest temperatures �Minerals common to felsic rocks crystallize at the lowest temperatures
Bowen’s Reaction Series �Once a mineral forms, it will undergo a chemical reaction with the surrounding melt to produce the next lower temperature mineral in the sequence �Example: Olivine undergoes a reaction with the surrounding melt to form pyroxene. Pyroxene reacts with the surrounding melt to form amphibole, etc.
Bowen’s Reaction Series �There are two important parts of the reaction series: a) The discontinuous series - includes minerals with differing arrangement of Si-O tetrahedra; (olivine, pyroxene, amphibole, biotite) a) The continuous series - includes plagioclase feldspar minerals, all of which are framework silicates; (Ca-rich plagioclase (anorthite), Narich plagioclase (albite))
Bowen’s Reaction Series
Importance of Bowen’s Reaction Series �Explains how a variety of igneous rock types can come from a single (mafic) magma composition Fractional Crystallization Crystal Settling Volcanic Eruption �Allows interpretation of crystallization temperature based on mineralogical composition. Ultramafic=highest temps Felsic=lowest temps
