Robots An Introduction

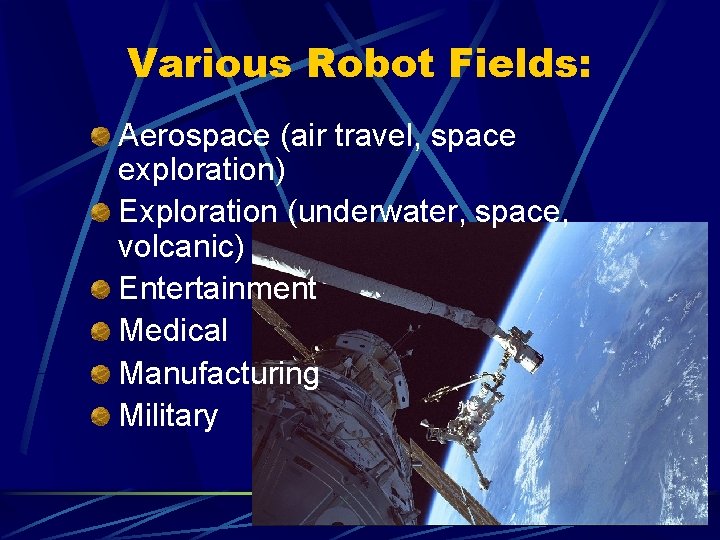

Various Robot Fields: Aerospace (air travel, space exploration) Exploration (underwater, space, volcanic) Entertainment Medical Manufacturing Military

Robot Fields: Medical See http: //www. childrenshospital. org/clinicalservices/Site 1860/mainp age. S 1860 P 0. html

Robot Fields: Military

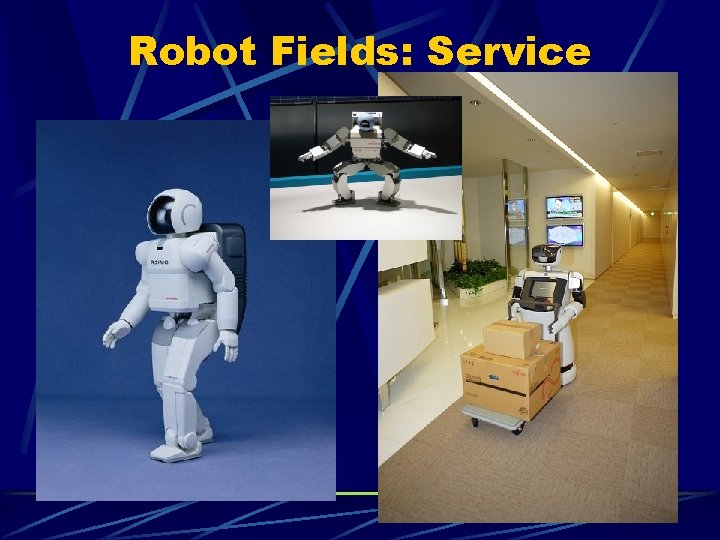

Robot Fields: Service

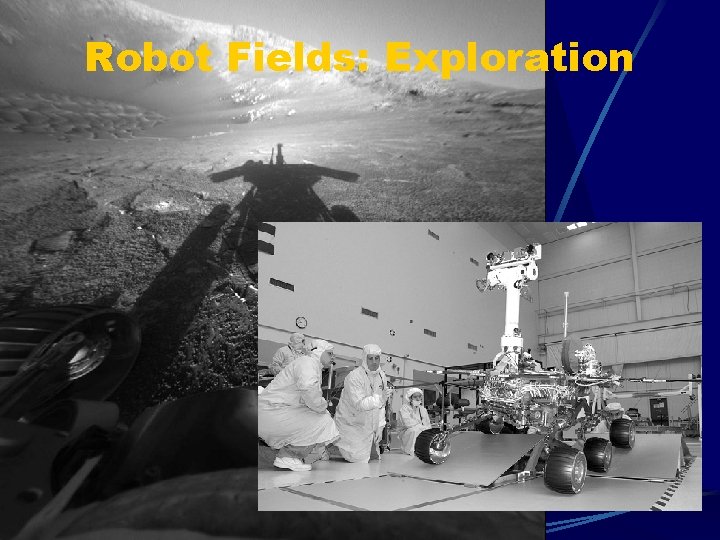

Robot Fields: Exploration

Robot Fields: Manufacturing

MANUFACTURING Robot Definition (4 distinctions) A robot is an automatically controlled, reprogrammable, multipurpose, manipulative machine with several reprogrammable axis, which may be either fixed in place or mobile for use in industrial automation applications.

Industrial Robot Applications (1 distinction) st AKA Multi-functional / Multipurpose May perform many operations such as welding, bending, moving, breaking, etc.

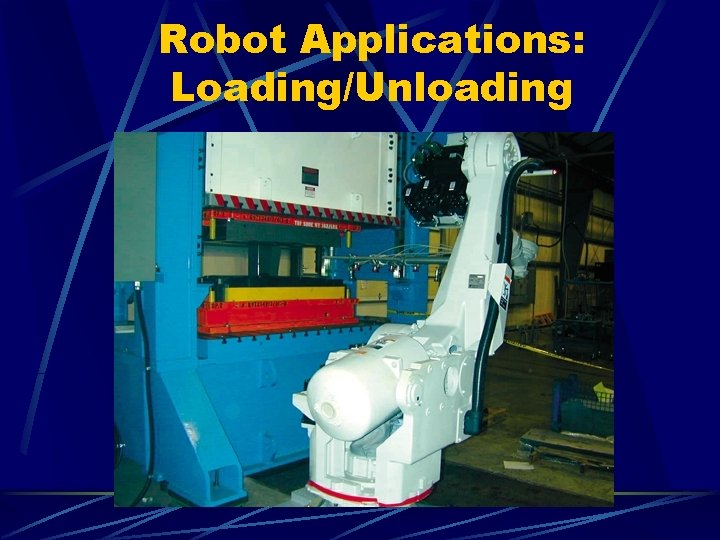

Robot Applications: Loading/Unloading

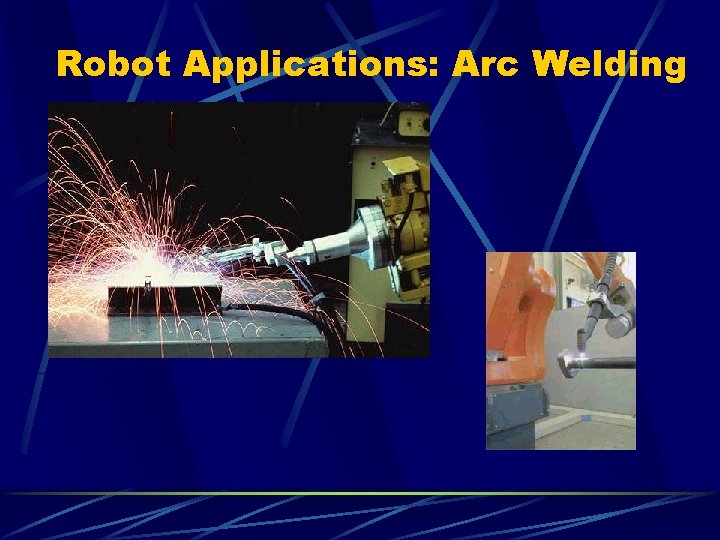

Robot Applications: Arc Welding

Robot Applications: Plasma Arc Welding

Robot Applications: Spot Welding

Robot Applications: Testing/Inspection

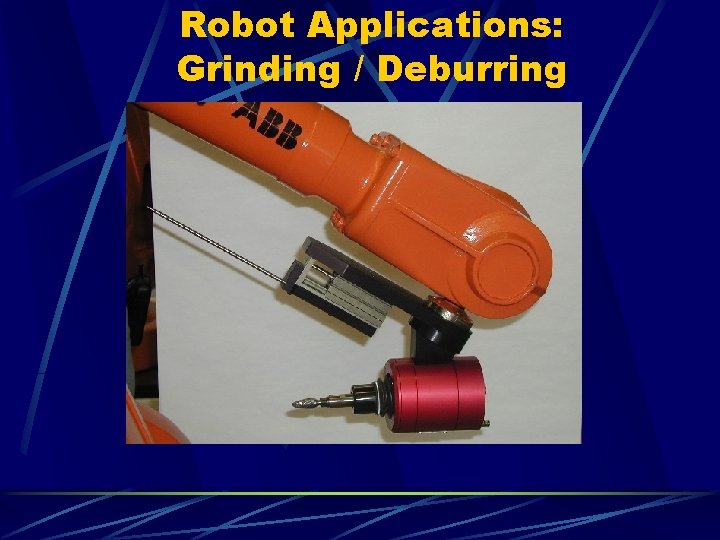

Robot Applications: Grinding / Deburring

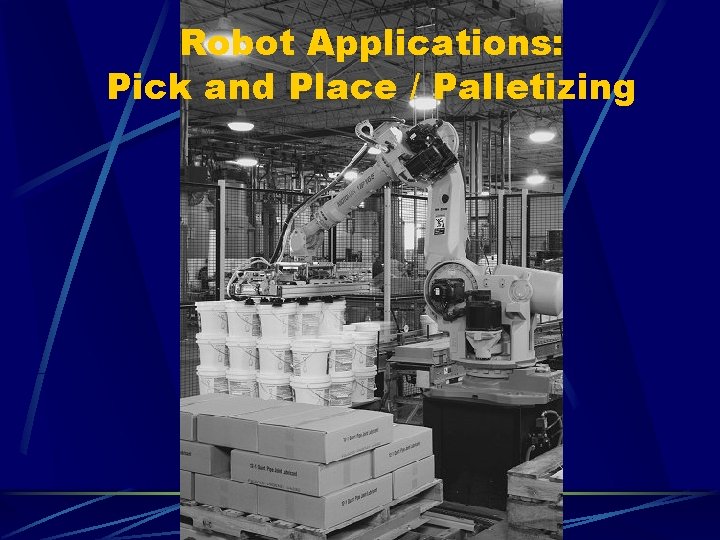

Robot Applications: Pick and Place / Palletizing

Robot Applications: Plasma Arc Cutting

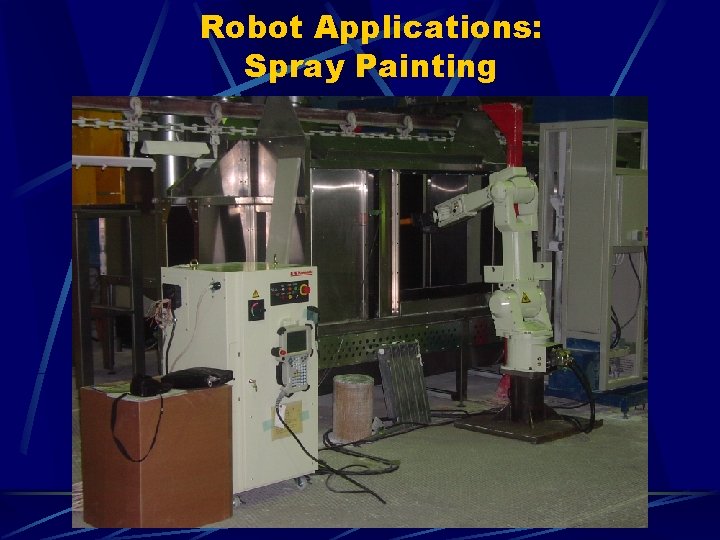

Robot Applications : Spray Painting

Robot Applications: Spray Painting

Robot Applications: Adhesive Application

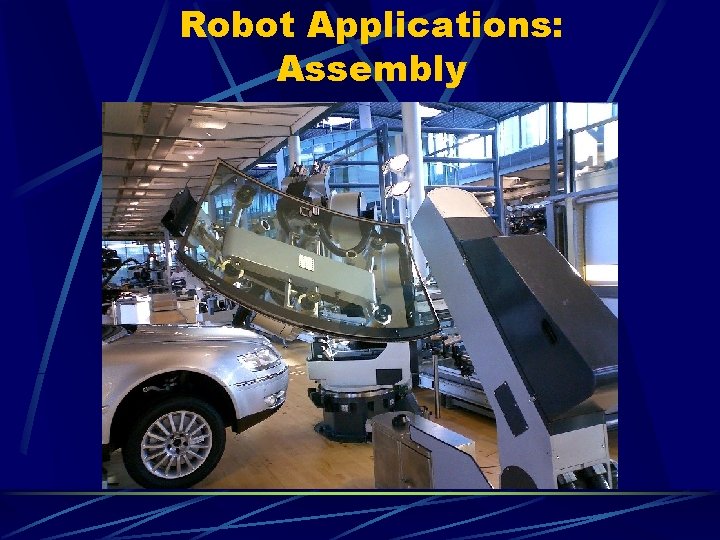

Robot Applications: Assembly

Other Common Robot Applications: § Deflashing § Measuring § Waterjet Cutting

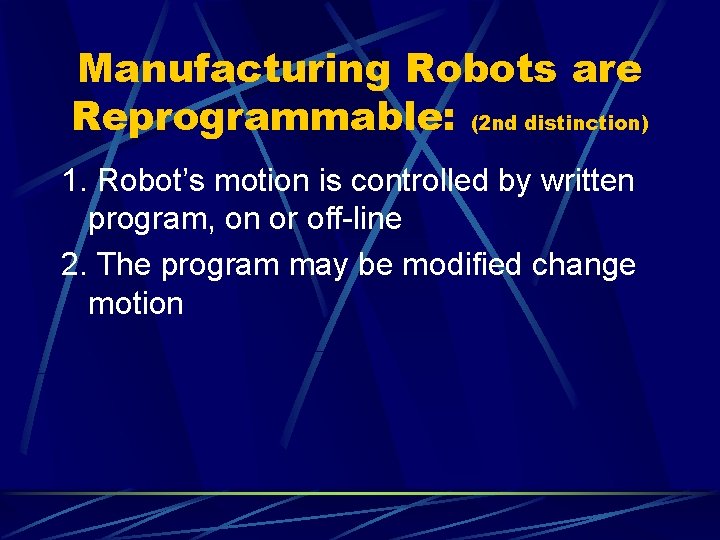

Manufacturing Robots are Reprogrammable: (2 nd distinction) 1. Robot’s motion is controlled by written program, on or off-line 2. The program may be modified change motion

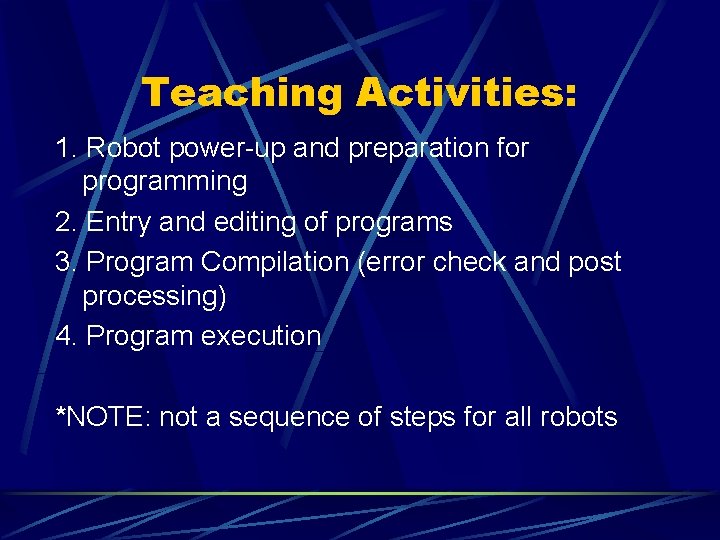

Teaching Activities: 1. Robot power-up and preparation for programming 2. Entry and editing of programs 3. Program Compilation (error check and post processing) 4. Program execution *NOTE: not a sequence of steps for all robots

Teaching Robots – Accomplished through: Teach pendants Teach terminals Controller front panels

Programming is either: On-line – realtime connection of programming manipulator movements (downtime associated. Robot cannot produce value during on-line programming. However, what you see is what you get. Off-line- no physical connection of programmer with manipulator. Downtime minimized.

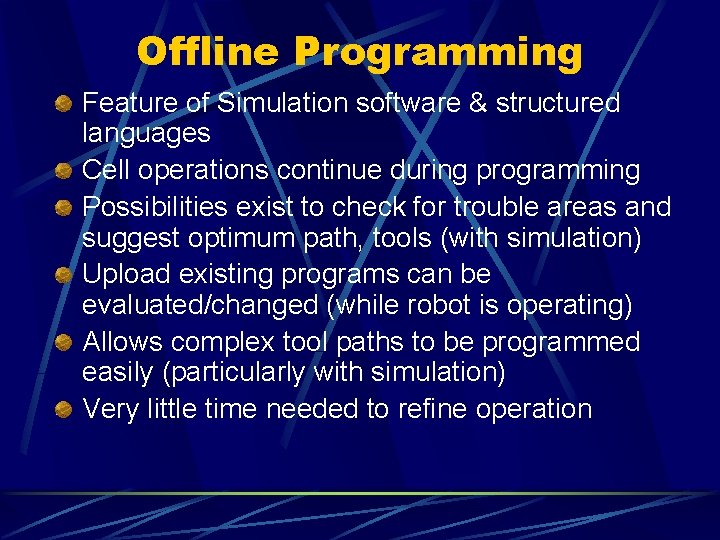

Offline Programming Feature of Simulation software & structured languages Cell operations continue during programming Possibilities exist to check for trouble areas and suggest optimum path, tools (with simulation) Upload existing programs can be evaluated/changed (while robot is operating) Allows complex tool paths to be programmed easily (particularly with simulation) Very little time needed to refine operation

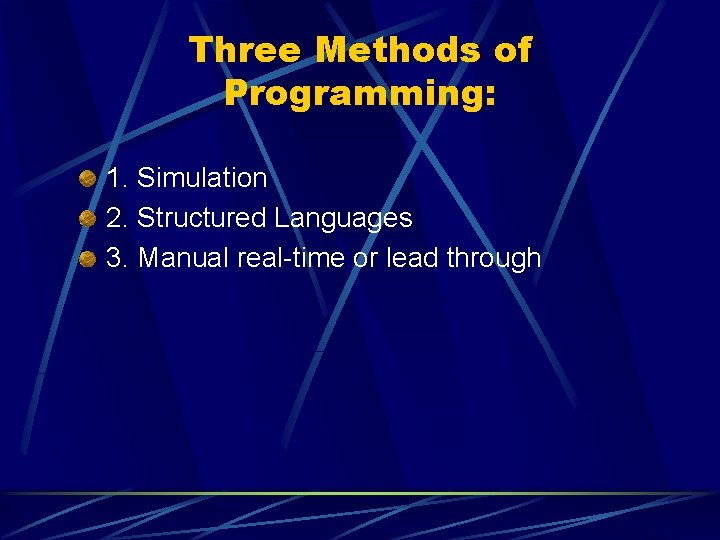

Three Methods of Programming: 1. Simulation 2. Structured Languages 3. Manual real-time or lead through

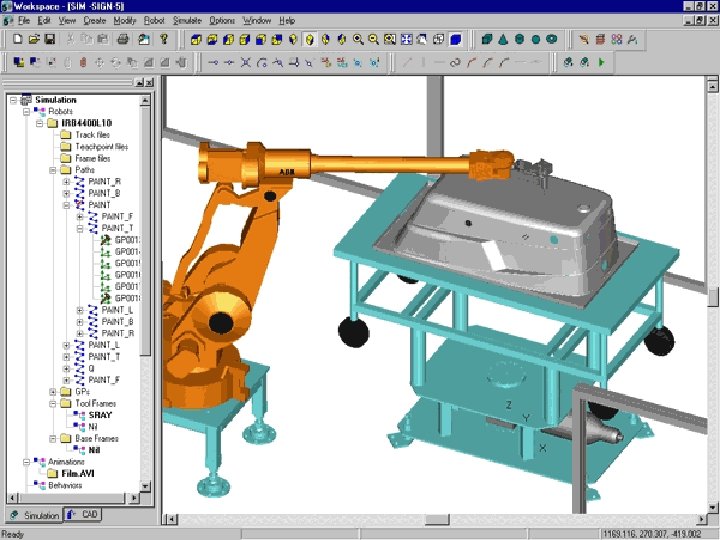

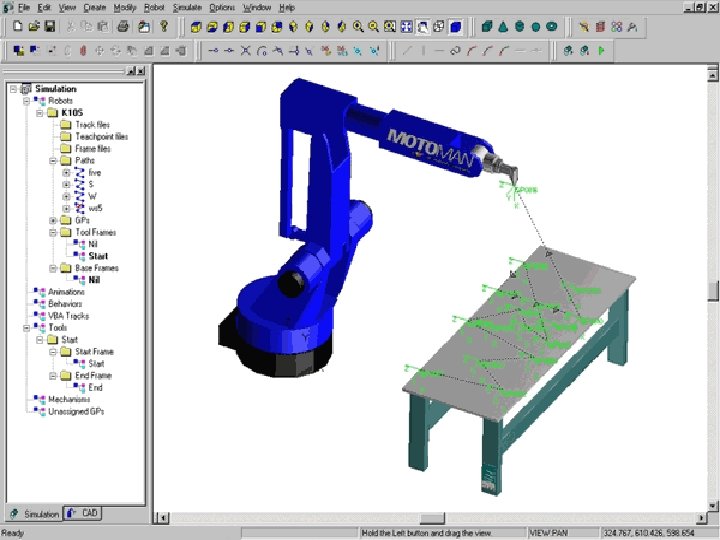

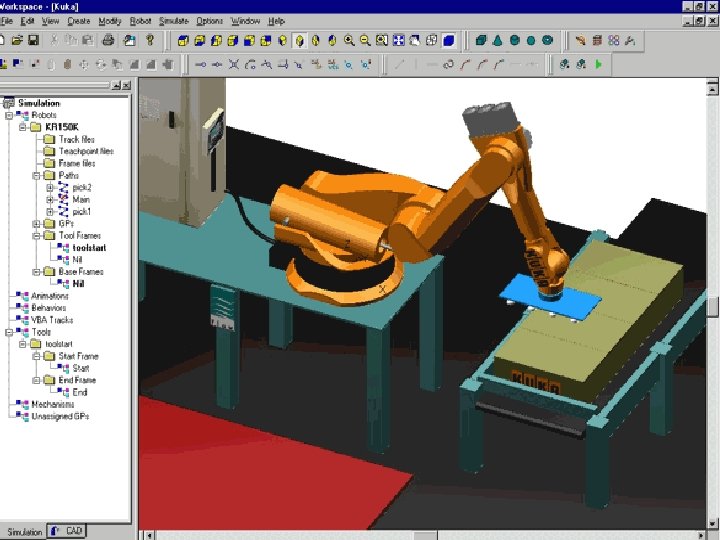

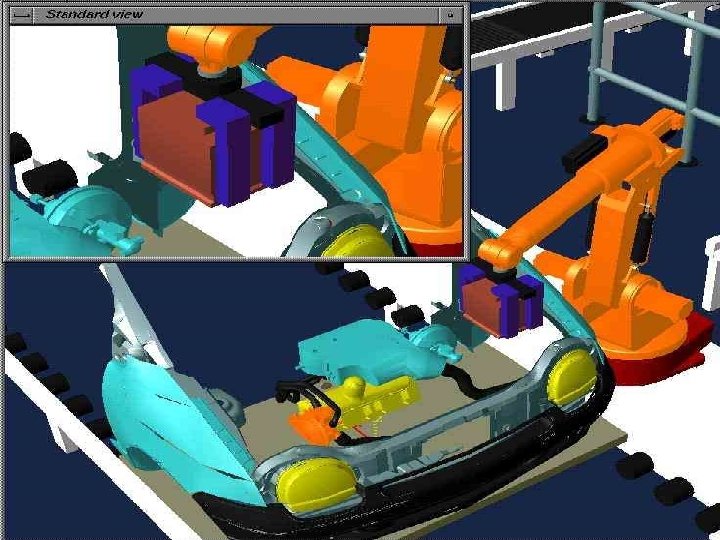

1) Robot Programming : GUI/Simulation

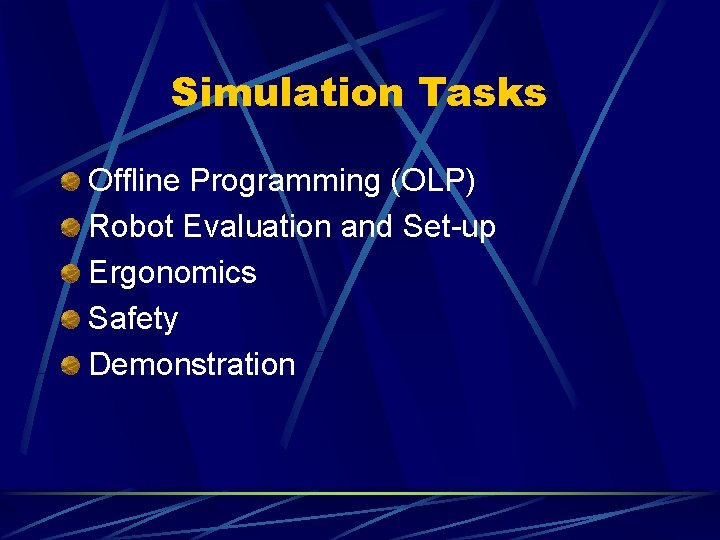

Simulation Tasks Offline Programming (OLP) Robot Evaluation and Set-up Ergonomics Safety Demonstration

Simulation: Evaluation and Set-Up Test “What-If” scenarios Changes in robot position l Selection of robot model l Part entry/movement/exit in cell l Conveyor positioning l Cell layout interferences with plant layout l All can be modeled and virtually “Walked Through” using simulation.

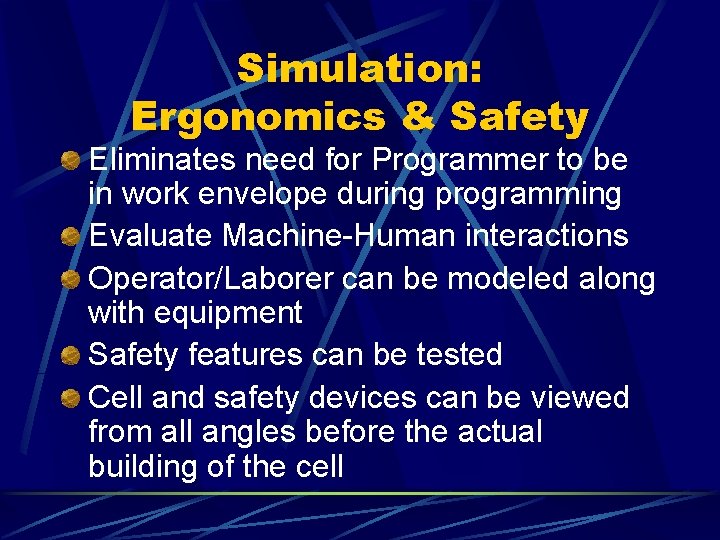

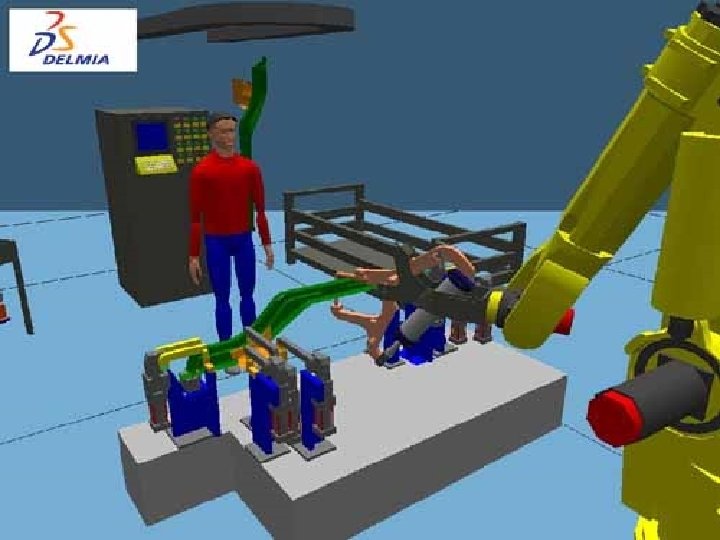

Simulation: Ergonomics & Safety Eliminates need for Programmer to be in work envelope during programming Evaluate Machine-Human interactions Operator/Laborer can be modeled along with equipment Safety features can be tested Cell and safety devices can be viewed from all angles before the actual building of the cell

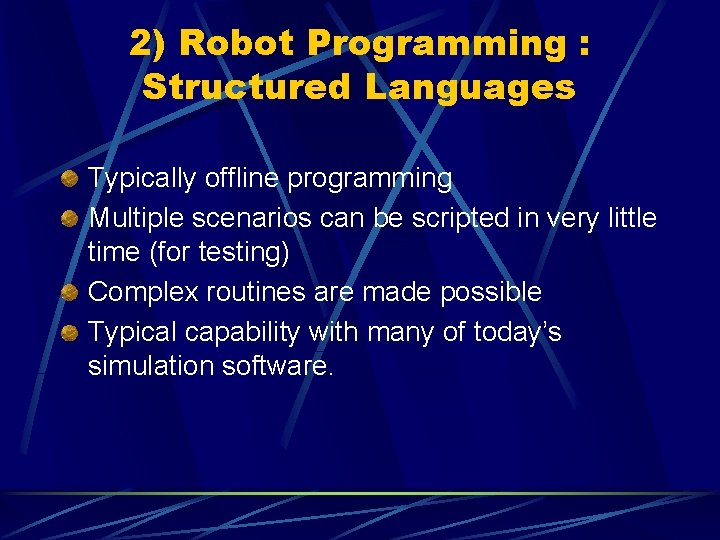

2) Robot Programming : Structured Languages Typically offline programming Multiple scenarios can be scripted in very little time (for testing) Complex routines are made possible Typical capability with many of today’s simulation software.

Robot Programming : Structured Languages

3) Robot Programming : Manual Real-time (online) AKA Lead-Through Programming On-line programming – dedicated link between operator and manipulator Limited capability in testing multiple scenarios

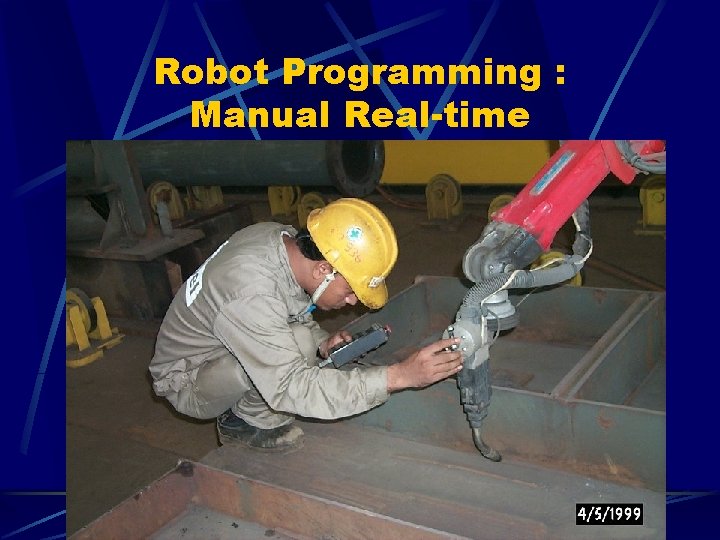

Robot Programming : Manual Real-time

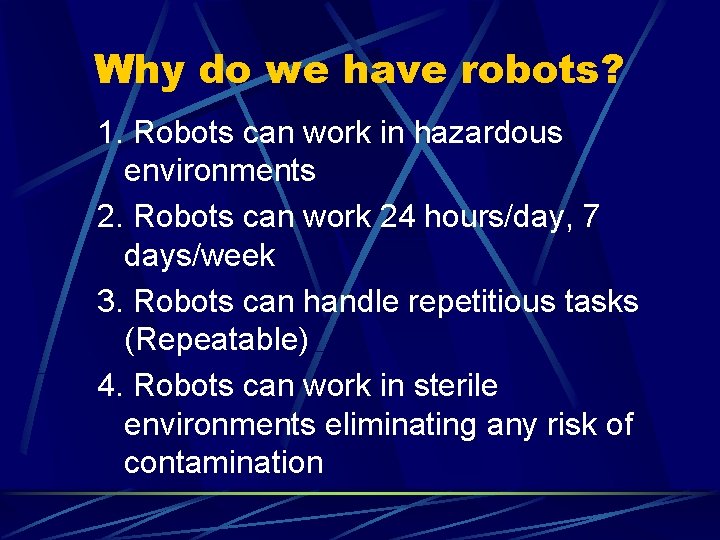

Why do we have robots? 1. Robots can work in hazardous environments 2. Robots can work 24 hours/day, 7 days/week 3. Robots can handle repetitious tasks (Repeatable) 4. Robots can work in sterile environments eliminating any risk of contamination

Why do we have robots? 5. Robots can be more precise than humans in some applications 6. Reprogrammable (flexible) 7. Variable sizes 8. Fast 9. Low hourly cost to operate

Problems with robots: 1. Limited applications (movement restrictions) – limited capability 2. Can be costly (end-effectors, ROI) 3. Payload restrictions 4. Programming can take time 5. Repeatability can be lacking for some robots 6. Must be continuously maintained

Robot System 1. Robot Arm(s)- AKA manipulator 2. Hardware- power supply and controller (communication interface which monitors and operates the equipment and sensors) 3. Equipment, devices, and sensors required for the robot to perform its task (electrical and fluid support systems) 4. The end-effector(s) – tooling performing work, grippers 5. Software- language used to communicate action of the manipulator

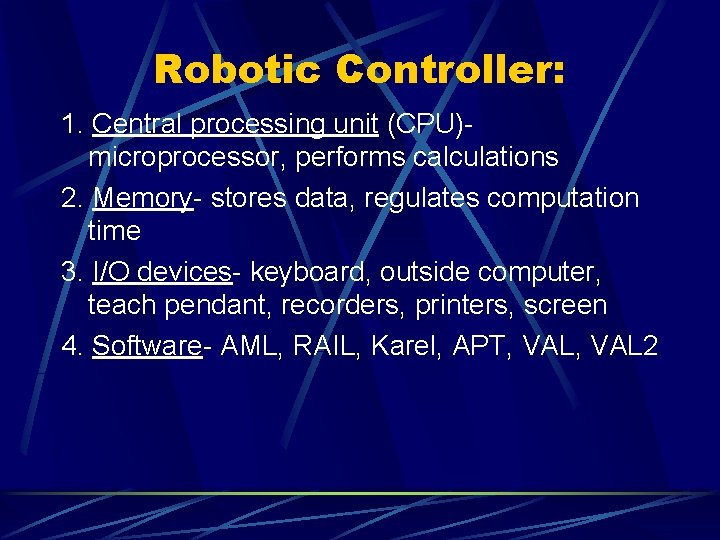

Robotic Controller: 1. Central processing unit (CPU)microprocessor, performs calculations 2. Memory- stores data, regulates computation time 3. I/O devices- keyboard, outside computer, teach pendant, recorders, printers, screen 4. Software- AML, RAIL, Karel, APT, VAL 2

Manipulator Power Sources: Control through electric-drive motors, pneumatic / hydraulic actuators.

End-Effector: AKA End-of-arm tooling Describes tooling (welders, adhesive applicators, hooking mechanisms) Gripper- open and closing mechanism designed to grasp parts, most grippers activated by compressed air (pneumatics)

Terms: Accuracy- degree to which a robot arm is able to move to a specific position, Robot accuracy is usually one or two magnitudes greater than the arms repeatability. Repeatability- Repeatability is the degree to which a robot system is able to return to a specific point, the best in terms of repeatability on assembly robots is within. 0005 inches.

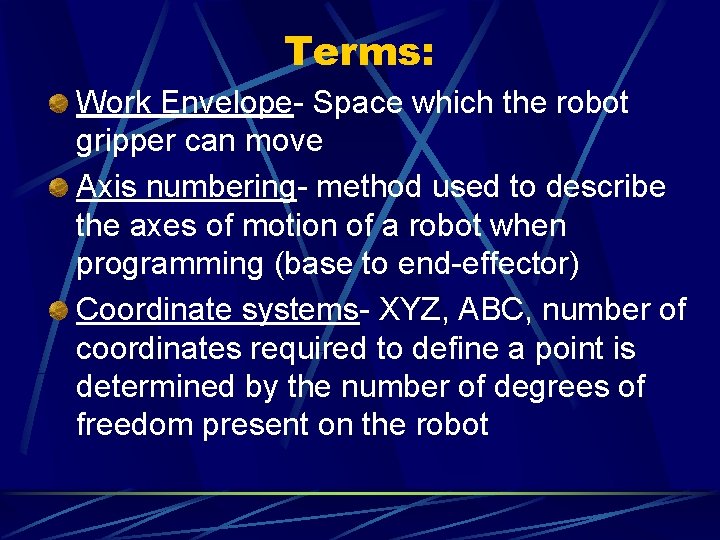

Terms: Work Envelope- Space which the robot gripper can move Axis numbering- method used to describe the axes of motion of a robot when programming (base to end-effector) Coordinate systems- XYZ, ABC, number of coordinates required to define a point is determined by the number of degrees of freedom present on the robot

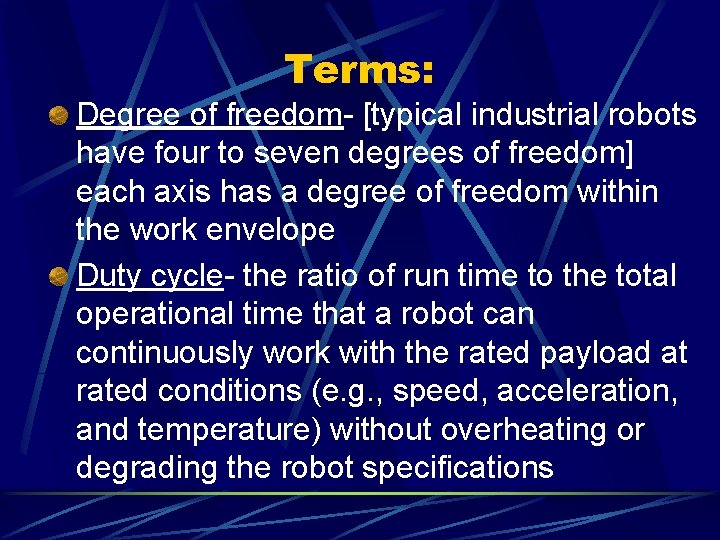

Terms: Degree of freedom- [typical industrial robots have four to seven degrees of freedom] each axis has a degree of freedom within the work envelope Duty cycle- the ratio of run time to the total operational time that a robot can continuously work with the rated payload at rated conditions (e. g. , speed, acceleration, and temperature) without overheating or degrading the robot specifications

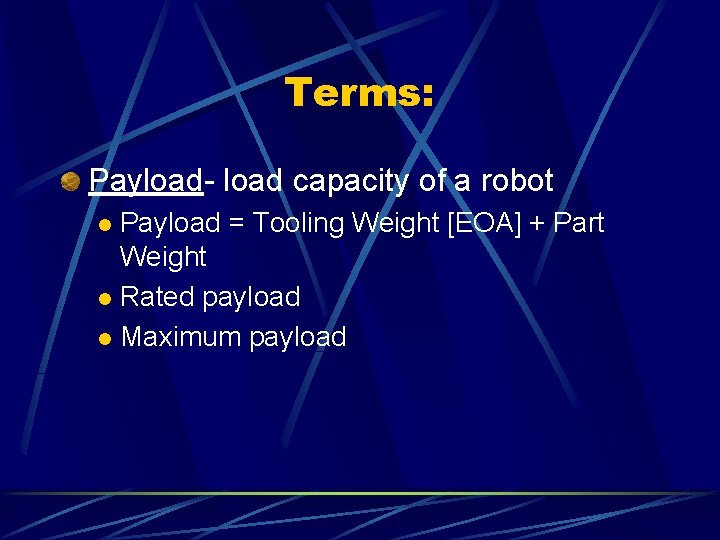

Terms: Payload- load capacity of a robot Payload = Tooling Weight [EOA] + Part Weight l Rated payload l Maximum payload l
