Robotics in Extreme Radiation Environments

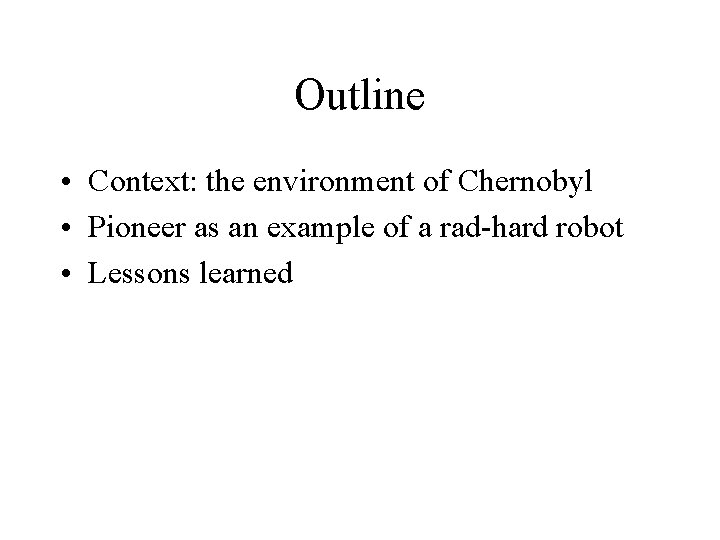

Outline • Context: the environment of Chernobyl • Pioneer as an example of a rad-hard robot • Lessons learned

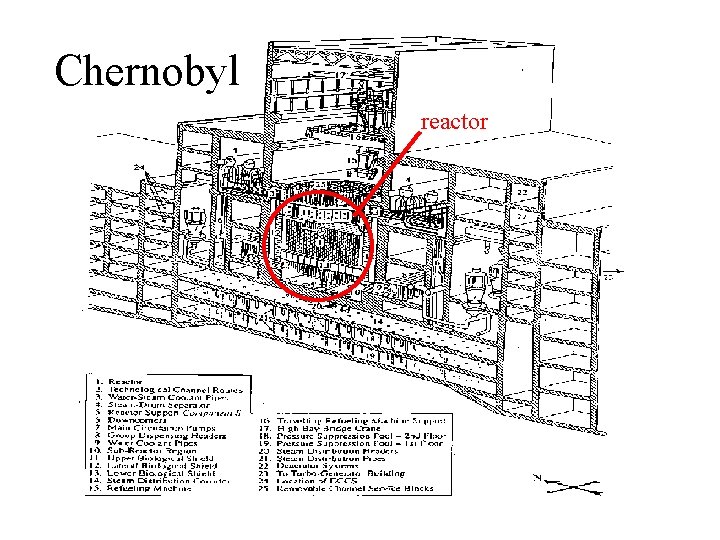

Chernobyl reactor

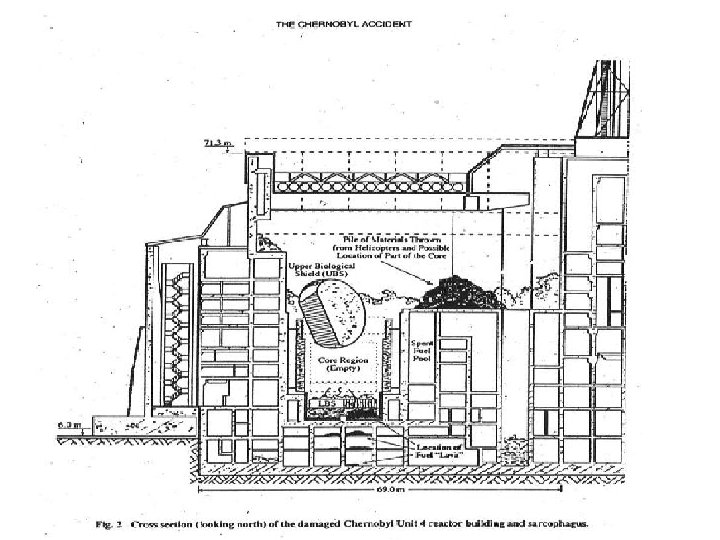

After

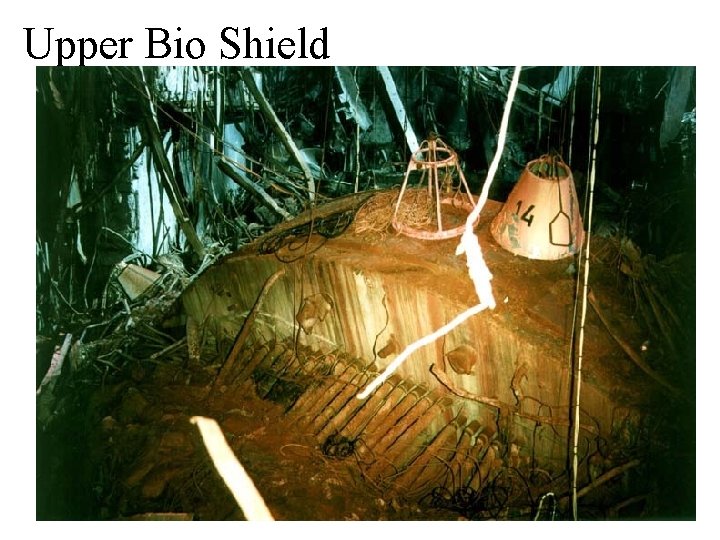

Upper Bio Shield

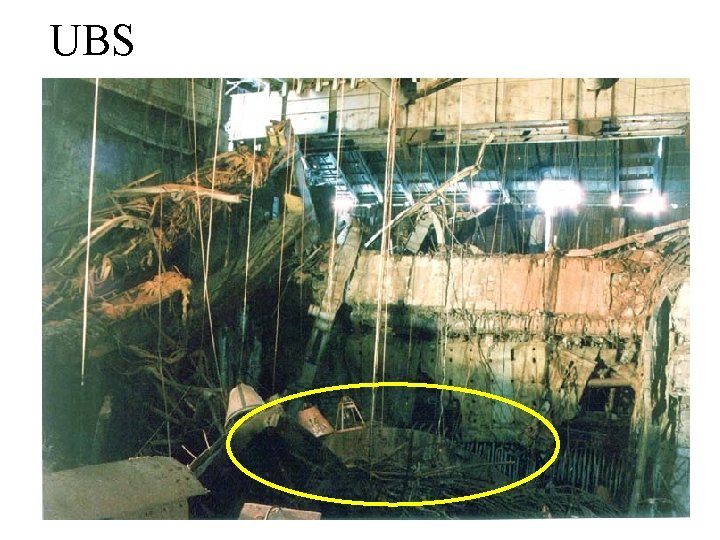

UBS

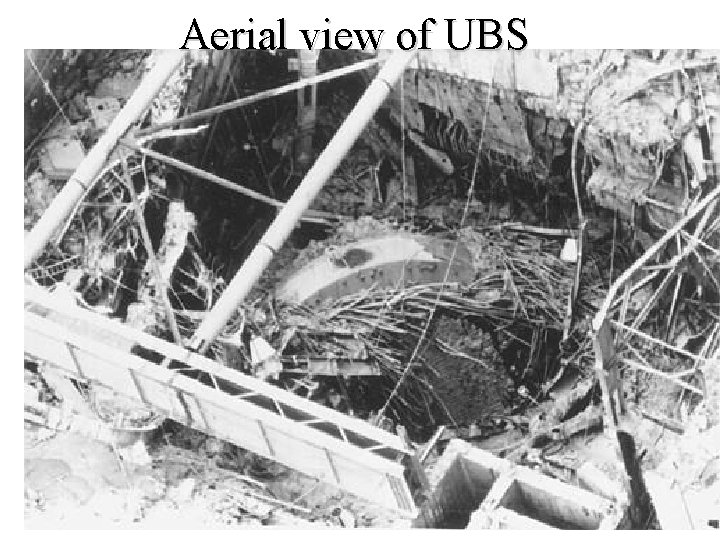

Aerial view of UBS

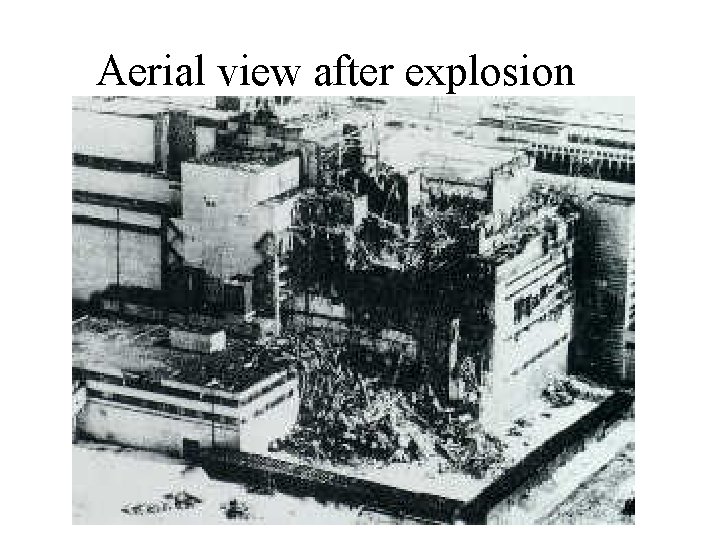

Aerial view after explosion

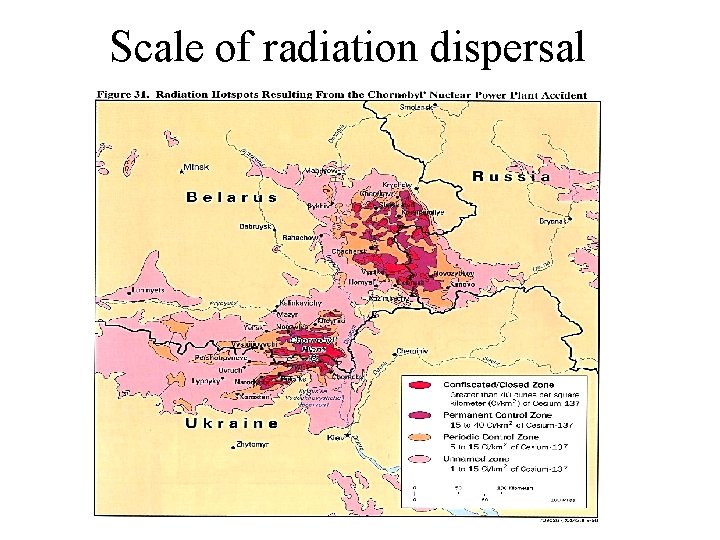

Scale of radiation dispersal

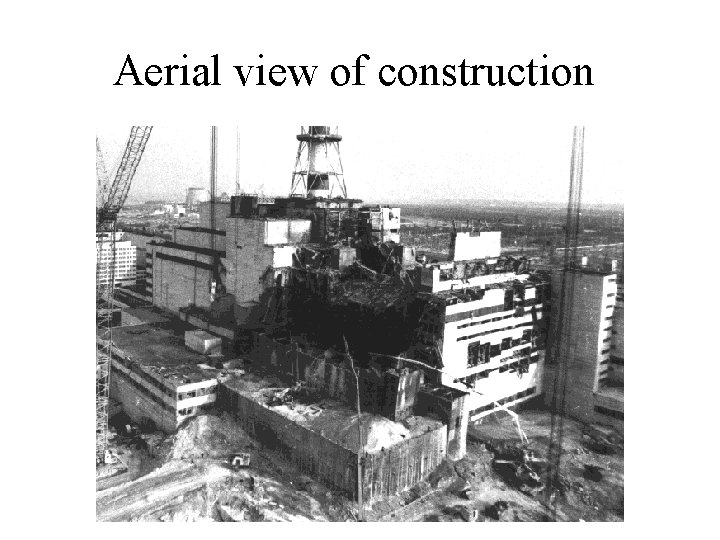

Aerial view of construction

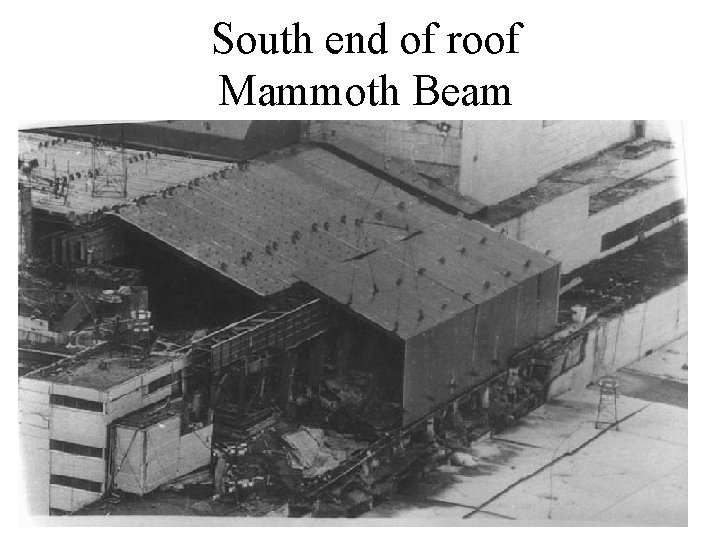

South end of roof Mammoth Beam

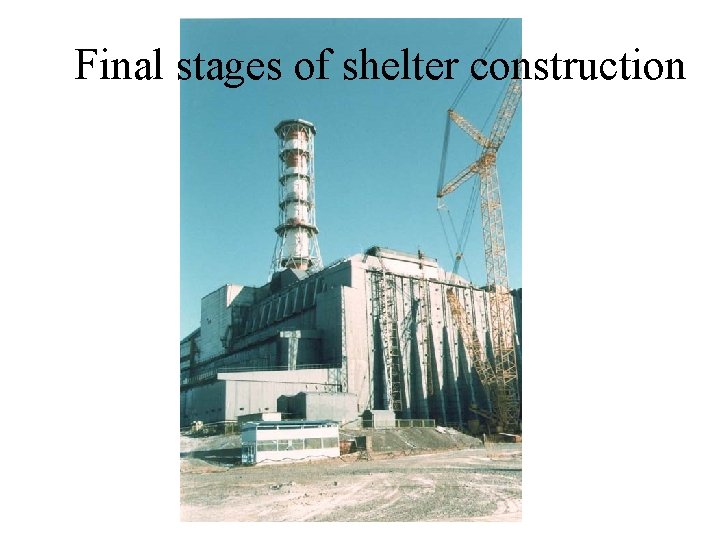

Final stages of shelter construction

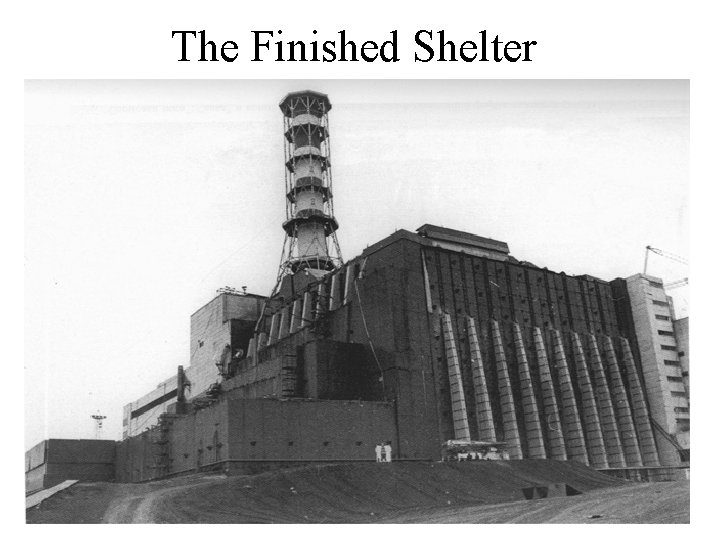

The Finished Shelter

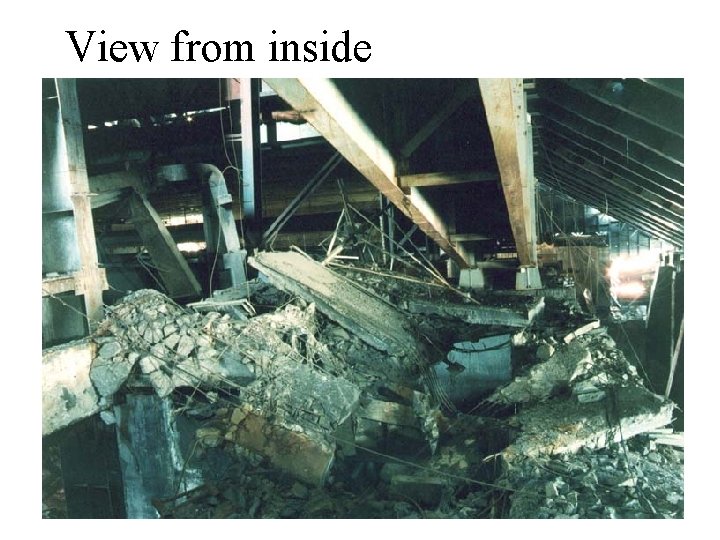

View from inside

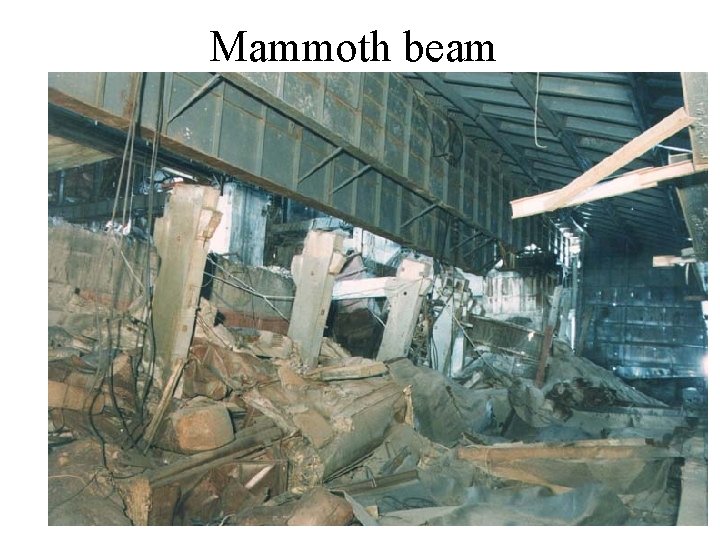

Mammoth beam

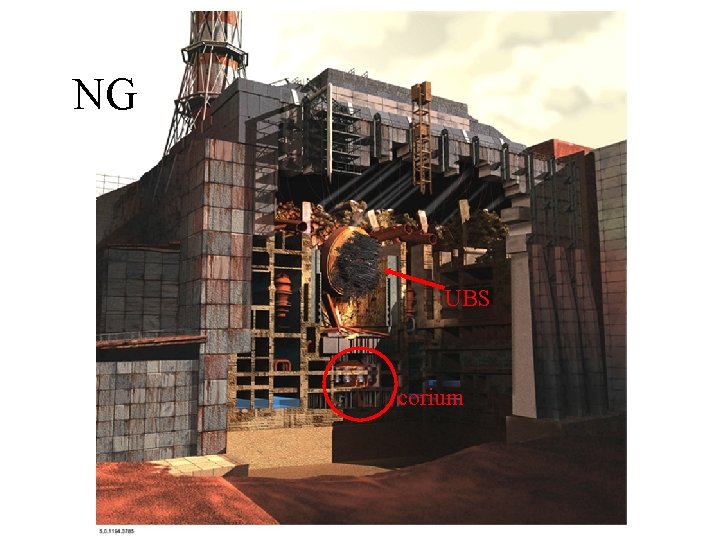

NG UBS corium

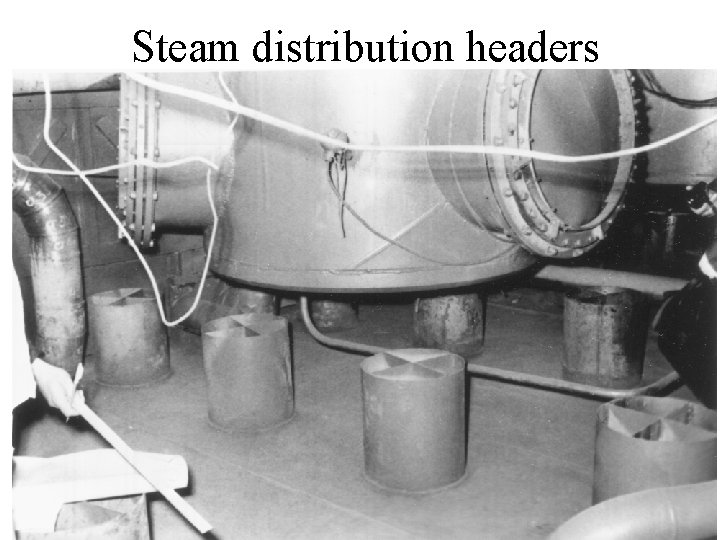

Steam distribution headers

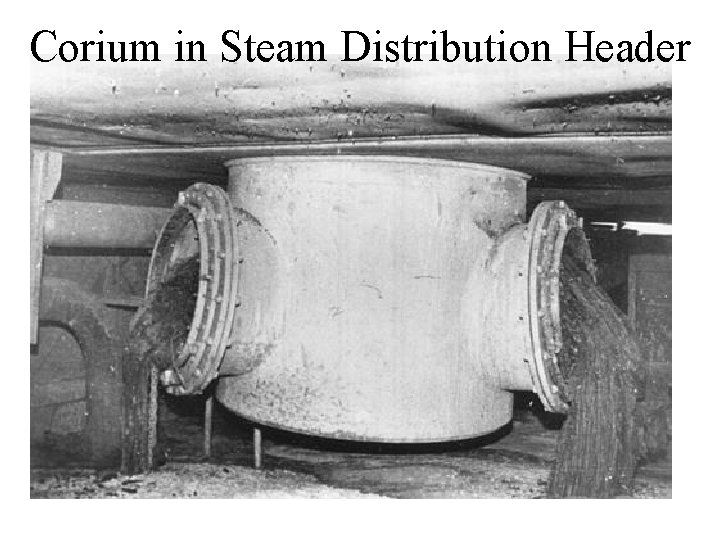

Corium in Steam Distribution Header

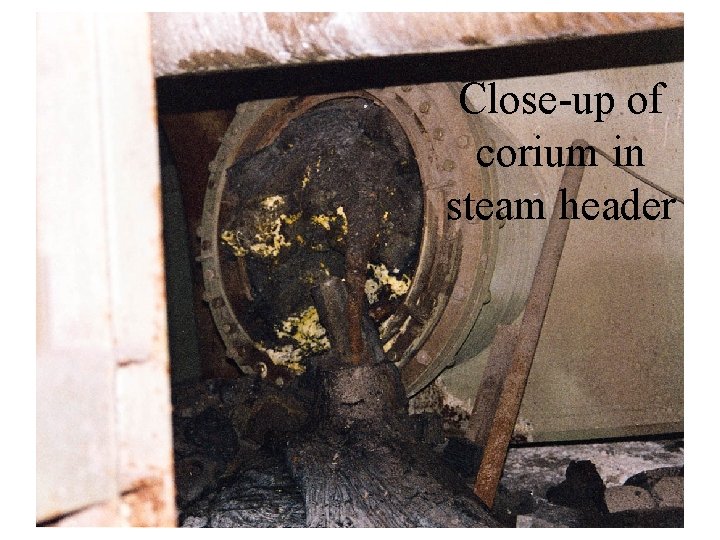

Close-up of corium in steam header

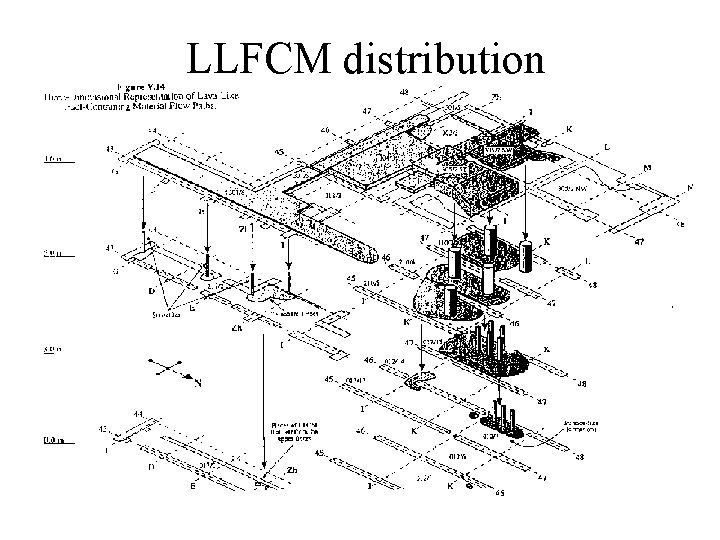

LLFCM distribution

Level 9

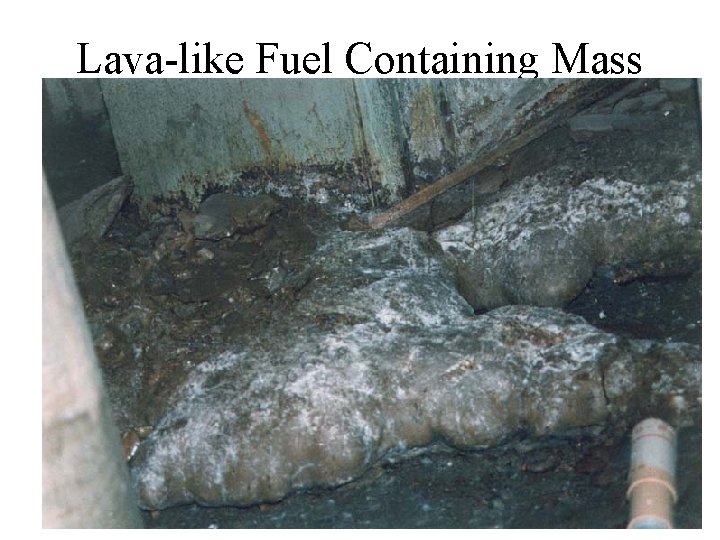

Lava-like Fuel Containing Mass

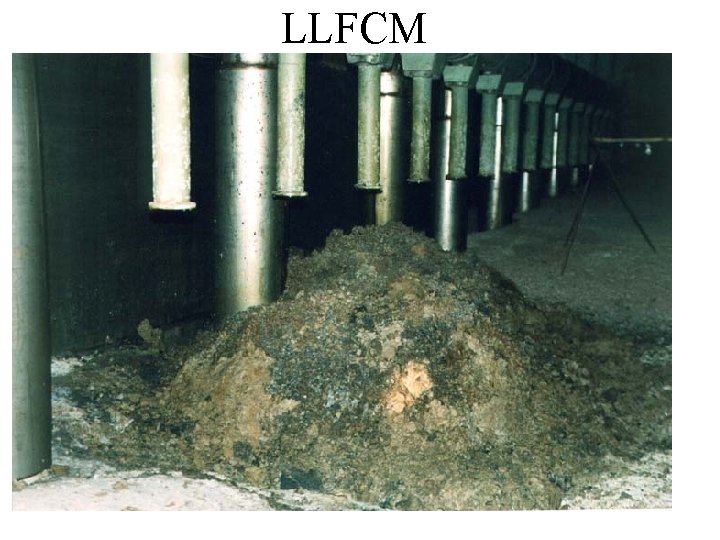

LLFCM

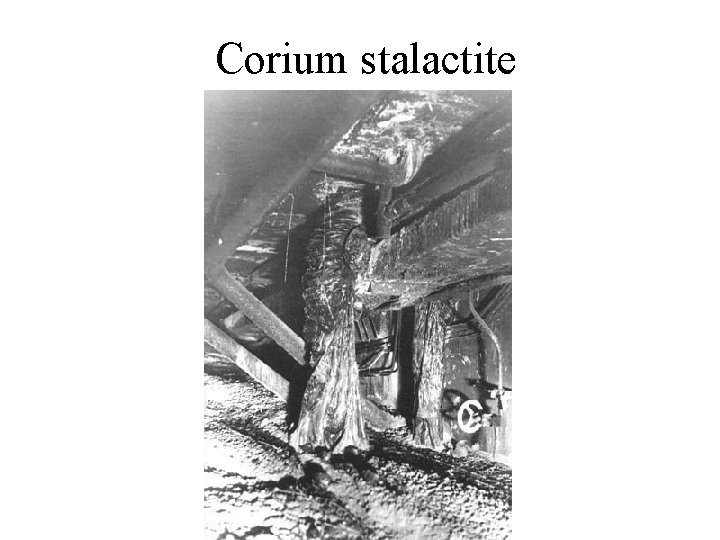

Corium stalactite

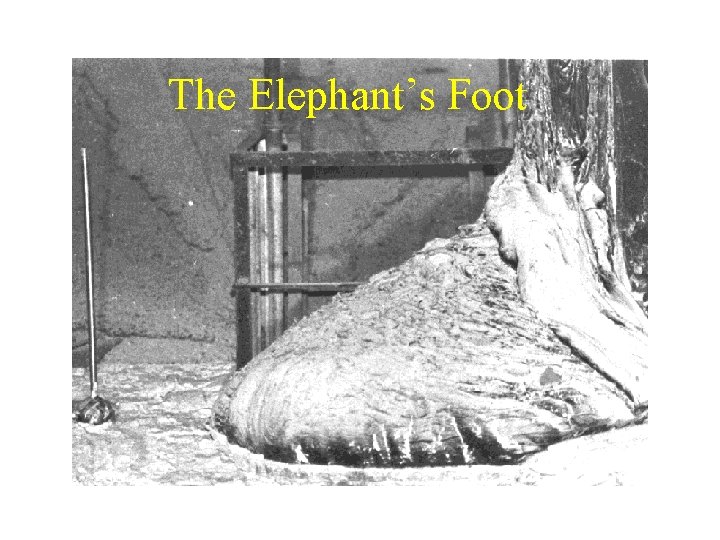

The Elephant’s Foot

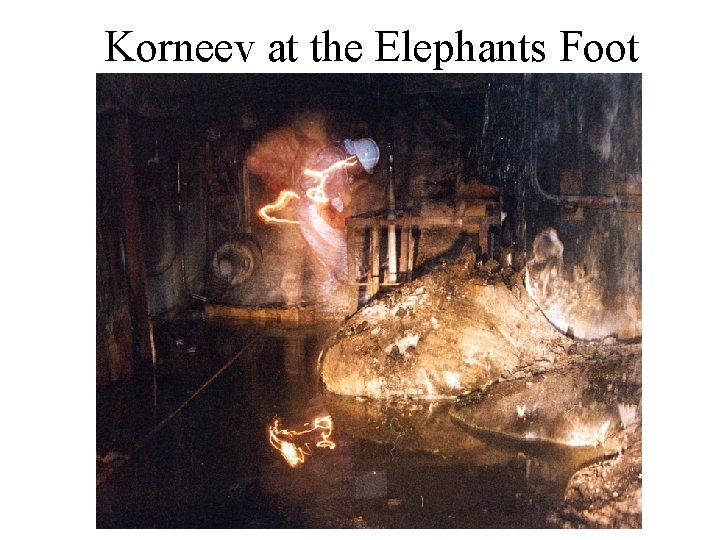

Korneev at the Elephants Foot

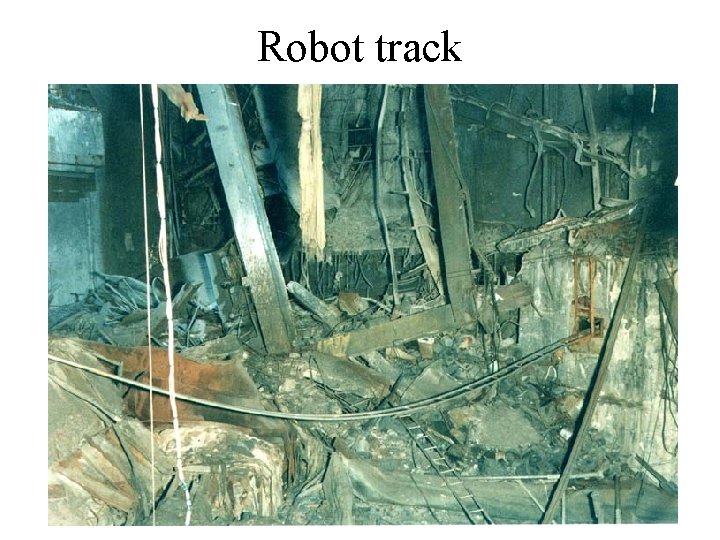

Robot track

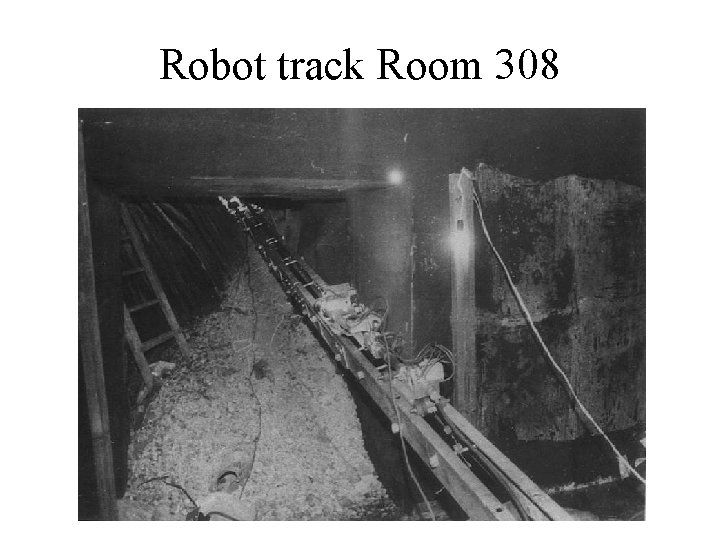

Robot track Room 308

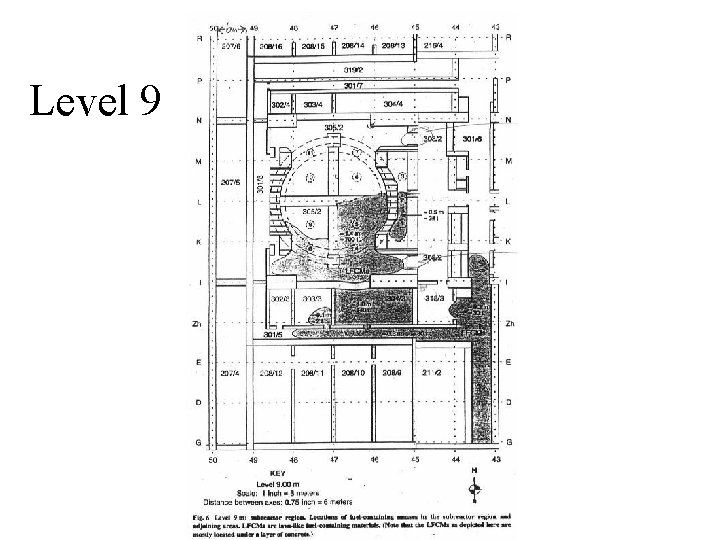

Level 9

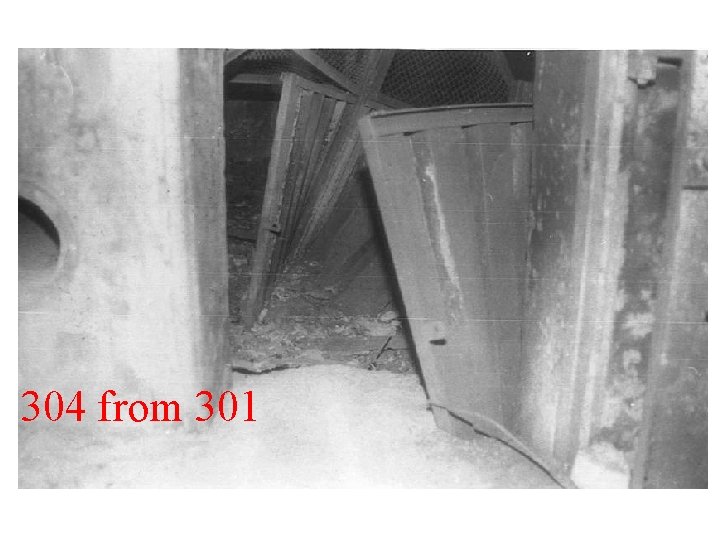

304 from 301

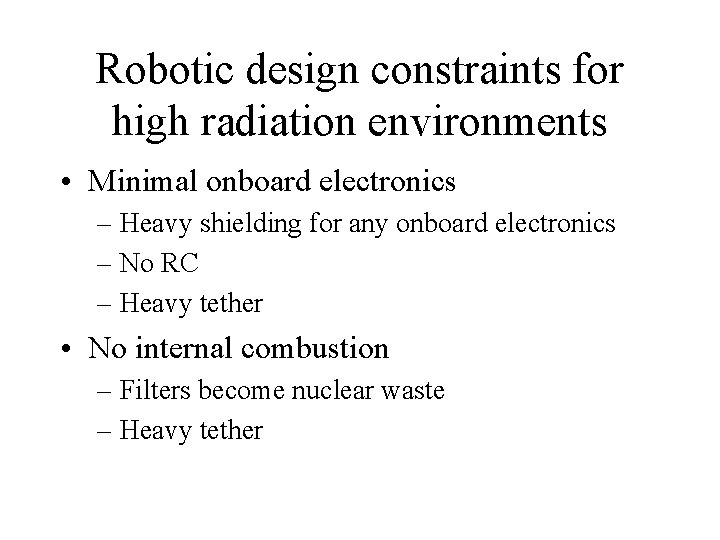

Robotic design constraints for high radiation environments • Minimal onboard electronics – Heavy shielding for any onboard electronics – No RC – Heavy tether • No internal combustion – Filters become nuclear waste – Heavy tether

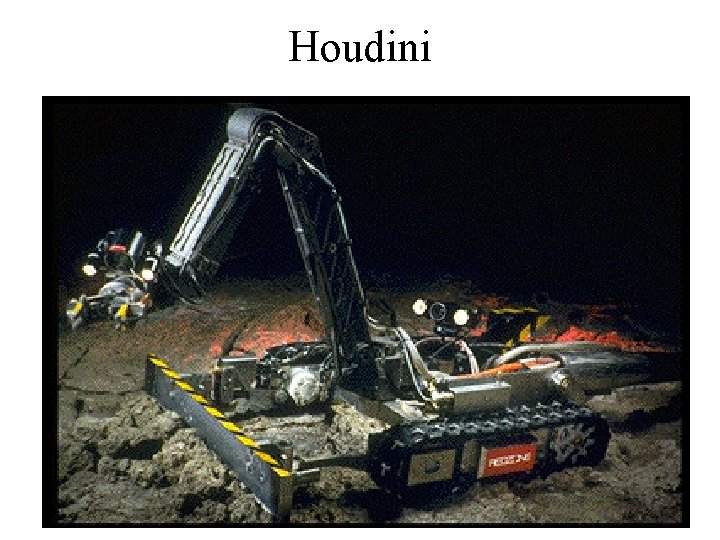

Houdini

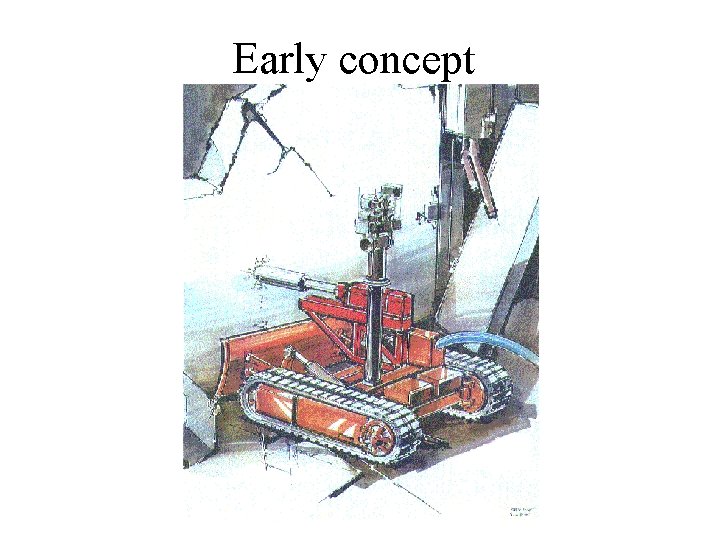

Early concept

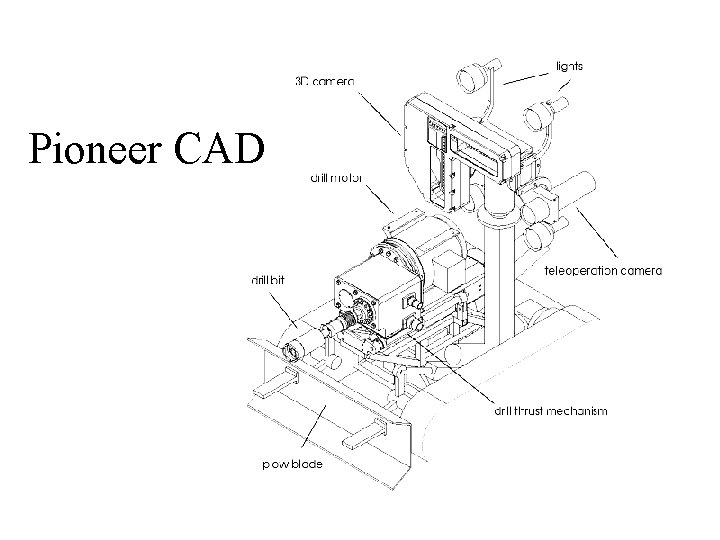

Pioneer CAD

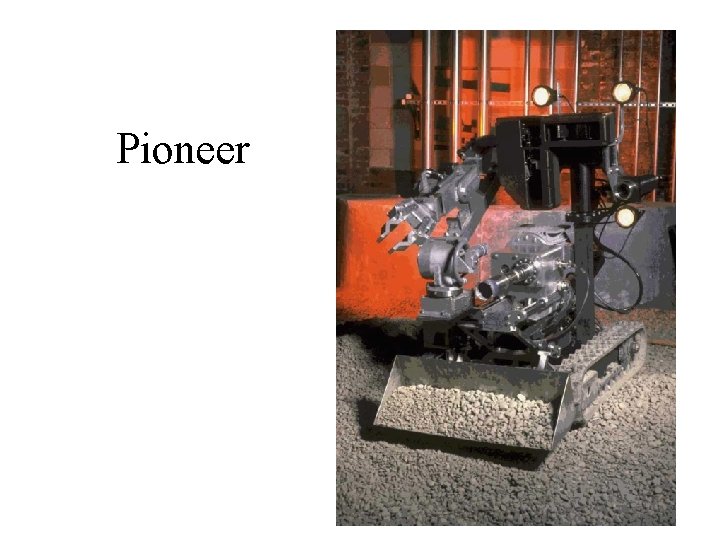

Pioneer

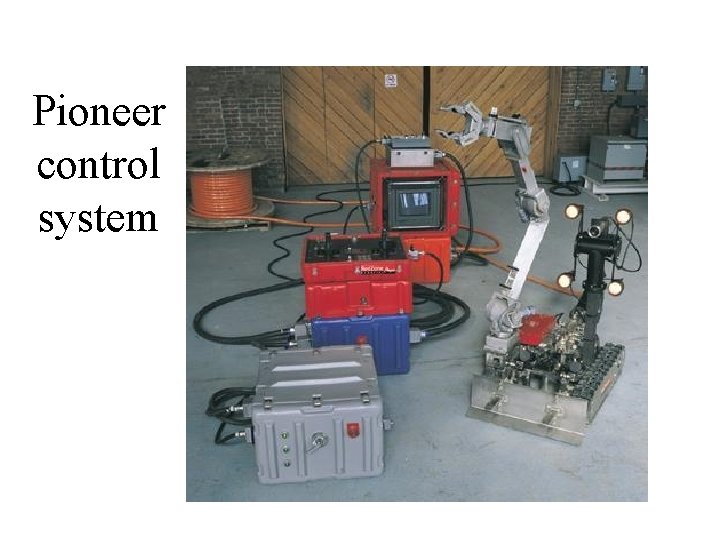

Pioneer control system

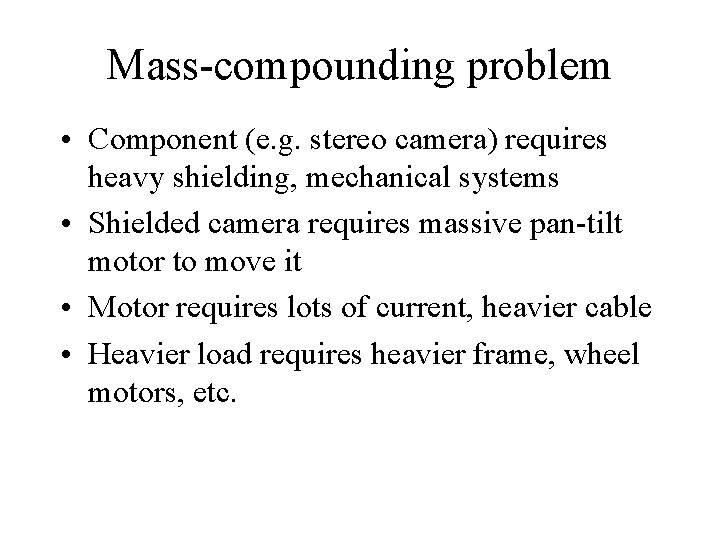

Mass-compounding problem • Component (e. g. stereo camera) requires heavy shielding, mechanical systems • Shielded camera requires massive pan-tilt motor to move it • Motor requires lots of current, heavier cable • Heavier load requires heavier frame, wheel motors, etc.

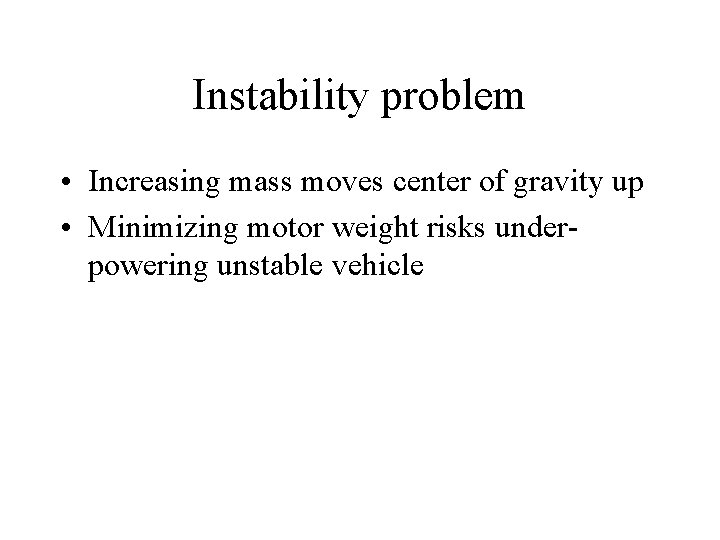

Instability problem • Increasing mass moves center of gravity up • Minimizing motor weight risks underpowering unstable vehicle

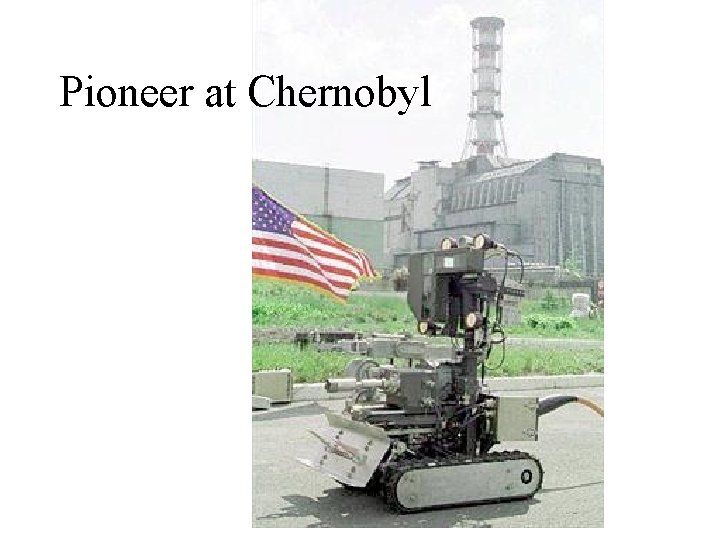

Pioneer at Chernobyl

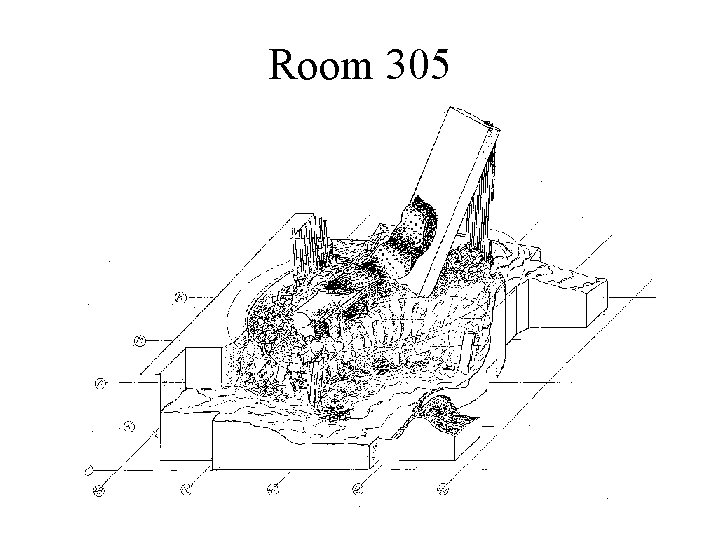

Room 305

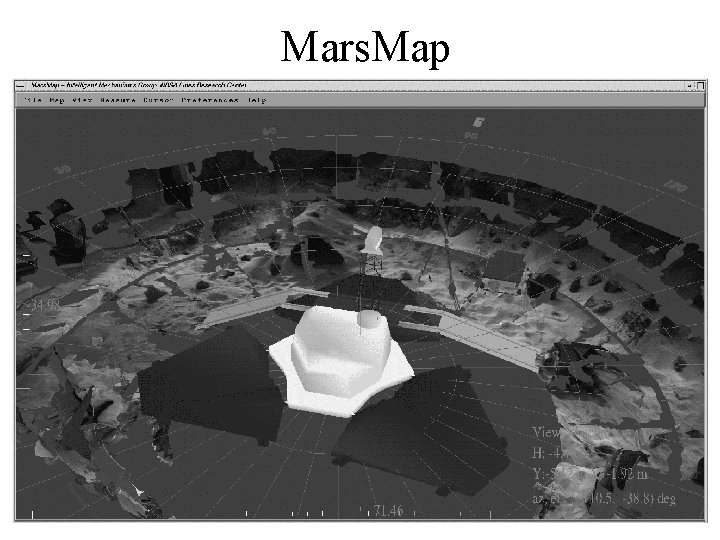

Mars. Map

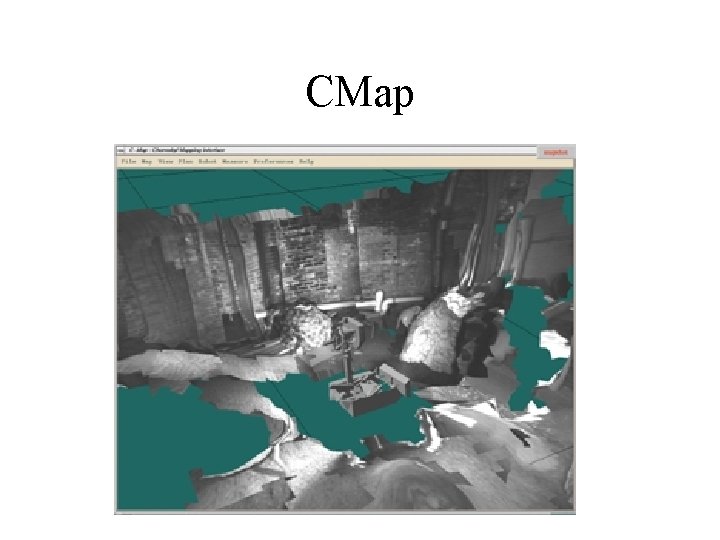

CMap

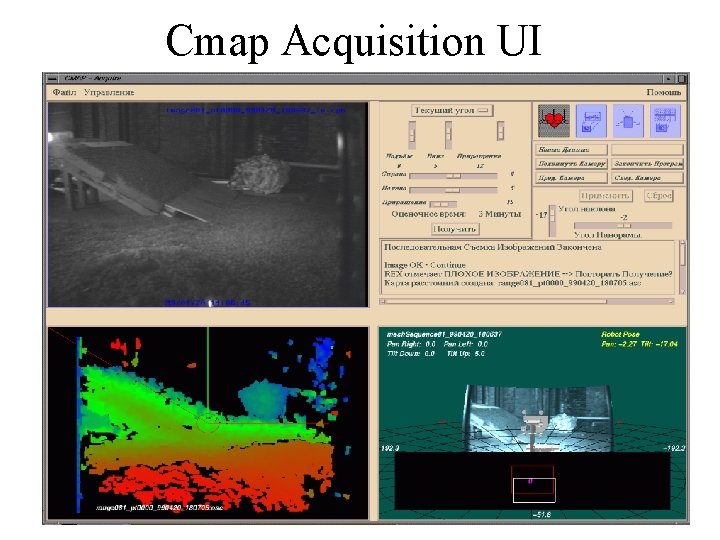

Cmap Acquisition UI

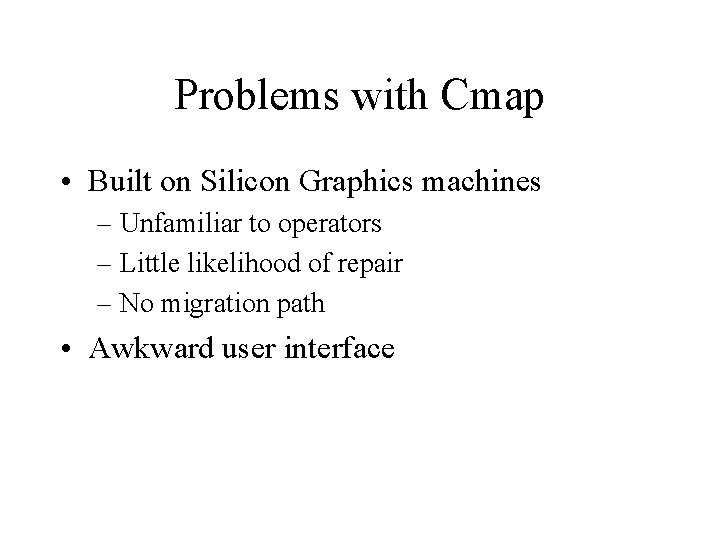

Problems with Cmap • Built on Silicon Graphics machines – Unfamiliar to operators – Little likelihood of repair – No migration path • Awkward user interface

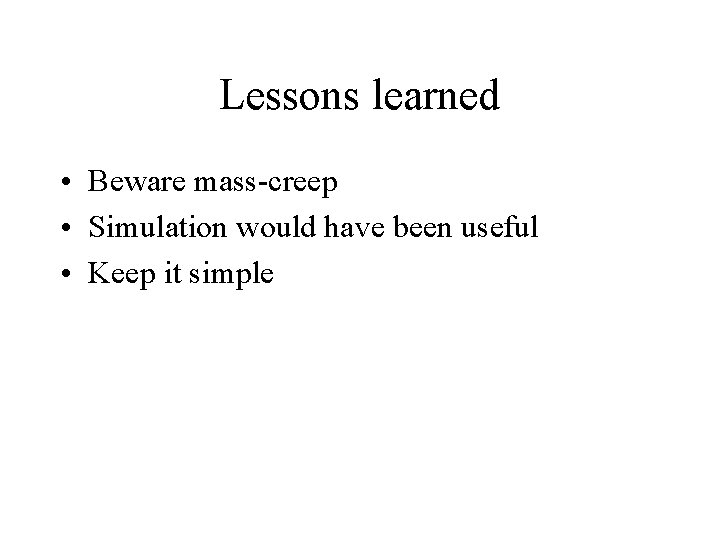

Lessons learned • Beware mass-creep • Simulation would have been useful • Keep it simple

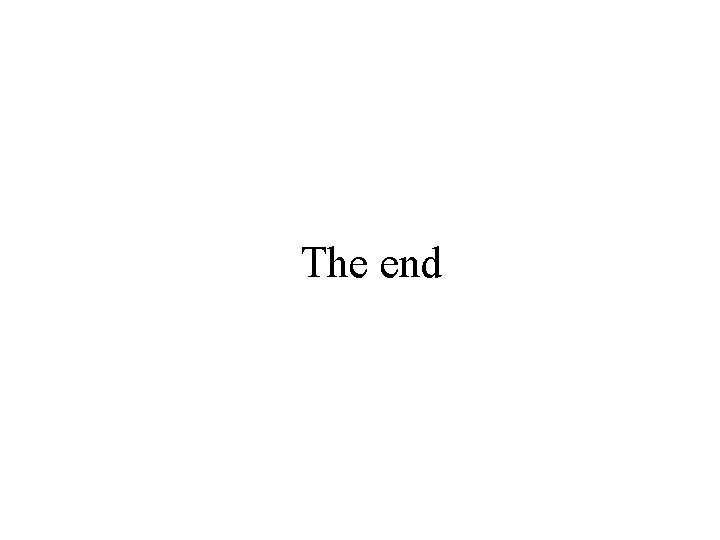

The end
