Robotics 101 Adafruit Circuit Playground Express CPE with
![Robotics 101 Robotics 101](https://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-1.jpg)
Robotics 101
![Adafruit Circuit Playground Express (CPE) with CRICKIT Adafruit Circuit Playground Express (CPE) with CRICKIT](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-2.jpg)

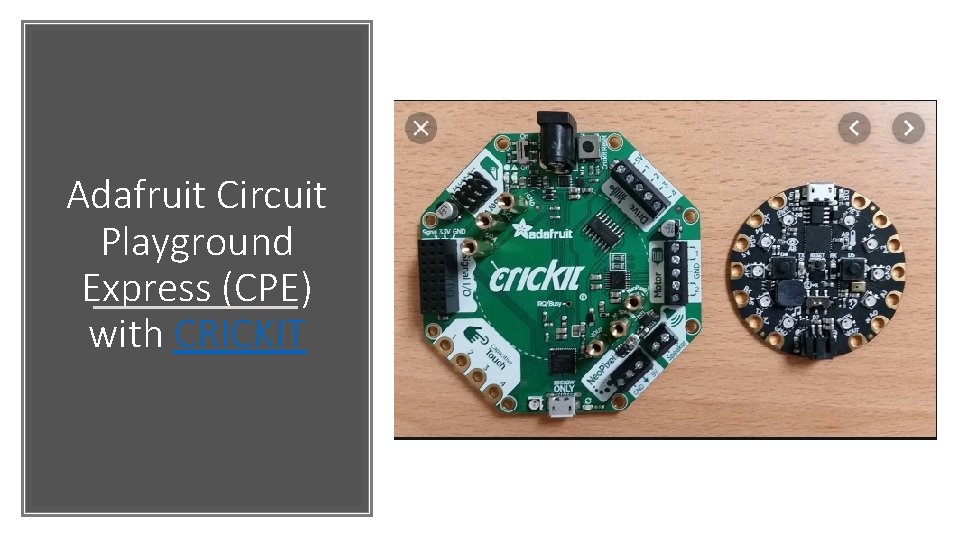

Adafruit Circuit Playground Express (CPE) with CRICKIT
![• • • 2 Geared Motors (Wheels & Wires) Circuit Playground Express Crickit • • • 2 Geared Motors (Wheels & Wires) Circuit Playground Express Crickit](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-3.jpg)

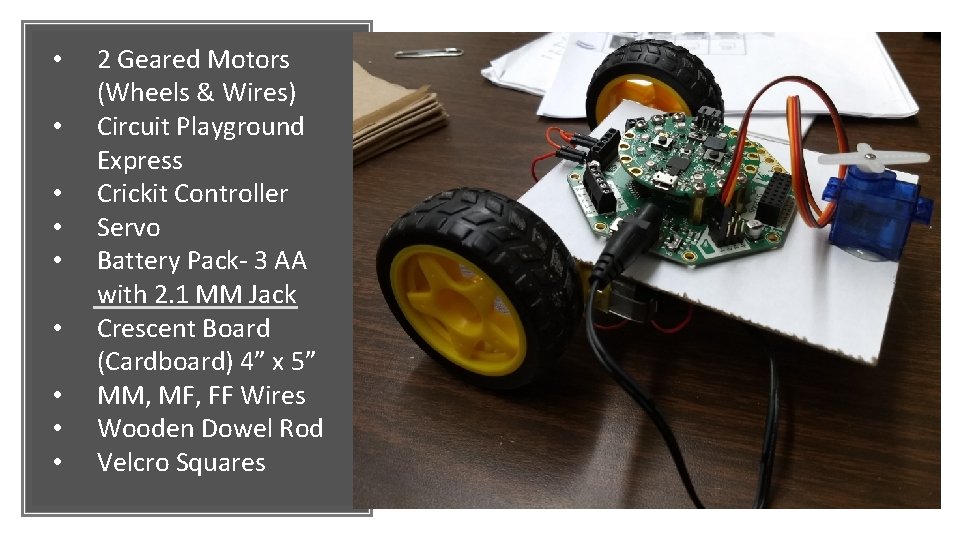

• • • 2 Geared Motors (Wheels & Wires) Circuit Playground Express Crickit Controller Servo Battery Pack- 3 AA with 2. 1 MM Jack Crescent Board (Cardboard) 4” x 5” MM, MF, FF Wires Wooden Dowel Rod Velcro Squares
![Crescent Board Base Top 4” x 5” (Cardboard) Crescent Board Base Top 4” x 5” (Cardboard)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-4.jpg)

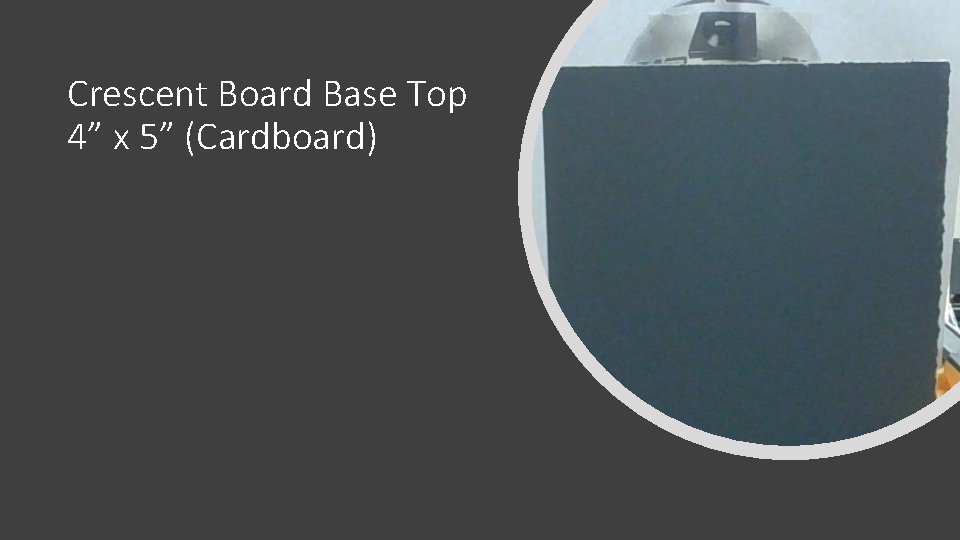

Crescent Board Base Top 4” x 5” (Cardboard)

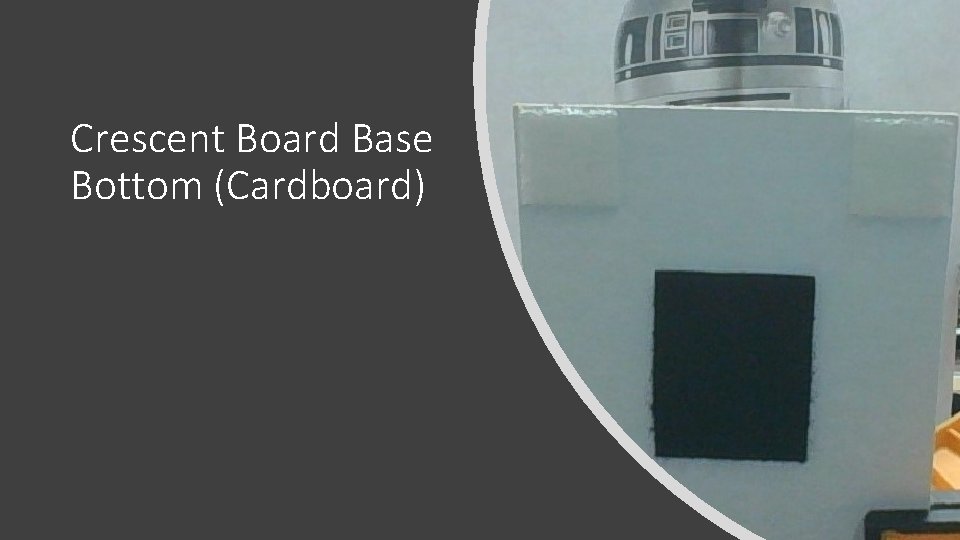

![Crescent Board Base Bottom (Cardboard) Crescent Board Base Bottom (Cardboard)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-5.jpg)
Crescent Board Base Bottom (Cardboard)
![Velcro Velcro](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-6.jpg)

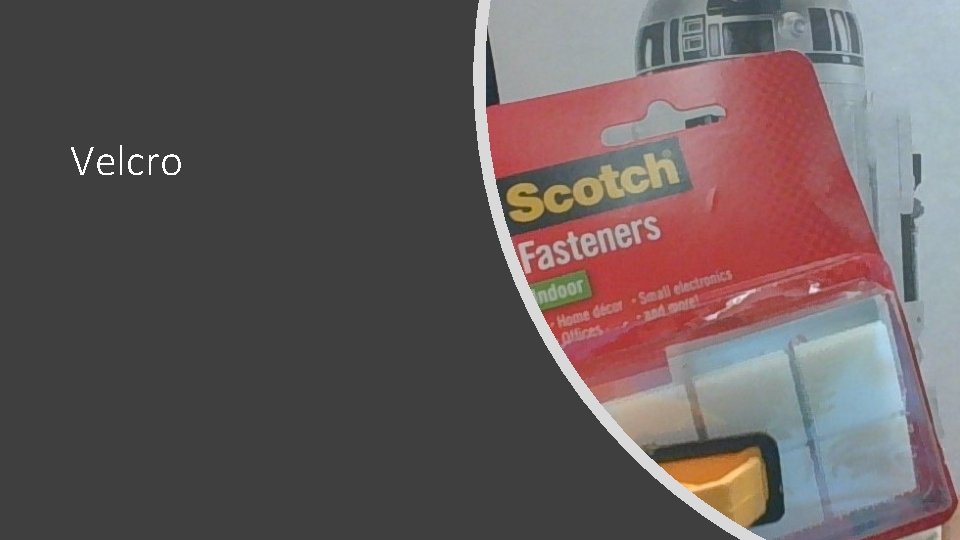

Velcro
![Geared Motor with Wires- QTY 2 Geared Motor with Wires- QTY 2](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-7.jpg)

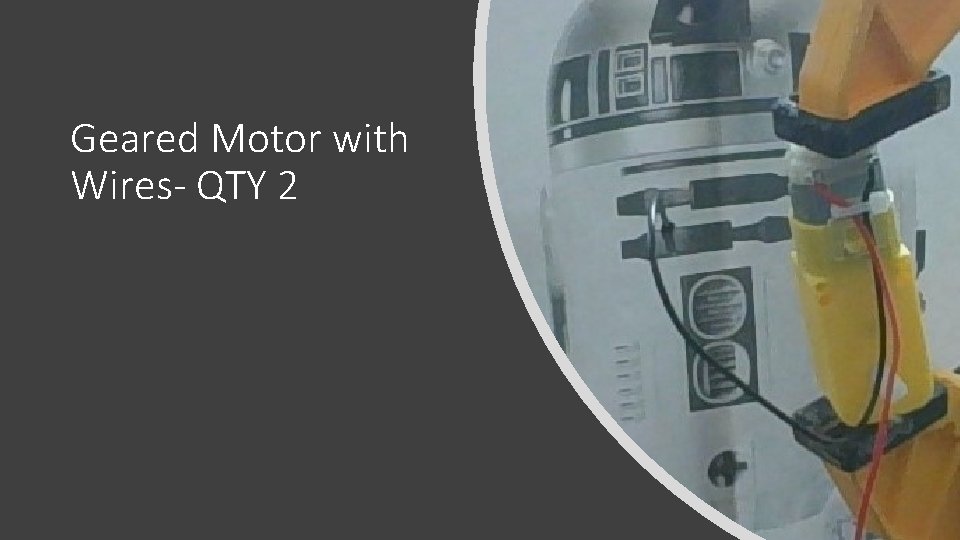

Geared Motor with Wires- QTY 2
![Wheels- QTY 2 Wheels- QTY 2](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-8.jpg)

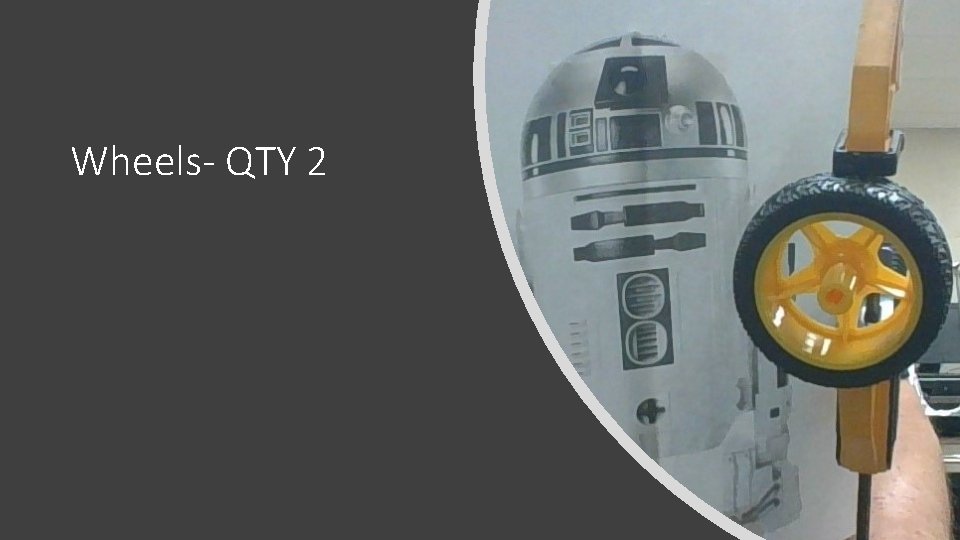

Wheels- QTY 2

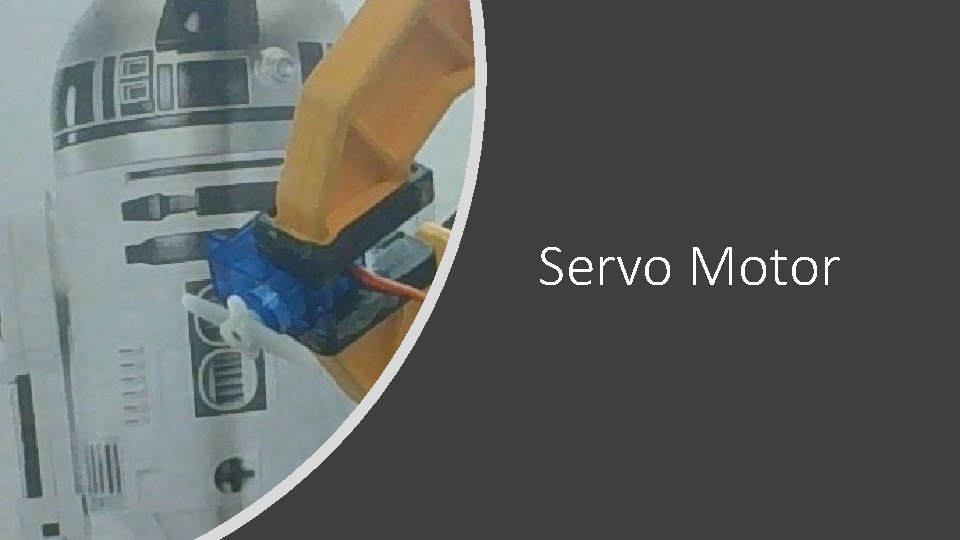

![Servo Motor Servo Motor](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-9.jpg)
Servo Motor
![Wires MM, MF, FF Wires MM, MF, FF](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-10.jpg)
Wires MM, MF, FF
![AA Battery Holder (3) AA Battery Holder (3)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-11.jpg)

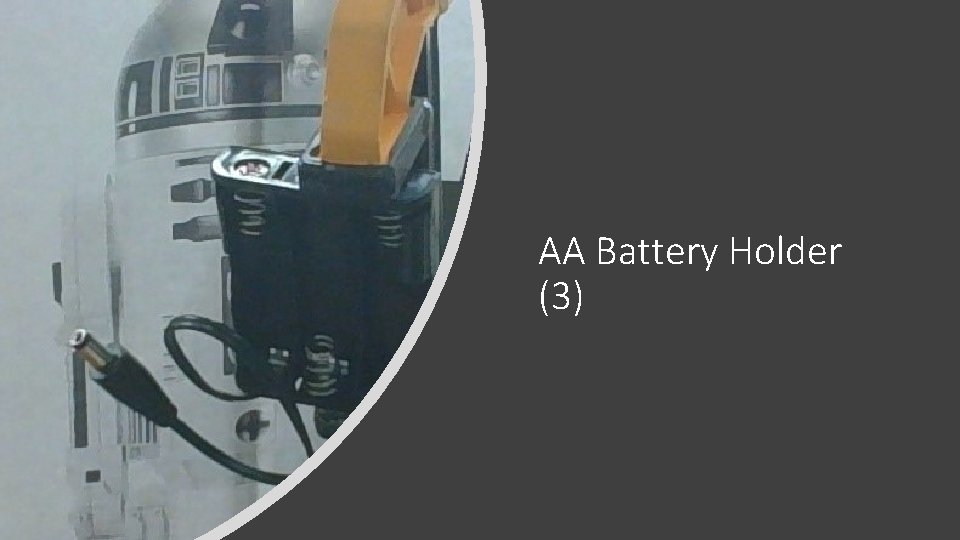

AA Battery Holder (3)
![3/8” x 1 ½” Dowel Rod 3/8” x 1 ½” Dowel Rod](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-12.jpg)
3/8” x 1 ½” Dowel Rod
![Adafruit’s Circuit Playground Express Adafruit’s Circuit Playground Express](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-13.jpg)

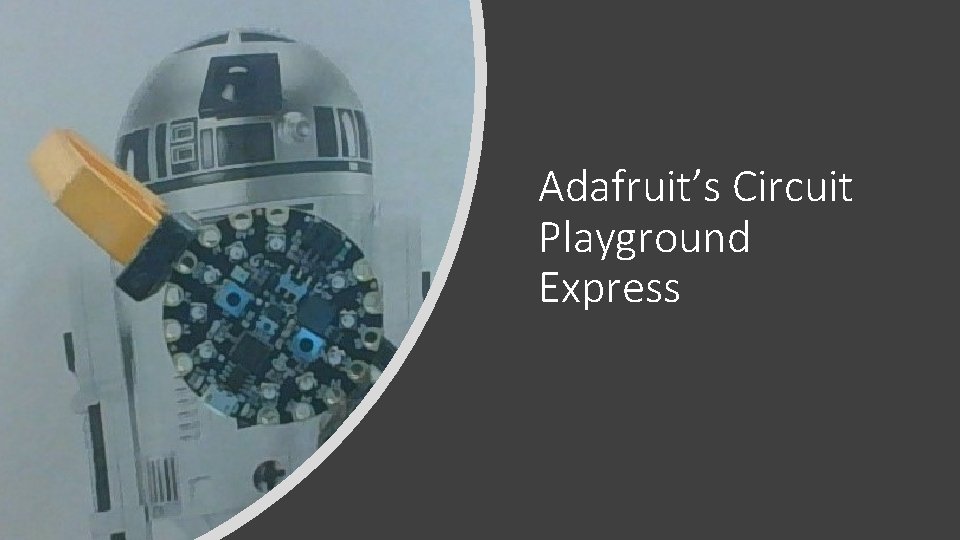

Adafruit’s Circuit Playground Express

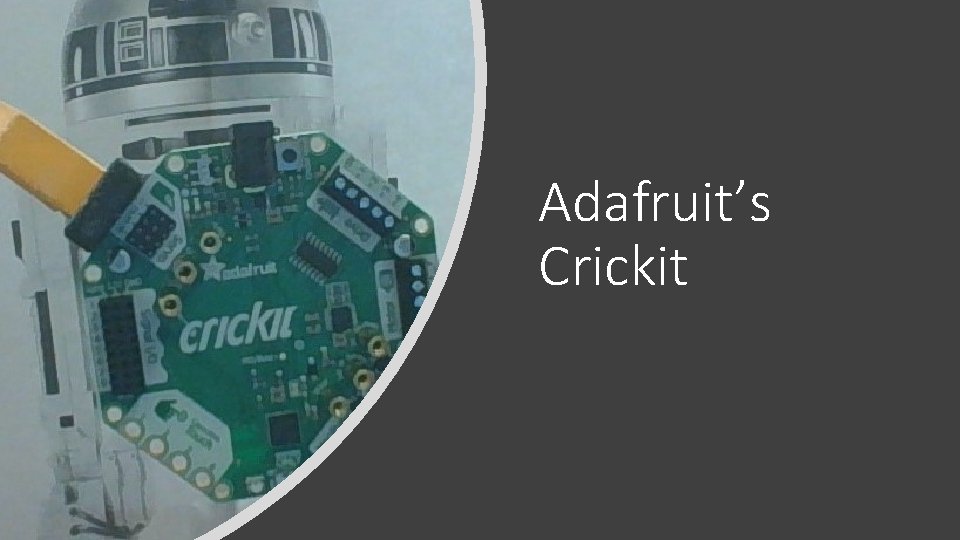

![Adafruit’s Crickit Adafruit’s Crickit](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-14.jpg)
Adafruit’s Crickit
![Circuit Playground Express mounted on Crickit board (Wires Attached) Circuit Playground Express mounted on Crickit board (Wires Attached)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-15.jpg)

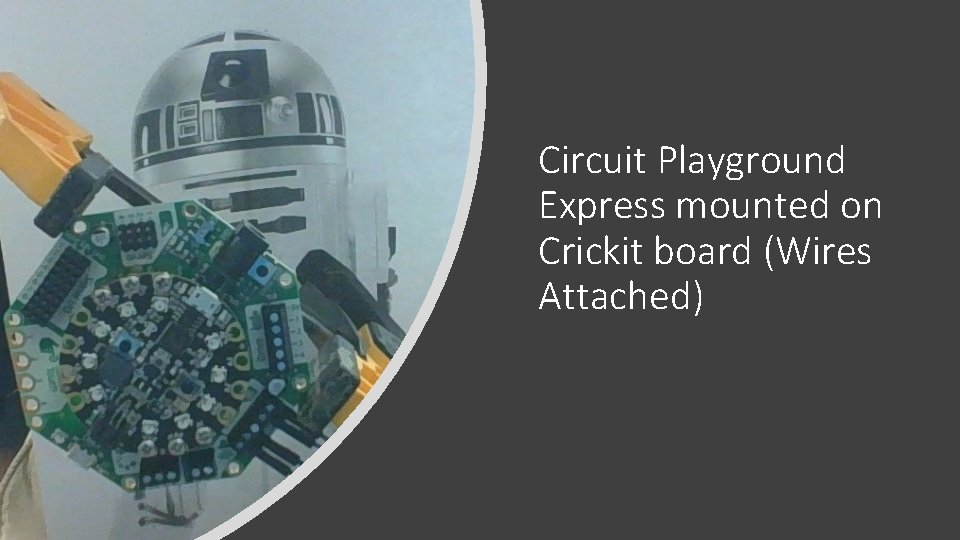

Circuit Playground Express mounted on Crickit board (Wires Attached)
![Bottom of Robot Bottom of Robot](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-16.jpg)

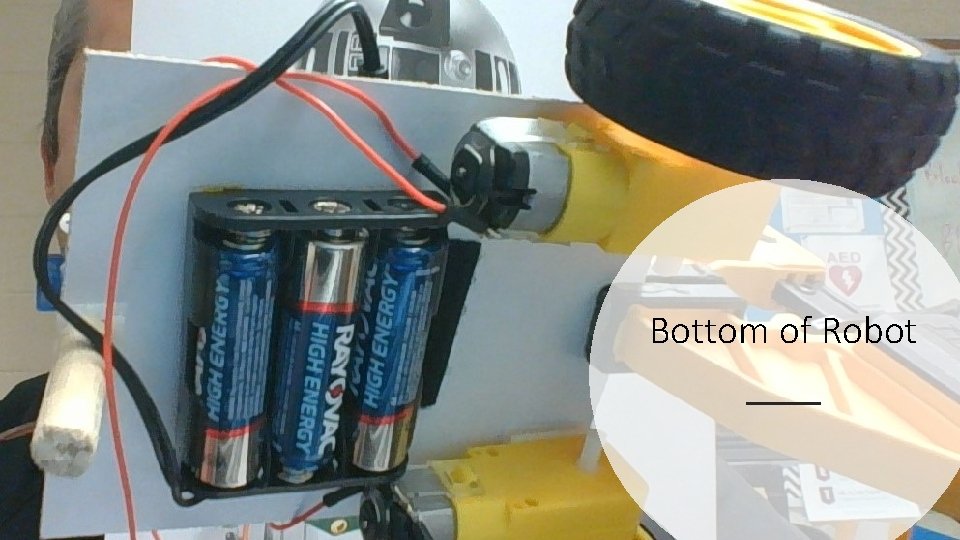

Bottom of Robot
![Top of Robot Top of Robot](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-17.jpg)

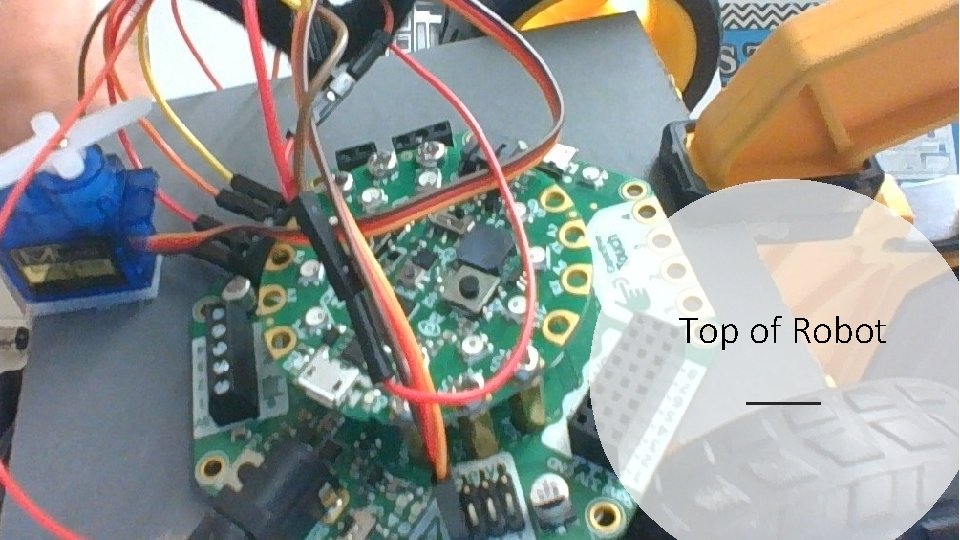

Top of Robot

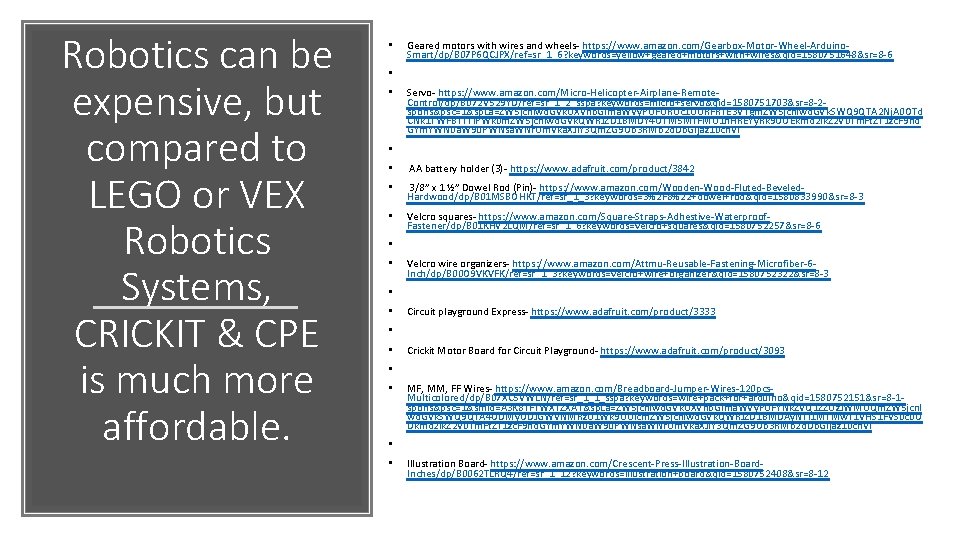

![Robotics can be expensive, but compared to LEGO or VEX Robotics Systems, CRICKIT & Robotics can be expensive, but compared to LEGO or VEX Robotics Systems, CRICKIT &](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-18.jpg)
Robotics can be expensive, but compared to LEGO or VEX Robotics Systems, CRICKIT & CPE is much more affordable. • Geared motors with wires and wheels- https: //www. amazon. com/Gearbox-Motor-Wheel-Arduino. Smart/dp/B 07 P 6 QCJPX/ref=sr_1_6? keywords=yellow+geared+motors+with+wires&qid=1580751648&sr=8 -6 • • Servo- https: //www. amazon. com/Micro-Helicopter-Airplane-Remote. Control/dp/B 072 V 529 YD/ref=sr_1_2_sspa? keywords=micro+servo&qid=1580751703&sr=8 -2 spons&psc=1&sp. La=ZW 5 jcnlwd. GVk. UXVhb. Glma. WVy. PUFURUc 1 UURFRTE 3 VTgm. ZW 5 jcnlwd. GVk. SWQ 9 QTA 2 Nj. A 0 OTd CNk 1 TWFBTTTl. PWk 0 m. ZW 5 jcnlwd. GVk. QWRJZD 1 BMDY 4 OTM 5 MTFMU 1 h. HREYy. Rk 9 OOEkmd 2 lk. Z 2 V 0 Tm. Ft. ZT 1 zc. F 9 hd GYm. YWN 0 a. W 9 u. PWNsa. WNr. Um. Vka. XJl. Y 3 Qm. ZG 9 Ob 3 RMb 2 d. Db. Gljaz 10 cn. Vl • • AA battery holder (3)- https: //www. adafruit. com/product/3842 • 3/8” x 1 ½” Dowel Rod (Pin)- https: //www. amazon. com/Wooden-Wood-Fluted-Beveled. Hardwood/dp/B 01 MSBOHKT/ref=sr_1_3? keywords=3%2 F 8%22+dowel+rod&qid=1580833990&sr=8 -3 • Velcro squares- https: //www. amazon. com/Square-Straps-Adhestive-Waterproof. Fastener/dp/B 01 KHV 2 LQM/ref=sr_1_6? keywords=velcro+squares&qid=1580752257&sr=8 -6 • • Velcro wire organizers- https: //www. amazon. com/Attmu-Reusable-Fastening-Microfiber-6 Inch/dp/B 00 O 9 VKVFK/ref=sr_1_3? keywords=velcro+wire+organizer&qid=1580752322&sr=8 -3 • • Circuit playground Express- https: //www. adafruit. com/product/3333 • • Crickit Motor Board for Circuit Playground- https: //www. adafruit. com/product/3093 • • MF, MM, FF Wires- https: //www. amazon. com/Breadboard-Jumper-Wires-120 pcs. Multicolored/dp/B 07 XC 5 VWLN/ref=sr_1_1_sspa? keywords=wire+pack+for+arduino&qid=1580752151&sr=8 -1 spons&psc=1&smid=A 3 K 8 TFTWXTZXAT&sp. La=ZW 5 jcnlwd. GVk. UXVhb. Glma. WVy. PUFYNk. ZVQ 1 ZZUz. JWMUQm. ZW 5 jcnl wd. GVk. SWQ 9 QTA 4 ODMy. ODJGWVNMRz. U 1 Wk 9 UUlcm. ZW 5 jcnlwd. GVk. QWRJZD 1 BMDAy. NTI 1 MTMw. T 1 VHS 1 FVS 0 c 0 O Dkmd 2 lk. Z 2 V 0 Tm. Ft. ZT 1 zc. F 9 hd. GYm. YWN 0 a. W 9 u. PWNsa. WNr. Um. Vka. XJl. Y 3 Qm. ZG 9 Ob 3 RMb 2 d. Db. Gljaz 10 cn. Vl • • Illustration Board- https: //www. amazon. com/Crescent-Press-Illustration-Board. Inches/dp/B 0062 TLRQ 4/ref=sr_1_12? keywords=illustration+board&qid=1580752408&sr=8 -12

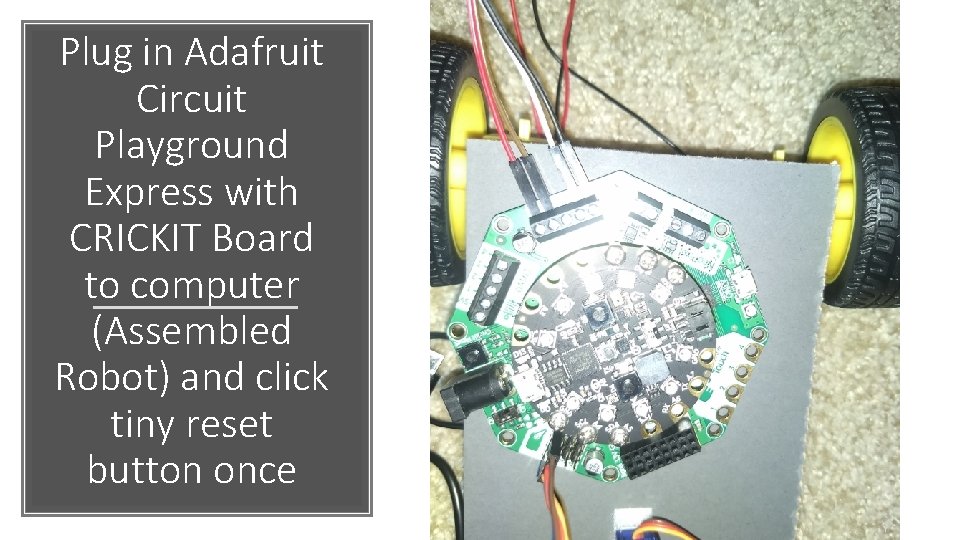

![Plug in Adafruit Circuit Playground Express with CRICKIT Board to computer (Assembled Robot) and Plug in Adafruit Circuit Playground Express with CRICKIT Board to computer (Assembled Robot) and](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-19.jpg)
Plug in Adafruit Circuit Playground Express with CRICKIT Board to computer (Assembled Robot) and click tiny reset button once
![Adafruit Circuit Playground Express with CRICKIT Board. Make Code (Click Link) Adafruit Circuit Playground Express with CRICKIT Board. Make Code (Click Link)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-20.jpg)

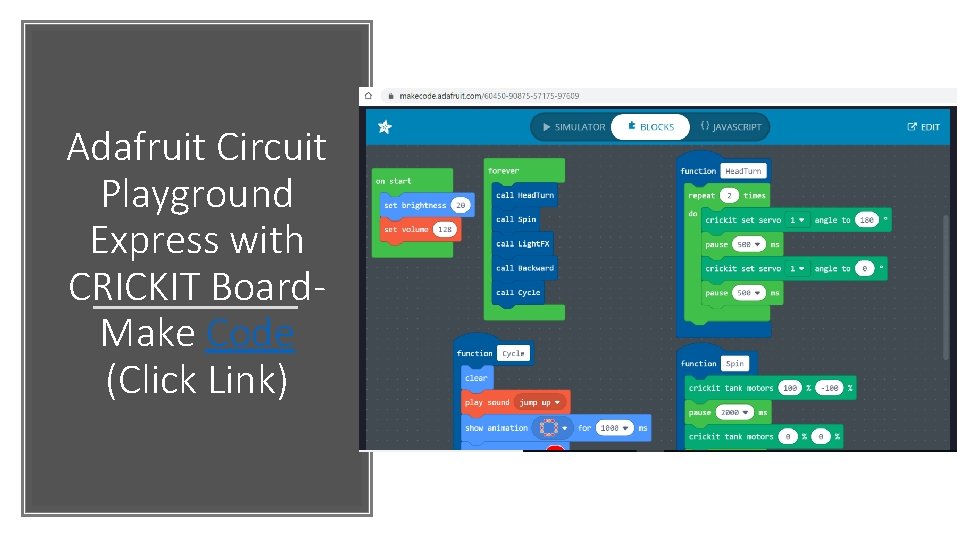

Adafruit Circuit Playground Express with CRICKIT Board. Make Code (Click Link)
![Next click Edit Next click Edit](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-21.jpg)

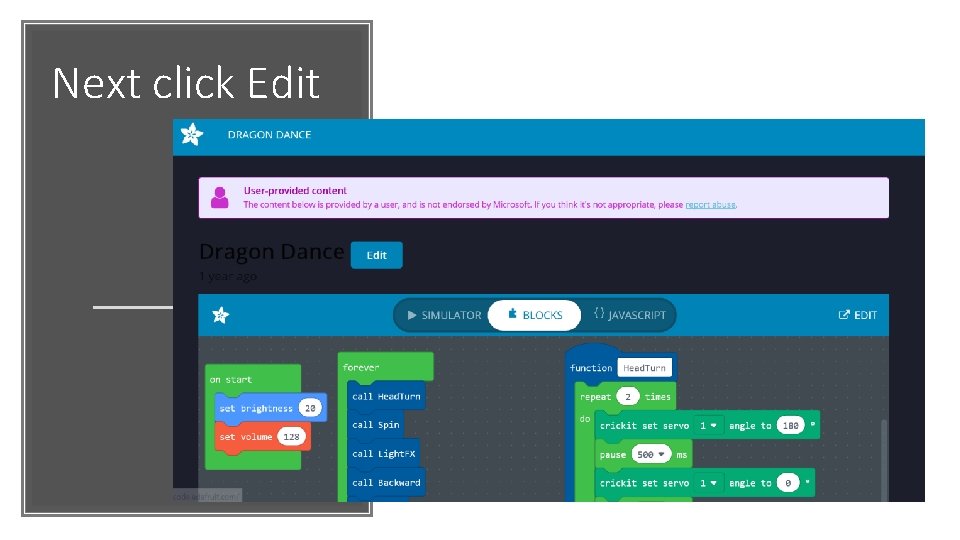

Next click Edit

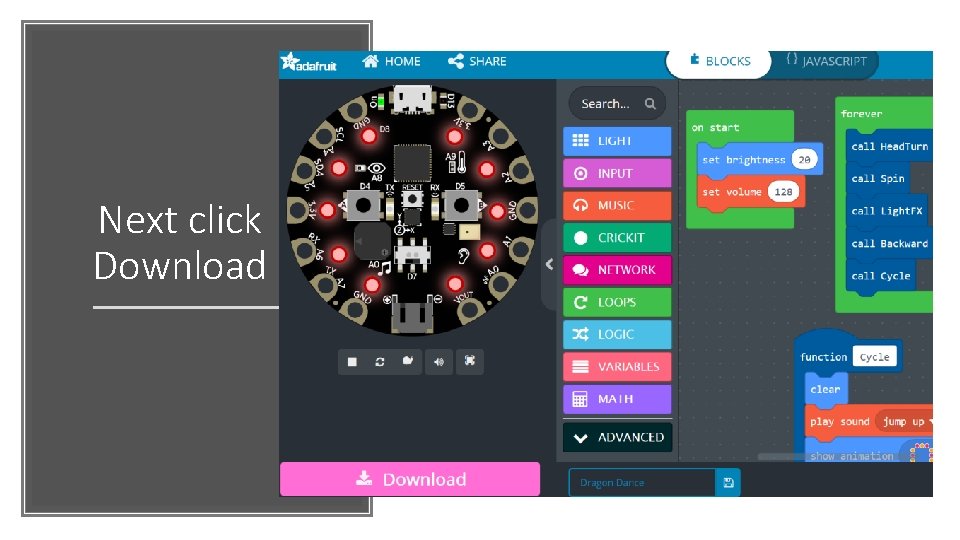

![Next click Download Next click Download](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-22.jpg)
Next click Download

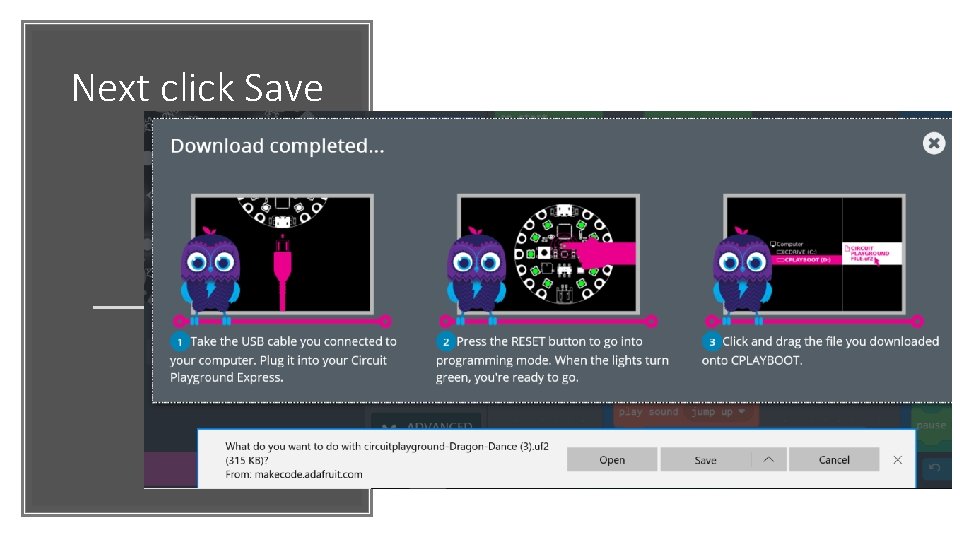

![Next click Save Next click Save](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-23.jpg)
Next click Save

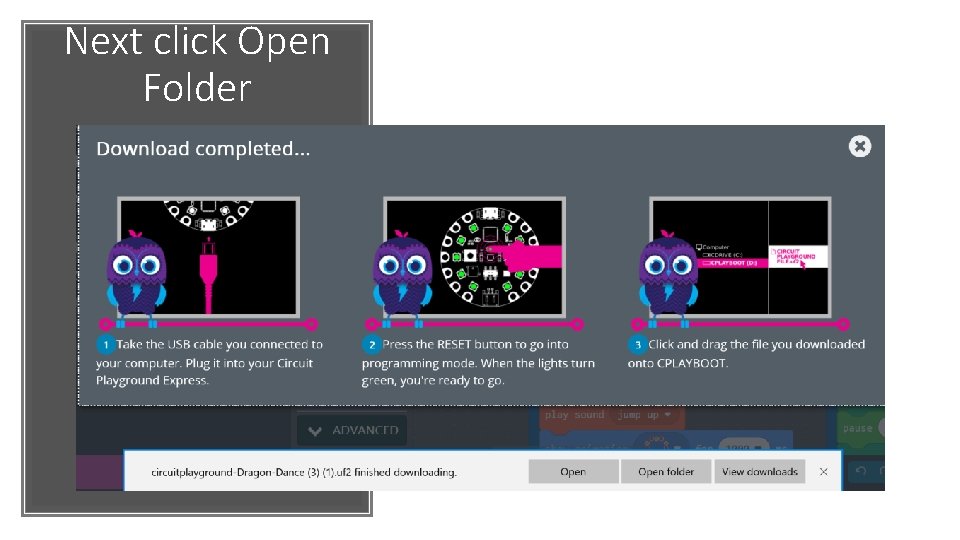

![Next click Open Folder Next click Open Folder](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-24.jpg)
Next click Open Folder

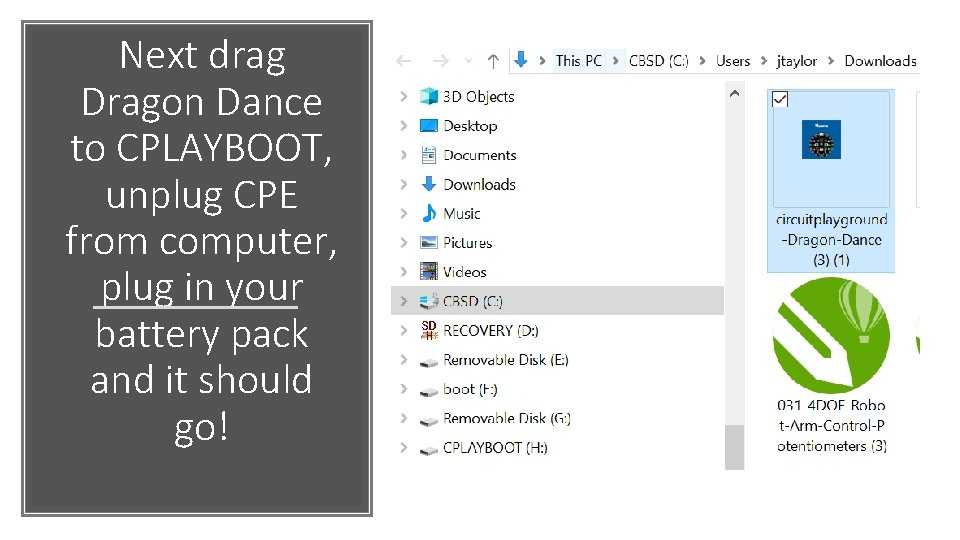

![Next drag Dragon Dance to CPLAYBOOT, unplug CPE from computer, plug in your battery Next drag Dragon Dance to CPLAYBOOT, unplug CPE from computer, plug in your battery](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-25.jpg)
Next drag Dragon Dance to CPLAYBOOT, unplug CPE from computer, plug in your battery pack and it should go!
![Thank You to Pat Caligiuri of Creative Financial and Chris Yurick of Penn Engineering Thank You to Pat Caligiuri of Creative Financial and Chris Yurick of Penn Engineering](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-26.jpg)
Thank You to Pat Caligiuri of Creative Financial and Chris Yurick of Penn Engineering for the Robotics Kits.
![High School Robotics. Servo Motor Arm with Arduino Uno High School Robotics. Servo Motor Arm with Arduino Uno](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-27.jpg)

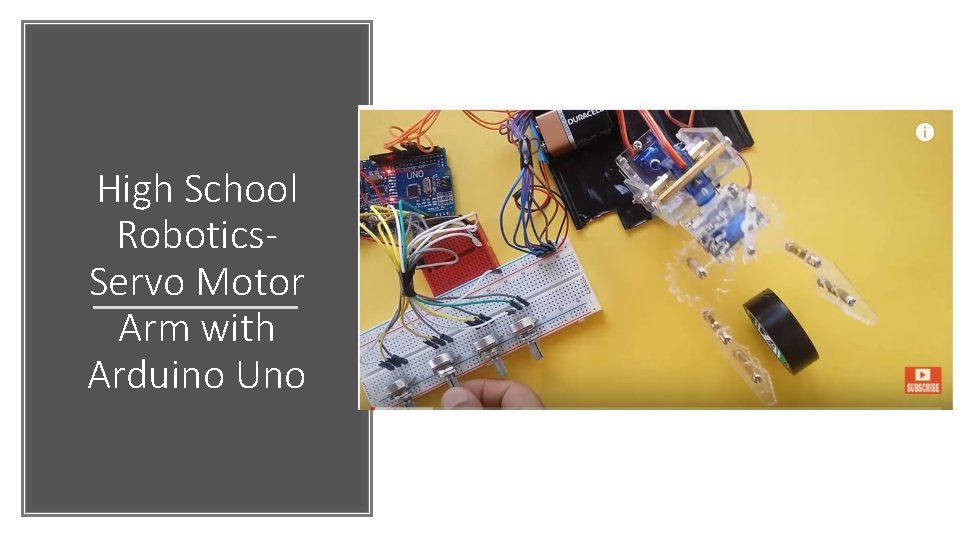

High School Robotics. Servo Motor Arm with Arduino Uno

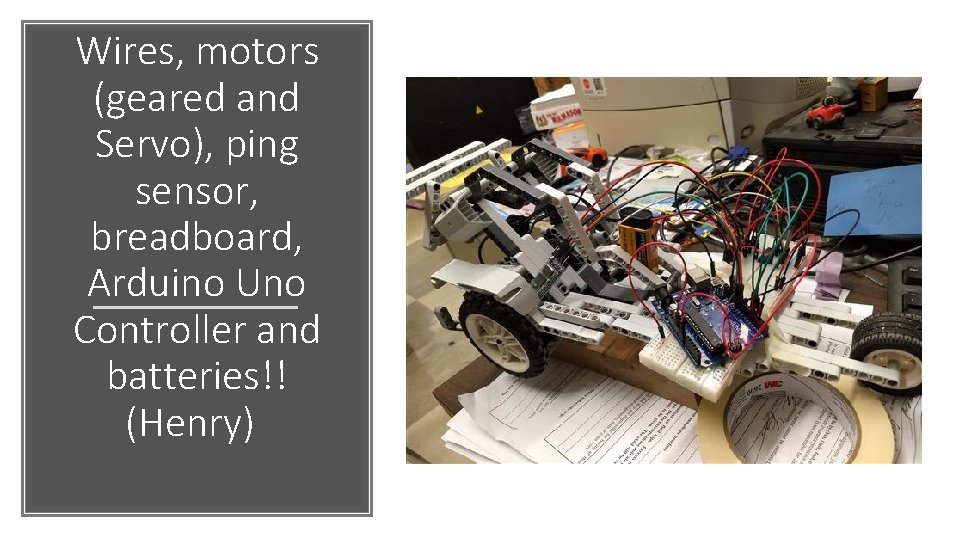

![Wires, motors (geared and Servo), ping sensor, breadboard, Arduino Uno Controller and batteries!! (Henry) Wires, motors (geared and Servo), ping sensor, breadboard, Arduino Uno Controller and batteries!! (Henry)](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-28.jpg)
Wires, motors (geared and Servo), ping sensor, breadboard, Arduino Uno Controller and batteries!! (Henry)

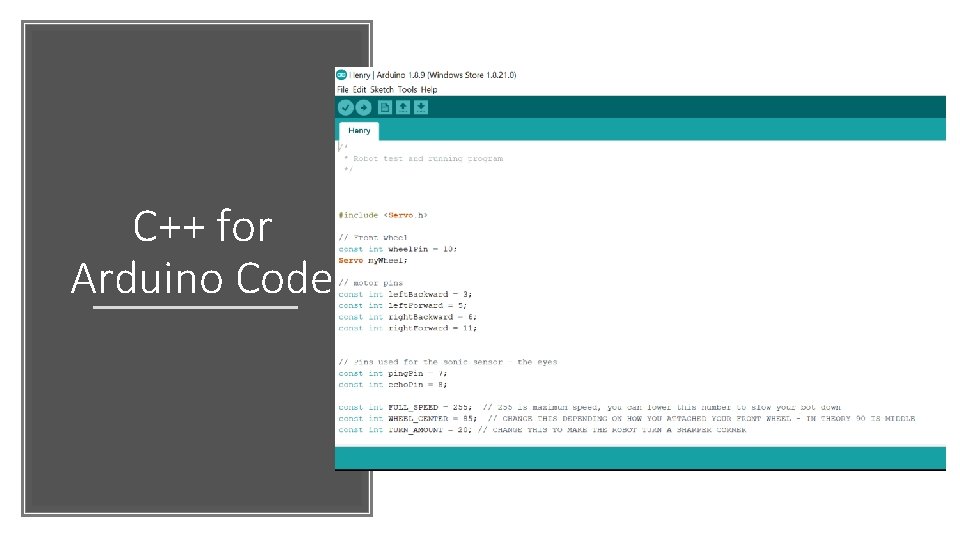

![C++ for Arduino Code C++ for Arduino Code](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-29.jpg)
C++ for Arduino Code
![“Think Human” Robotic Checklist • Circuit Playground Express- Brain • Crickit- Brain • Wires- “Think Human” Robotic Checklist • Circuit Playground Express- Brain • Crickit- Brain • Wires-](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-30.jpg)
“Think Human” Robotic Checklist • Circuit Playground Express- Brain • Crickit- Brain • Wires- electrical Nerves • LED’s- Eyes • Make. Code. Cognition • Sensors- Ears • Motors- Arms/Legs • Battery- Food/Energy
![R 2 says: Time to Build and Code! R 2 says: Time to Build and Code!](http://slidetodoc.com/presentation_image_h2/44bb40b4e92add0a6641ba9cd326beb5/image-31.jpg)
R 2 says: Time to Build and Code!
