Robotics 1 Graphical Teach Pendant The Flex Pendant

  • Slides: 11
Download presentation
© Robotics - 1 Graphical Teach Pendant - The Flex. Pendant

© Robotics - 1 Graphical Teach Pendant - The Flex. Pendant

A Tradition Of Making It Better Soft keys & Joystick, ARLA © Robotics -

A Tradition Of Making It Better Soft keys & Joystick, ARLA © Robotics - 2 Windows Menus, RAPID Four digit readout 20 Hard keys

© Robotics - 3 Flex. Pendant n 3 D joystick n 8 hard keys

© Robotics - 3 Flex. Pendant n 3 D joystick n 8 hard keys (4 customizable) n Large Touch Screen: n 7. 7 inch n 640 x 480 pixels n User Authorization System, allowing different access levels for different user groups n Hot Plug - possibility to connect and disconnect during operation n Asian character support n Cable can be easily replaced n Right and left-handed support n Swap HMI language without restart

IRC 5 Operator Concept n The Flex. Pendant and Robot. Studio. Online work together

IRC 5 Operator Concept n The Flex. Pendant and Robot. Studio. Online work together n Same accessibility of data on Flex. Pendant as on Robot. Studio. Online n n Select the most optimal point of entry to perform efficiently n n Example: Keyboard entry Allow for future growth with different pendant concepts n © Robotics - 4 Configuration of System Parameters only available through Robot. Studio Example: Cutting Pendant

Easy to use n Intel Strong ARM Processor © Robotics - 5 n Independant

Easy to use n Intel Strong ARM Processor © Robotics - 5 n Independant Computer n (load-) indepedant from the main robot control computer n „Hot-Plug“ option: Connect and disconnect the Flex. Pendant at any time even during production n OP system Windows CE. NET n Develop adapted user interfaces in Microsoft Visual Studio. NET n Swap HMI language without restart including asian characters n Easy swapping between applications

© Robotics - 6 State of the art technology n Developed with ABB’s Microsoft

© Robotics - 6 State of the art technology n Developed with ABB’s Microsoft alliance. n A complete computer: unaffected by controller load. n Compatible with existing RAPID solutions. n Reuses your S 4 knowledge and experience.

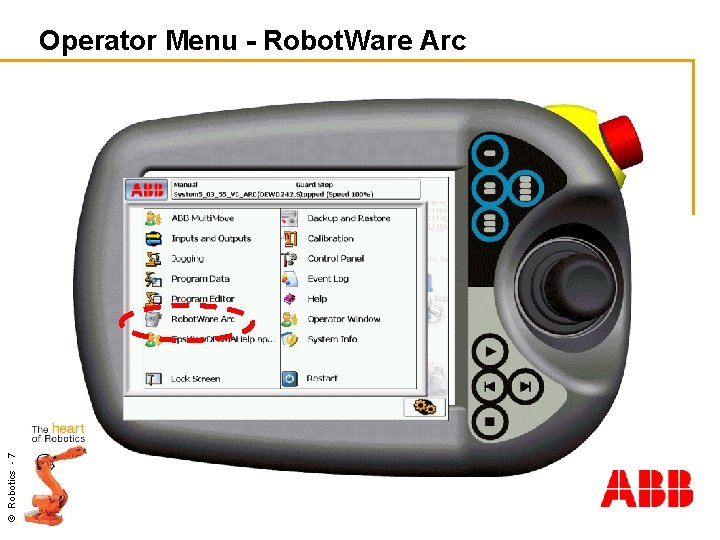

© Robotics - 7 Operator Menu - Robot. Ware Arc

© Robotics - 7 Operator Menu - Robot. Ware Arc

© Robotics - 8

© Robotics - 8

© Robotics - 9 Operator concept - Robot. Ware Arc n Main menu n

© Robotics - 9 Operator concept - Robot. Ware Arc n Main menu n Tuning n Blocking n Manual n Settings

© Robotics - 10 Flex. Pendant summary n Easy to use n Customizable user

© Robotics - 10 Flex. Pendant summary n Easy to use n Customizable user interface n State of the art technology n Graphical touch screen n Flex. Pendant and Robot. Studio. Online work together “With the touch screen it is so much easier to understand which buttons to press. “

© Robotics - 11 Summary: Flex. Pendant n Graphic Interface n Touch screen n

© Robotics - 11 Summary: Flex. Pendant n Graphic Interface n Touch screen n Easy to use n Few buttons n Customizable to meet application needs n Cell control
