Robotics 1 01 10 24 Anna Liberg Product

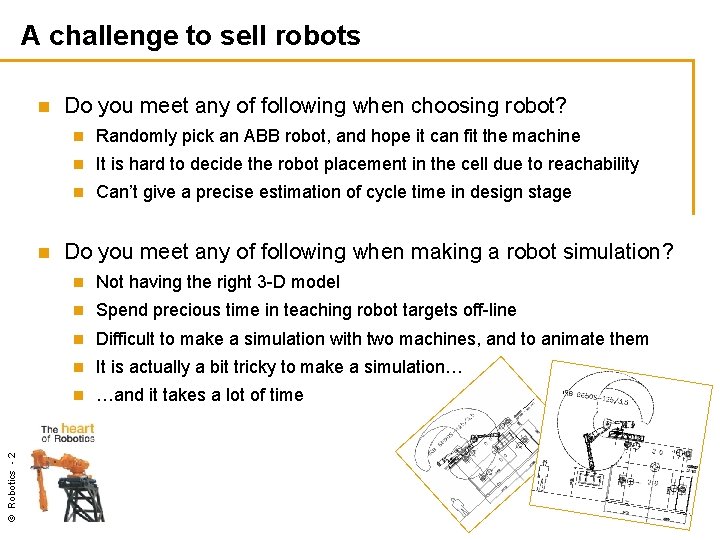

A challenge to sell robots n © Robotics - 2 n Do you meet any of following when choosing robot? n Randomly pick an ABB robot, and hope it can fit the machine n It is hard to decide the robot placement in the cell due to reachability n Can’t give a precise estimation of cycle time in design stage Do you meet any of following when making a robot simulation? n Not having the right 3 -D model n Spend precious time in teaching robot targets off-line n Difficult to make a simulation with two machines, and to animate them n It is actually a bit tricky to make a simulation… n …and it takes a lot of time

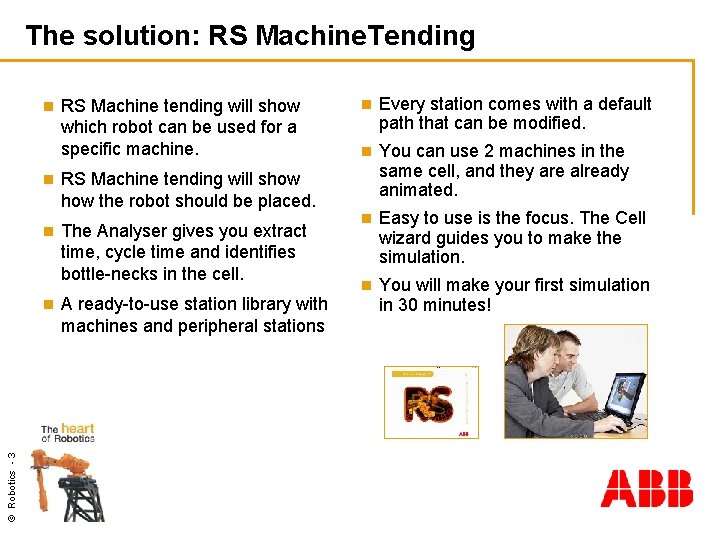

The solution: RS Machine. Tending n n RS Machine tending will show the robot should be placed. n The Analyser gives you extract time, cycle time and identifies bottle-necks in the cell. n © Robotics - 3 RS Machine tending will show which robot can be used for a specific machine. A ready-to-use station library with machines and peripheral stations n Every station comes with a default path that can be modified. n You can use 2 machines in the same cell, and they are already animated. n Easy to use is the focus. The Cell wizard guides you to make the simulation. n You will make your first simulation in 30 minutes!

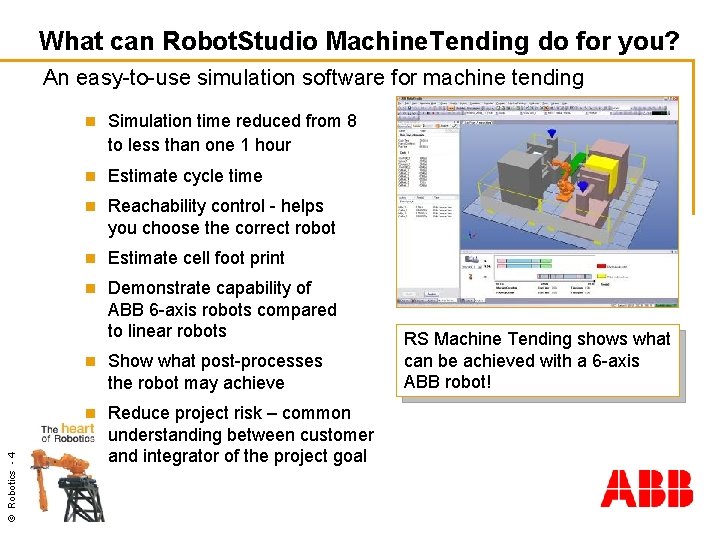

What can Robot. Studio Machine. Tending do for you? © Robotics - 4 An easy-to-use simulation software for machine tending n Simulation time reduced from 8 to less than one 1 hour n Estimate cycle time n Reachability control - helps you choose the correct robot n Estimate cell foot print n Demonstrate capability of ABB 6 -axis robots compared to linear robots n Show what post-processes the robot may achieve n Reduce project risk – common understanding between customer and integrator of the project goal RS Machine Tending shows what can be achieved with a 6 -axis ABB robot!

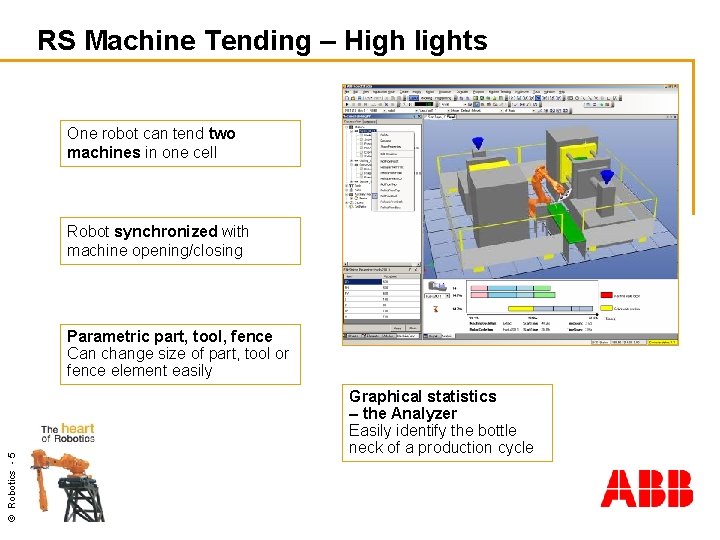

RS Machine Tending – High lights One robot can tend two machines in one cell Robot synchronized with machine opening/closing © Robotics - 5 Parametric part, tool, fence Can change size of part, tool or fence element easily Graphical statistics – the Analyzer Easily identify the bottle neck of a production cycle

An easy-to-use simulation tool for machine tending n No Robot. Studio experience needed n Simulation done in less than one 1 hour n For ABB and ABB partners and customers n Target users: sales force, proposal & project engineers © Robotics - 6 Fully integrated in Robot. Studio, ABB’s simulation and offline programming software.
