Robot Vision Methods for Digital Image Processing Every

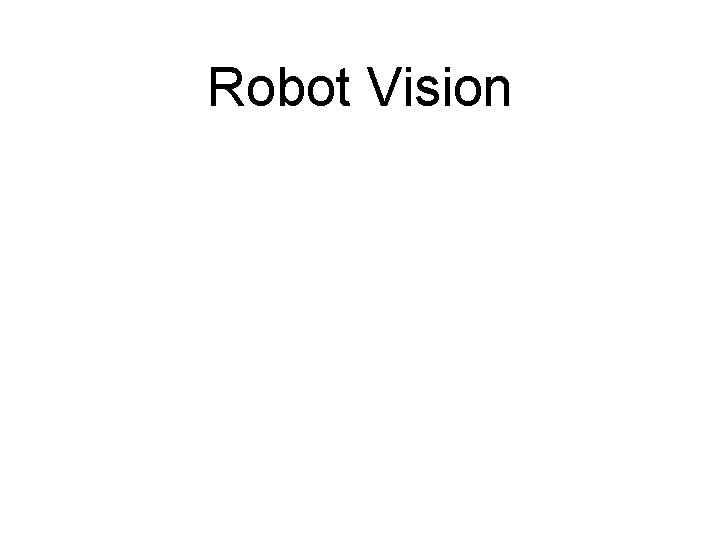

Robot Vision

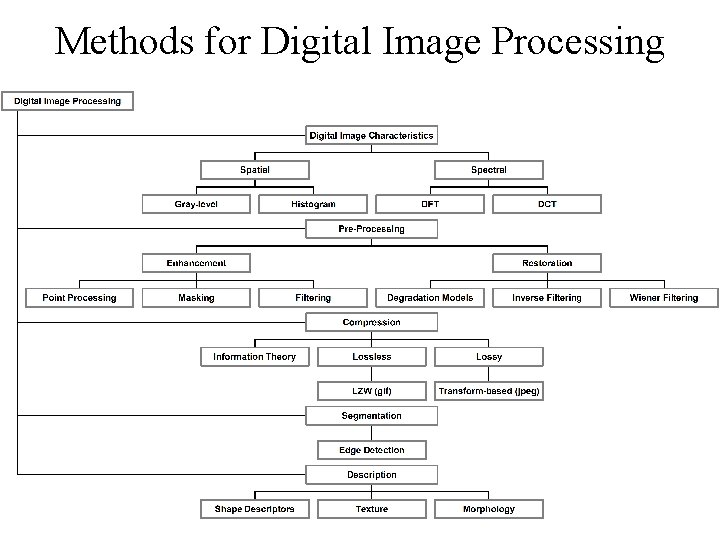

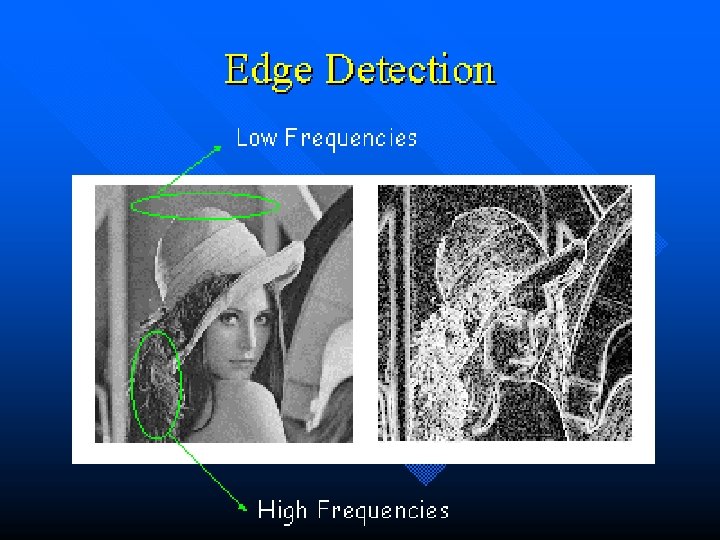

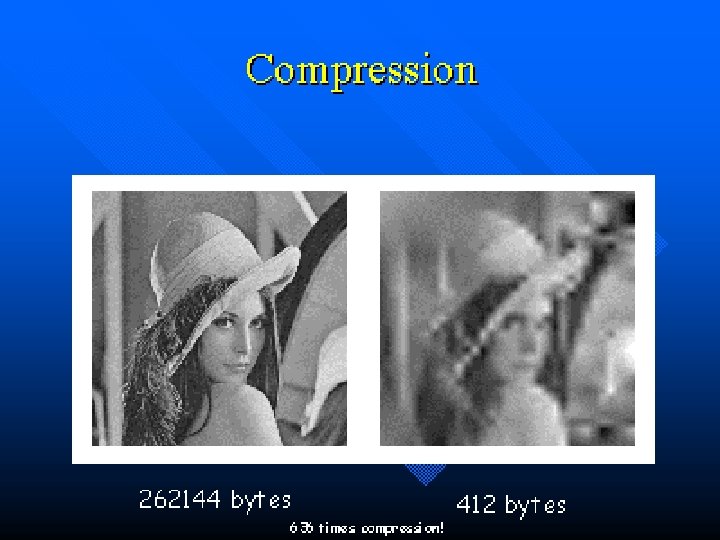

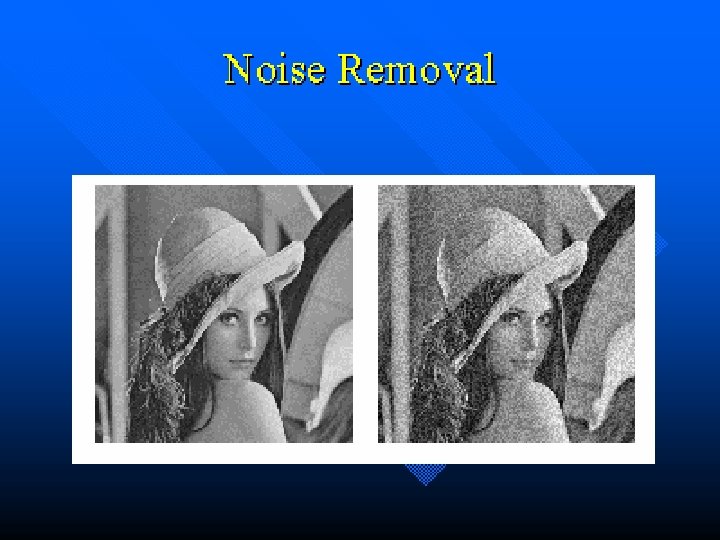

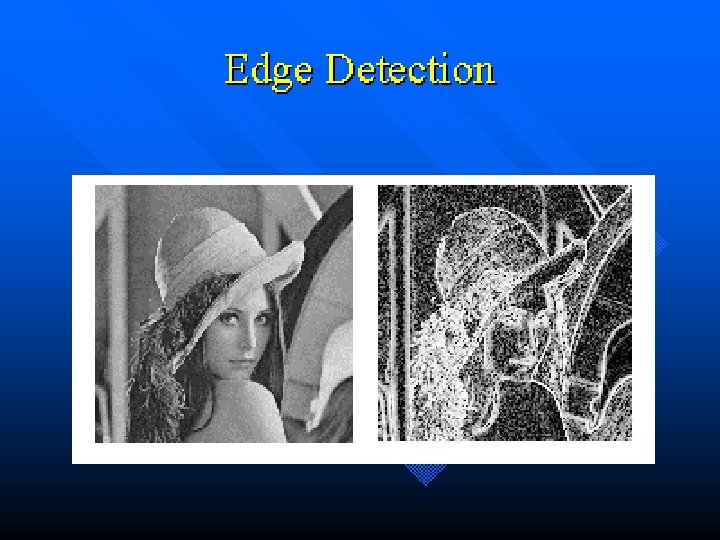

Methods for Digital Image Processing

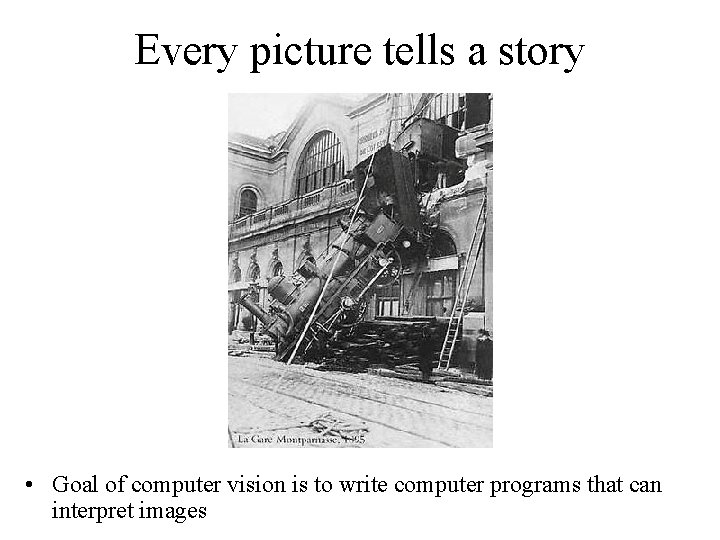

Every picture tells a story • Goal of computer vision is to write computer programs that can interpret images

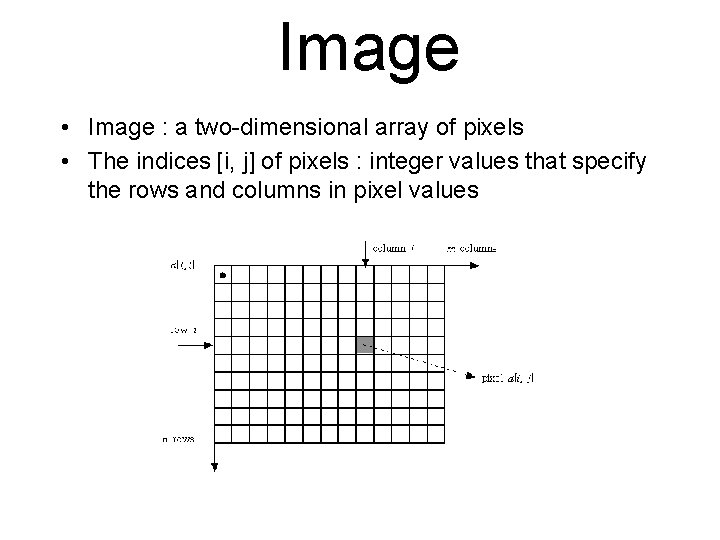

Image • Image : a two-dimensional array of pixels • The indices [i, j] of pixels : integer values that specify the rows and columns in pixel values

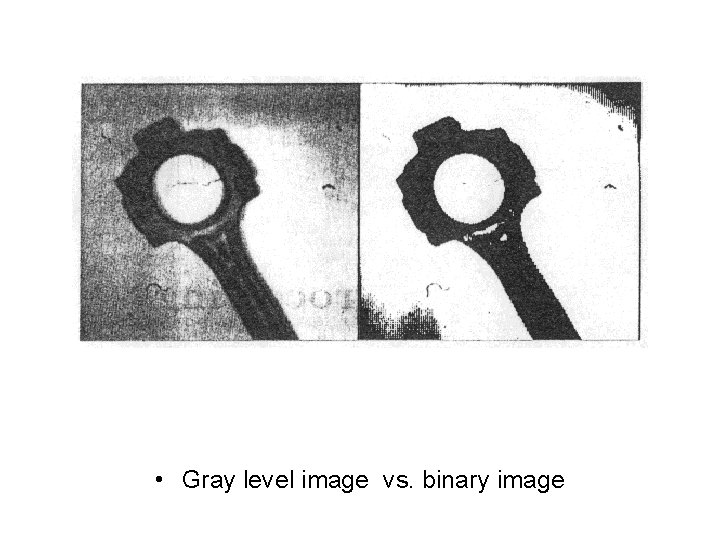

• Gray level image vs. binary image

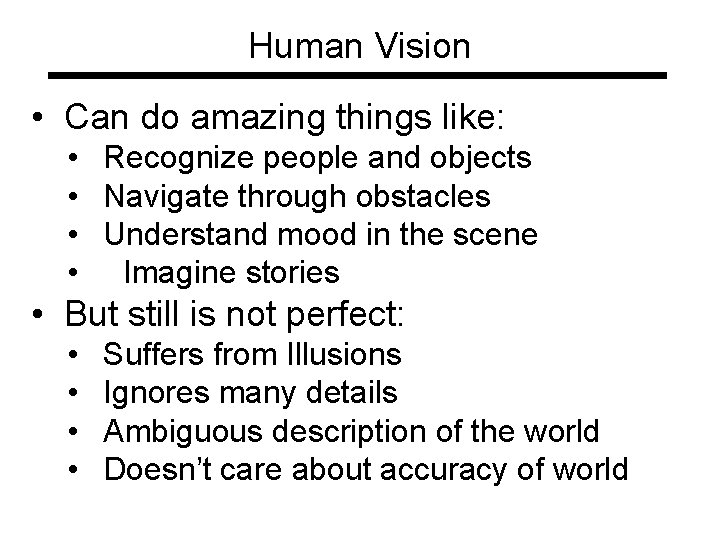

Human Vision • Can do amazing things like: • Recognize people and objects • Navigate through obstacles • Understand mood in the scene • Imagine stories • But still is not perfect: • • Suffers from Illusions Ignores many details Ambiguous description of the world Doesn’t care about accuracy of world

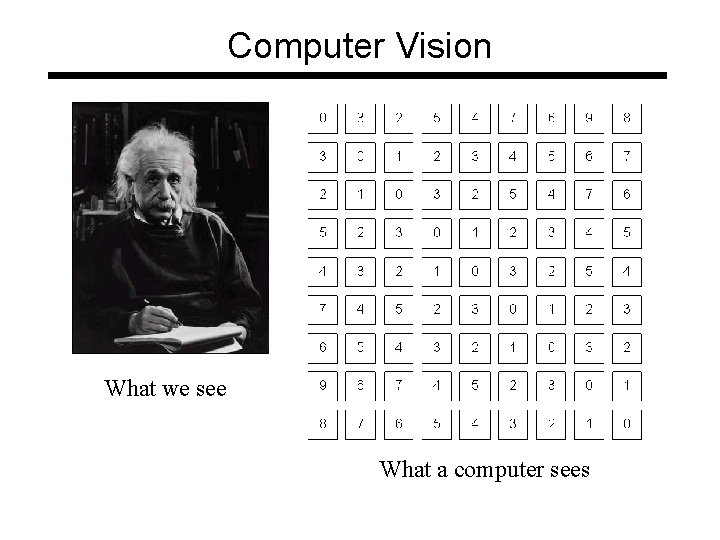

Computer Vision What we see What a computer sees

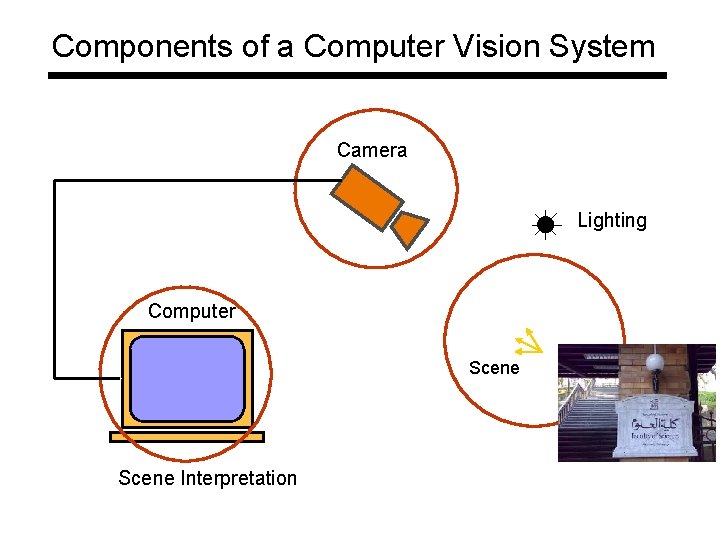

Components of a Computer Vision System Camera Lighting Computer Scene Interpretation

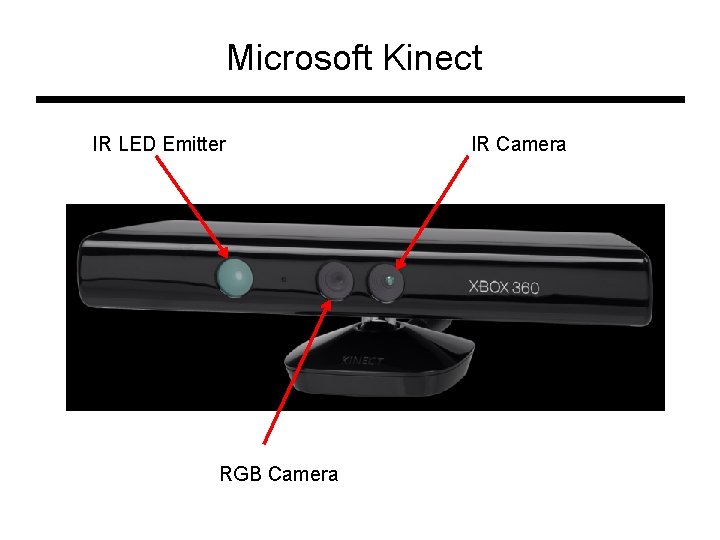

Microsoft Kinect IR LED Emitter RGB Camera IR Camera

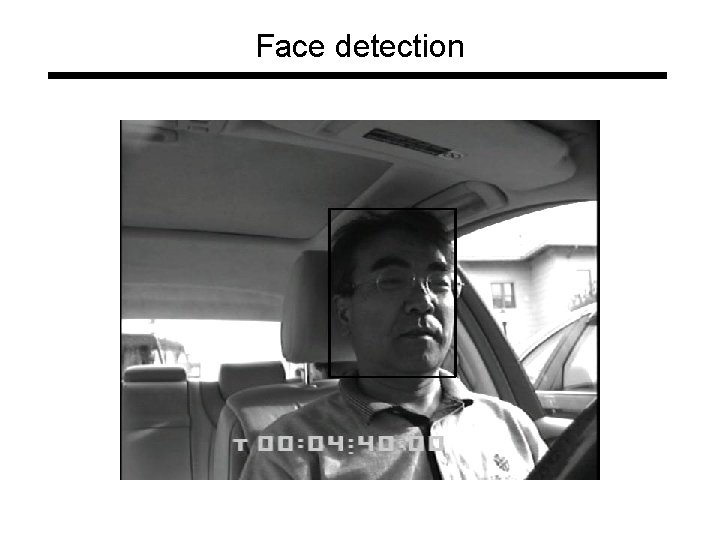

Face detection

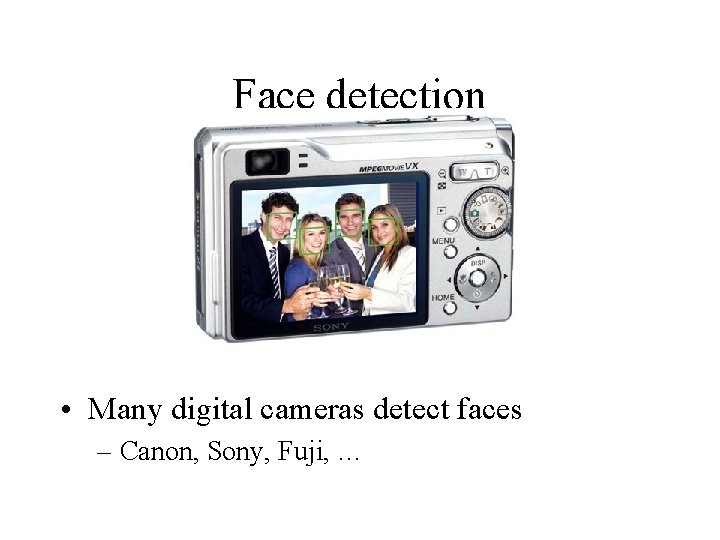

Face detection • Many digital cameras detect faces – Canon, Sony, Fuji, …

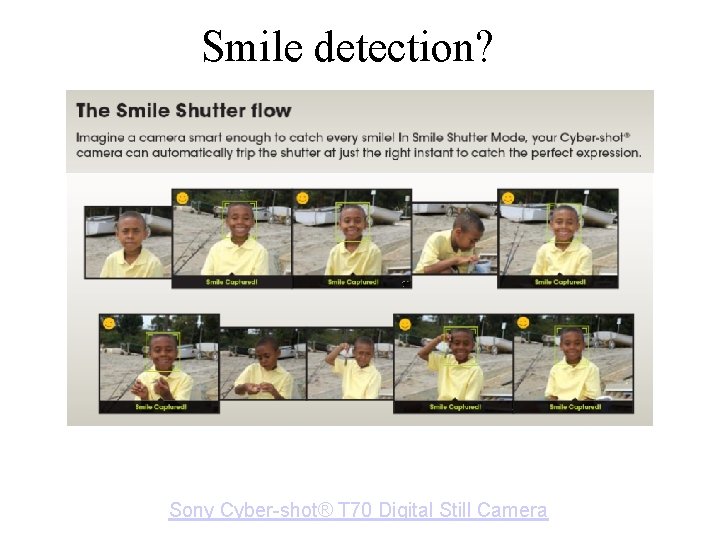

Smile detection? Sony Cyber-shot® T 70 Digital Still Camera

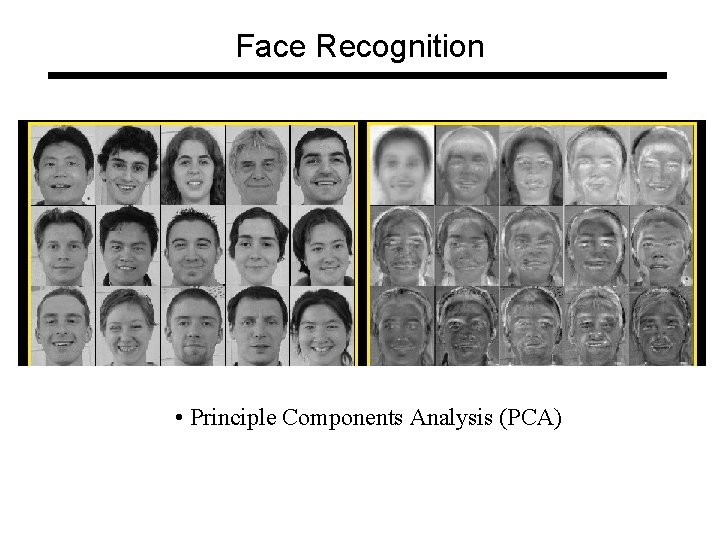

Face Recognition • Principle Components Analysis (PCA)

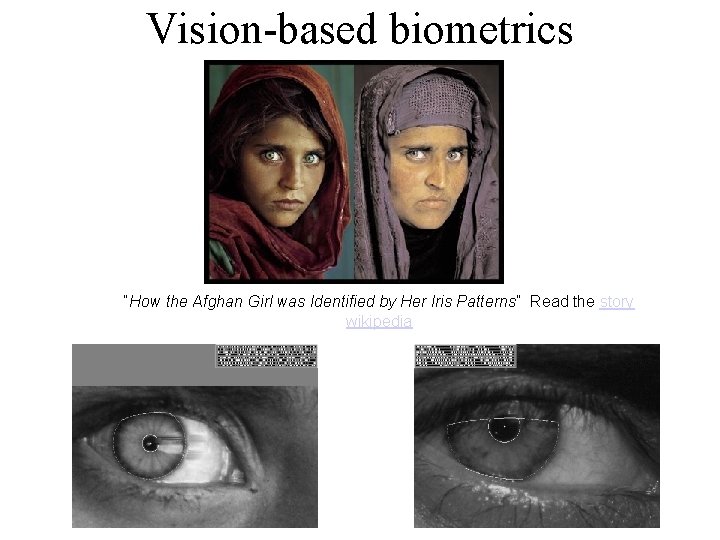

Vision-based biometrics “How the Afghan Girl was Identified by Her Iris Patterns” Read the story wikipedia

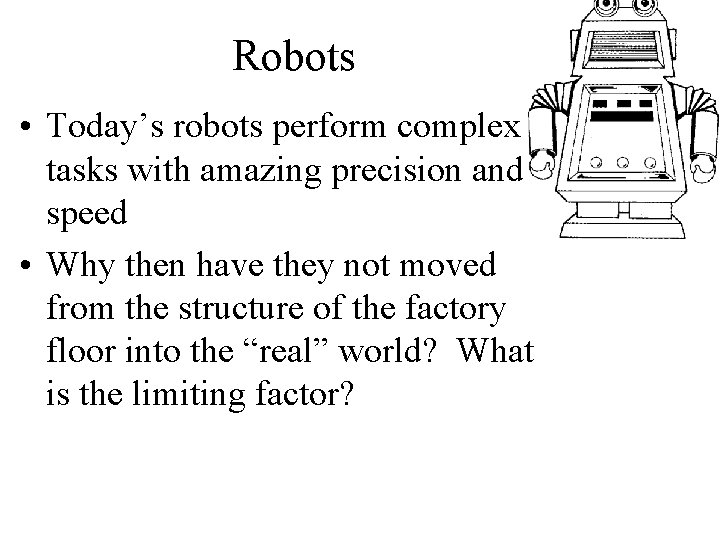

Robots • Today’s robots perform complex tasks with amazing precision and speed • Why then have they not moved from the structure of the factory floor into the “real” world? What is the limiting factor?

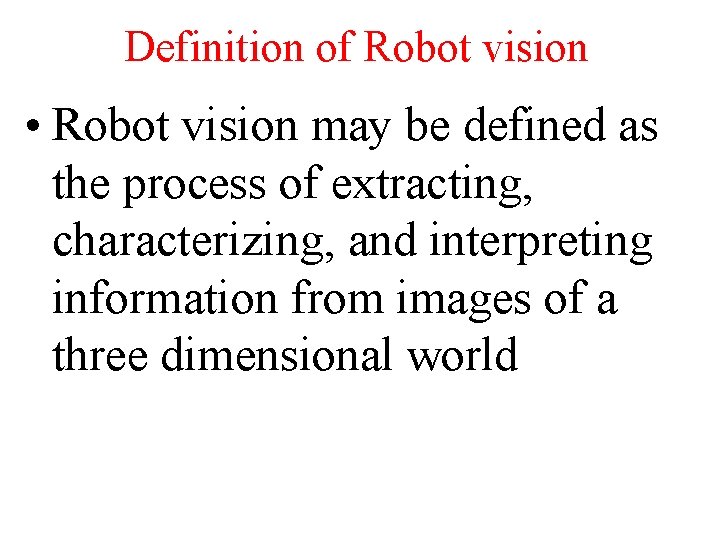

Definition of Robot vision • Robot vision may be defined as the process of extracting, characterizing, and interpreting information from images of a three dimensional world

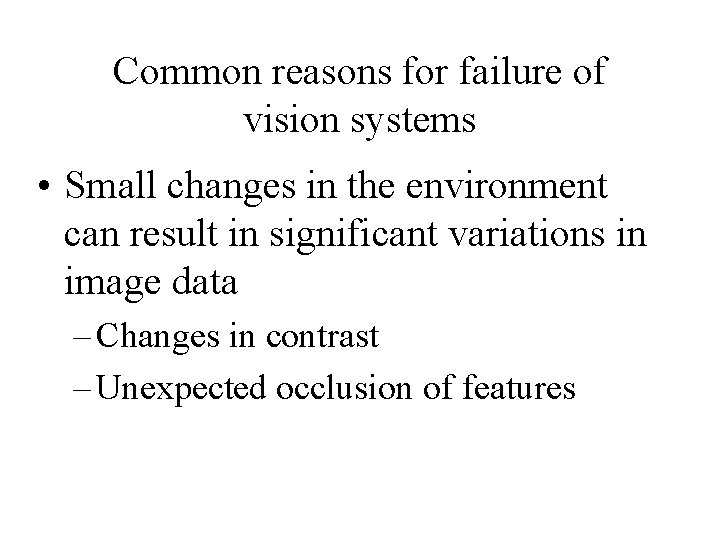

Common reasons for failure of vision systems • Small changes in the environment can result in significant variations in image data – Changes in contrast – Unexpected occlusion of features

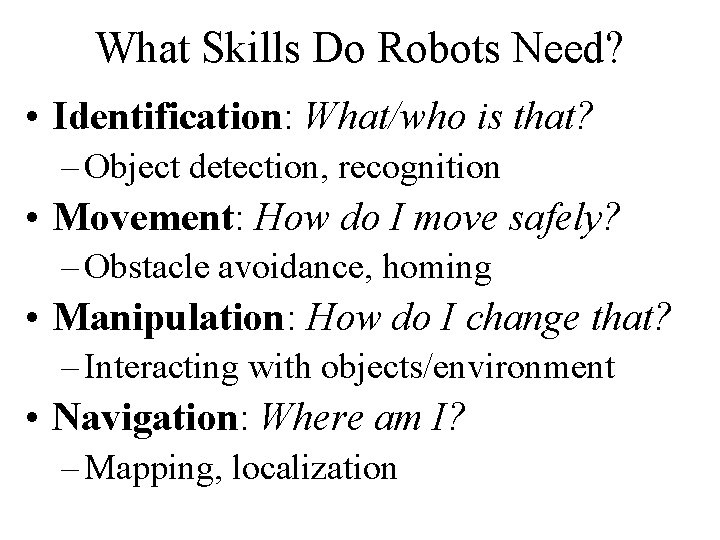

What Skills Do Robots Need? • Identification: What/who is that? – Object detection, recognition • Movement: How do I move safely? – Obstacle avoidance, homing • Manipulation: How do I change that? – Interacting with objects/environment • Navigation: Where am I? – Mapping, localization

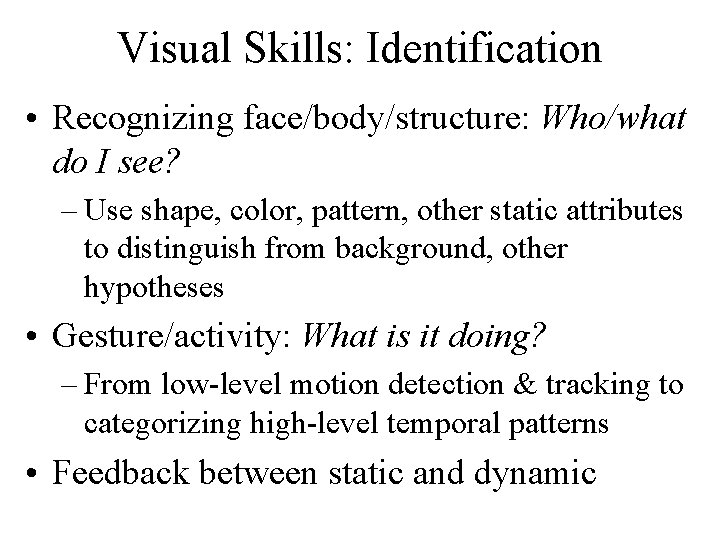

Visual Skills: Identification • Recognizing face/body/structure: Who/what do I see? – Use shape, color, pattern, other static attributes to distinguish from background, other hypotheses • Gesture/activity: What is it doing? – From low-level motion detection & tracking to categorizing high-level temporal patterns • Feedback between static and dynamic

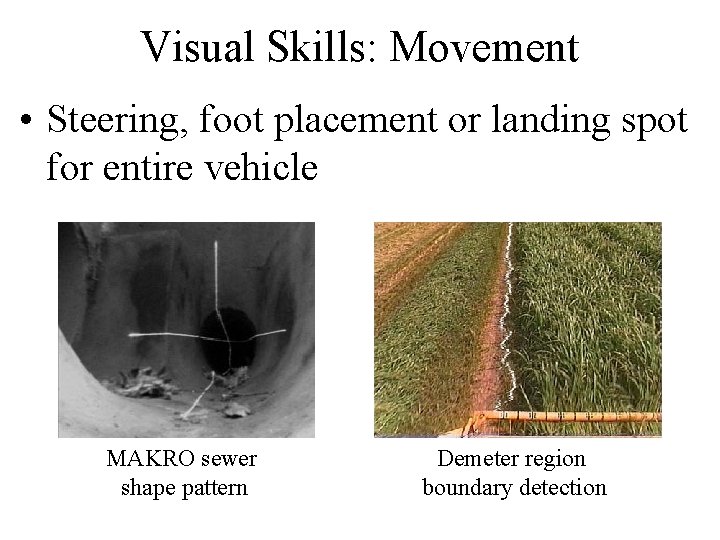

Visual Skills: Movement • Steering, foot placement or landing spot for entire vehicle MAKRO sewer shape pattern Demeter region boundary detection

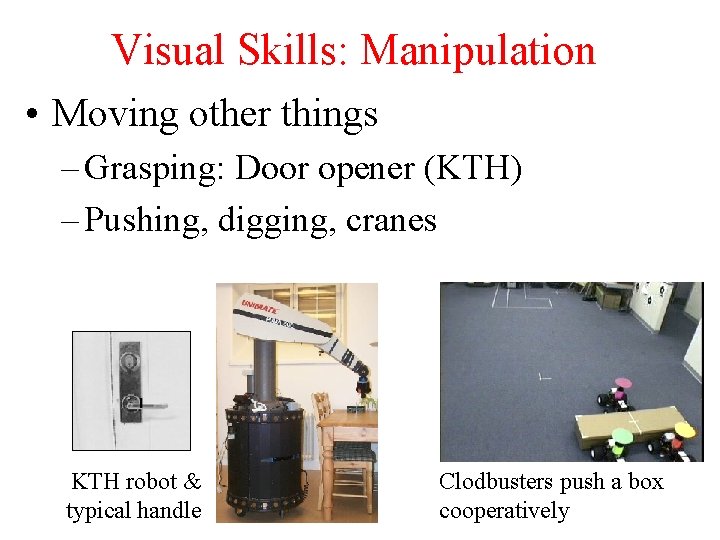

Visual Skills: Manipulation • Moving other things – Grasping: Door opener (KTH) – Pushing, digging, cranes KTH robot & typical handle Clodbusters push a box cooperatively

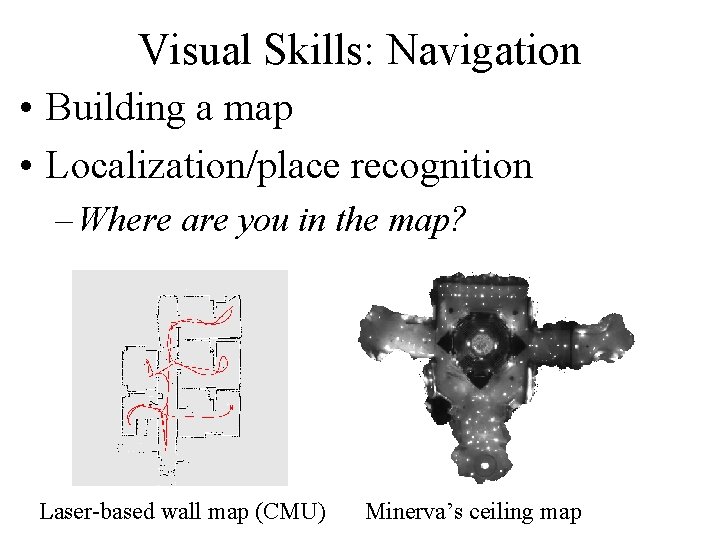

Visual Skills: Navigation • Building a map • Localization/place recognition – Where are you in the map? Laser-based wall map (CMU) Minerva’s ceiling map

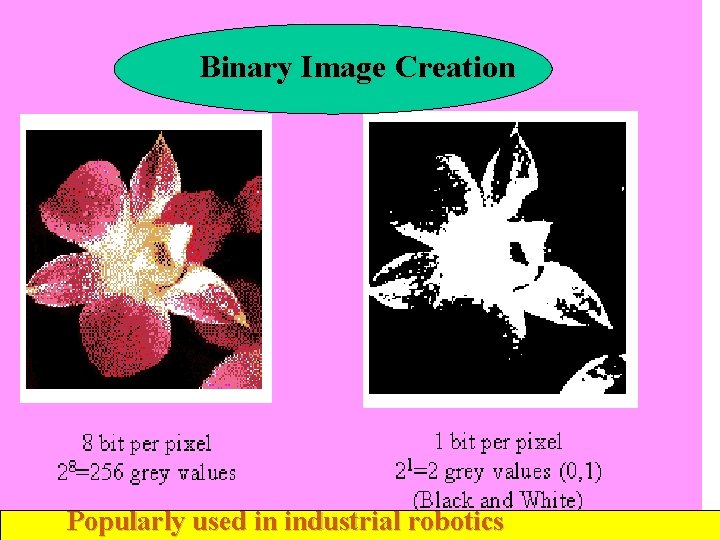

Binary Image Creation Popularly used in industrial robotics

Bit per Pixel

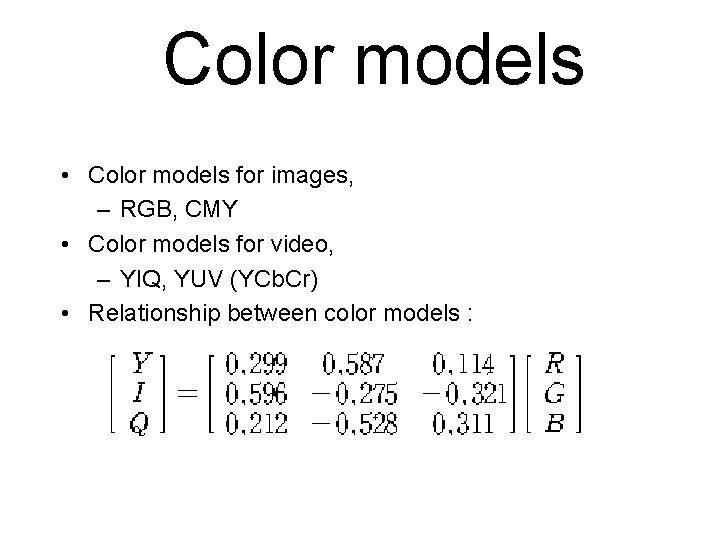

Color models • Color models for images, – RGB, CMY • Color models for video, – YIQ, YUV (YCb. Cr) • Relationship between color models :

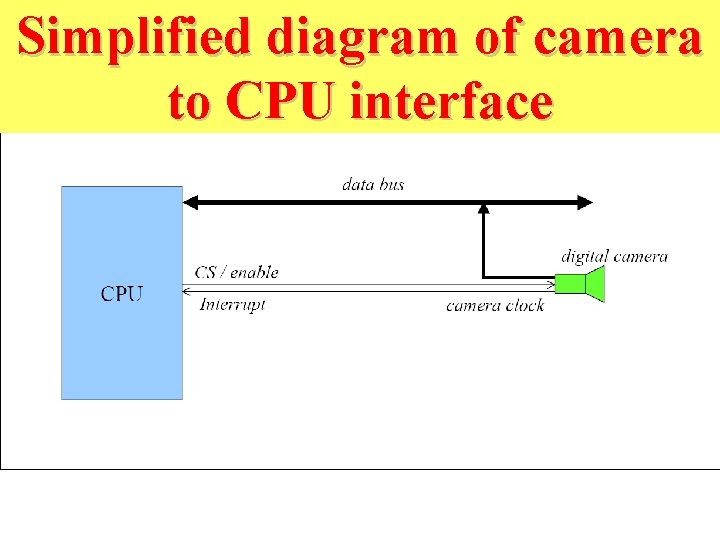

Simplified diagram of camera to CPU interface

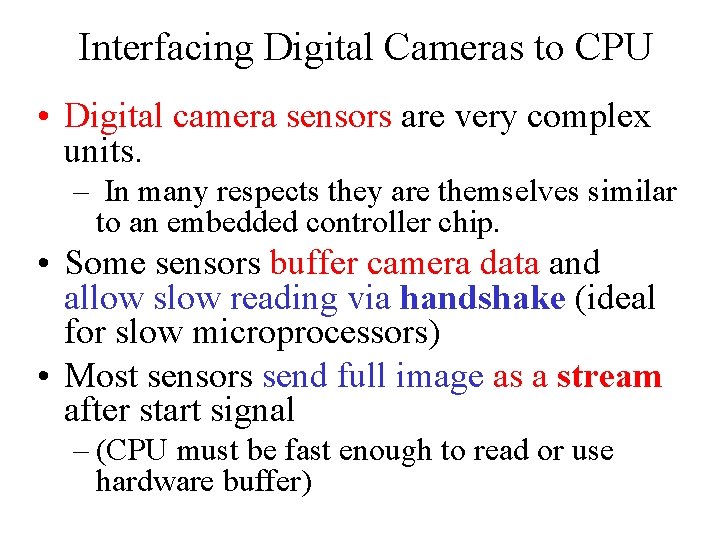

Interfacing Digital Cameras to CPU • Digital camera sensors are very complex units. – In many respects they are themselves similar to an embedded controller chip. • Some sensors buffer camera data and allow slow reading via handshake (ideal for slow microprocessors) • Most sensors send full image as a stream after start signal – (CPU must be fast enough to read or use hardware buffer)

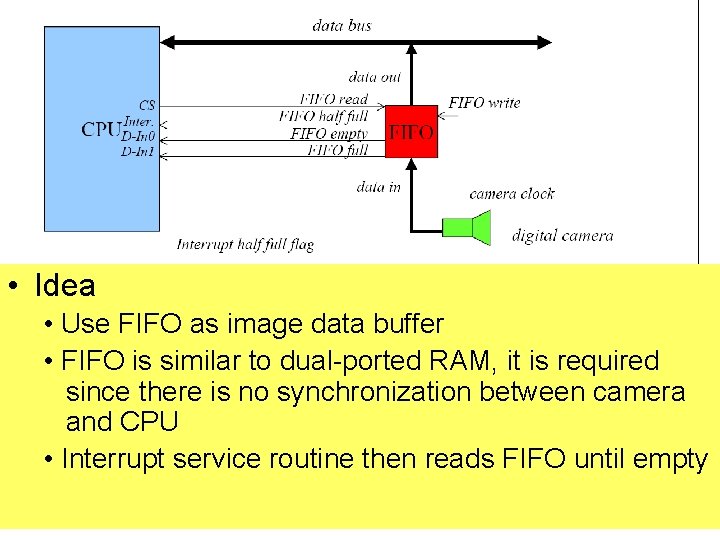

• Idea • Use FIFO as image data buffer • FIFO is similar to dual-ported RAM, it is required since there is no synchronization between camera and CPU • Interrupt service routine then reads FIFO until empty

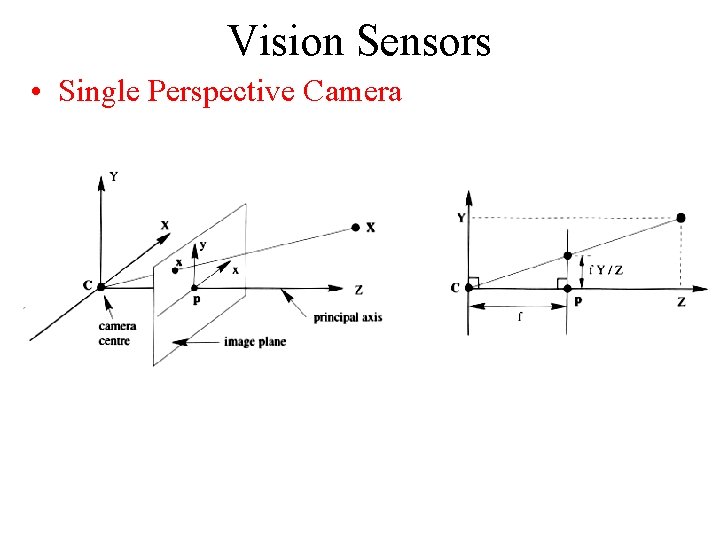

Vision Sensors • Single Perspective Camera

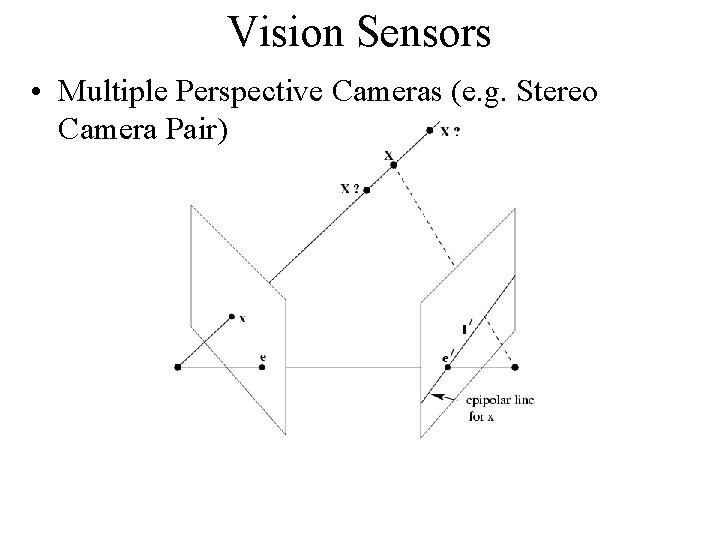

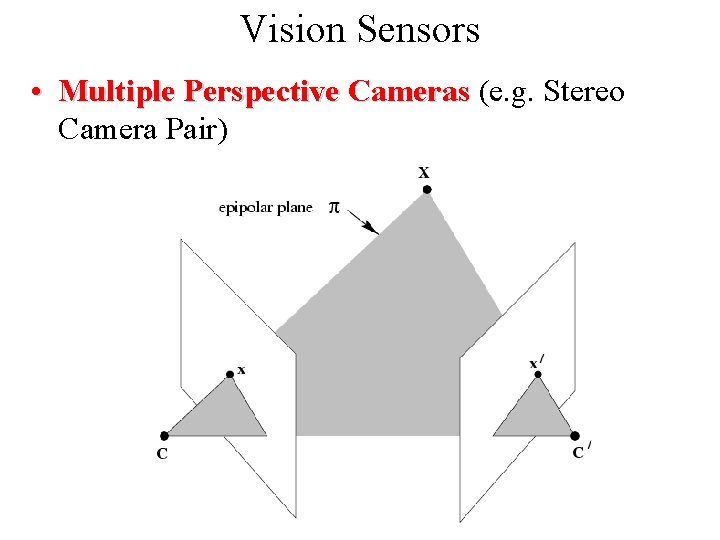

Vision Sensors • Multiple Perspective Cameras (e. g. Stereo Camera Pair)

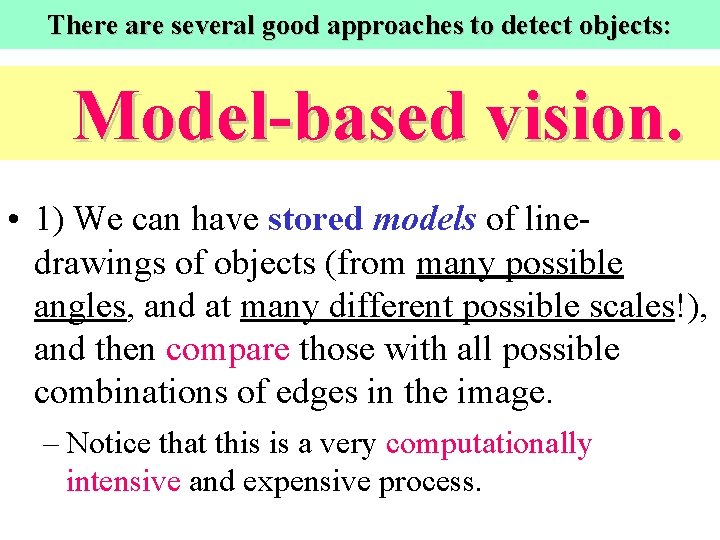

There are several good approaches to detect objects: Model-based vision. • 1) We can have stored models of linedrawings of objects (from many possible angles, and at many different possible scales!), and then compare those with all possible combinations of edges in the image. – Notice that this is a very computationally intensive and expensive process.

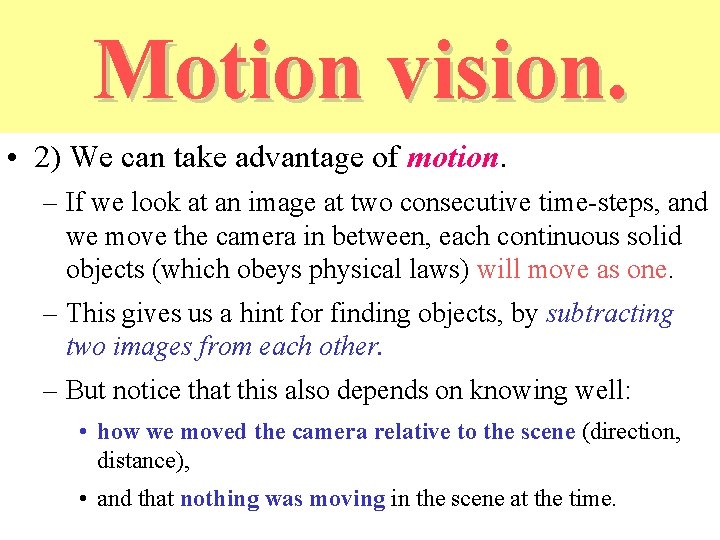

Motion vision. • 2) We can take advantage of motion. – If we look at an image at two consecutive time-steps, and we move the camera in between, each continuous solid objects (which obeys physical laws) will move as one. – This gives us a hint for finding objects, by subtracting two images from each other. – But notice that this also depends on knowing well: • how we moved the camera relative to the scene (direction, distance), • and that nothing was moving in the scene at the time.

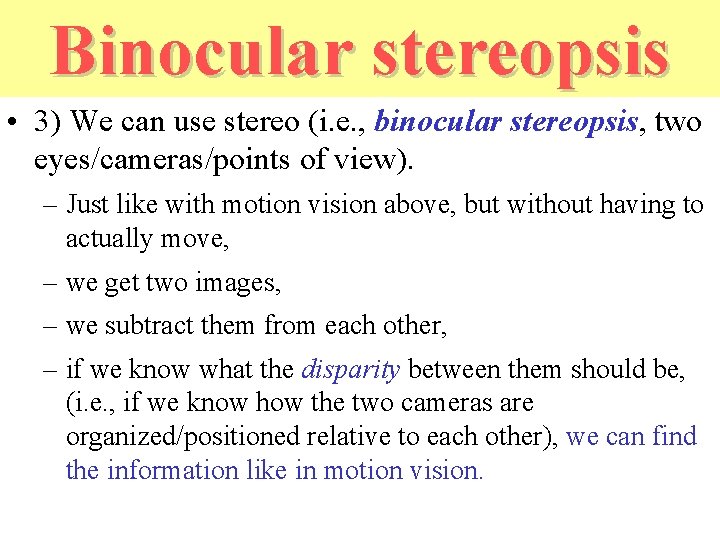

Binocular stereopsis • 3) We can use stereo (i. e. , binocular stereopsis, two eyes/cameras/points of view). – Just like with motion vision above, but without having to actually move, – we get two images, – we subtract them from each other, – if we know what the disparity between them should be, (i. e. , if we know how the two cameras are organized/positioned relative to each other), we can find the information like in motion vision.

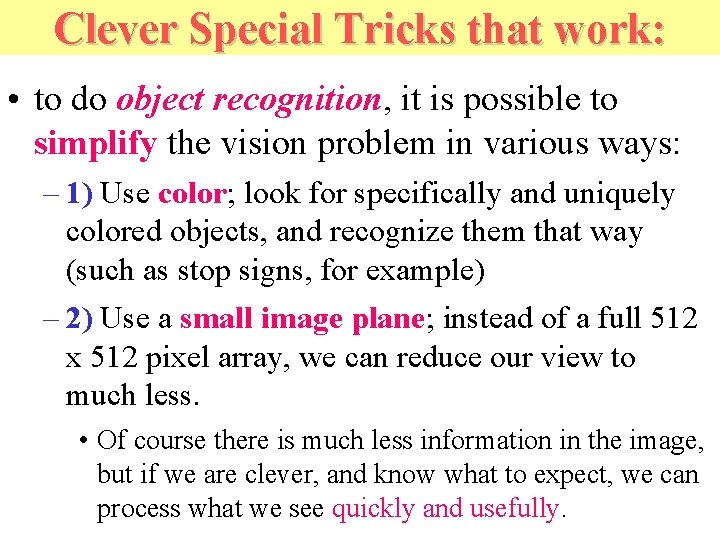

Clever Special Tricks that work: • to do object recognition, it is possible to simplify the vision problem in various ways: – 1) Use color; look for specifically and uniquely colored objects, and recognize them that way (such as stop signs, for example) – 2) Use a small image plane; instead of a full 512 x 512 pixel array, we can reduce our view to much less. • Of course there is much less information in the image, but if we are clever, and know what to expect, we can process what we see quickly and usefully.

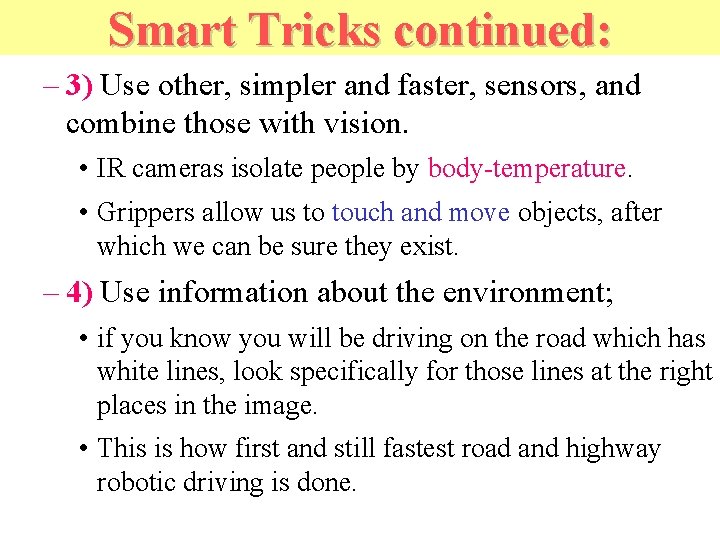

Smart Tricks continued: – 3) Use other, simpler and faster, sensors, and combine those with vision. • IR cameras isolate people by body-temperature. • Grippers allow us to touch and move objects, after which we can be sure they exist. – 4) Use information about the environment; • if you know you will be driving on the road which has white lines, look specifically for those lines at the right places in the image. • This is how first and still fastest road and highway robotic driving is done.
