Robot Sumo Educate NXT What is Sumo Sumo

Robot Sumo Educate. NXT

What is Sumo? “Sumo is a competitive contact sport where a wrestler (rikishi) attempts to force another wrestler out of a circular ring (dohyō) or to touch the ground with anything other than the soles of the feet. ” Photo and definition from Wikipedia http: //en. wikipedia. org/wiki/Sumo, accessed 22/1/10 Educate. NXT

What is Robot Sumo? A robot attempts to push another robot out of the dohyō (ring) or knock the other robot over. To win, a robot must also stay within the dohyō. Educate. NXT

The Doyho Educate. NXT

A simple remote control To begin the NXT Sumo experience, build a simple remote control for the Edu. Bot. An example one is shown – don’t make it complicated! Educate. NXT

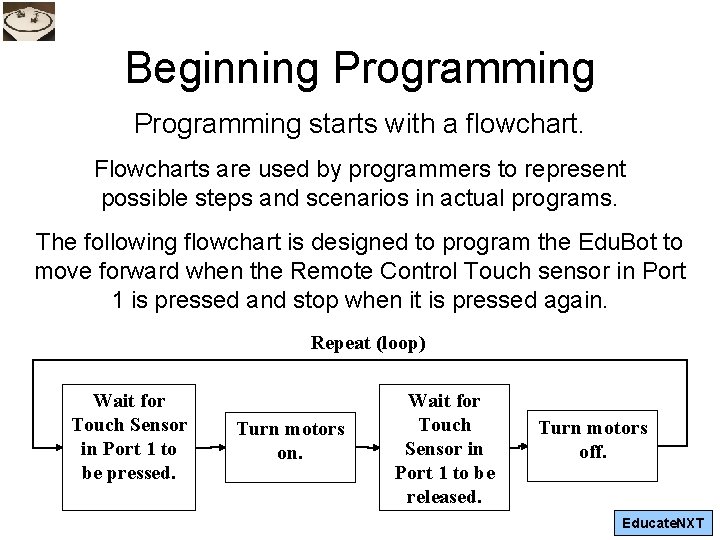

Beginning Programming starts with a flowchart. Flowcharts are used by programmers to represent possible steps and scenarios in actual programs. The following flowchart is designed to program the Edu. Bot to move forward when the Remote Control Touch sensor in Port 1 is pressed and stop when it is pressed again. Repeat (loop) Wait for Touch Sensor in Port 1 to be pressed. Turn motors on. Wait for Touch Sensor in Port 1 to be released. Turn motors off. Educate. NXT

Turning the Flow Chart into a program Repeat (loop) Wait for Touch Sensor in Port 1 to be pressed. Turn motors on. Wait for Touch Sensor in Port 1 to be released. Turn motors off. Educate. NXT

Control both motors. . . A similar program can be written for each individual motor. Touch Sensor 1 controls left motor. Touch Sensor 2 controls right motor. The remote control will be able to turn the Robot when only one touch sensor is pressed (ie. only one motor activates). Educate. NXT

Control both motors. . . Flowchart for controlling different motors with individual Touch Sensors Repeat Touch Sensor 1 controls left motor. Wait for Touch Sensor Port 1 to be pressed. Turn left motor on. Wait for Touch Sensor Port 1 to be released. Turn left motor off. Repeat Touch Sensor 2 controls right motor. Wait for Touch Sensor Port 2 to be pressed. Turn right motor on. Wait for Touch Sensor Port. Turn right motor off. Educate. NXT

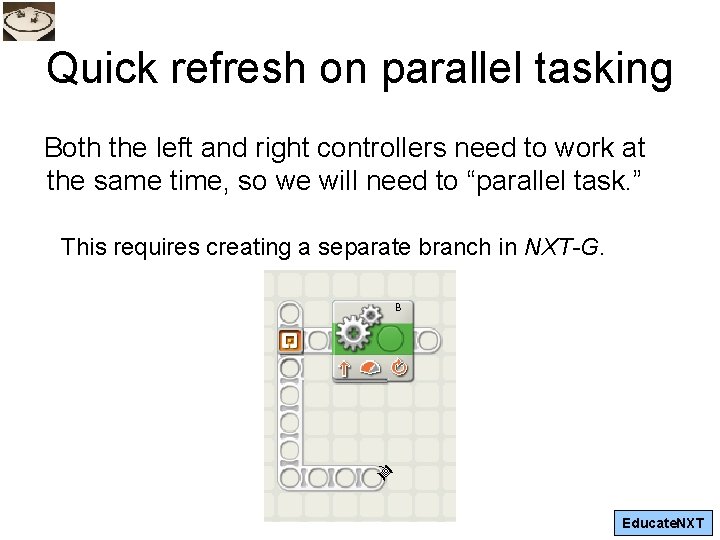

Quick refresh on parallel tasking Both the left and right controllers need to work at the same time, so we will need to “parallel task. ” This requires creating a separate branch in NXT-G. Educate. NXT

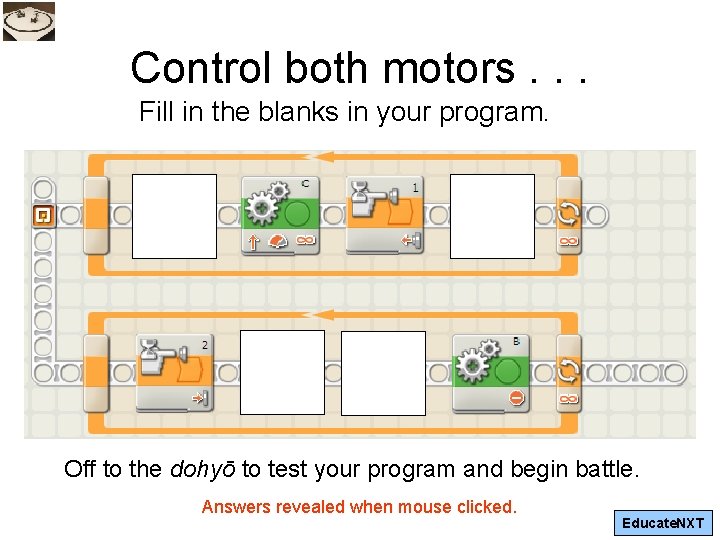

Control both motors. . . Fill in the blanks in your program. Off to the dohyō to test your program and begin battle. Answers revealed when mouse clicked. Educate. NXT
