Robot Components 5 Walkinator ContentObjective Design and analyze
Robot Components 5 “Walkinator” Content-Objective: Design and analyze the performance of a walking robot. Language-Objective: Use “Walkinator” on-line walking robot design-simulation program.

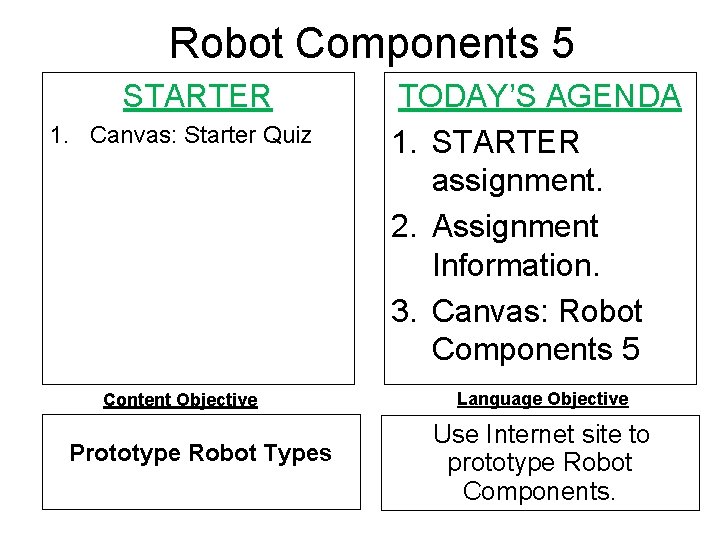

Robot Components 5 STARTER 1. Canvas: Starter Quiz Content Objective Prototype Robot Types TODAY’S AGENDA 1. STARTER assignment. 2. Assignment Information. 3. Canvas: Robot Components 5 Language Objective Use Internet site to prototype Robot Components.
Do today’s Starter Quiz! (in Canvas)

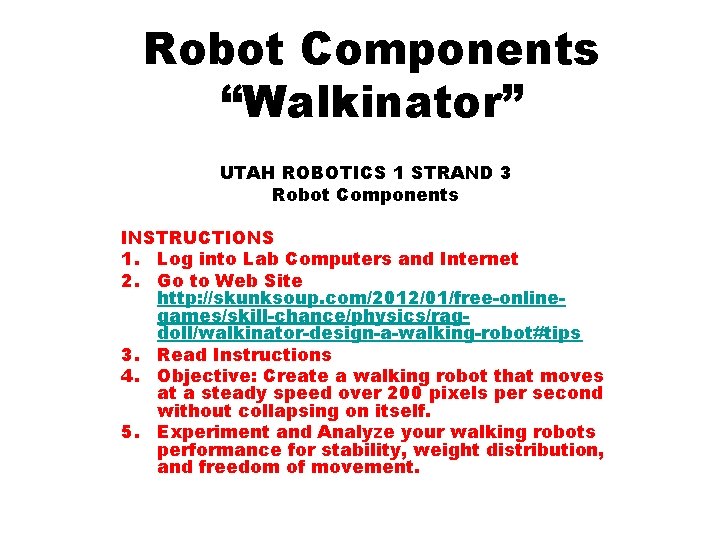

Robot Components “Walkinator” UTAH ROBOTICS 1 STRAND 3 Robot Components INSTRUCTIONS 1. Log into Lab Computers and Internet 2. Go to Web Site http: //skunksoup. com/2012/01/free-onlinegames/skill-chance/physics/ragdoll/walkinator-design-a-walking-robot#tips 3. Read Instructions 4. Objective: Create a walking robot that moves at a steady speed over 200 pixels per second without collapsing on itself. 5. Experiment and Analyze your walking robots performance for stability, weight distribution, and freedom of movement.

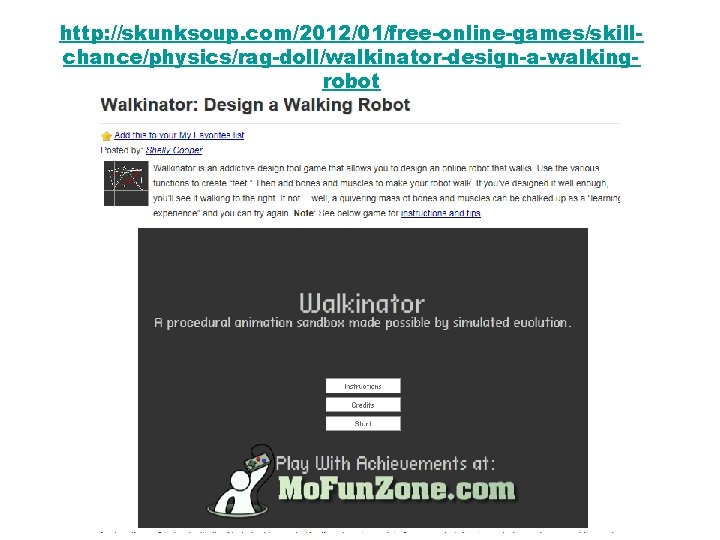

http: //skunksoup. com/2012/01/free-online-games/skillchance/physics/rag-doll/walkinator-design-a-walkingrobot 1. Using parts from a Power Play kit build and

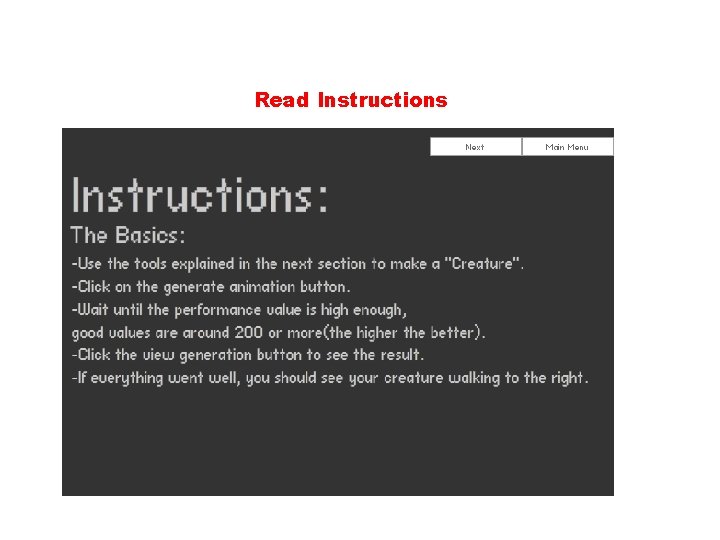

Read Instructions
Create designs (experiment) 1. Using parts from a Power Play kit build and

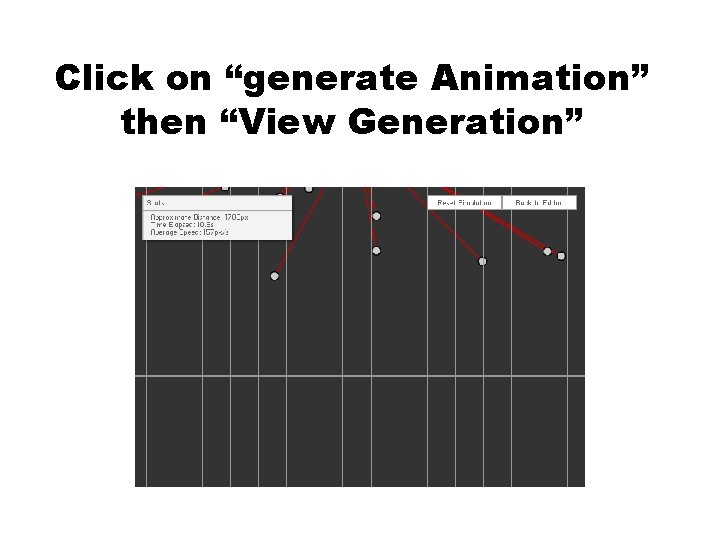

Click on “generate Animation” then “View Generation” 1. Using parts from a Power Play kit build and

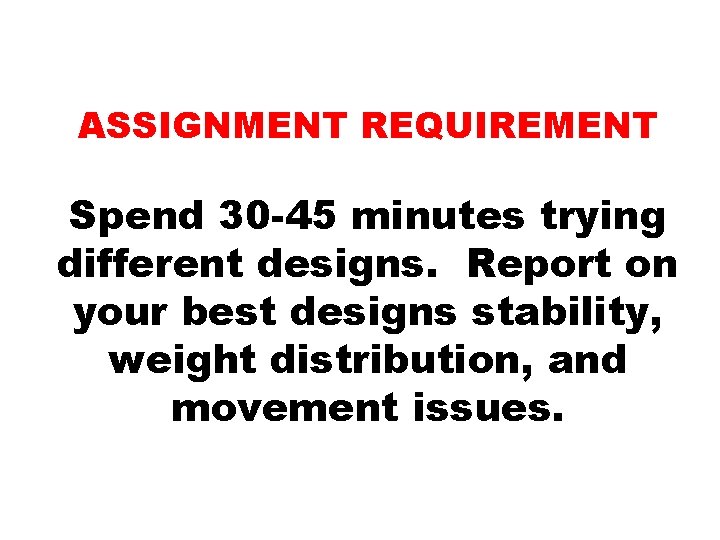

ASSIGNMENT REQUIREMENT Spend 30 -45 minutes trying different designs. Report on your best designs stability, weight distribution, and movement issues.
Canvas Assignment Robot System Components 5: Prototyping Is due today
