Rob Stein Field Applications Engineering rob steinmicrochip com
Rob Stein Field Applications Engineering rob. stein@microchip. com © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 1

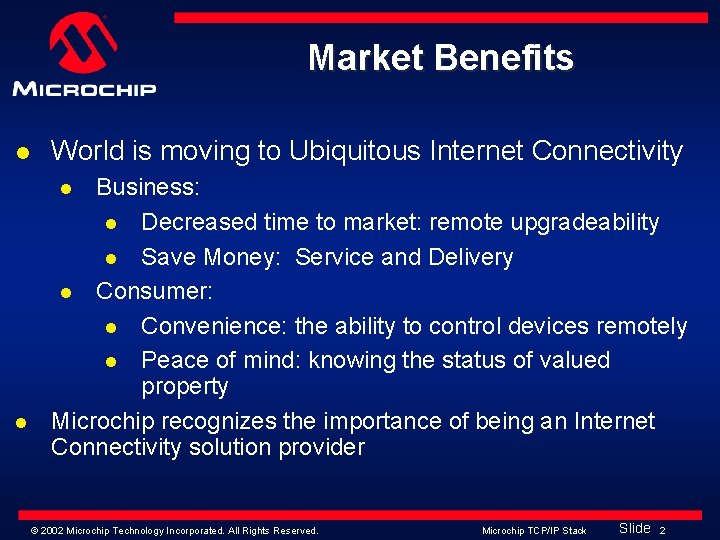

Market Benefits l World is moving to Ubiquitous Internet Connectivity Business: l Decreased time to market: remote upgradeability l Save Money: Service and Delivery l Consumer: l Convenience: the ability to control devices remotely l Peace of mind: knowing the status of valued property Microchip recognizes the importance of being an Internet Connectivity solution provider l l © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 2
Embedded Internet Applications l l l l l Event reporting - fire, burglar, weather Data collection - weather, seismic, utilities Diagnostics - car, appliances, medical Monitoring - cameras, sensors, processes Remote control - thermostat, VCR, factory Upgradeability - features, fixes, recalibration Media Delivery - print, radio, music, movies Communications - phones, gateways, video Entertainment - toys, games © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 3

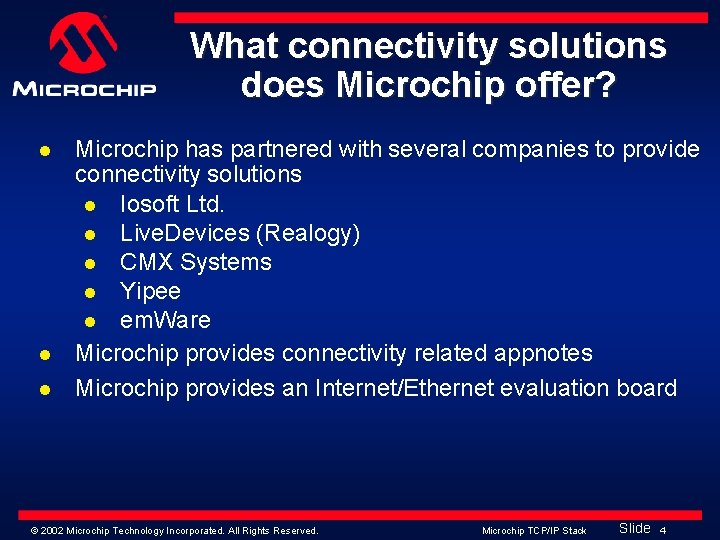

What connectivity solutions does Microchip offer? l l l Microchip has partnered with several companies to provide connectivity solutions l Iosoft Ltd. l Live. Devices (Realogy) l CMX Systems l Yipee l em. Ware Microchip provides connectivity related appnotes Microchip provides an Internet/Ethernet evaluation board © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 4
Microchip Solution & 3 rd Party Solutions PICmicros PIC 18 XXXX Protocols Code Footprint Ethernet, SLIP, ARP, ICMP, TCP, HTTP ~9. 7 Kw Ethernet, SLIP, ARP, PIC 16 F 877 a, PIC 16 F 87 IP, ICMP, TCP, HTTP, PIC 18 XXXX UDP Ethernet, Modem, PPP PIC 18 XXXX SLIP, ARP, IP, UDP, TCP, HTTP, FTP Modem, USART, PIC 18 XXXX PPP, SLIP, TCP, UDP, SMTP, HTTP PIC 16 CXXX Ethernet, PPP, DHCP, ARP, ICMP, TCP, UDP SMTP, SNMP, HTTP, FTP PIC 12 C 67 X, PIC 16 F 87 X All Internet Protocols PIC 16 C 6 X/7 X, PIC 18 Supported through a ~6. 3 Kw ~9. 8 Kw (Std. Stack) ~9. 0 Kw (+RTOS=8 Kw) ~11 Kw 1 -2. 5 Kw Gateway © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 5
Microchip’s PICDEM. net “Quick Start” for Internet Connectivity Features l l l l l Microchip PIC 16 F 877 A (IOSOFT) Future kits will include PIC 18 F 452 (MCHP) 24 LC 256 Serial EEPROM, stores web pages Ethernet interface using Realtek RTL 8019 AS Pushbutton switch, potentiometers and LEDs Can be used with MPLAB-ICD RS-232 interface LCD Display Prototyping area © 2002 Microchip Technology Incorporated. All Rights Reserved. PICDEM. net Most Popular Demonstration Board! Microchip TCP/IP Stack Slide 6
Summary l l l Microchip has partnered with several Key companies to provide TCP/IP connectivity solutions Microchip can offer several TCP/IP solutions that run on all PICmicro MCUs PICDEM. net is available as a tool for connectivity development and experimentation Requirements are changing and can quickly be addressed with soft solutions Contact the 3 rd party company directly for specific pricing © 2002 Microchip Technology Incorporated. All Rights Reserved. Microchip TCP/IP Stack Slide 7
