Roadmap 2014 Network Cameras Lineup 2013 DAHUA TECHNOLOGY

Roadmap 2014 Network Cameras Line-up © 2013 DAHUA TECHNOLOGY

Ambarella VS TI 365/368 Power consumption lower Higher Supported N/A Low lux Better Normal bitrate Lower Higher Life time Longer Normal 3 DNR © 2013 DAHUA TECHNOLOGY

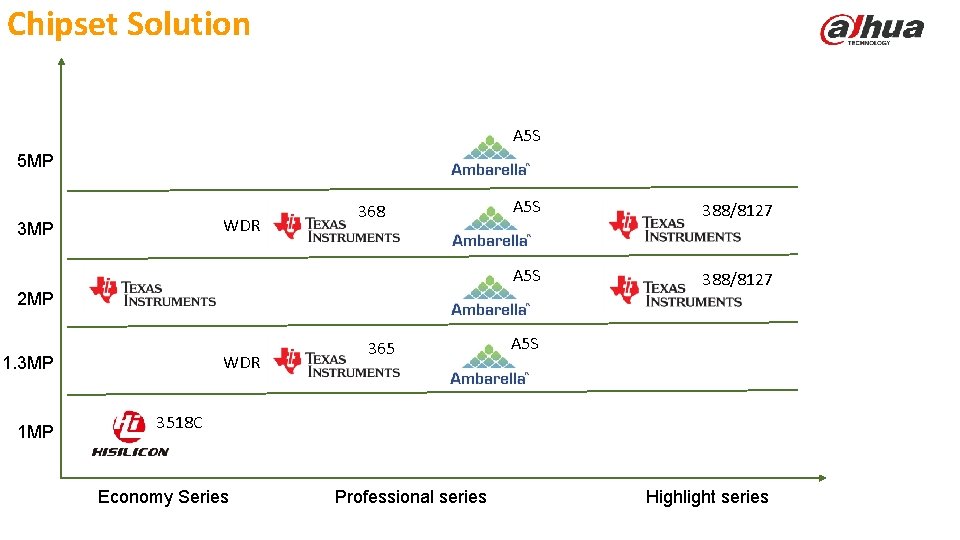

Chipset Solution A 5 S 5 MP WDR 3 MP 368 A 5 S 388/8127 2 MP WDR 1. 3 MP 1 MP 365 A 5 S 3518 C Economy Series Professional series Highlight series © 2013 DAHUA TECHNOLOGY

Sensor Solution WDR AR 0331 9 M 034 Normal OV 9712+ 1 MP AR 0130 1. 3 MP IMX 222 AR 0330 IMX 122 IMX 036 2 MP 3 MP 9 P 006 5 MP © 2013 DAHUA TECHNOLOGY

Numbering Rule DH- Dahua IPC- IPC: Network HDC: HD-SDI H High Definition Camera Type F: Fixed box D: Fixed dome DW: Fixed IR dome DB: Vandal-proof fixed dome DBW: Vandal-proof IR dome FW: IR-Bullet box FW Platform 3 1: Hisilicon 2: DM 365 3: DM 368 4: Amberalla entry level 5: Amberalla Profession 7: Amberalla Highlight 8: Ti Highlight 3 Resolution 5: 5 Mega 3: 3 Mega 2: 2 Mega 1: 1. 3 Mega 0 Sensor 0: CMOS 1: CCD 2: 60 fps 4: 120 fps 8: Nightjar 0 Function 0: Standard 1: WDR 2: Motorized lens 6: WDR & Motorized lens C A~Z: Case Sequence -H P Video format P: PAL N: NTSC W: WIFI E: EVDO C: WCDMA M: Mobile H: Heater DI: In-celling dome DP: Outdoor pendant © 2013 DAHUA TECHNOLOGY

• Low bitrate • Ultra Low illumination • Low consumption • Stylish product • Smart IR infrared tech • Core ISP technology • Stable & efficient system © 2013 DAHUA TECHNOLOGY

Low bitrate 720 P@4 Mbps (Ti Platform) • Maximum save 75% bitrate • 1080 P resolution storage space same with D 1 resolution • Image quality is better than Ti product but only take ¼ bandwith 720 P@1 Mbps (Ambarella Platform) © 2013 DAHUA TECHNOLOGY

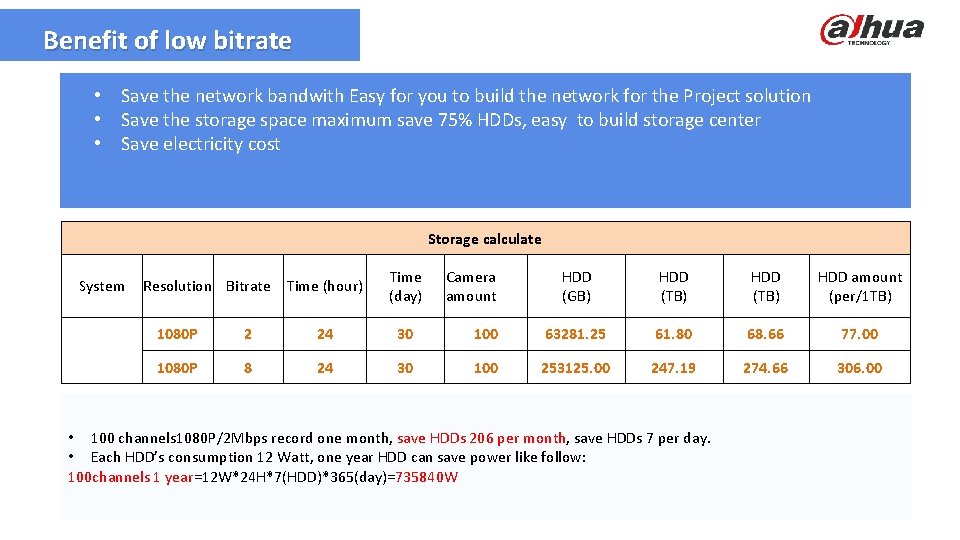

Benefit of low bitrate • Save the network bandwith Easy for you to build the network for the Project solution • Save the storage space maximum save 75% HDDs, easy to build storage center • Save electricity cost Storage calculate System Resolution Bitrate Time (hour) Time (day) Camera amount HDD (GB) HDD (TB) HDD amount (per/1 TB) 1080 P 2 24 30 100 63281. 25 61. 80 68. 66 77. 00 1080 P 8 24 30 100 253125. 00 247. 19 274. 66 306. 00 • 100 channels 1080 P/2 Mbps record one month, save HDDs 206 per month, save HDDs 7 per day. • Each HDD’s consumption 12 Watt, one year HDD can save power like follow: 100 channels 1 year=12 W*24 H*7(HDD)*365(day)=735840 W © 2013 DAHUA TECHNOLOGY

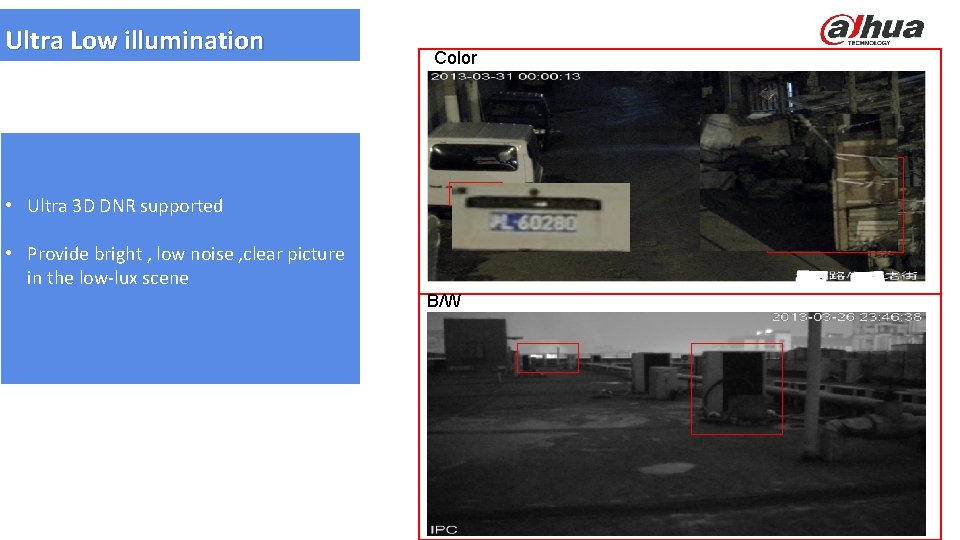

Ultra Low illumination Color • Ultra 3 D DNR supported • Provide bright , low noise , clear picture in the low-lux scene B/W © 2013 DAHUA TECHNOLOGY

Night view performance © 2013 DAHUA TECHNOLOGY

Low consumption 5. 76 W (Ti Platform) 3 W (Ambarella Platform) New product nearly save 50% power consumption, make the product green and long time using © 2013 DAHUA TECHNOLOGY

Smart IR infrared tech • Provide smooth night view • Fixed closed object over exposure issue when IR on • Save the power consumption © 2013 DAHUA TECHNOLOGY

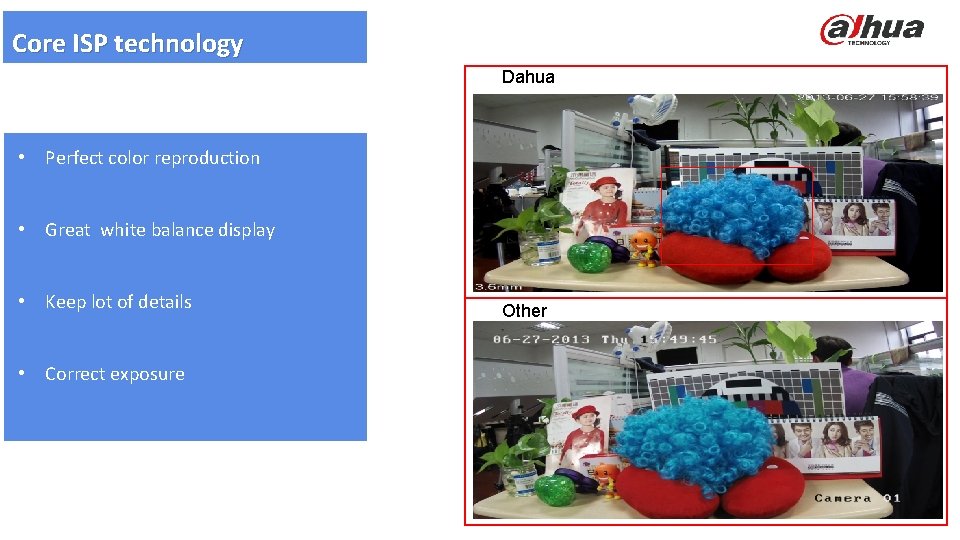

Core ISP technology Dahua • Perfect color reproduction • Great white balance display • Keep lot of details Other • Correct exposure © 2013 DAHUA TECHNOLOGY

Core ISP technology DWDR ON • Provide over 75 d. B WDR by latest ISP technology • Offer better High light control(HLC) performance DWDR off © 2013 DAHUA TECHNOLOGY

Stable & efficient system • 6 users view 1080 P video under 4 Mbps bitrate at same time • 100 meters, data packet is not lost • Dual system backup make the system more stable © 2013 DAHUA TECHNOLOGY

Appearance Roadmap-compact series NEW NEW © 2013 DAHUA TECHNOLOGY

Smart Series Ti DM 365/368 Ambarella A 5 S 3 M Smart series HFW 4300 S 2 M HFW 3200 S HFW 4200 S 1. 3 M HFW 2100 S HFW 4100 S 3 M 2 M HDW 3200 S 1. 3 M HDW 2100 3 M Upgrade HDW 4300 S HDW 4200 S HDW 4100 S HDB 4300 C 2 M HDB 3200 C HDB 4200 C 1. 3 M HD 2100 HDB 4100 C © 2013 DAHUA TECHNOLOGY

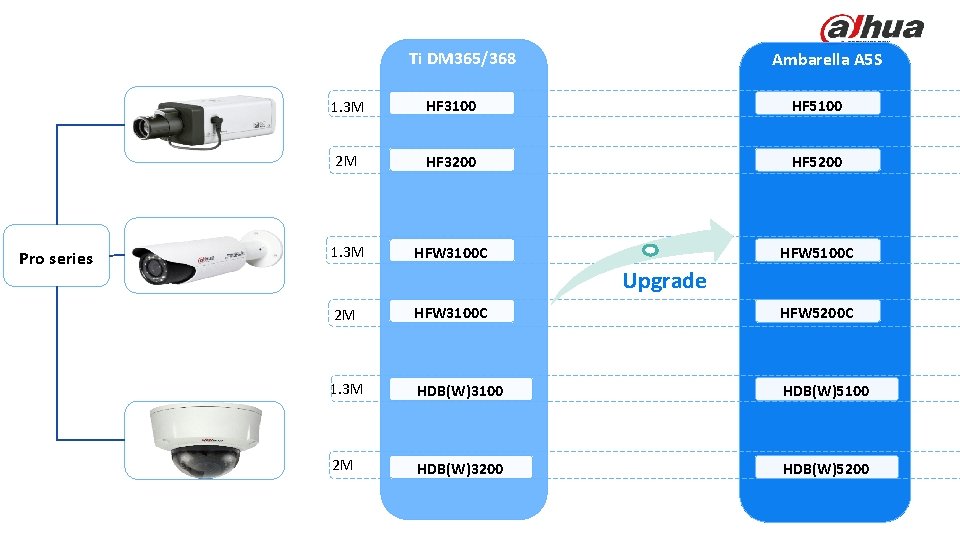

Smart Series Ti DM 365/368 Pro series Ambarella A 5 S 1. 3 M HF 3100 HF 5100 2 M HF 3200 HF 5200 1. 3 M HFW 3100 C HFW 5100 C Upgrade 2 M HFW 3100 C HFW 5200 C 1. 3 M HDB(W)3100 HDB(W)5100 2 M HDB(W)3200 HDB(W)5200 © 2013 DAHUA TECHNOLOGY

Lite Series NEW Lite 720 P HFW 1100 S-W HDW 1100 S HD 1100 C 1080 P HFW 2200 S-W HDW 2200 S HD 2200 C DEC DEC Timeline KW 10/12(W) HDBW 1100 E HDBW 2200 E DEC 2014 Q 1 © 2013 DAHUA TECHNOLOGY

Eco-savvy Series Ecosavvy NEW 1. 3 MP HFW 4100 S HDB 4100 C HDBW 4100 E HDB 4100 F-PT KW 100 1080 P HFW 4200 S HDB 4200 C HDBW 4200 E HDB 4200 F-PT K 200 3 MP HFW 4300 S HDB 4300 C HDBW 4300 E HDB 4300 F-PT SEP SEP 2014 Q 1 Timeline DEC © 2013 DAHUA TECHNOLOGY

Exist Appearance-Compact series - 3 Mega 2 Mega l Integrated Bracket l IP 66 waterproof 1. 3 Mega 720 P Ti Eco-savvy Lite HFW 4300 S HFW 3200 S HFW 4200 S HFW 2100 S HFW 4100 S HFW 2200 S-W HFW 1100 S-W l Fixed lens (3. 6 mm optional) l IR distance minimum 30 meters l POE optional © 2013 DAHUA TECHNOLOGY

Exist Appearance-Mini IR ball - l Mini IR Ball Camera l IP 66 waterproof l Fixed lens (3. 6 mm optional) 3 Mega 2 Mega 1. 3 Mega 720 P Ti Ecosavvy Lite HDW 4300 S HDW 3200 S HDW 4200 S HDW 2100 HDW 4100 S HDW 2200 S HDW 1100 S l For 720 P &1. 3 M with 2. 8 mm optional l IR distance minimum 20 meters l DC 12 V &POE (without 1105) © 2013 DAHUA TECHNOLOGY

Exist Appearance-Mini Dome - l Mini dome l Metal & plastic cover optional l For Metal case IK 10 & IP 66 3 Mega 2 Mega 1. 3 Mega 720 P Ti Ecosavvy Lite HDB 4300 C HDB 3200 C HDB 4200 C HD 2100 HDB 4100 C HD 2200 C HD 1100 C l Fixed lens (2. 8 mm 3. 6 mm optional) l Po. E support(except 1105 series) © 2013 DAHUA TECHNOLOGY

New Appearance-Mini Bullet - l Third Generation Design l IP 66 waterproof 3 Mega 2 Mega 1. 3 Mega Timeline Eco-savvy HFW 4300 E HFW 4200 E HFW 4100 E Dec l Smoke glass hidden the infrared Led l IR distance minimum 30 meters l DC 12 V &POE l Redesigned more stable Bracket © 2013 DAHUA TECHNOLOGY

New Appearance-Mini IR ball - l Metal case l IP 66 waterproof &IK 10 vandal proof 3 Mega 2 Mega 1. 3 Mega Timeline Eco-savvy HDW 4300 C HDW 4200 C HDW 4100 C Dec l Array IR LED l Built-in Mic l Fixed lens (3. 6 mm optional) l IR distance minimum 30 meters l Redesigned structure. Easy to install © 2013 DAHUA TECHNOLOGY

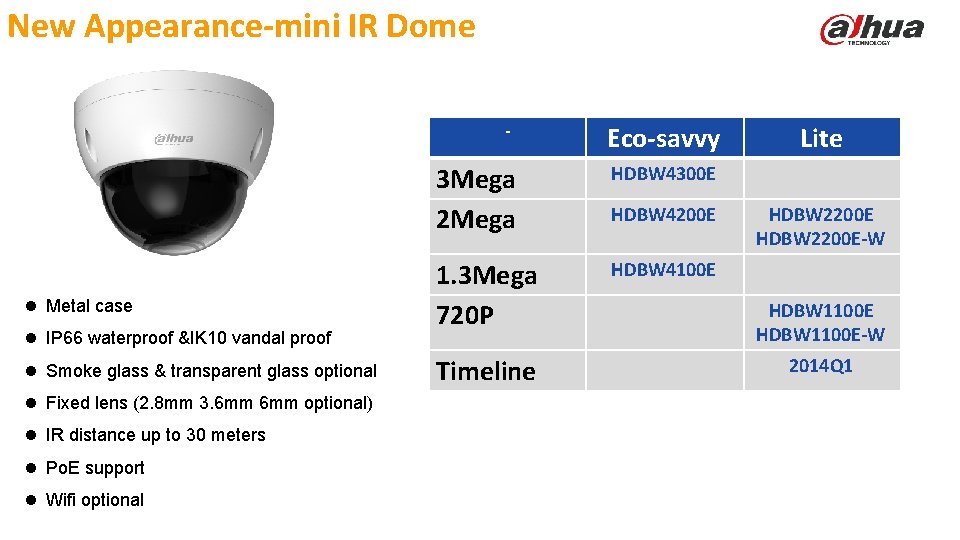

New Appearance-mini IR Dome - l Metal case l IP 66 waterproof &IK 10 vandal proof l Smoke glass & transparent glass optional Eco-savvy 3 Mega 2 Mega HDBW 4300 E 1. 3 Mega 720 P HDBW 4100 E Timeline HDBW 4200 E Lite HDBW 2200 E-W HDBW 1100 E-W 2014 Q 1 l Fixed lens (2. 8 mm 3. 6 mm optional) l IR distance up to 30 meters l Po. E support l Wifi optional © 2013 DAHUA TECHNOLOGY

New Appearance-Compact series - l Metal case l IP 66 waterproof &IK 10 vandal proof 3 Mega 2 Mega 1. 3 Mega Timeline Eco-savvy HDB 4300 F-PT /HDB 4300 F-WPT HDB 4200 F-PT /HDB 4200 F-WPT HDB 4100 F-PT /HDB 4100 F-WPT 2014 Q 1 l Built-in Mic l 360°Pan & 90°Tilt supported l SD local storage supported l Redesigned structure. Easy to install © 2013 DAHUA TECHNOLOGY

Exit Appearance-Home series - 1080 P 1. 3 Mega l Cube & cute design l With bracket integrated l Built-in Mic & Speaker optional 720 P Timeline Eco-savvy Lite K 200/A/W K 100/A/W KW 10(W) KW 12(W) 2014 Q 1 l PIR sensor optional l Flash & Infrared IR optional l WIFI supported (WPS easy connection l SD local storage supported © 2013 DAHUA TECHNOLOGY

Appearance-Pro series NEW NEW © 2013 DAHUA TECHNOLOGY

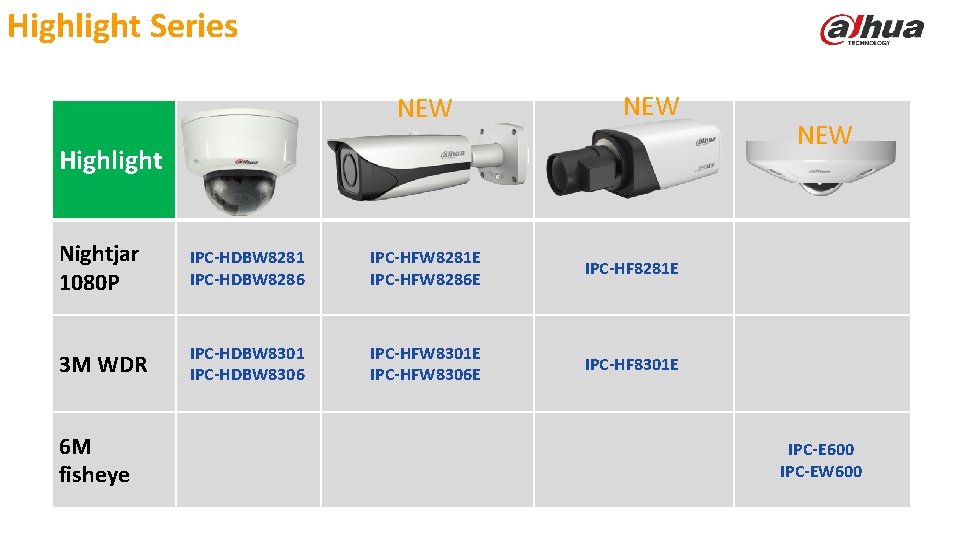

Highlight Series NEW Highlight Nightjar 1080 P IPC-HDBW 8281 IPC-HDBW 8286 IPC-HFW 8281 E IPC-HFW 8286 E IPC-HF 8281 E 3 M WDR IPC-HDBW 8301 IPC-HDBW 8306 IPC-HFW 8301 E IPC-HFW 8306 E IPC-HF 8301 E 6 M fisheye NEW IPC-E 600 IPC-EW 600 © 2013 DAHUA TECHNOLOGY

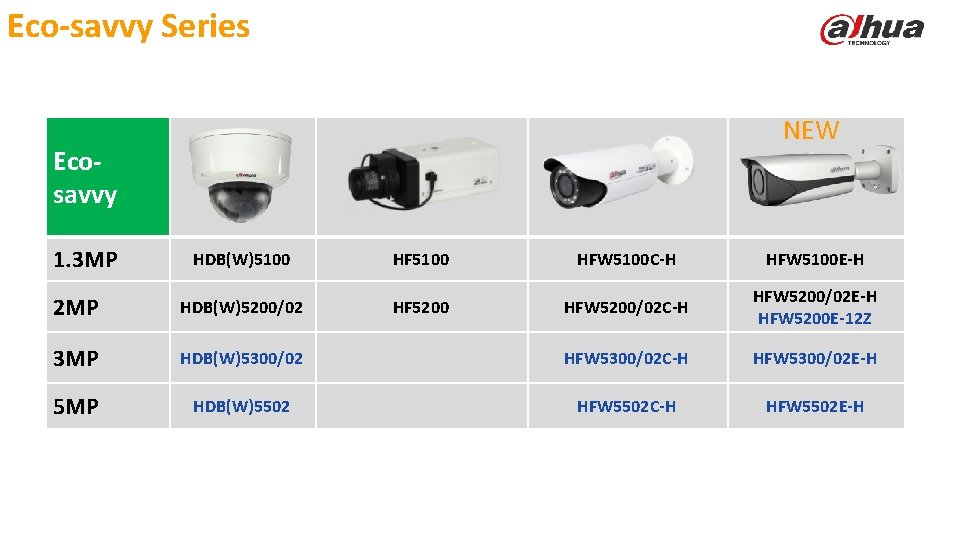

Eco-savvy Series NEW Ecosavvy 1. 3 MP HDB(W)5100 HFW 5100 C-H HFW 5100 E-H 2 MP HDB(W)5200/02 HF 5200 HFW 5200/02 C-H HFW 5200/02 E-H HFW 5200 E-12 Z 3 MP HDB(W)5300/02 HFW 5300/02 C-H HFW 5300/02 E-H 5 MP HDB(W)5502 HFW 5502 C-H HFW 5502 E-H © 2013 DAHUA TECHNOLOGY

Exist Appearance-Pro series - l Third Generation design l 1. 3 Mega to 5 Mega l WDR optional l WIFI optional Ti series Eco-savvy 5 Mega 3 Mega HF 3500 2 Mega 1. 3 Mega HF 3200 HF 5200 HF 3101 HF 3100 HF 5100 highlight HF 3301 HF 3300 l POE support © 2013 DAHUA TECHNOLOGY

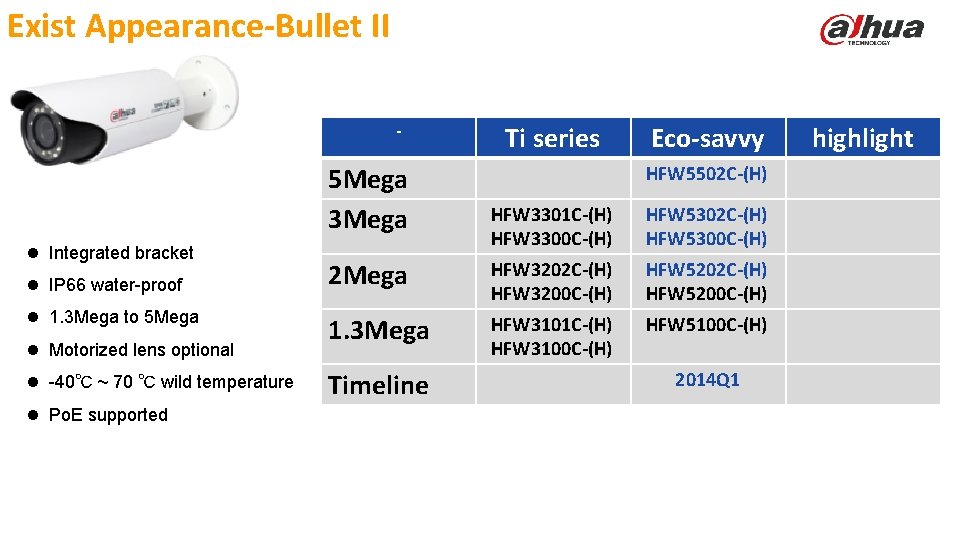

Exist Appearance-Bullet II - 5 Mega 3 Mega l Integrated bracket l IP 66 water-proof l 1. 3 Mega to 5 Mega l Motorized lens optional l -40℃ ~ 70 ℃ wild temperature Ti series Eco-savvy HFW 5502 C-(H) HFW 3301 C-(H) HFW 3300 C-(H) HFW 5302 C-(H) HFW 5300 C-(H) 2 Mega HFW 3202 C-(H) HFW 3200 C-(H) HFW 5202 C-(H) HFW 5200 C-(H) 1. 3 Mega HFW 3101 C-(H) HFW 3100 C-(H) HFW 5100 C-(H) Timeline highlight 2014 Q 1 l Po. E supported © 2013 DAHUA TECHNOLOGY

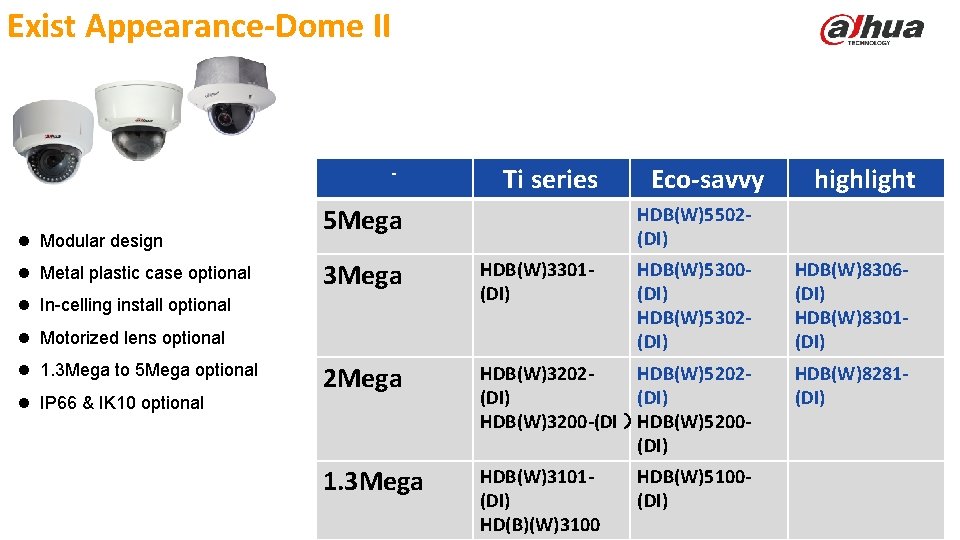

Exist Appearance-Dome II - l Modular design l Metal plastic case optional Ti series 5 Mega HDB(W)5502(DI) HDB(W)3301(DI) HDB(W)5300(DI) HDB(W)5302(DI) HDB(W)8306(DI) HDB(W)8301(DI) 2 Mega HDB(W)3202 HDB(W)5202(DI) HDB(W)3200 -(DI ）HDB(W)5200(DI) HDB(W)8281(DI) 1. 3 Mega HDB(W)3101(DI) HD(B)(W)3100 l Motorized lens optional l IP 66 & IK 10 optional highlight 3 Mega l In-celling install optional l 1. 3 Mega to 5 Mega optional Eco-savvy HDB(W)5100(DI) © 2013 DAHUA TECHNOLOGY

New Appearance-Bullet - l 1. 3 Mega to 5 Mega optional l Starlight series in 2 M l Smoke glass for Infrared IR l Motorized lens optional l 12 x optional zoom l Focus outside design Eco-savvy 5 Mega 3 Mega HFW 5502 E-(H) 2 Mega HFW 5202 E-(H) HFW 5200 E-12 Z 1. 3 Mega Timeline HFW 5100 E-(H) highlight HFW 5300 E-(H) HFW 5302 E-(H) 2014 Q 1 l Heater optional l IP 66 water-proof © 2013 DAHUA TECHNOLOGY

New Appearance-Box - l Smooth design without screw l ABF (auto back focus) 12 Mega 5 Mega 3 Mega 2 Mega Evo-savvy highlight HF 71200 E HF 8301 E HF 8281 E l Po. E supported © 2013 DAHUA TECHNOLOGY

New Appearance-Fisheye - 12 Mega 6 Mega l 6 Mega Sony Exmor Sensor l Fisheye lens 180 Timeline Evo-savvy highlight IPC-E 600 IPC-EW 600 2014 Q 2 l IR optional l Vandal proof & water proof © 2013 DAHUA TECHNOLOGY

OEM Case- Mini Bullet Jupiter Venus l Jupiter , Venus is ready for order © 2013 DAHUA TECHNOLOGY

OEM Case- Mini IR ball Jupiter Venus l Jupiter , Venus is ready for order l The design of rest two is ready © 2013 DAHUA TECHNOLOGY

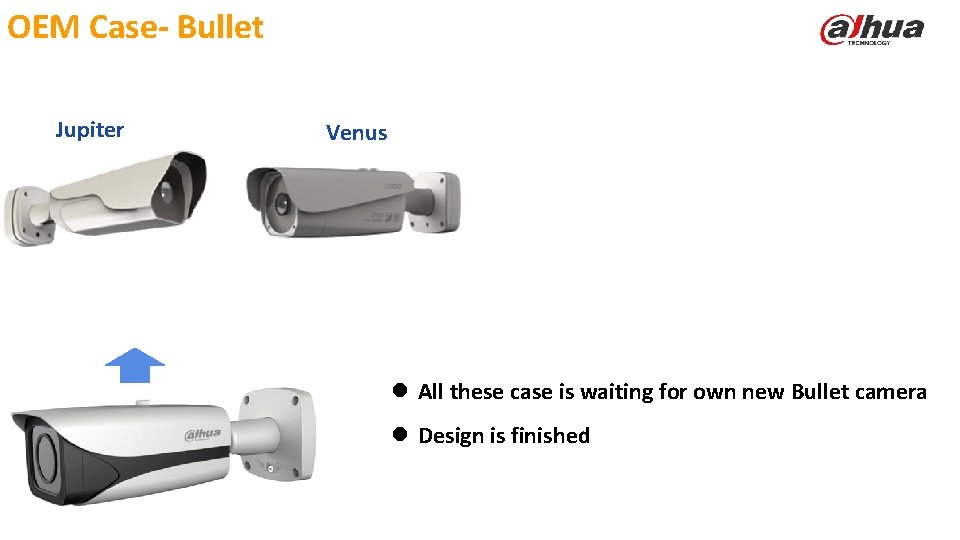

OEM Case- Bullet Jupiter Venus l All these case is waiting for own new Bullet camera l Design is finished © 2013 DAHUA TECHNOLOGY

OEM Case- Dome Jupiter Venus l Venus is ready for order l The other’s design is finished waiting for developing © 2013 DAHUA TECHNOLOGY

THANK YOU! www. dahuasecurity. com © 2013 DAHUA TECHNOLOGY
