Road Infrastructure Safety Management as part of the Decade of Action for Road Safety - Preconditions, Instruments and Examples - Univ. -Prof. Dr. -Ing. Jürgen Gerlach University of Wuppertal, Germany Divcibare, 18 th of April 2013 Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 1

WUPPERTAL University of Wuppertal Haspel Campus picture: presse. uni-wuppertal. de Main Campus Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 2

WUPPERTAL Schwebebahn – Suspended Monorail picture: www. answers. com picture: www. polar. sunynassau. edu Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 3

Main Problem: Safety is not the main focus Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 4

One Question For whom do you plan and design municipality and urban roads? Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

One Question Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

One Question Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

Example: EU - Road infrastructure safety management directive Road infrastructure safety management 1 Road safety impact assessment 2 Road safety audits 3 4 Network safety management Road safety inspection Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 8

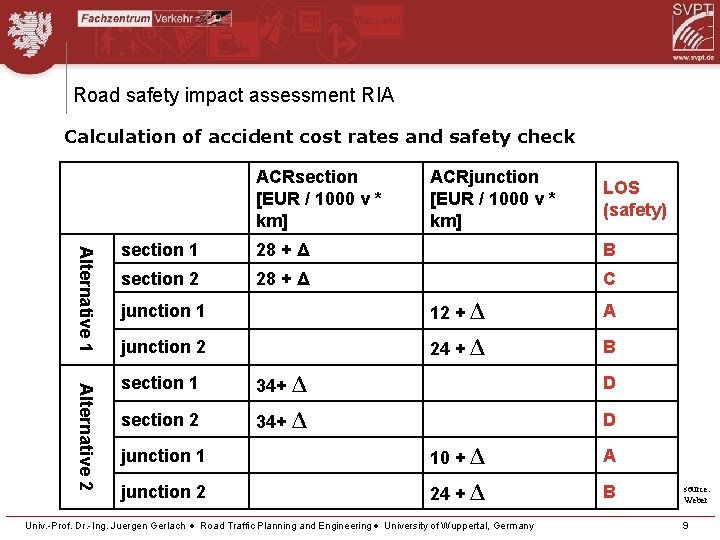

Road safety impact assessment RIA Calculation of accident cost rates and safety check ACRsection [EUR / 1000 v * km] ACRjunction [EUR / 1000 v * km] LOS (safety) section 1 28 + Δ B section 2 28 + Δ C junction 1 12 + Δ A junction 2 24 + Δ B section 1 34+ Δ D section 2 34+ Δ D junction 1 10 + Δ A junction 2 24 + Δ B Alternative 1 Alternative 2 Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany source: Weber 9

Road safety audit RSA Courses Fundament als of road safety M 1 Fundament als of Road Safety Audits M 2 Motorway s M 3 Cross. Rural Town Roads- Links M 4 Urban Main Roads Residential Roads M 7 M 5 M 1. 1 M 2. 1 M 3. 1 M 4. 1 M 5. 1 M 6 M 7. 1 M 1. 2 M 2. 2 M 3. 2 M 4. 2 M 5. 2 M 6. 2 M 7. 2 M 3. 3 M 4. 3 M 5. 3 M 6. 3 M 7. 3 M 3. 4 M 4. 4 M 5. 4 M 6. 4 M 7. 4 M 4. 5 M 5. 5 M 6. 5 M 1. 3 Lecture M 6. 6 Tutorial-like lecture M 6. 7 Site survey M 6. 8 Assignment M 6. 9 Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany source: MAZS 10

Road safety audit RSA Example modul: Excercise analysis of accidents Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 11

Road safety audit RSA Safety deficiency in a planning of an urban road: insufficient sight distances Deficits Group of deficits Subgroup of deficits Line-of-sight obstruction by parking vehicles Parking traffic Bicycle/ Pedestrian Layout: Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 12

Road safety audit RSA Safety deficiency in a planning of an urban road: insufficient sight distances Deficits Group of deficits Subgroup of deficits Line-of-sight obstruction by parking vehicles Parking traffic Bicycle/ Pedestrian Layout: Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 13

Typical Black Spot in Germany (Acc. in one Year) Road safety audit RSA Safety deficiency in a planning of a new intersection: Left turn while opposite traffic has a green signal at the same time (mostly elderly drivers) Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

Network safety management NSM accident costs: Quick wins by a Network Safety Management < 1 T€ per km and year 1 - 50 T€ per km and year 50 -100 T€ per km and year > 100 T€ per km and year Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 15

RSI Example Insufficient Sight Distances source: SVPT Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 16

RSI Example Safe Pedestrian Crossings sightdistance Always take care for the Visibility and Sight view at any Pedestrian Crossing Fan = min. 20 m Fab = min. 15 m sightdistance Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 17

Measures for elderly people Research for an ageing Society Face-to-face interviews If I was a mayor, I would like to… …enhance traffic signals and refuges/pedestrian crossings, …appoint city-service and police more often, …sensitize fellow citizens, …care for road maintenance, …barrier-free sidewalks, …build more and cheaper parking-lots, …establish more traffic calming. Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

Pedestrian Crossing Problem: kerbs as obstacles Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

Other Messages and Measures Pedestrian Quality Audit and Inspection - Examples First order: Are special features required for elderly people? Picture: Grossmann Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

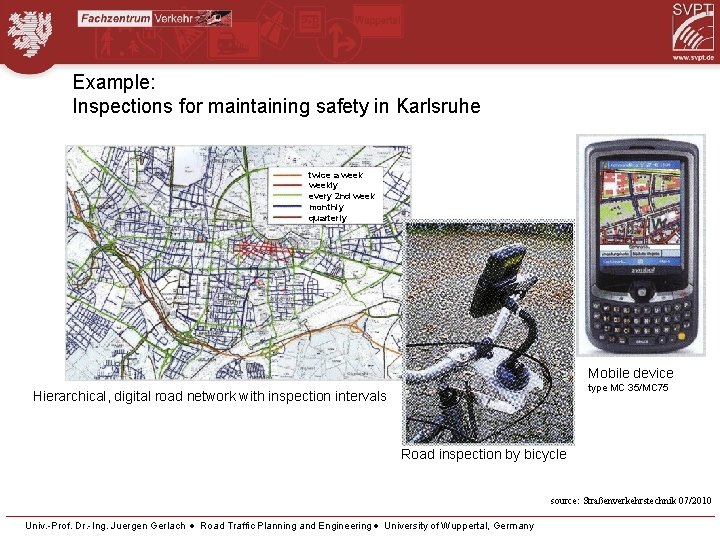

Example: Inspections for maintaining safety in Karlsruhe twice a weekly every 2 nd week monthly quarterly Mobile device type MC 35/MC 75 Hierarchical, digital road network with inspection intervals Road inspection by bicycle source: Straßenverkehrstechnik 07/2010 Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

New Urban Design One Aim: Simply. City Reducing complex situations Source: Franz Linder, P 3 Agentur, Cologne Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany

Thanks for your attention! Juergen Gerlach svpt@uni-wuppertal. de www. traffic-transport. org Univ. -Prof. Dr. -Ing. Juergen Gerlach Road Traffic Planning and Engineering University of Wuppertal, Germany 23
