RNAV RNA and RNP Strategy in Japan ICAO Worldwide Symposium on Performance of the Air Navigation System Montreal, 26 - 30 March 2007 Yoshiki Imawaka Director for International Policy Coordination ATS Systems Planning Division Civil Aviation Bureau, Japan 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 1

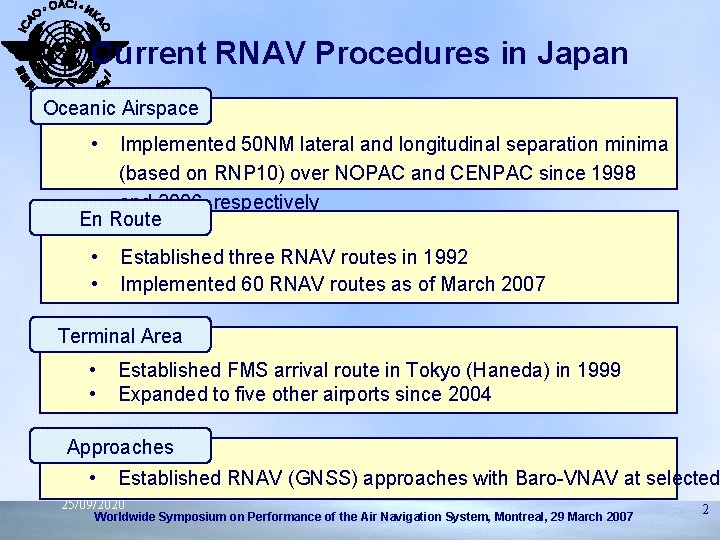

Current RNAV Procedures in Japan Oceanic Airspace • Implemented 50 NM lateral and longitudinal separation minima (based on RNP 10) over NOPAC and CENPAC since 1998 and 2006, respectively En Route • • Established three RNAV routes in 1992 Implemented 60 RNAV routes as of March 2007 Terminal Area • • Established FMS arrival route in Tokyo (Haneda) in 1999 Expanded to five other airports since 2004 Approaches • Established RNAV (GNSS) approaches with Baro-VNAV at selected 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 2

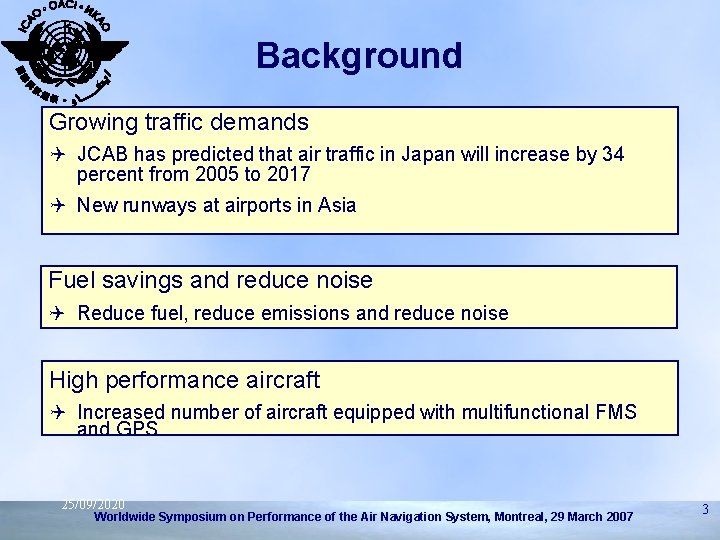

Background Growing traffic demands Q JCAB has predicted that air traffic in Japan will increase by 34 percent from 2005 to 2017 Q New runways at airports in Asia Fuel savings and reduce noise Q Reduce fuel, reduce emissions and reduce noise High performance aircraft Q Increased number of aircraft equipped with multifunctional FMS and GPS 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 3

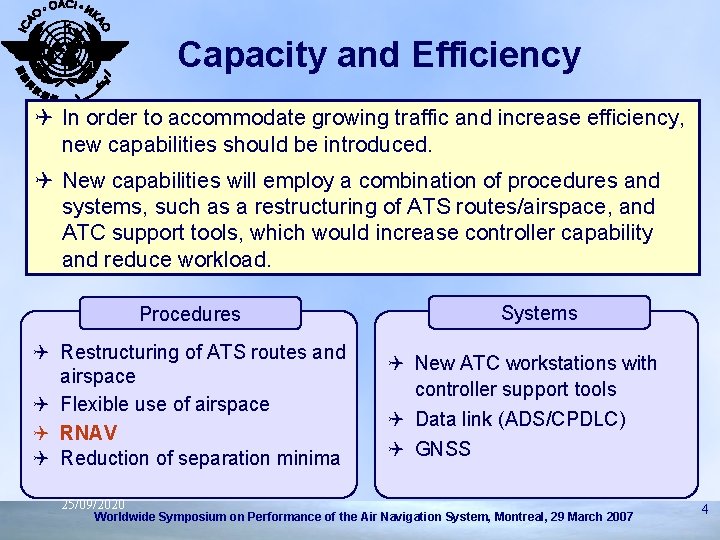

Capacity and Efficiency Q In order to accommodate growing traffic and increase efficiency, new capabilities should be introduced. Q New capabilities will employ a combination of procedures and systems, such as a restructuring of ATS routes/airspace, and ATC support tools, which would increase controller capability and reduce workload. Procedures Q Restructuring of ATS routes and airspace Q Flexible use of airspace Q RNAV Q Reduction of separation minima 25/09/2020 Systems Q New ATC workstations with controller support tools Q Data link (ADS/CPDLC) Q GNSS Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 4

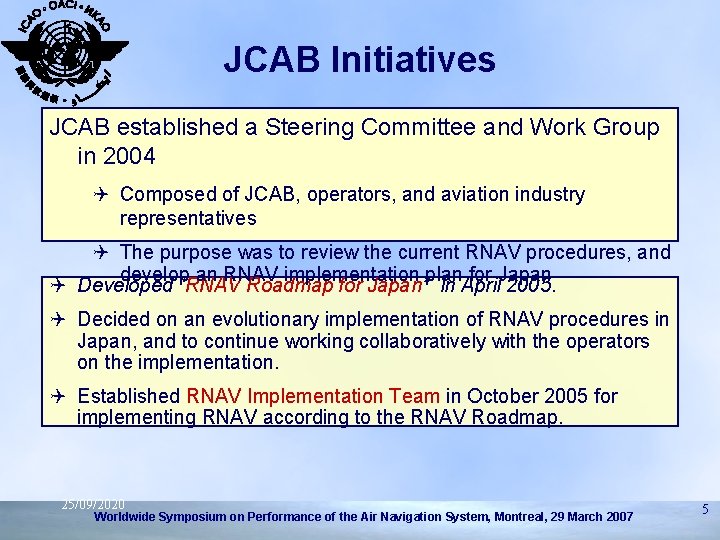

JCAB Initiatives JCAB established a Steering Committee and Work Group in 2004 Q Composed of JCAB, operators, and aviation industry representatives Q The purpose was to review the current RNAV procedures, and develop an RNAV implementation plan for Japan Q Developed “RNAV Roadmap for Japan” in April 2005. Q Decided on an evolutionary implementation of RNAV procedures in Japan, and to continue working collaboratively with the operators on the implementation. Q Established RNAV Implementation Team in October 2005 for implementing RNAV according to the RNAV Roadmap. 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 5

JCAB Study 1. Reviewed current operations (en route and terminal) 2. Studied current and forecasted aircraft equipage 3. Studied airspace and infrastructure 4. Reviewed procedures currently available and identified procedures to be developed Q Certification, Operational Approvals, Design Criteria, ATC Procedures, and Flight Inspection International Harmonization 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 6

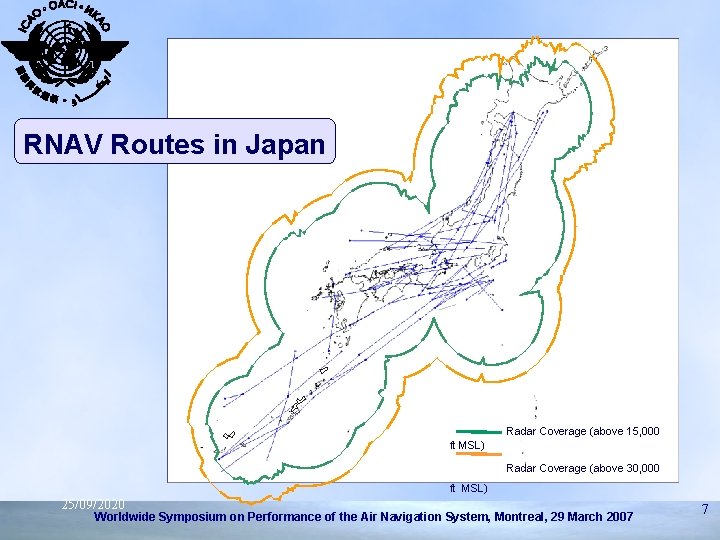

RNAV Routes in Japan Radar Coverage (above 15, 000 ft MSL) Radar Coverage (above 30, 000 ft MSL) 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 7

RNAV Systems & Equipage Q　GNSS (GPS, SBAS) Q　DME/DME (two DME) Q　VOR/DME (single VOR/DME) Q　Self-contained navigation system (IRU, INS) Non-RNAV capability Q　Combination of above B-747 classic GPS (without IRU) DME/DME+IRU 25/09/2020 GPS+DME/DME+IRU Surveyed commercial passenger/cargo aircraft registered in Japan Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 8

Know our aircraft Surveyed commercial passenger/cargo aircraft registered in Japan * Capable as determined by equipment only. Crew training is not 25/09/2020 considered 9 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007

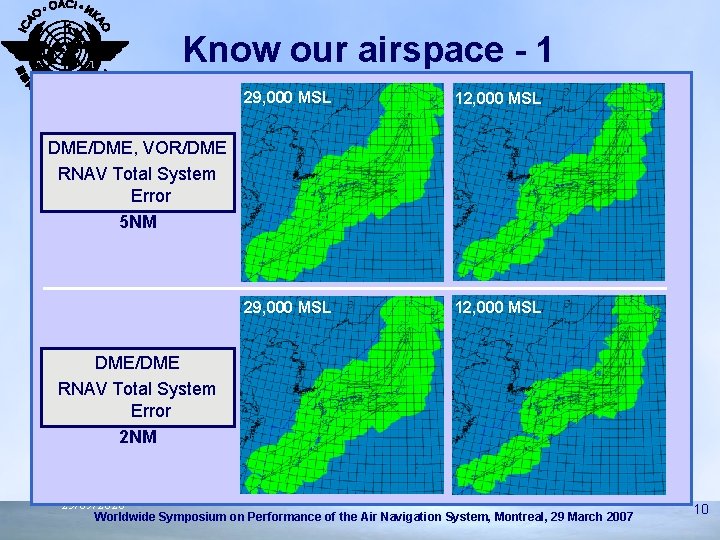

Know our airspace - 1 29, 000 MSL 12, 000 MSL DME/DME, VOR/DME RNAV Total System Error 5 NM DME/DME RNAV Total System Error 2 NM 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 10

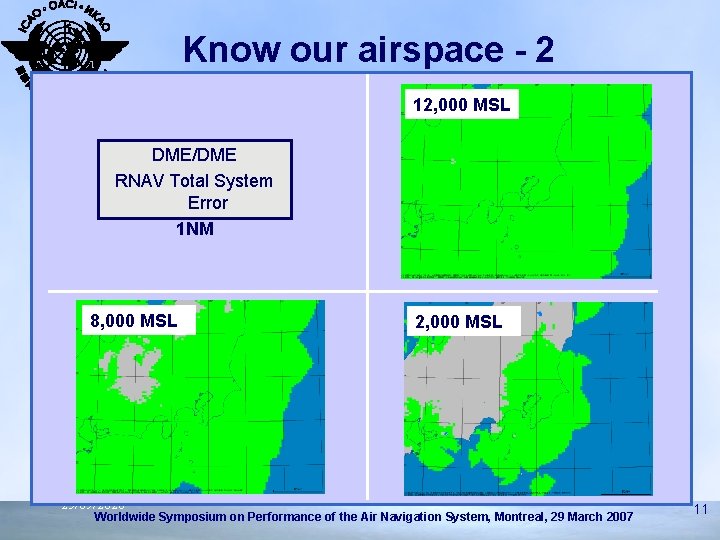

Know our airspace - 2 12, 000 MSL DME/DME RNAV Total System Error 1 NM 8, 000 MSL 25/09/2020 2, 000 MSL Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 11

RNAV Roadmap Major issues considered Q International Harmonization Q Increase capacity; Tokyo 4 th Runway and Kansai 2 nd Runway Implementation Phase Q - 2007 : Introduction of internationally harmonized procedures Q 2008 - 2012 : Increase capacity and efficient operations Q 2013 - 2017, beyond : Future direction 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 12

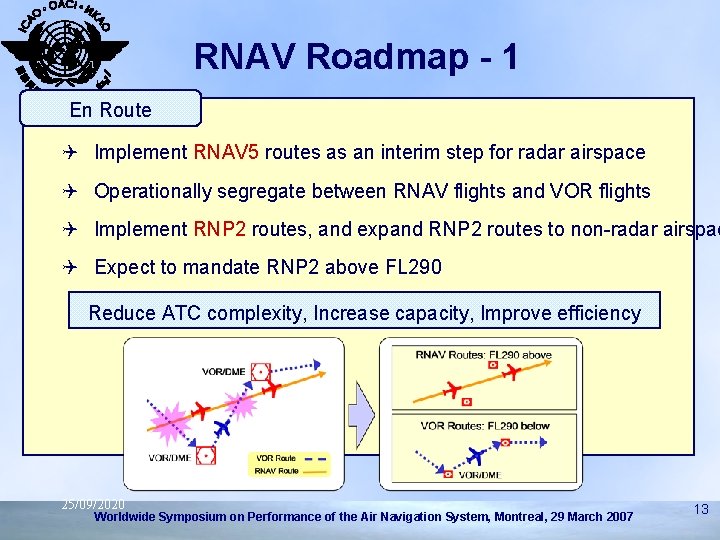

RNAV Roadmap - 1 En Route Q Implement RNAV 5 routes as an interim step for radar airspace Q Operationally segregate between RNAV flights and VOR flights Q Implement RNP 2 routes, and expand RNP 2 routes to non-radar airspac Q Expect to mandate RNP 2 above FL 290 Reduce ATC complexity, Increase capacity, Improve efficiency 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 13

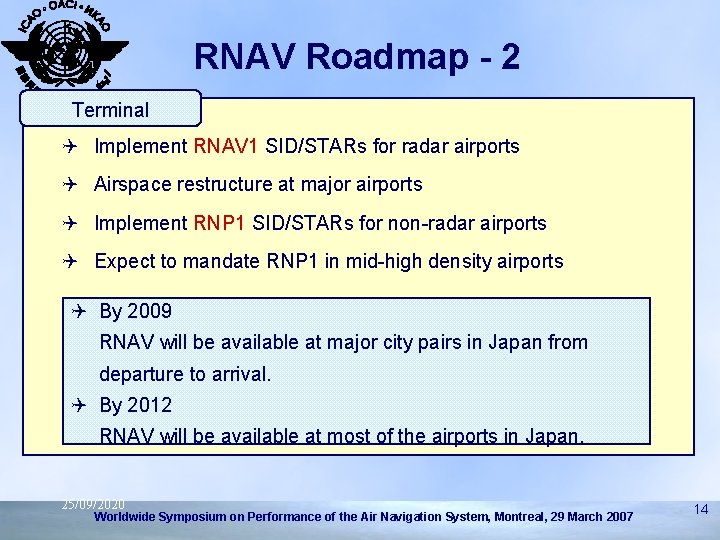

RNAV Roadmap - 2 Terminal Q Implement RNAV 1 SID/STARs for radar airports Q Airspace restructure at major airports Q Implement RNP 1 SID/STARs for non-radar airports Q Expect to mandate RNP 1 in mid-high density airports Q By 2009 RNAV will be available at major city pairs in Japan from departure to arrival. Q By 2012 RNAV will be available at most of the airports in Japan. 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 14

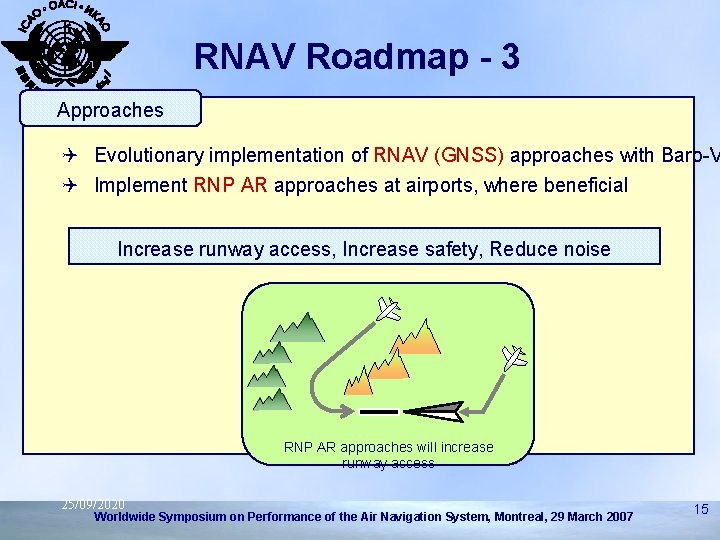

RNAV Roadmap - 3 Approaches Q Evolutionary implementation of RNAV (GNSS) approaches with Baro-V Q Implement RNP AR approaches at airports, where beneficial Increase runway access, Increase safety, Reduce noise RNP AR approaches will increase runway access 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 15

Japan Roadmap for RNP 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 16

Thank you for your attention E-mail: imawaka-y 2 ys@mlit. go. jp 25/09/2020 Worldwide Symposium on Performance of the Air Navigation System, Montreal, 29 March 2007 17
