RNAV Procedures AIXM Procedures Seminar 1 2 Sept

RNAV Procedures AIXM Procedures Seminar 1 -2 Sept 2010 1

Conventional Procedure Description • Conventional Instrument Flight Procedures • Published in AIP • Defined as textual descriptions supported by charts • The charts are used by the pilots and ATC • Recommend that AIP does not provide RNAV interpretations of procedures not designed according to RNAV procedure design methodology • Data Houses and OEM best placed to interpret requirement for individual FMS/RNAV. However, description must be clear and unambiguous AIXM Procedures Seminar 1 -2 Sept 2010 2

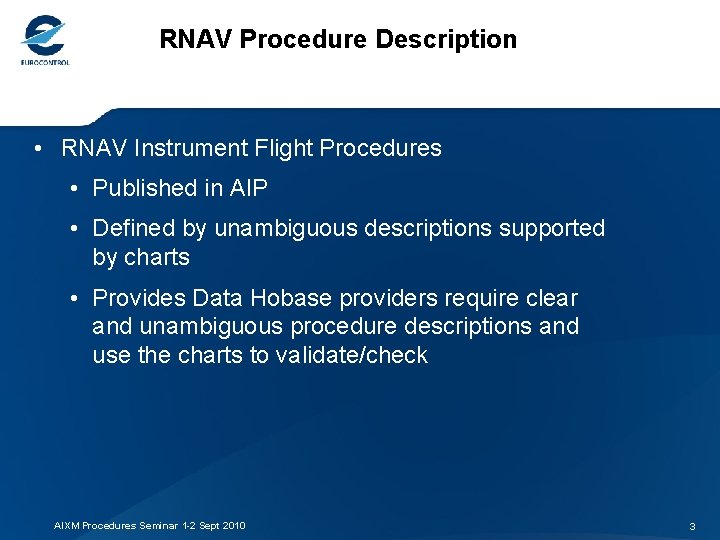

RNAV Procedure Description • RNAV Instrument Flight Procedures • Published in AIP • Defined by unambiguous descriptions supported by charts • Provides Data Hobase providers require clear and unambiguous procedure descriptions and use the charts to validate/check AIXM Procedures Seminar 1 -2 Sept 2010 3

Coding the Procedure coding • Translates textual description of route or a terminal procedure into a format useable in RNAV systems. Two steps: • Translation from AIP text/chart into ARINC 424 alphanumeric code • Translation from ARINC 424 into avionic specific binary code (known as ‘packing’) Successful translation into ARINC 424 depends upon a clear and unambiguous description of the route/procedure. AIXM Procedures Seminar 1 -2 Sept 2010 4

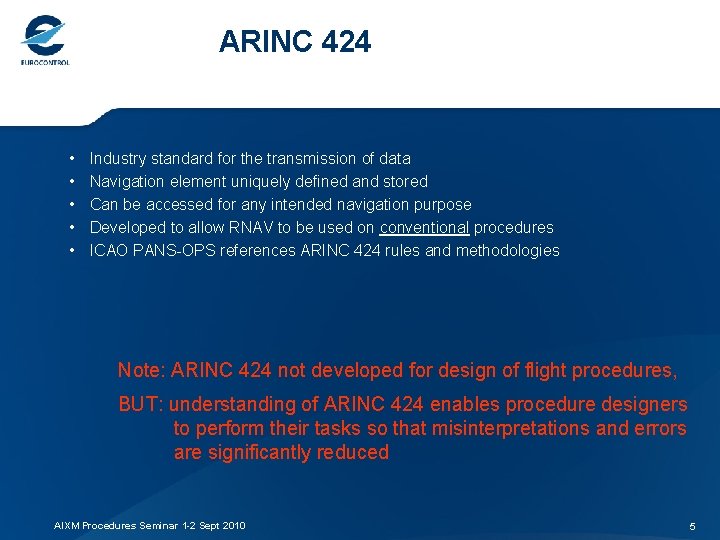

ARINC 424 • • • Industry standard for the transmission of data Navigation element uniquely defined and stored Can be accessed for any intended navigation purpose Developed to allow RNAV to be used on conventional procedures ICAO PANS-OPS references ARINC 424 rules and methodologies Note: ARINC 424 not developed for design of flight procedures, BUT: understanding of ARINC 424 enables procedure designers to perform their tasks so that misinterpretations and errors are significantly reduced AIXM Procedures Seminar 1 -2 Sept 2010 5

En-Route Coding • Individual airway legs defined by waypoint and altitude constraints • En-route holds not associated with any aerodrome and identified as ‘ENRT’ AIXM Procedures Seminar 1 -2 Sept 2010 6

Terminal Procedure Coding • Procedure identified as SID, STAR or APCH • Only one STAR allowed per route • ENRT Transitions used to link STARs to APCHs. • RWY Transitions used to link RWYs to SIDs • Individual legs defined by heading, waypoint transition, path terminator, speed constraint, altitude constraint as appropriate AIXM Procedures Seminar 1 -2 Sept 2010 7

Waypoint Transitions Fly-by Fly-over Radius to Fix (RF) AIXM Procedures Seminar 1 -2 Sept 2010 8

RNAV – Path Terminator Leg Type Terminator Path Constant DME arc Course to Direct Track Course from a fix to Holding pattern Initial Constant radius Track between Heading to AIXM Procedures Seminar 1 -2 Sept 2010 A C D F H I R T V A C D F I M R Altitude Distance DME distance Fix Next leg Manual termination Radial termination 9

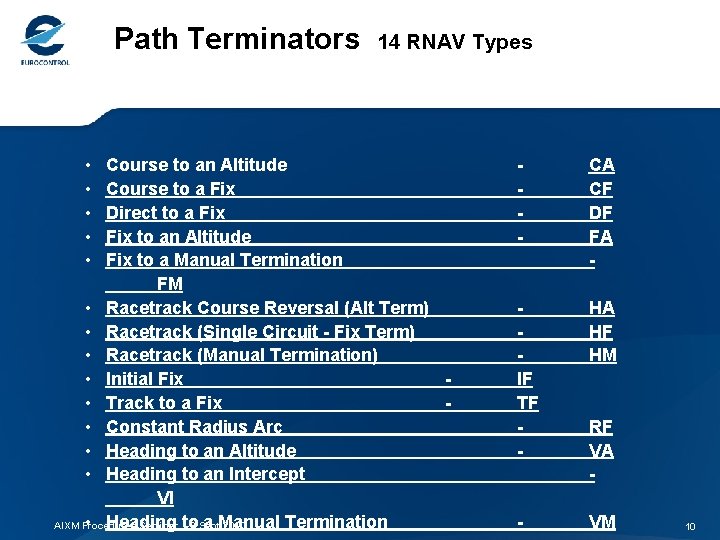

Path Terminators • • • 14 RNAV Types Course to an Altitude Course to a Fix Direct to a Fix to an Altitude Fix to a Manual Termination FM • Racetrack Course Reversal (Alt Term) • Racetrack (Single Circuit - Fix Term) • Racetrack (Manual Termination) • Initial Fix • Track to a Fix • Constant Radius Arc • Heading to an Altitude • Heading to an Intercept VI • Heading a Manual Termination AIXM Procedures Seminar to 1 -2 Sept 2010 - CA CF DF FA - IF TF - HA HF HM - VM RF VA 10

Course to an Altitude Course is flown making adjustment for wind 090 Unspecified Position 0 CA Leg AIXM Procedures Seminar 1 -2 Sept 2010 11

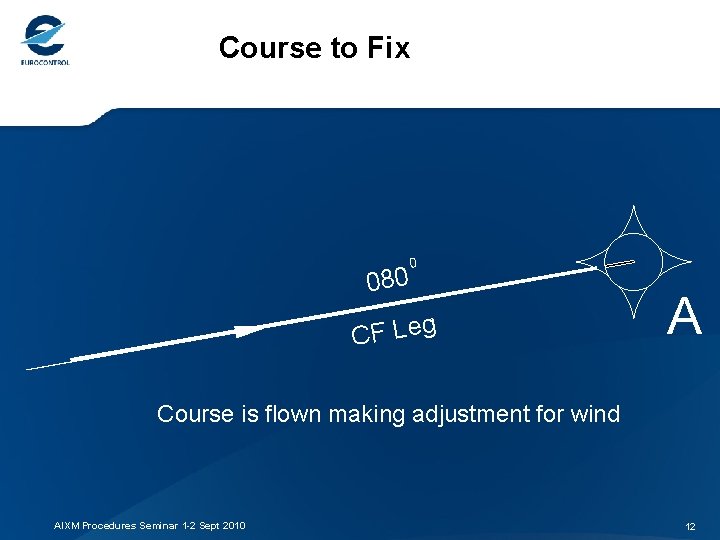

Course to Fix 080 0 CF Leg A Course is flown making adjustment for wind AIXM Procedures Seminar 1 -2 Sept 2010 12

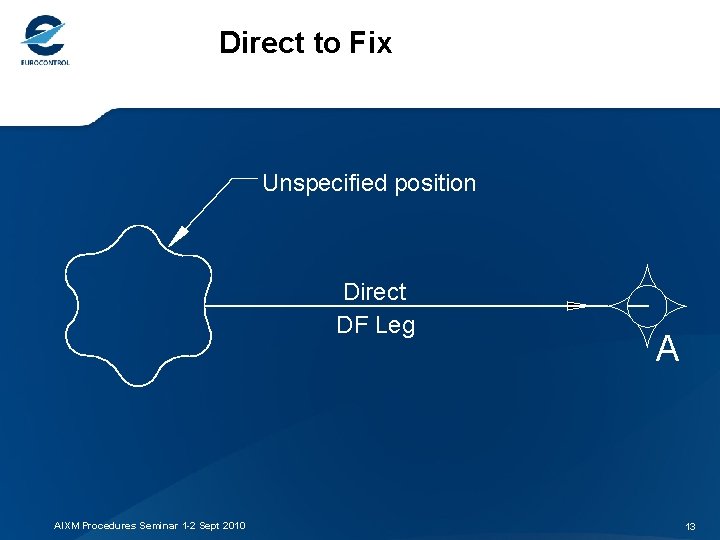

Direct to Fix Unspecified position Direct DF Leg AIXM Procedures Seminar 1 -2 Sept 2010 A 13

Fix to Altitude FA leg is flown making adjustment for wind FA Leg 0 080 A Unspecified Position 8000' AIXM Procedures Seminar 1 -2 Sept 2010 14

From a Fix to a Manual Termination FM leg is flown making adjustment for wind 80 Radar Vectors 0 g FM Le A AIXM Procedures Seminar 1 -2 Sept 2010 15

Racetrack xt t Ne men g Se HA - Terminates at an altitude HF - Terminates at the fix after one orbit A 340 0 HM - Manually terminated s iou nt ev Pr gme Se AIXM Procedures Seminar 1 -2 Sept 2010 16

Initial Fix IF A AIXM Procedures Seminar 1 -2 Sept 2010 17

Radius to Fix RF Leg C B Previous Segment A AIXM Procedures Seminar 1 -2 Sept 2010 Arc Centre Se N gmext en t 18

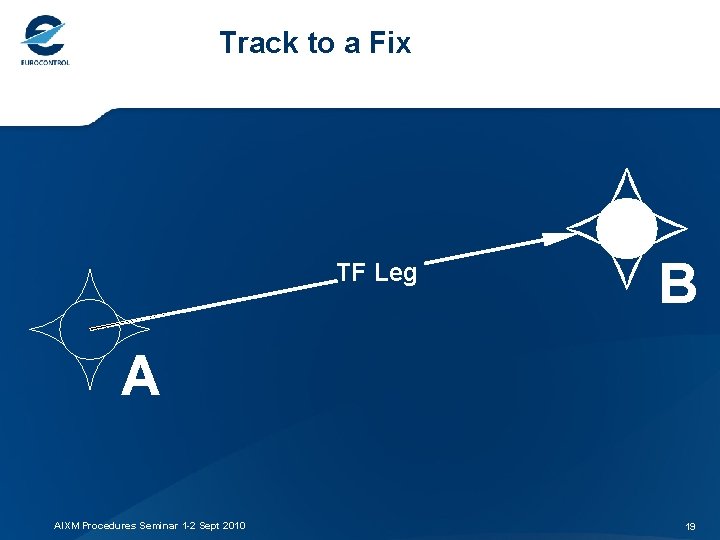

Track to a Fix TF Leg B A AIXM Procedures Seminar 1 -2 Sept 2010 19

Heading to an Altitude Unspecified Position No correction made for wind 090 0 VA Leg 8000' AIXM Procedures Seminar 1 -2 Sept 2010 20

Heading to Manual Termination 110 ° VM No correction made for wind Leg Rad ar Vec tors AIXM Procedures Seminar 1 -2 Sept 2010 21

Examples of FMS leg type capabilty AIXM Procedures Seminar 1 -2 Sept 2010 22

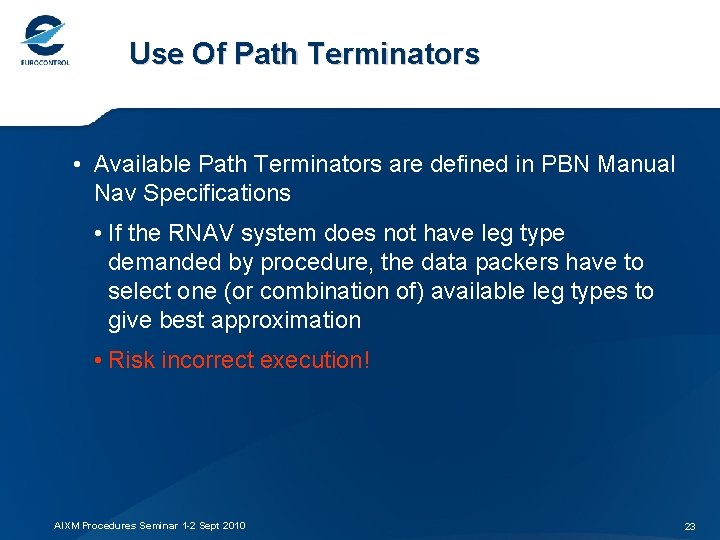

Use Of Path Terminators • Available Path Terminators are defined in PBN Manual Nav Specifications • If the RNAV system does not have leg type demanded by procedure, the data packers have to select one (or combination of) available leg types to give best approximation • Risk incorrect execution! AIXM Procedures Seminar 1 -2 Sept 2010 23

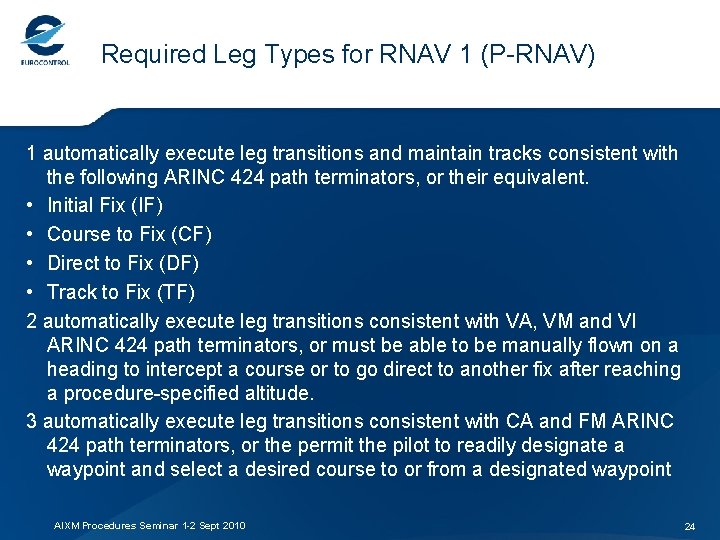

Required Leg Types for RNAV 1 (P-RNAV) 1 automatically execute leg transitions and maintain tracks consistent with the following ARINC 424 path terminators, or their equivalent. • Initial Fix (IF) • Course to Fix (CF) • Direct to Fix (DF) • Track to Fix (TF) 2 automatically execute leg transitions consistent with VA, VM and VI ARINC 424 path terminators, or must be able to be manually flown on a heading to intercept a course or to go direct to another fix after reaching a procedure-specified altitude. 3 automatically execute leg transitions consistent with CA and FM ARINC 424 path terminators, or the permit the pilot to readily designate a waypoint and select a desired course to or from a designated waypoint AIXM Procedures Seminar 1 -2 Sept 2010 24

Advice • Do not attempt to identify Arinc 424 codes for conventional procedures • Frequently RNAV systems cannot follow conventional procedures without careful selection of one (or combination of multiple) leg types • Ensure that only leg types called up in RNAV/RNP spec used • Adequate training needed by procedure designers on leg types • Work with Data houses AIXM Procedures Seminar 1 -2 Sept 2010 25

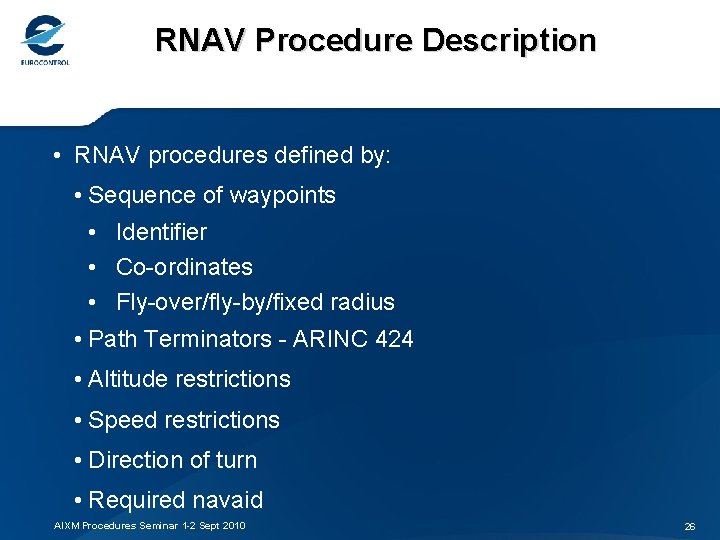

RNAV Procedure Description • RNAV procedures defined by: • Sequence of waypoints • Identifier • Co-ordinates • Fly-over/fly-by/fixed radius • Path Terminators - ARINC 424 • Altitude restrictions • Speed restrictions • Direction of turn • Required navaid AIXM Procedures Seminar 1 -2 Sept 2010 26

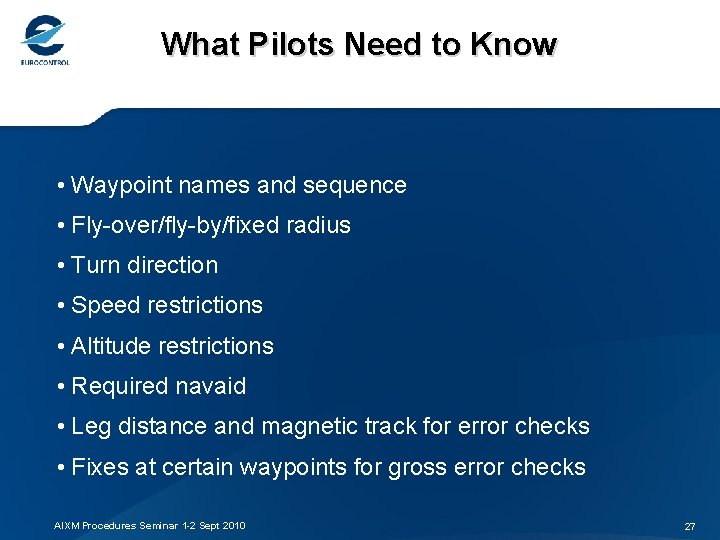

What Pilots Need to Know • Waypoint names and sequence • Fly-over/fly-by/fixed radius • Turn direction • Speed restrictions • Altitude restrictions • Required navaid • Leg distance and magnetic track for error checks • Fixes at certain waypoints for gross error checks AIXM Procedures Seminar 1 -2 Sept 2010 27

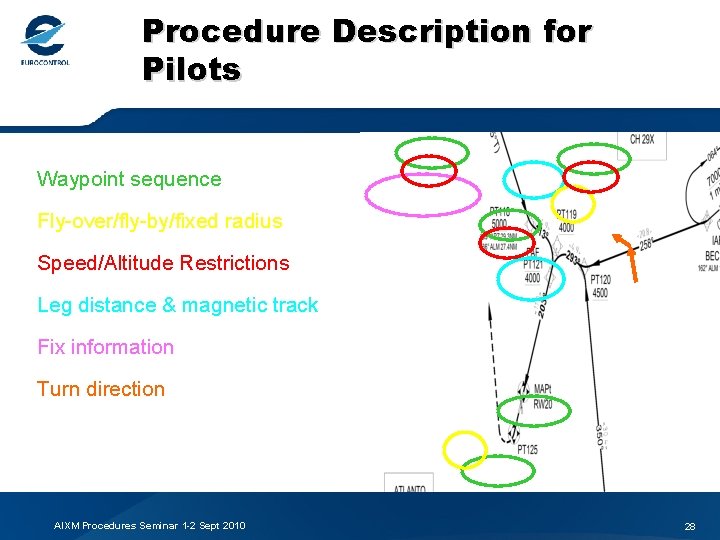

Procedure Description for Pilots Waypoint sequence Fly-over/fly-by/fixed radius Speed/Altitude Restrictions Leg distance & magnetic track Fix information Turn direction AIXM Procedures Seminar 1 -2 Sept 2010 28

Procedure Description for Database Providers • Textual description provide formal statement of procedure • Often open to interpretation • RNAV procedures require more specific details including path terminators • Can result in lengthy descriptions • Alternative descriptive methods have been developed by IFPP (OCP) and adopted by ICAO • Tabular layout • Formalised textual description • Formalised short-hand description AIXM Procedures Seminar 1 -2 Sept 2010 29

Tabular Description RNAV Approach RNAV SID AIXM Procedures Seminar 1 -2 Sept 2010 30

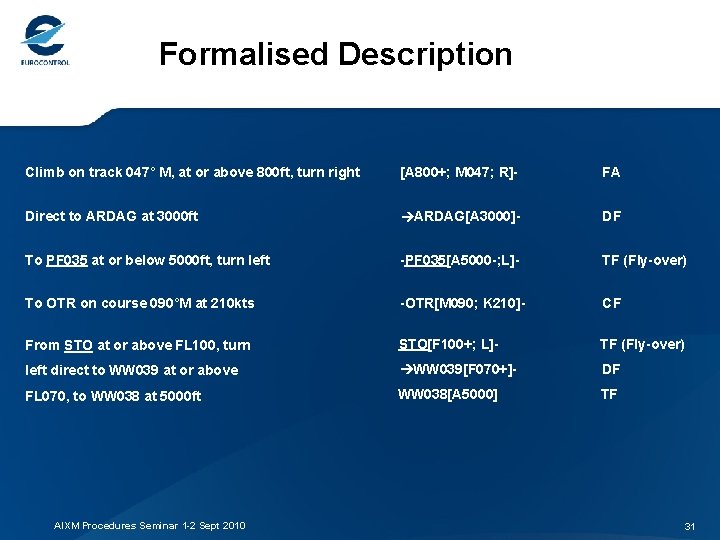

Formalised Description Climb on track 047° M, at or above 800 ft, turn right [A 800+; M 047; R]- FA Direct to ARDAG at 3000 ft ARDAG[A 3000]- DF To PF 035 at or below 5000 ft, turn left -PF 035[A 5000 -; L]- TF (Fly-over) To OTR on course 090°M at 210 kts -OTR[M 090; K 210]- CF From STO at or above FL 100, turn STO[F 100+; L]- TF (Fly-over) left direct to WW 039 at or above WW 039[F 070+]- DF FL 070, to WW 038 at 5000 ft WW 038[A 5000] TF AIXM Procedures Seminar 1 -2 Sept 2010 31

Final Approach Segment (FAS) Data Block For SBAS and GBAS procedures • SBAS FAS in on board Data base • GBAS FAS uplinked on GBAS Datalink Ensures data not changed between validation and use Consists of data + Integrity Field (CRC AIXM Procedures Seminar 1 -2 Sept 2010 32

SBAS FAS DB contents • • • • • Operation type Service provider identifier Airport identifier Runway Approach perf designator Route indicator Reference path data selector Reference path ID (Aprch ID) LTP/FTP latitude LTP/FTP longitude LTP/FTP ellipsoidal height FPAP latitude FPAP longitude Threshold crossing height TCH units selector (m/ft) Glide path angle (GPA) Course width at threshold Length offset Horizontal alert limit (HAL) Vertical alert limit (VAL) AIXM Procedures Seminar 1 -2 Sept 2010 2 characters 4 characters 5 characters 1 character 2 characters 4 characters 11 characters 12 characters 6 characters 11 characters 12 characters 7 characters 1 character 4 characters 5 characters 4 characters 3 characters Unsigned integer Alphanumeric Alphanumeric Signed Integer Alphanumeric Feet or meters Unsigned integer Numeric 33

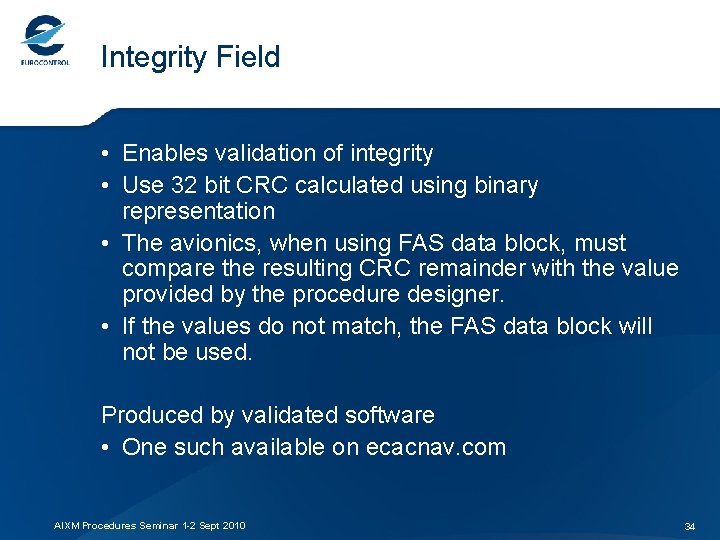

Integrity Field • Enables validation of integrity • Use 32 bit CRC calculated using binary representation • The avionics, when using FAS data block, must compare the resulting CRC remainder with the value provided by the procedure designer. • If the values do not match, the FAS data block will not be used. Produced by validated software • One such available on ecacnav. com AIXM Procedures Seminar 1 -2 Sept 2010 34

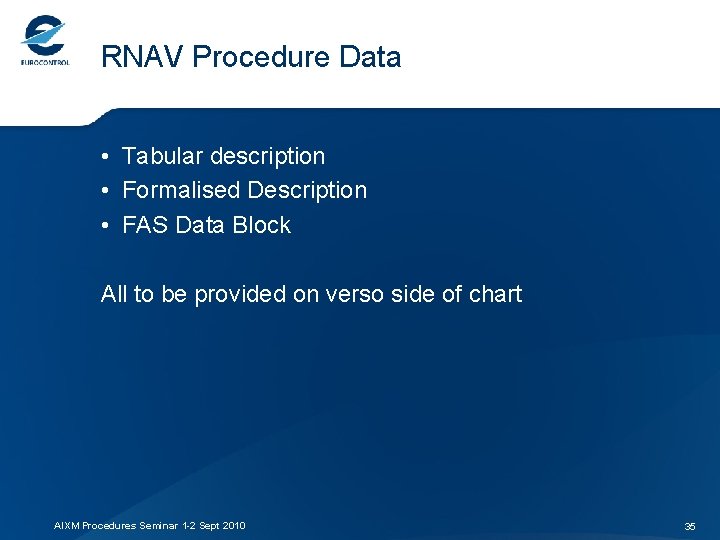

RNAV Procedure Data • Tabular description • Formalised Description • FAS Data Block All to be provided on verso side of chart AIXM Procedures Seminar 1 -2 Sept 2010 35

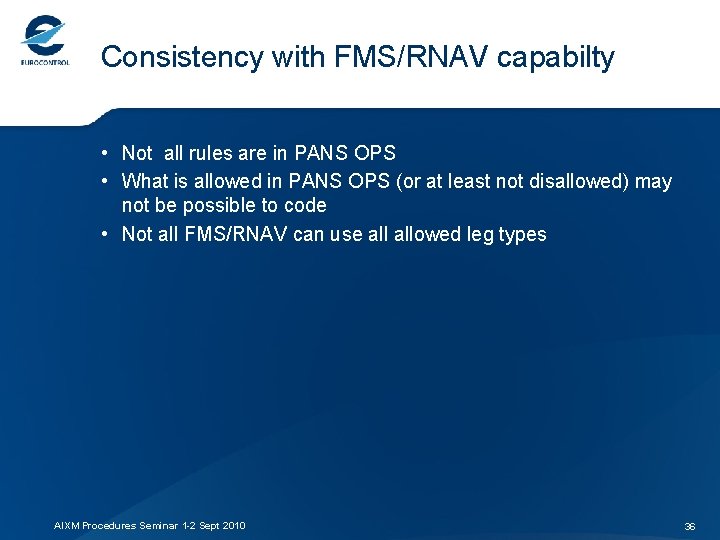

Consistency with FMS/RNAV capabilty • Not all rules are in PANS OPS • What is allowed in PANS OPS (or at least not disallowed) may not be possible to code • Not all FMS/RNAV can use allowed leg types AIXM Procedures Seminar 1 -2 Sept 2010 36

Example AIXM Procedures Seminar 1 -2 Sept 2010 37

Consistency with FMS/RNAV capabilty • Not all rules are in PANS OPS • What is allowed in PANS OPS (or at least not disallowed) may not be possible to code • Not all FMS/RNAV can use allowed leg types • Do not expect Procedure designers to know all nuances of RNAV/FMS • Encourage closer working with Data houses AIXM Procedures Seminar 1 -2 Sept 2010 38

Questions? AIXM Procedures Seminar 1 -2 Sept 2010 39
