RISICO on the GRID architecture First implementation Mirko

RISICO on the GRID architecture First implementation Mirko D'Andrea, Stefano Dal Pra

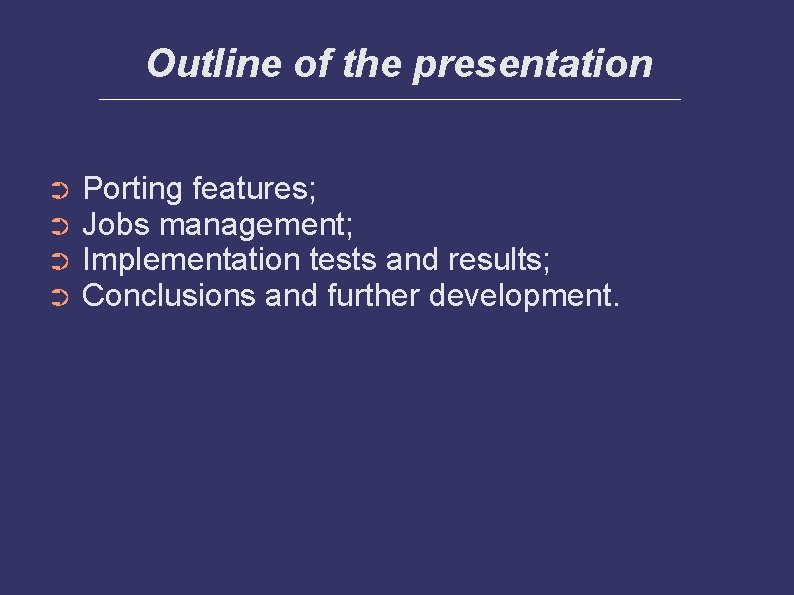

Outline of the presentation ➲ ➲ Porting features; Jobs management; Implementation tests and results; Conclusions and further development.

Porting features Totally implemented in python. Uses the same executable of the RISICO system (no changes needed). ➲ Easily configurable through configuration file. ➲ ➲

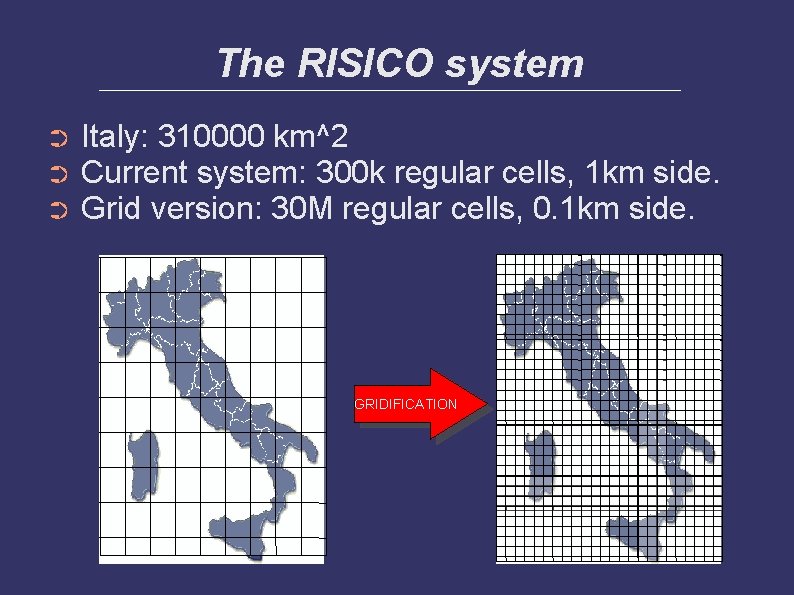

The RISICO system ➲ ➲ ➲ Italy: 310000 km^2 Current system: 300 k regular cells, 1 km side. Grid version: 30 M regular cells, 0. 1 km side. GRIDIFICATION

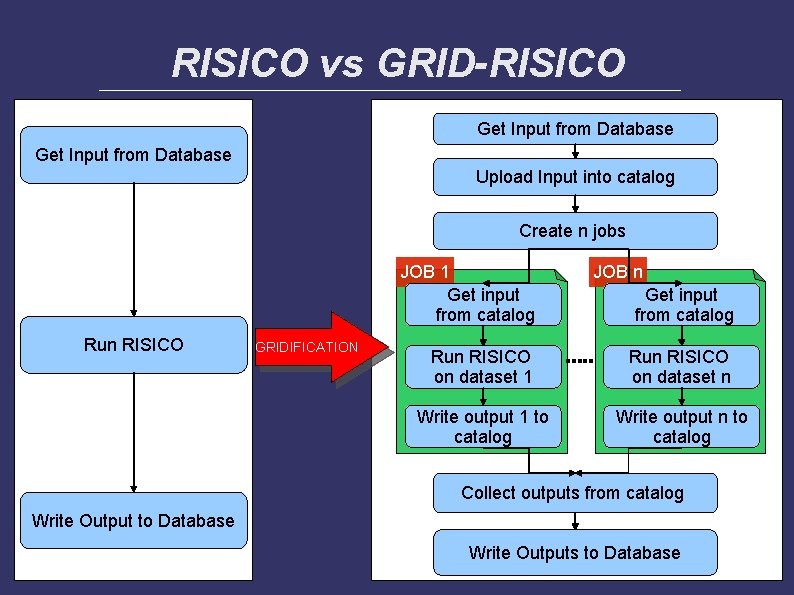

RISICO vs GRID-RISICO Get Input from Database Upload Input into catalog Create n jobs JOB 1 Get input from catalog Run RISICO GRIDIFICATION JOB n Get input from catalog Run RISICO on dataset 1 Run RISICO on dataset n Write output 1 to catalog Write output n to catalog Collect outputs from catalog Write Output to Database Write Outputs to Database

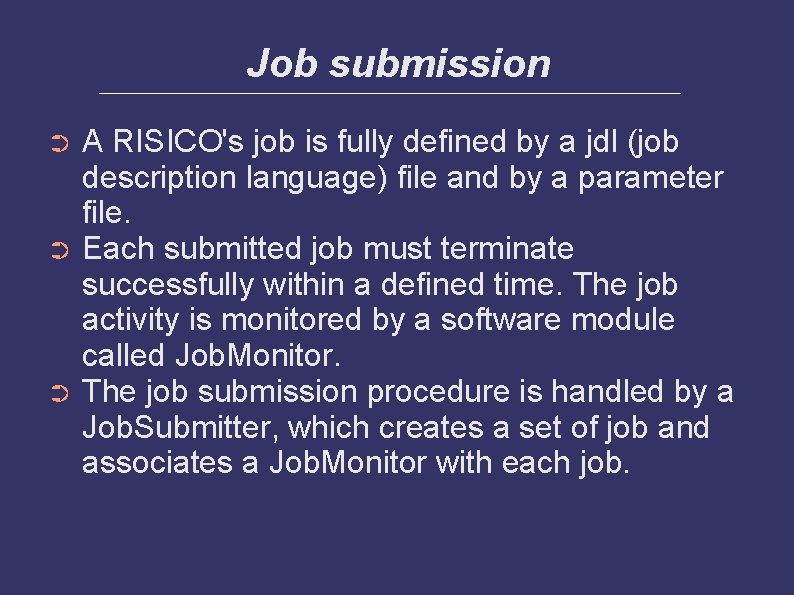

Job submission A RISICO's job is fully defined by a jdl (job description language) file and by a parameter file. ➲ Each submitted job must terminate successfully within a defined time. The job activity is monitored by a software module called Job. Monitor. ➲ The job submission procedure is handled by a Job. Submitter, which creates a set of job and associates a Job. Monitor with each job. ➲

Job Monitoring All the jobs are monitored by an instance of a module called Job. Monitor. ➲ The Job. Monitor: ➲ Checks the job status during execution; Retrieves the job output from catalog; If the job fails, Job. Monitor tries to resubmit it. Job. Monitor will log the error if the job fails to run correctly.

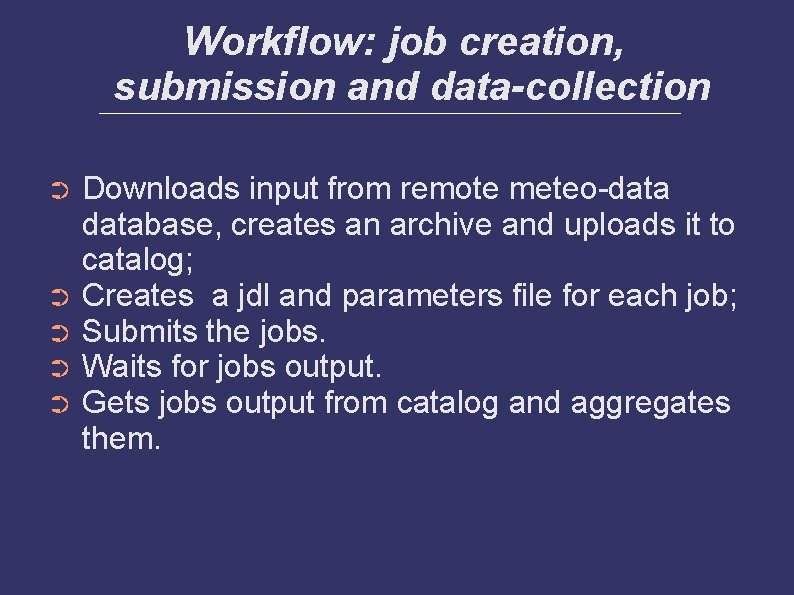

Workflow: job creation, submission and data-collection Downloads input from remote meteo-database, creates an archive and uploads it to catalog; ➲ Creates a jdl and parameters file for each job; ➲ Submits the jobs. ➲ Waits for jobs output. ➲ Gets jobs output from catalog and aggregates them. ➲

Job definition (1) ➲ ➲ Each job works with a specific dataset defining a spatial domain (subset). Such subsets are created off-line and stored on the catalog. A parameters file states the association between a job and a dataset. Each job produces an output, whose path in the catalog is a-priori known. job 1 job n

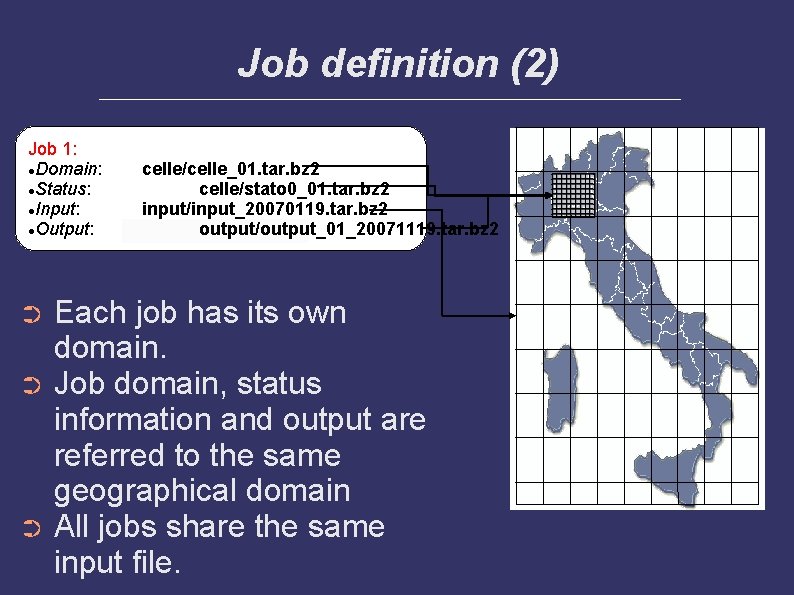

Job definition (2) Job 1: Domain: Status: Input: Output: celle/celle_01. tar. bz 2 celle/stato 0_01. tar. bz 2 input/input_20070119. tar. bz 2 output/output_01_20071119. tar. bz 2 Each job has its own domain. ➲ Job domain, status information and output are referred to the same geographical domain ➲ All jobs share the same input file. ➲

Job definition (3) Job 1: Domain: Status: Input: Output: celle/celle_01. tar. bz 2 celle/stato 0_01. tar. bz 2 input/input_20070119. tar. bz 2 output/output_01_20071119. tar. bz 2 Job 2: Domain: Status: Input: Output: celle/celle_02. tar. bz 2 celle/stato 0_02. tar. bz 2 input/input_20070119. tar. bz 2 output/output_02_20071119. tar. bz 2 Job n: Domain: Status: Input: Output: celle/celle_nn. tar. bz 2 celle/stato 0_nn. tar. bz 2 input/input_20070119. tar. bz 2 output/output_nn_20071119. tar. bz 2 CATALOG

Final version ➲ Estimated performances on the complete set of data (30 M cells): Total CPU-Time: about 2 hours and 30 minutes; Optimal job number: about 30 (5 -10 minutes of CPU time for each job); Storage: 30 GByte / day.

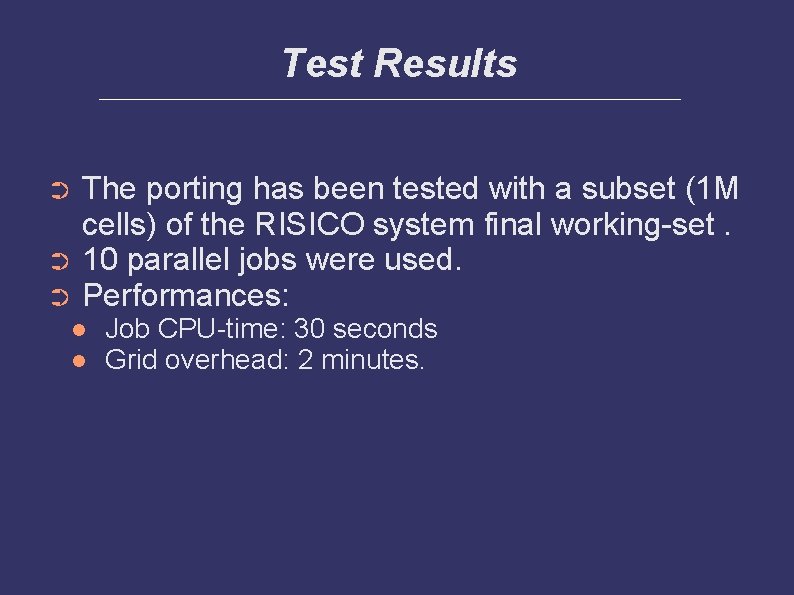

Test Results The porting has been tested with a subset (1 M cells) of the RISICO system final working-set. ➲ 10 parallel jobs were used. ➲ Performances: ➲ Job CPU-time: 30 seconds Grid overhead: 2 minutes.

Conclusions RISICO represents a feasible and significative test case. ➲ Grid architecture provides a valuable benefits to operational activities. ➲
