Rice Milling By JF Rickman and M Gummert

Rice Milling By JF Rickman and M Gummert Agricultural Engineering IRRI

Topics • • • What is milling Characteristic of paddy Options for milling Multistage milling By products of milling

Objective of milling 1. Remove the husk 2. Remove the bran layers 3. Produce whole white rice kernels that are • sufficiently milled, • free of impurities and • minimum number of broken kernels.

Physical Characteristics of rice Physical characteristic Percentage Paddy 100 Husk 20 Brown rice 80 Meal Pericarp and testa (5 -6%) Aluerone (1%) Embryo (3%) 8 -10 White rice 70 -72

Chemical Characteristics Brown rice White rice Bran Moisture content (%) Starch (%) 13 -14 68 -70 80 9 Amylose 28 -30 33 6 6 -8 6 -7 14 3 1 20 2 -3 0. 5 25 1 -1. 5 0. 5 9 -10 Protein (%) Fat Fiber Crude ash

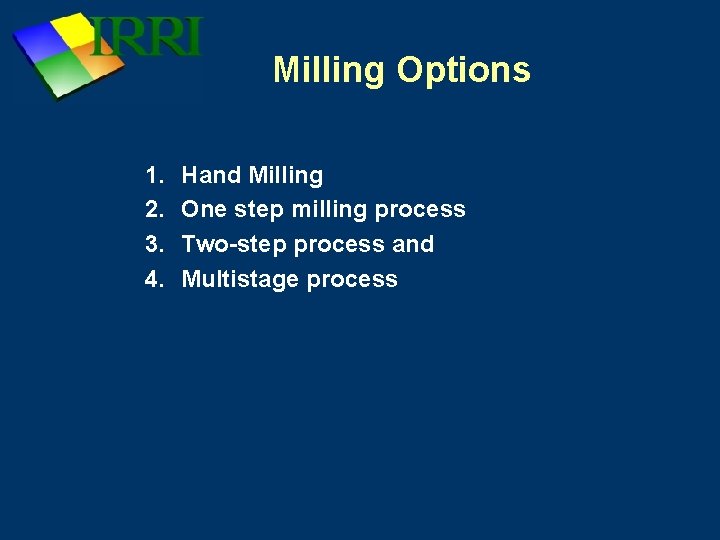

Milling Options 1. 2. 3. 4. Hand Milling One step milling process Two-step process and Multistage process

Pestle and mortar • Friction based-kernel against kernel • High breakage • Final cleaning hand winnowing and gravity

Single pass steel mill • Steel friction mill • Very high pressure • Originated from coffee grinder • Low white rice recovery ( 50 -55%) • Head rice less than 30% • Often used for par boiled rice

Two Stage Mill • Super seeded Engleberg (steel) mill • Separate hulling and whitening • Rubber roller huller • Steel friction polisher • Capacity 0. 5 -1 t/hr • Milling recovery - 60%

2 stage Vietnam mill

Multistage Mill 1. Pre-cleaning the paddy prior to milling 2. Removing the husk or outer layer from the paddy 3. Polishing or whiting the brown rice to remove the bran layer 4. Separating the broken grains from the whole kernels 5. Bagging the milled rice 6. Managing the byproducts

Multi-stage mill

Pre-cleaning Equipment • Oscillating Sieve type • Aspiration cum Oscillation Type • Rotary Cleaner

Process of separation Process 1. Scalp larger objects 2. Retain desired size/weight 3. Removes small size or lighter weight material

De-stoner • Gravity separator • Separates on weight

Dehusker Equipment • Steel huller • Under runner disc sheller • Rubber rollers Operation • Friction between surfaces • Speed differentials • Abrasion

Under runner disc Sheller

Paddy separator Compartment Separator • Paddy and brown rice move at different speeds • Brown rice moves faster • Specific gravity/buoyancy • 45 compartments/2 ton

Gravity separator Tray Separator • Brown rice up slope, paddy down • Specific gravity, grain length, coefficient of friction

Friction polisher • Grain kernels forced against each other and a metal screen by a steel ribbed cylinder • Always horizontal • High pressure, higher temperature than abrasive • Suitable japonica types

Steel Polisher-horizontal friction (Engelberg Type) Feed Steel mesh Steel rotor Grain

Abrasive polisher • • Vertical or horizontal Abrasive surface and screen Less pressure on kernel Better for Indica types

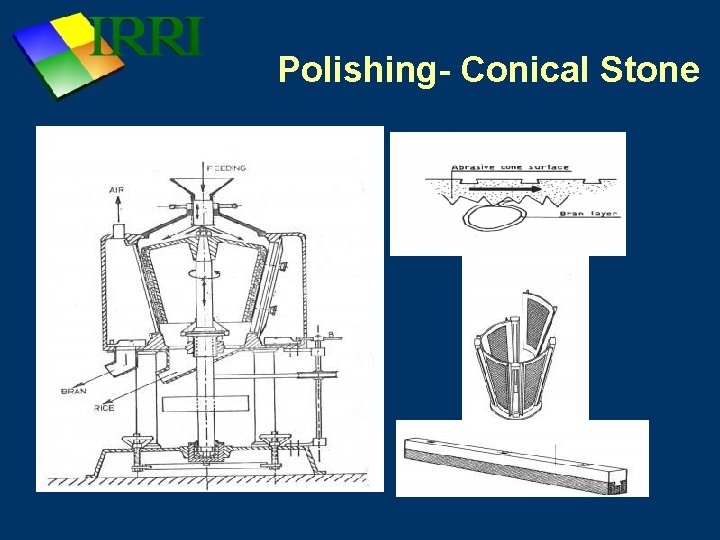

Polishing- Conical Stone

Polisher-horizontal Abrasive

Oscillating Screen separator • Separates out brewers • Large and small brokens • Oscillating screen

Length Grader • Length grader works by matching screen indentation with whole grain length • Small/broken rice fall into indents while whole grain pass to end • Sometime set up with 2 different indent sizes

Separating bins • Separates into head rice, large brokens and small broken • Mix any combination on belt by variable speed delivery motors in each outlet

Mist Polisher • Improves luster on rice • Small amount dust and water

Color sorter • Has to be calibrated for desired color • Works on separation discolored grain by using air stream • Expensive

Bagging Station • Rice normally sold in 50 kg bags • Accurately weighed

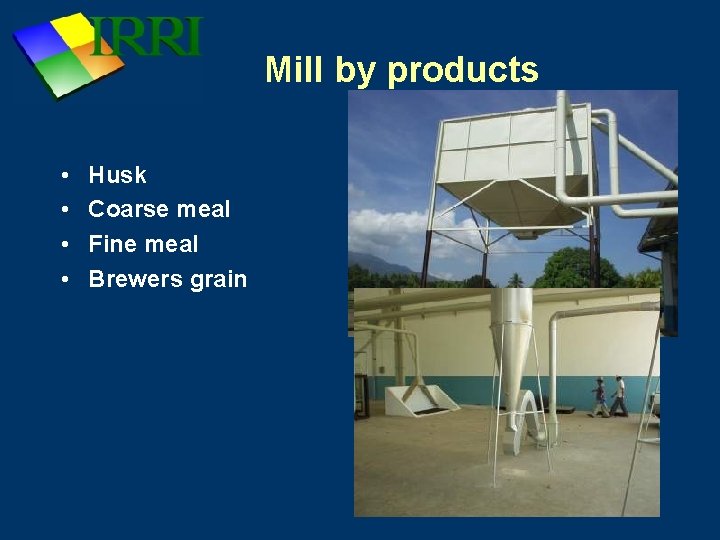

Mill by products • • Husk Coarse meal Fine meal Brewers grain
