RFlex 40 ft Flexitank for 40 ft Reefer

R-Flex 40 ft Flexitank for 40 ft Reefer Containers Introduction to Freight Forwarders

Who we are. . . Liqu. A is an industrial packaging and logistics group with an extensive network throughout the world. Head office and 4, 000 m² manufacturing site are located in Istanbul, Turkey. Liqua team has been in the industry since 1997 as a packaging manufacturer. The starting product has been big bags. In 2007, the group started producing flexitanks and developing solutions for bulk liquids. In 2011, Liqu. A Logistics LTD was established to provide service to its clients through Liqua network. Customers are provided high quality of bulk liquid logistics services as well as the most innovative packaging solutions. 2

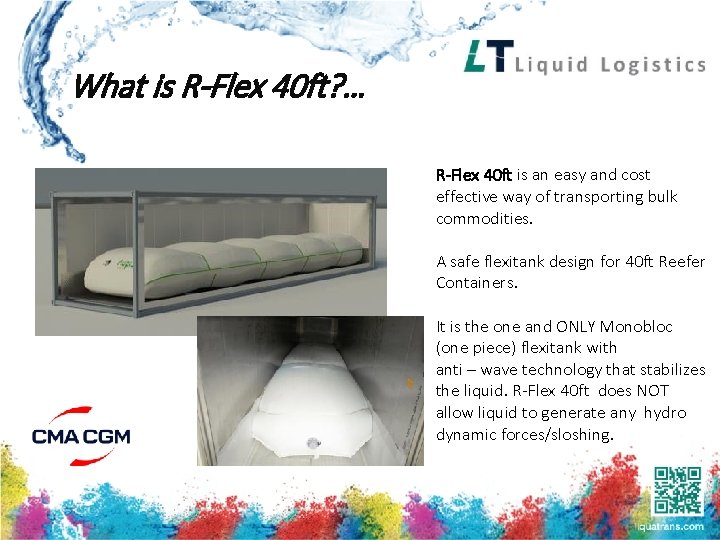

What is R-Flex 40 ft? … R-Flex 40 ft is an easy and cost effective way of transporting bulk commodities. A safe flexitank design for 40 ft Reefer Containers. It is the one and ONLY Monobloc (one piece) flexitank with anti – wave technology that stabilizes the liquid. R-Flex 40 ft does NOT allow liquid to generate any hydro dynamic forces/sloshing.

What is R-Flex 40 ft? … Wave breakers integrated in the R-Flex design minimizes the flow of the liquid within chambers to keep the hydro dynamic energy and surge at minimum level.

What is R-Flex 20 ft? … R-Flex, Easy Flexitank for 20 ft reefer containers is a harnessed design that, thanks to its anti- wave technology, does not require any bulkhead and does not exert any pressure to the side walls of the containers. R-flex, stabilizes the liquid and does NOT allow liquid to generate any hydro dynamic forces/sloshing.

What is R-Flex 20 ft? … It is made out of two tanks standing on each other and incorporated with 6 big interconnections. Through the benefit of the design;

How Safe is R-Flex ? … Both R-Flex 20 ft & 40 ft are tested in Pueblo Colorado USA on Dry containers. Upon successful result of the test Liqu. A complied all the requirements of the flexitank PAS 1008: 2016 standard. Certified According to the Latest International Norm for Flexitanks PAS 1008: 2016

Organization… Due to delicate nature of the commodities to be transported in reefer containers and also relatively fragile nature of 40 ft reefer container boxes, CMA CGM, Teconja &Liqu. A joined their forces exclusively to provide door to door service to the customers worldwide.

Features & Advantages… § The first and only Monobloc (one piece) flexitank available for 40’ reefer containers. § No need to go inside the container to load or discharge, in line with health and safety standards. § Patented robust wave breaking designs providing a stabilized journey. § No pressure on the side walls. § Anti-wave feature. § High chilled air circulation. § Up to 22, 000 lt capacity in 20 ft and 24, 000 lt capacity in 40 ft.

Features & Advantages… § Direct filling from stevedore tanks into R-Flex 40 ft. No Re-loading. § Less packaging tara, more cargo… q Up to 11% (2100 kg) more cargo in a container compared to metal drums. q Up to 3. 5% (700 kg) more cargo in a container compared to plastic drums. q Up to 6% (1250 kg) more cargo in a container compared to IBCs. § No inventory for empty packaging (Drums/Bins/IBCs) § Extreme labor cost saving from packaging, filling, handling, empty packaging storage. § Capital saving from packaging. § Less loading time.

Quality Assurance. . . Liqua proudly holds; PAS 1008 : 2016 Flexitank Production Managment System ISO 9001 : 2008 Quality Management System ISO 14001 : 2004 Environmental Management System ISO 22000 : 2005 HACCP Food Management System FSSC 22000 : 2010 Food Safety System Certificate OHSAS 18001 : 2007 Occupational Health and Safety Management System Kosher : Kosher Pareve Including Passover Halal : 22: 2011 Halal Product Management System 11

Aseptic Flexitank… § Single use hygienic transportation, eliminating contamination risk. § Production in clean room under FSCC 22000 Food Safety System. § Positive air pressure condition in the clean room with capability of less than 0. 54 mg per m 3. § Food approved raw materials according to Regulation (EU) 10/2011. § 15 Kly Gamma Irradiation option. § Dairy connection, thermo plastic valve for aseptic loading & discharge. § EVOH Oxygen barrier.

Environmental Friendly… § Thanks to mono-bloc (one piece) design, R-Flex 40 ft ensures minimum residue compared to any other alternative solution. § Eco-friendly and fully recyclable raw materials. § Less carbon footprint. q Up to 96% less packaging use compared to metal drums. q Up to 89% less packaging use compared to plastic drums. q Up to 93% less packaging use compared to IBC. q Up to 95% less carbon foot print compared to drums during the delivery of the empty packaging to the loading site. q Up to 10% more cargo loading compared to drums at each and every container. Less carbon foot print during the transportation.

Network… Thanks to worldwide network of CMA CGM, Teconja & Liqu. A we offer you a door to door solution under one liability insurance umbrella, satisfying technical & logistic requirements of both shipper and consignee with a custom made packaging.

Opportunities for Freigh Forwarders… § Access to a niche, virgin market § Availability of CMA CGM containers- Second largest reefer container availability in the world. No hassles with shipping line approval. § Technical support both at the location of the shipper and consignee. § Access to the Commodities such as Juices, Juice Concantrates, Milk & Liquid Dairy Products

Questions to be asked to the customers… 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. Cargo name, MSDS if available General characteristics of cargo Does the cargo generate any gas during the transportation? Compatibility with our raw materials PE, PP, EPDM and stainless steel Temperature requirement. Viscosity at the time of discharge at the specified temperature. Optional EVOH Oxygen Barrier requirement Optional Gamma Irradiation requirement Optional Aseptic requirement Loading location Discharging location Volume of the business Timing

Operation Flow… § All inquiries need to be forwarded to LT. § Technical questions will be answered by Liqu. A and freight & price related questions will be answered by Teconja. § FF is free to offer local services and trucking; however, Teconja has the initiative decide whether to use CMA CGM or Local contractor or third parties for trucking to make sure that the most competitive rate is offered to customer. § Liqu. A will train and control the local contractor fitting. § Case by case FF and LT will mutually decide which party shall invoice to the customer. NVOCC B/L is possible upon request.

Cooperation Conditions with FF… § As a policy LT will not sell R-Flex 40 ft. It will always be a full service offer door to port or door to door. § CMA CGM line is exclusive for R-Flex 40 ft shipments, no other line can be used. § Both shipper and consignee contact details are to be shared with LT to make sure that everything is technically feasible at both ends. § LT shall have the full access and right to answer technical questions to both shipper and consignee. § LT will provide a non disclosure agreement to satisfy the concerns of the FF. § LT will ensure that no other parties/freight forwarders will offer for the same business. § FF is free to provide local trucking prior to the approval of Teconja. § Upon approval of the below contractor conditions, FF can do the fitting operation himself, in the countries where LT has no fitting setup. § LT will provide full insurance coverage including product, fitting and freight liabilities.

Cooperation Conditions with Contractors… FF partner can be the contractor of the operation at the origin country to handle the following; § Import of the R-Flexes. § Warehousing in the country. § The ownership of the flexitanks will be LT. Under no circumstances Contractor will use any R-Flex without the approval of LT. § Provide an all perils liability insurance policy for warehousing the R-Flexes. § Use «Liqu. A QR Code app for smart phones» for each and every fitting. § Needs to have capability to provide filling supervision. § Needs to have the capability to answer basic technical questions of the shipper regarding filling. § Preferably have a Fitting Liability Insurance Policy. Otherwise Liqua will provide it.

Thank you…
