RFID Group Progress Leader Muhammad Salman Younas Team

RFID Group Progress Leader: Muhammad Salman Younas Team: Jawad Khalil Sheikh Saad Al-Shaalan Muhammad Al-Khamees

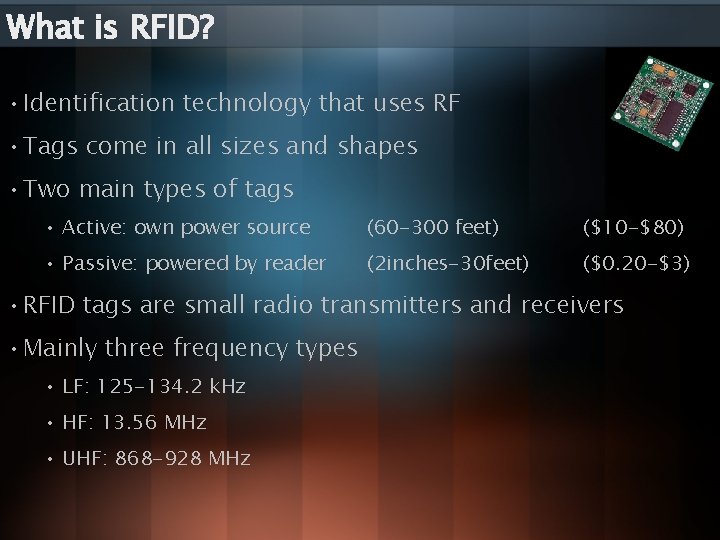

What is RFID? • Identification technology that uses RF • Tags come in all sizes and shapes • Two main types of tags • Active: own power source (60 -300 feet) ($10 -$80) • Passive: powered by reader (2 inches-30 feet) ($0. 20 -$3) • RFID tags are small radio transmitters and receivers • Mainly three frequency types • LF: 125 -134. 2 k. Hz • HF: 13. 56 MHz • UHF: 868 -928 MHz

RFID Tag Frequencies • Low Frequency • • good penetration of materials (including water) less susceptible to effect of metal • • supports anti-collision read tags lighter and cheaper than LF tags more memory capacity than LF tags maximum read range: 4 feet longer read range than HF maximum read range: 12 inches • High Frequency • Ultra-High Frequency • behave more like light waves than radio waves • perform poorly with water and metal • read range: 10+ feet

Factors Affecting Reader Choice • Read/Write range • Materials present in surroundings • Tag memory needed • Cost • Tag form (size, shape, etc. . ) • Host application and Communication Protocol • Power Consumption • Antenna size • Interference

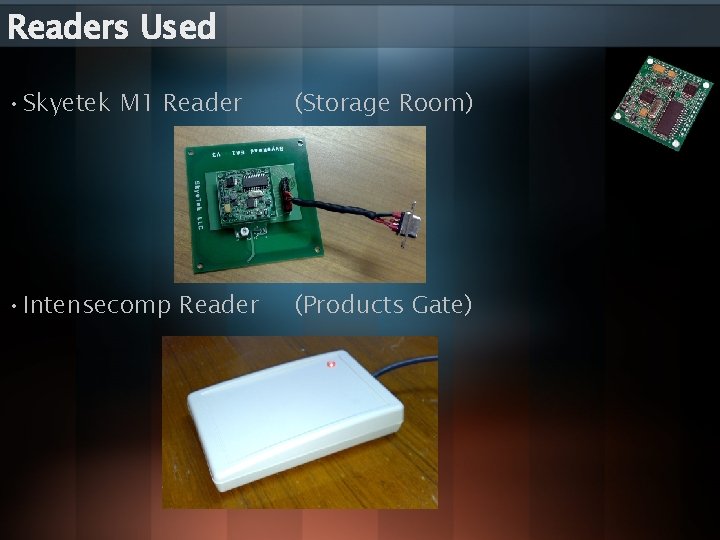

Readers Used • Skyetek M 1 Reader (Storage Room) • Intensecomp Reader (Products Gate)

Tasks Completed • Achieved reader connectivity • Performed Single Read • Performed Anti-collision read • Found maximum tag read ranges • Testing in presence of water and metal • Ran sample codes • Skyetek M 1 reader: C, Java, C++, VB • Intensecomp reader: VB. NET, Java, VB, C

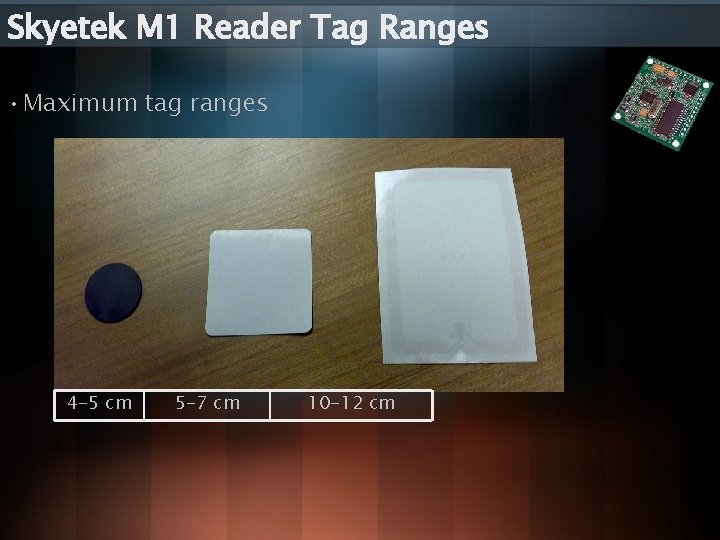

Skyetek M 1 Reader Tag Ranges • Maximum tag ranges 4 -5 cm 5 -7 cm 10 -12 cm

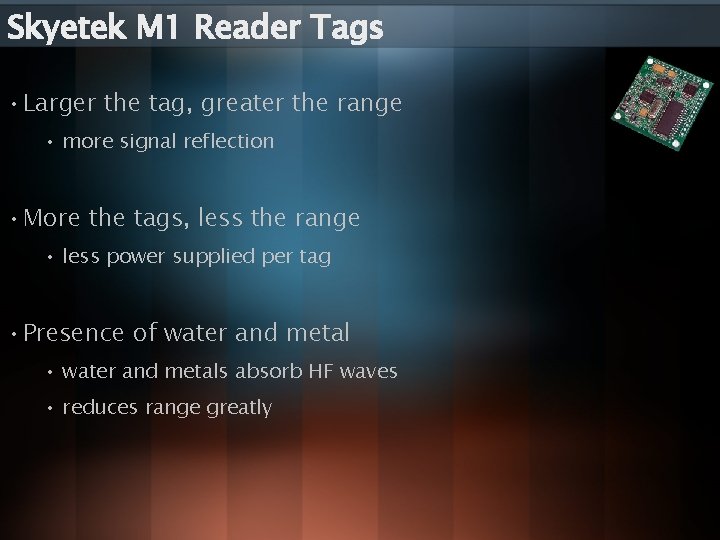

Skyetek M 1 Reader Tags • Larger the tag, greater the range • more signal reflection • More the tags, less the range • less power supplied per tag • Presence of water and metal • water and metals absorb HF waves • reduces range greatly

Skyetek M 1 Reader Problems • Hardware • Reader connectivity problem • power supply was not connected properly • No tags read problem • internal antenna was not connected • Read range problem • built own antenna • Software • Java programs not running • had to add Java comm. API classes

Skyetek M 1 Reader (Hardware) • Building the antenna Single Loop Antenna Copper Tape External Antenna

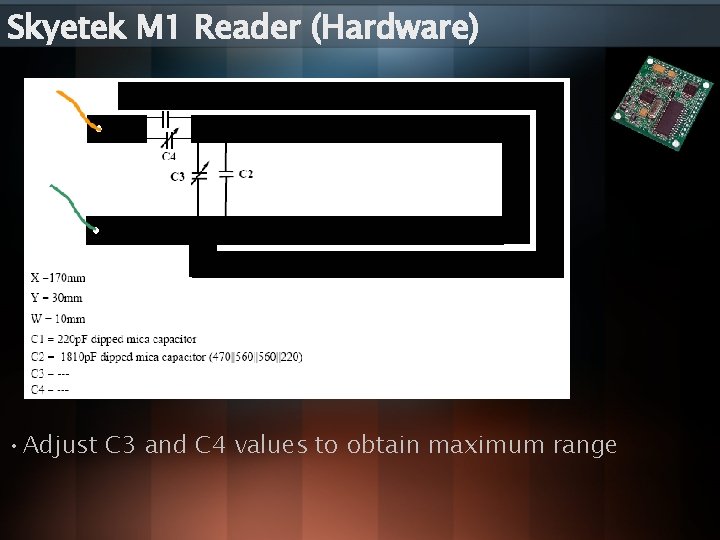

Skyetek M 1 Reader (Hardware) • Adjust C 3 and C 4 values to obtain maximum range

Skyetek M 1 Reader (Hardware) • Antenna built and test read was successful

Skyetek M 1 Reader (Hardware) • Reading range from antenna very poor • use copper tape for antenna material without antenna with antenna

Skyetek M 1 Reader (Software) • Java Application skyetek comm messaging reader utility demo Skye. Tek. Comm Skye. Tek. Messaging Skye. Tek. Listener CRC 16 Skye. Tek. Application Skye. Tek. Comm. Impl Skye. Tek. Reader Debug Skye. Tek. Serial. Comm Skye. Tek. Tag Format Numbers Skye. Tek. Exception

Skyetek M 1 Reader (Software) • Java Application

Skyetek M 1 Reader (Software) • Java Application

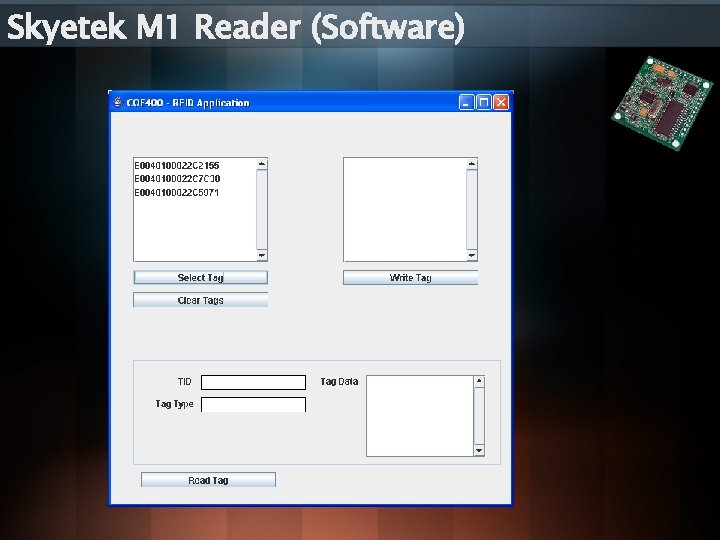

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software) • Detecting tags depends greatly on their position

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Reader (Software)

Skyetek M 1 Multiple Readers • Antenna Multiplexer Skye. Plus MXH Antenna Multiplexer • Use multiple reader connections • a COM port needed for each M 1 reader
