RFID Based Bins Track & Trace Solution

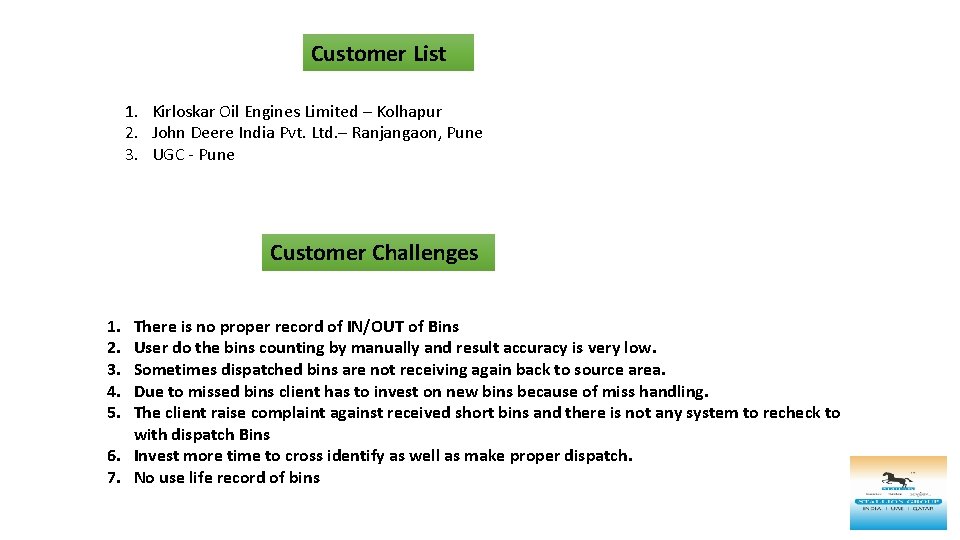

Customer List 1. Kirloskar Oil Engines Limited – Kolhapur 2. John Deere India Pvt. Ltd. – Ranjangaon, Pune 3. UGC - Pune Customer Challenges 1. 2. 3. 4. 5. There is no proper record of IN/OUT of Bins User do the bins counting by manually and result accuracy is very low. Sometimes dispatched bins are not receiving again back to source area. Due to missed bins client has to invest on new bins because of miss handling. The client raise complaint against received short bins and there is not any system to recheck to with dispatch Bins 6. Invest more time to cross identify as well as make proper dispatch. 7. No use life record of bins

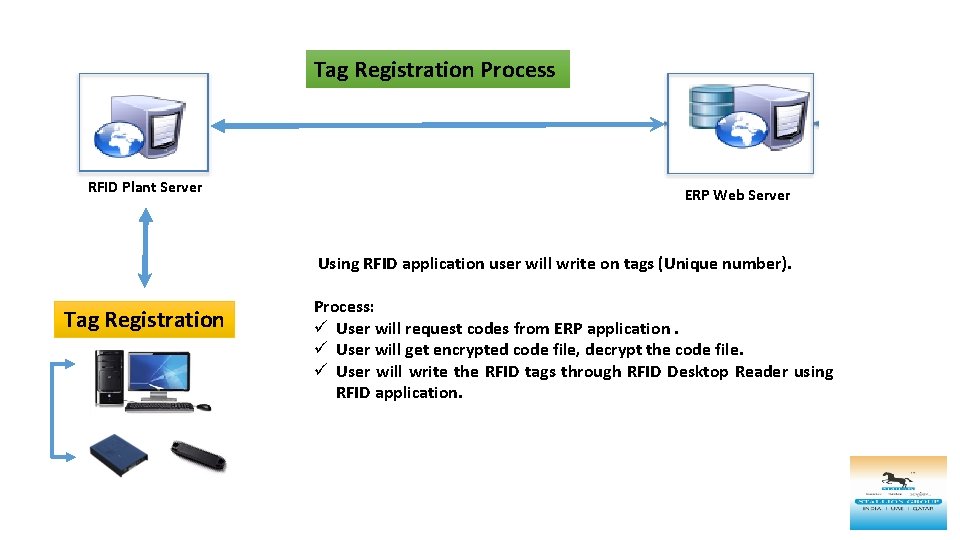

Tag Registration Process RFID Plant Server ERP Web Server Using RFID application user will write on tags (Unique number). Tag Registration Process: ü User will request codes from ERP application. ü User will get encrypted code file, decrypt the code file. ü User will write the RFID tags through RFID Desktop Reader using RFID application.

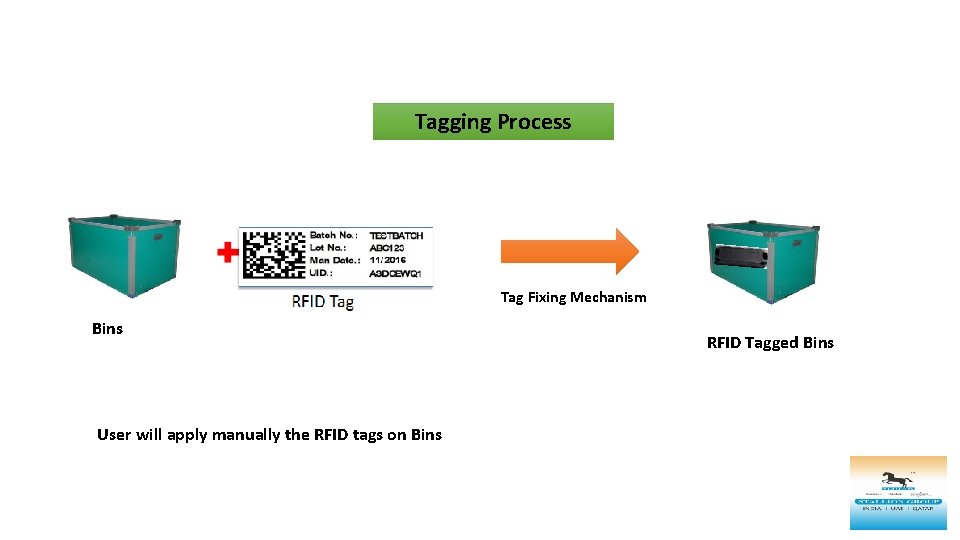

Tagging Process Tag Fixing Mechanism Bins User will apply manually the RFID tags on Bins RFID Tagged Bins
Loading Bay (Dispatch and Receiving point) ERP Web Server Bins RFID Plant Server Fork Lift / Small Crane/Manual Fork Lift/Manual carrying RFID Tagged Bins For Loading Bay user will pass the RFID Tagged Bins through RFID Portal to load inside truck.

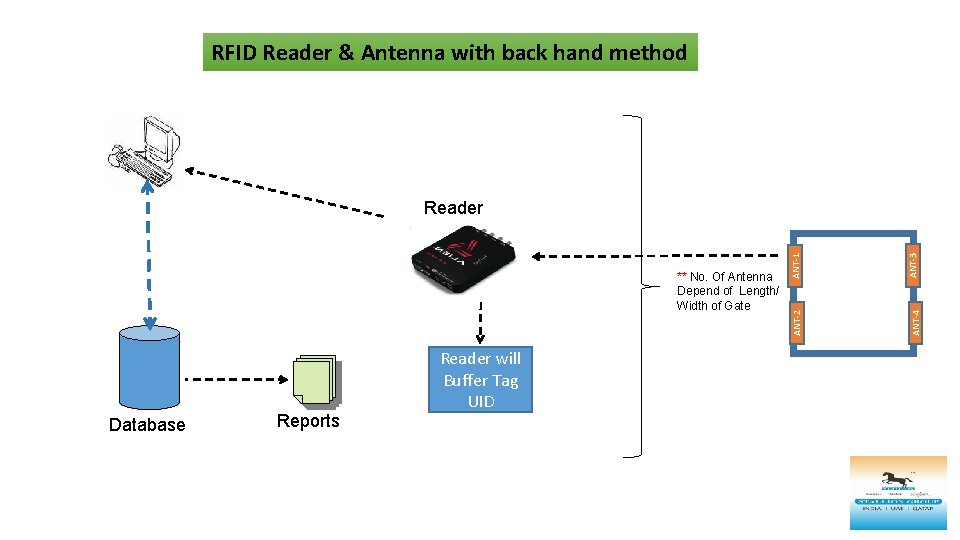

RFID Reader & Antenna with back hand method Database Reports Reader will Buffer Tag UID ANT-1 ANT-3 ANT-4 ** No. Of Antenna Depend of Length/ Width of Gate ANT-2 Reader

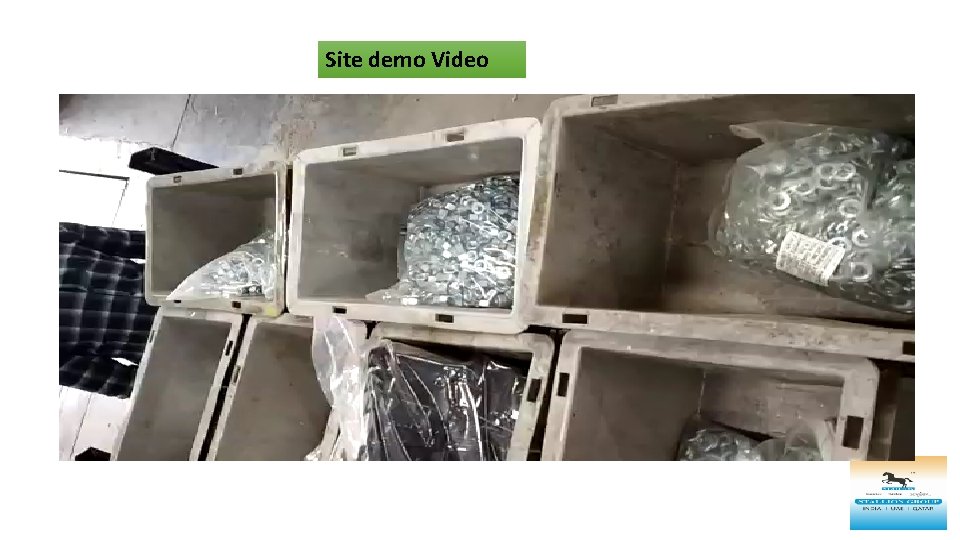

Site demo Video
Physical Inventory of Bins at Unloading RFID Web Server RFID Plant Server RFID Tagged Bins Wired Link The User will scan received Bins or take physical inventory through RFID handheld Reader along with Truck ID RFID Middleware System

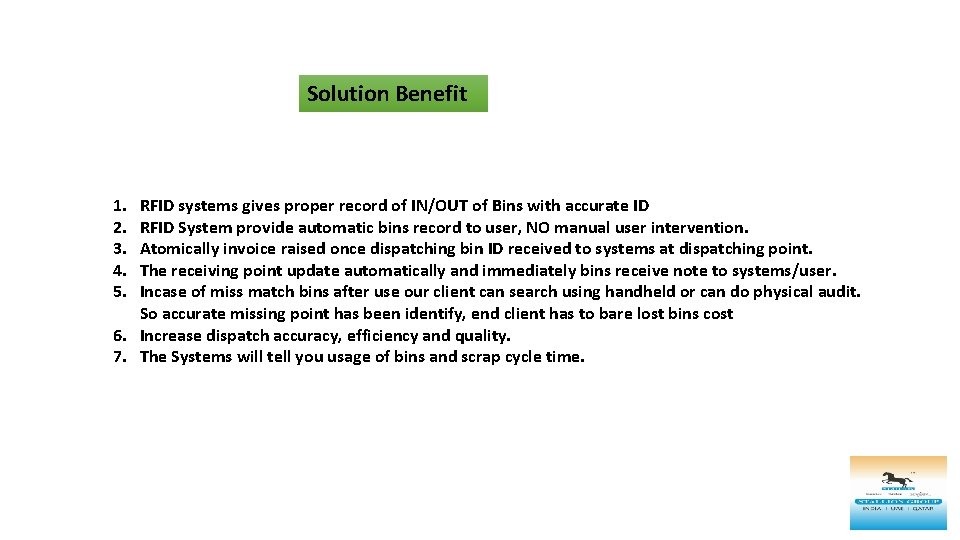

Solution Benefit 1. 2. 3. 4. 5. RFID systems gives proper record of IN/OUT of Bins with accurate ID RFID System provide automatic bins record to user, NO manual user intervention. Atomically invoice raised once dispatching bin ID received to systems at dispatching point. The receiving point update automatically and immediately bins receive note to systems/user. Incase of miss match bins after use our client can search using handheld or can do physical audit. So accurate missing point has been identify, end client has to bare lost bins cost 6. Increase dispatch accuracy, efficiency and quality. 7. The Systems will tell you usage of bins and scrap cycle time.

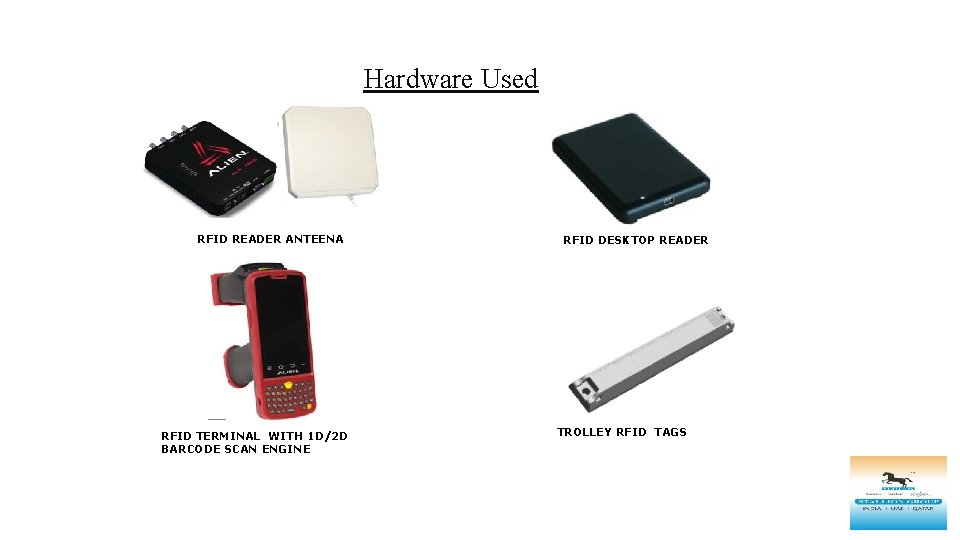

Hardware Used RFID READER ANTEENA RFID TERMINAL WITH 1 D/2 D BARCODE SCAN ENGINE RFID DESKTOP READER TROLLEY RFID TAGS
