rf structure development meeting TBTS component status and
rf structure development meeting TBTS component status and use/test at KEK and SLAC G. Riddone, I. Syratchev 05. 11. 2008
R. Ruber rf structure development meeting, 05. 11. 2008 2

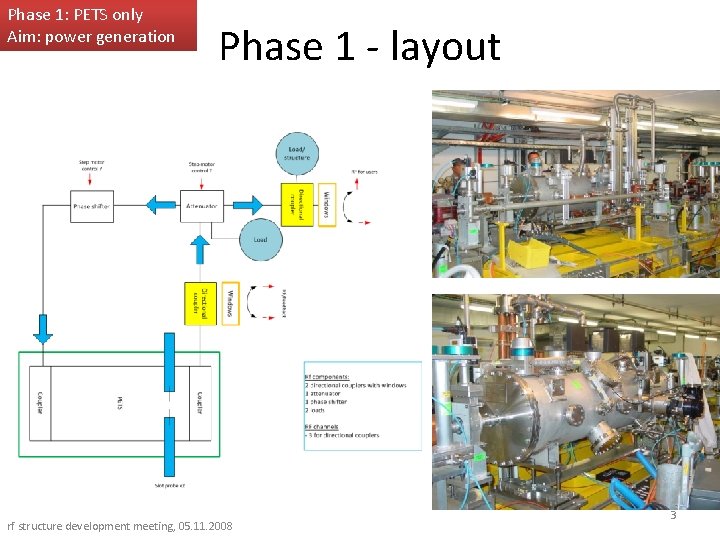

Phase 1: PETS only Aim: power generation Phase 1 - layout rf structure development meeting, 05. 11. 2008 3
Phase 2: PETS and Ac. structures Aim: two-beam scheme validation Phase 2 - layout PETS rf structure development meeting, 05. 11. 2008 Accelerating structure 4

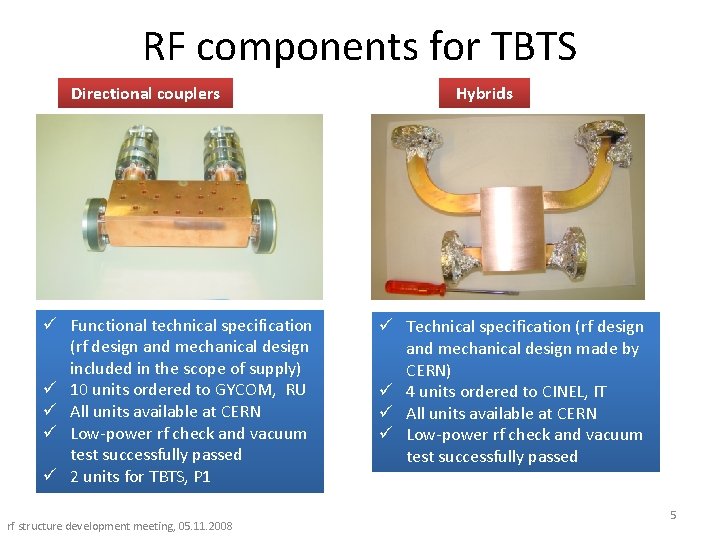

RF components for TBTS Directional couplers ü Functional technical specification (rf design and mechanical design included in the scope of supply) ü 10 units ordered to GYCOM, RU ü All units available at CERN ü Low-power rf check and vacuum test successfully passed ü 2 units for TBTS, P 1 rf structure development meeting, 05. 11. 2008 Hybrids ü Technical specification (rf design and mechanical design made by CERN) ü 4 units ordered to CINEL, IT ü All units available at CERN ü Low-power rf check and vacuum test successfully passed 5
RF components for TBTS Attenuators Phase shifter ü Functional technical specification (rf design and mechanical design included in the scope of supply) ü 4 units ordered to GYCOM, RU ü All units available at CERN ü Low-power rf check and vacuum test successfully passed ü 2 units (1 attenuator and 1 phase shifter) for TBTS, P 1 rf structure development meeting, 05. 11. 2008 6
RF components for TBTS HP loads (AISI 316 LN) ü Technical specification (rf design and mechanical design made by CERN) ü 5 units ordered to CINEL, IT ü 5 units ordered to VDL, NL ü 6 units available at CERN ü Low-power rf check and vacuum test successfully passed ü 2 units for TBTS, P 1 rf structure development meeting, 05. 11. 2008 Splitters ü Technical specification (rf design and mechanical design made by CERN) ü 10 units ordered to VDL, NL ü Under fabrication prototype Nov 08, series Feb 09 7

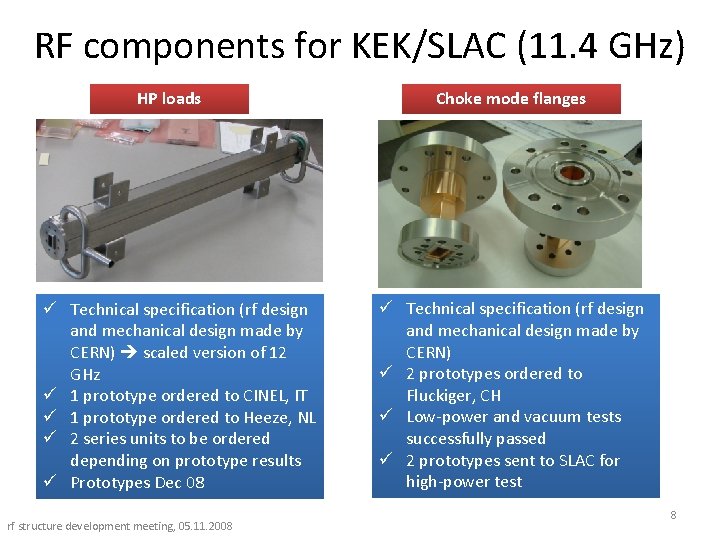

RF components for KEK/SLAC (11. 4 GHz) HP loads ü Technical specification (rf design and mechanical design made by CERN) scaled version of 12 GHz ü 1 prototype ordered to CINEL, IT ü 1 prototype ordered to Heeze, NL ü 2 series units to be ordered depending on prototype results ü Prototypes Dec 08 rf structure development meeting, 05. 11. 2008 Choke mode flanges ü Technical specification (rf design and mechanical design made by CERN) ü 2 prototypes ordered to Fluckiger, CH ü Low-power and vacuum tests successfully passed ü 2 prototypes sent to SLAC for high-power test 8

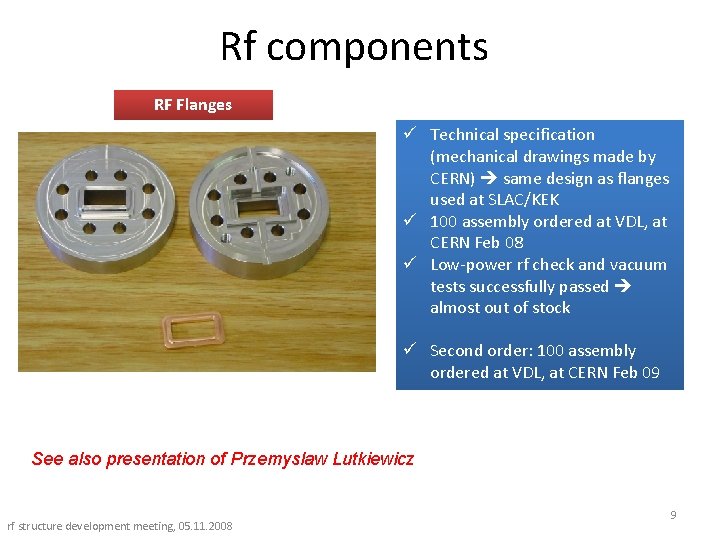

Rf components RF Flanges ü Technical specification (mechanical drawings made by CERN) same design as flanges used at SLAC/KEK ü 100 assembly ordered at VDL, at CERN Feb 08 ü Low-power rf check and vacuum tests successfully passed almost out of stock ü Second order: 100 assembly ordered at VDL, at CERN Feb 09 See also presentation of Przemyslaw Lutkiewicz rf structure development meeting, 05. 11. 2008 9
Documentation All CERN relevant documentation is available via EDMS Example: hybrids CLIAHYBR 0006 842474 975966 rf structure development meeting, 05. 11. 2008 10
