RF Power Amplifier Design and Testing By: Jonathan Lipski and Brandon Larison Advisor: Dr. Shastry

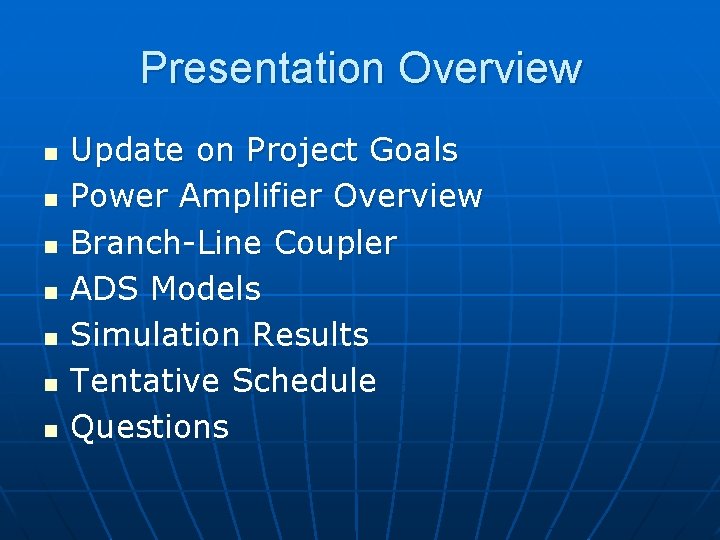

Presentation Overview n n n n Update on Project Goals Power Amplifier Overview Branch-Line Coupler ADS Models Simulation Results Tentative Schedule Questions
Project Goals n Original • PA and DA from scratch • Use Power Splitters/Combiners for increased power • Wi. MAX Application (2 -3 GHz) • Output Power = 1 Watt

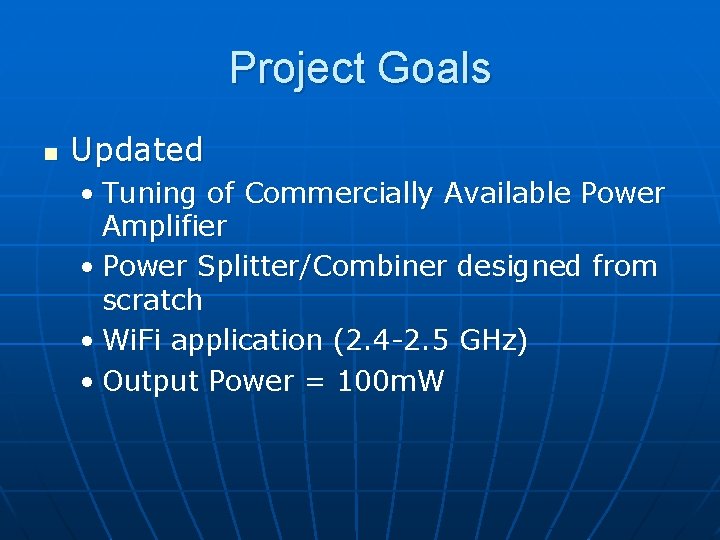

Project Goals n Updated • Tuning of Commercially Available Power Amplifier • Power Splitter/Combiner designed from scratch • Wi. Fi application (2. 4 -2. 5 GHz) • Output Power = 100 m. W

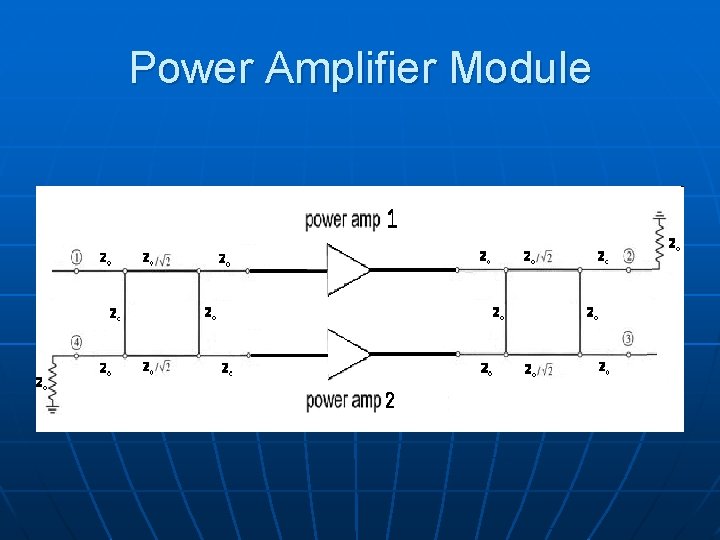

Power Amplifier Module

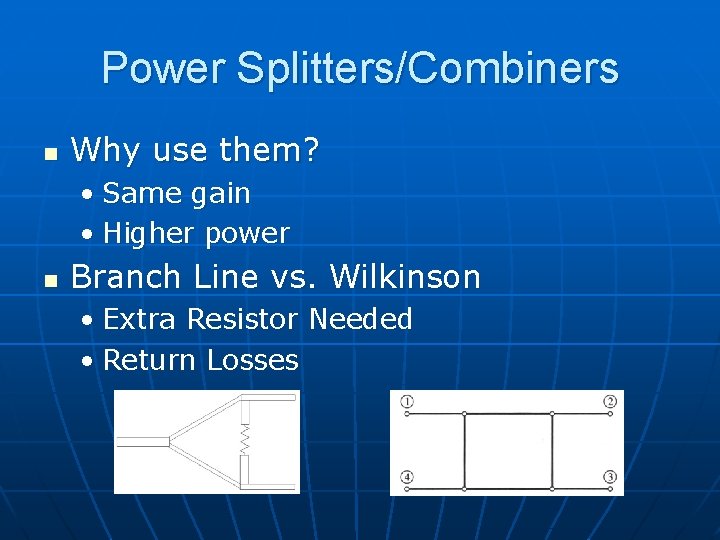

Power Splitters/Combiners n Why use them? • Same gain • Higher power n Branch Line vs. Wilkinson • Extra Resistor Needed • Return Losses

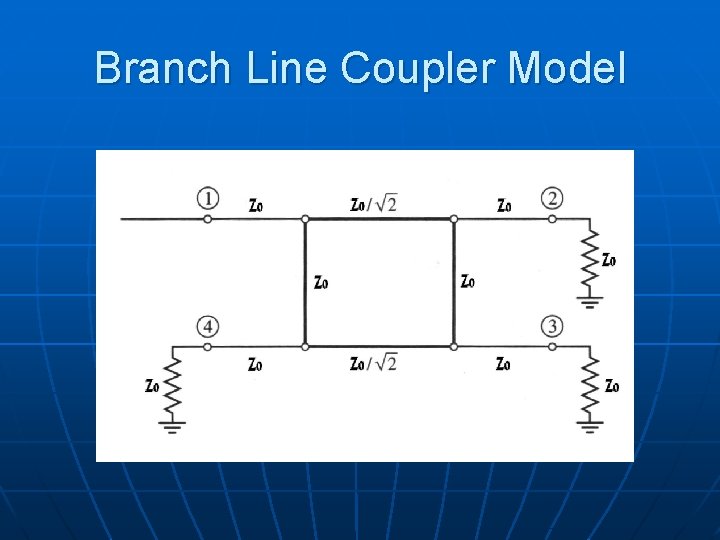

Branch Line Coupler Model

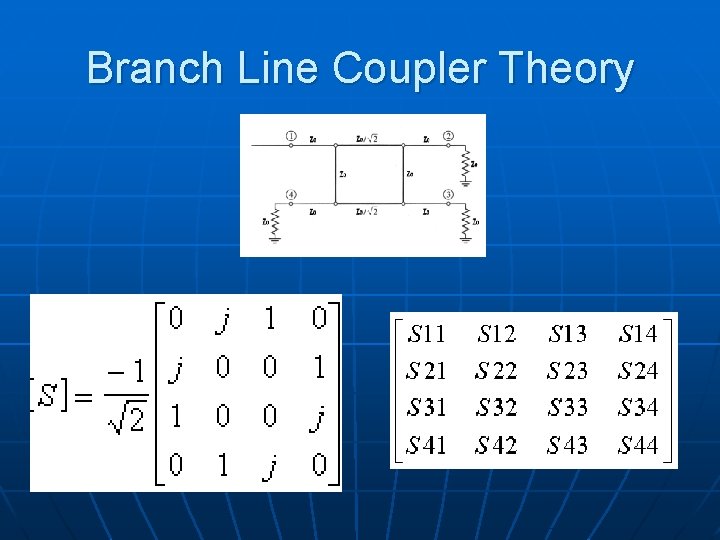

Branch Line Coupler Theory

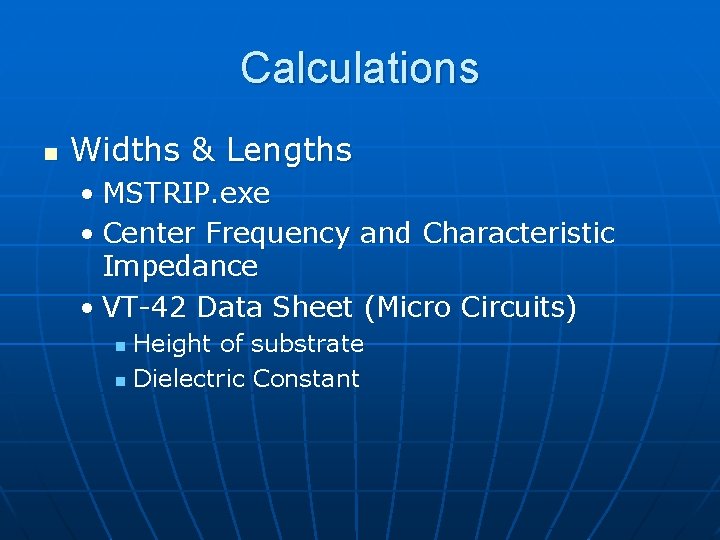

Calculations n Widths & Lengths • MSTRIP. exe • Center Frequency and Characteristic Impedance • VT-42 Data Sheet (Micro Circuits) Height of substrate n Dielectric Constant n

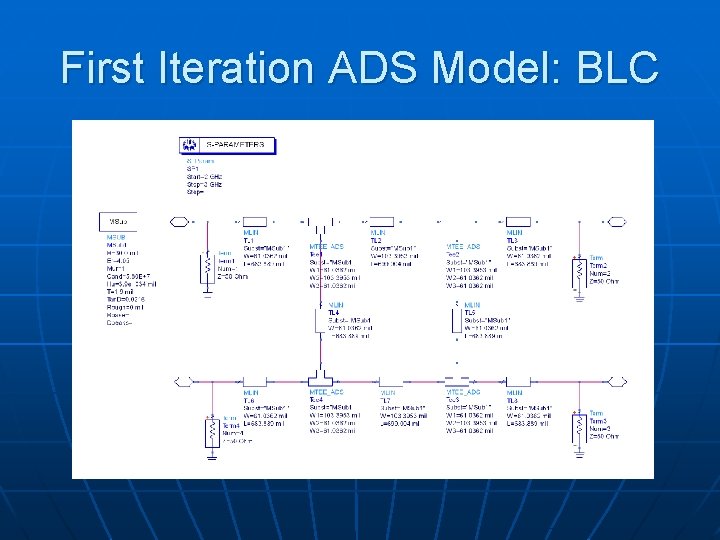

First Iteration ADS Model: BLC

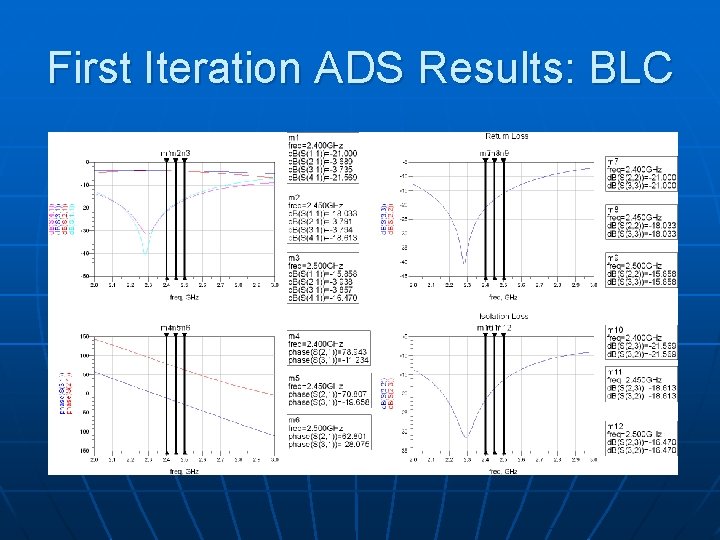

First Iteration ADS Results: BLC

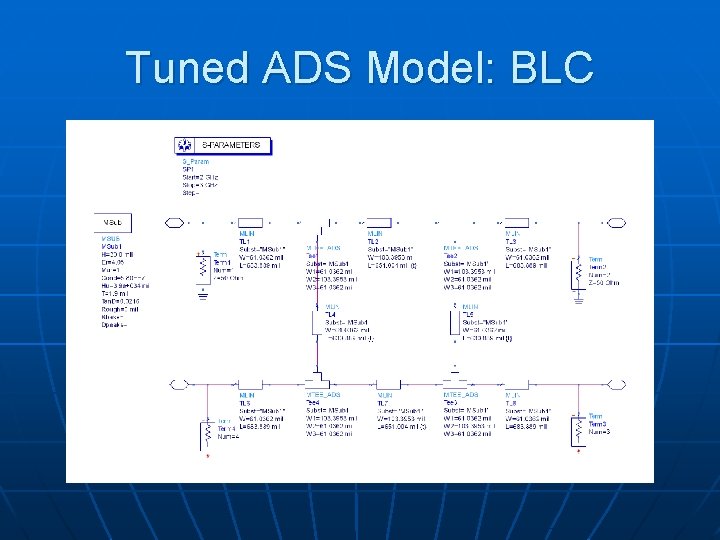

Tuned ADS Model: BLC

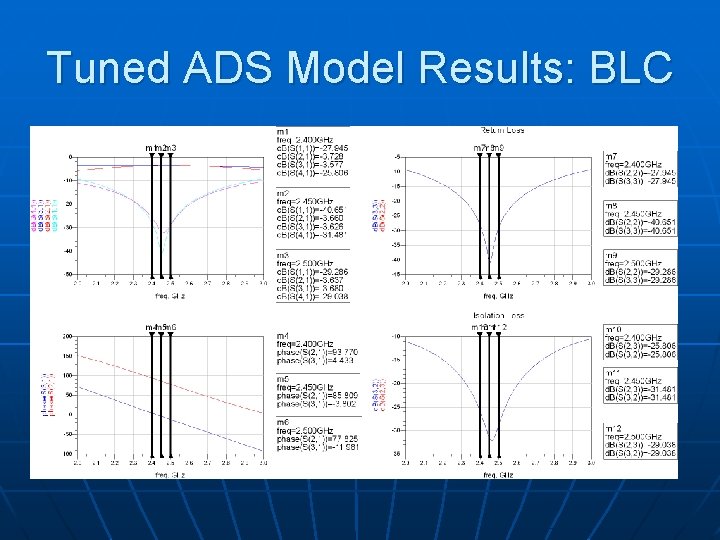

Tuned ADS Model Results: BLC

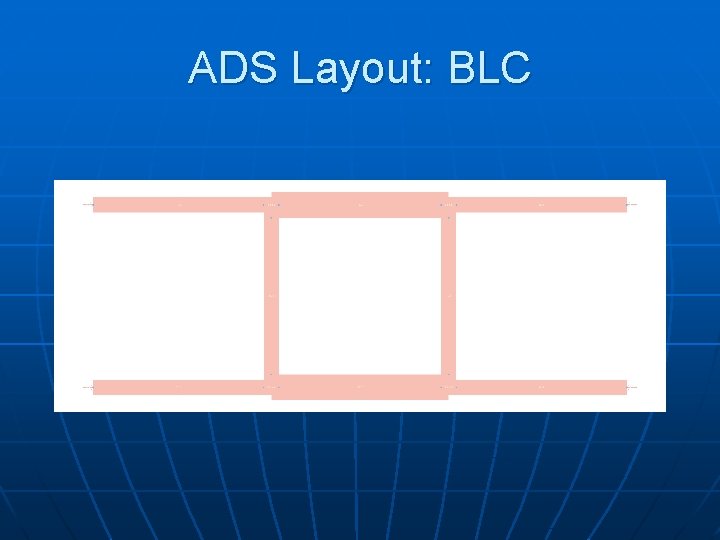

ADS Layout: BLC

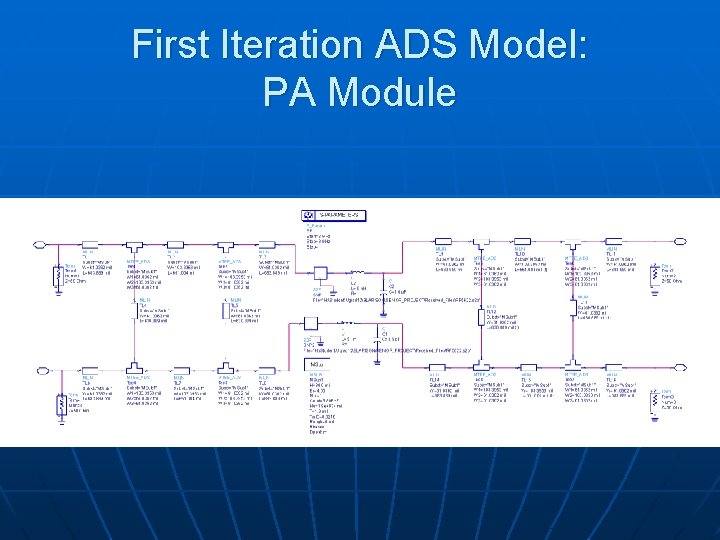

First Iteration ADS Model: PA Module

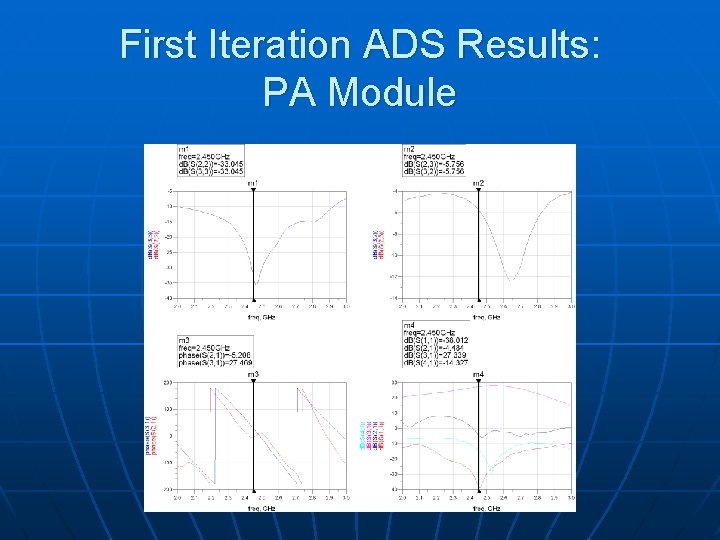

First Iteration ADS Results: PA Module

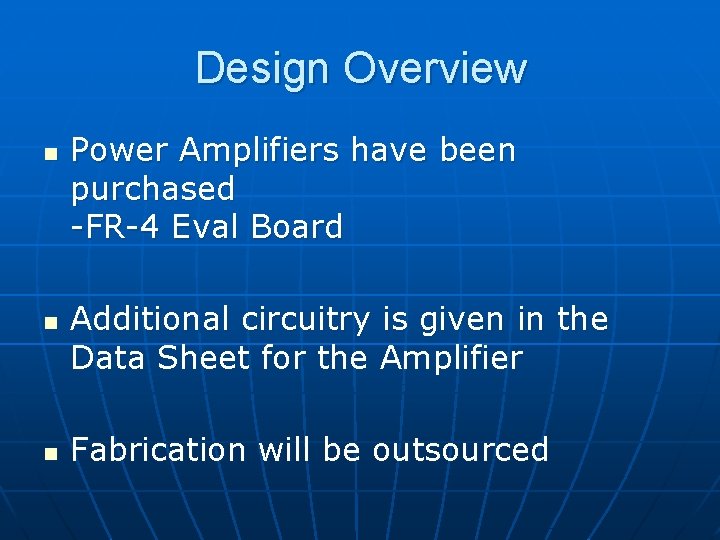

Design Overview n n n Power Amplifiers have been purchased -FR-4 Eval Board Additional circuitry is given in the Data Sheet for the Amplifier Fabrication will be outsourced

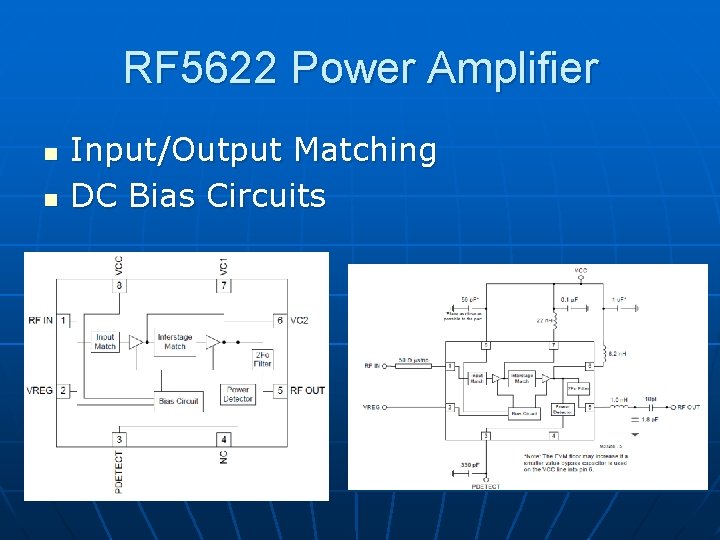

RF 5622 Power Amplifier n n Input/Output Matching DC Bias Circuits

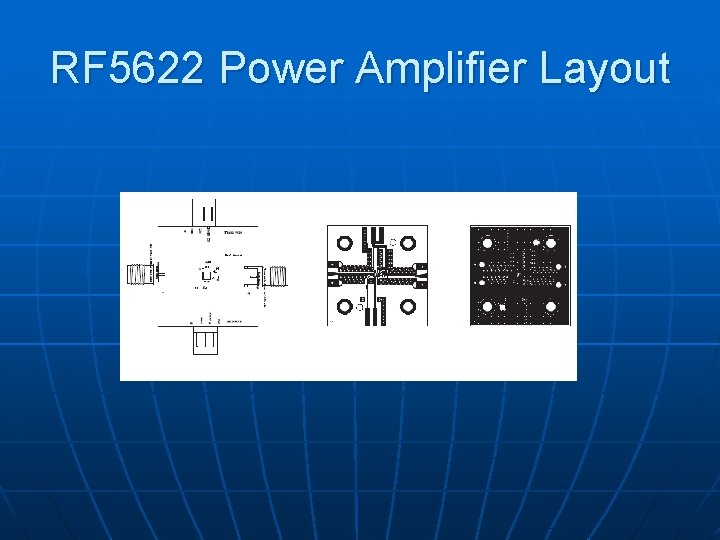

RF 5622 Power Amplifier Layout

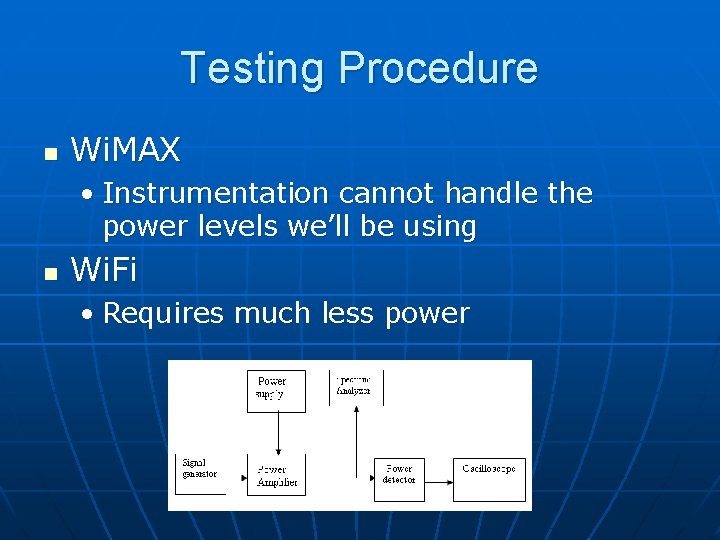

Testing Procedure n Wi. MAX • Instrumentation cannot handle the power levels we’ll be using n Wi. Fi • Requires much less power

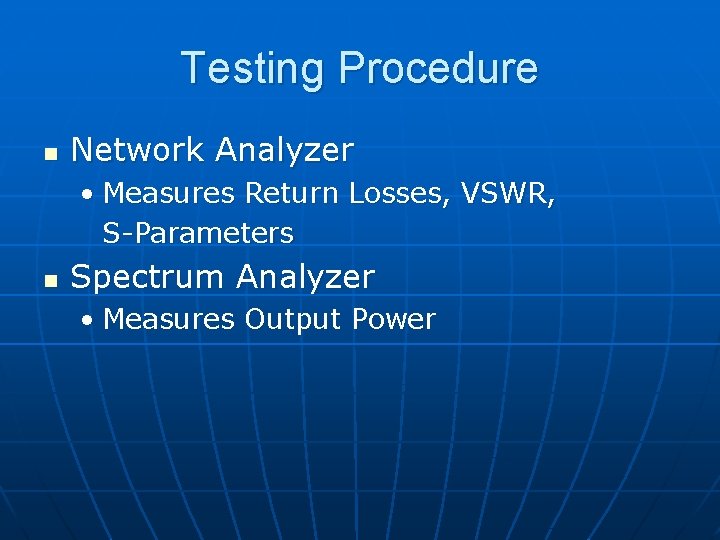

Testing Procedure n Network Analyzer • Measures Return Losses, VSWR, S-Parameters n Spectrum Analyzer • Measures Output Power
Tasks • • Send BLC model out for Fabrication Simulation with Evaluation Board Finalize ADS Model of our PA Module Send Model of PA Module out for Fabrication Solder Components Test Present Results
Tentative Work Schedule n To be done before Spring Break • All models sent for Fabrication • Testing with Evaluation Board n To be done after Spring Break • Solder Components • Test • Present Results

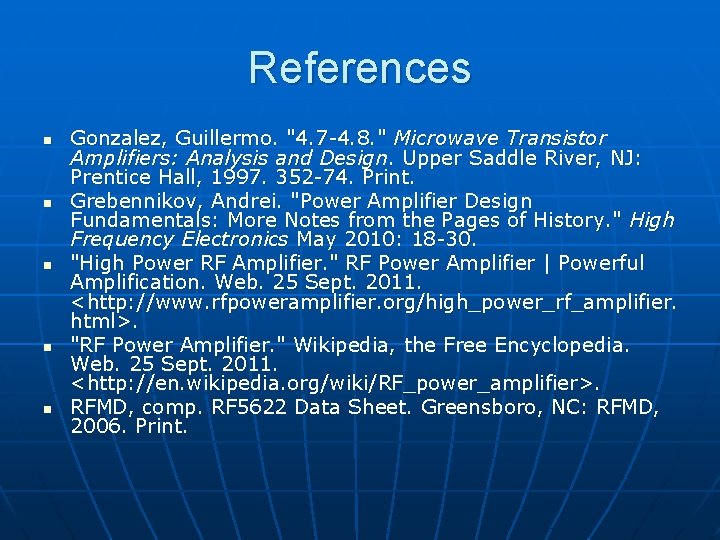

References n n n Gonzalez, Guillermo. "4. 7 -4. 8. " Microwave Transistor Amplifiers: Analysis and Design. Upper Saddle River, NJ: Prentice Hall, 1997. 352 -74. Print. Grebennikov, Andrei. "Power Amplifier Design Fundamentals: More Notes from the Pages of History. " High Frequency Electronics May 2010: 18 -30. "High Power RF Amplifier. " RF Power Amplifier | Powerful Amplification. Web. 25 Sept. 2011. <http: //www. rfpoweramplifier. org/high_power_rf_amplifier. html>. "RF Power Amplifier. " Wikipedia, the Free Encyclopedia. Web. 25 Sept. 2011. <http: //en. wikipedia. org/wiki/RF_power_amplifier>. RFMD, comp. RF 5622 Data Sheet. Greensboro, NC: RFMD, 2006. Print.
Questions? n We may or may not have reasonable answers!
