RF High Performance Long Range CCD Scanner Ergonomic

무선(RF) 핸디형 스캐너 • High Performance Long Range CCD Scanner • Ergonomic and suitable for any environment • Small warehousing and Light weight • 32 Kb Data storage at the wireless off line • Bluetooth Specification v 1. 1 • 200 Scans per Second • Radio Range : 50 m open air • Resoluti : 4 mil (0. 1 mil) IComis

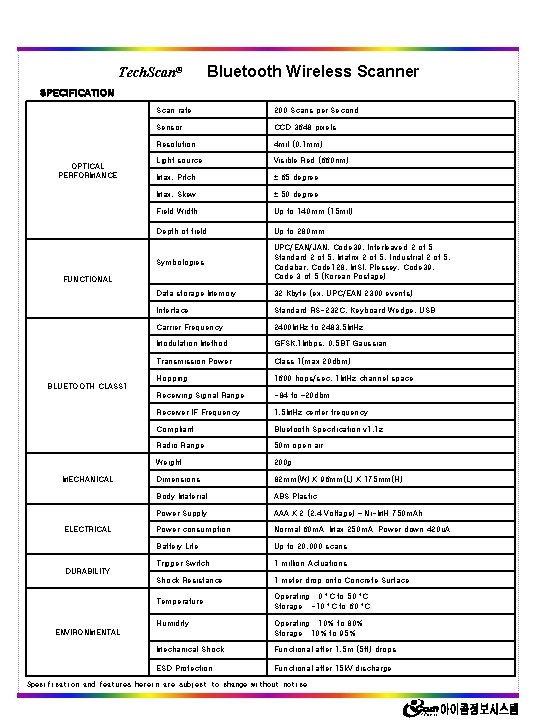

Tech. Scan® Bluetooth Wireless Scanner SPECIFICATION OPTICAL PERFORMANCE Scan rate 200 Scans per Second Sensor CCD 3648 pixels Resolution 4 mil (0. 1 mm) Light source Visible Red (660 nm) Max. Pitch 65 degree Max. Skew 50 degree Field Width Up to 140 mm (15 mil) Depth of field Up to 280 mm Symbologies UPC/EAN/JAN, Code 39, Interleaved 2 of 5 Standard 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Codabar, Code 128, MSI, Plessey, Code 39, Code 3 of 5 (Korean Postage) Data storage Memory 32 Kbyte (ex. UPC/EAN 2300 events) Interface Standard RS-232 C, Keyboard Wedge, USB Carrier Frequency 2400 MHz to 2483. 5 MHz Modulation Method GFSK, 1 Mbps, 0. 5 BT Gaussian Transmission Power Class 1(max 20 dbm) Hopping 1600 hops/sec, 1 MHz channel space Receiving Signal Range -84 to – 20 dbm Receiver IF Frequency 1. 5 MHz center frequency Compliant Bluetooth Specification v 1. 1 z Radio Range 50 m open air Weight 200 g Dimensions 82 mm(W) X 96 mm(L) X 175 mm(H) Body Material ABS Plastic Power Supply AAA X 2 (2. 4 Voltage) – Ni-MH 750 m. Ah Power consumption Normal 60 m. A Max 250 m. A Power down 420 u. A Battery Life Up to 20, 000 scans Trigger Switch 1 million Actuations Shock Resistance 1 meter drop onto Concrete Surface Temperature Operating : 0 C to 50 C Storage : -10 C to 60 C FUNCTIONAL BLUETOOTH CLASS 1 MECHANICAL ELECTRICAL DURABILITY Humidity Operating : 10% to 80% Storage : 10% to 95% Mechanical Shock Functional after 1. 5 m (5 ft) drops ESD Protection Functional after 15 k. V discharge ENVIRONMENTAL Specification and features herein are subject to change without notice. IComis
