Revo One RL 85 A world of entertainment

Revo One RL 85 A world of entertainment in a mini PC

Entertainment Center 2 ACER CONFIDENTIAL

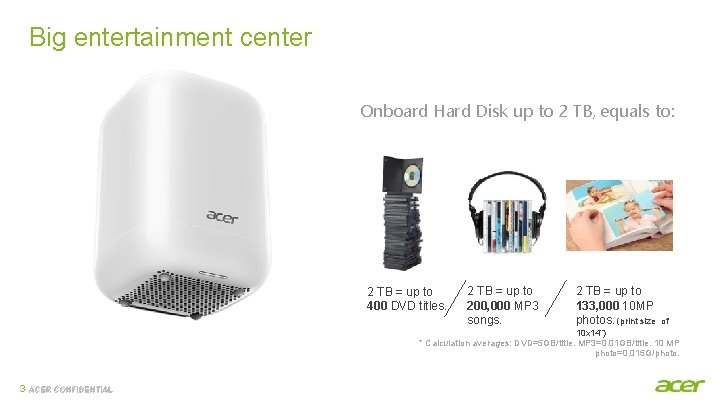

Big entertainment center Onboard Hard Disk up to 2 TB, equals to: 2 TB = up to 400 DVD titles. 2 TB = up to 200, 000 MP 3 songs. 2 TB = up to 133, 000 10 MP photos. (print size of 10 x 14”) * Calculation averages: DVD=5 GB/title. MP 3=0. 01 GB/title. 10 MP photo=0. 015 G/photo. 3 ACER CONFIDENTIAL

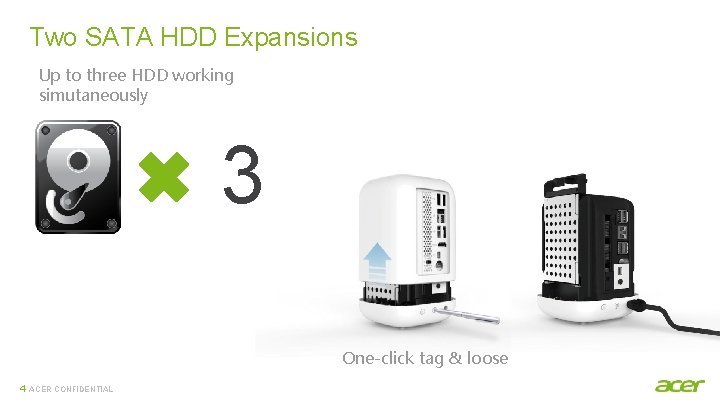

Two SATA HDD Expansions Up to three HDD working simutaneously 3 One-click tag & loose 4 ACER CONFIDENTIAL

Contemporary Design 7 ACER CONFIDENTIAL

organic glossy ACER CONFIDENTIAL

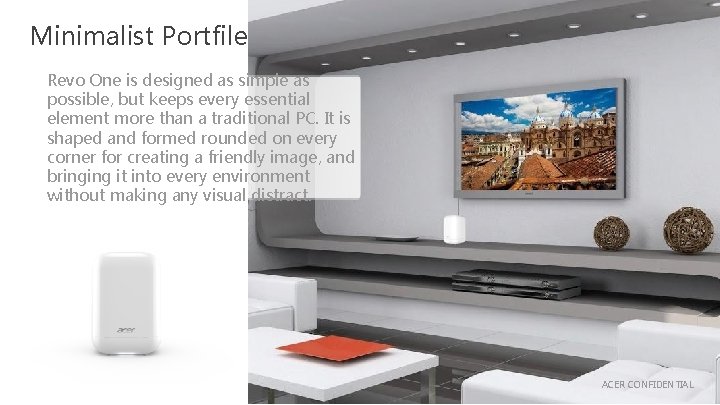

Minimalist Portfile Revo One is designed as simple as possible, but keeps every essential element more than a traditional PC. It is shaped and formed rounded on every corner for creating a friendly image, and bringing it into every environment without making any visual distract. ACER CONFIDENTIAL

Fit in Dark When Revo One is functioning, the light underneath is shining smoothly. Because the light is not direct to users’ eyes, users won’t be bothered even under a dark environment. ACER CONFIDENTIAL

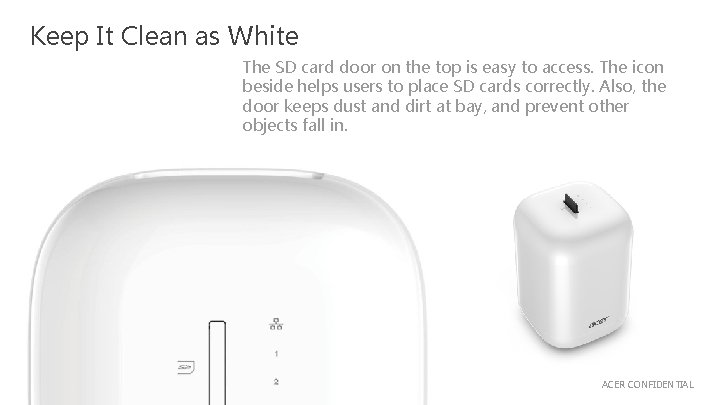

Keep It Clean as White The SD card door on the top is easy to access. The icon beside helps users to place SD cards correctly. Also, the door keeps dust and dirt at bay, and prevent other objects fall in. ACER CONFIDENTIAL

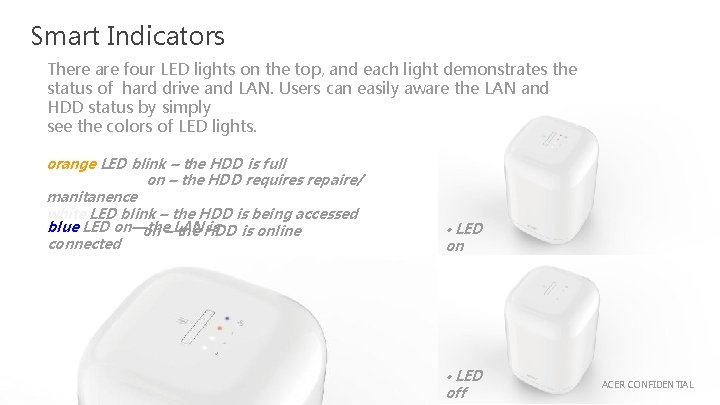

Smart Indicators There are four LED lights on the top, and each light demonstrates the status of hard drive and LAN. Users can easily aware the LAN and HDD status by simply see the colors of LED lights. orange LED blink – the HDD is full on – the HDD requires repaire/ manitanence white LED blink – the HDD is being accessed blue LED on—the is on – LAN the HDD is online connected · LED on · LED off ACER CONFIDENTIAL

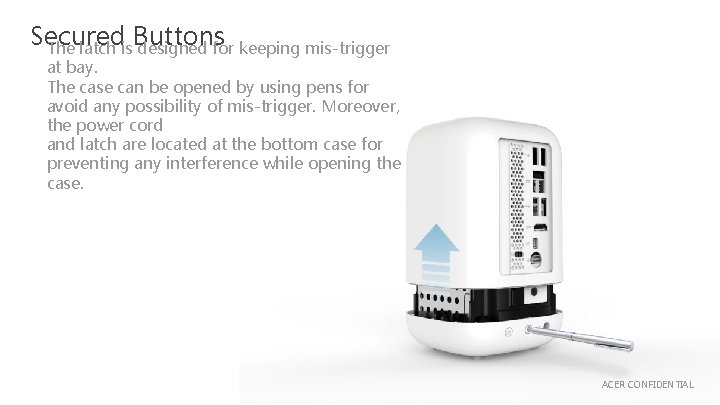

Secured Buttons The latch is designed for keeping mis-trigger at bay. The case can be opened by using pens for avoid any possibility of mis-trigger. Moreover, the power cord and latch are located at the bottom case for preventing any interference while opening the case. ACER CONFIDENTIAL

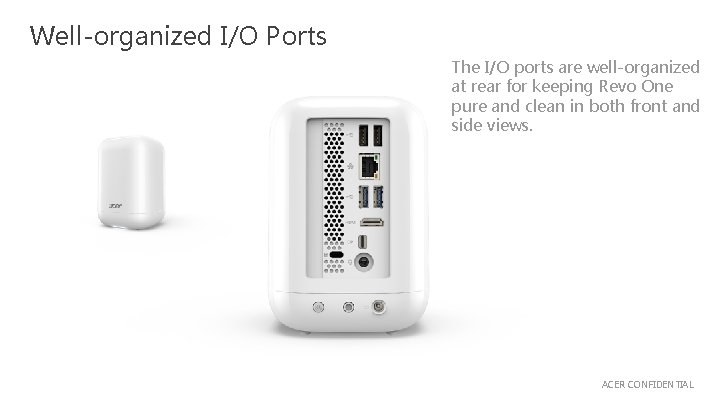

Well-organized I/O Ports The I/O ports are well-organized at rear for keeping Revo One pure and clean in both front and side views. ACER CONFIDENTIAL

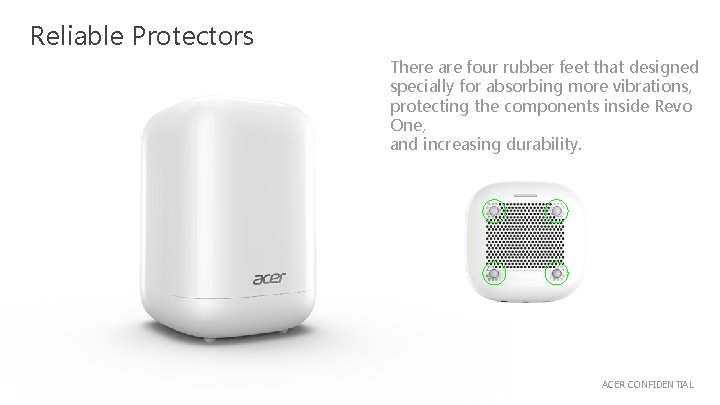

Reliable Protectors There are four rubber feet that designed specially for absorbing more vibrations, protecting the components inside Revo One, and increasing durability. ACER CONFIDENTIAL

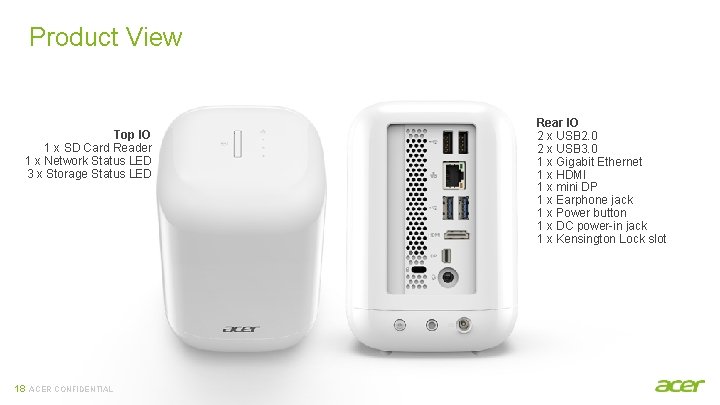

Product View Top IO 1 x SD Card Reader 1 x Network Status LED 3 x Storage Status LED 18 ACER CONFIDENTIAL Rear IO 2 x USB 2. 0 2 x USB 3. 0 1 x Gigabit Ethernet 1 x HDMI 1 x mini DP 1 x Earphone jack 1 x Power button 1 x DC power-in jack 1 x Kensington Lock slot

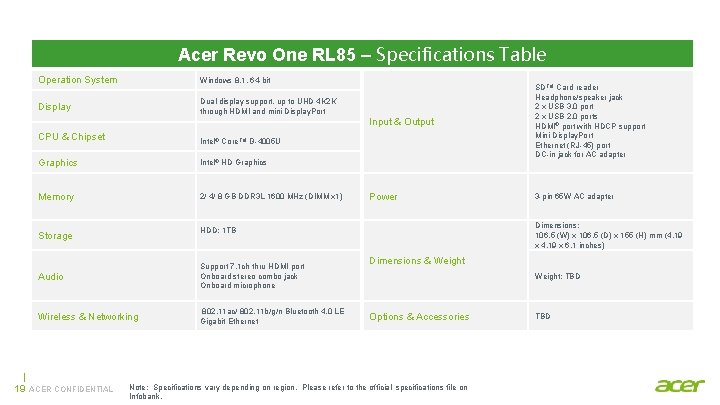

Acer Revo One RL 85 – Specifications Table | 19 Operation System Windows 8. 1, 64 -bit Display Dual display support, up to UHD 4 K 2 K through HDMI and mini Display. Port CPU & Chipset Intel® Core. TM i 3 -4005 U Graphics Intel® HD Graphics Memory 2/ 4/ 8 GB DDR 3 L 1600 MHz (DIMM x 1) Storage HDD: 1 TB Audio Support 7. 1 ch thru HDMI port Onboard stereo combo jack Onboard microphone Wireless & Networking 802. 11 ac/ 802. 11 b/g/n Bluetooth 4. 0 LE Gigabit Ethernet ACER CONFIDENTIAL Input & Output SDTM Card reader Headphone/speaker jack 2 x USB 3. 0 port 2 x USB 2. 0 ports HDMI® port with HDCP support Mini Display. Port Ethernet (RJ-45) port DC-in jack for AC adapter Power 3 -pin 65 W AC adapter Dimensions: 106. 5 (W) x 106. 5 (D) x 155 (H) mm (4. 19 x 6. 1 inches) Dimensions & Weight: TBD Options & Accessories Note: Specifications vary depending on region. Please refer to the official specifications file on Infobank. TBD

Thank you
