Review of Waves Review What is the difference
- Slides: 25
Review of Waves
Review • What is the difference between asking for “the distance between successive parts of a wave and the time between successive parts of a wave”?

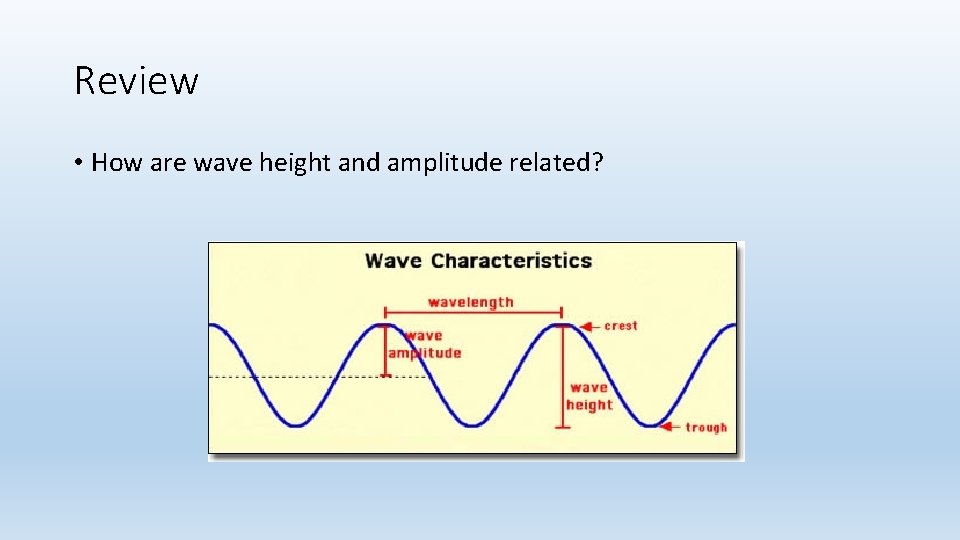

Review • How are wave height and amplitude related?

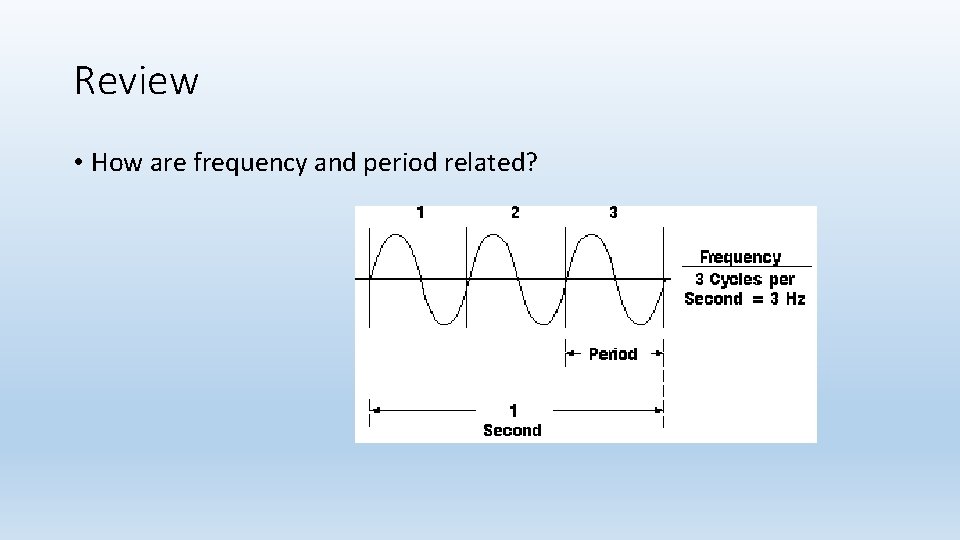

Review • How are frequency and period related?

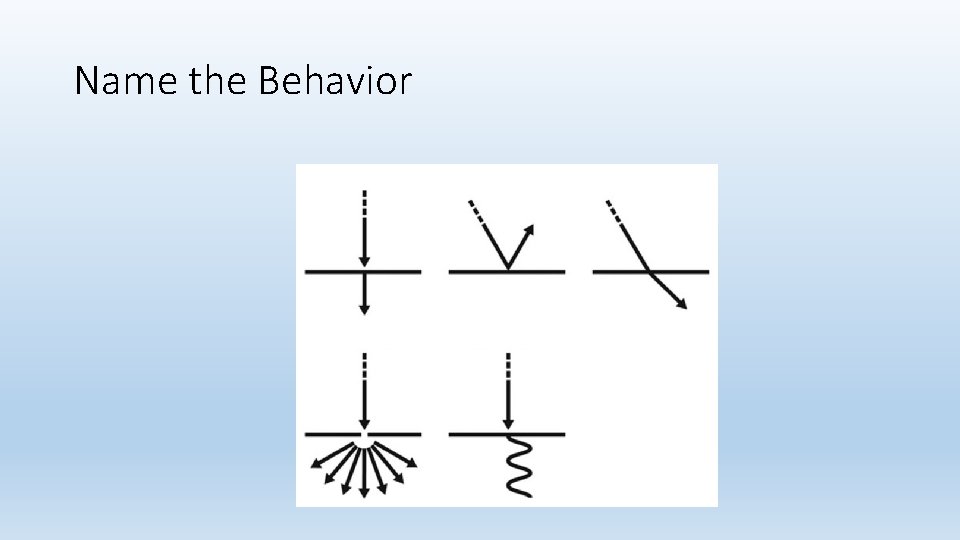

Name the Behavior

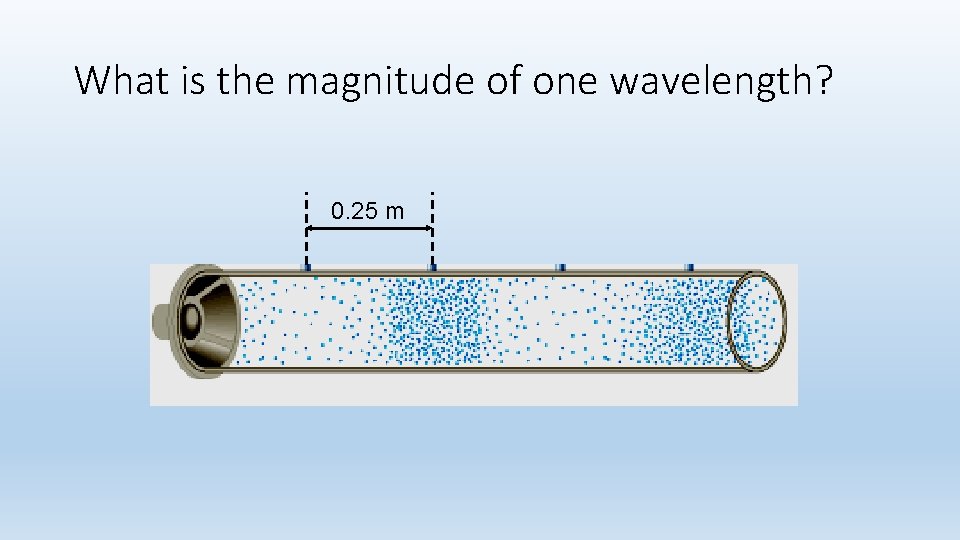

What is the magnitude of one wavelength? 0. 25 m

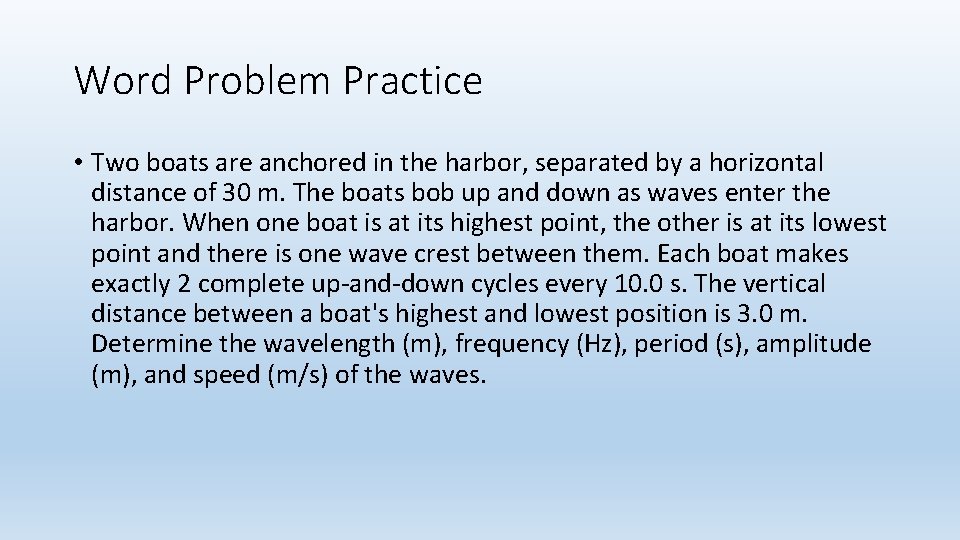

Word Problem Practice • Two boats are anchored in the harbor, separated by a horizontal distance of 30 m. The boats bob up and down as waves enter the harbor. When one boat is at its highest point, the other is at its lowest point and there is one wave crest between them. Each boat makes exactly 2 complete up-and-down cycles every 10. 0 s. The vertical distance between a boat's highest and lowest position is 3. 0 m. Determine the wavelength (m), frequency (Hz), period (s), amplitude (m), and speed (m/s) of the waves.

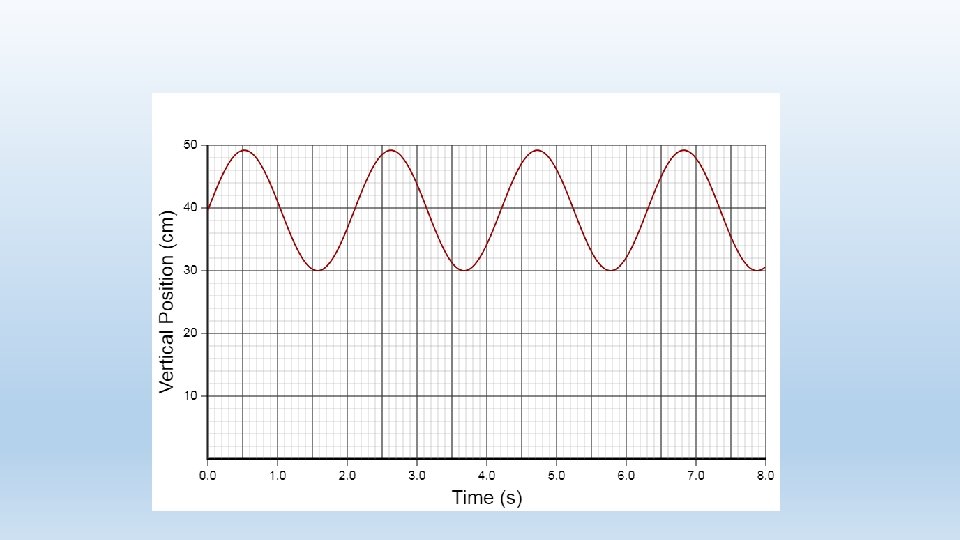

Analysis of Diagram

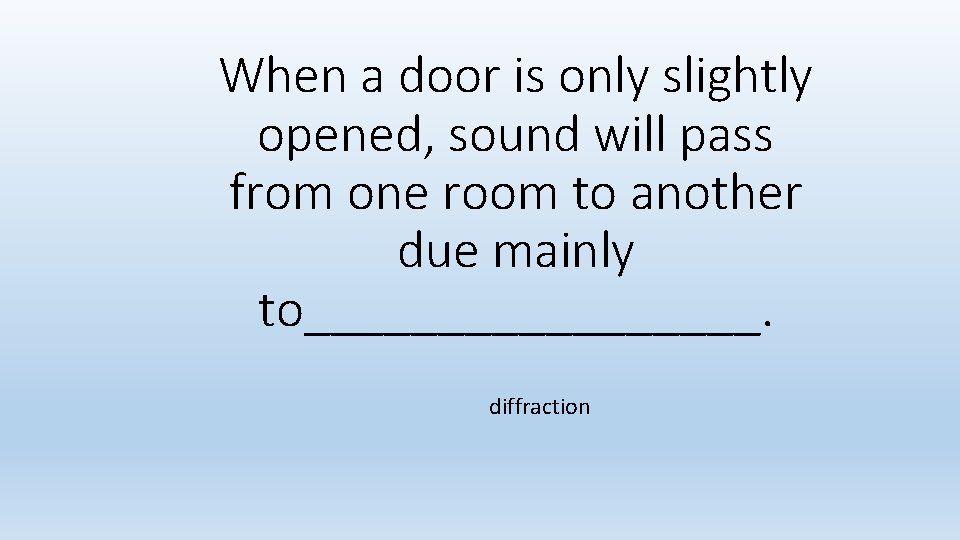

When a door is only slightly opened, sound will pass from one room to another due mainly to_________. diffraction

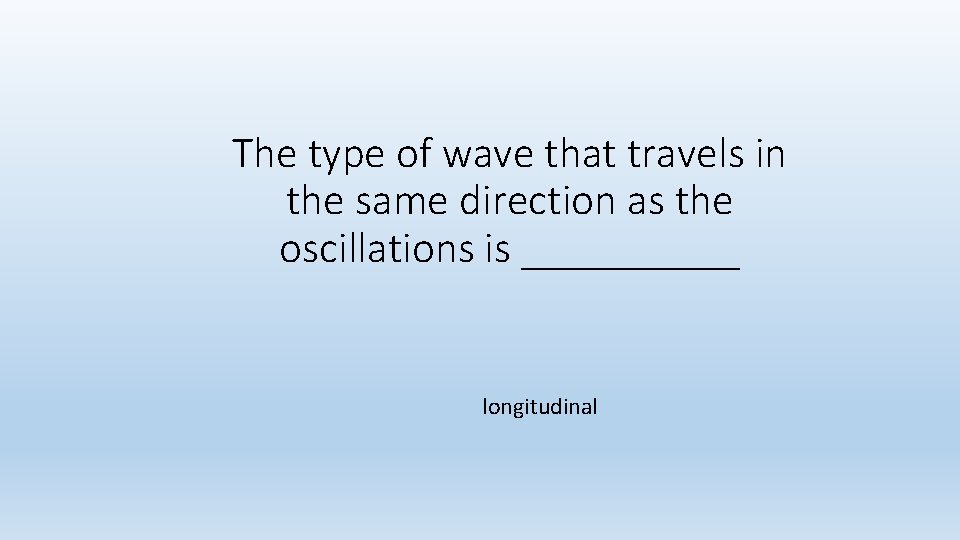

The type of wave that travels in the same direction as the oscillations is _____ longitudinal

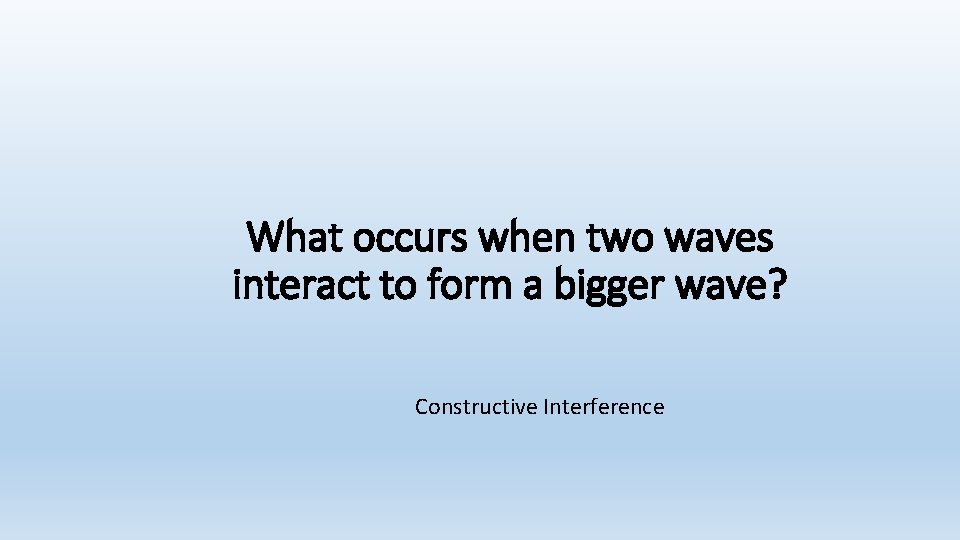

What occurs when two waves interact to form a bigger wave? Constructive Interference

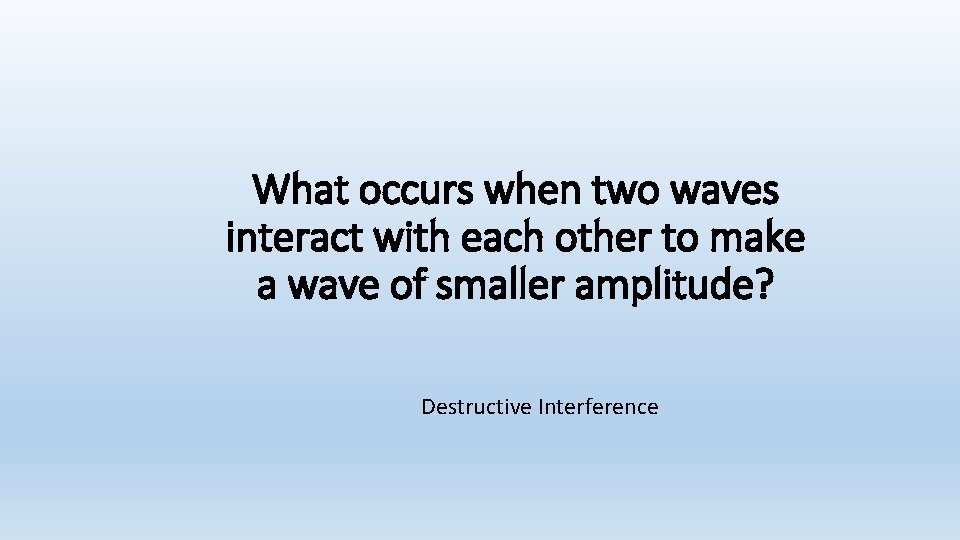

What occurs when two waves interact with each other to make a wave of smaller amplitude? Destructive Interference

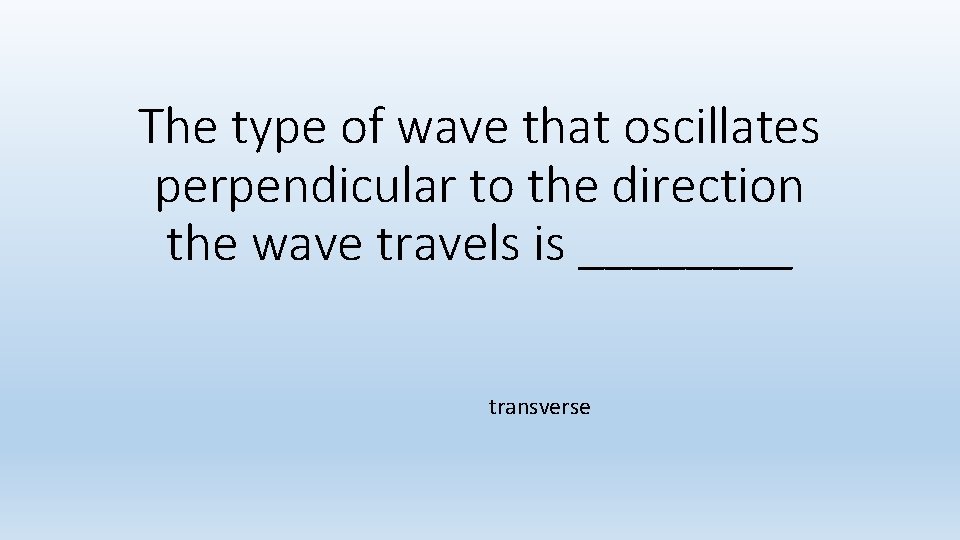

The type of wave that oscillates perpendicular to the direction the wave travels is ____ transverse

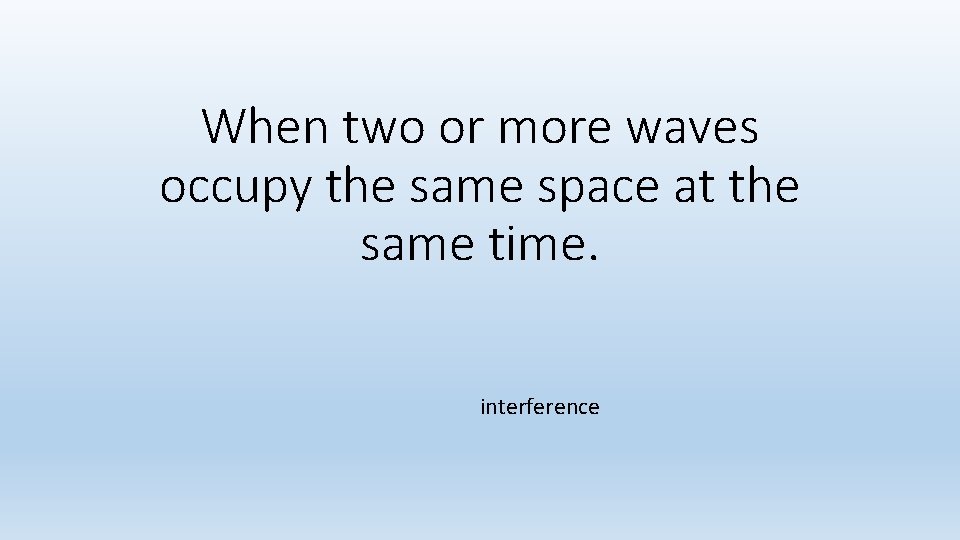

When two or more waves occupy the same space at the same time. interference

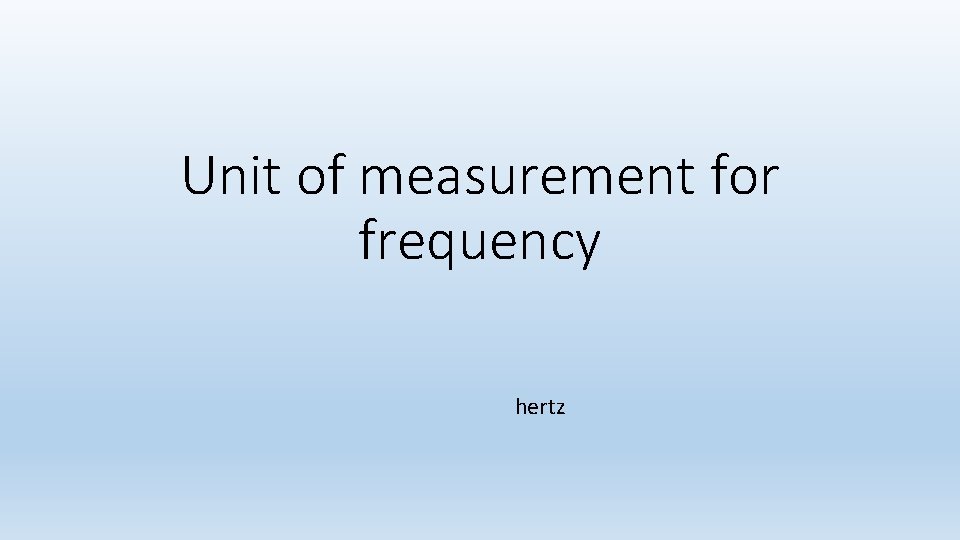

Unit of measurement for frequency hertz

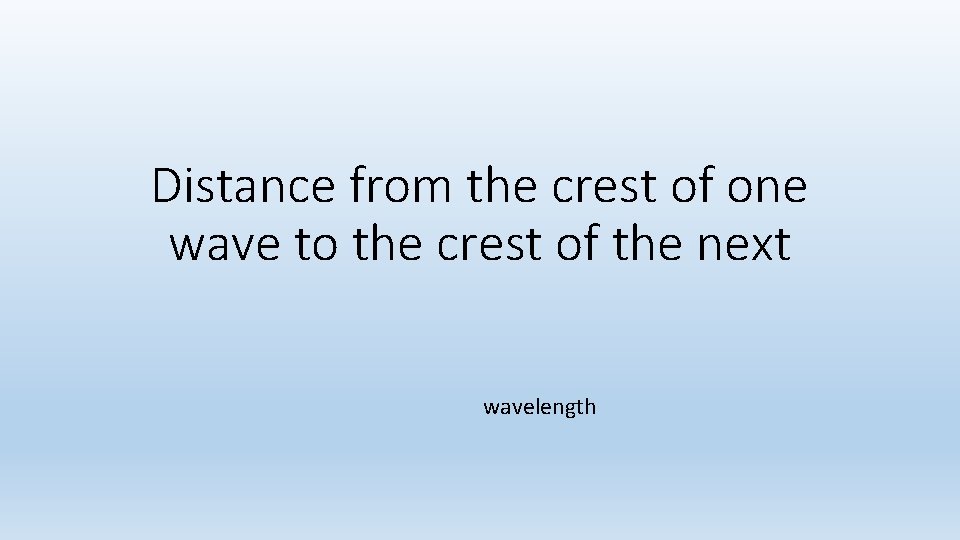

Distance from the crest of one wave to the crest of the next wavelength

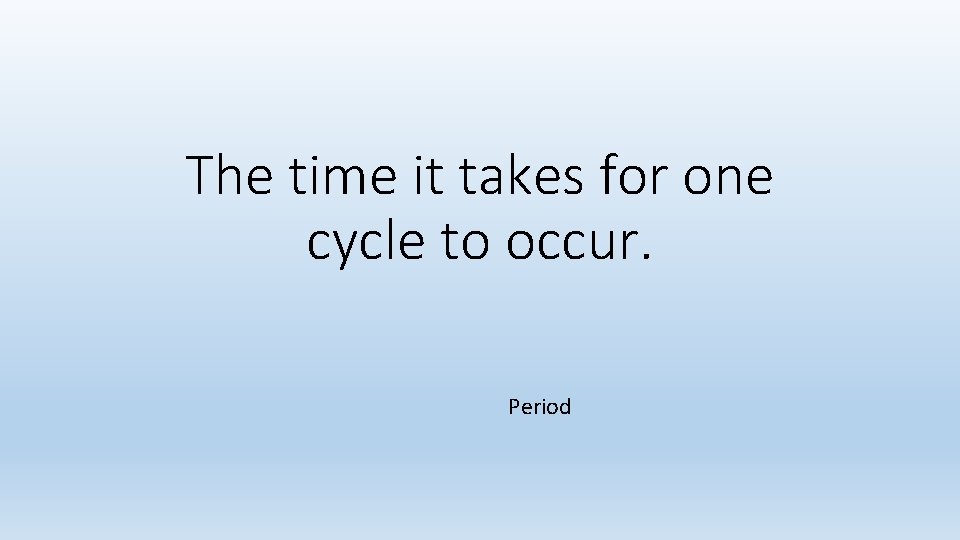

The time it takes for one cycle to occur. Period

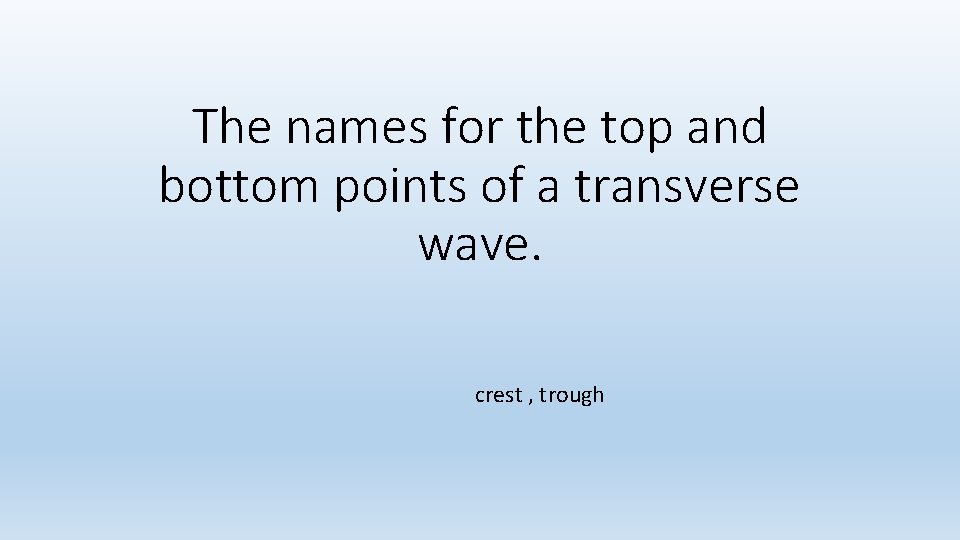

The names for the top and bottom points of a transverse wave. crest , trough

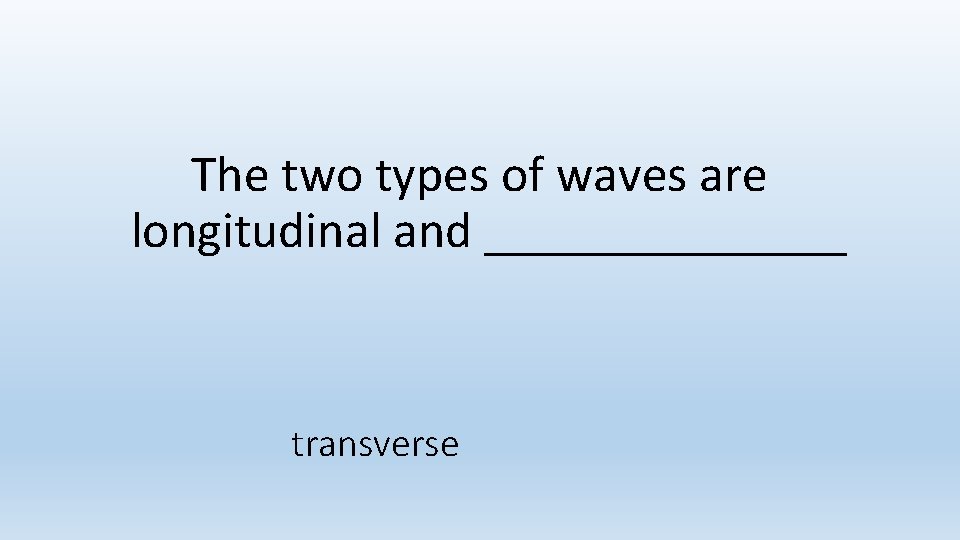

The two types of waves are longitudinal and _______ transverse

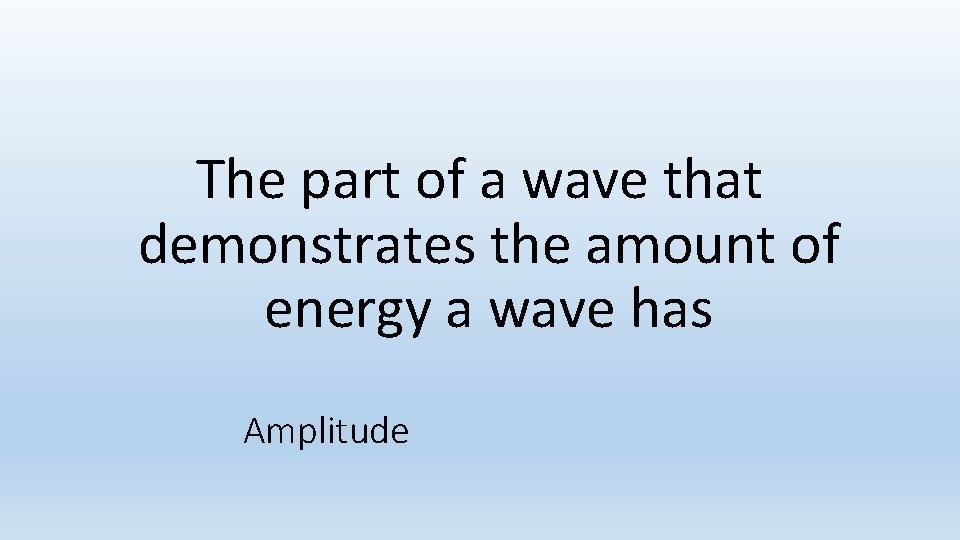

The part of a wave that demonstrates the amount of energy a wave has Amplitude

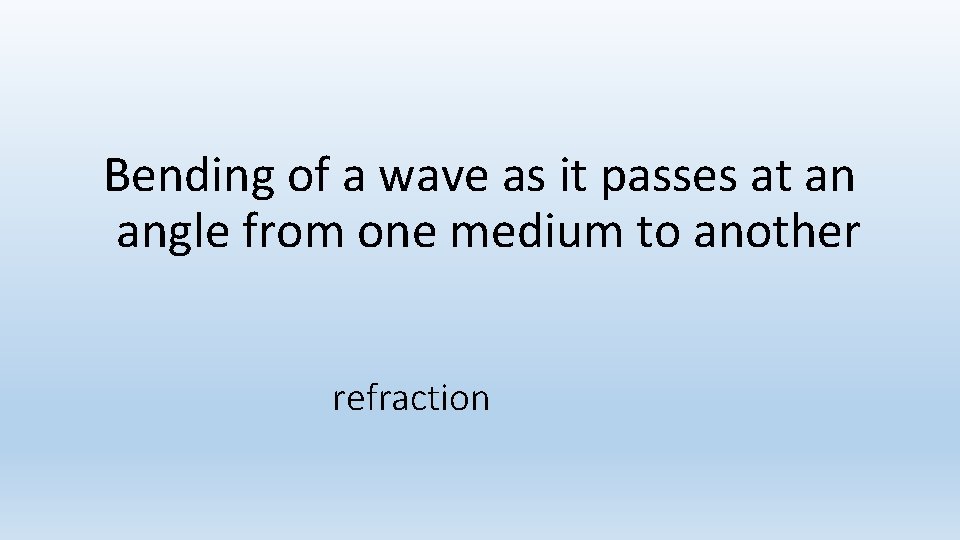

Bending of a wave as it passes at an angle from one medium to another refraction

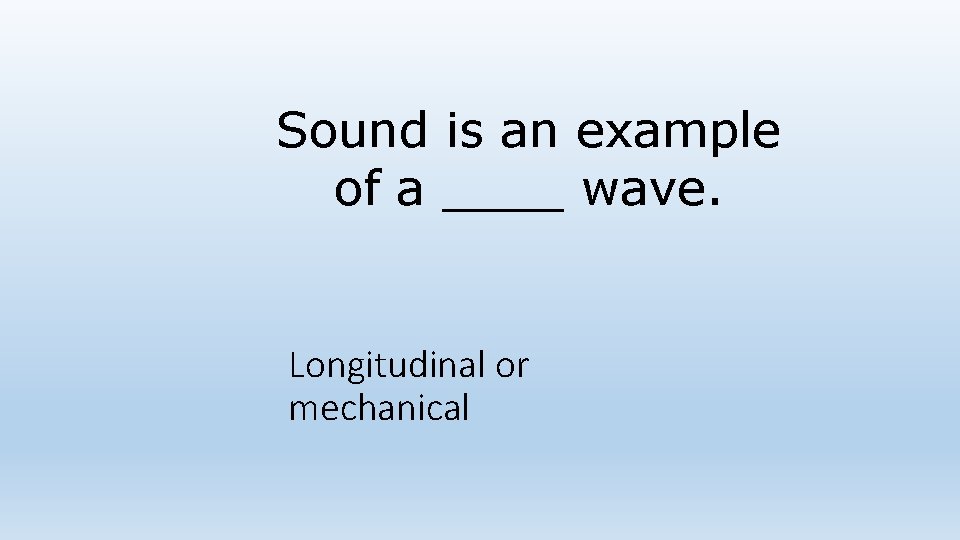

Sound is an example of a ____ wave. Longitudinal or mechanical

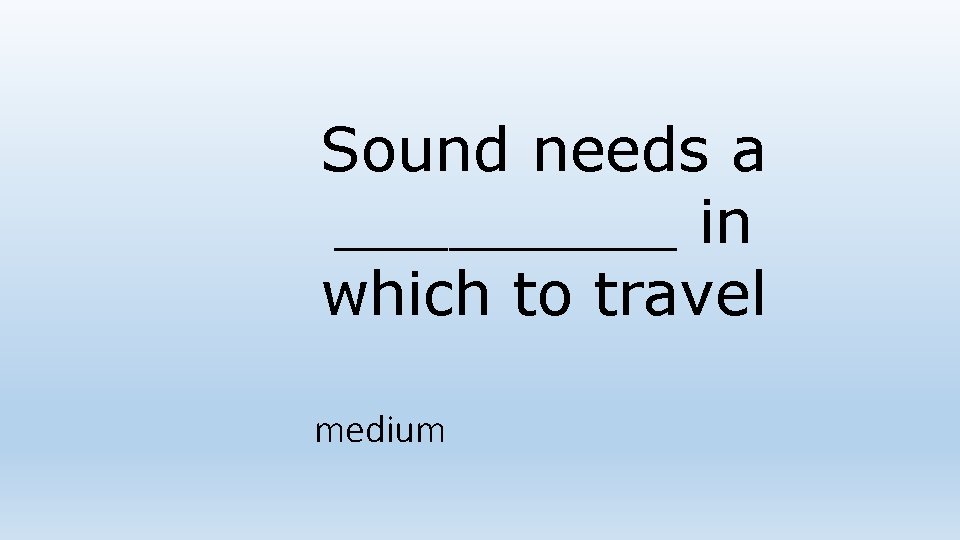

Sound needs a _____ in which to travel medium

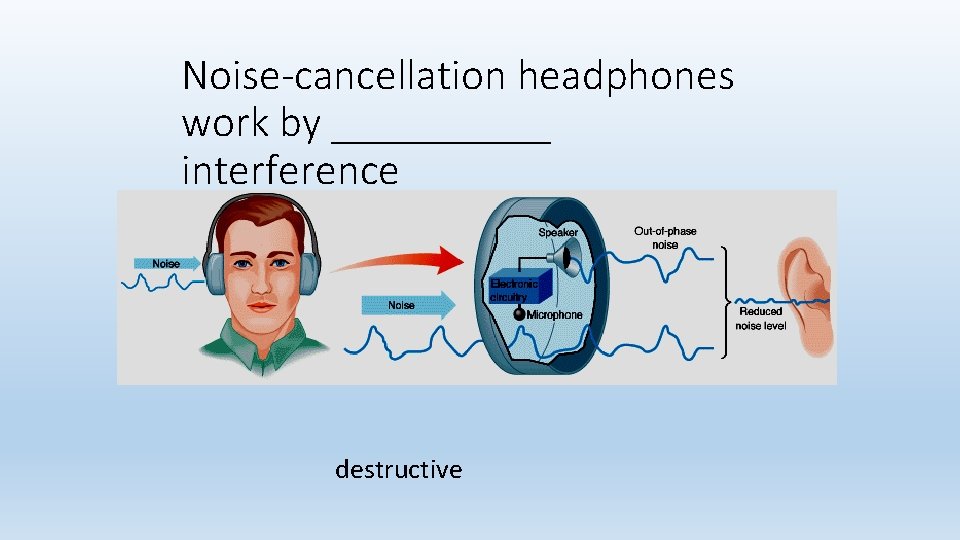

Noise-cancellation headphones work by _____ interference destructive
