Review of spares Monday 18 November 2019 11182019
Review of spares Monday 18 November 2019 11/18/2019 TE-ABT Review of spares 2
Spares for LINAC 4 / PSB Equipment responsible # Operational / Spare units Most critical risk? Beamline element Generator/PS Controls Pre-Chopper Thierry Gharsa 1*/1 1 / 1+1** 1 / 2 Stripping foil unit Louise Jorat 5 / 5 n. a. 2 / 2 11/18/2019 *Pre-chopper top hat in the tunnel repaired. **All parts available for a 2 nd spare (FSU job request) TE-ABT Review of spares 3
Spares for PSB Equipment responsible # Operational / Spare units Most critical risk? Beamline element Generator/PS Controls BI. SMV Miroslav Atanasov 1/1 n. a 1 Spare uses non-heated laminations Control spares available in EC PLC stock BE. SMH Thierry Masson 1/1 n. a 1 Spare not yet upgraded Control spares available in EC PLC stock BT 1/BT 4. SMV 10, BT. SMV 20 Thierry Masson 1/1, 1/1 n. a 3 BIr. BSW 1 -4 Cedric Baud 16/ 6 n. a BI. DIS Tobias Stadlbauer 1/1 5/1 BI. KSW Gregor Grawer 32/8 16/6 4/1 BE. BSW Timothy Mottram n. a 3/1 BT. KFA 10 -20 Luis Feliciano 2/2 3/0 No spare generator Control spares available in EC stock BE. KFA 14 L 1 Luis Feliciano 1/1 4/0 No spare generator Control spares available in EC stock 11/18/2019 Spares use non-heated laminations Control spares available in EC PLC stock TE-ABT Review of spares 4
Spares for PS / TT 2 Equipment responsible # Operational / Spare units Most critical risk? Beamline element Generator/PS Controls Old TX cables PE. BFA 9 Thomas Kramer 1 / 1 PE. KFA 4 -13 -21 Alvaro Ferrero Colomo 1/1, 1/0 1/1, 1/1 PI. KFA 28 Benoit Vez 1/0 1/1 PI. KFA 45 Luis Feliciano 1/1 4/0 Control spares available in EC stock PE. KFA 71 -79 Christophe Boucly 2/2 12/0 12/2 Control spares available in EC stock No spare magnet & tank for KFA 13 & 21 No replacement for SF 6 PFL of KFA 4 PI. SMH 26, PE. SMH 16, PE. SMH 57, PE. SMH 61 extr, Thierry Masson BSW 61 1/1, 1/2, 1/1. 5, n. a. 1/1, 1/1 5 Control spares available in EC PLC stock PI. SMH 42 Thierry Masson 1/0 1 Control spares available in EC PLC stock PS. SEH 23 Antoine Prost 1/1. 8 1 Second spare SEH 23 to be refurbished PS. TPS 15 Mike Hourican 1/0. 7 FT 16. DFA 242 -254 Thomas Kramer 11/18/2019 1; 1 / 0; 0 n. a. 5; 3 / 7 ; 1 Spare needs refurbishment TE-ABT Review of spares Old Tx & PFL cables 5

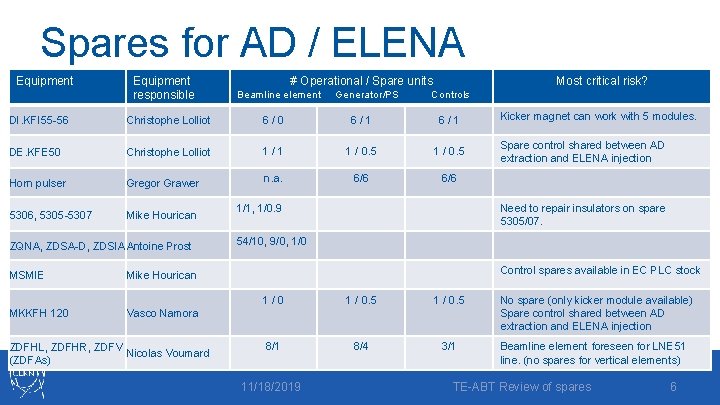

Spares for AD / ELENA Equipment responsible # Operational / Spare units Most critical risk? Beamline element Generator/PS Controls DI. KFI 55 -56 Christophe Lolliot 6 / 0 6 / 1 DE. KFE 50 Christophe Lolliot 1 / 1 1 / 0. 5 Horn pulser Gregor Grawer n. a. 6/6 5306, 5305 -5307 Mike Hourican ZQNA, ZDSA-D, ZDSIAAntoine Prost MSMIE MKKFH 120 1/1, 1/0. 9 Spare control shared between AD extraction and ELENA injection Need to repair insulators on spare 5305/07. 54/10, 9/0, 1/0 Control spares available in EC PLC stock Mike Hourican 1 / 0. 5 No spare (only kicker module available) Spare control shared between AD extraction and ELENA injection 8/1 8/4 3/1 Beamline element foreseen for LNE 51 line. (no spares for vertical elements) Vasco Namora ZDFHL, ZDFHR, ZDFV Nicolas Voumard (ZDFAs) Kicker magnet can work with 5 modules. 11/18/2019 TE-ABT Review of spares 6

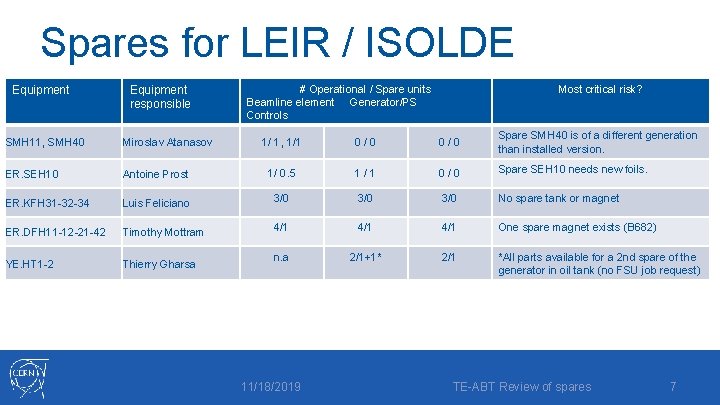

Spares for LEIR / ISOLDE Equipment responsible # Operational / Spare units Beamline element Generator/PS Controls Most critical risk? 1/ 1, 1/1 0 / 0 Spare SMH 40 is of a different generation than installed version. Antoine Prost 1/ 0. 5 1 / 1 0 / 0 Spare SEH 10 needs new foils. ER. KFH 31 -32 -34 Luis Feliciano 3/0 3/0 No spare tank or magnet ER. DFH 11 -12 -21 -42 Timothy Mottram 4/1 4/1 One spare magnet exists (B 682) YE. HT 1 -2 Thierry Gharsa n. a 2/1+1* 2/1 *All parts available for a 2 nd spare of the generator in oil tank (no FSU job request) SMH 11, SMH 40 Miroslav Atanasov ER. SEH 10 11/18/2019 TE-ABT Review of spares 7
Spares for SPS Equipment responsible # Operational / Spare units Beamline element Generator/PS Controls Most critical risk? Individual electronics spare components available MKP Peter Burkel 16 / 4 28/ 7 Viliam Senaj 2 spare magnets under construction 2 Spare generators under construction Individual electronics spare components available SBDS (MKDV) SBDS (MKDH) Viliam Senaj 1 Individual electronics spare components available; MKE 4 & MKE 6 Christophe Lolliot MKQH & MKQV Lorane Allonneau MST & MSE Cedric Baud ZS Antoine Prost TPSG 4 & 6 Cedric Baud TPST Miroslav Atanasov TPSC 4 Louise JORAT 1 4 L+3 S/2 L+1 S 2/1 short 7/2 Ebox 2/2(5) MS 2/2 RCPS Caps 2/2 Xfmr TMRs One capa box as spare 6/2 No Magnet Entry Box Spare, should one fail. 5/2 16/4 n. a x 10 2 nd choice Control spares available in EC PLC stock 5/0 1/1 Straightness check of operational ZS 1/1 & 3/3 n. a. 1/1 n. a. 1 / 0. 5 11/18/2019 n. a. 2/2 DCPS 2/2 Thyr unit 1 L spare to be HV conditioned Individual electronics spare components available 1 / 1 Spare tank not adjusted yet TE-ABT Review of spares 8
Spares for LHC Equipment responsible # Operational / Spare units Most critical risk? Beamline element Generator/PS Controls Mike Barnes 8 / 4(2) Mags. 8 / 2 TMR 8/1(3) Ebox 8 / 1 PFN 8/2 MS 8/2 DS 4/1 RCPS 4 / 1 DC PS Thyrist unit LBDS B 1/B 2 (MKD, Viliam Senaj MKBH & MKBV) 2 MKD mag. 1+1 MKBH/V tank 4 MKD gen 2+2 MKBH/V gen MKD: 30 / 2 MKB: 20 / 1 MKQAc B 1/B 2 (H&V) Nicolas Magnin H: 2 / 1 V: 2 / 1 4 / 1 TCDS, TCDQM Miroslav Atanasov 4/2, 4/1 n. a. 1/1 TCDQ Christophe Boucly MKI 2 & MKI 8 6/3 11/18/2019 1/1 Transformer replacement Breakdown of MKB magnet Servo controller (PARVEX) obsolete One spare available (need repairing) TE-ABT Review of spares 9
