Review of 201314 Topographic surveys 31 poststorm surveys

Review of 2013/14

Topographic surveys 31 post-storm surveys conducted over winter 2013/14

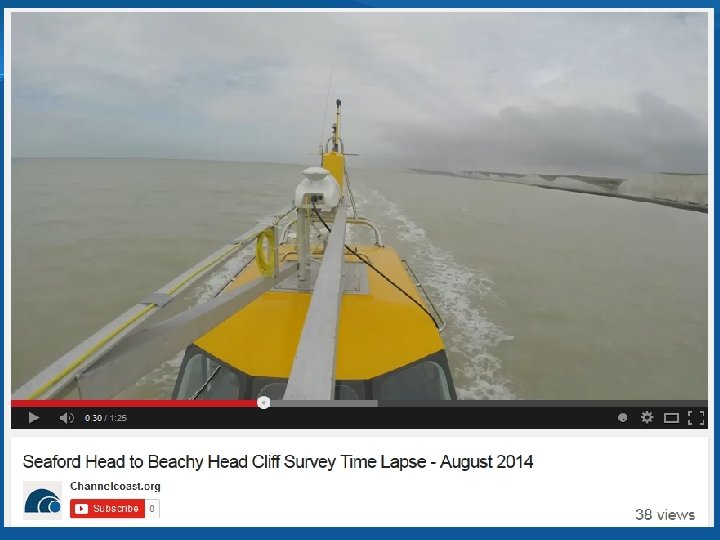

Wider use of laser scanning….

Swath bathymetry surveys

Lidar surveys 2013/14 Complete coverage of SE, mostly to MLWS No areas completely signed off yet (7 of 12 polygons returned to Geomatics for corrections, remainder still under-going QC)

Lidar 2013/14 Considerable amount of quality-control needed

Aerial surveys (2013)

Waves, tides and met • New tide gauge and met station on Arun Platform (some set-up problems) Arun Youth Sailing Centre very glad….

Terrestrial ecological mapping • Specification completed (used by the Northwest and Southeast) • Work to be commissioned for F/Y 2014/15, to map 2013 orthophotography

Seabed mapping • Not (yet) part of Programme • Some areas mapped under commission from Sussex IFCA and SCOPAC (more later)

Bi-modal wave experiments at HR Wallingford (more later)

Monthly website hits

Quarterly downloads from website (SE)

Potential revisions for Phase IV

Review change per profile over time (10 years +) Reduce survey frequency if little change? Move to lidar for un-managed frontages? Review schedule in light of new technology (laser scanning)? Topographic surveys

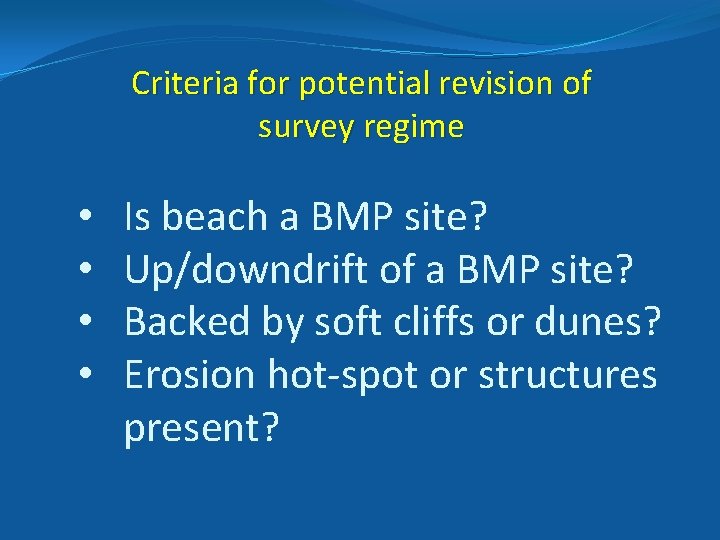

Criteria for potential revision of survey regime • • Is beach a BMP site? Up/downdrift of a BMP site? Backed by soft cliffs or dunes? Erosion hot-spot or structures present?

Derivation of “hot spots”

Criteria Directly up/ Backed by soft Erosion hot Management downdrift of a cliffs or spot or Policy BMP site? dunes? structures? NAI N N N Y NAI N N Y N HTL N N MR N N HTL N N N Y HTL N N Y N HTL N N Y Y MR N N N Y MR N N Y N MR N N Y Y NAI N Y HTL N Y MR N Y HTL Y Survey regime A B B B C C C D D

Proposals for discussion – current regime Current Survey Schedule Examples Low 1 profile every year Lee side of Mudeford Spit Medium 2 profiles every year Lulworth Cove, Alum Bay, Freshwater Bay High Baseline + 2 profiles every year Preston Beach, Bembridge, Seaford Survey Intensity

Proposals for discussion – revised regime Survey Intensity Minimum Low Survey Regime Current Survey Schedule+ Proposed Survey schedule Post storm surveys per phase A 1 profile every year Baseline every 5 years 0 Lee side of Mudeford Spit B Baseline every 2 profiles every 5 years* 1 Lulworth Cove, Alum Bay 3 Freshwater Bay, Swanage 5 Preston Beach, Bembridge, Seaford, Folkestone year Medium High C D Baseline + 2 profiles every year Baseline + 2 profile every year * Examples lidar in intervening years

Proposals for discussion – revised 5 -year survey schedule Proposed Surveys Year 17 Year 18 Year 19 2018/19 2019/20 2020/21 Survey regime Post-storm surveys per phase Year 16 2017/18 A 0 - Lidar* - Baseline - B 1 Lidar Baseline Lidar C 3 Baseline Baseline D 5 Year 20 2021/22 Baseline + 2 Baseline + 2 profiles 2 profiles

Aerial surveys

• No major changes to hydrodynamics network (investigating potential DWR off Portsmouth, tide gauge for Hastings Pier) • Single beam bathymetry in highly dynamic areas only, mostly once in 5 years • Swath bathymetry for coastal areas not yet completed • Terrestrial ecological mapping (dynamic habitats only)

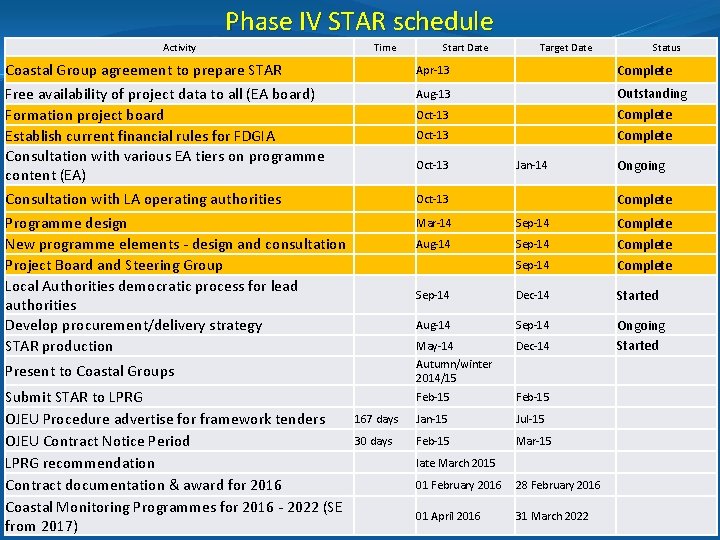

Phase IV STAR schedule Activity Time Start Date Target Date Status Coastal Group agreement to prepare STAR Free availability of project data to all (EA board) Formation project board Establish current financial rules for FDGIA Consultation with various EA tiers on programme content (EA) Consultation with LA operating authorities Apr-13 Complete Aug-13 Oct-13 Outstanding Complete Oct-13 Jan-14 Ongoing Oct-13 Complete Programme design New programme elements - design and consultation Project Board and Steering Group Local Authorities democratic process for lead authorities Develop procurement/delivery strategy STAR production Mar-14 Sep-14 Aug-14 Sep-14 Complete Sep-14 Dec-14 Started Aug-14 Sep-14 Dec-14 Present to Coastal Groups May-14 Autumn/winter 2014/15 Ongoing Started Submit STAR to LPRG OJEU Procedure advertise for framework tenders OJEU Contract Notice Period LPRG recommendation Contract documentation & award for 2016 Coastal Monitoring Programmes for 2016 - 2022 (SE from 2017) Feb-15 167 days Jan-15 Jul-15 30 days Feb-15 Mar-15 late March 2015 01 February 2016 28 February 2016 01 April 2016 31 March 2022

www. coastalmonitoring. org
