Reversible Sketches for Efficient and Accurate Change Detection over Network Data Streams Robert Schweller Ashish Gupta Elliot Parsons Yan Chen Computer Science Department, Northwestern University 1

Online Change Detection • Network anomalies are common – Flash crowds, failures, Do. S, worms, … Online Detection over Data Streams • Data Stream: key/update pairs (k, u) –Heavy hitters (lots of prior work) –Heavy changes 2

k-ary sketch [Krishnamurthy, Sen, Zhang, Chen, 2003] -first to detect flow-level heavy changes in massive data streams at network traffic speeds. 0 1 … K-1 1 … j … H 3

k-ary sketch [Krishnamurthy, Sen, Zhang, Chen, 2003] Update (k, u): Tj [ hj(k)] += u (for all j) 0 1 … h 1(k) K-1 1 … hj(k) j … h. H(k) H Estimate v(S, k): sum of updates for key k 4

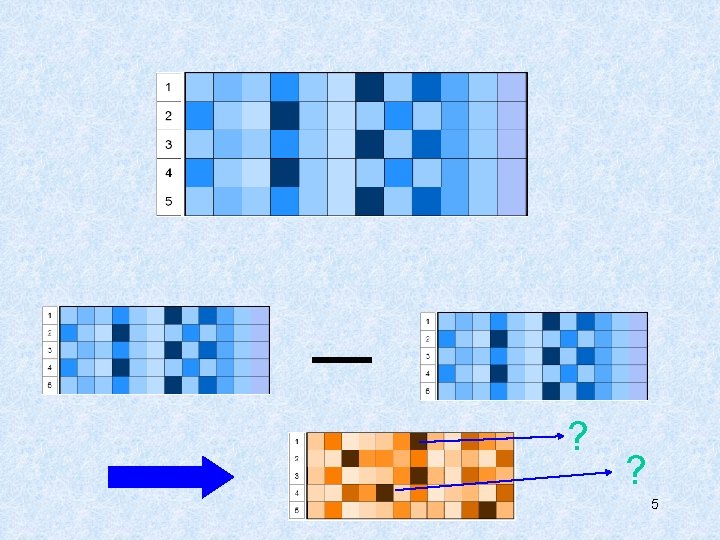

• Requires very little space: –E. g. 5 hash tables with 16 K buckets = 80 KB –Fits in high speed memory • Main problem – Cannot efficiently report keys with heavy change • Our Contribution – Determine set of keys that have “large” estimates in sketch ? ? 6

Reverse Sketch Problem “Heavy” 1 Input: -Sketch -Threshold 2 3 4 5 Output: Set of keys that hash to heavy buckets in majority (or all) hash tables 7

Outline value Streaming data recording key Modular hashing k-ary sketch IP mangling fast slow Heavy change detection change threshold k-ary sketch heavy change keys Improve Heavy Change Detection Reverse Hashing Algorithms 8

Taking Intersections • Intersect A 1, A 2, A 3, A 4, A 5 H=5 K = 212 #keys = 232 (IP addresses) E[false positives] << 1 9

The problem with simple intersection • Why is this difficult ? • Each set Ai can be very large ! H=5 K = 212 #keys = 232 (IP addresses) |A 1| = 232 / 212 = 220 10

The problem with simple intersection • Why is this difficult ? • Each set Ai can be very large ! • Solution: Modular hashing 11

Modular hashing reduces the set size 32 bits 10010100 10101011 10010101 10100011 8 bits h() 12 bits 010 110 001 12

Modular hashing reduces the set size 32 bits 10010100 10101011 10010101 10100011 8 bits h 1() 010 h 2() 110 h 3() 001 h 4() 101 010 110 001 101 Greatly reduces size of reverse mapped sets 13

Modular hashing reduces the set size 32 bits 10010100 28/23 = 25 10101011 10010101 10100011 8 bits h 1() 010 h 2() 110 h 3() 001 h 4() 101 010 110 001 101 Greatly reduces size of reverse mapped sets 14

Modular hashing reduces the set size Intersection: A 1: 2 5 * 2 5 Only 32 elements per partition 1 b 2 2 b 3 3 4 5 b 4 b 5 15

Modular hashing reduces the set size Intersection: Only 32 elements per partition 1 A 1: 2 5 * 2 5 A 2: 25 * 25 b 1 b 2 2 b 3 3 4 5 b 4 b 5 16

Handling Multiple Intersections… 2 H different intersections 1 b 1 2 3 b 2 b 3 4 5 b 2 b 3 b 4 b 5 Much more difficult - Need sophisticated Reverse Hashing algorithms ( see tech report ) 17

Problem: Too many collisions 32 bits 129. 105. 56. 23 129. 105. 56. 28 129. 105. 56. 109 129. 105. 56. 35 129. 105. 56. 98. . . 12 bits 7. 4. 0. * 18

Problem: Too many collisions 32 bits 129. 105. 56. 23 129. 105. 56. 28 129. 105. 56. 109 129. 105. 56. 35 129. 105. 56. 98. . . 12 bits 7. 4. 0. * Solution: IP Mangling 19

IP-mangling 20

Invertible Modular Linear Equation f(x) a·x mod n To be invertible: Must be relatively prime • a is odd, chosen randomly 21

Modular Hashing Optimal Hashing 22

Modular Hashing with IP Mangling Optimal Hashing 23

Recap: value stored value Streaming data IP mangling recording key Heavy change detection change threshold reversible k-ary sketch Modular hashing Reverse hashing reversible k-ary sketch Reverse IP mangling heavy change keys 24

Evaluation • Traffic traces from Northwestern University edge router – Each 5 min interval average traffic 7. 5 GB in each interval • Compared with Ground Truth • 6 hash tables, 4 K buckets each, totally 192 KB memory • Up to 140 true heavy change keys in 1. 5 seconds – Over 95% TPP – Less than 2% FPP • All missing changes are due to boundary effects 25

Conclusions/ Future Work • Sketches: efficient summary structures • Our contribution: Reversible Sketches – efficient online detection of keys with heavy changes Work in Progress (see tech report) • Improved reverse hashing • Statistical guarantee on detection accuracy • More advanced applications: – Hierarchical change detection • E. g. 129. 105. 100. * shows a big change ! 26

Thank you ! See tech report for more! http: //list. cs. northwestern. edu 27
