Retrieve stereo hits in Hough tracking Tracking efficiency
- Slides: 12
Retrieve stereo hits in Hough tracking
Tracking efficiency status (1) Figure(1) efficiency : events found at least 1 track/all events (2) Figure(2) efficiency : events found at least 1 track past track quality/all events Track quality cut: |Δpt|<10 Me. V |Δp |<15 Me. V |Δvr|<1 cm |Δvz|<10 cm • When |cos|>0. 8 , efficiency drop fast
Method to get back lost hit when large |cos| • Use 2 d circle information after 2 d fit • Calculate distance of every stereo hit position to the 2 d circle(mid point position) • Use drift information to help to reject noise hit • Retrieve lost stereo hits inside a certain distance cut and reject noise hits
Some Explain • Aim to deal with stereo hits when |cos|>0. 8 to adjust the bin cut in Hough Map When |cos|>0. 8 peak width get larger , so lost more stereo hits • Cause this is used to retrieve lost hits , use a strict condition to reject noise hits • Sensitive to multi turn tracks , so want it only for |cos|>0. 8
Layer <8 (drift distance cut) Noise stereo hit drift distance signal stereo hit drift distance (cm) When cut at drift distance 0. 6 , cut more noise stereo hits (cm)
Layer<8 (distance to circle) signal stereo hit distance to circle noise stereo hit distance to circle (cm) Next try different cut to get more signal hits and reject noise hits (cm)
Layer<8 (distance to circle cut) Number of signal hits vary with different cut proportion of signal hit/all hits vary with different cut rate Signal hits (cm) • We want high signal rate and more signal hits • use cut distance=3. 0 cm , means when distance of a stereo hits to circle<3. 0 cm , retrieve the hit
Layer>=8(drift distance cut) Noise stereo hit drift distance signal stereo hit drift distance (cm) When cut at drift distance 0. 8 , cut more noise stereo hits (cm)
Layer>=8 (distance to circle) signal stereo hit distance to circle noise stereo hit distance to circle (cm) Next try different cut to get more signal hits and reject noise hits (cm)

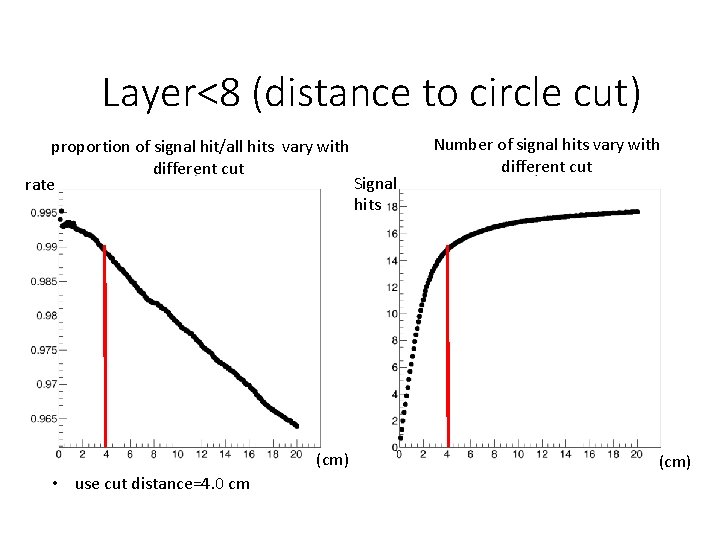

Layer<8 (distance to circle cut) proportion of signal hit/all hits vary with different cut Signal rate hits (cm) • use cut distance=4. 0 cm Number of signal hits vary with different cut (cm)
Tracking efficiency status before get back lost hits events found at least 1 track/all events Add quality cut After get back lost hits events found at least 1 track/all events Add quality cut Track quality cut: |Δpt|<10 Me. V |Δp |<15 Me. V |Δvr|<1 cm |Δvz|<10 cm • Tracking efficiency upgrate ~15% when |cos|>0. 8 • Influence on multi turn tracks when |cos| is small

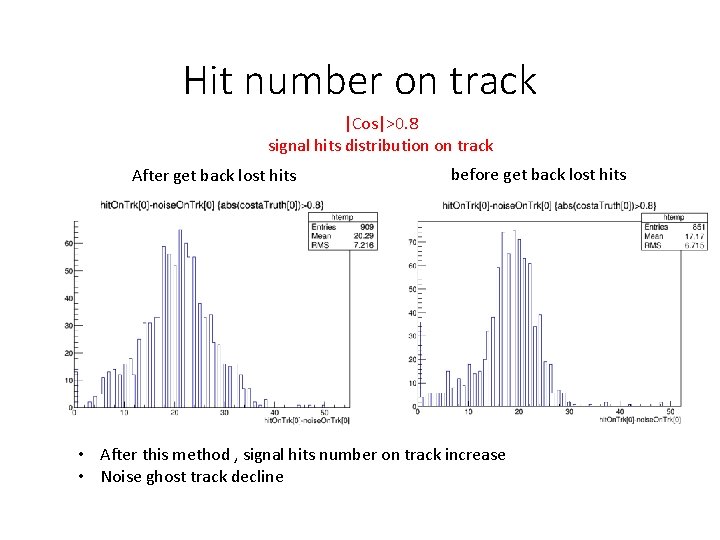

Hit number on track |Cos|>0. 8 signal hits distribution on track After get back lost hits before get back lost hits • After this method , signal hits number on track increase • Noise ghost track decline
