Results from ATLAS Calorimeter Combined Test Beam The 2007 Europhysics Conference on High Energy Physics Manchester, England, 19 -25 July Fabien Tarrade Brookhaven National Laboratory, New York tarrade@bnl. gov July 19, 2007 Manchester Fabien Tarrade (on. EPS behalf of the. England Calorimeter Combined Test Beam Team)

2004 Combined Test Beam : MDT-RPC BOS MDT-RPC Full central slice of ATLAS Tilecal Configuration very close to ATLAS Pixel & SCT 90 millions of events : e, π, μ, γ, p LAr TRT LAr Energy between 1 and 350 Ge. V Goals: Study of individual detector performance (efficiency, resolutions, noise) muons chambers Set-up muons chambers Combined performance (material effects, particle ID, photon conversions) Validate the modelisation of the Monte Carlo TRT hadronic calorimeter electromagnetic calorimeter Common ATLAS software used to analyze the data July 19, 2007 EPS Manchester England Fabien Tarrade 2

ATLAS Calorimetry Calorimeters : Hadronic Tile Calorimeter EM Accordion Calorimeters η = 2. 5 η = 1. 475 η = 1. 8 η = 3. 2 Electromagnetic Barrel : (in |η|<1. 475) σE/E = 10%/√E(Ge. V) 0. 245/E(Ge. V) 0. 7% (low luminosity) Layer Hadronic LAr End. Cap Calorimeters Forward LAr Calorimeters Back Middle η-Strips φ Presampler 0. 025 x 0. 1 Strips 0. 003 x 0. 1 Middle 0. 025 x 0. 025 Back 0. 05 x 0. 025 Hadronic Barrel : ( in |η|<1. 7) σE/E = 50%/√E(Ge. V) 3. 0 % Layer η η-Strips July 19, 2007 EPS Manchester England Granularity ( x ) Tile 0 Tile 1 Tile 2 Granularity ( x ) 0. 1 x 0. 1 0. 2 x 0. 1 Fabien Tarrade 3

LAr Energy Reconstruction amplitude LAr Energy reconstruction : Energy : Electronic calibration : a = Optimal Filtering Coefficients F = ADC→Me. V P = pedestal strips 7% 400 ns Strips cross talk corrections : % 25 ns During calibration runs the signal of the neighboring cells needs to be added to the pulsed cell Electronic calibration constant corrected for the cross-talk These corrections have been developed for the test beam, implemented into our common software and will be used in ATLAS July 19, 2007 EPS Manchester England t (ns) electronic calibration pulse amplitude (ADC) 0. 9 Signal in one strip gets distributed into neighboring strips due to cross talk data : 5 samples cross talk corrected pulse standard pulse t (ns) Fabien Tarrade 4

Monte Carlo/Data (High Energies) 1/N d. N/d. E 100 Ge. V =3 x 3 fixed window cluster data MC 1/N d. N/d. E presampler strips E (Ge. V) middle E (Ge. V) 1/N d. N/d. E Electrons at 100 Ge. V, good agreement for all energies : back E (Ge. V) July 19, 2007 EPS Manchester England E (Ge. V) Fabien Tarrade 5

Monte Carlo/Data (Low Energies) 1/N d. N/d. E 3 Ge. V =5 x 5 fixed window cluster data MC 1/N d. N/d. E presampler E (Ge. V) middle E (Ge. V) July 19, 2007 EPS Manchester England strips E (Ge. V) 1/N d. N/d. E Electrons at 3 Ge. V, similar good agreement for other very low energies : back E (Ge. V) Fabien Tarrade 6

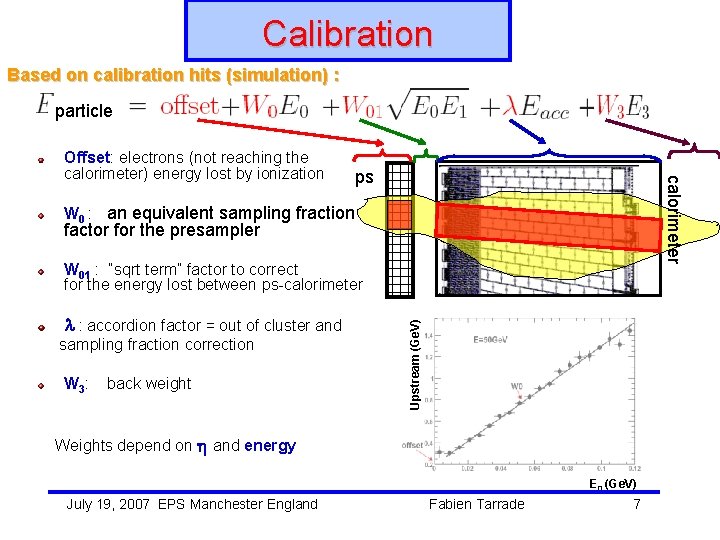

Calibration Based on calibration hits (simulation) : particle ps calorimeter Offset: electrons (not reaching the calorimeter) energy lost by ionization W 0 : an equivalent sampling fraction factor for the presampler : accordion factor = out of cluster and sampling fraction correction W 3: back weight Upstream (Ge. V) W 01 : “sqrt term” factor to correct for the energy lost between ps-calorimeter Weights depend on and energy E 0 (Ge. V) July 19, 2007 EPS Manchester England Fabien Tarrade 7

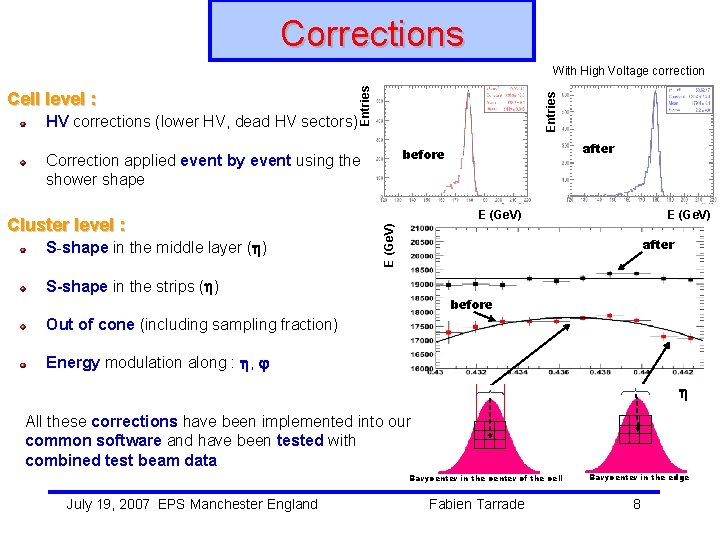

Corrections HV corrections (lower HV, dead HV sectors) Entries Cell level : Entries With High Voltage correction S-shape in the middle layer ( ) E (Ge. V) Cluster level : after before Correction applied event by event using the shower shape after S-shape in the strips ( ) before Out of cone (including sampling fraction) Energy modulation along : , All these corrections have been implemented into our common software and have been tested with combined test beam data Barycenter in the center of the cell July 19, 2007 EPS Manchester England Fabien Tarrade Barycenter in the edge 8

LAr Standalone High Energy Results Energy resolution : σ/<E> (%) Substracted electronics noise (~200 Me. V) Local constant term : 0. 41 % Sampling term : 10. 1 % σ(E)/E = 10. 1%/√E 0. 41% Uniformity response : Electron at 180 Ge. V : eta scan η=[0. 03, 0. 6] Non-uniformity : 0. 53 % E beam (Ge. V) red: Monte Carlo black: Data E (Ge. V) Erec(Ge. V) <(E-E beam )>/E beam > Global constant term: ~0. 7% Linearity better than 0. 2% non-uniformity: 0. 53% E beam (Ge. V) July 19, 2007 EPS Manchester England Fabien Tarrade 9

E/E beam Very Low Energy Electrons MC Study The accordion factor : corrects for the sampling fraction and compensates for out of cluster energy (lateral leakage) Parametrization as function of energy/ shower depth MC study shows that a pure energy parametrization of the calibration constants leads to an over-estimation of energies below 10 Ge. V σ/E (%) Sampling fraction corrections taking into account the shower depth (and using 5 x 5 clusters) perform better E beam (Ge. V) Next steps: Apply this modified calibration scheme to combined test beam data July 19, 2007 EPS Manchester England E beam (Ge. V) Fabien Tarrade 10

Very Low Energy Pions : Systematic pion analysis being done, determination of purity of pion sample (few percents electron contamination) Entries Very Low Energy Pions Data Analysis 3 Ge. V pions The electrons were rejected using TRT and Cherenkov counter Pions were rejected requiring a small signal in the third sample of Tile. Cal ED < 150 Me. V Pions response fitted using a double gaussian function one for the e and the other for π E/E beam Fully constrained gaussian for e (shape and integral) E(LAr+Tile) (Ge. V) 4 Ge. V pions Muon contamination negligible (around 0. 5% muon contamination) The errors include systematic errors due to pedestal subtraction, electron contamination and beam uncertainties. The statistical errors dominate July 19, 2007 EPS Manchester England Fabien Tarrade 11

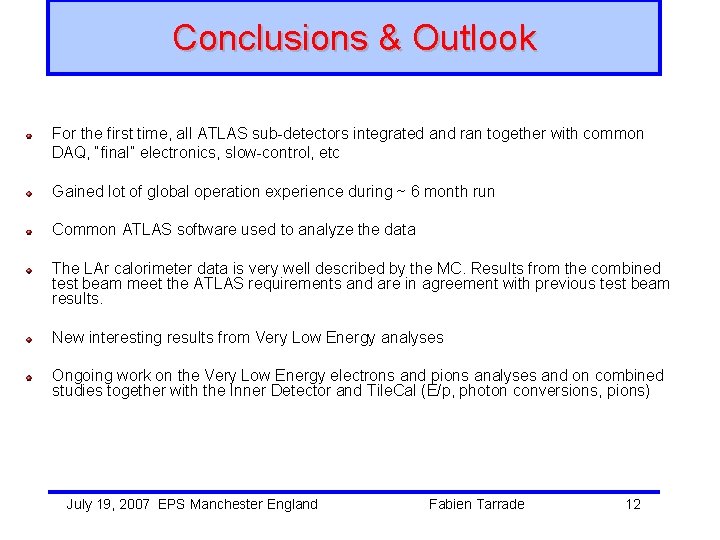

Conclusions & Outlook For the first time, all ATLAS sub-detectors integrated and ran together with common DAQ, “final” electronics, slow-control, etc Gained lot of global operation experience during ~ 6 month run Common ATLAS software used to analyze the data The LAr calorimeter data is very well described by the MC. Results from the combined test beam meet the ATLAS requirements and are in agreement with previous test beam results. New interesting results from Very Low Energy analyses Ongoing work on the Very Low Energy electrons and pions analyses and on combined studies together with the Inner Detector and Tile. Cal (E/p, photon conversions, pions) July 19, 2007 EPS Manchester England Fabien Tarrade 12

The Road to Physics Test beam (1% of ATLAS) Subdetector Installation, Cosmic Ray Commissioning 2005 2006 July 19, 2007 EPS Manchester England 2007 First LHC collisions 2008 Fabien Tarrade 13

Back-up Slides July 19, 2007 EPS Manchester England Fabien Tarrade 14

ATLAS layout Muon Detectors Electromagnetic Calorimeters Solenoid Forward Calorimeters End. Cap Toroid Barrel Toroid Inner Detector July 19, 2007 EPS Manchester England Hadronic Calorimeters Fabien Tarrade Shielding 15

Inner Detector Impulsion resolution : σ(p)/p = 0. 05 % p (Ge. V) 1% for |η|<2. 5 inner detector : Central Solenoid 2 T pixels detector SCT (Semi-Conductor Tracker) TRT (Transition Radiation Tracker) July 19, 2007 EPS Manchester England Fabien Tarrade 16

Calorimeters Energy resolution (Ge. V) : electromagnetic : σ(E)/E = 10%/√E 0. 3/E 0. 7% for |η|<3. 2 hadronic : σ(E)/E = 50%/√E 3% for |η|<3 : σ(E)/E = 100%/√E 5% for 3<|η|<5 Calorimeters : electromagnetic hadronic July 19, 2007 EPS Manchester England Fabien Tarrade 17

Muon Spectrometer Impulsion resolution : σ(p. T)/p. T < 3% for 10<p. T<250 Ge. V and for |η|<2. 7 σ(p. T)/p. T = 10 % at 1 Te. V Muon spectrometer : barrel toroid: 8 separate coils and 2 end-cap toroids MDT (Monitored Drift Tubes) CSC (Cathode Strips Chambers) RPC (Resistive Plate Chambers) TGC (Thin Gap Chambers ) July 19, 2007 EPS Manchester England Fabien Tarrade 18

Electromagnetic Calorimeter (LArg) end-caps r barrel caracteristics : sampling calorimeter lead/LArg liquid argon (90 K) : stable acceptance : |η|<1. 475 for the barrel 1. 375<|η|<3. 2 for the end-caps accordeon-shaped' geometry barrel : depth (fonctions of r) : 25 to 34 X 0 lenghts of radiation 2 half barrels z<0 and z>0 1 hafl barrel : 16 modules July 19, 2007 EPS Manchester England Fabien Tarrade 19

Principle and Segmentation principle : φ development of the shower : lead absorbers : X 0=0. 56 cm ionisation of LAr : electrons of ionisation particlws η signal : collected by the centrale layer of the electrod segmentation : layer pre-sampler strip middle back granularity ( × ) 0. 025 x 0. 1 0. 003 x 0. 1 0. 025 x 0. 025 0. 05 x 0. 025 =0. 8 =0 depth 1 -2 X 0 3 -5 X 0 15 -18 X 0 1 -8 X 0 Back layer Middle layer r φ presampler Strip layer η Back layer cells =1. 4 Middle layer r Strip layer Pre-sampler July 19, 2007 EPS Manchester England Fabien Tarrade 20

Reconstruction of the energy reconstruction of the energy for a cell : ADC counts Use of Optimal Filtering Coefficients : physic calibration DAC calculate calibration N sample extraction from Monte Carlo + test beam sample[i] Ratio of maximums : gphysique over gcalibration July 19, 2007 EPS Manchester England Fabien Tarrade - pedestal Optimal Filtering Coefficients 21

2004 Combined Test Beam : Configuration very close to ATLAS Full central slice of ATLAS: - MBPS magnet with horizontal field (1. 4 T) - 3 x 2 pixel and 4 SCT planes - TRT - LAr barrel module - 3 TILE Calo. Modules - Muon chambers MDT-RPC BOS Tilecal Pixel& SCT TRT LAr Read-out/DAQ/software as in ATLAS Beams: e, γ, π, p, μ (from 1 to 350 Ge. V) July 19, 2007 EPS Manchester England Fabien Tarrade 22

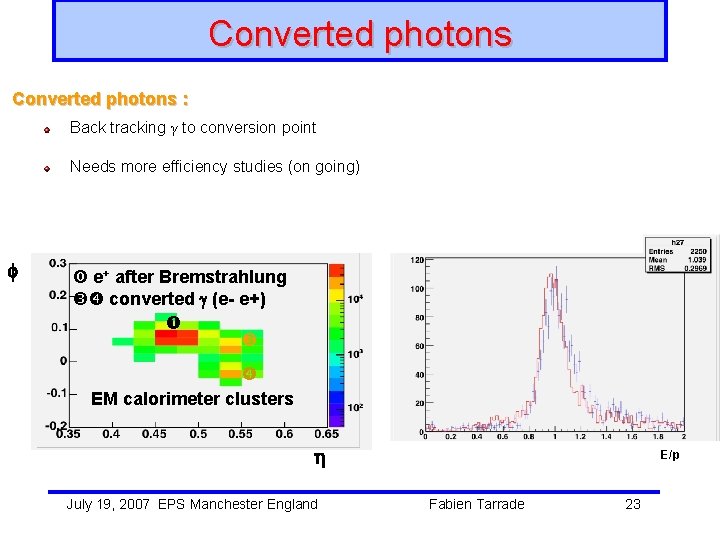

Converted photons : Back tracking γ to conversion point Needs more efficiency studies (on going) f e+ after Bremstrahlung converted (e- e+) EM calorimeter clusters July 19, 2007 EPS Manchester England E/p Fabien Tarrade 23
