RESS6 14 REESS mechanical integrity test structure Folie

RESS-6 -14 REESS mechanical integrity test structure Folie 1

REESS mechanical integrity test 6. 4. 2 Mechanical Integrity 6. 4. 2. 1 Vehicle based test 6. 4. 2. 1. 1 Vehicle based dynamic test Crash test acc. ECE-R 94/95 6. 4. 2. 1. 2 Vehicle based static test - static test using contact force acc. ECE-R 94/95 - using vehicle structure No vehicle installation limitations v vehicle allowed Folie 2

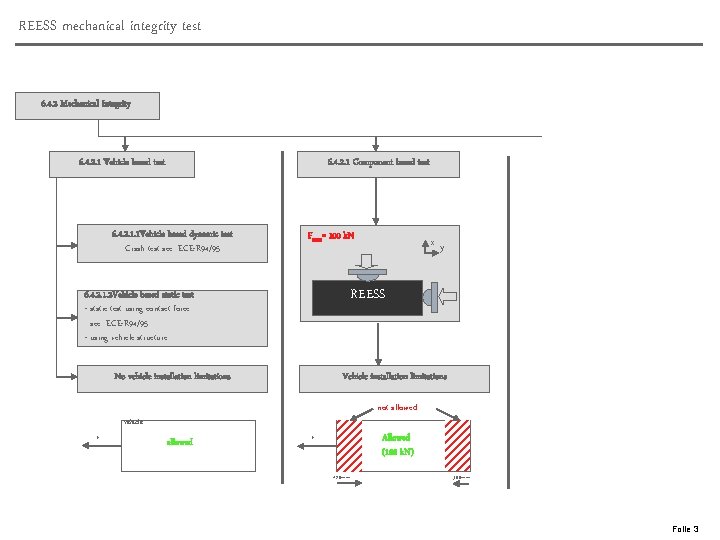

REESS mechanical integrity test 6. 4. 2 Mechanical Integrity 6. 4. 2. 1 Vehicle based test 6. 4. 2. 1 Component based test 6. 4. 2. 1. 1 Vehicle based dynamic test Crash test acc. ECE-R 94/95 Fmax= 100 k. N REESS 6. 4. 2. 1. 2 Vehicle based static test - static test using contact force acc. ECE-R 94/95 - using vehicle structure No vehicle installation limitations v xy Vehicle installation limitations not allowed vehicle allowed v Allowed (100 k. N) 420 mm 300 mm Folie 3

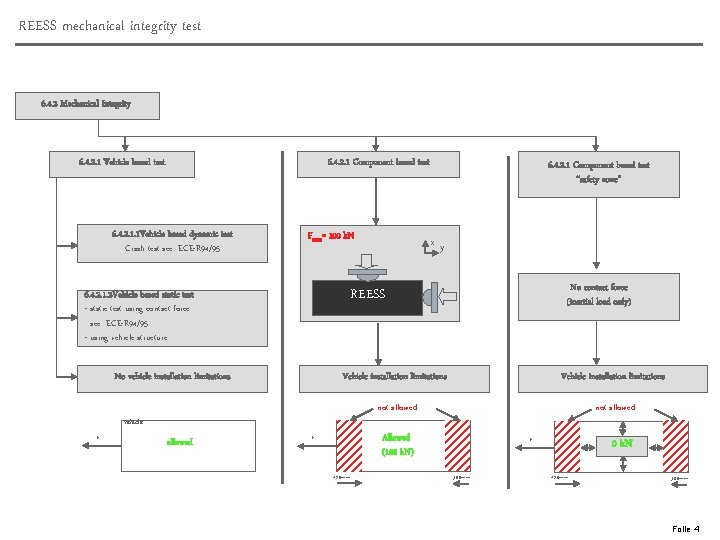

REESS mechanical integrity test 6. 4. 2 Mechanical Integrity 6. 4. 2. 1 Vehicle based test 6. 4. 2. 1 Component based test 6. 4. 2. 1. 1 Vehicle based dynamic test Crash test acc. ECE-R 94/95 Fmax= 100 k. N No vehicle installation limitations No contact force (inertial load only) Vehicle installation limitations not allowed vehicle allowed xy REESS 6. 4. 2. 1. 2 Vehicle based static test - static test using contact force acc. ECE-R 94/95 - using vehicle structure v 6. 4. 2. 1 Component based test “safety zone” v Allowed (100 k. N) 420 mm v 300 mm 0 k. N 420 mm 300 mm Folie 4

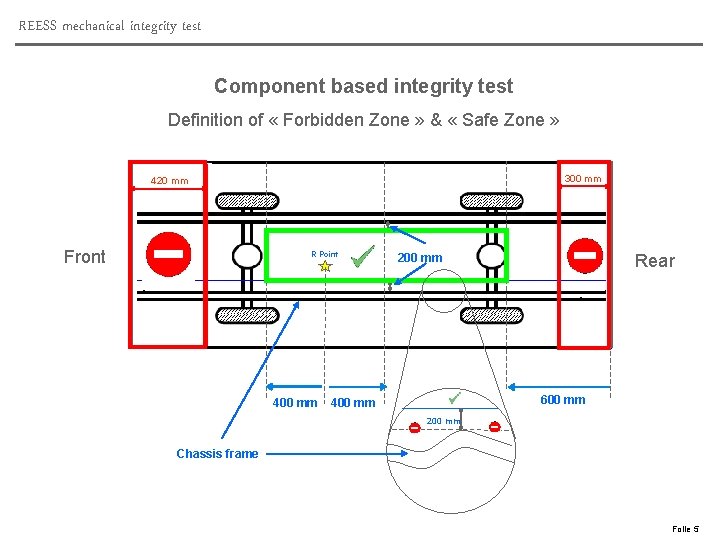

REESS mechanical integrity test Component based integrity test Definition of « Forbidden Zone » & « Safe Zone » 300 mm 420 mm Front R Point 400 mm Rear 200 mm 600 mm 400 mm 200 mm Chassis frame Folie 5
