Respiration Processes Breathing ventilation air into and out

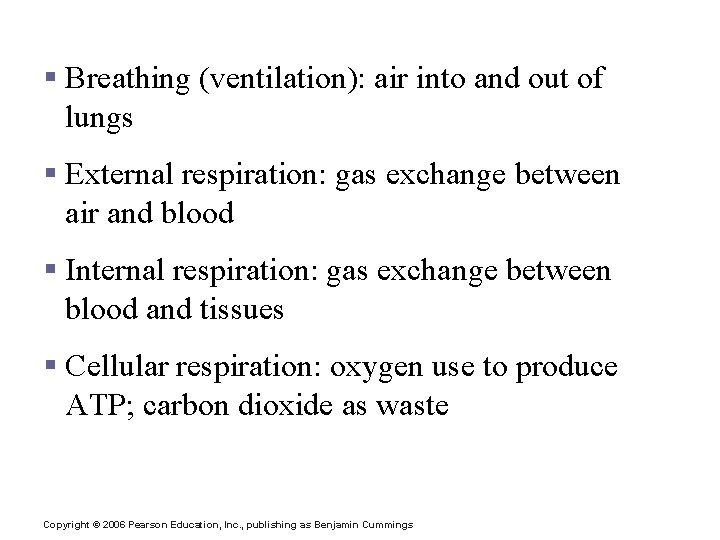

Respiration Processes § Breathing (ventilation): air into and out of lungs § External respiration: gas exchange between air and blood § Internal respiration: gas exchange between blood and tissues § Cellular respiration: oxygen use to produce ATP; carbon dioxide as waste Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

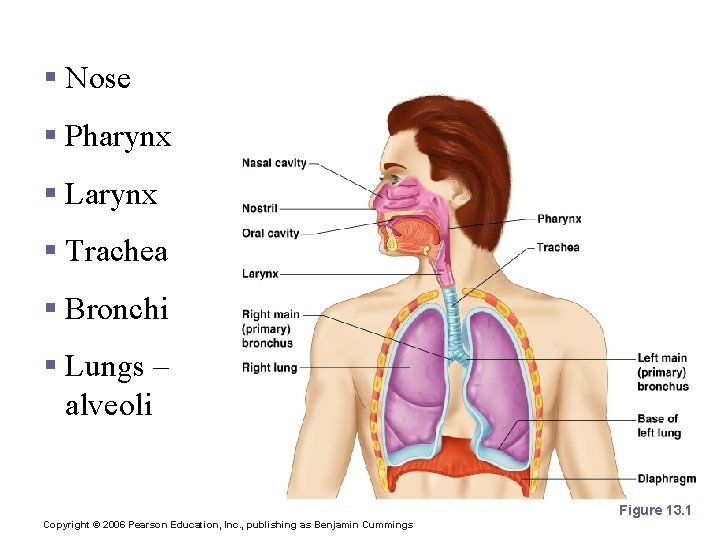

Organs of the Respiratory system § Nose § Pharynx § Larynx § Trachea §

Components of the Upper Respiratory Tract Nose, pharynx Copyright © 2006 Pearson Education, Inc.

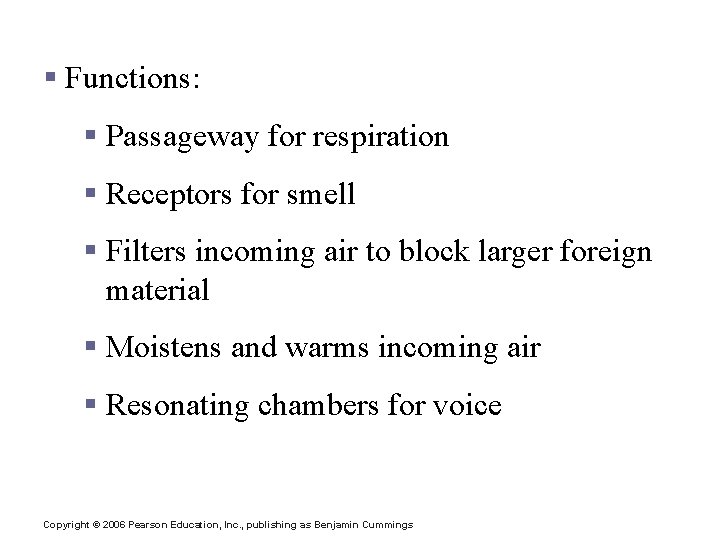

Upper Respiratory Tract § Functions: § Passageway for respiration § Receptors for smell § Filters incoming air to block larger foreign material § Moistens and warms incoming air § Resonating chambers for voice Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

Components of the Lower Respiratory Tract §Functions: §Larynx: maintains an open airway, routes food and air appropriately, assists in sound production §Trachea: transports air to and from lungs Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings Figure 10. 3

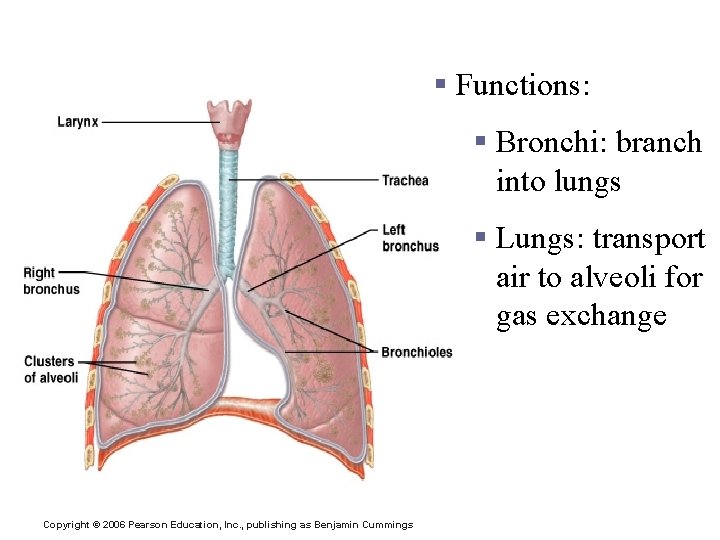

Lower Respiratory Tract § Functions: § Bronchi: branch into lungs § Lungs: transport air

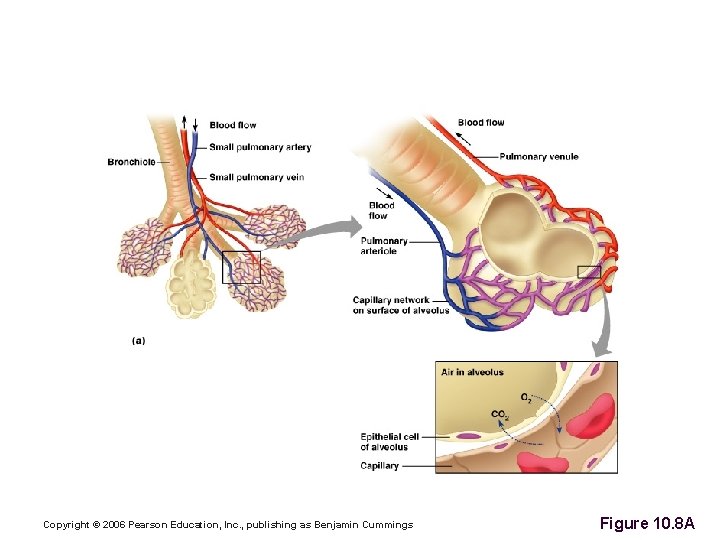

Gas Exchange Between the Blood and Alveoli Copyright © 2006 Pearson Education, Inc. ,

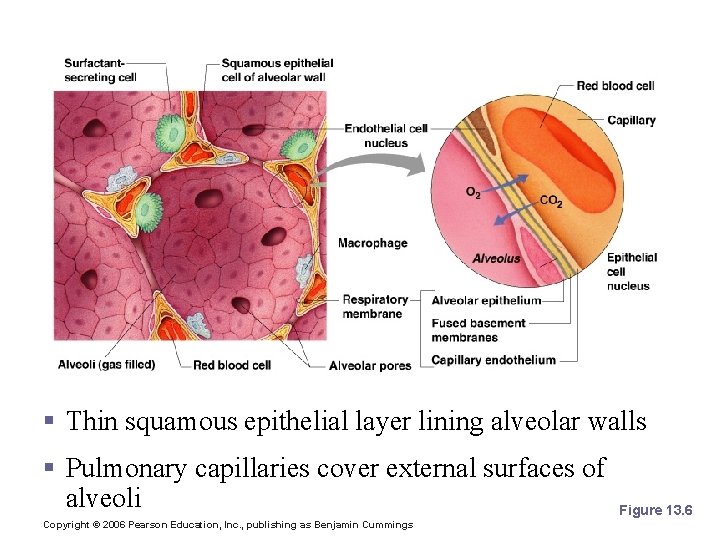

Respiratory Membrane (Air-Blood Barrier) § Thin squamous epithelial layer lining alveolar walls § Pulmonary capillaries cover external surfaces of alveoli Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings Figure 13. 6

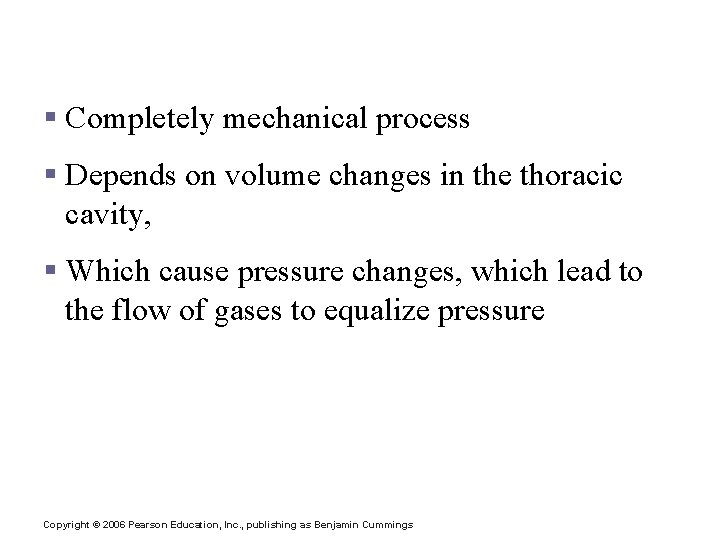

Mechanics of Breathing (Pulmonary Ventilation) § Completely mechanical process § Depends on volume changes in the thoracic cavity, § Which cause pressure changes, which lead to the flow of gases to equalize pressure Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

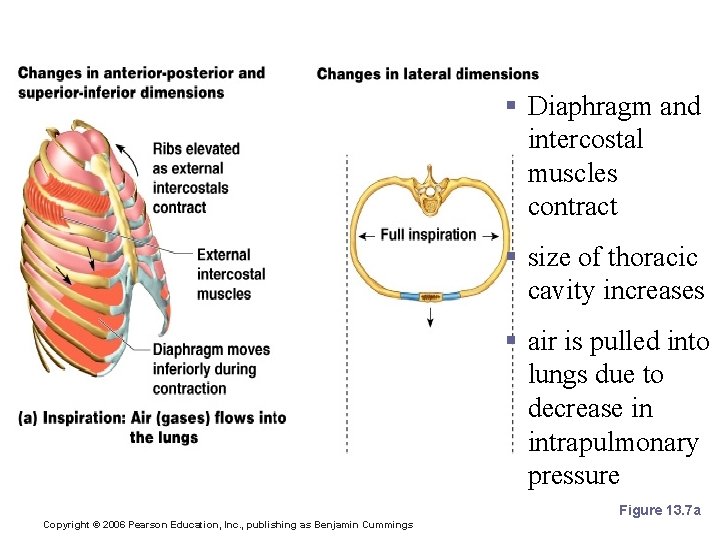

Inspiration - flow of air into lung § Diaphragm and intercostal muscles contract § size of thoracic cavity increases § air is pulled into lungs due to decrease in intrapulmonary pressure Figure 13. 7 a Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

Expiration– air leaving lung §passive process; uses natural lung elasticity §As muscles relax, air

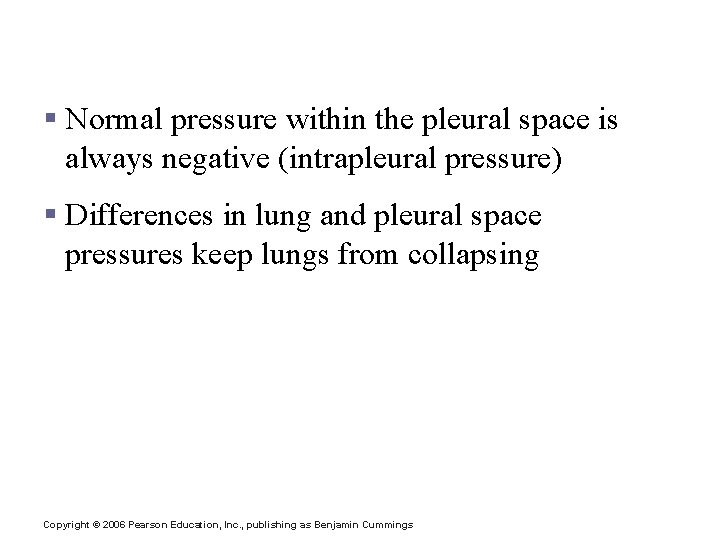

Pressure Differences in the Thoracic Cavity § Normal pressure within the pleural space is always negative (intrapleural pressure) § Differences in lung and pleural space pressures keep lungs from collapsing Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

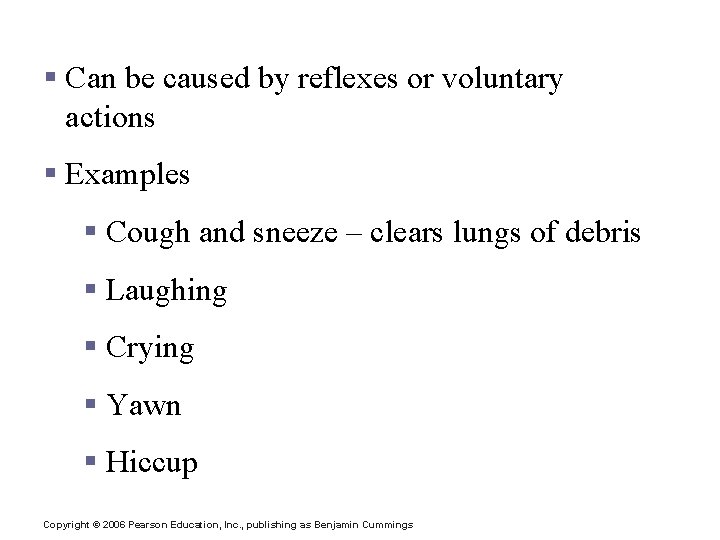

Nonrespiratory Air Movements § Can be caused by reflexes or voluntary actions § Examples § Cough and sneeze – clears lungs of debris § Laughing § Crying § Yawn § Hiccup Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

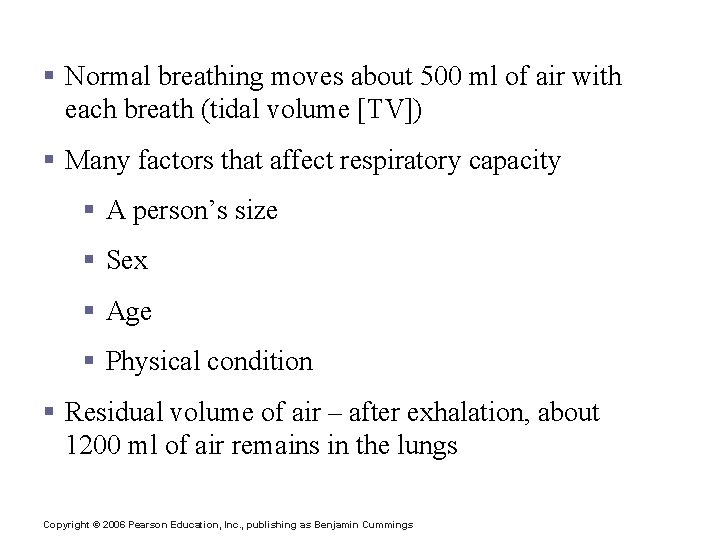

Respiratory Volumes and Capacities § Normal breathing moves about 500 ml of air with each breath (tidal volume [TV]) § Many factors that affect respiratory capacity § A person’s size § Sex § Age § Physical condition § Residual volume of air – after exhalation, about 1200 ml of air remains in the lungs Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

Respiratory Capacities Figure 13. 9 Copyright © 2006 Pearson Education, Inc. , publishing as

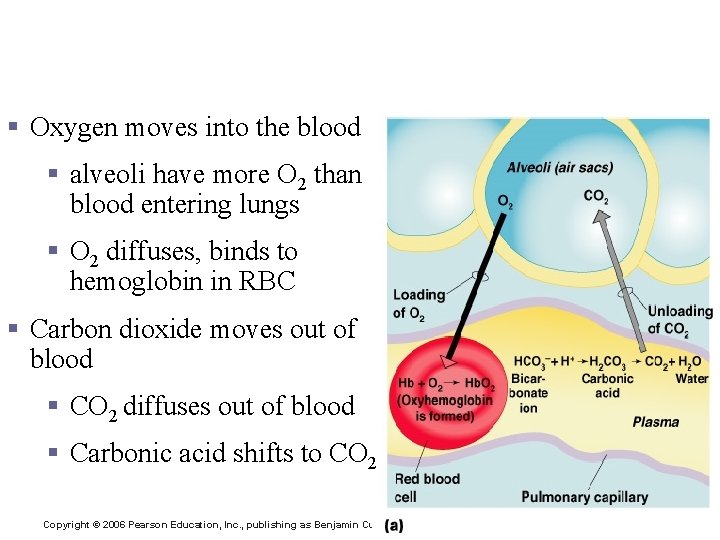

External Respiration - gas exchange between air and blood § Oxygen moves into the blood § alveoli have more O 2 than blood entering lungs § O 2 diffuses, binds to hemoglobin in RBC § Carbon dioxide moves out of blood § CO 2 diffuses out of blood § Carbonic acid shifts to CO 2 Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

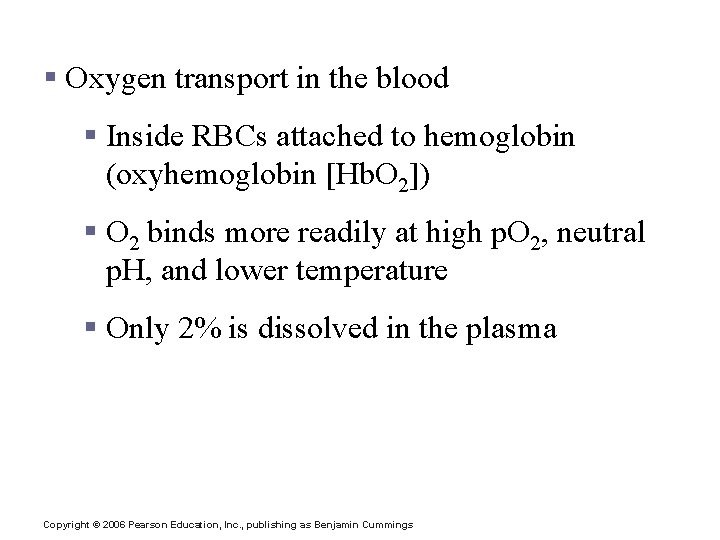

Gas Transport in the Blood § Oxygen transport in the blood § Inside RBCs attached to hemoglobin (oxyhemoglobin [Hb. O 2]) § O 2 binds more readily at high p. O 2, neutral p. H, and lower temperature § Only 2% is dissolved in the plasma Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

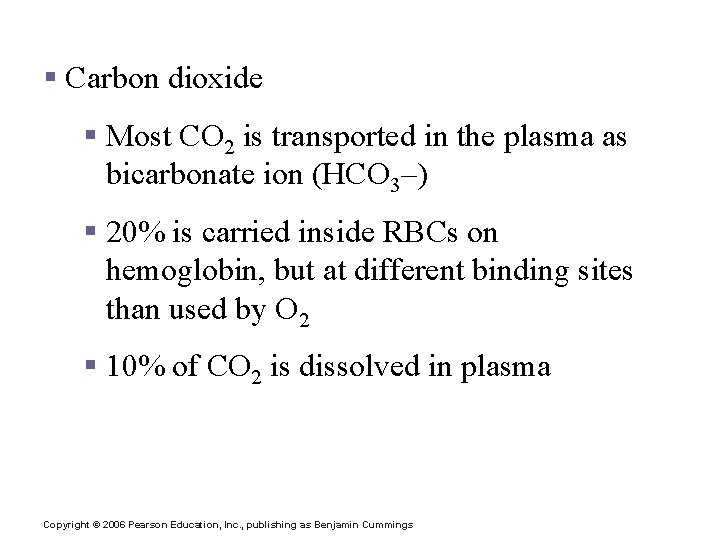

Gas Transport in the Blood § Carbon dioxide § Most CO 2 is transported in the plasma as bicarbonate ion (HCO 3–) § 20% is carried inside RBCs on hemoglobin, but at different binding sites than used by O 2 § 10% of CO 2 is dissolved in plasma Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

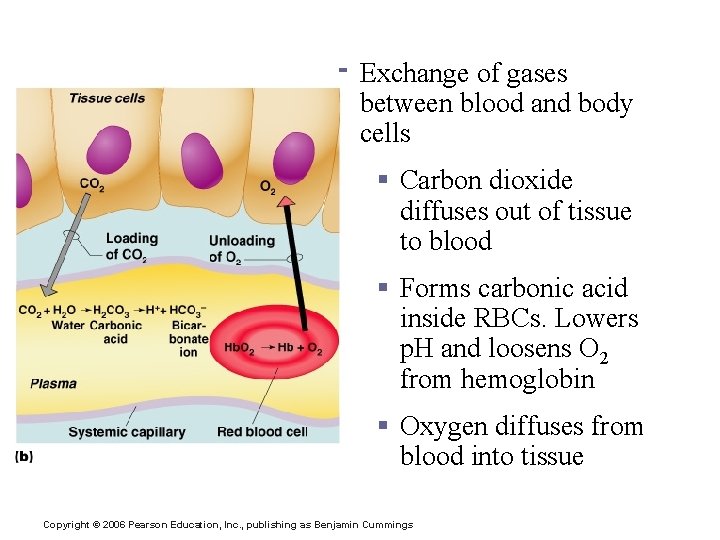

Internal Respiration § Exchange of gases between blood and body cells § Carbon dioxide diffuses out of tissue to blood § Forms carbonic acid inside RBCs. Lowers p. H and loosens O 2 from hemoglobin § Oxygen diffuses from blood into tissue Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

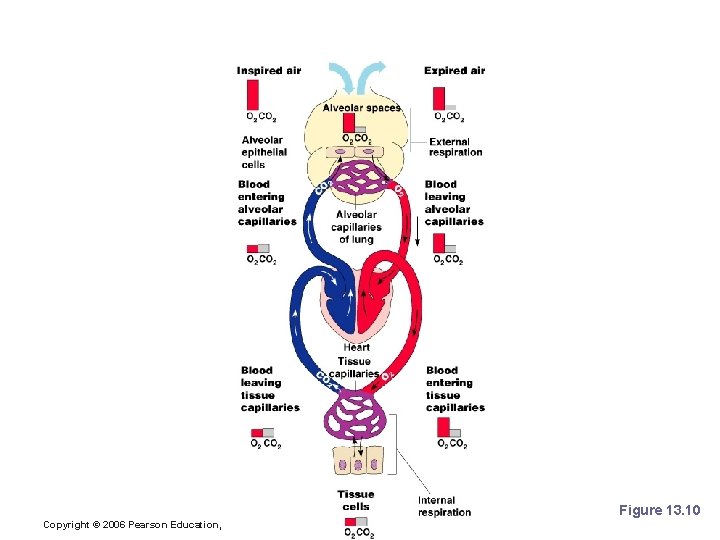

Respiration Summary Figure 13. 10 Copyright © 2006 Pearson Education, Inc. , publishing as

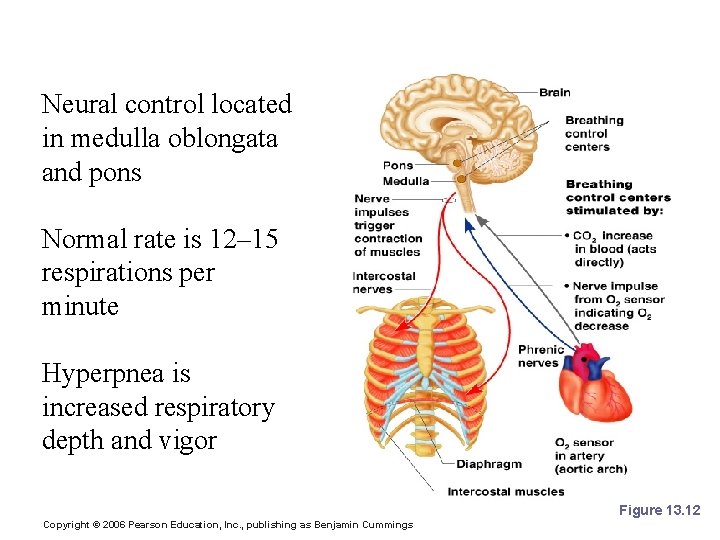

Neural Regulation of Respiration Neural control located in medulla oblongata and pons Normal rate is 12– 15 respirations per minute Hyperpnea is increased respiratory depth and vigor Figure 13. 12 Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

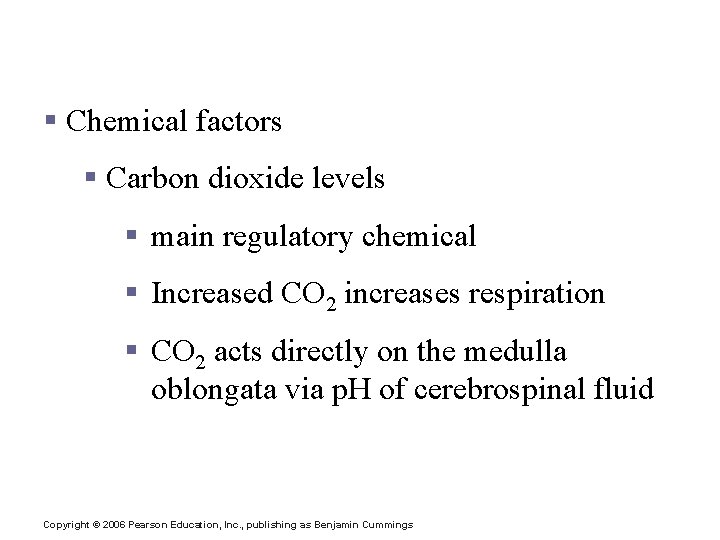

Factors Influencing Respiratory Rate and Depth § Chemical factors § Carbon dioxide levels § main regulatory chemical § Increased CO 2 increases respiration § CO 2 acts directly on the medulla oblongata via p. H of cerebrospinal fluid Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

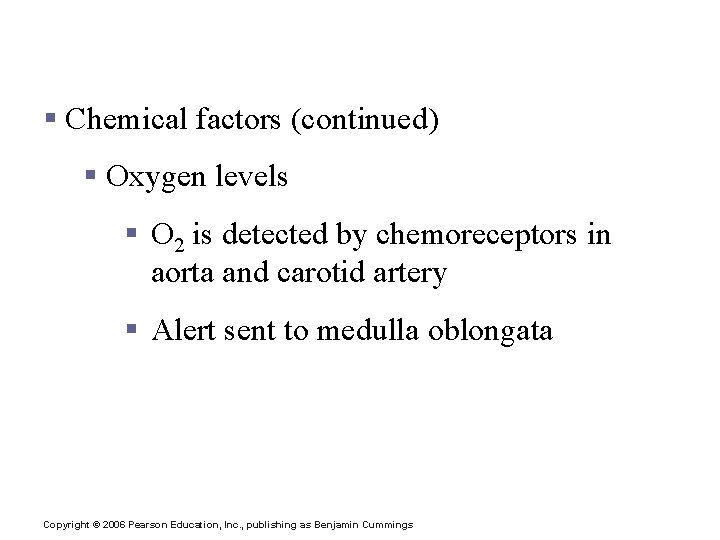

Factors Influencing Respiratory Rate and Depth § Chemical factors (continued) § Oxygen levels § O 2 is detected by chemoreceptors in aorta and carotid artery § Alert sent to medulla oblongata Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

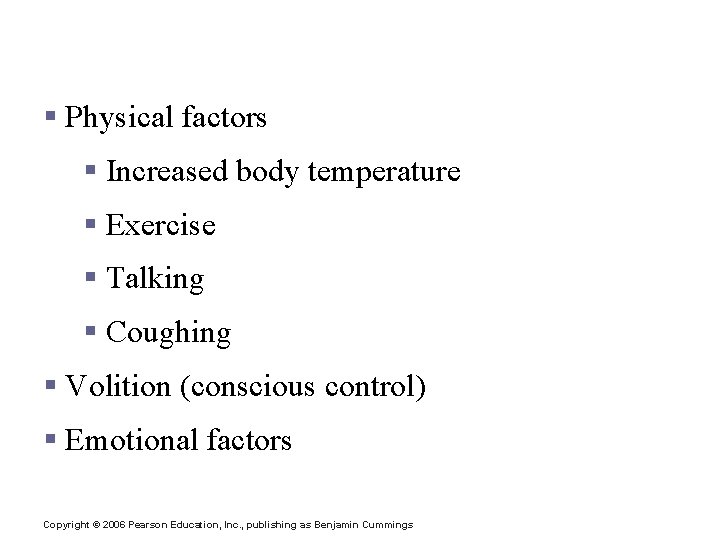

Factors Influencing Respiratory Rate and Depth § Physical factors § Increased body temperature § Exercise § Talking § Coughing § Volition (conscious control) § Emotional factors Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

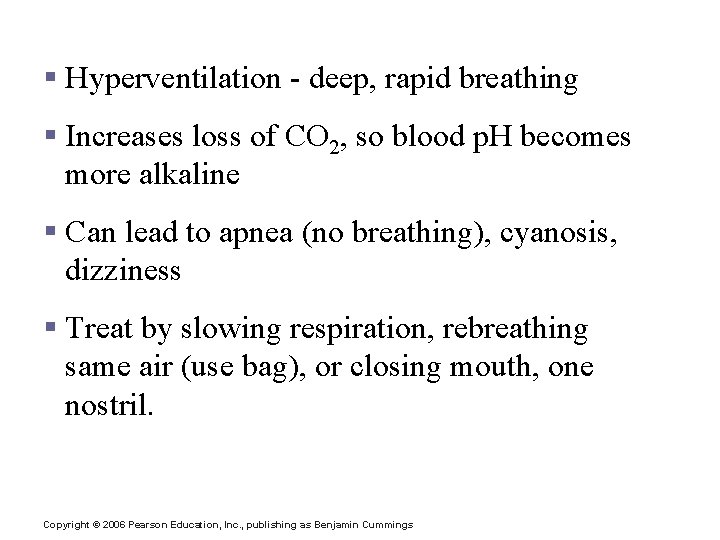

Hyperventilation § Hyperventilation - deep, rapid breathing § Increases loss of CO 2, so blood p. H becomes more alkaline § Can lead to apnea (no breathing), cyanosis, dizziness § Treat by slowing respiration, rebreathing same air (use bag), or closing mouth, one nostril. Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

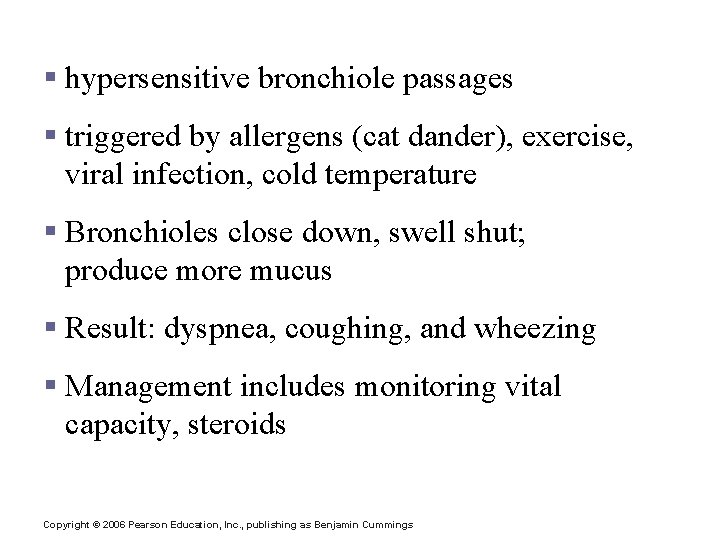

Asthma § hypersensitive bronchiole passages § triggered by allergens (cat dander), exercise, viral infection, cold temperature § Bronchioles close down, swell shut; produce more mucus § Result: dyspnea, coughing, and wheezing § Management includes monitoring vital capacity, steroids Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

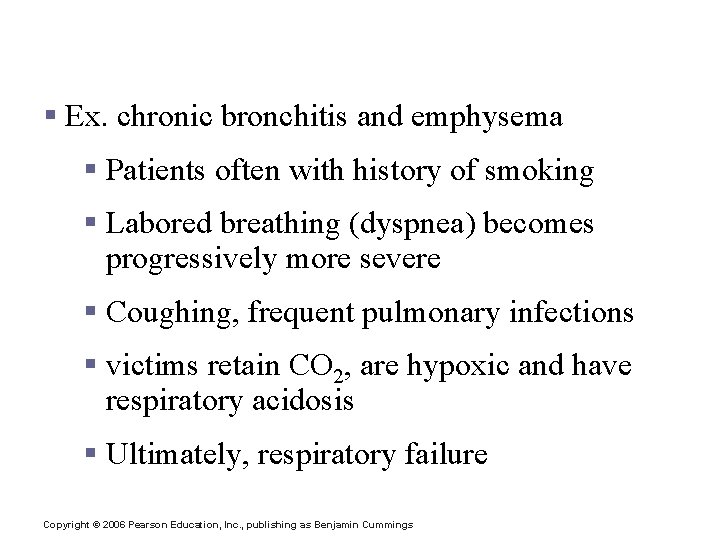

Respiratory Disorders: Chronic Obstructive Pulmonary Diseases (COPD) § Ex. chronic bronchitis and emphysema § Patients often with history of smoking § Labored breathing (dyspnea) becomes progressively more severe § Coughing, frequent pulmonary infections § victims retain CO 2, are hypoxic and have respiratory acidosis § Ultimately, respiratory failure Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

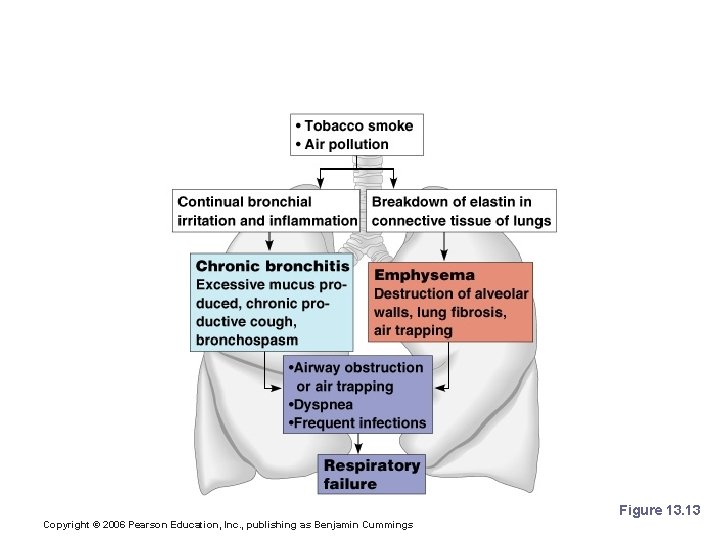

Chronic Obstructive Pulmonary Disease (COPD) Figure 13. 13 Copyright © 2006 Pearson Education, Inc.

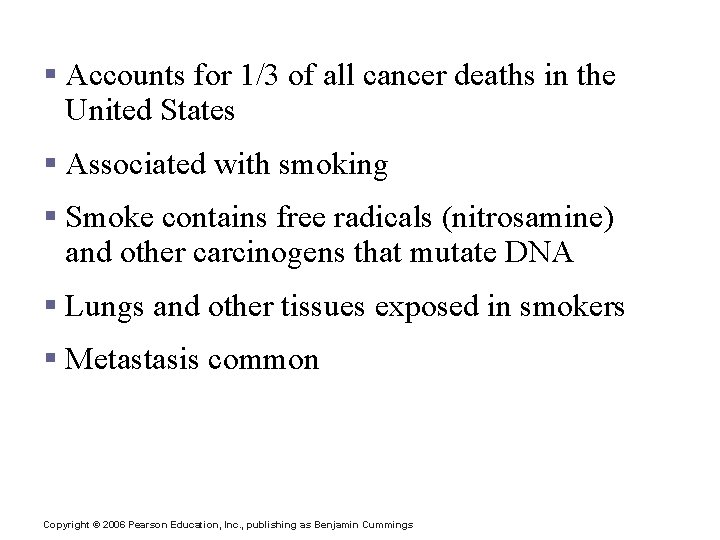

Lung Cancer § Accounts for 1/3 of all cancer deaths in the United States § Associated with smoking § Smoke contains free radicals (nitrosamine) and other carcinogens that mutate DNA § Lungs and other tissues exposed in smokers § Metastasis common Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings

Sudden Infant Death syndrome (SIDS) § Apparently healthy infant stops breathing and dies during sleep § Some cases could be a problem of the neural respiratory control center § One third of cases appear to be due to heart rhythm abnormalities Copyright © 2006 Pearson Education, Inc. , publishing as Benjamin Cummings
